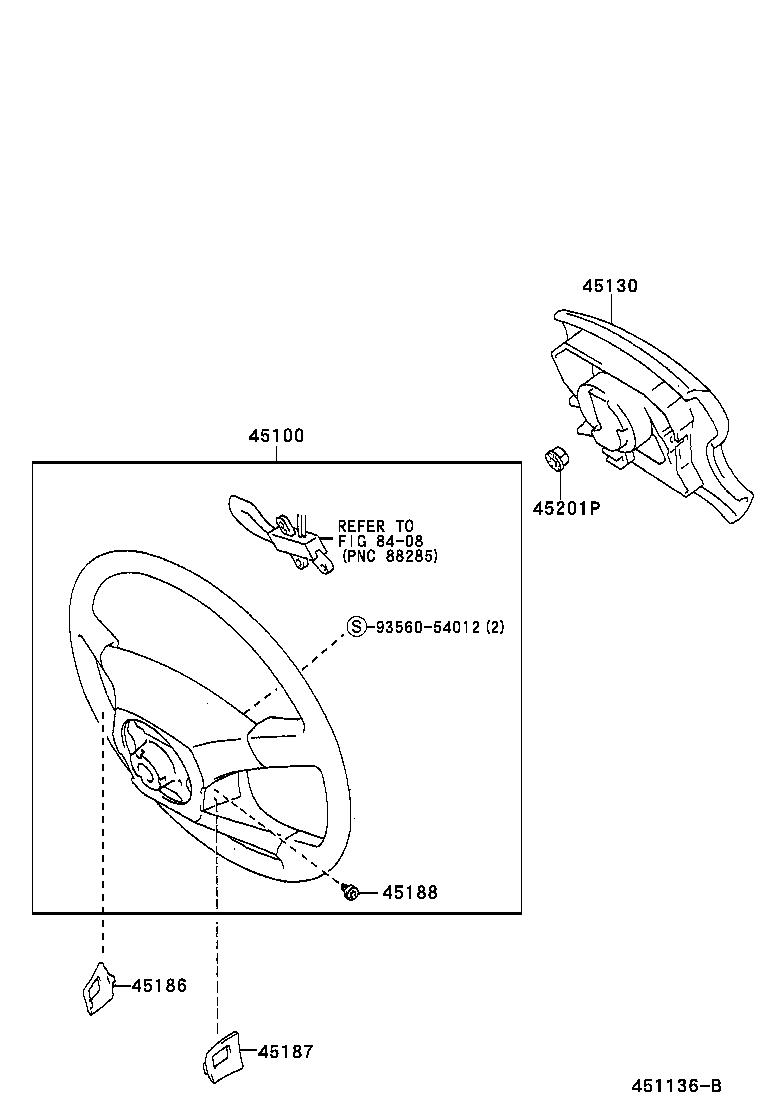

FZJ105L-GCMRK (1998)
Toyota Land Cruiser 100
(9801-0208)DSL2,EFI,TD2 ; (0008-0208)HDJ100..GX
4-SPOKE,W(*80)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-60280B0 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105 4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-60390B1 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105 4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-60440B0 |
HDJ100,UZJ100..LHD..GEN;FZJ10#,HDJ100,HZJ105..GX,STD 4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-60250B1 |
FZJ10#,HZJ105 3-SPOKE,URETHANE,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-60250B2 |
FZJ10#,HZJ105..GCC,GEN 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-58010B0 |
HDJ100..LHD..5F;FZJ10#,HZJ105..ARL,GCC,GEN 4-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-58010B0 |
HDJ100..LHD..5F;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) 4-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-60250B2 |
FZJ10#,HZJ105..GCC,GEN 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-60180B0 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-60230B0 |
FZJ10#,HDJ100,HZJ105..GX,STD W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-43010B0 |
FZJ10#,HZJ105 W(3-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-60271B0 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 45130-43010B2 |
FZJ10#,HZJ105..GCC,GEN W(3-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-43010B2 |
FZJ10#,HZJ105..GCC,GEN W(3-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-60271B0 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-60020B3 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105 SHADOW GRAY,TRIM1# |
1 | ||
| 45186-58010B0 |
HDJ100,UZJ100..LHD..GEN;FZJ10#,HZJ105..ARL,GCC,GEN DK.GRAY,TRIM1# |
1 | ||
| 45186-60020B3 |
HDJ100,UZJ100..LHD..GEN;FZJ10#,HDJ100,HZJ105..GX,STD SHADOW GRAY,TRIM1# |
1 | ||
| 45186-58010B0 |
HDJ100,UZJ100..LHD..GEN;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) DK.GRAY,TRIM1# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-58010B0 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN DK.GRAY,TRIM1# |
1 | ||
| 45187-50030B3 |
FZJ10#,HDJ100,HZJ105,UZJ100 SHADOW GRAY,TRIM1# |
1 | ||
| 45187-58010B0 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN DK.GRAY,TRIM1# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN L=18 |
2 | ||
| 45188-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 L=18 |
2 | ||
| 45188-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) L=18 |
2 | ||
| 45188-60010 |
HDJ100..RHD;UZJ100..ARL,GCC;HDJ100..LHD..5F;FZJ10#,HZJ105..ARL,GCC,GEN L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90179-12071 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90179-12071 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 93560-54012 | ||||
(9801-0208)HDJ100..4FC ; (9801-0208)HDJ100..5F..GEN ; (9801-0208)FZJ10#,HZJ105,UZJ1
4-SPOKE,W(*80 & *CRC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-60280B0 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105 4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-60390B1 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105 4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-60440B0 |
HDJ100,UZJ100..LHD..GEN;FZJ10#,HDJ100,HZJ105..GX,STD 4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-60250B1 |
FZJ10#,HZJ105 3-SPOKE,URETHANE,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-60250B2 |
FZJ10#,HZJ105..GCC,GEN 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-58010B0 |
HDJ100..LHD..5F;FZJ10#,HZJ105..ARL,GCC,GEN 4-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-58010B0 |
HDJ100..LHD..5F;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) 4-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-60250B2 |
FZJ10#,HZJ105..GCC,GEN 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-60180B0 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-60230B0 |
FZJ10#,HDJ100,HZJ105..GX,STD W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-43010B0 |
FZJ10#,HZJ105 W(3-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-60271B0 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 45130-43010B2 |
FZJ10#,HZJ105..GCC,GEN W(3-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-43010B2 |
FZJ10#,HZJ105..GCC,GEN W(3-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-60271B0 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-60020B3 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105 SHADOW GRAY,TRIM1# |
1 | ||
| 45186-58010B0 |
HDJ100,UZJ100..LHD..GEN;FZJ10#,HZJ105..ARL,GCC,GEN DK.GRAY,TRIM1# |
1 | ||
| 45186-60020B3 |
HDJ100,UZJ100..LHD..GEN;FZJ10#,HDJ100,HZJ105..GX,STD SHADOW GRAY,TRIM1# |
1 | ||
| 45186-58010B0 |
HDJ100,UZJ100..LHD..GEN;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) DK.GRAY,TRIM1# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-58010B0 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN DK.GRAY,TRIM1# |
1 | ||
| 45187-50030B3 |
FZJ10#,HDJ100,HZJ105,UZJ100 SHADOW GRAY,TRIM1# |
1 | ||
| 45187-58010B0 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN DK.GRAY,TRIM1# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN L=18 |
2 | ||
| 45188-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 L=18 |
2 | ||
| 45188-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) L=18 |
2 | ||
| 45188-60010 |
HDJ100..RHD;UZJ100..ARL,GCC;HDJ100..LHD..5F;FZJ10#,HZJ105..ARL,GCC,GEN L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90179-12071 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90179-12071 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8408 | ||||
(9801-0208)FZJ10#,HZJ105 ; (0208- )FZJ10#,HZJ105..GCC,GEN
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-60280B0 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105 4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-60390B1 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105 4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-60440B0 |
HDJ100,UZJ100..LHD..GEN;FZJ10#,HDJ100,HZJ105..GX,STD 4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-60250B1 |
FZJ10#,HZJ105 3-SPOKE,URETHANE,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-60250B2 |
FZJ10#,HZJ105..GCC,GEN 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-58010B0 |
HDJ100..LHD..5F;FZJ10#,HZJ105..ARL,GCC,GEN 4-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-58010B0 |
HDJ100..LHD..5F;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) 4-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-60250B2 |
FZJ10#,HZJ105..GCC,GEN 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-30220 |
FZJ10#,HZJ105 |
1 | ||
| 45105-30220 |
FZJ10#,HZJ105..GCC,GEN |
1 | ||
| 45105-30220 |
FZJ10#,HZJ105..GCC,GEN |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-60180B0 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-60230B0 |
FZJ10#,HDJ100,HZJ105..GX,STD W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-43010B0 |
FZJ10#,HZJ105 W(3-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-60271B0 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 45130-43010B2 |
FZJ10#,HZJ105..GCC,GEN W(3-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-43010B2 |
FZJ10#,HZJ105..GCC,GEN W(3-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-60271B0 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-60070B2 |
FZJ10#,HZJ105..GCC,GEN DK.GRAY,TRIM1# |
1 | ||
| 45180-60070B1 |
FZJ10#,HZJ105 SHADOW GRAY,TRIM1# |
1 | ||
| 45180-60070B2 |
FZJ10#,HZJ105..GCC,GEN DK.GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90179-12071 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90179-12071 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90159-50238 | ||||
| 90168-40113 | ||||
(0208- )
4-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-60280B0 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105 4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-60390B1 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105 4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-60440B0 |
HDJ100,UZJ100..LHD..GEN;FZJ10#,HDJ100,HZJ105..GX,STD 4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-60250B1 |
FZJ10#,HZJ105 3-SPOKE,URETHANE,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-60250B2 |
FZJ10#,HZJ105..GCC,GEN 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-58010B0 |
HDJ100..LHD..5F;FZJ10#,HZJ105..ARL,GCC,GEN 4-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-58010B0 |
HDJ100..LHD..5F;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) 4-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-60250B2 |
FZJ10#,HZJ105..GCC,GEN 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45107 - WIRE SUB-ASSY, HORN BUTTON | ||||
| 45107-60010 |
HDJ100,UZJ100..LHD..GEN;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 45107-60010 |
HDJ100,UZJ100..LHD..GEN;FZJ10#,HZJ105..ARL,GCC,GEN |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-60180B0 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-60230B0 |
FZJ10#,HDJ100,HZJ105..GX,STD W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-43010B0 |
FZJ10#,HZJ105 W(3-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-60271B0 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 45130-43010B2 |
FZJ10#,HZJ105..GCC,GEN W(3-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-43010B2 |
FZJ10#,HZJ105..GCC,GEN W(3-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-60271B0 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-60180B0 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-60230B0 |
FZJ10#,HDJ100,HZJ105..GX,STD W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-43010B0 |
FZJ10#,HZJ105 W(3-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-60271B0 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 45130-43010B2 |
FZJ10#,HZJ105..GCC,GEN W(3-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-43010B2 |
FZJ10#,HZJ105..GCC,GEN W(3-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-60271B0 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-60020B3 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105 SHADOW GRAY,TRIM1# |
1 | ||
| 45186-58010B0 |
HDJ100,UZJ100..LHD..GEN;FZJ10#,HZJ105..ARL,GCC,GEN DK.GRAY,TRIM1# |
1 | ||
| 45186-60020B3 |
HDJ100,UZJ100..LHD..GEN;FZJ10#,HDJ100,HZJ105..GX,STD SHADOW GRAY,TRIM1# |
1 | ||
| 45186-58010B0 |
HDJ100,UZJ100..LHD..GEN;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) DK.GRAY,TRIM1# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-60020B3 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105 SHADOW GRAY,TRIM1# |
1 | ||
| 45186-58010B0 |
HDJ100,UZJ100..LHD..GEN;FZJ10#,HZJ105..ARL,GCC,GEN DK.GRAY,TRIM1# |
1 | ||
| 45186-60020B3 |
HDJ100,UZJ100..LHD..GEN;FZJ10#,HDJ100,HZJ105..GX,STD SHADOW GRAY,TRIM1# |
1 | ||
| 45186-58010B0 |
HDJ100,UZJ100..LHD..GEN;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) DK.GRAY,TRIM1# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-58010B0 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN DK.GRAY,TRIM1# |
1 | ||
| 45187-50030B3 |
FZJ10#,HDJ100,HZJ105,UZJ100 SHADOW GRAY,TRIM1# |
1 | ||
| 45187-58010B0 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN DK.GRAY,TRIM1# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN L=18 |
2 | ||
| 45188-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 L=18 |
2 | ||
| 45188-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) L=18 |
2 | ||
| 45188-60010 |
HDJ100..RHD;UZJ100..ARL,GCC;HDJ100..LHD..5F;FZJ10#,HZJ105..ARL,GCC,GEN L=18 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN L=18 |
2 | ||
| 45188-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 L=18 |
2 | ||
| 45188-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) L=18 |
2 | ||
| 45188-60010 |
HDJ100..RHD;UZJ100..ARL,GCC;HDJ100..LHD..5F;FZJ10#,HZJ105..ARL,GCC,GEN L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90179-12071 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90179-12071 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40113 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
