FZJ105L-GCMRK (1998)
Toyota Land Cruiser 100
ILLUST NO. 2 OF 3(9801- )HDJ100..4FC,5F..GEN ; (9801- )FZJ10#,HZJ105,UZJ100..CHI,GCC,GEN
ELECTRICAL WINCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28199B - PROTECTOR, DUST WINCH MOTOR | ||||
| 28199-15090 |
1FZFE,1HDT,1HZ,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 28199-15090 |
1HDFTE..HDJ100..5F..GEN;1FZFE,1HZ,2UZFE..FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 28199-15090 |
1HDFTE..HDJ100..5F..GEN;1FZFE,1HZ,2UZFE..FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38600A - MOTOR ASSY, W/MAGNET SWITCH, WINCH | ||||
| 38600-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38600-60090 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38600-60090 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38601A - YOKE SUB-ASSY, WINCH MOTOR | ||||
| 38601-60050 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38601-60050 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38601-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38603A - ARMATURE SUB-ASSY, WINCH MOTOR | ||||
| 38603-60050 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38603-60050 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38603-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38603B - BEARING, NO.1 (FOR WINCH MOTOR ARMATURE) | ||||
| 90099-10130 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 90099-10130 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 90099-10130 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38603C - BEARING, NO.2 (FOR WINCH MOTOR ARMATURE) | ||||
| 90099-10201 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 90099-10201 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 90099-10201 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38604A - HOLDER ASSY, WINCH MOTOR BRUSH | ||||
| 38604-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38604-60050 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38604-60050 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38610A - MOTOR ASSY, WINCH | ||||
| 38610-60080 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38610-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38610-60080 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38611B - SWITCH, MAGNET, NO.2 (FOR WINCH MOTOR) | ||||
| 38611-60010 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 38611-60010 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 38611-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 38611B - SWITCH, MAGNET, NO.2 (FOR WINCH MOTOR) | ||||
| 38611-60010 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 38611-60010 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 38611-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 38612A - FRAME, WINCH MOTOR END | ||||
| 38612-60060 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38612-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38612-60060 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38613A - BRUSH, WINCH MOTOR | ||||
| 38613-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
4 | ||
| 38613-60010 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
4 | ||
| 38613-60010 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
4 | ||
| 38613B - SPRING, WINCH MOTOR BRUSH | ||||
| 28143-46012 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
4 | ||
| 28143-46012 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
4 | ||
| 28143-46012 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
4 | ||
| 38614A - RING, O(FOR WINCH MOTOR) | ||||
| 90099-14023 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 90099-14023 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 90099-14023 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38618 - FRAME, WINCH MOTOR COMMUTATOR END | ||||
| 38618-60080 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38618-60080 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38618-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38621B - COVER, MAGNET SWITCH WINCH | ||||
| 38621-60090 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38621-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38621-60090 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38623 - STOPPER, WINCH MOTOR | ||||
| 38623-60010 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 38623-60010 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 38623-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 38623 - STOPPER, WINCH MOTOR | ||||
| 38623-60010 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 38623-60010 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 38623-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 38625 - BOLT, STUD WINCH MOTOR | ||||
| 38625-60010 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38625-60010 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38625-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38627 - BUSHING, STEPPED MALE WINCH MOTOR | ||||
| 38627-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38627-60011 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38627-60011 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38629 - WIRE, WINCH MOTOR | ||||
| 38629-60050 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38629-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38629-60050 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38639 - WIRE (FOR WINCH MOTOR) | ||||
| 38639-60050 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38639-60050 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38639-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| Common parts | ||||
| 90093-00808 | ||||
| 90093-00811 | ||||
| 90094-00606 | ||||
| 90099-00222 | ||||
| 90099-04584 | ||||
| 93219-14008 | ||||
| 93311-16014 | ||||
| 93319-14008 | ||||
| 93381-15010 | ||||
| 93385-16012 | ||||
| 93385-16016 | ||||
| 94120-40800 | ||||
| 94511-00800 | ||||
| 94612-40601 | ||||
ILLUST NO. 3 OF 3(9801-0505)HDJ100..4FC,5F..GEN ; (9801-0505)FZJ10#,HZJ105,UZJ100..CHI,GCC,GEN ; (05
ELECTRICAL WINCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38101 - CASE SUB-ASSY, WINCH GEAR | ||||
| 38101-60240 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38101-60240 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38103 - DRUM SUB-ASSY, WINCH | ||||
| 38103-60240 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38103-60240 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38104 - SHAFT, WINCH OUTPUT | ||||
| 38104-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38104-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38105 - COVER SUB-ASSY, WINCH GEAR CASE | ||||
| 38105-60210 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38105-60210 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38106A - CASE, WINCH BRAKE | ||||
| 38201-60240 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38201-60240 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38107 - GEAR SUB-ASSY, WINCH PLANETARY, NO.1 | ||||
| 38107-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38107-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38108 - GEAR SUB-ASSY, WINCH PLANETARY, NO.2 | ||||
| 38108-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38108-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38109 - GEAR SUB-ASSY, WINCH PLANETARY, NO.3 | ||||
| 38109-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38109-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38119A - SHAFT, WINCH DRIVE | ||||
| 38119-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38119-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38121 - GASKET, WINCH GEAR CASE COVER | ||||
| 38121-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38121-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38137 - SHAFT, WINCH INPUT | ||||
| 38137-60171 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38137-60171 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38151 - SPACER, WINCH DRUM, NO.1 | ||||
| 38151-60171 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38151-60171 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38152 - SPACER, WINCH DRUM, NO.2 | ||||
| 38152-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38152-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38172 - GEAR, WINCH RING | ||||
| 38172-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38172-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38177 - BOLT, WINCH SET | ||||
| 38177-35010 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38177-35010 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38178A - BOLT, WINCH GEAR CASE COVER | ||||
| 38178-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
12 | ||
| 38178-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
12 | ||
| 38185A - RING, WINCH 1 WAY CLUTCH SNAP | ||||
| 38185-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38185-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38186 - SEAL, GEAR CASE COVER OIL | ||||
| 38186-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38186-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38187A - RING, WINCH | ||||
| 38187-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 38187-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 38187A - RING, WINCH | ||||
| 38187-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 38187-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 38188A - RING, WINCH CLUTCH SHIFT HANDLE | ||||
| 38188-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38188-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38202A - CLUTCH SUB-ASSY, WINCH, OUTER | ||||
| 38202-60171 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38202-60171 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
5 | ||
| 38203-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
5 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
5 | ||
| 38203-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
5 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
5 | ||
| 38203-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
5 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
5 | ||
| 38203-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
5 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
5 | ||
| 38203-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
5 | ||
| 38204A - CLUTCH SUB-ASSY, WINCH INNER | ||||
| 38204-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38204-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38205A - CASE SUB-ASSY, WINCH CLUTCH, OUTER | ||||
| 38205-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38205-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38207A - LEVER SUB-ASSY, WINCH CLUTCH SHIFT | ||||
| 38223-60240 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38223-60240 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38211C - SLEEVE, WINCH CLUTCH | ||||
| 38211-60240 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38211-60240 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38216 - CLUTCH, WINCH 1 WAY | ||||
| 38216-60040 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38216-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
5 | ||
| 38217-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
5 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
5 | ||
| 38217-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
5 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
5 | ||
| 38217-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
5 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
5 | ||
| 38217-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
5 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
5 | ||
| 38217-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
5 | ||
| 38224 - BOLT, WINCH CLUTCH SHIFT HANDLE | ||||
| 38224-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38224-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38231 - SHOE, BRAKE | ||||
| 38231-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 38231-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 38231 - SHOE, BRAKE | ||||
| 38231-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 38231-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 38233B - WASHER, WINCH CLUTCH INPUT SHAFT THRUST | ||||
| 38233-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38233-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38236A - WASHER, WINCH CLUTCH THRUST, NO.1 | ||||
| 38236-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38236-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38237A - WASHER, WINCH CLUTCH THRUST, NO.2 | ||||
| 38237-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38237-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38311 - RING, WINCH OUTPUT SHAFT SNAP | ||||
| 38311-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38311-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38312 - SPACER, WINCH OUTPUT SHAFT, NO.2 | ||||
| 38312-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38312-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38315A - PLUG, WINCH FILLER | ||||
| 38315-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38315-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38333A - HOLDER, WIRE | ||||
| 38333-60240 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38333-60240 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38341 - HOOK, WINCH WIRE | ||||
| 38341-60171 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38341-60171 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38342 - PIN, WINCH WIRE HOOK | ||||
| 38342-60170 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38342-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38343 - WINCH WIRE | ||||
| 38343-60171 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38343-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| Common parts | ||||
| 96150-01500 | ||||

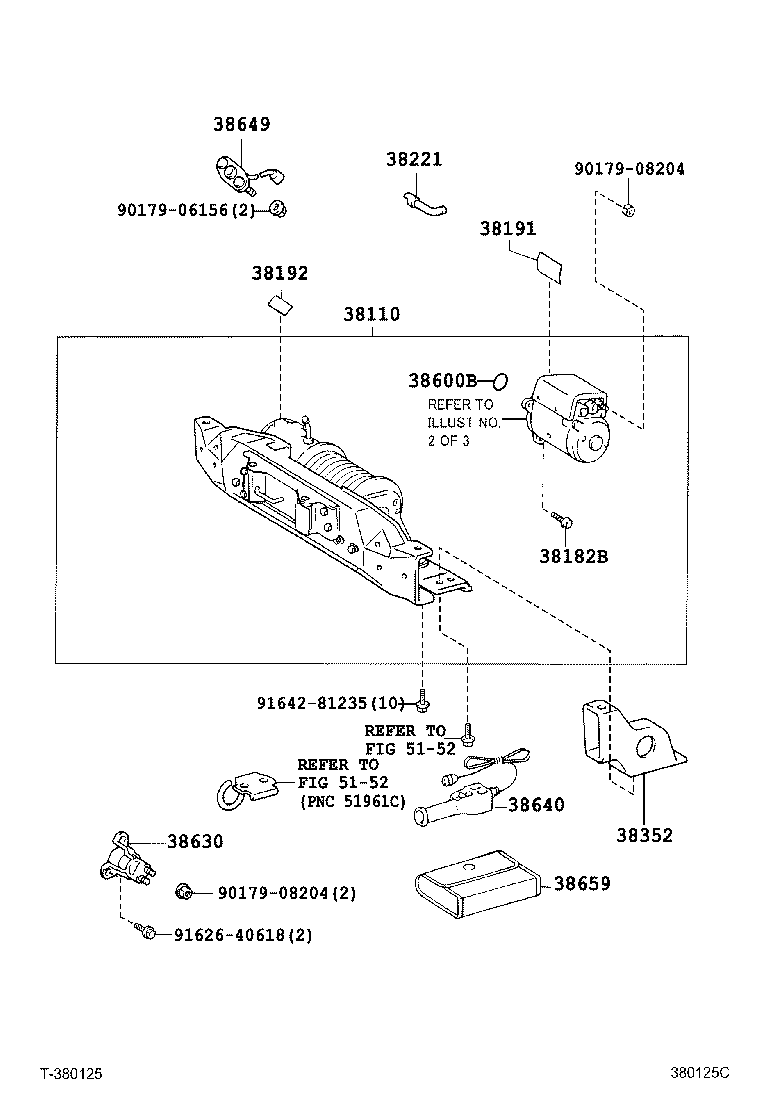

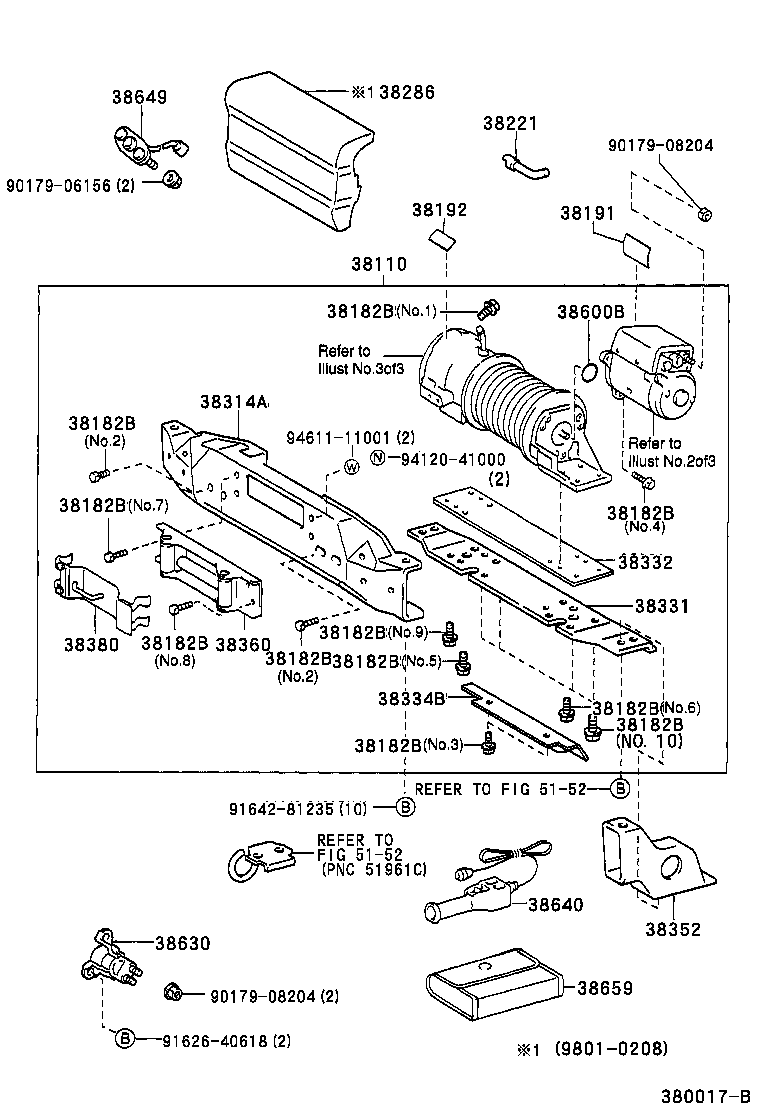

ILLUST NO. 1 OF 3(9801-0505)FZJ105,HZJ105..GCC,GEN
ELECTRICAL WINCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38110 - WINCH ASSY | ||||
| 38110-60270 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 38110-60270 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 38110-60250 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-40822 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-60830 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38182-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38183-41025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38183-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38183-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-81235 |
FZJ105,HZJ105..GCC,GEN NO.6 |
1 | ||
| 38182-40822 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38183-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-41025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38182-81235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.6 |
1 | ||
| 38183-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38182-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-40822 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-60830 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38182-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38183-41025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38183-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38183-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-81235 |
FZJ105,HZJ105..GCC,GEN NO.6 |
1 | ||
| 38182-40822 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38183-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-41025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38182-81235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.6 |
1 | ||
| 38183-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38182-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-40822 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-60830 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38182-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38183-41025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38183-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38183-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-81235 |
FZJ105,HZJ105..GCC,GEN NO.6 |
1 | ||
| 38182-40822 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38183-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-41025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38182-81235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.6 |
1 | ||
| 38183-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38182-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-40822 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-60830 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38182-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38183-41025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38183-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38183-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-81235 |
FZJ105,HZJ105..GCC,GEN NO.6 |
1 | ||
| 38182-40822 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38183-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-41025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38182-81235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.6 |
1 | ||
| 38183-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38182-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-40822 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-60830 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38182-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38183-41025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38183-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38183-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-81235 |
FZJ105,HZJ105..GCC,GEN NO.6 |
1 | ||
| 38182-40822 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38183-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-41025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38182-81235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.6 |
1 | ||
| 38183-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38182-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-60825 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-40822 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-60830 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38182-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38183-41025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38183-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38183-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-81235 |
FZJ105,HZJ105..GCC,GEN NO.6 |
1 | ||
| 38182-40822 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38183-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-41025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38182-81235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.6 |
1 | ||
| 38183-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38182-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-40822 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-60830 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38182-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38183-41025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38183-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38183-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-81235 |
FZJ105,HZJ105..GCC,GEN NO.6 |
1 | ||
| 38182-40822 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38183-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-41025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38182-81235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.6 |
1 | ||
| 38183-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38182-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-40822 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-60830 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38182-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38183-41025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38183-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38183-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-81235 |
FZJ105,HZJ105..GCC,GEN NO.6 |
1 | ||
| 38182-40822 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38183-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-41025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38182-81235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.6 |
1 | ||
| 38183-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38182-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-40822 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-60830 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38182-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38183-41025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38183-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38183-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-81235 |
FZJ105,HZJ105..GCC,GEN NO.6 |
1 | ||
| 38182-40822 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38183-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-41025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38182-81235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.6 |
1 | ||
| 38183-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38182-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-40822 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-60830 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38182-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38183-41025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38183-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38183-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-81235 |
FZJ105,HZJ105..GCC,GEN NO.6 |
1 | ||
| 38182-40822 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38183-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-41025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38182-81235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.6 |
1 | ||
| 38183-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38182-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-40822 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-60830 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38182-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38183-41025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38183-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38183-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-81235 |
FZJ105,HZJ105..GCC,GEN NO.6 |
1 | ||
| 38182-40822 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38183-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-41025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38182-81235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.6 |
1 | ||
| 38183-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38182-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 38191 - PLATE, WINCH CAUTION, NO.1 | ||||
| 38191-60121 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38191-60121 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38191-60121 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38192 - PLATE, WINCH CAUTION, NO.2 | ||||
| 38192-60090 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38192-60090 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38192-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38221 - LEVER, CLUTCH HUB SHIFT | ||||
| 38221-60240 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38221-60240 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38221-60240 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38286 - COVER, WINCH | ||||
| 38208-60110 |
FZJ10#,HZJ105..GCC,GEN |
1 | ||
| 38314A - CROSSMEMBER, WINCH SUPPORT, FRONT | ||||
| 38314-60250 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 38314-60250 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 38331 - BASE, WINCH, NO.1 | ||||
| 38331-60250 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 38331-60251 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 38331-60251 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 38332 - BASE, WINCH, NO.2 | ||||
| 38332-60240 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38332-60241 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38332-60260 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38334B - BRACKET, WINCH BASE | ||||
| 38334-60260 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38334-60240 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38352 - SUPPORT, WINCH BASE | ||||
| 38353-60040 |
FZJ105,HZJ105..GCC,GEN LH |
1 | ||
| 38352-60060 |
FZJ105,HZJ105..GCC,GEN RH |
1 | ||
| 38353-60040 |
FZJ105,HZJ105..GCC,GEN LH |
1 | ||
| 38352-60060 |
FZJ105,HZJ105..GCC,GEN RH |
1 | ||
| 38352-60060 |
FZJ105,HZJ105..GCC,GEN RH |
1 | ||
| 38353-60040 |
FZJ105,HZJ105..GCC,GEN LH |
1 | ||
| 38360 - BRACKET ASSY, WINCH ROLLER | ||||
| 38360-60083 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38360-60083 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38380 - HOLDER ASSY, WINCH HOOK | ||||
| 38380-60022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38380-60022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38600B - RING, O (FOR WINCH MOTOR) | ||||
| 90301-59044 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 90301-59044 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38630 - SWITCH ASSY, MAGNET, NO.1 | ||||
| 38630-60160 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38630-60160 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38630-60160 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38640 - SWITCH ASSY, WINCH CONTROL | ||||
| 38640-35010 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38640-35010 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38640-35010 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38649 - WIRE, WINCH CONTROL | ||||
| 38649-60030 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38649-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38649-60030 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38659 - COVER, WINCH CONTROL SWITCH | ||||
| 38659-60010 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38659-60010 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38659-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| Common parts | ||||
| 90179-06156 | ||||
| 90179-08204 | ||||
| 91626-40618 | ||||
| 91642-81235 | ||||
| 94120-41000 | ||||
| 94611-11001 | ||||
| Linked diagrams | ||||
| 5152 | ||||
ILLUST NO. 1 OF 3(0505- )FZJ105,HZJ105..GCC,GEN
ELECTRICAL WINCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38110 - WINCH ASSY | ||||
| 38110-60270 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 38110-60270 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 38110-60250 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 38182B - BOLT, WINCH, NO.1 | ||||
| 38182-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-40822 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-60830 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38182-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38183-41025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38183-41022 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38183-61025 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-81235 |
FZJ105,HZJ105..GCC,GEN NO.6 |
1 | ||
| 38182-40822 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX22-22,NO.1 |
1 | ||
| 38182-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX22-22,NO.2 |
4 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30,NO.4 |
3 | ||
| 38183-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.9 |
1 | ||
| 38183-41025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.8 |
2 | ||
| 38182-81235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.6 |
1 | ||
| 38183-41022 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.7 |
2 | ||
| 38183-61235 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *12-1.25PX35-30,NO.10 |
5 | ||
| 38182-61025 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *10-1.25PX25-25,(6T),NO.5 |
1 | ||
| 38182-60825 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN NO.3 |
2 | ||
| 38182-60830 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN *8-1.25PX30-30 |
3 | ||
| 38191 - PLATE, WINCH CAUTION, NO.1 | ||||
| 38191-60121 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38191-60121 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38191-60121 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38192 - PLATE, WINCH CAUTION, NO.2 | ||||
| 38192-60090 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38192-60090 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38192-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38221 - LEVER, CLUTCH HUB SHIFT | ||||
| 38221-60240 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38221-60240 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38221-60240 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38352 - SUPPORT, WINCH BASE | ||||
| 38353-60040 |
FZJ105,HZJ105..GCC,GEN LH |
1 | ||
| 38352-60060 |
FZJ105,HZJ105..GCC,GEN RH |
1 | ||
| 38353-60040 |
FZJ105,HZJ105..GCC,GEN LH |
1 | ||
| 38352-60060 |
FZJ105,HZJ105..GCC,GEN RH |
1 | ||
| 38352-60060 |
FZJ105,HZJ105..GCC,GEN RH |
1 | ||
| 38353-60040 |
FZJ105,HZJ105..GCC,GEN LH |
1 | ||
| 38600B - RING, O (FOR WINCH MOTOR) | ||||
| 90301-59044 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 90301-59044 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38630 - SWITCH ASSY, MAGNET, NO.1 | ||||
| 38630-60160 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38630-60160 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38630-60160 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38640 - SWITCH ASSY, WINCH CONTROL | ||||
| 38640-35010 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38640-35010 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38640-35010 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38649 - WIRE, WINCH CONTROL | ||||
| 38649-60030 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38649-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38649-60030 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38659 - COVER, WINCH CONTROL SWITCH | ||||
| 38659-60010 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38659-60010 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 38659-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| Common parts | ||||
| 90179-06156 | ||||
| 90179-08204 | ||||
| 91626-40618 | ||||
| 91642-81235 | ||||
| Linked diagrams | ||||
| 5152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
