FZJ100L-GNMNKC (2003)

Toyota Land Cruiser 100

Production Sep 2003 - Jun 2006
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

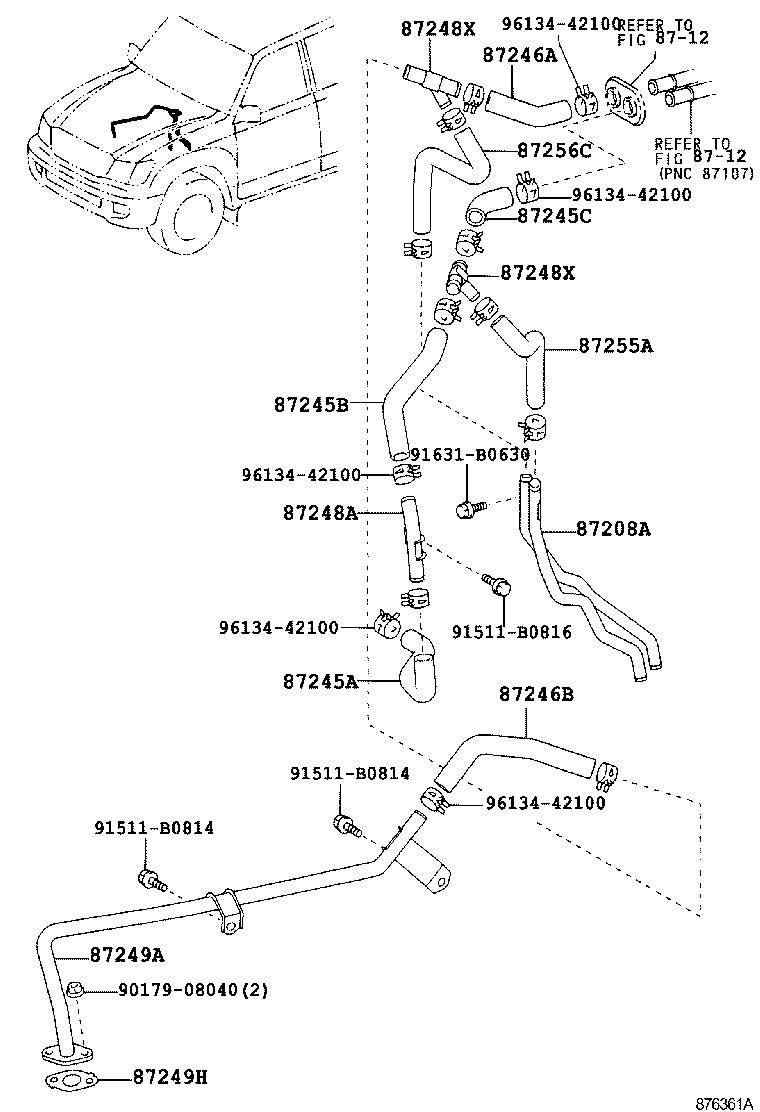

ILLUST NO. 1 OF 2(0309- )FZJ100..CHI

Click highlighted areas on diagram

FRONT

diagram 8712 8712 87208A 87245A 87245B 87245C 87246A 87246B 87248A 87248X 87248X 87249A 87249H 87255A 87256C 9017908040 91511B0814 91511B0814 91511B0816 91631B0630 9613442100 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-60571

FZJ100..CHI

 1
87208-60571

FZJ100..CHI

 1
87245A - HOSE, HEATER WATER, INLET A
87245-6A030

FZJ100;FZJ105..GX;FZJ105..STD..GEN

 1
87245-6A030

FZJ100..CHI

 1
87245-6A030

FZJ100..CHI

 1
87245B - HOSE, HEATER WATER, INLET B
87245-6A040

FZJ10#

 1
87245-6A160

FZJ100..CHI

 1
87245-6A160

FZJ100..CHI

 1
87245-6A160

FZJ100..CHI

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-6A150

FZJ100..CHI

 1
87245-6A150

FZJ100..CHI

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-6A120

FZJ100..CHI

 1
87245-6A050

FZJ10#

 1
87245-6A120

FZJ100..CHI

 1
87245-6A120

FZJ100..CHI

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-6A130

FZJ100..CHI

 1
87245-6A130

FZJ100..CHI

 1
87248A - PIPE, HEATER WATER INLET, A
87208-60550

FZJ100;FZJ105..GX;FZJ105..STD..GEN

 1
87208-60550

FZJ100..CHI

 1
87208-60550

FZJ100..CHI

 1
87248X - PIPE, HEATER WATER
87248-60460

FZJ100..CHI;UZJ100..5FC..GX..CHI

 2
87248-60460

FZJ100,UZJ100..CHI

 2
87248X - PIPE, HEATER WATER
87248-60460

FZJ100..CHI;UZJ100..5FC..GX..CHI

 2
87248-60460

FZJ100,UZJ100..CHI

 2
87249A - PIPE, HEATER WATER OUTLET, A
87208-60161

FZJ100..CHI

 1
87208-60161

FZJ100;FZJ105..GX;FZJ105..STD..GEN

 1
87208-60161

FZJ100..CHI

 1
87249H - GASKET, WATER OUTLET PIPE
15785-66010

FZJ100..CHI

 1
15785-66010

FZJ100;FZJ105..GX;FZJ105..STD..GEN

 1
15785-66010

FZJ100..CHI

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-6A140

FZJ100..CHI

 1
87245-6A140

FZJ100..CHI

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-6A111

FZJ100..CHI

 1
87245-6A111

FZJ100..CHI

 1
Common parts
90179-08040
91511-B0814
91511-B0816
91631-B0630
96134-42100
Linked diagrams
8712
