FZJ100L-GNMNKC (2003)
Toyota Land Cruiser 100

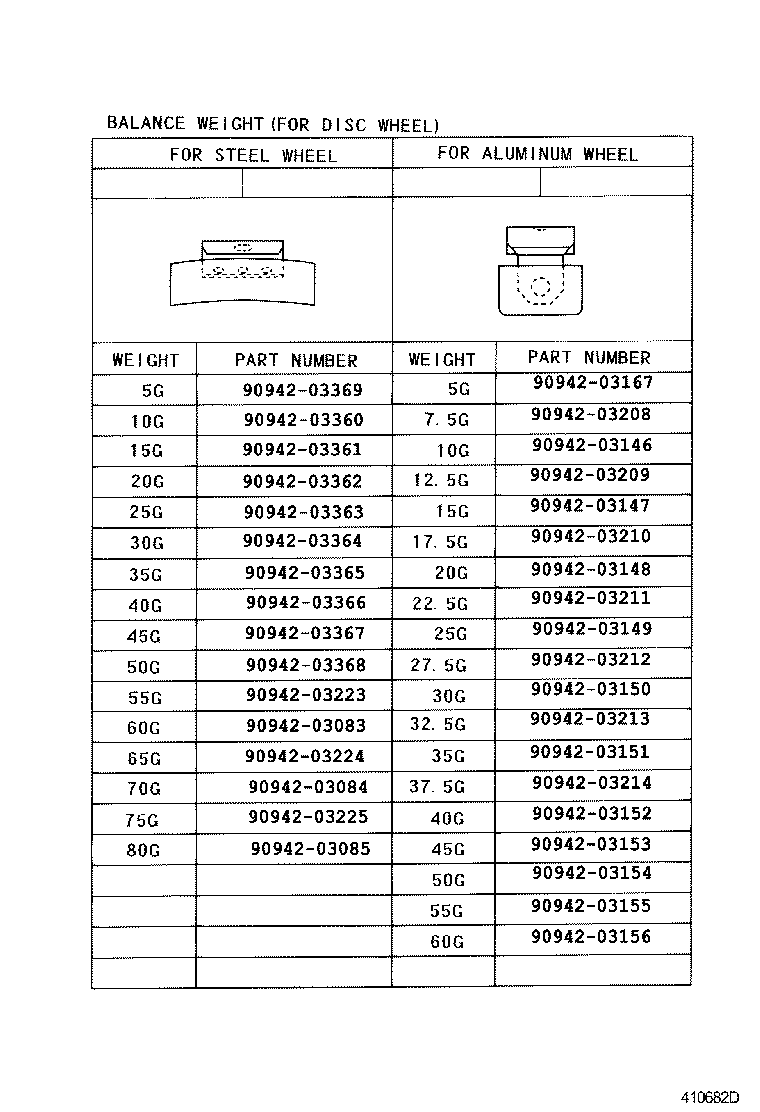

ILLUST NO. 4 OF 4(9801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03083 | ||||
| 90942-03084 | ||||
| 90942-03085 | ||||
| 90942-03146 | ||||
| 90942-03147 | ||||
| 90942-03148 | ||||
| 90942-03149 | ||||
| 90942-03150 | ||||
| 90942-03151 | ||||
| 90942-03152 | ||||
| 90942-03153 | ||||
| 90942-03154 | ||||
| 90942-03155 | ||||
| 90942-03156 | ||||
| 90942-03167 | ||||
| 90942-03208 | ||||
| 90942-03209 | ||||
| 90942-03210 | ||||
| 90942-03211 | ||||
| 90942-03212 | ||||
| 90942-03213 | ||||
| 90942-03214 | ||||
| 90942-03223 | ||||
| 90942-03224 | ||||
| 90942-03225 | ||||
| 90942-03360 | ||||
| 90942-03361 | ||||
| 90942-03362 | ||||
| 90942-03363 | ||||
| 90942-03364 | ||||
| 90942-03365 | ||||
| 90942-03366 | ||||
| 90942-03367 | ||||
| 90942-03368 | ||||
| 90942-03369 | ||||

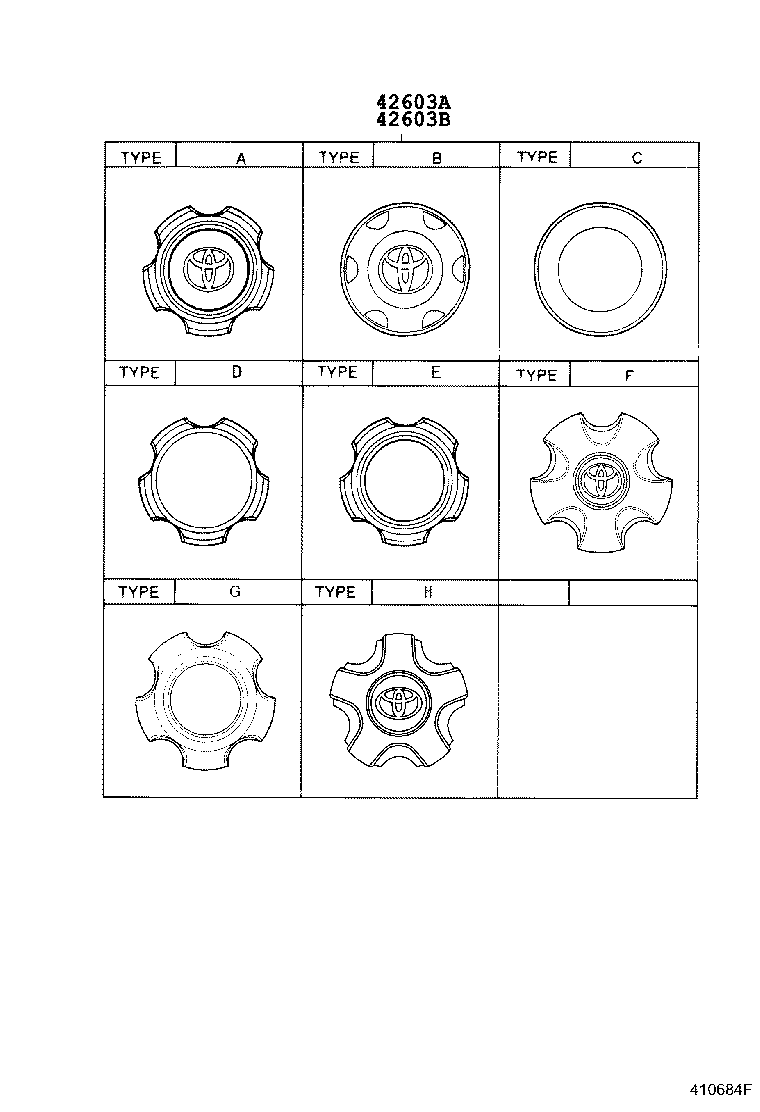

ILLUST NO. 3 OF 4(9801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603A - ORNAMENT SUB-ASSY, WHEEL HUB(FOR FRONT) | ||||
| 42603-60260 |
FZJ100,HDJ100,UZJ100 *STE,TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 42603-60300 |
FZJ100..GX *ALU,TYPE D:REFER TO ILLUSTRATION |
2 | ||
| 42603-60330 |
FZJ100..GX *ALU,TYPE E:REFER TO ILLUSTRATION |
2 | ||
| 42603-60290 |
FZJ100 *STE,TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 42603-60250 |
HDJ100..VX;FZJ100,UZJ100..GX,VX *ALU,TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 42603-60671 |
FZJ100,UZJ100..CHI *ALU,TYPE H:REFER ILLUST. |
2 | ||
| 42603-60570 |
FZJ100..CHI;UZJ100..5FC..CHI *ALU,TYPE F:REFER TO ILLUSTRATION |
2 | ||
| 42603-60670 |
FZJ100,UZJ100..CHI *ALU,TYPE H:REFER ILLUST. |
2 | ||
| 42603B - ORNAMENT SUB-ASSY, WHEEL HUB(FOR REAR) | ||||
| 42603-60250 |
HDJ100..VX;FZJ100,UZJ100..GX,VX *ALU,TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 42603-60260 |
FZJ100,HDJ100,UZJ100 *STE,TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 42603-60671 |
FZJ100,UZJ100..CHI *ALU,TYPE H:REFER ILLUST. |
2 | ||
| 42603-60570 |
FZJ100..CHI;UZJ100..5FC..CHI *ALU,TYPE F:REFER TO ILLUSTRATION |
2 | ||
| 42603-60670 |
FZJ100,UZJ100..CHI *ALU,TYPE H:REFER ILLUST. |
2 | ||

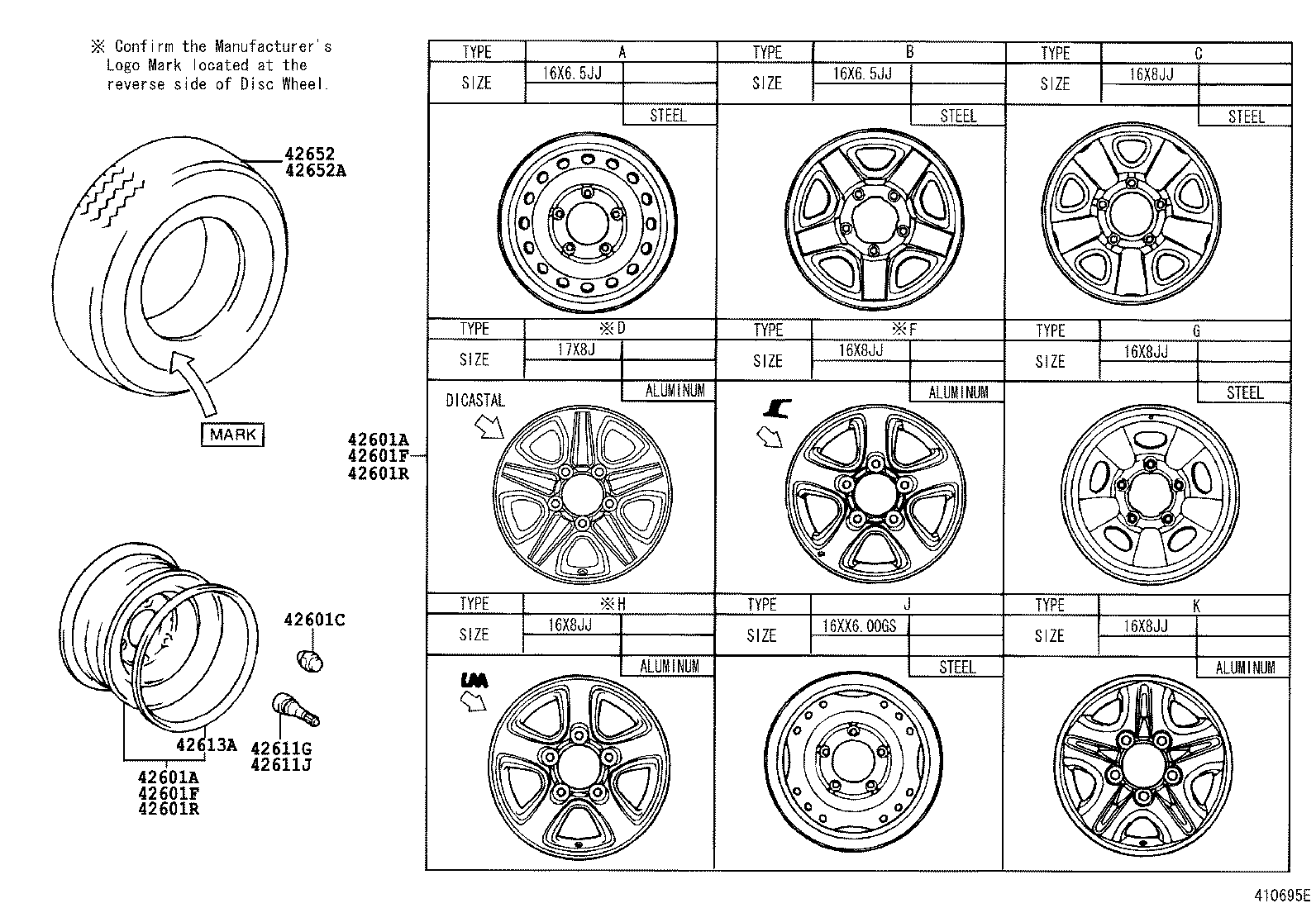

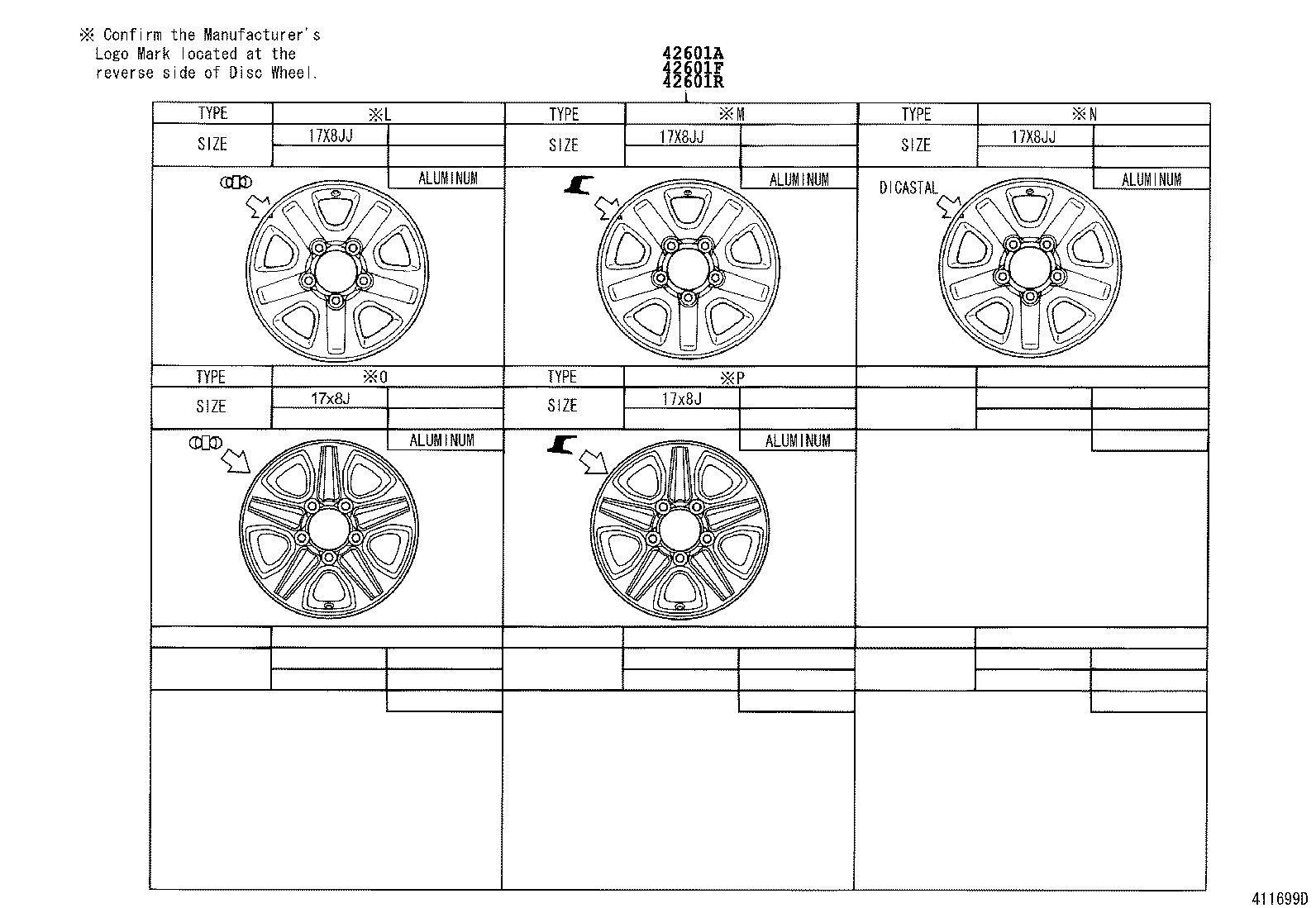

ILLUST NO. 1 OF 4(9801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42601-60580 |
FZJ100 16X6.5JJ,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 42611-60180 |
HDJ100..VX;FZJ100,UZJ100..LHD..(GX,VX) 16X8JJ, #,TYPE F:REFER TO ILLUSTRATION |
2 | ||
| 42601-60600 |
FZJ100,HDJ100,UZJ100..GX,VX 16X8JJ, #,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 42601-60590 |
FZJ100,HDJ100..GX,STD;HDJ100,UZJ100..(EFI,TD2)..(ARL,GEN) 16X6.5JJ,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 42611-60460 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ, #,TYPE M:REFER ILLUST. |
1 | ||
| 42611-60450 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ, #,TYPE L:REFER ILLUST. |
1 | ||
| 42611-0G010 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ,TYPE N:REFER ILLUST. |
1 | ||
| 42611-0G020 |
FZJ100,UZJ100..CHI 17X8J,TYPE D:REF.ILL.,(L) |
1 | ||
| 42611-60370 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE P:REFER ILLUST. |
1 | ||
| 42611-60361 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE O:REFER ILLUST. |
1 | ||
| 42611-60360 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE O:REFER ILLUST. |
1 | ||
| 42611-0G021 |
FZJ100,UZJ100..CHI 17X8J,TYPE D:REF.ILL.,(L) |
1 | ||
| 42611-60371 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE P:REFER ILLUST. |
1 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42601-60580 |
FZJ100 16X6.5JJ,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 42611-60180 |
HDJ100..VX;FZJ100,UZJ100..LHD..(GX,VX) 16X8JJ, #,TYPE F:REFER TO ILLUSTRATION |
2 | ||
| 42601-60600 |
FZJ100,HDJ100,UZJ100..GX,VX 16X8JJ, #,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 42601-60590 |
FZJ100,HDJ100..GX,STD;HDJ100,UZJ100..(EFI,TD2)..(ARL,GEN) 16X6.5JJ,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 42611-60460 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ, #,TYPE M:REFER ILLUST. |
1 | ||
| 42611-60450 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ, #,TYPE L:REFER ILLUST. |
1 | ||
| 42611-0G010 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ,TYPE N:REFER ILLUST. |
1 | ||
| 42611-0G020 |
FZJ100,UZJ100..CHI 17X8J,TYPE D:REF.ILL.,(L) |
1 | ||
| 42611-60370 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE P:REFER ILLUST. |
1 | ||
| 42611-60361 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE O:REFER ILLUST. |
1 | ||
| 42611-60360 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE O:REFER ILLUST. |
1 | ||
| 42611-0G021 |
FZJ100,UZJ100..CHI 17X8J,TYPE D:REF.ILL.,(L) |
1 | ||
| 42611-60371 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE P:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01103 |
HDJ100..VX;FZJ100,UZJ100..LHD..(GX,VX) W(ALUMINUM WHEEL) |
20 | ||
| 90942-01103 |
FZJ100,UZJ100..CHI |
20 | ||
| 90942-01103 |
FZJ100..CHI;UZJ100..5FC..CHI |
20 | ||
| 90942-01101 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
20 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42601-60580 |
FZJ100 16X6.5JJ,TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 42611-60210 |
FZJ100,HDJ100,UZJ100..GX,VX 16X8JJ, #,TYPE H:REFER TO ILLUSTRATION |
2 | ||
| 42601-60600 |
FZJ100,HDJ100,UZJ100..GX,VX 16X8JJ, #,TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 42601-60590 |
HDJ100,UZJ100..GEN;FZJ100,HDJ100..GX,STD 16X6.5JJ,TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 42611-60180 |
HDJ100..VX;FZJ100,UZJ100..GX,VX 16X8JJ, #,TYPE F:REFER TO ILLUSTRATION |
2 | ||
| 42611-0G010 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ,TYPE N:REFER ILLUST. |
2 | ||
| 42611-60450 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ, #,TYPE L:REFER ILLUST. |
2 | ||
| 42611-60460 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ, #,TYPE M:REFER ILLUST. |
2 | ||
| 42611-60370 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE P:REFER ILLUST. |
2 | ||
| 42611-0G021 |
FZJ100,UZJ100..CHI 17X8J,TYPE D:REF.ILL.,(L) |
2 | ||
| 42611-60371 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE P:REFER ILLUST. |
2 | ||
| 42611-0G020 |
FZJ100,UZJ100..CHI 17X8J,TYPE D:REF.ILL.,(L) |
2 | ||
| 42611-60360 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE O:REFER ILLUST. |
2 | ||
| 42611-60361 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE O:REFER ILLUST. |
2 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42601-60580 |
FZJ100 16X6.5JJ,TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 42611-60210 |
FZJ100,HDJ100,UZJ100..GX,VX 16X8JJ, #,TYPE H:REFER TO ILLUSTRATION |
2 | ||
| 42601-60600 |
FZJ100,HDJ100,UZJ100..GX,VX 16X8JJ, #,TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 42601-60590 |
HDJ100,UZJ100..GEN;FZJ100,HDJ100..GX,STD 16X6.5JJ,TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 42611-60180 |
HDJ100..VX;FZJ100,UZJ100..GX,VX 16X8JJ, #,TYPE F:REFER TO ILLUSTRATION |
2 | ||
| 42611-0G010 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ,TYPE N:REFER ILLUST. |
2 | ||
| 42611-60450 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ, #,TYPE L:REFER ILLUST. |
2 | ||
| 42611-60460 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ, #,TYPE M:REFER ILLUST. |
2 | ||
| 42611-60370 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE P:REFER ILLUST. |
2 | ||
| 42611-0G021 |
FZJ100,UZJ100..CHI 17X8J,TYPE D:REF.ILL.,(L) |
2 | ||
| 42611-60371 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE P:REFER ILLUST. |
2 | ||
| 42611-0G020 |
FZJ100,UZJ100..CHI 17X8J,TYPE D:REF.ILL.,(L) |
2 | ||
| 42611-60360 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE O:REFER ILLUST. |
2 | ||
| 42611-60361 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE O:REFER ILLUST. |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-60580 |
FZJ100 16X6.5JJ,TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 42611-60180 |
HDJ100..VX;FZJ100,UZJ100..GX,VX 16X8JJ, #,TYPE F:REFER TO ILLUSTRATION |
2 | ||
| 42611-60210 |
FZJ100,HDJ100,UZJ100..GX,VX 16X8JJ, #,TYPE H:REFER TO ILLUSTRATION |
2 | ||
| 42601-60600 |
FZJ100,HDJ100,UZJ100..GX,VX 16X8JJ, #,TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 42601-60590 |
HDJ100,UZJ100..GEN;FZJ100,HDJ100..GX,STD 16X6.5JJ,TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 42611-0G010 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ,TYPE N:REFER ILLUST. |
2 | ||
| 42611-60460 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ, #,TYPE M:REFER ILLUST. |
2 | ||
| 42611-60450 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ, #,TYPE L:REFER ILLUST. |
2 | ||
| 42611-0G020 |
FZJ100,UZJ100..CHI 17X8J,TYPE D:REF.ILL.,(L) |
2 | ||
| 42611-60370 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE P:REFER ILLUST. |
2 | ||
| 42611-60371 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE P:REFER ILLUST. |
2 | ||
| 42611-0G021 |
FZJ100,UZJ100..CHI 17X8J,TYPE D:REF.ILL.,(L) |
2 | ||
| 42611-60361 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE O:REFER ILLUST. |
2 | ||
| 42611-60360 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE O:REFER ILLUST. |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-60580 |
FZJ100 16X6.5JJ,TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 42611-60180 |
HDJ100..VX;FZJ100,UZJ100..GX,VX 16X8JJ, #,TYPE F:REFER TO ILLUSTRATION |
2 | ||
| 42611-60210 |
FZJ100,HDJ100,UZJ100..GX,VX 16X8JJ, #,TYPE H:REFER TO ILLUSTRATION |
2 | ||
| 42601-60600 |
FZJ100,HDJ100,UZJ100..GX,VX 16X8JJ, #,TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 42601-60590 |
HDJ100,UZJ100..GEN;FZJ100,HDJ100..GX,STD 16X6.5JJ,TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 42611-0G010 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ,TYPE N:REFER ILLUST. |
2 | ||
| 42611-60460 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ, #,TYPE M:REFER ILLUST. |
2 | ||
| 42611-60450 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ, #,TYPE L:REFER ILLUST. |
2 | ||
| 42611-0G020 |
FZJ100,UZJ100..CHI 17X8J,TYPE D:REF.ILL.,(L) |
2 | ||
| 42611-60370 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE P:REFER ILLUST. |
2 | ||
| 42611-60371 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE P:REFER ILLUST. |
2 | ||
| 42611-0G021 |
FZJ100,UZJ100..CHI 17X8J,TYPE D:REF.ILL.,(L) |
2 | ||
| 42611-60361 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE O:REFER ILLUST. |
2 | ||
| 42611-60360 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE O:REFER ILLUST. |
2 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
FZJ100..CHI;UZJ100..5FC..CHI |
4 | ||
| 90942-05009 |
FZJ100,UZJ100..CHI |
4 | ||
| 90942-05009 |
FZJ105..GX;FZJ100,HDJ100;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ105,UZJ100..LHD..(STD,VX) |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 |
2 | ||
| 90942-05009 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 90942-05009 |
FZJ100,UZJ100..CHI |
1 | ||
| 42652 - TIRE | ||||
| 42652-60490 |
HZJ105..GCC;UZJ100..GEN;FZJ100,HDJ100 235/85R16,*Y/H,TUBELESS |
4 | ||
| 42652-60760 |
FZJ100,UZJ100..CHI 275/65R17,*B/S |
4 | ||
| 42652-60750 |
FZJ100,UZJ100..CHI 275/65R17 115T,*D/L |
4 | ||
| 42652-60760 |
FZJ100..CHI;UZJ100..5FC..CHI 275/65R17,*B/S |
4 | ||
| 42652-60750 |
FZJ100,UZJ100..CHI 275/65R17 115T,*D/L |
4 | ||
| 42652A - TIRE (FOR SPARE) | ||||
| 42652-60490 |
HZJ105..GCC;UZJ100..GEN;FZJ100,HDJ100 235/85R16,*Y/H,TUBELESS |
2 | ||
| 42652-60760 |
FZJ100,UZJ100..CHI 275/65R17,*B/S |
1 | ||
| 42652-60750 |
FZJ100,UZJ100..CHI 275/65R17 115T,*D/L |
1 | ||
| 42652-60760 |
FZJ100..CHI;UZJ100..5FC..CHI 275/65R17,*B/S |
1 | ||
| 42652-60750 |
FZJ100,UZJ100..CHI 275/65R17 115T,*D/L |
1 | ||
ILLUST NO. 2 OF 4(9801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42601-60580 |
FZJ100 16X6.5JJ,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 42611-60180 |
HDJ100..VX;FZJ100,UZJ100..LHD..(GX,VX) 16X8JJ, #,TYPE F:REFER TO ILLUSTRATION |
2 | ||
| 42601-60600 |
FZJ100,HDJ100,UZJ100..GX,VX 16X8JJ, #,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 42601-60590 |
FZJ100,HDJ100..GX,STD;HDJ100,UZJ100..(EFI,TD2)..(ARL,GEN) 16X6.5JJ,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 42611-60460 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ, #,TYPE M:REFER ILLUST. |
1 | ||
| 42611-60450 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ, #,TYPE L:REFER ILLUST. |
1 | ||
| 42611-0G010 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ,TYPE N:REFER ILLUST. |
1 | ||
| 42611-0G020 |
FZJ100,UZJ100..CHI 17X8J,TYPE D:REF.ILL.,(L) |
1 | ||
| 42611-60370 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE P:REFER ILLUST. |
1 | ||
| 42611-60361 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE O:REFER ILLUST. |
1 | ||
| 42611-60360 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE O:REFER ILLUST. |
1 | ||
| 42611-0G021 |
FZJ100,UZJ100..CHI 17X8J,TYPE D:REF.ILL.,(L) |
1 | ||
| 42611-60371 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE P:REFER ILLUST. |
1 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42601-60580 |
FZJ100 16X6.5JJ,TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 42611-60210 |
FZJ100,HDJ100,UZJ100..GX,VX 16X8JJ, #,TYPE H:REFER TO ILLUSTRATION |
2 | ||
| 42601-60600 |
FZJ100,HDJ100,UZJ100..GX,VX 16X8JJ, #,TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 42601-60590 |
HDJ100,UZJ100..GEN;FZJ100,HDJ100..GX,STD 16X6.5JJ,TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 42611-60180 |
HDJ100..VX;FZJ100,UZJ100..GX,VX 16X8JJ, #,TYPE F:REFER TO ILLUSTRATION |
2 | ||
| 42611-0G010 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ,TYPE N:REFER ILLUST. |
2 | ||
| 42611-60450 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ, #,TYPE L:REFER ILLUST. |
2 | ||
| 42611-60460 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ, #,TYPE M:REFER ILLUST. |
2 | ||
| 42611-60370 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE P:REFER ILLUST. |
2 | ||
| 42611-0G021 |
FZJ100,UZJ100..CHI 17X8J,TYPE D:REF.ILL.,(L) |
2 | ||
| 42611-60371 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE P:REFER ILLUST. |
2 | ||
| 42611-0G020 |
FZJ100,UZJ100..CHI 17X8J,TYPE D:REF.ILL.,(L) |
2 | ||
| 42611-60360 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE O:REFER ILLUST. |
2 | ||
| 42611-60361 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE O:REFER ILLUST. |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-60580 |
FZJ100 16X6.5JJ,TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 42611-60180 |
HDJ100..VX;FZJ100,UZJ100..GX,VX 16X8JJ, #,TYPE F:REFER TO ILLUSTRATION |
2 | ||
| 42611-60210 |
FZJ100,HDJ100,UZJ100..GX,VX 16X8JJ, #,TYPE H:REFER TO ILLUSTRATION |
2 | ||
| 42601-60600 |
FZJ100,HDJ100,UZJ100..GX,VX 16X8JJ, #,TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 42601-60590 |
HDJ100,UZJ100..GEN;FZJ100,HDJ100..GX,STD 16X6.5JJ,TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 42611-0G010 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ,TYPE N:REFER ILLUST. |
2 | ||
| 42611-60460 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ, #,TYPE M:REFER ILLUST. |
2 | ||
| 42611-60450 |
FZJ100..CHI;UZJ100..5FC..CHI 17X8JJ, #,TYPE L:REFER ILLUST. |
2 | ||
| 42611-0G020 |
FZJ100,UZJ100..CHI 17X8J,TYPE D:REF.ILL.,(L) |
2 | ||
| 42611-60370 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE P:REFER ILLUST. |
2 | ||
| 42611-60371 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE P:REFER ILLUST. |
2 | ||
| 42611-0G021 |
FZJ100,UZJ100..CHI 17X8J,TYPE D:REF.ILL.,(L) |
2 | ||
| 42611-60361 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE O:REFER ILLUST. |
2 | ||
| 42611-60360 |
FZJ100,UZJ100..CHI 17X8J, #,TYPE O:REFER ILLUST. |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
