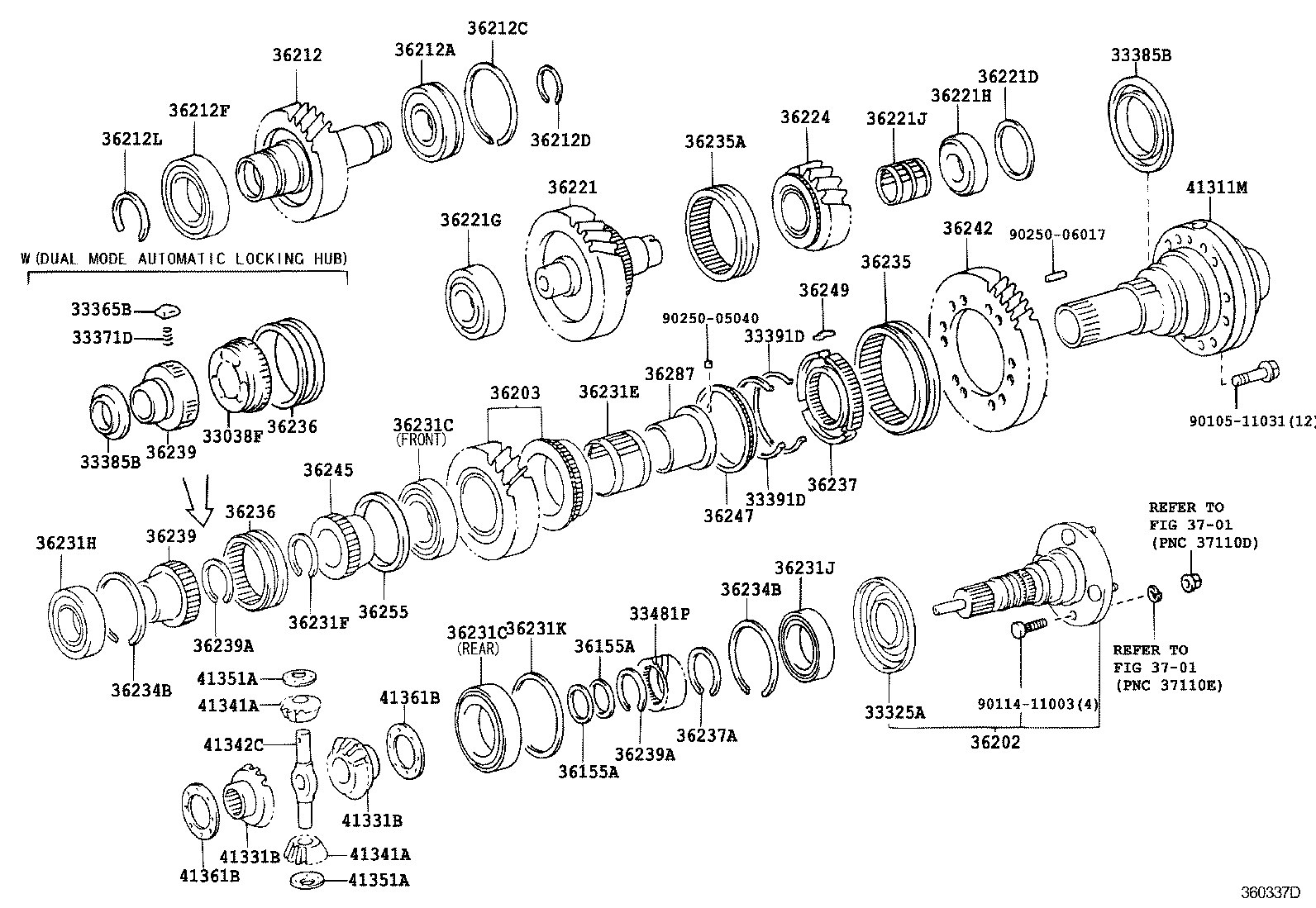

FZJ100L-GNMNKC (2003)
Toyota Land Cruiser 100
(9801- )5F..GX,VX ; (9801- )HZJ105..LHD..STD ; (0505- )FZJ100..STD
FULL TIME 4WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33325A - DEFLECTOR, DUST (FOR TRANSFER OUTPUT REAR SHAFT) | ||||
| 33325-60110 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 33325-60110 |
FZJ100,UZJ100..CHI |
1 | ||
| 33325-60090 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX |
1 | ||
| 33385B - RETAINER, SHIFTING KEY (FOR TRANSFER FRONT DRIVE CLUTCH | ||||
| 33385-60030 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..5F..(GX,VX) |
1 | ||
| 33385-60030 |
FZJ100..5F..CHI |
1 | ||
| 33385-60030 |
FZJ100..5F..CHI |
1 | ||
| 33385-60030 |
FZJ100,UZJ100..5F..CHI |
1 | ||
| 33385B - RETAINER, SHIFTING KEY (FOR TRANSFER FRONT DRIVE CLUTCH | ||||
| 33385-60030 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..5F..(GX,VX) |
1 | ||
| 33385-60030 |
FZJ100..5F..CHI |
1 | ||
| 33385-60030 |
FZJ100..5F..CHI |
1 | ||
| 33385-60030 |
FZJ100,UZJ100..5F..CHI |
1 | ||
| 33391D - SPRING, SYNCHROMESH SHIFTING KEY, NO.2(FOR TRANSFER) | ||||
| 33371-37030 |
FZJ100,UZJ100..5F..CHI |
2 | ||
| 33371-37030 |
FZJ100..5F..CHI |
2 | ||
| 33391-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..5F |
2 | ||
| 33391D - SPRING, SYNCHROMESH SHIFTING KEY, NO.2(FOR TRANSFER) | ||||
| 33371-37030 |
FZJ100,UZJ100..5F..CHI |
2 | ||
| 33371-37030 |
FZJ100..5F..CHI |
2 | ||
| 33391-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..5F |
2 | ||
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(DSL2,EFI,TD2) N=11,MARK 11:31-33 |
1 | ||
| 33481-60090 |
FZJ100..CHI N=11,MARK 11:31-33 |
1 | ||
| 33481-60100 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..(STD,VX)..GEN N=12,MARK 12:31-33 |
1 | ||
| 33481-60090 |
FZJ100..CHI N=11,MARK 11:31-33 |
1 | ||
| 36155A - RING, TRANSFER OIL SEAL | ||||
| 36155-60030 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 36155-60030 |
FZJ100..CHI;UZJ100..5FC..CHI |
2 | ||
| 36155-60030 |
FZJ100,UZJ100..CHI |
2 | ||
| 36155A - RING, TRANSFER OIL SEAL | ||||
| 36155-60030 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 36155-60030 |
FZJ100..CHI;UZJ100..5FC..CHI |
2 | ||
| 36155-60030 |
FZJ100,UZJ100..CHI |
2 | ||
| 36202 - SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR | ||||
| 36202-60041 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 36202-60041 |
FZJ100,UZJ100..CHI |
1 | ||
| 36203 - GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT | ||||
| 36203-60100 |
FZJ100,UZJ100..CHI |
1 | ||
| 36203-60100 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 36212 - GEAR, TRANSFER INPUT | ||||
| 36212-60120 |
FZJ105..GX;HZJ105..4FC;FZJ100,HDJ100;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36212-60120 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 36212-60120 |
FZJ100,UZJ100..CHI |
1 | ||
| 36212A - BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR) | ||||
| 90363-35030 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90363-35030 |
FZJ100,UZJ100..CHI |
1 | ||
| 90363-35030 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 36212C - RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR) | ||||
| 90520-82001 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.65 |
1 | ||
| 90520-82001 |
FZJ100,UZJ100..CHI T=1.65 |
1 | ||
| 90520-82001 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.65 |
1 | ||
| 36212D - RING, SHAFT SNAP (FOR TRANSFER INPUT BEARING) | ||||
| 90520-32005 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=2.0,MARK A |
1 | ||
| 90520-32008 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=2.3,MARK D |
1 | ||
| 90520-32006 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=2.1,MARK B |
1 | ||
| 90520-32009 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=2.4,MARK E |
1 | ||
| 90520-32007 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=2.2,MARK C |
1 | ||
| 90520-32005 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.0,MARK A |
1 | ||
| 90520-32008 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.3,MARK D |
1 | ||
| 90520-32007 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.2,MARK C |
1 | ||
| 90520-32009 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.4,MARK E |
1 | ||
| 90520-32006 |
FZJ100,UZJ100..CHI T=2.1,MARK B |
1 | ||
| 90520-32008 |
FZJ100,UZJ100..CHI T=2.3,MARK D |
1 | ||
| 90520-32007 |
FZJ100,UZJ100..CHI T=2.2,MARK C |
1 | ||
| 90520-32006 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.1,MARK B |
1 | ||
| 90520-32009 |
FZJ100,UZJ100..CHI T=2.4,MARK E |
1 | ||
| 90520-32005 |
FZJ100,UZJ100..CHI T=2.0,MARK A |
1 | ||
| 36212F - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT) | ||||
| 90363-50003 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90363-50003 |
FZJ100,UZJ100..CHI |
1 | ||
| 90363-50003 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 36212L - RING, SHAFT SNAP | ||||
| 90520-46008 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=3.10-3.15,MARK E |
1 | ||
| 90520-46006 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=3.00-3.05,MARK C |
1 | ||
| 90520-46004 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=2.90-2.95,MARK A |
1 | ||
| 90520-46005 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=2.95-3.00,MARK B |
1 | ||
| 90520-46009 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=3.15-3.20,MARK F |
1 | ||
| 90520-46007 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=3.05-3.10,MARK D |
1 | ||
| 90520-46004 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.90-2.95,MARK A |
1 | ||
| 90520-46005 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.95-3.00,MARK B |
1 | ||
| 90520-46009 |
FZJ100..CHI;UZJ100..5FC..CHI T=3.15-3.20,MARK F |
1 | ||
| 90520-46004 |
FZJ100,UZJ100..CHI T=2.90-2.95,MARK A |
1 | ||
| 90520-46006 |
FZJ100..CHI;UZJ100..5FC..CHI T=3.00-3.05,MARK C |
1 | ||
| 90520-46006 |
FZJ100,UZJ100..CHI T=3.00-3.05,MARK C |
1 | ||
| 90520-46005 |
FZJ100,UZJ100..CHI T=2.95-3.00,MARK B |
1 | ||
| 90520-46007 |
FZJ100,UZJ100..CHI T=3.05-3.10,MARK D |
1 | ||
| 90520-46007 |
FZJ100..CHI;UZJ100..5FC..CHI T=3.05-3.10,MARK D |
1 | ||
| 90520-46008 |
FZJ100..CHI;UZJ100..5FC..CHI T=3.10-3.15,MARK E |
1 | ||
| 90520-46009 |
FZJ100,UZJ100..CHI T=3.15-3.20,MARK F |
1 | ||
| 90520-46008 |
FZJ100,UZJ100..CHI T=3.10-3.15,MARK E |
1 | ||
| 36221 - GEAR, TRANSFER IDLER | ||||
| 36221-60140 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 36221-60140 |
FZJ100,UZJ100..CHI |
1 | ||
| 36221D - WASHER, PLATE(FOR TRANSFER IDLER GEAR) | ||||
| 90201-57005 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=2.59-2.61,MARK 5 |
1 | ||
| 90201-57002 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.29-0.31,MARK 2 |
1 | ||
| 90201-57003 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.44-0.46,MARK 3 |
1 | ||
| 90201-57004 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=2.39-2.41,MARK 4 |
1 | ||
| 90201-57008 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=3.19-3.21,MARK 8 |
1 | ||
| 90201-57010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=3.59-3.61,MARK 10 |
1 | ||
| 90201-57009 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=3.39-3.41,MARK 9 |
1 | ||
| 90201-57007 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=2.99-3.01,MARK 7 |
1 | ||
| 90201-57006 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=2.79-2.81,MARK 6 |
1 | ||
| 90201-57013 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.55,MARK 13 |
1 | ||
| 90201-57012 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=3.99-4.01,MARK 12 |
1 | ||
| 90201-57011 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=3.79-3.81,MARK 11 |
1 | ||
| 90201-57005 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.59-2.61,MARK 5 |
1 | ||
| 90201-57002 |
FZJ100..CHI;UZJ100..5FC..CHI T=0.29-0.31,MARK 2 |
1 | ||
| 90201-57008 |
FZJ100..CHI;UZJ100..5FC..CHI T=3.19-3.21,MARK 8 |
1 | ||
| 90201-57003 |
FZJ100..CHI;UZJ100..5FC..CHI T=0.44-0.46,MARK 3 |
1 | ||
| 90201-57011 |
FZJ100..CHI;UZJ100..5FC..CHI T=3.79-3.81,MARK 11 |
1 | ||
| 90201-57007 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.99-3.01,MARK 7 |
1 | ||
| 90201-57006 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.79-2.81,MARK 6 |
1 | ||
| 90201-57009 |
FZJ100..CHI;UZJ100..5FC..CHI T=3.39-3.41,MARK 9 |
1 | ||
| 90201-57013 |
FZJ100..CHI;UZJ100..5FC..CHI T=0.55,MARK 13 |
1 | ||
| 90201-57004 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.39-2.41,MARK 4 |
1 | ||
| 90201-57012 |
FZJ100..CHI;UZJ100..5FC..CHI T=3.99-4.01,MARK 12 |
1 | ||
| 90201-57010 |
FZJ100..CHI;UZJ100..5FC..CHI T=3.59-3.61,MARK 10 |
1 | ||
| 90201-57003 |
FZJ100,UZJ100..CHI T=0.44-0.46,MARK 3 |
1 | ||
| 90201-57005 |
FZJ100,UZJ100..CHI T=2.59-2.61,MARK 5 |
1 | ||
| 90201-57007 |
FZJ100,UZJ100..CHI T=2.99-3.01,MARK 7 |
1 | ||
| 90201-57002 |
FZJ100,UZJ100..CHI T=0.29-0.31,MARK 2 |
1 | ||
| 90201-57008 |
FZJ100,UZJ100..CHI T=3.19-3.21,MARK 8 |
1 | ||
| 90201-57004 |
FZJ100,UZJ100..CHI T=2.39-2.41,MARK 4 |
1 | ||
| 90201-57012 |
FZJ100,UZJ100..CHI T=3.99-4.01,MARK 12 |
1 | ||
| 90201-57013 |
FZJ100,UZJ100..CHI T=0.55,MARK 13 |
1 | ||
| 90201-57006 |
FZJ100,UZJ100..CHI T=2.79-2.81,MARK 6 |
1 | ||
| 90201-57010 |
FZJ100,UZJ100..CHI T=3.59-3.61,MARK 10 |
1 | ||
| 90201-57011 |
FZJ100,UZJ100..CHI T=3.79-3.81,MARK 11 |
1 | ||
| 90201-57009 |
FZJ100,UZJ100..CHI T=3.39-3.41,MARK 9 |
1 | ||
| 36221G - BEARING (FOR TRANSFER ILDER GEAR), FRONT | ||||
| 90366-35060 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 90366-35060 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90366-35060 |
FZJ100,UZJ100..CHI |
1 | ||
| 36221H - BEARING (FOR TRANSFER ILDER GEAR), REAR | ||||
| 90366-33002 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90366-33002 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 90366-33002 |
FZJ100,UZJ100..CHI |
1 | ||
| 36221J - BEARING (FOR TRANSFER IDLER GEAR LOWER) | ||||
| 90364-38016 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90364-38016 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 90364-38016 |
FZJ100,UZJ100..CHI |
1 | ||
| 36224 - GEAR, TRANSFER IDLER LOWER | ||||
| 36224-60020 |
HZJ105..4FC;UZJ100..LHD;FZJ10#,HDJ100..GX,VX |
1 | ||
| 36224-60020 |
FZJ100,UZJ100..CHI |
1 | ||
| 36224-60020 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90366-48001 |
FZJ100..CHI;UZJ100..VX..CHI FULL TIME 4WD,FRONT |
1 | ||
| 90366-60008 |
FZJ100..CHI;UZJ100..VX..CHI FULL TIME 4WD,REAR |
1 | ||
| 90366-48001 |
FZJ100..CHI;UZJ100..VX..CHI FULL TIME 4WD,FRONT |
1 | ||
| 90366-60008 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) FULL TIME 4WD,REAR |
1 | ||
| 90366-48001 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) FULL TIME 4WD,FRONT |
1 | ||
| 90366-60008 |
FZJ100..CHI;UZJ100..VX..CHI FULL TIME 4WD,REAR |
1 | ||
| 90366-60008 |
FZJ100,UZJ100..CHI REAR |
1 | ||
| 90366-48001 |
FZJ100,UZJ100..CHI FRONT |
1 | ||
| 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90366-48001 |
FZJ100..CHI;UZJ100..VX..CHI FULL TIME 4WD,FRONT |
1 | ||
| 90366-60008 |
FZJ100..CHI;UZJ100..VX..CHI FULL TIME 4WD,REAR |
1 | ||
| 90366-48001 |
FZJ100..CHI;UZJ100..VX..CHI FULL TIME 4WD,FRONT |
1 | ||
| 90366-60008 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) FULL TIME 4WD,REAR |
1 | ||
| 90366-48001 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) FULL TIME 4WD,FRONT |
1 | ||
| 90366-60008 |
FZJ100..CHI;UZJ100..VX..CHI FULL TIME 4WD,REAR |
1 | ||
| 90366-60008 |
FZJ100,UZJ100..CHI REAR |
1 | ||
| 90366-48001 |
FZJ100,UZJ100..CHI FRONT |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-56001 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 90364-56001 |
FZJ100,UZJ100..CHI |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-44027 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.5,MARK F |
1 | ||
| 90520-44022 |
HZJ105,UZJ100..LHD..(STD,VX);FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TD2) T=2.0,MARK A,FULL TIME 4WD |
1 | ||
| 90520-44023 |
HZJ105,UZJ100..LHD..(STD,VX);FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TD2) T=2.1,MARK B,FULL TIME 4WD |
1 | ||
| 90520-44026 |
HZJ105,UZJ100..LHD..(STD,VX);FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TD2) T=2.4,MARK E,FULL TIME 4WD |
1 | ||
| 90520-44028 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.6,MARK G |
1 | ||
| 90520-44024 |
HZJ105,UZJ100..LHD..(STD,VX);FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TD2) T=2.2,MARK C,FULL TIME 4WD |
1 | ||
| 90520-44029 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.7,MARK H |
1 | ||
| 90520-44030 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.8,MARK J |
1 | ||
| 90520-44031 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.80,MARK A |
1 | ||
| 90520-44032 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.95,MARK B |
1 | ||
| 90520-44025 |
HZJ105,UZJ100..LHD..(STD,VX);FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TD2) T=2.3,MARK D,FULL TIME 4WD |
1 | ||
| 90520-44024 |
FZJ100..CHI;UZJ100..VX..CHI T=2.2,MARK C,FULL TIME 4WD |
1 | ||
| 90520-44027 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.5,MARK F |
1 | ||
| 90520-44025 |
FZJ100..CHI;UZJ100..VX..CHI T=2.3,MARK D,FULL TIME 4WD |
1 | ||
| 90520-44030 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.8,MARK J |
1 | ||
| 90520-44022 |
FZJ100..CHI;UZJ100..VX..CHI T=2.0,MARK A,FULL TIME 4WD |
1 | ||
| 90520-44031 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.80,MARK A |
1 | ||
| 90520-44026 |
FZJ100..CHI;UZJ100..VX..CHI T=2.4,MARK E,FULL TIME 4WD |
1 | ||
| 90520-44029 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.7,MARK H |
1 | ||
| 90520-44032 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.95,MARK B |
1 | ||
| 90520-44023 |
FZJ100..CHI;UZJ100..VX..CHI T=2.1,MARK B,FULL TIME 4WD |
1 | ||
| 90520-44022 |
FZJ100,UZJ100..CHI T=2.0,MARK A |
1 | ||
| 90520-44024 |
FZJ100,UZJ100..CHI T=2.2,MARK C |
1 | ||
| 90520-44028 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.6,MARK G |
1 | ||
| 90520-44026 |
FZJ100,UZJ100..CHI T=2.4,MARK E |
1 | ||
| 90520-44027 |
FZJ100,UZJ100..CHI T=2.5,MARK F |
1 | ||
| 90520-44028 |
FZJ100,UZJ100..CHI T=2.6,MARK G |
1 | ||
| 90520-44025 |
FZJ100,UZJ100..CHI T=2.3,MARK D |
1 | ||
| 90520-44030 |
FZJ100,UZJ100..CHI T=2.8,MARK J |
1 | ||
| 90520-44029 |
FZJ100,UZJ100..CHI T=2.7,MARK H |
1 | ||
| 90520-44031 |
FZJ100,UZJ100..CHI T=1.80,MARK A |
1 | ||
| 90520-44023 |
FZJ100,UZJ100..CHI T=2.1,MARK B |
1 | ||
| 90520-44032 |
FZJ100,UZJ100..CHI T=1.95,MARK B |
1 | ||
| 36231H - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT) | ||||
| 90363-40044 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 90363-40044 |
FZJ100,UZJ100..CHI |
1 | ||
| 90363-40044 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90363-50005 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90363-50005 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 90363-50005 |
FZJ100,UZJ100..CHI |
1 | ||
| 36231K - WASHER, PLATE(FOR TRANSFER OUTPUT REAR CASE) | ||||
| 90201-82011 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.39-2.41,MARK L |
1 | ||
| 90201-82019 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.59-1.61,MARK G |
1 | ||
| 90201-82015 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=0.415-0.485,MARK C |
1 | ||
| 90201-82012 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.59-2.61,MARK M |
1 | ||
| 90201-82020 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.79-1.81,MARK H |
1 | ||
| 90201-82016 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=0.99-1.01,MARK D |
1 | ||
| 90201-82014 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=0.27-0.33,MARK B |
1 | ||
| 90201-82023 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=0.55,MARK N |
1 | ||
| 90201-82021 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.99-2.01,MARK J |
1 | ||
| 90201-82022 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.19-2.21,MARK K |
1 | ||
| 90201-82018 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.39-1.41,MARK F |
1 | ||
| 90201-82017 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.19-1.21,MARK E |
1 | ||
| 90201-82011 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.39-2.41,MARK L |
1 | ||
| 90201-82012 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.59-2.61,MARK M |
1 | ||
| 90201-82017 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.19-1.21,MARK E |
1 | ||
| 90201-82014 |
FZJ100..CHI;UZJ100..5FC..CHI T=0.27-0.33,MARK B |
1 | ||
| 90201-82021 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.99-2.01,MARK J |
1 | ||
| 90201-82018 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.39-1.41,MARK F |
1 | ||
| 90201-82016 |
FZJ100..CHI;UZJ100..5FC..CHI T=0.99-1.01,MARK D |
1 | ||
| 90201-82023 |
FZJ100..CHI;UZJ100..5FC..CHI T=0.55,MARK N |
1 | ||
| 90201-82015 |
FZJ100..CHI;UZJ100..5FC..CHI T=0.415-0.485,MARK C |
1 | ||
| 90201-82020 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.79-1.81,MARK H |
1 | ||
| 90201-82022 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.19-2.21,MARK K |
1 | ||
| 90201-82019 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.59-1.61,MARK G |
1 | ||
| 90201-82012 |
FZJ100,UZJ100..CHI T=2.59-2.61,MARK M |
1 | ||
| 90201-82014 |
FZJ100,UZJ100..CHI T=0.27-0.33,MARK B |
1 | ||
| 90201-82011 |
FZJ100,UZJ100..CHI T=2.39-2.41,MARK L |
1 | ||
| 90201-82016 |
FZJ100,UZJ100..CHI T=0.99-1.01,MARK D |
1 | ||
| 90201-82023 |
FZJ100,UZJ100..CHI T=0.55,MARK N |
1 | ||
| 90201-82018 |
FZJ100,UZJ100..CHI T=1.39-1.41,MARK F |
1 | ||
| 90201-82017 |
FZJ100,UZJ100..CHI T=1.19-1.21,MARK E |
1 | ||
| 90201-82021 |
FZJ100,UZJ100..CHI T=1.99-2.01,MARK J |
1 | ||
| 90201-82019 |
FZJ100,UZJ100..CHI T=1.59-1.61,MARK G |
1 | ||
| 90201-82015 |
FZJ100,UZJ100..CHI T=0.415-0.485,MARK C |
1 | ||
| 90201-82020 |
FZJ100,UZJ100..CHI T=1.79-1.81,MARK H |
1 | ||
| 90201-82022 |
FZJ100,UZJ100..CHI T=2.19-2.21,MARK K |
1 | ||
| 36234B - RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING) | ||||
| 90521-84003 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.8,MARK B,FULL TIME 4WD |
2 | ||
| 90521-84002 |
FZJ100..CHI;UZJ100..VX..CHI T=1.7,MARK A,FULL TIME 4WD |
2 | ||
| 90521-84003 |
FZJ100..CHI;UZJ100..VX..CHI T=1.8,MARK B,FULL TIME 4WD |
2 | ||
| 90521-84002 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.7,MARK A,FULL TIME 4WD |
2 | ||
| 90521-84003 |
FZJ100,UZJ100..CHI T=1.8,MARK B |
2 | ||
| 90521-84002 |
FZJ100,UZJ100..CHI T=1.7,MARK A |
2 | ||
| 36234B - RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING) | ||||
| 90521-84003 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.8,MARK B,FULL TIME 4WD |
2 | ||
| 90521-84002 |
FZJ100..CHI;UZJ100..VX..CHI T=1.7,MARK A,FULL TIME 4WD |
2 | ||
| 90521-84003 |
FZJ100..CHI;UZJ100..VX..CHI T=1.8,MARK B,FULL TIME 4WD |
2 | ||
| 90521-84002 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.7,MARK A,FULL TIME 4WD |
2 | ||
| 90521-84003 |
FZJ100,UZJ100..CHI T=1.8,MARK B |
2 | ||
| 90521-84002 |
FZJ100,UZJ100..CHI T=1.7,MARK A |
2 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-60040 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36235-60040 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 36235-60040 |
FZJ100,UZJ100..CHI |
1 | ||
| 36235A - SLEEVE (FOR TRANSFER IDLER GEAR) | ||||
| 36235-60050 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36235-60050 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 36235-60050 |
FZJ100,UZJ100..CHI |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36236-60060 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 36236-60060 |
FZJ100,UZJ100..CHI |
1 | ||
| 36236-60060 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36236-60060 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 36236-60060 |
FZJ100,UZJ100..CHI |
1 | ||
| 36236-60060 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-60040 |
FZJ100,UZJ100..CHI |
1 | ||
| 36237-60040 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 36237A - RING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB) | ||||
| 90520-47005 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.95,MARK 1 |
1 | ||
| 90520-47008 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.25,MARK 4 |
1 | ||
| 90520-47007 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.15,MARK 3 |
1 | ||
| 90520-47006 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.05,MARK 2 |
1 | ||
| 90520-47005 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.95,MARK 1 |
1 | ||
| 90520-47007 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.15,MARK 3 |
1 | ||
| 90520-47006 |
FZJ100,UZJ100..CHI T=2.05,MARK 2 |
1 | ||
| 90520-47008 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.25,MARK 4 |
1 | ||
| 90520-47006 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.05,MARK 2 |
1 | ||
| 90520-47005 |
FZJ100,UZJ100..CHI T=1.95,MARK 1 |
1 | ||
| 90520-47008 |
FZJ100,UZJ100..CHI T=2.25,MARK 4 |
1 | ||
| 90520-47007 |
FZJ100,UZJ100..CHI T=2.15,MARK 3 |
1 | ||
| 36239 - HUB, TRANSFER DRIVE CLUTCH | ||||
| 36239-60010 |
FZJ100,UZJ100..CHI |
1 | ||
| 36239-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 36239-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36239 - HUB, TRANSFER DRIVE CLUTCH | ||||
| 36239-60010 |
FZJ100,UZJ100..CHI |
1 | ||
| 36239-60010 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 36239-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36239A - RING, SHAFT SNAP(FOR TRANSFER DRIVE CLUTCH HUB) | ||||
| 90520-36022 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=2.1,MARK D |
1 | ||
| 90520-36021 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=2.0,MARK C |
1 | ||
| 90520-36023 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=2.2,MARK E |
1 | ||
| 90520-36019 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.8,MARK A |
1 | ||
| 90520-40009 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.5 |
1 | ||
| 90520-36020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.9,MARK B |
1 | ||
| 90520-36019 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.8,MARK A |
1 | ||
| 90520-36020 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.9,MARK B |
1 | ||
| 90520-36019 |
FZJ100,UZJ100..CHI T=1.8,MARK A |
1 | ||
| 90520-40009 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.5 |
1 | ||
| 90520-36020 |
FZJ100,UZJ100..CHI T=1.9,MARK B |
1 | ||
| 90520-36023 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.2,MARK E |
1 | ||
| 90520-36021 |
FZJ100,UZJ100..CHI T=2.0,MARK C |
1 | ||
| 90520-36021 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.0,MARK C |
1 | ||
| 90520-36022 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.1,MARK D |
1 | ||
| 90520-36023 |
FZJ100,UZJ100..CHI T=2.2,MARK E |
1 | ||
| 90520-36022 |
FZJ100,UZJ100..CHI T=2.1,MARK D |
1 | ||
| 90520-40009 |
FZJ100,UZJ100..CHI T=1.5 |
1 | ||
| 36239A - RING, SHAFT SNAP(FOR TRANSFER DRIVE CLUTCH HUB) | ||||
| 90520-36022 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=2.1,MARK D |
1 | ||
| 90520-36021 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=2.0,MARK C |
1 | ||
| 90520-36023 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=2.2,MARK E |
1 | ||
| 90520-36019 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.8,MARK A |
1 | ||
| 90520-40009 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.5 |
1 | ||
| 90520-36020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.9,MARK B |
1 | ||
| 90520-36019 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.8,MARK A |
1 | ||
| 90520-36020 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.9,MARK B |
1 | ||
| 90520-36019 |
FZJ100,UZJ100..CHI T=1.8,MARK A |
1 | ||
| 90520-40009 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.5 |
1 | ||
| 90520-36020 |
FZJ100,UZJ100..CHI T=1.9,MARK B |
1 | ||
| 90520-36023 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.2,MARK E |
1 | ||
| 90520-36021 |
FZJ100,UZJ100..CHI T=2.0,MARK C |
1 | ||
| 90520-36021 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.0,MARK C |
1 | ||
| 90520-36022 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.1,MARK D |
1 | ||
| 90520-36023 |
FZJ100,UZJ100..CHI T=2.2,MARK E |
1 | ||
| 90520-36022 |
FZJ100,UZJ100..CHI T=2.1,MARK D |
1 | ||
| 90520-40009 |
FZJ100,UZJ100..CHI T=1.5 |
1 | ||
| 36242 - GEAR, TRANSFER LOW | ||||
| 36242-60170 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 36242-60170 |
FZJ100,UZJ100..CHI |
1 | ||
| 36245 - PIECE, TRANSFER FRONT DRIVE GEAR | ||||
| 36245-60040 |
FZJ100,UZJ100..CHI |
1 | ||
| 36245-60040 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 36247 - RING, TRANSFER SYNCHRONIZER | ||||
| 36247-60011 |
FZJ105..5F..GX;FZJ105..STD..GEN;FZJ100,HDJ100,HZJ105,UZJ100..5F |
1 | ||
| 36247-60011 |
FZJ100..5F..CHI |
1 | ||
| 36247-60011 |
FZJ100..5F..CHI |
1 | ||
| 36247-60011 |
FZJ100,UZJ100..5F..CHI |
1 | ||
| 36249 - KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2 | ||||
| 36249-60010 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..5F..(GX,VX)..(DSL2,EFI,TD2) FULL TIME 4WD |
3 | ||
| 36249-60010 |
FZJ100..5F..CHI |
3 | ||
| 36249-60010 |
FZJ100,UZJ100..5F..CHI |
3 | ||
| 36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1 | ||||
| 36255-60040 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 36255-60040 |
FZJ100,UZJ100..CHI |
1 | ||
| 36287 - BUSH, TRANSFER HIGH SPEED OUTPUT GEAR | ||||
| 36287-60011 |
FZJ100,UZJ100..CHI |
1 | ||
| 36287-60011 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36287-60011 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 41311M - CASE, CENTER DIFFERENTIAL | ||||
| 41301-60032 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 41301-60032 |
FZJ100,UZJ100..CHI |
1 | ||
| 41301-60032 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 41331B - GEAR, CENTER DIFFERENTIAL SIDE | ||||
| 41331-60031 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 41331-60031 |
FZJ100,UZJ100..CHI |
2 | ||
| 41331-60031 |
FZJ100..CHI;UZJ100..5FC..CHI |
2 | ||
| 41331B - GEAR, CENTER DIFFERENTIAL SIDE | ||||
| 41331-60031 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 41331-60031 |
FZJ100,UZJ100..CHI |
2 | ||
| 41331-60031 |
FZJ100..CHI;UZJ100..5FC..CHI |
2 | ||
| 41341A - PINION, CENTER DIFFERENTIAL | ||||
| 41341-30011 |
FZJ100..CHI;UZJ100..5FC..CHI |
2 | ||
| 41341-30011 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 41341-30011 |
FZJ100,UZJ100..CHI |
2 | ||
| 41341A - PINION, CENTER DIFFERENTIAL | ||||
| 41341-30011 |
FZJ100..CHI;UZJ100..5FC..CHI |
2 | ||
| 41341-30011 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 41341-30011 |
FZJ100,UZJ100..CHI |
2 | ||
| 41342C - SHAFT, CENTER DIFFERENTIAL PINION | ||||
| 41342-60030 |
FZJ100,UZJ100..CHI |
1 | ||
| 41342-60030 |
FZJ100..CHI;UZJ100..5FC..CHI |
1 | ||
| 41342-60030 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 41351A - WASHER, CENTER DIFFERENTIAL PINION TRUST | ||||
| 41351-60020 |
FZJ100,UZJ100..CHI |
2 | ||
| 41351-60020 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 41351-60020 |
FZJ100..CHI;UZJ100..5FC..CHI |
2 | ||
| 41351A - WASHER, CENTER DIFFERENTIAL PINION TRUST | ||||
| 41351-60020 |
FZJ100,UZJ100..CHI |
2 | ||
| 41351-60020 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 41351-60020 |
FZJ100..CHI;UZJ100..5FC..CHI |
2 | ||
| 41361B - WASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60G00 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.700 |
2 | ||
| 41361-60F90 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.625 |
2 | ||
| 41361-60G10 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.775 |
2 | ||
| 41361-60G40 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.000 |
2 | ||
| 41361-60G20 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.850 |
2 | ||
| 41361-60G80 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.300 |
2 | ||
| 41361-60G90 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.375 |
2 | ||
| 41361-60G30 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.925 |
2 | ||
| 41361-60J40 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.750 |
2 | ||
| 41361-60J30 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.675 |
2 | ||
| 41361-60G70 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.225 |
2 | ||
| 41361-60J80 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=3.050 |
2 | ||
| 41361-60J50 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.825 |
2 | ||
| 41361-60J20 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.600 |
2 | ||
| 41361-60G50 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.075 |
2 | ||
| 41361-60J90 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=3.125 |
2 | ||
| 41361-60J60 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.900 |
2 | ||
| 41361-60G60 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.1500 |
2 | ||
| 41361-60J10 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.525 |
2 | ||
| 41361-60J00 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.450 |
2 | ||
| 41361-60J70 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.975 |
2 | ||
| 41361-60G00 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.700 |
2 | ||
| 41361-60G40 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.000 |
2 | ||
| 41361-60G60 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.1500 |
2 | ||
| 41361-60J30 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.675 |
2 | ||
| 41361-60F90 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.625 |
2 | ||
| 41361-60G30 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.925 |
2 | ||
| 41361-60G70 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.225 |
2 | ||
| 41361-60G80 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.300 |
2 | ||
| 41361-60G90 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.375 |
2 | ||
| 41361-60J40 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.750 |
2 | ||
| 41361-60J20 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.600 |
2 | ||
| 41361-60J10 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.525 |
2 | ||
| 41361-60J00 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.450 |
2 | ||
| 41361-60G10 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.775 |
2 | ||
| 41361-60J50 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.825 |
2 | ||
| 41361-60G20 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.850 |
2 | ||
| 41361-60J60 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.900 |
2 | ||
| 41361-60J80 |
FZJ100..CHI;UZJ100..5FC..CHI T=3.050 |
2 | ||
| 41361-60J70 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.975 |
2 | ||
| 41361-60J90 |
FZJ100..CHI;UZJ100..5FC..CHI T=3.125 |
2 | ||
| 41361-60G50 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.075 |
2 | ||
| 41361-60F90 |
FZJ100,UZJ100..CHI T=1.625 |
2 | ||
| 41361-60G00 |
FZJ100,UZJ100..CHI T=1.700 |
2 | ||
| 41361-60G50 |
FZJ100,UZJ100..CHI T=2.075 |
2 | ||
| 41361-60G20 |
FZJ100,UZJ100..CHI T=1.850 |
2 | ||
| 41361-60G10 |
FZJ100,UZJ100..CHI T=1.775 |
2 | ||
| 41361-60G40 |
FZJ100,UZJ100..CHI T=2.000 |
2 | ||
| 41361-60G70 |
FZJ100,UZJ100..CHI T=2.225 |
2 | ||
| 41361-60G60 |
FZJ100,UZJ100..CHI T=2.1500 |
2 | ||
| 41361-60G30 |
FZJ100,UZJ100..CHI T=1.925 |
2 | ||
| 41361-60J10 |
FZJ100,UZJ100..CHI T=2.525 |
2 | ||
| 41361-60J20 |
FZJ100,UZJ100..CHI T=2.600 |
2 | ||
| 41361-60J00 |
FZJ100,UZJ100..CHI T=2.450 |
2 | ||
| 41361-60J60 |
FZJ100,UZJ100..CHI T=2.900 |
2 | ||
| 41361-60J80 |
FZJ100,UZJ100..CHI T=3.050 |
2 | ||
| 41361-60J70 |
FZJ100,UZJ100..CHI T=2.975 |
2 | ||
| 41361-60J50 |
FZJ100,UZJ100..CHI T=2.825 |
2 | ||
| 41361-60J30 |
FZJ100,UZJ100..CHI T=2.675 |
2 | ||
| 41361-60J40 |
FZJ100,UZJ100..CHI T=2.750 |
2 | ||
| 41361-60G80 |
FZJ100,UZJ100..CHI T=2.300 |
2 | ||
| 41361-60G90 |
FZJ100,UZJ100..CHI T=2.375 |
2 | ||
| 41361-60J90 |
FZJ100,UZJ100..CHI T=3.125 |
2 | ||
| 41361B - WASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60G00 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.700 |
2 | ||
| 41361-60F90 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.625 |
2 | ||
| 41361-60G10 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.775 |
2 | ||
| 41361-60G40 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.000 |
2 | ||
| 41361-60G20 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.850 |
2 | ||
| 41361-60G80 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.300 |
2 | ||
| 41361-60G90 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.375 |
2 | ||
| 41361-60G30 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=1.925 |
2 | ||
| 41361-60J40 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.750 |
2 | ||
| 41361-60J30 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.675 |
2 | ||
| 41361-60G70 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.225 |
2 | ||
| 41361-60J80 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=3.050 |
2 | ||
| 41361-60J50 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.825 |
2 | ||
| 41361-60J20 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.600 |
2 | ||
| 41361-60G50 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.075 |
2 | ||
| 41361-60J90 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=3.125 |
2 | ||
| 41361-60J60 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.900 |
2 | ||
| 41361-60G60 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.1500 |
2 | ||
| 41361-60J10 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.525 |
2 | ||
| 41361-60J00 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.450 |
2 | ||
| 41361-60J70 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) T=2.975 |
2 | ||
| 41361-60G00 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.700 |
2 | ||
| 41361-60G40 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.000 |
2 | ||
| 41361-60G60 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.1500 |
2 | ||
| 41361-60J30 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.675 |
2 | ||
| 41361-60F90 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.625 |
2 | ||
| 41361-60G30 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.925 |
2 | ||
| 41361-60G70 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.225 |
2 | ||
| 41361-60G80 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.300 |
2 | ||
| 41361-60G90 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.375 |
2 | ||
| 41361-60J40 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.750 |
2 | ||
| 41361-60J20 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.600 |
2 | ||
| 41361-60J10 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.525 |
2 | ||
| 41361-60J00 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.450 |
2 | ||
| 41361-60G10 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.775 |
2 | ||
| 41361-60J50 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.825 |
2 | ||
| 41361-60G20 |
FZJ100..CHI;UZJ100..5FC..CHI T=1.850 |
2 | ||
| 41361-60J60 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.900 |
2 | ||
| 41361-60J80 |
FZJ100..CHI;UZJ100..5FC..CHI T=3.050 |
2 | ||
| 41361-60J70 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.975 |
2 | ||
| 41361-60J90 |
FZJ100..CHI;UZJ100..5FC..CHI T=3.125 |
2 | ||
| 41361-60G50 |
FZJ100..CHI;UZJ100..5FC..CHI T=2.075 |
2 | ||
| 41361-60F90 |
FZJ100,UZJ100..CHI T=1.625 |
2 | ||
| 41361-60G00 |
FZJ100,UZJ100..CHI T=1.700 |
2 | ||
| 41361-60G50 |
FZJ100,UZJ100..CHI T=2.075 |
2 | ||
| 41361-60G20 |
FZJ100,UZJ100..CHI T=1.850 |
2 | ||
| 41361-60G10 |
FZJ100,UZJ100..CHI T=1.775 |
2 | ||
| 41361-60G40 |
FZJ100,UZJ100..CHI T=2.000 |
2 | ||
| 41361-60G70 |
FZJ100,UZJ100..CHI T=2.225 |
2 | ||
| 41361-60G60 |
FZJ100,UZJ100..CHI T=2.1500 |
2 | ||
| 41361-60G30 |
FZJ100,UZJ100..CHI T=1.925 |
2 | ||
| 41361-60J10 |
FZJ100,UZJ100..CHI T=2.525 |
2 | ||
| 41361-60J20 |
FZJ100,UZJ100..CHI T=2.600 |
2 | ||
| 41361-60J00 |
FZJ100,UZJ100..CHI T=2.450 |
2 | ||
| 41361-60J60 |
FZJ100,UZJ100..CHI T=2.900 |
2 | ||
| 41361-60J80 |
FZJ100,UZJ100..CHI T=3.050 |
2 | ||
| 41361-60J70 |
FZJ100,UZJ100..CHI T=2.975 |
2 | ||
| 41361-60J50 |
FZJ100,UZJ100..CHI T=2.825 |
2 | ||
| 41361-60J30 |
FZJ100,UZJ100..CHI T=2.675 |
2 | ||
| 41361-60J40 |
FZJ100,UZJ100..CHI T=2.750 |
2 | ||
| 41361-60G80 |
FZJ100,UZJ100..CHI T=2.300 |
2 | ||
| 41361-60G90 |
FZJ100,UZJ100..CHI T=2.375 |
2 | ||
| 41361-60J90 |
FZJ100,UZJ100..CHI T=3.125 |
2 | ||
| Common parts | ||||
| 90105-11031 | ||||
| 90114-11003 | ||||
| 90250-05040 | ||||
| 90250-06017 | ||||
| Linked diagrams | ||||
| 3701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
