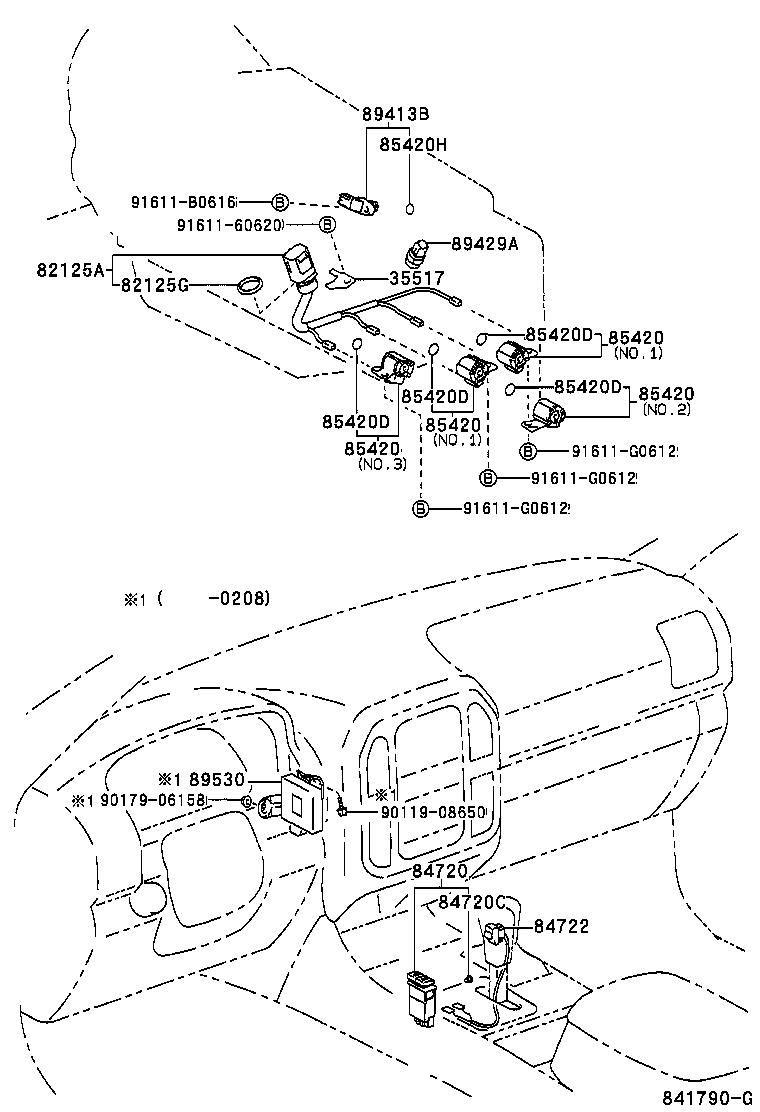

Toyota Land cruiser 100 FZJ100 OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

Part #	Description	Period	Qty
35517 - PLATE, TRANSMISSION WIRE LOCK
35517-60010	FZJ100..4FC..GCC	08/2002 - 05/2005	1
35517-60010	FZJ100..4FC..GCC	05/2005 - 12/2999	1
35517-60010	FZJ10#..4FC	01/1998 - 08/2002	1
82125A - WIRE, TRANSMISSION
82125-36010	FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2)	01/1998 - 08/2002	1
82125-36010	FZJ100..4FC..GCC	08/2002 - 05/2005	1
82125-36010	FZJ100..4FC..GCC	05/2005 - 12/2999	1
82125G - RING, O(FOR TRANSMISSION WIRE)
96721-24018	FZJ100..4FC..GCC	08/2002 - 05/2005	1
96721-24018	FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2)	01/1998 - 08/2002	1
96721-24018	FZJ100..4FC..GCC	05/2005 - 12/2999	1
84720 - SWITCH ASSY, PATTERN SELECT
84720-60120	FZJ100,HDJ100,UZJ100..LHD..4FC	01/1998 - 08/2002	1
84720-60120	FZJ100,HDJ100,UZJ100..ATM..(GCC,GEN)	05/2005 - 12/2999	1
84720-60120	FZJ100,HDJ100,UZJ100..ATM..(GCC,GEN)	08/2002 - 05/2005	1
84720C - BULB(FOR PATTERN SELECT SWITCH)
90010-01039	FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) 14V0.91W,W(GREEN CAP	08/2002 - 05/2005	1
90010-01039	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC 14V0.91W,W(GREEN CAP	01/1998 - 08/2002	1
90010-01039	FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) 14V0.91W,W(GREEN CAP	05/2005 - 12/2999	1
84722 - SWITCH, TRANSMISSION CONTROL
84722-60150C0	FZJ100..4FC..GCC BLACK,TRIM0#,1#	08/2002 - 05/2005	1
84722-60150C0	FZJ100..4FC BLACK,TRIM1#,4#	01/1998 - 08/2002	1
84722-60150C0	FZJ100..4FC..GCC BLACK,TRIM0#,1#	05/2005 - 12/2999	1
85420 - SOLENOID ASSY, TRANSMISSION
85420-60070	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.3	01/1998 - 08/2002	1
85420-60050	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.1	01/1998 - 08/2002	2
85420-60060	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.2	01/1998 - 08/2002	1
85420-60070	FZJ100..4FC..GCC NO.3	08/2002 - 05/2005	1
85420-60060	FZJ100..4FC..GCC NO.2	05/2005 - 12/2999	1
85420-60050	FZJ100..4FC..GCC NO.1	08/2002 - 05/2005	2
85420-60060	FZJ100..4FC..GCC NO.2	08/2002 - 05/2005	1
85420-60050	FZJ100..4FC..GCC NO.1	05/2005 - 12/2999	2
85420-60070	FZJ100..4FC..GCC NO.3	05/2005 - 12/2999	1
85420 - SOLENOID ASSY, TRANSMISSION
85420-60070	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.3	01/1998 - 08/2002	1
85420-60050	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.1	01/1998 - 08/2002	2
85420-60060	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.2	01/1998 - 08/2002	1
85420-60070	FZJ100..4FC..GCC NO.3	08/2002 - 05/2005	1
85420-60060	FZJ100..4FC..GCC NO.2	05/2005 - 12/2999	1
85420-60050	FZJ100..4FC..GCC NO.1	08/2002 - 05/2005	2
85420-60060	FZJ100..4FC..GCC NO.2	08/2002 - 05/2005	1
85420-60050	FZJ100..4FC..GCC NO.1	05/2005 - 12/2999	2
85420-60070	FZJ100..4FC..GCC NO.3	05/2005 - 12/2999	1
85420 - SOLENOID ASSY, TRANSMISSION
85420-60070	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.3	01/1998 - 08/2002	1
85420-60050	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.1	01/1998 - 08/2002	2
85420-60060	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.2	01/1998 - 08/2002	1
85420-60070	FZJ100..4FC..GCC NO.3	08/2002 - 05/2005	1
85420-60060	FZJ100..4FC..GCC NO.2	05/2005 - 12/2999	1
85420-60050	FZJ100..4FC..GCC NO.1	08/2002 - 05/2005	2
85420-60060	FZJ100..4FC..GCC NO.2	08/2002 - 05/2005	1
85420-60050	FZJ100..4FC..GCC NO.1	05/2005 - 12/2999	2
85420-60070	FZJ100..4FC..GCC NO.3	05/2005 - 12/2999	1
85420 - SOLENOID ASSY, TRANSMISSION
85420-60070	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.3	01/1998 - 08/2002	1
85420-60050	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.1	01/1998 - 08/2002	2
85420-60060	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.2	01/1998 - 08/2002	1
85420-60050	FZJ100..4FC..GCC NO.1	08/2002 - 05/2005	2
85420-60070	FZJ100..4FC..GCC NO.3	08/2002 - 05/2005	1
85420-60060	FZJ100..4FC..GCC NO.2	05/2005 - 12/2999	1
85420-60060	FZJ100..4FC..GCC NO.2	08/2002 - 05/2005	1
85420-60050	FZJ100..4FC..GCC NO.1	05/2005 - 12/2999	2
85420-60070	FZJ100..4FC..GCC NO.3	05/2005 - 12/2999	1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	4
90301-06004	FZJ100..4FC..GCC	08/2002 - 05/2005	4
90301-06004	FZJ100..4FC..GCC	05/2005 - 12/2999	4
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	4
90301-06004	FZJ100..4FC..GCC	08/2002 - 05/2005	4
90301-06004	FZJ100..4FC..GCC	05/2005 - 12/2999	4
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	4
90301-06004	FZJ100..4FC..GCC	08/2002 - 05/2005	4
90301-06004	FZJ100..4FC..GCC	05/2005 - 12/2999	4
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	4
90301-06004	FZJ100..4FC..GCC	08/2002 - 05/2005	4
90301-06004	FZJ100..4FC..GCC	05/2005 - 12/2999	4
85420H - RING, O(FOR SPEED SENSOR)
90301-11008	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	1
90301-11008	FZJ100..4FC..GCC	08/2002 - 05/2005	1
90301-11008	FZJ100..4FC..GCC	05/2005 - 12/2999	1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-32010	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	1
89413-32010	FZJ100..4FC..GCC	08/2002 - 05/2005	1
89413-32010	FZJ100..4FC..GCC	05/2005 - 12/2999	1
89429A - SENSOR, TEMPERATURE
89428-60090	FZJ100..4FC..GCC	08/2002 - 05/2005	1
89428-60090	FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	1
89428-60090	FZJ100..4FC..GCC	05/2005 - 12/2999	1
Common parts
90119-08650
90179-06158
91611-60620
91611-B0616
91611-G0612

FZJ100L-GCPNKV (1998)

(9801-0208)FZJ100,HDJ100..LHD..4FC ; (0208- )4FC
