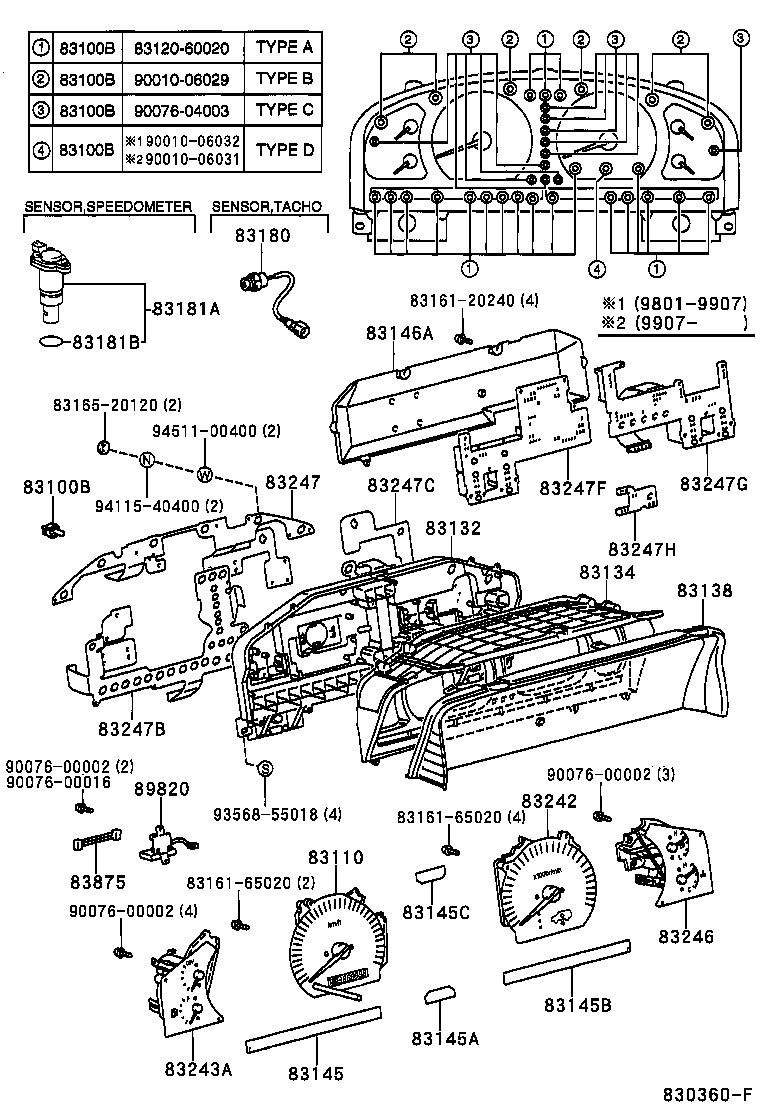

FZJ100L-GCPNKV (1998)
Toyota Land Cruiser 100
(9801-0208)4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06029 |
FZJ10#,HDJ100,HZJ105,UZJ100 14V 3.0W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90076-04003 |
FZJ10#,HDJ100,HZJ105,UZJ100 12V 1.12W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UZJ100..5F;FZJ10#,HDJ100,HZJ105 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-06032 |
HDJ100..5FC..GEN;HZJ105..GX..(ARL,GCC);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN) 14V 0.84W,W(SOCKET),W(SPEEDOMETER---MILE/KM) |
1 | ||
| 90010-06032 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 14V 0.84W,W(SOCKET) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-60510 |
FZJ100,UZJ100..GCC MILE/KM |
1 | ||
| 83220-60511 |
FZJ100,UZJ100..GCC |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-6A840 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 83841-6B100 |
FZJ100,UZJ100..4FC..GCC |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-6A840 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 83821-6D870 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 83821-6D870 |
HDJ100..5FC..GX;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-6D870 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 83852-6D870 |
HDJ100..5FC..GX;UZJ100..5F..ARL;HDJ100,UZJ100..5FC..GEN;FZJ10#,HDJ100,HZJ105..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 83852-6A840 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-6B040 |
FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83832-6A840 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83832-6A870 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 83146A - COVER, SPEEDMETER | ||||
| 83845-6A840 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 83181-12020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 83181-12020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 96711-24030 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 96711-24030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-6A870 |
FZJ10# |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-6A870 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 |
1 | ||
| 83246 - GAUGE, OIL PRESSURE RECEIVER | ||||
| 83885-6B090 |
FZJ100,UZJ100..GCC |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83863-6A840 |
UZJ100..ARL,GCC;UZJ100..5F..GEN;FZJ10#,HDJ100,HZJ105 |
1 | ||
| 83863-6A840 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 83863-6A840 |
UZJ100..ARL,GCC;UZJ100..5F..GEN;FZJ10#,HDJ100,HZJ105 |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83862-6A890 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 83862-6A890 |
UZJ100..4FC..(ARL,GCC);FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 83247C - PLATE, MATER CIRCUIT, NO.3 | ||||
| 83864-6A840 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 83247F - PLATE, METER CIRCUIT, NO.1 (FOR COMPUTER) | ||||
| 83861-6B090 |
FZJ100 |
1 | ||
| 83862-6B090 |
FZJ100 |
1 | ||
| 83861-6B092 |
FZJ100 |
1 | ||
| 83247G - PLATE, METER CIRCUIT, NO.2 (FOR COMPUTER) | ||||
| 83861-6B100 |
FZJ100..4FC |
1 | ||
| 83861-6B041 |
FZJ100..4FC |
1 | ||
| 83875 - WIRE, COMBINATION METER, NO.1 | ||||
| 83875-6A840 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 89820 - SENSOR ASSY, INCLINATION | ||||
| 89820-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 89820-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 89820-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 83161-20240 | ||||
| 83161-65020 | ||||
| 83165-20120 | ||||
| 90076-00002 | ||||
| 90076-00016 | ||||
| 93568-55018 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
ILLUST NO. 2 OF 2(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 83181-12020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 83181-12020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 96711-24030 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 96711-24030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| Linked diagrams | ||||
| 3304 | ||||
| 3305 | ||||
ILLUST NO. 1 OF 2(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-6E190 |
FZJ100..4FC |
1 | ||
| 83800-6E191 |
FZJ100..4FC..GCC |
1 | ||
| 83800-6E192 |
FZJ100..4FC..GCC |
1 | ||
| 83800-6E192 |
FZJ100..4FC..GCC |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06029 |
FZJ10#,HDJ100,HZJ105,UZJ100 14V 3.0W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90076-04003 |
FZJ10#,HDJ100,HZJ105,UZJ100 12V 1.12W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UZJ100..5F;FZJ10#,HDJ100,HZJ105 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-06032 |
HDJ100..5FC..GEN;HZJ105..GX..(ARL,GCC);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN) 14V 0.84W,W(SOCKET),W(SPEEDOMETER---MILE/KM) |
1 | ||
| 90010-06032 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 14V 0.84W,W(SOCKET) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06029 |
FZJ10#,HDJ100,HZJ105,UZJ100 14V 3.0W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90076-04003 |
FZJ10#,HDJ100,HZJ105,UZJ100 12V 1.12W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UZJ100..5F;FZJ10#,HDJ100,HZJ105 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-06032 |
HDJ100..5FC..GEN;HZJ105..GX..(ARL,GCC);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN) 14V 0.84W,W(SOCKET),W(SPEEDOMETER---MILE/KM) |
1 | ||
| 90010-06032 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 14V 0.84W,W(SOCKET) |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-6A840 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 83821-6D870 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 83821-6D870 |
HDJ100..5FC..GX;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-6D870 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 83852-6D870 |
HDJ100..5FC..GX;UZJ100..5F..ARL;HDJ100,UZJ100..5FC..GEN;FZJ10#,HDJ100,HZJ105..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 83852-6A840 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 83847 - CUSHION, COMBINATION SPEEDOMETER, NO.1 | ||||
| 83847-6D870 |
FZJ100..SOB..4FC;FZJ100,HZJ105..5F..(ARL,GCC,GEN) |
1 | ||
| 83847-6D870 |
HDJ100..5FC..GX;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 83847A - CUSHION, COMBINATION SPEEDMETER | ||||
| 83848-6D870 |
FZJ100..SOB..4FC;FZJ100,HZJ105..5F..(ARL,GCC,GEN) |
1 | ||
| 83848-6D870 |
HDJ100..5FC..GX;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 89820 - SENSOR ASSY, INCLINATION | ||||
| 89820-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 89820-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 89820-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 83161-20240 | ||||
| 90076-00002 | ||||
| 93568-55018 | ||||
