FZJ100L-GCPNKV (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2007
Engine 1FZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )5FC..CHI;UZJ100..ARL,GCC,GEN;FZJ10#,HDJ100,HZJ105

Click highlighted areas on diagram

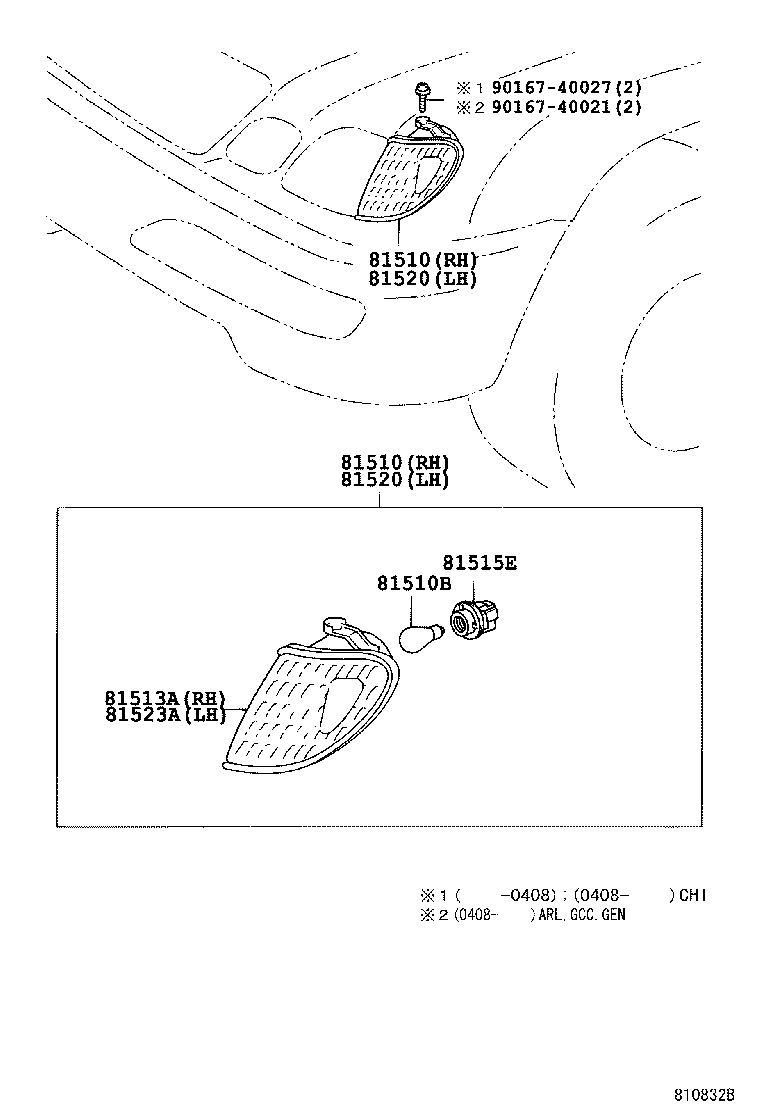

diagram 81510 81510 81510B 81513A 81515E 81520 81520 81523A 9016740021 9016740027
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-60490

FZJ100,HZJ105..GCC

 1
81510-60480

UZJ100..ARL;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TDEFI

 1
81510-60490

HZJ105..GCC;FZJ100,HDJ100..GCC,GEN;UZJ100..5FC..(GCC,GEN)

 1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-60490

FZJ100,HZJ105..GCC

 1
81510-60480

UZJ100..ARL;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TDEFI

 1
81510-60490

HZJ105..GCC;FZJ100,HDJ100..GCC,GEN;UZJ100..5FC..(GCC,GEN)

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15009

FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)

12V 21W,AMBER

 2
90981-15009

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

12V 21W,AMBER

 2
81513A - UNIT ASSY, FRONT TURN SIGNAL LAMP, RH
81511-60490

FZJ100,HZJ105..GCC

 1
81511-60480

UZJ100..ARL;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TDEFI

 1
81511-60490

HZJ105..GCC;FZJ100,HDJ100..GCC,GEN;UZJ100..5FC..(GCC,GEN)

 1
81515E - SOCKET PLUG ASSY
90075-60006

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

 2
90075-60006

FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-60350

UZJ100..ARL;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TDEFI

 1
81520-60360

FZJ100,HZJ105..GCC

 1
81520-60360

HZJ105..GCC;FZJ100,HDJ100..GCC,GEN;UZJ100..5FC..(GCC,GEN)

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-60350

UZJ100..ARL;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TDEFI

 1
81520-60360

FZJ100,HZJ105..GCC

 1
81520-60360

HZJ105..GCC;FZJ100,HDJ100..GCC,GEN;UZJ100..5FC..(GCC,GEN)

 1
81523A - UNIT ASSY, FRONT TURN SIGNAL LAMP, LH
81521-60350

UZJ100..ARL;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TDEFI

 1
81521-60360

HZJ105..GCC;FZJ100,HDJ100..GCC,GEN;UZJ100..5FC..(GCC,GEN)

 1
81521-60360

FZJ100,HZJ105..GCC

 1
Common parts
90167-40021
90167-40027
