FZJ100L-GCPNKV (1998)
Toyota Land Cruiser 100
(9801- )5FC..GX..CHI ; (9801- )FZJ100,HDJ100 ; (9801- )UZJ100..4FC,5F ; (9

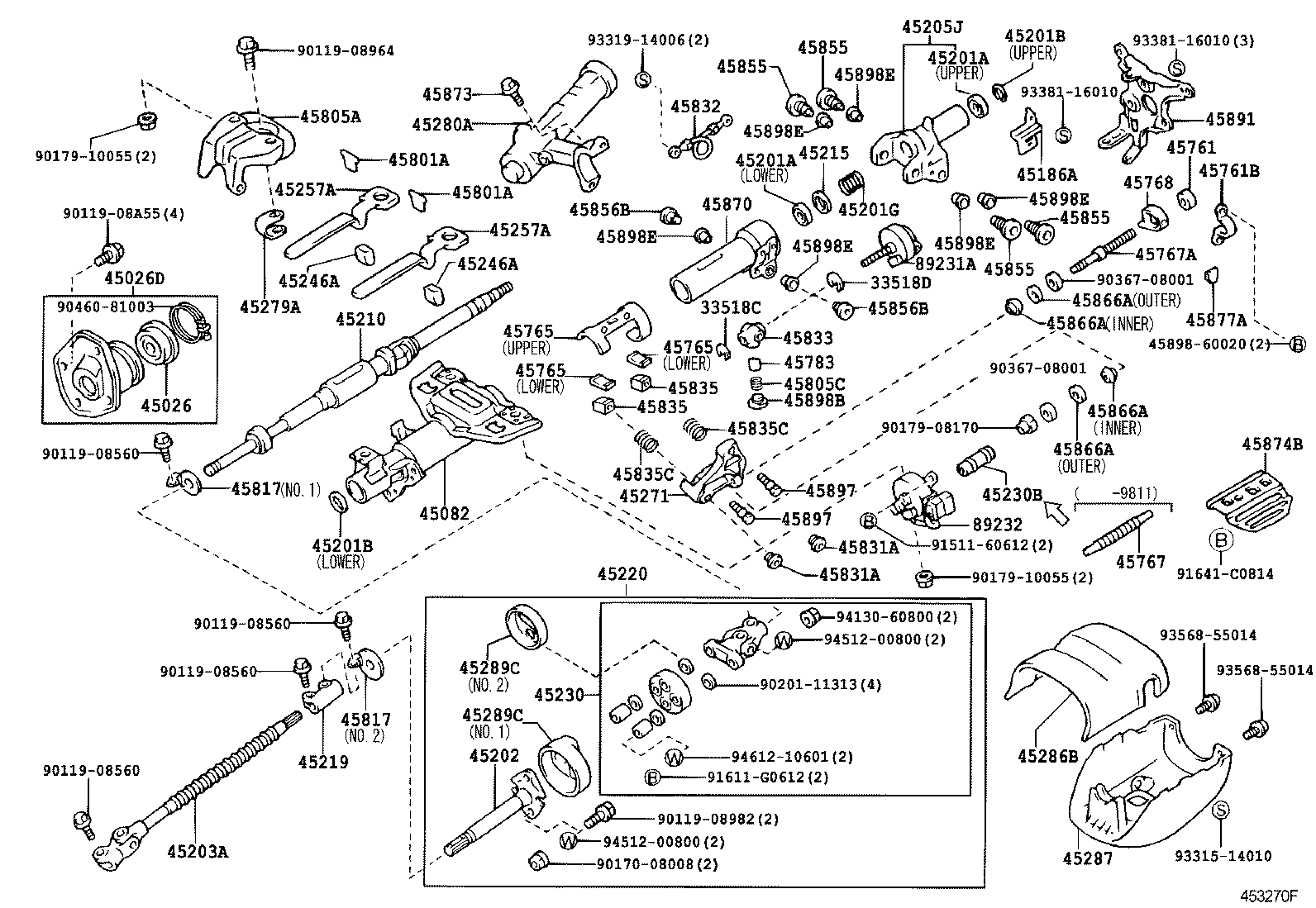

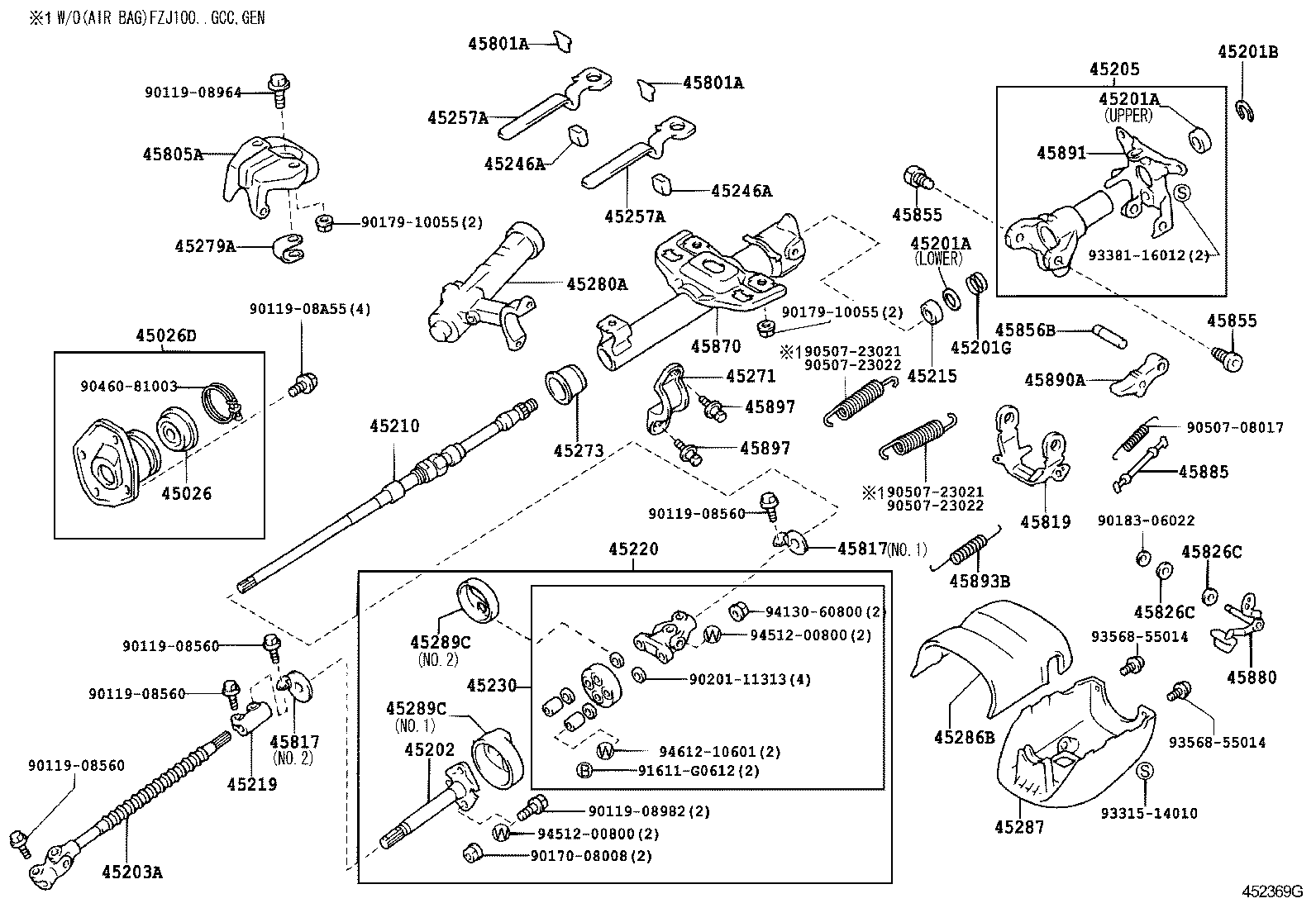

MANUAL TILT STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-60020 |
FZJ100,UZJ100..GCC |
1 | ||
| 45026-60010 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 45026-60020 |
FZJ100,UZJ100..GCC |
1 | ||
| 45026-60020 |
FZJ100,UZJ100..GCC |
1 | ||
| 45026D - COVER SUB-ASSY, STEERING COLUMN HOLE | ||||
| 45025-60100 |
FZJ100,HDJ100,UZJ100..LHD |
1 | ||
| 45025-60130 |
FZJ100,UZJ100..GCC |
1 | ||
| 45025-60130 |
FZJ100,UZJ100..GCC |
1 | ||
| 45025-60130 |
FZJ100,UZJ100..GCC |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
UZJ100..(4FC,5F)..VX;HDJ100..(4FC,5F)..ARL;FZJ10#,HDJ100,HZJ105..(DSL2,EFI,TD2)..(ARL,GCC,GEN) LOWER |
1 | ||
| 90363-18009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN UPPER |
1 | ||
| 90363-18005 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN LOWER |
1 | ||
| 90363-18009 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) UPPER |
1 | ||
| 90363-18005 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN LOWER |
1 | ||
| 90363-18012 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) LOWER |
1 | ||
| 90363-18009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN UPPER |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
UZJ100..(4FC,5F)..VX;HDJ100..(4FC,5F)..ARL;FZJ10#,HDJ100,HZJ105..(DSL2,EFI,TD2)..(ARL,GCC,GEN) LOWER |
1 | ||
| 90363-18009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN UPPER |
1 | ||
| 90363-18005 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN LOWER |
1 | ||
| 90363-18009 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) UPPER |
1 | ||
| 90363-18005 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN LOWER |
1 | ||
| 90363-18012 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) LOWER |
1 | ||
| 90363-18009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN UPPER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
FZJ105..GX;FZJ105,HDJ100..SOB..(STD,VX)..GEN;FZJ100,HDJ100,HZJ105..DSL2,EFI,TDEFI T=1.20 |
1 | ||
| 90520-17042 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) T=1.20 |
1 | ||
| 90520-17042 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) T=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90501-40017 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90501-40017 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45202-60100 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 45202-60100 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 45202-60100 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 45203A - SHAFT, STEERING INTERMEDIATE, NO.2 | ||||
| 45203-60090 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 45203-60090 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 45203-60090 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-60170 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 45205-60170 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 45205-60170 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(MANUAL TILT STEERING) |
1 | ||
| 45210-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(MANUAL TILT STEERING) |
1 | ||
| 45210-60091 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(MANUAL TILT STEERING) |
1 | ||
| 45210-60091 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) W(MANUAL TILT STEERING) |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 45215-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 45215-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45219-60080 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 45219-60080 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 45219-60080 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-60110 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 45220-60130 |
FZJ100,UZJ100..GCC |
1 | ||
| 45220-60130 |
FZJ100,UZJ100..GCC |
1 | ||
| 45220-60130 |
FZJ100,UZJ100..GCC |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-60050 |
FZJ100,UZJ100..GCC |
1 | ||
| 45230-60050 |
FZJ100,UZJ100..GCC |
1 | ||
| 45230-60030 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 45230-60050 |
FZJ100,UZJ100..GCC |
1 | ||
| 45246A - GUIDE, STEERING ENERGY ABSORBING PLATE | ||||
| 45246-12110 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 45246-12110 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(MANUAL TILT STEERING) |
2 | ||
| 45246-50040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45246-12110 |
UZJ100..(4FC,5F)..VX;HDJ100..(4FC,5F)..ARL;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 W(MANUAL TILT STEERING) |
2 | ||
| 45246-50040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45246A - GUIDE, STEERING ENERGY ABSORBING PLATE | ||||
| 45246-12110 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 45246-12110 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(MANUAL TILT STEERING) |
2 | ||
| 45246-50040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45246-12110 |
UZJ100..(4FC,5F)..VX;HDJ100..(4FC,5F)..ARL;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 W(MANUAL TILT STEERING) |
2 | ||
| 45246-50040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING | ||||
| 45257-12070 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 45257-12070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45257-12070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING | ||||
| 45257-12070 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 45257-12070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45257-12070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12060 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) W(MANUAL TILT STEERING) |
1 | ||
| 45271-12060 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) W(MANUAL TILT STEERING) |
1 | ||
| 45271-12060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(MANUAL TILT STEERING) |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-33030 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 45273-33030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 45273-33030 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 45279A - ATTACHMENT, STEERING COLUMN TUBE, LWR | ||||
| 45279-33030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 45279-33030 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 45279-33030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-60470 |
FZJ10#,HZJ105 |
1 | ||
| 45280-60480 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(*80 & MANUAL TILT STEERING) |
1 | ||
| 45280-60580 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) W(MANUAL TILT STEERING) |
1 | ||
| 45280-60590 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) W(MANUAL TILT STEERING) |
1 | ||
| 45280-60590 |
HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..ATM..GX..(ARL,GCC) W(MANUAL TILT STEERING) |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-60340E1 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) SANDAL WOOD,TRIM0# |
1 | ||
| 45286-60340B0 |
FZJ10#,HDJ100,HZJ105,UZJ100 SHADOW GRAY,TRIM1# |
1 | ||
| 45286-60340E0 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..GX,VX OAK,TRIM4# |
1 | ||
| 45286-60340B1 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN DK.GRAY,TRIM1# |
1 | ||
| 45286-60340E1 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) SANDAL WOOD,TRIM0# |
1 | ||
| 45286-60340B1 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN DK.GRAY,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-60331B0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TDEFI W(MANUAL TILT STEERING),SHADOW GRAY,TRIM1# |
1 | ||
| 45287-60330B0 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(MANUAL TILT STEERING),SHADOW GRAY,TRIM1# |
1 | ||
| 45287-60330E0 |
FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX W(MANUAL TILT STEERING),OAK,TRIM4# |
1 | ||
| 45287-60331E1 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(MANUAL TILT STEERING),SANDAL WOOD,TRIM0# |
1 | ||
| 45287-60331E0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(MANUAL TILT STEERING),OAK,TRIM4# |
1 | ||
| 45287-60331B1 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) W(MANUAL TILT STEERING),DK.GRAY,TRIM1# |
1 | ||
| 45287-60331B1 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(MANUAL TILT STEERING),DK.GRAY,TRIM1# |
1 | ||
| 45287-60331E1 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(GX,VX)..(ARL,GCC,GEN) W(MANUAL TILT STEERING),SANDAL WOOD,TRIM0# |
1 | ||
| 45289C - COVER, STEERING COLUMN, LWR NO.2 | ||||
| 45289-60031 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.2 |
1 | ||
| 45289-60031 |
UZJ100..LHD;FZJ100,HDJ100 NO.2 |
1 | ||
| 45289-60030 |
FZJ100,HDJ100,UZJ100 NO.2 |
1 | ||
| 45289-60031 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN) NO.2 |
1 | ||
| 45289-60020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.1 |
1 | ||
| 45289-60020 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN) NO.1 |
1 | ||
| 45289-60020 |
UZJ100..LHD;FZJ100,HDJ100 NO.1 |
1 | ||
| 45289C - COVER, STEERING COLUMN, LWR NO.2 | ||||
| 45289-60031 |
UZJ100..LHD;FZJ100,HDJ100 NO.2 |
1 | ||
| 45289-60030 |
FZJ100,HDJ100,UZJ100 NO.2 |
1 | ||
| 45289-60031 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN) NO.2 |
1 | ||
| 45289-60020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.1 |
1 | ||
| 45289-60031 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.2 |
1 | ||
| 45289-60020 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN) NO.1 |
1 | ||
| 45289-60020 |
UZJ100..LHD;FZJ100,HDJ100 NO.1 |
1 | ||
| 45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING | ||||
| 45875-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45875-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45875-12010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING | ||||
| 45875-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45875-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45875-12010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 45805A - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45805-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 45805-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 45805-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-60020 |
FZJ100,HDJ100,UZJ100 NO.1 & NO.2 |
2 | ||
| 45817-60040 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.2 |
1 | ||
| 45817-60040 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.2 |
1 | ||
| 45817-60020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.1 |
1 | ||
| 45817-60020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.1 |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-60020 |
FZJ100,HDJ100,UZJ100 NO.1 & NO.2 |
2 | ||
| 45817-60040 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.2 |
1 | ||
| 45817-60040 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.2 |
1 | ||
| 45817-60020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.1 |
1 | ||
| 45817-60020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.1 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 45819-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 45819-60010 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90389-08120 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90389-08120 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 90389-08120 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90389-08120 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90389-08120 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 90389-08120 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) |
2 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-35010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=10 |
2 | ||
| 45855-35010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=10 |
2 | ||
| 45855-35010 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) OD=10 |
2 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-35010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=10 |
2 | ||
| 45855-35010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=10 |
2 | ||
| 45855-35010 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) OD=10 |
2 | ||
| 45856B - SHAFT, T1LT STEERING, NO.2 | ||||
| 45856-42010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) W(MANUAL TILT STEERING) |
1 | ||
| 45856-42010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(MANUAL TILT STEERING) |
1 | ||
| 45856-42010 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) W(MANUAL TILT STEERING) |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-60130 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(AIR BAG) |
1 | ||
| 45870-60130 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(MANUAL TILT STEERING) |
1 | ||
| 45870-60150 |
FZJ10#,HZJ105..GCC,GEN |
1 | ||
| 45870-60150 |
FZJ10#,HZJ105 |
1 | ||
| 45870-60130 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) W(MANUAL TILT STEERING) |
1 | ||
| 45870-60150 |
FZJ10#,HZJ105..GCC,GEN |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45880-60030 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 45880-60030 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 45880-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 45885 - LINK, TILT LEVER | ||||
| 45885-35010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 45885-35010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 45885-35010 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-35010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 45890-35010 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 45890-35010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 45891 - BRACKET, TURN SIGNAL | ||||
| 45891-60030 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) W(MANUAL TILT STEERING) |
1 | ||
| 45891-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(MANUAL TILT STEERING) |
1 | ||
| 45891-60030 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) W(MANUAL TILT STEERING) |
1 | ||
| 45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER) | ||||
| 90905-07013 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90905-07013 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 90905-07013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 45897-12020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45897-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 45897-12020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 45897-12020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45897-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 45897-12020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-08964 | ||||
| 90119-08982 | ||||
| 90119-08A55 | ||||
| 90170-08008 | ||||
| 90179-10055 | ||||
| 90183-06022 | ||||
| 90201-11313 | ||||
| 90460-81003 | ||||
| 90507-08017 | ||||
| 90507-23021 | ||||
| 90507-23022 | ||||
| 91611-G0612 | ||||
| 93315-14010 | ||||
| 93381-16012 | ||||
| 93568-55014 | ||||
| 94130-60800 | ||||
| 94512-00800 | ||||
| 94612-10601 | ||||
ILLUST NO. 1 OF 2(9801- )VX..CHI ; (9801- )FZJ100,HDJ100,UZJ100..ARL,GCC,GEN
POWER TILT STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-60020 |
FZJ100,UZJ100..GCC |
1 | ||
| 45026-60010 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 45026-60020 |
FZJ100,UZJ100..GCC |
1 | ||
| 45026-60020 |
FZJ100,UZJ100..GCC |
1 | ||
| 45026D - COVER SUB-ASSY, STEERING COLUMN HOLE | ||||
| 45025-60100 |
FZJ100,HDJ100,UZJ100..LHD |
1 | ||
| 45025-60130 |
FZJ100,UZJ100..GCC |
1 | ||
| 45025-60130 |
FZJ100,UZJ100..GCC |
1 | ||
| 45025-60130 |
FZJ100,UZJ100..GCC |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
UZJ100..(4FC,5F)..VX;HDJ100..(4FC,5F)..ARL;FZJ10#,HDJ100,HZJ105..(DSL2,EFI,TD2)..(ARL,GCC,GEN) LOWER |
1 | ||
| 90363-18009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN UPPER |
1 | ||
| 90363-18005 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN LOWER |
1 | ||
| 90363-18009 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) UPPER |
1 | ||
| 90363-18005 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN LOWER |
1 | ||
| 90363-18012 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) LOWER |
1 | ||
| 90363-18009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN UPPER |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
UZJ100..(4FC,5F)..VX;HDJ100..(4FC,5F)..ARL;FZJ10#,HDJ100,HZJ105..(DSL2,EFI,TD2)..(ARL,GCC,GEN) LOWER |
1 | ||
| 90363-18009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN UPPER |
1 | ||
| 90363-18005 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN LOWER |
1 | ||
| 90363-18009 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) UPPER |
1 | ||
| 90363-18005 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN LOWER |
1 | ||
| 90363-18012 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) LOWER |
1 | ||
| 90363-18009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN UPPER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
FZJ105..GX;FZJ105,HDJ100..SOB..(STD,VX)..GEN;FZJ100,HDJ100,HZJ105..DSL2,EFI,TDEFI T=1.20 |
1 | ||
| 90520-17042 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) T=1.20 |
1 | ||
| 90520-17042 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) T=1.20 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
FZJ105..GX;FZJ105,HDJ100..SOB..(STD,VX)..GEN;FZJ100,HDJ100,HZJ105..DSL2,EFI,TDEFI T=1.20 |
1 | ||
| 90520-17042 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) T=1.20 |
1 | ||
| 90520-17042 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) T=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90501-40017 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90501-40017 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45202-60100 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 45202-60100 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 45202-60100 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 45203A - SHAFT, STEERING INTERMEDIATE, NO.2 | ||||
| 45203-60090 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 45203-60090 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 45203-60090 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(MANUAL TILT STEERING) |
1 | ||
| 45210-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(MANUAL TILT STEERING) |
1 | ||
| 45210-60091 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(MANUAL TILT STEERING) |
1 | ||
| 45210-60091 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) W(MANUAL TILT STEERING) |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 45215-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 45215-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45219-60080 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 45219-60080 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 45219-60080 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-60110 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 45220-60130 |
FZJ100,UZJ100..GCC |
1 | ||
| 45220-60130 |
FZJ100,UZJ100..GCC |
1 | ||
| 45220-60130 |
FZJ100,UZJ100..GCC |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-60050 |
FZJ100,UZJ100..GCC |
1 | ||
| 45230-60050 |
FZJ100,UZJ100..GCC |
1 | ||
| 45230-60030 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 45230-60050 |
FZJ100,UZJ100..GCC |
1 | ||
| 45246A - GUIDE, STEERING ENERGY ABSORBING PLATE | ||||
| 45246-12110 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 45246-12110 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(MANUAL TILT STEERING) |
2 | ||
| 45246-50040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45246-12110 |
UZJ100..(4FC,5F)..VX;HDJ100..(4FC,5F)..ARL;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 W(MANUAL TILT STEERING) |
2 | ||
| 45246-50040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45246A - GUIDE, STEERING ENERGY ABSORBING PLATE | ||||
| 45246-12110 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 45246-12110 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(MANUAL TILT STEERING) |
2 | ||
| 45246-50040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45246-12110 |
UZJ100..(4FC,5F)..VX;HDJ100..(4FC,5F)..ARL;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 W(MANUAL TILT STEERING) |
2 | ||
| 45246-50040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING | ||||
| 45257-12070 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 45257-12070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45257-12070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING | ||||
| 45257-12070 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 45257-12070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45257-12070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12060 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) W(MANUAL TILT STEERING) |
1 | ||
| 45271-12060 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) W(MANUAL TILT STEERING) |
1 | ||
| 45271-12060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(MANUAL TILT STEERING) |
1 | ||
| 45279A - ATTACHMENT, STEERING COLUMN TUBE, LWR | ||||
| 45279-33030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 45279-33030 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 45279-33030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-60470 |
FZJ10#,HZJ105 |
1 | ||
| 45280-60480 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(*80 & MANUAL TILT STEERING) |
1 | ||
| 45280-60580 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) W(MANUAL TILT STEERING) |
1 | ||
| 45280-60590 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) W(MANUAL TILT STEERING) |
1 | ||
| 45280-60590 |
HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..ATM..GX..(ARL,GCC) W(MANUAL TILT STEERING) |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-60340E1 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) SANDAL WOOD,TRIM0# |
1 | ||
| 45286-60340B0 |
FZJ10#,HDJ100,HZJ105,UZJ100 SHADOW GRAY,TRIM1# |
1 | ||
| 45286-60340E0 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..GX,VX OAK,TRIM4# |
1 | ||
| 45286-60340B1 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN DK.GRAY,TRIM1# |
1 | ||
| 45286-60340E1 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) SANDAL WOOD,TRIM0# |
1 | ||
| 45286-60340B1 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN DK.GRAY,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-60331B0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TDEFI W(MANUAL TILT STEERING),SHADOW GRAY,TRIM1# |
1 | ||
| 45287-60330B0 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(MANUAL TILT STEERING),SHADOW GRAY,TRIM1# |
1 | ||
| 45287-60330E0 |
FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX W(MANUAL TILT STEERING),OAK,TRIM4# |
1 | ||
| 45287-60331E1 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(MANUAL TILT STEERING),SANDAL WOOD,TRIM0# |
1 | ||
| 45287-60331E0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(MANUAL TILT STEERING),OAK,TRIM4# |
1 | ||
| 45287-60331B1 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) W(MANUAL TILT STEERING),DK.GRAY,TRIM1# |
1 | ||
| 45287-60331B1 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(MANUAL TILT STEERING),DK.GRAY,TRIM1# |
1 | ||
| 45287-60331E1 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(GX,VX)..(ARL,GCC,GEN) W(MANUAL TILT STEERING),SANDAL WOOD,TRIM0# |
1 | ||
| 45289C - COVER, STEERING COLUMN, LWR NO.2 | ||||
| 45289-60031 |
UZJ100..LHD;FZJ100,HDJ100 NO.2 |
1 | ||
| 45289-60030 |
FZJ100,HDJ100,UZJ100 NO.2 |
1 | ||
| 45289-60031 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN) NO.2 |
1 | ||
| 45289-60020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.1 |
1 | ||
| 45289-60031 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.2 |
1 | ||
| 45289-60020 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN) NO.1 |
1 | ||
| 45289-60020 |
UZJ100..LHD;FZJ100,HDJ100 NO.1 |
1 | ||
| 45289C - COVER, STEERING COLUMN, LWR NO.2 | ||||
| 45289-60031 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.2 |
1 | ||
| 45289-60031 |
UZJ100..LHD;FZJ100,HDJ100 NO.2 |
1 | ||
| 45289-60030 |
FZJ100,HDJ100,UZJ100 NO.2 |
1 | ||
| 45289-60031 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN) NO.2 |
1 | ||
| 45289-60020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.1 |
1 | ||
| 45289-60020 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN) NO.1 |
1 | ||
| 45289-60020 |
UZJ100..LHD;FZJ100,HDJ100 NO.1 |
1 | ||
| 45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING | ||||
| 45875-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45875-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45875-12010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING | ||||
| 45875-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45875-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45875-12010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 45805A - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45805-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 45805-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 45805-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-60020 |
FZJ100,HDJ100,UZJ100 NO.1 & NO.2 |
2 | ||
| 45817-60040 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.2 |
1 | ||
| 45817-60040 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.2 |
1 | ||
| 45817-60020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.1 |
1 | ||
| 45817-60020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.1 |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-60020 |
FZJ100,HDJ100,UZJ100 NO.1 & NO.2 |
2 | ||
| 45817-60040 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.2 |
1 | ||
| 45817-60040 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.2 |
1 | ||
| 45817-60020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.1 |
1 | ||
| 45817-60020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN NO.1 |
1 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-35010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=10 |
2 | ||
| 45855-35010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=10 |
2 | ||
| 45855-35010 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) OD=10 |
2 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-35010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=10 |
2 | ||
| 45855-35010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=10 |
2 | ||
| 45855-35010 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) OD=10 |
2 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-35010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=10 |
2 | ||
| 45855-35010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=10 |
2 | ||
| 45855-35010 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) OD=10 |
2 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-35010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=10 |
2 | ||
| 45855-35010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=10 |
2 | ||
| 45855-35010 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) OD=10 |
2 | ||
| 45856B - SHAFT, T1LT STEERING, NO.2 | ||||
| 45856-42010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) W(MANUAL TILT STEERING) |
1 | ||
| 45856-42010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(MANUAL TILT STEERING) |
1 | ||
| 45856-42010 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) W(MANUAL TILT STEERING) |
1 | ||
| 45856B - SHAFT, T1LT STEERING, NO.2 | ||||
| 45856-42010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) W(MANUAL TILT STEERING) |
1 | ||
| 45856-42010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(MANUAL TILT STEERING) |
1 | ||
| 45856-42010 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) W(MANUAL TILT STEERING) |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-60130 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(AIR BAG) |
1 | ||
| 45870-60130 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(MANUAL TILT STEERING) |
1 | ||
| 45870-60150 |
FZJ10#,HZJ105..GCC,GEN |
1 | ||
| 45870-60150 |
FZJ10#,HZJ105 |
1 | ||
| 45870-60130 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) W(MANUAL TILT STEERING) |
1 | ||
| 45870-60150 |
FZJ10#,HZJ105..GCC,GEN |
1 | ||
| 45891 - BRACKET, TURN SIGNAL | ||||
| 45891-60030 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) W(MANUAL TILT STEERING) |
1 | ||
| 45891-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(MANUAL TILT STEERING) |
1 | ||
| 45891-60030 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) W(MANUAL TILT STEERING) |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 45897-12020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45897-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 45897-12020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 45897-12020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 45897-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 45897-12020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| Common parts | ||||
| 45898-60020 | ||||
| 90119-08560 | ||||
| 90119-08964 | ||||
| 90119-08982 | ||||
| 90119-08A55 | ||||
| 90170-08008 | ||||
| 90179-08170 | ||||
| 90179-10055 | ||||
| 90201-11313 | ||||
| 90367-08001 | ||||
| 90460-81003 | ||||
| 91511-60612 | ||||
| 91611-G0612 | ||||
| 91641-C0814 | ||||
| 93315-14010 | ||||
| 93319-14006 | ||||
| 93381-16010 | ||||
| 93568-55014 | ||||
| 94130-60800 | ||||
| 94512-00800 | ||||
| 94612-10601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
