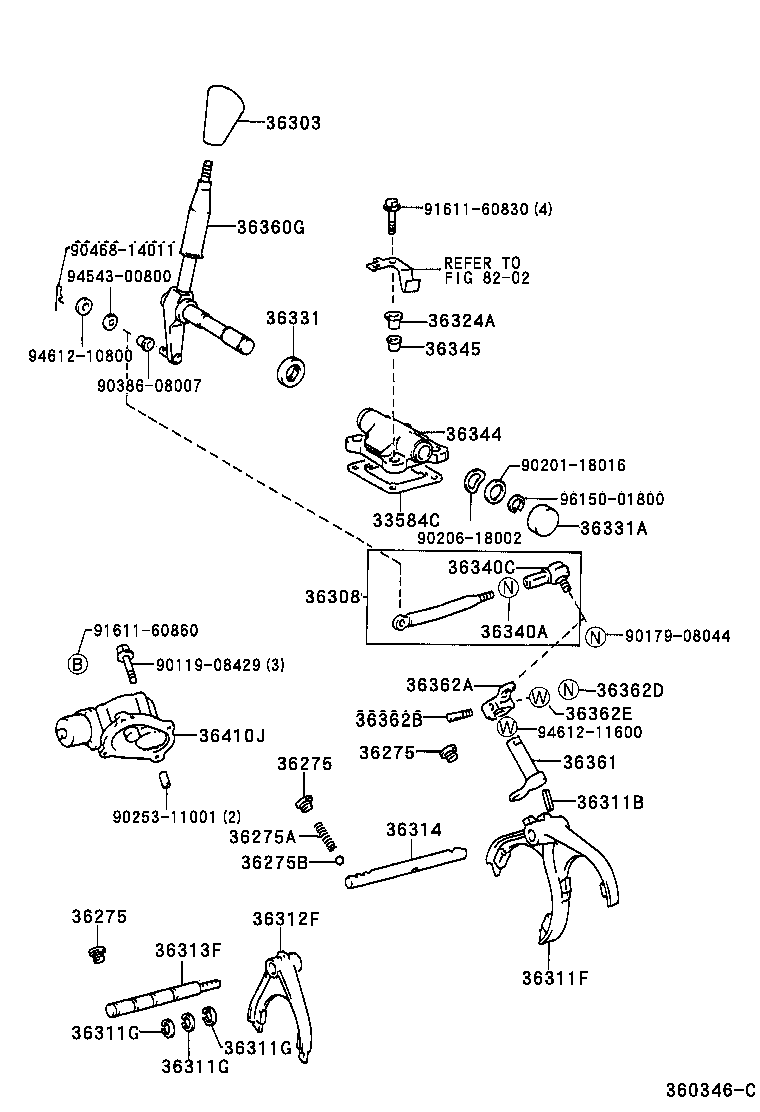

FZJ100L-GCPNKV (1998)
Toyota Land Cruiser 100
(9801-9912)LHD..4FC ; (9912- )FZJ100,HDJ100..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33584C - GASKET,TRANSFER CONTROL SHIFT LEVER RETAINER | ||||
| 36345-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36345-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36345-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12008 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,UZJ100..(4FC,5F)..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90341-12008 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90341-12008 |
FZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
3 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12008 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,UZJ100..(4FC,5F)..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90341-12008 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90341-12008 |
FZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
3 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12008 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,UZJ100..(4FC,5F)..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90341-12008 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90341-12008 |
FZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
3 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-18093 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,UZJ100..(4FC,5F)..(GX,VX)..(GCC,GEN) L=23.8,W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 90501-18093 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) L=23.8,W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 90501-18093 |
FZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN L=23.8 |
1 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) OD=9.52,STEEL,W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 90360-10003 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=9.52,STEEL |
1 | ||
| 90360-10003 |
HZJ105..GCC,GEN;FZJ10#..GX..(GCC,GEN) OD=9.52,STEEL,W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 90360-10003 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) OD=9.52,STEEL |
2 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-60181C0 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105..GX,VX URETHANE & PART TIME 4WD,BLACK,TRIM1#,4# |
1 | ||
| 36303-60211C0 |
FZJ10#,HZJ105..GX..(GCC,GEN) URETHANE & W(2-4 SELECTOR),BLACK,TRIM1#,4# |
1 | ||
| 36303-60181C0 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..GX,VX URETHANE & PART TIME 4WD,BLACK,TRIM1#,4# |
1 | ||
| 36303-60181C0 |
FZJ10#,HZJ105..GX;HDJ100,UZJ100..LHD..GEN URETHANE & PART TIME 4WD,BLACK,TRIM1#,4# |
1 | ||
| 36303-60181C0 |
FZJ10#,HZJ105..GX..(ARL,GCC,GEN) URETHANE & PART TIME 4WD,BLACK,TRIM0#,1# |
1 | ||
| 36303-60211C0 |
FZJ100..LUB..GCC;FZJ100..SOB..4FC;FZJ105,HZJ105..GX..(GCC,GEN) URETHANE & W(2-4 SELECTOR),BLACK,TRIM0#,1# |
1 | ||
| 36303-60211C0 |
FZJ10#,HZJ105..GX..(GCC,GEN) URETHANE & W(2-4 SELECTOR),BLACK,TRIM0#,1# |
1 | ||
| 36303-60181C0 |
HDJ100..LHD..5F;FZJ10#,HZJ105..GX..(ARL,GCC,GEN) URETHANE & PART TIME 4WD,BLACK,TRIM0#,1# |
1 | ||
| 36308 - ROD SUB-ASSY, HIGH & LOW SHIFT | ||||
| 36308-60250 |
FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 36308-60250 |
FZJ100,HDJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 36308-60250 |
FZJ100,HDJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05016 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) L=25.5 |
1 | ||
| 90254-05016 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN L=25.5 |
1 | ||
| 90254-05016 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN L=25.5 |
1 | ||
| 36311F - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36311-60110 |
HZJ105..LHD..GX;HZJ105..RHD..GEN;FZJ10#..GX..(GCC,GEN) W(2-4 SELECTOR) |
1 | ||
| 36311-60110 |
FZJ105..GX;HZJ105..LHD..GX;FZJ100..SOB..4FC;HZJ105..RHD..GEN;FZJ100..LUB..GCC W(2-4 SELECTOR) |
1 | ||
| 36311-60120 |
HZJ105..LHD..STD;FZJ105,HZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) FULL TIME 4WD |
1 | ||
| 36311-60110 |
HZJ105..LHD..GX;HZJ105..RHD..GEN;FZJ10#..GX..(GCC,GEN) W(2-4 SELECTOR) |
1 | ||
| 36311-60120 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 36311-60120 |
FZJ10#,HZJ105..GX..(ARL,GCC,GEN);HZJ105,UZJ100..LHD..5F..(STD,VX) FULL TIME 4WD |
1 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13004 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,UZJ100..(4FC,5F)..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90520-13004 |
FZJ105..GX;FZJ100,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90520-13004 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13004 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,UZJ100..(4FC,5F)..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90520-13004 |
FZJ105..GX;FZJ100,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90520-13004 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13004 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,UZJ100..(4FC,5F)..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90520-13004 |
FZJ105..GX;FZJ100,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90520-13004 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36302-60160 |
HZJ105..RHD..STD..GEN;FZJ10#,HZJ105..LHD..GX W(2-4 SELECTOR) & *DMALH |
1 | ||
| 36312-60050 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 36312-60050 |
FZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 36312-60050 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,UZJ100..(4FC,5F)..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK | ||||
| 36313-60100 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,UZJ100..(4FC,5F)..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 36313-60100 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 36313-60100 |
FZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36314-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36314-60050 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36324A - BUSH, TRANSFER SHIFT LEVER | ||||
| 36324-60070 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
4 | ||
| 36324-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
4 | ||
| 36324-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
4 | ||
| 36331 - BOOT, TRANSFER SHIFT LEVER | ||||
| 36331-60040 |
HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 36331-60040 |
FZJ105..5F..GX;FZJ105..STD..GEN;HDJ100..4FC..GEN;HDJ100,HZJ105..5F;FZJ100,UZJ100..LHD |
1 | ||
| 36331-60040 |
HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 36331A - BOOT, TRANSFER SHIFT LEVER, NO.2 | ||||
| 36331-60070 |
FZJ100,HDJ100,UZJ100..LHD..4FC |
1 | ||
| 36331-60070 |
FZJ100,HDJ100,UZJ100..ATM..(GCC,GEN) |
1 | ||
| 36331-60070 |
FZJ100,HDJ100,UZJ100..ATM..(GCC,GEN) |
1 | ||
| 36340A - NUT (FOR HIGH AND LOW SHIFT ROD) | ||||
| 94130-60800 |
HDJ100..SOB;FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 94130-60800 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 94130-60800 |
FZJ105..LHD..GX;FZJ100..SOB..4FC;FZJ100..LUB..GCC;HDJ100,UZJ100..5FC..(ARL,GCC,GEN) |
1 | ||
| 36340C - END ASSY, HIGH & LOW CONNECTING ROD | ||||
| 33740-26010 |
FZJ10#..LHD;HZJ105..LHD..GX;UZJ100..LHD..4FC;FZJ105,HDJ100,HZJ105..4FC;HDJ100,HZJ105..SOB..(STD,VX) |
1 | ||
| 33740-26010 |
HZJ105..LHD..GX;FZJ10#..LHD..(GCC,GEN);HDJ100,HZJ105..SOB..(STD,VX);HDJ100,UZJ100..5FC..(ARL,GCC,GEN) |
1 | ||
| 33740-26010 |
HZJ105..LHD..GX;FZJ10#..LHD..(GCC,GEN);HDJ100,HZJ105..SOB..(STD,VX);HDJ100,UZJ100..5FC..(ARL,GCC,GEN) |
1 | ||
| 36344 - RETAINER, TRANSFER CONTROL SHIFT LEVER | ||||
| 36344-60080 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 36344-60080 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 36344-60080 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 36345 - GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER | ||||
| 36345-60020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
4 | ||
| 36345-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
4 | ||
| 36345-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
4 | ||
| 36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT | ||||
| 36360-60640 |
FZJ100,HDJ100,UZJ100..LHD..4FC |
1 | ||
| 36360-60640 |
FZJ100,HDJ100..LHD..4FC |
1 | ||
| 36360-60640 |
FZJ100,HDJ100..ATM..(GCC,GEN) |
1 | ||
| 36360-60640 |
FZJ100,HDJ100..ATM..(GCC,GEN) |
1 | ||
| 36361 - LEVER, TRANSFER SHIFT, INNER | ||||
| 36361-60030 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 36361-60030 |
FZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 36361-60030 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,UZJ100..(4FC,5F)..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 36362A - LEVER, TRANSFER SHIFT, OUTER | ||||
| 36362-60030 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 36362-60030 |
FZJ100..GCC;FZJ105,HZJ105..LHD..GX;HDJ100,UZJ100..5FC..(ARL,GCC,GEN);HDJ100,HZJ105..SOB..(STD,VX)..GEN |
1 | ||
| 36362-60030 |
HDJ100..SOB;FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 36362B - PIN, LEVER LOCK (FOR TRANSFER SHIFT LEVER OUTER) | ||||
| 33281-16020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 33281-16020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 33281-16020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36362D - NUT (FOR TRANSFER SHIFT OUTER LEVER) | ||||
| 94130-60800 |
HDJ100..5F..ARL;FZJ10#..LHD..STD;HZJ105..STD..ARL;FZJ100,HDJ100,UZJ100..LHD..4FC |
1 | ||
| 94130-60800 |
FZJ10#..STD;HZJ105..STD..ARL;HDJ100,UZJ100..LUB..5F..(ARL,GEN);FZJ100,HDJ100,UZJ100..ATM..(GCC,GEN) |
1 | ||
| 94130-60800 |
HDJ100..LUB..5F;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) & SEPARATE SEAT TYPE |
1 | ||
| 94130-60800 |
FZJ10#..STD;HZJ105..STD..ARL;FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 36362E - WASHER (FOR TRANSFER SHIFT OUTER LEVER) | ||||
| 94531-00800 |
FZJ10#..STD;HZJ105..STD..ARL;FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 94531-00800 |
FZJ10#..STD;HZJ105..STD..ARL;HDJ100,UZJ100..LUB..5F..(ARL,GEN);FZJ100,HDJ100,UZJ100..ATM..(GCC,GEN) |
1 | ||
| 94531-00800 |
HDJ100..5F..ARL;FZJ10#..LHD..STD;HZJ105..STD..ARL;FZJ100,HDJ100,UZJ100..LHD..4FC |
1 | ||
| 94531-00800 |
HDJ100..LUB..5F;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) & SEPARATE SEAT TYPE |
1 | ||
| 36410J - ACTUATOR ASSY, TRANSFER SHIFT | ||||
| 36410-60061 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 36410-60060 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,HDJ100,UZJ100..GX,VX |
1 | ||
| 36410-60061 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,HDJ100,UZJ100..GX,VX |
1 | ||
| 36410-60061 |
FZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-08429 | ||||
| 90179-08044 | ||||
| 90201-18016 | ||||
| 90206-18002 | ||||
| 90253-11001 | ||||
| 90386-08007 | ||||
| 90468-14011 | ||||
| 91611-60830 | ||||
| 91611-60860 | ||||
| 94543-00800 | ||||
| 94612-10800 | ||||
| 94612-11600 | ||||
| 96150-01800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
(9801- )HDJ100..SOB ; (9801- )FZJ10#..LHD..5F..GX..GCC,GEN ; (0505- )FZJ10
BENCH SEAT TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33584C - GASKET,TRANSFER CONTROL SHIFT LEVER RETAINER | ||||
| 36345-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36345-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36345-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12008 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,UZJ100..(4FC,5F)..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90341-12008 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90341-12008 |
FZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
3 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12008 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,UZJ100..(4FC,5F)..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90341-12008 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90341-12008 |
FZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
3 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12008 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,UZJ100..(4FC,5F)..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90341-12008 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90341-12008 |
FZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
3 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-18093 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,UZJ100..(4FC,5F)..(GX,VX)..(GCC,GEN) L=23.8,W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 90501-18093 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) L=23.8,W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 90501-18093 |
FZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN L=23.8 |
1 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) OD=9.52,STEEL,W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 90360-10003 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=9.52,STEEL |
1 | ||
| 90360-10003 |
HZJ105..GCC,GEN;FZJ10#..GX..(GCC,GEN) OD=9.52,STEEL,W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 90360-10003 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) OD=9.52,STEEL |
2 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-60181C0 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105..GX,VX URETHANE & PART TIME 4WD,BLACK,TRIM1#,4# |
1 | ||
| 36303-60211C0 |
FZJ10#,HZJ105..GX..(GCC,GEN) URETHANE & W(2-4 SELECTOR),BLACK,TRIM1#,4# |
1 | ||
| 36303-60181C0 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..GX,VX URETHANE & PART TIME 4WD,BLACK,TRIM1#,4# |
1 | ||
| 36303-60181C0 |
FZJ10#,HZJ105..GX;HDJ100,UZJ100..LHD..GEN URETHANE & PART TIME 4WD,BLACK,TRIM1#,4# |
1 | ||
| 36303-60181C0 |
FZJ10#,HZJ105..GX..(ARL,GCC,GEN) URETHANE & PART TIME 4WD,BLACK,TRIM0#,1# |
1 | ||
| 36303-60211C0 |
FZJ100..LUB..GCC;FZJ100..SOB..4FC;FZJ105,HZJ105..GX..(GCC,GEN) URETHANE & W(2-4 SELECTOR),BLACK,TRIM0#,1# |
1 | ||
| 36303-60211C0 |
FZJ10#,HZJ105..GX..(GCC,GEN) URETHANE & W(2-4 SELECTOR),BLACK,TRIM0#,1# |
1 | ||
| 36303-60181C0 |
HDJ100..LHD..5F;FZJ10#,HZJ105..GX..(ARL,GCC,GEN) URETHANE & PART TIME 4WD,BLACK,TRIM0#,1# |
1 | ||
| 36308 - ROD SUB-ASSY, HIGH & LOW SHIFT | ||||
| 36308-60250 |
FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 36308-60250 |
FZJ100,HDJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 36308-60250 |
FZJ100,HDJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05016 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) L=25.5 |
1 | ||
| 90254-05016 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN L=25.5 |
1 | ||
| 90254-05016 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN L=25.5 |
1 | ||
| 36311F - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36311-60110 |
HZJ105..LHD..GX;HZJ105..RHD..GEN;FZJ10#..GX..(GCC,GEN) W(2-4 SELECTOR) |
1 | ||
| 36311-60110 |
FZJ105..GX;HZJ105..LHD..GX;FZJ100..SOB..4FC;HZJ105..RHD..GEN;FZJ100..LUB..GCC W(2-4 SELECTOR) |
1 | ||
| 36311-60120 |
HZJ105..LHD..STD;FZJ105,HZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) FULL TIME 4WD |
1 | ||
| 36311-60110 |
HZJ105..LHD..GX;HZJ105..RHD..GEN;FZJ10#..GX..(GCC,GEN) W(2-4 SELECTOR) |
1 | ||
| 36311-60120 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 36311-60120 |
FZJ10#,HZJ105..GX..(ARL,GCC,GEN);HZJ105,UZJ100..LHD..5F..(STD,VX) FULL TIME 4WD |
1 | ||
| 36311F - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36311-60110 |
HZJ105..LHD..GX;HZJ105..RHD..GEN;FZJ10#..GX..(GCC,GEN) W(2-4 SELECTOR) |
1 | ||
| 36311-60110 |
FZJ105..GX;HZJ105..LHD..GX;FZJ100..SOB..4FC;HZJ105..RHD..GEN;FZJ100..LUB..GCC W(2-4 SELECTOR) |
1 | ||
| 36311-60120 |
HZJ105..LHD..STD;FZJ105,HZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) FULL TIME 4WD |
1 | ||
| 36311-60110 |
HZJ105..LHD..GX;HZJ105..RHD..GEN;FZJ10#..GX..(GCC,GEN) W(2-4 SELECTOR) |
1 | ||
| 36311-60120 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 36311-60120 |
FZJ10#,HZJ105..GX..(ARL,GCC,GEN);HZJ105,UZJ100..LHD..5F..(STD,VX) FULL TIME 4WD |
1 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13004 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,UZJ100..(4FC,5F)..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90520-13004 |
FZJ105..GX;FZJ100,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90520-13004 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13004 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,UZJ100..(4FC,5F)..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90520-13004 |
FZJ105..GX;FZJ100,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90520-13004 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13004 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,UZJ100..(4FC,5F)..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90520-13004 |
FZJ105..GX;FZJ100,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 90520-13004 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
3 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36302-60160 |
HZJ105..RHD..STD..GEN;FZJ10#,HZJ105..LHD..GX W(2-4 SELECTOR) & *DMALH |
1 | ||
| 36312-60050 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 36312-60050 |
FZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 36312-60050 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,UZJ100..(4FC,5F)..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK | ||||
| 36313-60100 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,UZJ100..(4FC,5F)..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 36313-60100 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 36313-60100 |
FZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36314-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36314-60050 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36324A - BUSH, TRANSFER SHIFT LEVER | ||||
| 36324-60070 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
4 | ||
| 36324-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
4 | ||
| 36324-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
4 | ||
| 36331 - BOOT, TRANSFER SHIFT LEVER | ||||
| 36331-60040 |
HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 36331-60040 |
FZJ105..5F..GX;FZJ105..STD..GEN;HDJ100..4FC..GEN;HDJ100,HZJ105..5F;FZJ100,UZJ100..LHD |
1 | ||
| 36331-60040 |
HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 36331A - BOOT, TRANSFER SHIFT LEVER, NO.2 | ||||
| 36331-60070 |
FZJ100,HDJ100,UZJ100..LHD..4FC |
1 | ||
| 36331-60070 |
FZJ100,HDJ100,UZJ100..ATM..(GCC,GEN) |
1 | ||
| 36331-60070 |
FZJ100,HDJ100,UZJ100..ATM..(GCC,GEN) |
1 | ||
| 36340A - NUT (FOR HIGH AND LOW SHIFT ROD) | ||||
| 94130-60800 |
HDJ100..SOB;FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 94130-60800 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 94130-60800 |
FZJ105..LHD..GX;FZJ100..SOB..4FC;FZJ100..LUB..GCC;HDJ100,UZJ100..5FC..(ARL,GCC,GEN) |
1 | ||
| 36340C - END ASSY, HIGH & LOW CONNECTING ROD | ||||
| 33740-26010 |
FZJ10#..LHD;HZJ105..LHD..GX;UZJ100..LHD..4FC;FZJ105,HDJ100,HZJ105..4FC;HDJ100,HZJ105..SOB..(STD,VX) |
1 | ||
| 33740-26010 |
HZJ105..LHD..GX;FZJ10#..LHD..(GCC,GEN);HDJ100,HZJ105..SOB..(STD,VX);HDJ100,UZJ100..5FC..(ARL,GCC,GEN) |
1 | ||
| 33740-26010 |
HZJ105..LHD..GX;FZJ10#..LHD..(GCC,GEN);HDJ100,HZJ105..SOB..(STD,VX);HDJ100,UZJ100..5FC..(ARL,GCC,GEN) |
1 | ||
| 36344 - RETAINER, TRANSFER CONTROL SHIFT LEVER | ||||
| 36344-60080 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 36344-60080 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 36344-60080 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 36345 - GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER | ||||
| 36345-60020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
4 | ||
| 36345-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
4 | ||
| 36345-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
4 | ||
| 36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT | ||||
| 36360-60640 |
FZJ100,HDJ100,UZJ100..LHD..4FC |
1 | ||
| 36360-60640 |
FZJ100,HDJ100..LHD..4FC |
1 | ||
| 36360-60640 |
FZJ100,HDJ100..ATM..(GCC,GEN) |
1 | ||
| 36360-60640 |
FZJ100,HDJ100..ATM..(GCC,GEN) |
1 | ||
| 36361 - LEVER, TRANSFER SHIFT, INNER | ||||
| 36361-60030 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL;FZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 36361-60030 |
FZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 36361-60030 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,UZJ100..(4FC,5F)..(GX,VX)..(GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 36362A - LEVER, TRANSFER SHIFT, OUTER | ||||
| 36362-60030 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 36362-60030 |
FZJ100..GCC;FZJ105,HZJ105..LHD..GX;HDJ100,UZJ100..5FC..(ARL,GCC,GEN);HDJ100,HZJ105..SOB..(STD,VX)..GEN |
1 | ||
| 36362-60030 |
HDJ100..SOB;FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 36362B - PIN, LEVER LOCK (FOR TRANSFER SHIFT LEVER OUTER) | ||||
| 33281-16020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 33281-16020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 33281-16020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36362D - NUT (FOR TRANSFER SHIFT OUTER LEVER) | ||||
| 94130-60800 |
HDJ100..5F..ARL;FZJ10#..LHD..STD;HZJ105..STD..ARL;FZJ100,HDJ100,UZJ100..LHD..4FC |
1 | ||
| 94130-60800 |
FZJ10#..STD;HZJ105..STD..ARL;HDJ100,UZJ100..LUB..5F..(ARL,GEN);FZJ100,HDJ100,UZJ100..ATM..(GCC,GEN) |
1 | ||
| 94130-60800 |
HDJ100..LUB..5F;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) & SEPARATE SEAT TYPE |
1 | ||
| 94130-60800 |
FZJ10#..STD;HZJ105..STD..ARL;FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 36362D - NUT (FOR TRANSFER SHIFT OUTER LEVER) | ||||
| 94130-60800 |
HDJ100..5F..ARL;FZJ10#..LHD..STD;HZJ105..STD..ARL;FZJ100,HDJ100,UZJ100..LHD..4FC |
1 | ||
| 94130-60800 |
FZJ10#..STD;HZJ105..STD..ARL;HDJ100,UZJ100..LUB..5F..(ARL,GEN);FZJ100,HDJ100,UZJ100..ATM..(GCC,GEN) |
1 | ||
| 94130-60800 |
HDJ100..LUB..5F;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) & SEPARATE SEAT TYPE |
1 | ||
| 94130-60800 |
FZJ10#..STD;HZJ105..STD..ARL;FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 36362E - WASHER (FOR TRANSFER SHIFT OUTER LEVER) | ||||
| 94531-00800 |
FZJ10#..STD;HZJ105..STD..ARL;FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 94531-00800 |
FZJ10#..STD;HZJ105..STD..ARL;HDJ100,UZJ100..LUB..5F..(ARL,GEN);FZJ100,HDJ100,UZJ100..ATM..(GCC,GEN) |
1 | ||
| 94531-00800 |
HDJ100..5F..ARL;FZJ10#..LHD..STD;HZJ105..STD..ARL;FZJ100,HDJ100,UZJ100..LHD..4FC |
1 | ||
| 94531-00800 |
HDJ100..LUB..5F;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) & SEPARATE SEAT TYPE |
1 | ||
| 36362E - WASHER (FOR TRANSFER SHIFT OUTER LEVER) | ||||
| 94531-00800 |
FZJ10#..STD;HZJ105..STD..ARL;FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 94531-00800 |
FZJ10#..STD;HZJ105..STD..ARL;HDJ100,UZJ100..LUB..5F..(ARL,GEN);FZJ100,HDJ100,UZJ100..ATM..(GCC,GEN) |
1 | ||
| 94531-00800 |
HDJ100..5F..ARL;FZJ10#..LHD..STD;HZJ105..STD..ARL;FZJ100,HDJ100,UZJ100..LHD..4FC |
1 | ||
| 94531-00800 |
HDJ100..LUB..5F;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) & SEPARATE SEAT TYPE |
1 | ||
| 36410J - ACTUATOR ASSY, TRANSFER SHIFT | ||||
| 36410-60061 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 36410-60060 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,HDJ100,UZJ100..GX,VX |
1 | ||
| 36410-60061 |
HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ10#,HDJ100,UZJ100..GX,VX |
1 | ||
| 36410-60061 |
FZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-08429 | ||||
| 90119-08836 | ||||
| 90206-18002 | ||||
| 90253-11001 | ||||
| 90386-08007 | ||||
| 90468-14011 | ||||
| 91611-60830 | ||||
| 91611-60860 | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||
| 94543-00800 | ||||
| 94612-10800 | ||||
| 94612-11600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
