FZJ100L-GCPNKV (1998)
Toyota Land Cruiser 100
(9801- )GX,VX ; (9801- )HZJ105..LHD..STD ;(0505- )FZJ100..STD
FULL TIME 4WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-60010 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
1 | ||
| 33124-60030 |
FZJ10#..STD;FZJ100..4FC;HZJ105..RHD..STD PART TIME 4WD,NO.2 |
1 | ||
| 33124-60050 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD,NO.3 |
1 | ||
| 33124-60030 |
FZJ10#..STD;FZJ100..4FC..GCC;HZJ105..RHD..STD PART TIME 4WD,NO.2 |
1 | ||
| 33124-60010 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
1 | ||
| 33124-60030 |
HZJ105..LHD..STD;FZJ105,HZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) FULL TIME 4WD,NO.2 |
1 | ||
| 33124-60010 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
1 | ||
| 33124-60060 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.4 |
1 | ||
| 33124-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 33124-60050 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.3 |
1 | ||
| 33124-60030 |
UZJ100..ARL,GCC;HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100..ARL,GCC,GEN FULL TIME 4WD,NO.2 |
1 | ||
| 33124-60060 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.4 |
1 | ||
| 33124-60060 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD,NO.4 |
1 | ||
| 33124-60030 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.2 |
1 | ||
| 33124-60050 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.3 |
1 | ||
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-60010 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
1 | ||
| 33124-60030 |
FZJ10#..STD;FZJ100..4FC;HZJ105..RHD..STD PART TIME 4WD,NO.2 |
1 | ||
| 33124-60050 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD,NO.3 |
1 | ||
| 33124-60030 |
FZJ10#..STD;FZJ100..4FC..GCC;HZJ105..RHD..STD PART TIME 4WD,NO.2 |
1 | ||
| 33124-60010 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
1 | ||
| 33124-60030 |
HZJ105..LHD..STD;FZJ105,HZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) FULL TIME 4WD,NO.2 |
1 | ||
| 33124-60010 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
1 | ||
| 33124-60060 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.4 |
1 | ||
| 33124-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 33124-60050 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.3 |
1 | ||
| 33124-60030 |
UZJ100..ARL,GCC;HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100..ARL,GCC,GEN FULL TIME 4WD,NO.2 |
1 | ||
| 33124-60060 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.4 |
1 | ||
| 33124-60060 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD,NO.4 |
1 | ||
| 33124-60030 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.2 |
1 | ||
| 33124-60050 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.3 |
1 | ||
| 33325B - DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING) | ||||
| 33325-60050 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 33325-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 33325-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 33449D - MAGNET (FOR TRANSFER CASE) | ||||
| 33449-60010 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 33449-60010 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 33449-60010 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 33469A - SEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING | ||||
| 33469-60020 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 33469-60020 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 33469-60020 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 36103C - CASE, TRANSFER, FRONT | ||||
| 36103-60290 |
HZJ105..LHD..STD;FZJ105,HZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) FULL TIME 4WD |
1 | ||
| 36103-60280 |
HZJ105..LHD..GX;HZJ105..RHD..GEN;FZJ10#..GX..(GCC,GEN) W(2-4 SELECTOR) |
1 | ||
| 36103-60280 |
HZJ105..LHD..GX;HZJ105..RHD..GEN;FZJ10#..GX..(GCC,GEN) W(2-4 SELECTOR) |
1 | ||
| 36103-60290 |
FZJ10#,HZJ105..GX..(ARL,GCC,GEN);HZJ105,UZJ100..LHD..5F..(STD,VX) FULL TIME 4WD |
1 | ||
| 36103-60290 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN FULL TIME 4WD |
1 | ||
| 36103-60280 |
FZJ105..GX;HZJ105..LHD..GX;FZJ100..SOB..4FC;HZJ105..RHD..GEN;FZJ100..LUB..GCC W(2-4 SELECTOR) |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 33325-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 33325-60040 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-10061 |
FZJ10#..STD;FZJ100..4FC;HZJ105..RHD..STD PART TIME 4WD,NO.2 |
4 | ||
| 90114-10061 |
FZJ10#..STD;HZJ105..RHD..STD;HDJ100,UZJ100..ARL,GEN;FZJ100,UZJ100..ATM..GCC |
4 | ||
| 90114-11003 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
4 | ||
| 90114-11003 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
4 | ||
| 90114-11003 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
4 | ||
| 90114-10061 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 90114-10061 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.2 |
4 | ||
| 90114-10061 |
FZJ10#..STD;FZJ100..4FC..GCC;HZJ105..RHD..STD PART TIME 4WD,NO.2 |
4 | ||
| 36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT | ||||
| 36105-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36105-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36105-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36105A - SEAL, OIL (TRANSFER EXTENSION FRONT HOUSING SUB-ASSY) | ||||
| 90311-50014 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90311-50014 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90311-50014 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36109B - HOUSING SUB-ASSY, TRANSFER EXTENSION, REAR | ||||
| 36109-60061 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX FULL TIME 4WD |
1 | ||
| 36109-60051 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD |
1 | ||
| 36109-60060 |
HZJ105..LHD..STD;FZJ105,HZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) FULL TIME 4WD |
1 | ||
| 36109-60051 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD |
1 | ||
| 36109-60061 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN FULL TIME 4WD |
1 | ||
| 36109-60061 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) FULL TIME 4WD |
1 | ||
| 36109-60050 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD |
1 | ||
| 36109-60051 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD |
1 | ||
| 36109C - SEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY) | ||||
| 90311-58008 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90311-58011 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90311-58011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90311-58011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-48018 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN SHAFT SIDE |
1 | ||
| 90311-48018 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) SHAFT SIDE |
1 | ||
| 90310-16001 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) LEVER SIDE |
1 | ||
| 90311-48025 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN SHAFT SIDE |
1 | ||
| 90311-48025 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN SHAFT SIDE |
1 | ||
| 90310-16001 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN LEVER SIDE |
1 | ||
| 90310-16001 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN LEVER SIDE |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-48018 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN SHAFT SIDE |
1 | ||
| 90311-48018 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) SHAFT SIDE |
1 | ||
| 90310-16001 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) LEVER SIDE |
1 | ||
| 90311-48025 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN SHAFT SIDE |
1 | ||
| 90311-48025 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN SHAFT SIDE |
1 | ||
| 90310-16001 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN LEVER SIDE |
1 | ||
| 90310-16001 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN LEVER SIDE |
1 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18039 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 90341-18039 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90341-18039 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-12002 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) L=16,OD=12 |
6 | ||
| 90250-12002 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN L=16,OD=12 |
6 | ||
| 90250-12002 |
HZJ105..4FC;FZJ10#,HDJ100,UZJ100 L=16,OD=12 |
6 | ||
| 90250-12002 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN L=16,OD=12 |
6 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-12002 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) L=16,OD=12 |
6 | ||
| 90250-12002 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN L=16,OD=12 |
6 | ||
| 90250-12002 |
HZJ105..4FC;FZJ10#,HDJ100,UZJ100 L=16,OD=12 |
6 | ||
| 90250-12002 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN L=16,OD=12 |
6 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-12002 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) L=16,OD=12 |
6 | ||
| 90250-12002 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN L=16,OD=12 |
6 | ||
| 90250-12002 |
HZJ105..4FC;FZJ10#,HDJ100,UZJ100 L=16,OD=12 |
6 | ||
| 90250-12002 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN L=16,OD=12 |
6 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36104-60020 |
HZJ105..LHD..STD;FZJ105,HZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) FULL TIME 4WD |
1 | ||
| 36104-60020 |
FZJ10#,HZJ105..GX..(ARL,GCC,GEN);HZJ105,UZJ100..LHD..5F..(STD,VX) FULL TIME 4WD |
1 | ||
| 36104-60040 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD |
1 | ||
| 36104-60020 |
HZJ105..LHD..STD;FZJ100,HDJ100..(4FC,5F)..(ARL,GCC,GEN);FZJ105,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) FULL TIME 4WD |
1 | ||
| 36104-60040 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD |
1 | ||
| 36104-60040 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD |
1 | ||
| 36112B - HOSE, NO.1 (FOR TRANSFER REAR CASE) | ||||
| 90447-08151 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 90447-08151 |
FZJ100..4FC..GCC |
1 | ||
| 90447-08151 |
FZJ100..4FC..GCC |
1 | ||
| 36112B - HOSE, NO.1 (FOR TRANSFER REAR CASE) | ||||
| 90447-08151 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 90447-08151 |
FZJ100..4FC..GCC |
1 | ||
| 90447-08151 |
FZJ100..4FC..GCC |
1 | ||
| 36112C - HOSE, NO.2 (FOR TRANSFER REAR CASE) | ||||
| 90445-11136 |
FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 90445-11136 |
FZJ100..4FC..GCC |
1 | ||
| 90445-11136 |
FZJ100..4FC..GCC |
1 | ||
| 36112C - HOSE, NO.2 (FOR TRANSFER REAR CASE) | ||||
| 90445-11136 |
FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 90445-11136 |
FZJ100..4FC..GCC |
1 | ||
| 90445-11136 |
FZJ100..4FC..GCC |
1 | ||
| 36112D - HOSE, NO.3 (FOR TRANSFER REAR CASE) | ||||
| 90445-11138 |
FZJ100..4FC..GCC |
1 | ||
| 90445-11138 |
FZJ100..4FC..GCC |
1 | ||
| 90445-11138 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 36112D - HOSE, NO.3 (FOR TRANSFER REAR CASE) | ||||
| 90445-11138 |
FZJ100..4FC..GCC |
1 | ||
| 90445-11138 |
FZJ100..4FC..GCC |
1 | ||
| 90445-11138 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 36113B - RING, O (FOR TRANSFER CASE PLUG) | ||||
| 90301-07012 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN ID=6.0 |
1 | ||
| 90301-07012 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) ID=6.0 |
1 | ||
| 90301-07012 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) ID=6.0 |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90341-18006 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90341-18006 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90430-18008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90430-18008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18057 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90341-18057 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90341-18057 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 90430-18008 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90430-18008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90430-18008 |
UZJ100..5FC..(ARL,GCC);FZJ100,HDJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 36122 - COVER, TRANSFER CASE, NO.2 | ||||
| 36122-36010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36122-36010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36122-36010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36129A - TUBE, TRANSFER OIL | ||||
| 36129-60030 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 36129-60030 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36129-60030 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 36149 - PIPE, TRANSFER BREATHER | ||||
| 36149-60030 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX FULL TIME 4WD,NO.2 |
1 | ||
| 36149-60010 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) FULL TIME 4WD,NO.1 |
1 | ||
| 36149-60030 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) FULL TIME 4WD,NO.2 |
1 | ||
| 36149-60010 |
FZJ100..4FC;FZJ105,HZJ105..RHD..GEN PART TIME 4WD |
1 | ||
| 36149-60030 |
FZJ100,HDJ100..GX,VX;FZJ105,HZJ105..5F..GX;HZJ105,UZJ100..LHD..(STD,VX) FULL TIME 4WD,NO.2 |
1 | ||
| 36149-60010 |
FZJ100..4FC..GCC;FZJ105,HZJ105..RHD..GEN PART TIME 4WD |
1 | ||
| 36149-60030 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN FULL TIME 4WD,NO.2 |
1 | ||
| 36149-60010 |
FZJ105..GX;HZJ105..LHD..GX;FZJ100..SOB..4FC;HZJ105..RHD..GEN;FZJ100..LUB..GCC PART TIME 4WD |
1 | ||
| 36149 - PIPE, TRANSFER BREATHER | ||||
| 36149-60030 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX FULL TIME 4WD,NO.2 |
1 | ||
| 36149-60010 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) FULL TIME 4WD,NO.1 |
1 | ||
| 36149-60030 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) FULL TIME 4WD,NO.2 |
1 | ||
| 36149-60010 |
FZJ100..4FC;FZJ105,HZJ105..RHD..GEN PART TIME 4WD |
1 | ||
| 36149-60030 |
FZJ100,HDJ100..GX,VX;FZJ105,HZJ105..5F..GX;HZJ105,UZJ100..LHD..(STD,VX) FULL TIME 4WD,NO.2 |
1 | ||
| 36149-60010 |
FZJ100..4FC..GCC;FZJ105,HZJ105..RHD..GEN PART TIME 4WD |
1 | ||
| 36149-60030 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN FULL TIME 4WD,NO.2 |
1 | ||
| 36149-60010 |
FZJ105..GX;HZJ105..LHD..GX;FZJ100..SOB..4FC;HZJ105..RHD..GEN;FZJ100..LUB..GCC PART TIME 4WD |
1 | ||
| 36182A - COVER, TRANSFER OIL PUMP | ||||
| 36182-60011 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 36182-60011 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 36182-60011 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36183A - PLATE, TRANSFER OIL PUMP | ||||
| 36183-60012 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 36183-60012 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 36183-60012 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36184B - SHAFT, TRANSFER OIL PUMP DRIVE | ||||
| 36184-60060 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 36184-60060 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 36184-60060 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36185B - ROTOR, TRANSFER OIL PUMP DRIVE | ||||
| 36185-60030 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 36185-60030 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 36185-60030 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36186A - ROTOR, TRANSFER OIL PUMP DRIVEN | ||||
| 36186-60010 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36186-60010 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 36186-60010 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 36187A - STRAINR, TRANSFER OIL, NO.1 | ||||
| 36187-60010 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 36187-60010 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 36187-60010 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36209A - SHAFT, TRANSFER OUTPUT, FRONT | ||||
| 36209-60020 |
HZJ105..LHD..STD;FZJ105,HZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) FULL TIME 4WD |
1 | ||
| 36209-60030 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD |
1 | ||
| 36209-60030 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD |
1 | ||
| 36209-60020 |
FZJ10#,HZJ105..GX..(ARL,GCC,GEN);HZJ105,UZJ100..LHD..5F..(STD,VX) FULL TIME 4WD |
1 | ||
| 36209-60050 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN *DMALH |
1 | ||
| 36209-60030 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD |
1 | ||
| 36209-60020 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN FULL TIME 4WD |
1 | ||
| Common parts | ||||
| 90119-10180 | ||||
| 90119-10186 | ||||
| 90119-10390 | ||||
| 90149-60053 | ||||
| 90360-10003 | ||||
| 90464-00535 | ||||
| 90501-10127 | ||||
| 91611-60620 | ||||
| 91611-B0614 | ||||
| 91611-B0812 | ||||
| 91612-61025 | ||||
| 91612-61035 | ||||
| 91612-61040 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 96132-41000 | ||||
(9801- )FZJ100..4FC..GCC
PART TIME 4WD & W(2-4SELECTOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33124B - PIPE, OIL RECEIVER(FOR TRANSFER REAR CASE) | ||||
| 33124-60040 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN |
1 | ||
| 33124-60040 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN |
1 | ||
| 33124-60040 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN |
1 | ||
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-60010 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
1 | ||
| 33124-60030 |
FZJ10#..STD;FZJ100..4FC;HZJ105..RHD..STD PART TIME 4WD,NO.2 |
1 | ||
| 33124-60050 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD,NO.3 |
1 | ||
| 33124-60030 |
FZJ10#..STD;FZJ100..4FC..GCC;HZJ105..RHD..STD PART TIME 4WD,NO.2 |
1 | ||
| 33124-60010 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
1 | ||
| 33124-60030 |
HZJ105..LHD..STD;FZJ105,HZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) FULL TIME 4WD,NO.2 |
1 | ||
| 33124-60010 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
1 | ||
| 33124-60060 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.4 |
1 | ||
| 33124-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 33124-60050 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.3 |
1 | ||
| 33124-60030 |
UZJ100..ARL,GCC;HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100..ARL,GCC,GEN FULL TIME 4WD,NO.2 |
1 | ||
| 33124-60060 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.4 |
1 | ||
| 33124-60060 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD,NO.4 |
1 | ||
| 33124-60030 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.2 |
1 | ||
| 33124-60050 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.3 |
1 | ||
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-60010 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
1 | ||
| 33124-60030 |
FZJ10#..STD;FZJ100..4FC;HZJ105..RHD..STD PART TIME 4WD,NO.2 |
1 | ||
| 33124-60050 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD,NO.3 |
1 | ||
| 33124-60030 |
FZJ10#..STD;FZJ100..4FC..GCC;HZJ105..RHD..STD PART TIME 4WD,NO.2 |
1 | ||
| 33124-60010 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
1 | ||
| 33124-60030 |
HZJ105..LHD..STD;FZJ105,HZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) FULL TIME 4WD,NO.2 |
1 | ||
| 33124-60010 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
1 | ||
| 33124-60060 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.4 |
1 | ||
| 33124-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 33124-60050 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.3 |
1 | ||
| 33124-60030 |
UZJ100..ARL,GCC;HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100..ARL,GCC,GEN FULL TIME 4WD,NO.2 |
1 | ||
| 33124-60060 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.4 |
1 | ||
| 33124-60060 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD,NO.4 |
1 | ||
| 33124-60030 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.2 |
1 | ||
| 33124-60050 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.3 |
1 | ||

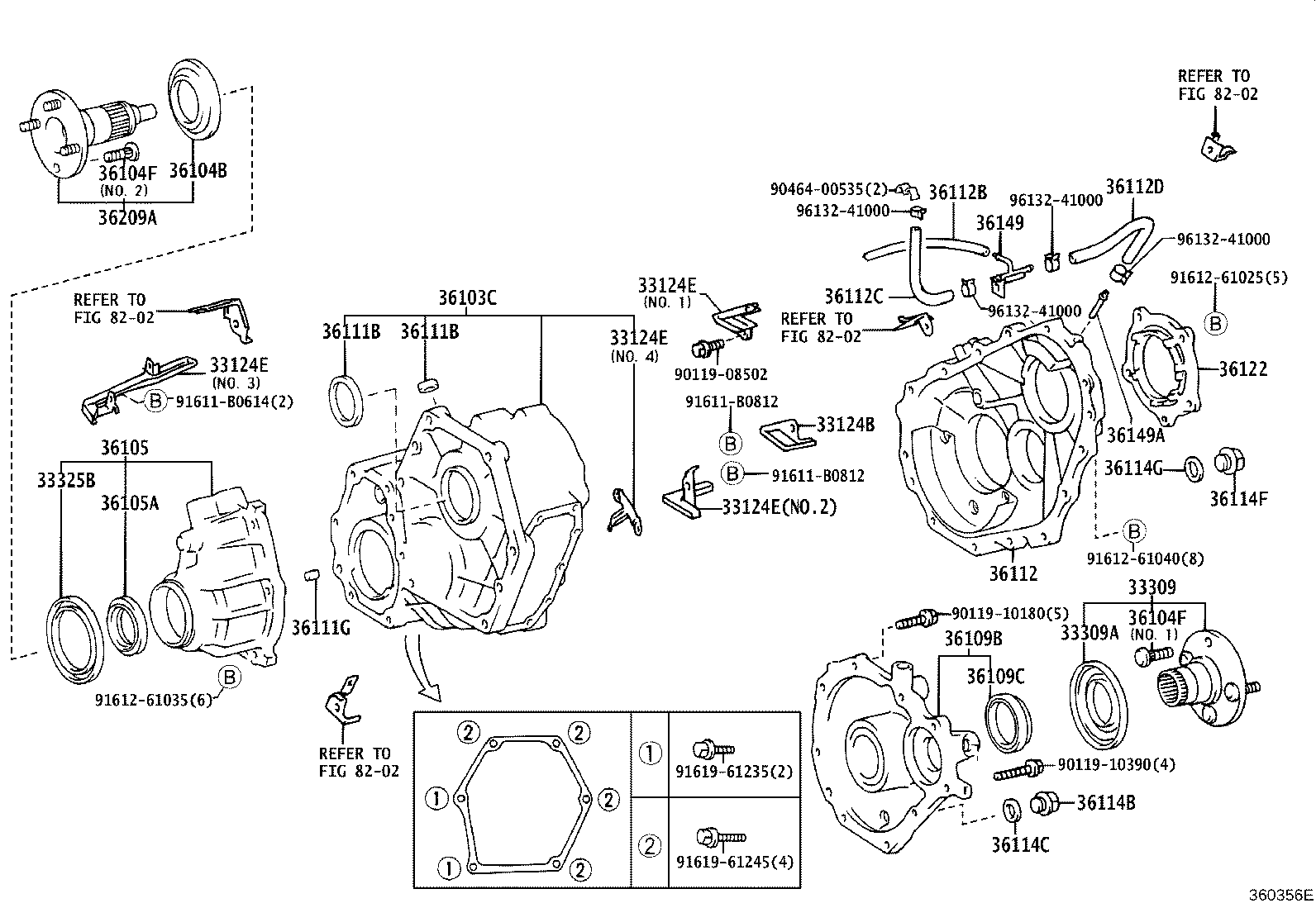

| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-60010 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
1 | ||
| 33124-60030 |
FZJ10#..STD;FZJ100..4FC;HZJ105..RHD..STD PART TIME 4WD,NO.2 |
1 | ||
| 33124-60050 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD,NO.3 |
1 | ||
| 33124-60030 |
FZJ10#..STD;FZJ100..4FC..GCC;HZJ105..RHD..STD PART TIME 4WD,NO.2 |
1 | ||
| 33124-60010 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
1 | ||
| 33124-60030 |
HZJ105..LHD..STD;FZJ105,HZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) FULL TIME 4WD,NO.2 |
1 | ||
| 33124-60010 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
1 | ||
| 33124-60060 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.4 |
1 | ||
| 33124-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 33124-60050 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.3 |
1 | ||
| 33124-60030 |
UZJ100..ARL,GCC;HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100..ARL,GCC,GEN FULL TIME 4WD,NO.2 |
1 | ||
| 33124-60060 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.4 |
1 | ||
| 33124-60060 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD,NO.4 |
1 | ||
| 33124-60030 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.2 |
1 | ||
| 33124-60050 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.3 |
1 | ||
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-60010 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
1 | ||
| 33124-60030 |
FZJ10#..STD;FZJ100..4FC;HZJ105..RHD..STD PART TIME 4WD,NO.2 |
1 | ||
| 33124-60050 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD,NO.3 |
1 | ||
| 33124-60030 |
FZJ10#..STD;FZJ100..4FC..GCC;HZJ105..RHD..STD PART TIME 4WD,NO.2 |
1 | ||
| 33124-60010 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
1 | ||
| 33124-60030 |
HZJ105..LHD..STD;FZJ105,HZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) FULL TIME 4WD,NO.2 |
1 | ||
| 33124-60010 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
1 | ||
| 33124-60060 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.4 |
1 | ||
| 33124-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 33124-60050 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.3 |
1 | ||
| 33124-60030 |
UZJ100..ARL,GCC;HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100..ARL,GCC,GEN FULL TIME 4WD,NO.2 |
1 | ||
| 33124-60060 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.4 |
1 | ||
| 33124-60060 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD,NO.4 |
1 | ||
| 33124-60030 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.2 |
1 | ||
| 33124-60050 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.3 |
1 | ||
| 33309 - FLANGE SUB-ASSY, TRANSFER OUTPUT SHAFT COMPANION | ||||
| 33309-60101 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN |
1 | ||
| 33309-60101 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN |
1 | ||
| 33309-60100 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN |
1 | ||
| 33309-60101 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN |
1 | ||
| 33309A - DEFLECTOR, DUST | ||||
| 33325-60110 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN |
1 | ||
| 33325-60090 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN |
1 | ||
| 33325-60110 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN |
1 | ||
| 33325-60110 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN |
1 | ||
| 33325B - DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING) | ||||
| 33325-60050 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 33325-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 33325-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36103C - CASE, TRANSFER, FRONT | ||||
| 36103-60290 |
HZJ105..LHD..STD;FZJ105,HZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) FULL TIME 4WD |
1 | ||
| 36103-60280 |
HZJ105..LHD..GX;HZJ105..RHD..GEN;FZJ10#..GX..(GCC,GEN) W(2-4 SELECTOR) |
1 | ||
| 36103-60280 |
HZJ105..LHD..GX;HZJ105..RHD..GEN;FZJ10#..GX..(GCC,GEN) W(2-4 SELECTOR) |
1 | ||
| 36103-60290 |
FZJ10#,HZJ105..GX..(ARL,GCC,GEN);HZJ105,UZJ100..LHD..5F..(STD,VX) FULL TIME 4WD |
1 | ||
| 36103-60290 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN FULL TIME 4WD |
1 | ||
| 36103-60280 |
FZJ105..GX;HZJ105..LHD..GX;FZJ100..SOB..4FC;HZJ105..RHD..GEN;FZJ100..LUB..GCC W(2-4 SELECTOR) |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 33325-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 33325-60040 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-10061 |
FZJ10#..STD;FZJ100..4FC;HZJ105..RHD..STD PART TIME 4WD,NO.2 |
4 | ||
| 90114-10061 |
FZJ10#..STD;HZJ105..RHD..STD;HDJ100,UZJ100..ARL,GEN;FZJ100,UZJ100..ATM..GCC |
4 | ||
| 90114-11003 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
4 | ||
| 90114-11003 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
4 | ||
| 90114-11003 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
4 | ||
| 90114-10061 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 90114-10061 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.2 |
4 | ||
| 90114-10061 |
FZJ10#..STD;FZJ100..4FC..GCC;HZJ105..RHD..STD PART TIME 4WD,NO.2 |
4 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-10061 |
FZJ10#..STD;FZJ100..4FC;HZJ105..RHD..STD PART TIME 4WD,NO.2 |
4 | ||
| 90114-10061 |
FZJ10#..STD;HZJ105..RHD..STD;HDJ100,UZJ100..ARL,GEN;FZJ100,UZJ100..ATM..GCC |
4 | ||
| 90114-11003 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
4 | ||
| 90114-11003 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
4 | ||
| 90114-11003 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.1 |
4 | ||
| 90114-10061 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 90114-10061 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD,NO.2 |
4 | ||
| 90114-10061 |
FZJ10#..STD;FZJ100..4FC..GCC;HZJ105..RHD..STD PART TIME 4WD,NO.2 |
4 | ||
| 36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT | ||||
| 36105-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36105-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36105-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36105A - SEAL, OIL (TRANSFER EXTENSION FRONT HOUSING SUB-ASSY) | ||||
| 90311-50014 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90311-50014 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90311-50014 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36109B - HOUSING SUB-ASSY, TRANSFER EXTENSION, REAR | ||||
| 36109-60061 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX FULL TIME 4WD |
1 | ||
| 36109-60051 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD |
1 | ||
| 36109-60060 |
HZJ105..LHD..STD;FZJ105,HZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) FULL TIME 4WD |
1 | ||
| 36109-60051 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD |
1 | ||
| 36109-60061 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN FULL TIME 4WD |
1 | ||
| 36109-60061 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) FULL TIME 4WD |
1 | ||
| 36109-60050 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD |
1 | ||
| 36109-60051 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD |
1 | ||
| 36109C - SEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY) | ||||
| 90311-58008 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90311-58011 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90311-58011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90311-58011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-48018 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN SHAFT SIDE |
1 | ||
| 90311-48018 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) SHAFT SIDE |
1 | ||
| 90310-16001 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) LEVER SIDE |
1 | ||
| 90311-48025 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN SHAFT SIDE |
1 | ||
| 90311-48025 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN SHAFT SIDE |
1 | ||
| 90310-16001 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN LEVER SIDE |
1 | ||
| 90310-16001 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN LEVER SIDE |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-48018 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN SHAFT SIDE |
1 | ||
| 90311-48018 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) SHAFT SIDE |
1 | ||
| 90310-16001 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) LEVER SIDE |
1 | ||
| 90311-48025 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN SHAFT SIDE |
1 | ||
| 90311-48025 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN SHAFT SIDE |
1 | ||
| 90310-16001 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN LEVER SIDE |
1 | ||
| 90310-16001 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN LEVER SIDE |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-12002 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) L=16,OD=12 |
6 | ||
| 90250-12002 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN L=16,OD=12 |
6 | ||
| 90250-12002 |
HZJ105..4FC;FZJ10#,HDJ100,UZJ100 L=16,OD=12 |
6 | ||
| 90250-12002 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN L=16,OD=12 |
6 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36104-60020 |
HZJ105..LHD..STD;FZJ105,HZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) FULL TIME 4WD |
1 | ||
| 36104-60020 |
FZJ10#,HZJ105..GX..(ARL,GCC,GEN);HZJ105,UZJ100..LHD..5F..(STD,VX) FULL TIME 4WD |
1 | ||
| 36104-60040 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD |
1 | ||
| 36104-60020 |
HZJ105..LHD..STD;FZJ100,HDJ100..(4FC,5F)..(ARL,GCC,GEN);FZJ105,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) FULL TIME 4WD |
1 | ||
| 36104-60040 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD |
1 | ||
| 36104-60040 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD |
1 | ||
| 36112B - HOSE, NO.1 (FOR TRANSFER REAR CASE) | ||||
| 90447-08151 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 90447-08151 |
FZJ100..4FC..GCC |
1 | ||
| 90447-08151 |
FZJ100..4FC..GCC |
1 | ||
| 36112C - HOSE, NO.2 (FOR TRANSFER REAR CASE) | ||||
| 90445-11136 |
FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 90445-11136 |
FZJ100..4FC..GCC |
1 | ||
| 90445-11136 |
FZJ100..4FC..GCC |
1 | ||
| 36112D - HOSE, NO.3 (FOR TRANSFER REAR CASE) | ||||
| 90445-11138 |
FZJ100..4FC..GCC |
1 | ||
| 90445-11138 |
FZJ100..4FC..GCC |
1 | ||
| 90445-11138 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90341-18006 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90341-18006 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90430-18008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90430-18008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18057 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90341-18057 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90341-18057 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 90430-18008 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90430-18008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90430-18008 |
UZJ100..5FC..(ARL,GCC);FZJ100,HDJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 36122 - COVER, TRANSFER CASE, NO.2 | ||||
| 36122-36010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36122-36010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 36122-36010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 36149 - PIPE, TRANSFER BREATHER | ||||
| 36149-60030 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX FULL TIME 4WD,NO.2 |
1 | ||
| 36149-60010 |
FZJ10#,HDJ100,HZJ105..GX,VX;HZJ105,UZJ100..LHD..(STD,VX) FULL TIME 4WD,NO.1 |
1 | ||
| 36149-60030 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) FULL TIME 4WD,NO.2 |
1 | ||
| 36149-60010 |
FZJ100..4FC;FZJ105,HZJ105..RHD..GEN PART TIME 4WD |
1 | ||
| 36149-60030 |
FZJ100,HDJ100..GX,VX;FZJ105,HZJ105..5F..GX;HZJ105,UZJ100..LHD..(STD,VX) FULL TIME 4WD,NO.2 |
1 | ||
| 36149-60010 |
FZJ100..4FC..GCC;FZJ105,HZJ105..RHD..GEN PART TIME 4WD |
1 | ||
| 36149-60030 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN FULL TIME 4WD,NO.2 |
1 | ||
| 36149-60010 |
FZJ105..GX;HZJ105..LHD..GX;FZJ100..SOB..4FC;HZJ105..RHD..GEN;FZJ100..LUB..GCC PART TIME 4WD |
1 | ||
| 36149A - PIPE, TRANSFER BREATHER, NO.2 | ||||
| 36149-60030 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN |
1 | ||
| 36149-60030 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN |
1 | ||
| 36149-60030 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN |
1 | ||
| 36209A - SHAFT, TRANSFER OUTPUT, FRONT | ||||
| 36209-60020 |
HZJ105..LHD..STD;FZJ105,HZJ105,UZJ100..5F..(GX,VX);FZJ100,HDJ100..(GX,VX)..(GCC,GEN) FULL TIME 4WD |
1 | ||
| 36209-60030 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN PART TIME 4WD |
1 | ||
| 36209-60030 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD |
1 | ||
| 36209-60020 |
FZJ10#,HZJ105..GX..(ARL,GCC,GEN);HZJ105,UZJ100..LHD..5F..(STD,VX) FULL TIME 4WD |
1 | ||
| 36209-60050 |
HZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN *DMALH |
1 | ||
| 36209-60030 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN PART TIME 4WD |
1 | ||
| 36209-60020 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN FULL TIME 4WD |
1 | ||
| Common parts | ||||
| 90119-08502 | ||||
| 90119-10180 | ||||
| 90119-10390 | ||||
| 90464-00535 | ||||
| 91611-B0614 | ||||
| 91611-B0812 | ||||
| 91612-61025 | ||||
| 91612-61035 | ||||
| 91612-61040 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 96132-41000 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
