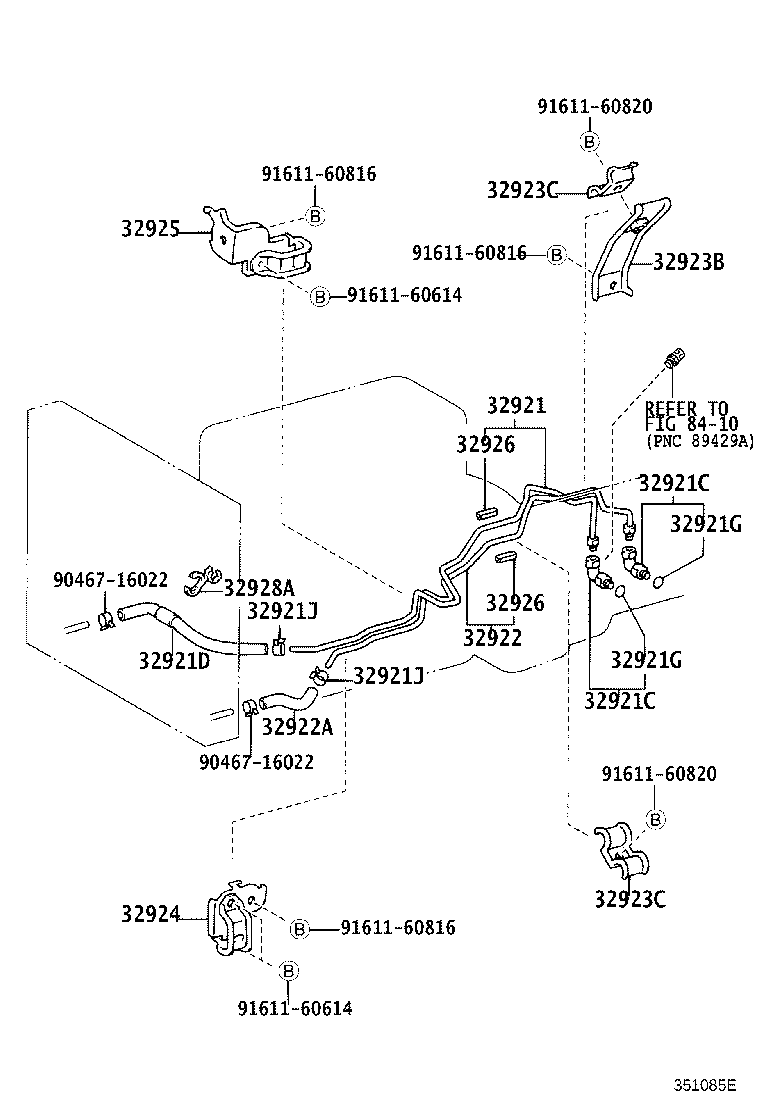

FZJ100L-GCPNKV (1998)
Toyota Land Cruiser 100
(9801-0208)FZJ100..4FC
A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-60170 |
FZJ100..4FC |
1 | ||
| 32921-60171 |
FZJ100..4FC |
1 | ||
| 32921-60170 |
FZJ10#..4FC |
1 | ||
| 32921-60211 |
FZJ100..4FC..GCC |
1 | ||
| 32921-60211 |
FZJ100..4FC..GCC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-20006 |
FZJ10#,HDJ100,HZJ105..4FC INLET |
1 | ||
| 90407-20004 |
FZJ100..4FC..GCC OUTLET |
1 | ||
| 90407-20004 |
FZJ100..4FC..GCC OUTLET |
1 | ||
| 90407-20004 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC OUTLET |
1 | ||
| 90407-20006 |
FZJ100..4FC..GCC INLET |
1 | ||
| 90407-20006 |
FZJ100..4FC..GCC INLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-20006 |
FZJ10#,HDJ100,HZJ105..4FC INLET |
1 | ||
| 90407-20004 |
FZJ100..4FC..GCC OUTLET |
1 | ||
| 90407-20004 |
FZJ100..4FC..GCC OUTLET |
1 | ||
| 90407-20004 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC OUTLET |
1 | ||
| 90407-20006 |
FZJ100..4FC..GCC INLET |
1 | ||
| 90407-20006 |
FZJ100..4FC..GCC INLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-17152 |
FZJ100..4FC |
1 | ||
| 32941-60200 |
FZJ100..4FC |
1 | ||
| 32941-60300 |
FZJ100..4FC..GCC |
1 | ||
| 32941-60300 |
FZJ100..4FC..GCC |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 90301-11006 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 90301-11006 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 90301-11006 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 90301-11006 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
2 | ||
| 90467-16013 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 90467-16022 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
2 | ||
| 90467-16013 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 90467-16022 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-60231 |
FZJ100..4FC..GCC |
1 | ||
| 32922-60190 |
FZJ10#..4FC |
1 | ||
| 32922-60230 |
FZJ10#..4FC |
1 | ||
| 32922-60231 |
FZJ10#..4FC |
1 | ||
| 32922-60231 |
FZJ100..4FC..GCC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17096 |
FZJ100..4FC..GCC |
1 | ||
| 90445-17096 |
FZJ100..4FC |
1 | ||
| 90445-17096 |
FZJ100..4FC..GCC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-60050 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 32923-60050 |
FZJ100..4FC..GCC |
1 | ||
| 32923-60050 |
FZJ100..4FC..GCC |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12076 |
FZJ10#..4FC |
2 | ||
| 90462-12076 |
FZJ100,HDJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 90462-12076 |
FZJ100,HDJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12076 |
FZJ10#..4FC |
2 | ||
| 90462-12076 |
FZJ100,HDJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 90462-12076 |
FZJ100,HDJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32909-60020 |
FZJ10#..4FC |
1 | ||
| 32909-60020 |
FZJ100..4FC..GCC |
1 | ||
| 32909-60020 |
FZJ100..4FC..GCC |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 32909-60070 |
FZJ10#..4FC |
1 | ||
| 32909-60070 |
FZJ100..4FC..GCC |
1 | ||
| 32909-60070 |
FZJ100..4FC..GCC |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
FZJ10#,HDJ100,HZJ105..4FC L=45,ID=12 |
8 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
FZJ10#,HDJ100,HZJ105..4FC L=45,ID=12 |
8 | ||
| 32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP) | ||||
| 90949-01B51 |
FZJ100,UZJ100..4FC |
1 | ||
| Common parts | ||||
| 90467-16022 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| Linked diagrams | ||||
| 8410 | ||||

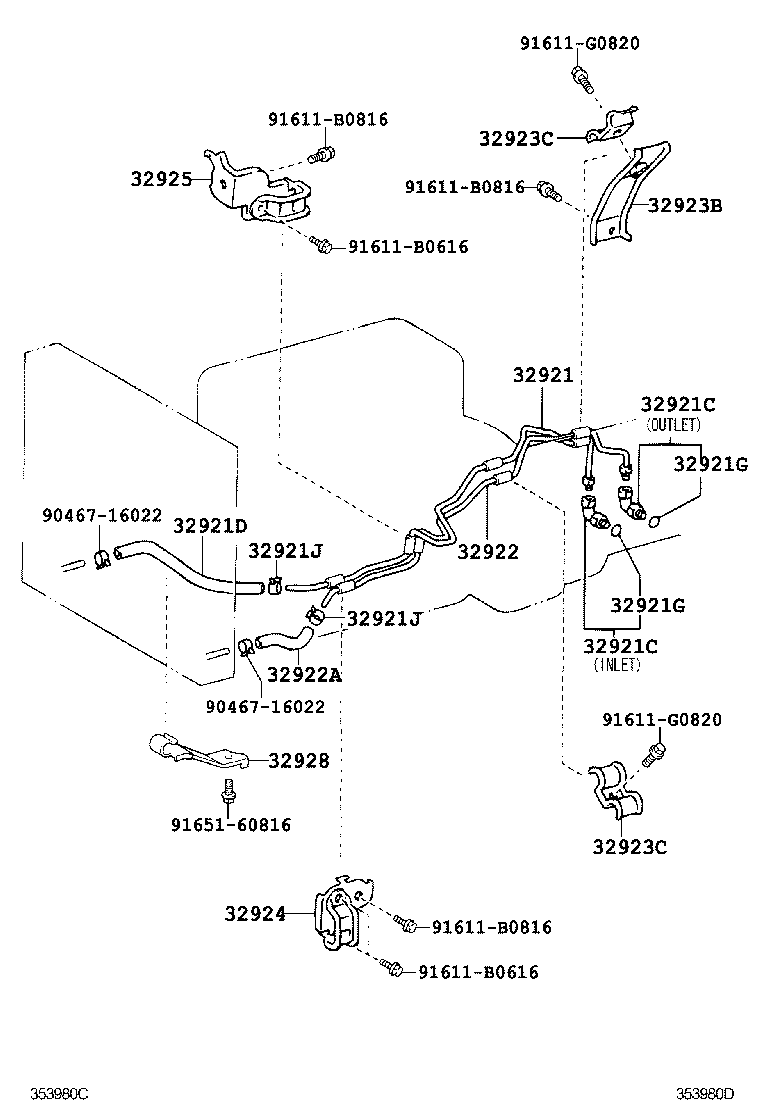

(0208- )4FC
A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-60170 |
FZJ100..4FC |
1 | ||
| 32921-60171 |
FZJ100..4FC |
1 | ||
| 32921-60170 |
FZJ10#..4FC |
1 | ||
| 32921-60211 |
FZJ100..4FC..GCC |
1 | ||
| 32921-60211 |
FZJ100..4FC..GCC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-20006 |
FZJ10#,HDJ100,HZJ105..4FC INLET |
1 | ||
| 90407-20004 |
FZJ100..4FC..GCC OUTLET |
1 | ||
| 90407-20004 |
FZJ100..4FC..GCC OUTLET |
1 | ||
| 90407-20004 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC OUTLET |
1 | ||
| 90407-20006 |
FZJ100..4FC..GCC INLET |
1 | ||
| 90407-20006 |
FZJ100..4FC..GCC INLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-20006 |
FZJ10#,HDJ100,HZJ105..4FC INLET |
1 | ||
| 90407-20004 |
FZJ100..4FC..GCC OUTLET |
1 | ||
| 90407-20004 |
FZJ100..4FC..GCC OUTLET |
1 | ||
| 90407-20004 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC OUTLET |
1 | ||
| 90407-20006 |
FZJ100..4FC..GCC INLET |
1 | ||
| 90407-20006 |
FZJ100..4FC..GCC INLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-17152 |
FZJ100..4FC |
1 | ||
| 32941-60200 |
FZJ100..4FC |
1 | ||
| 32941-60300 |
FZJ100..4FC..GCC |
1 | ||
| 32941-60300 |
FZJ100..4FC..GCC |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 90301-11006 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 90301-11006 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 90301-11006 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 90301-11006 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
2 | ||
| 90467-16013 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 90467-16022 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
2 | ||
| 90467-16013 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 90467-16022 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-60231 |
FZJ100..4FC..GCC |
1 | ||
| 32922-60190 |
FZJ10#..4FC |
1 | ||
| 32922-60230 |
FZJ10#..4FC |
1 | ||
| 32922-60231 |
FZJ10#..4FC |
1 | ||
| 32922-60231 |
FZJ100..4FC..GCC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17096 |
FZJ100..4FC..GCC |
1 | ||
| 90445-17096 |
FZJ100..4FC |
1 | ||
| 90445-17096 |
FZJ100..4FC..GCC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-60050 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 32923-60050 |
FZJ100..4FC..GCC |
1 | ||
| 32923-60050 |
FZJ100..4FC..GCC |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12076 |
FZJ10#..4FC |
2 | ||
| 90462-12076 |
FZJ100,HDJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 90462-12076 |
FZJ100,HDJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12076 |
FZJ10#..4FC |
2 | ||
| 90462-12076 |
FZJ100,HDJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 90462-12076 |
FZJ100,HDJ100..ATM..(ARL,GCC,GEN) |
2 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32909-60020 |
FZJ10#..4FC |
1 | ||
| 32909-60020 |
FZJ100..4FC..GCC |
1 | ||
| 32909-60020 |
FZJ100..4FC..GCC |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 32909-60070 |
FZJ10#..4FC |
1 | ||
| 32909-60070 |
FZJ100..4FC..GCC |
1 | ||
| 32909-60070 |
FZJ100..4FC..GCC |
1 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-60120 |
FZJ100,HDJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 32928-60120 |
FZJ100,HDJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 32928-60160 |
FZJ100,HDJ100..ATM |
1 | ||
| Common parts | ||||
| 90467-16022 | ||||
| 91611-B0616 | ||||
| 91611-B0816 | ||||
| 91611-G0820 | ||||
| 91651-60816 | ||||
