FZJ100L-GCPNKV (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2007
Engine 1FZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

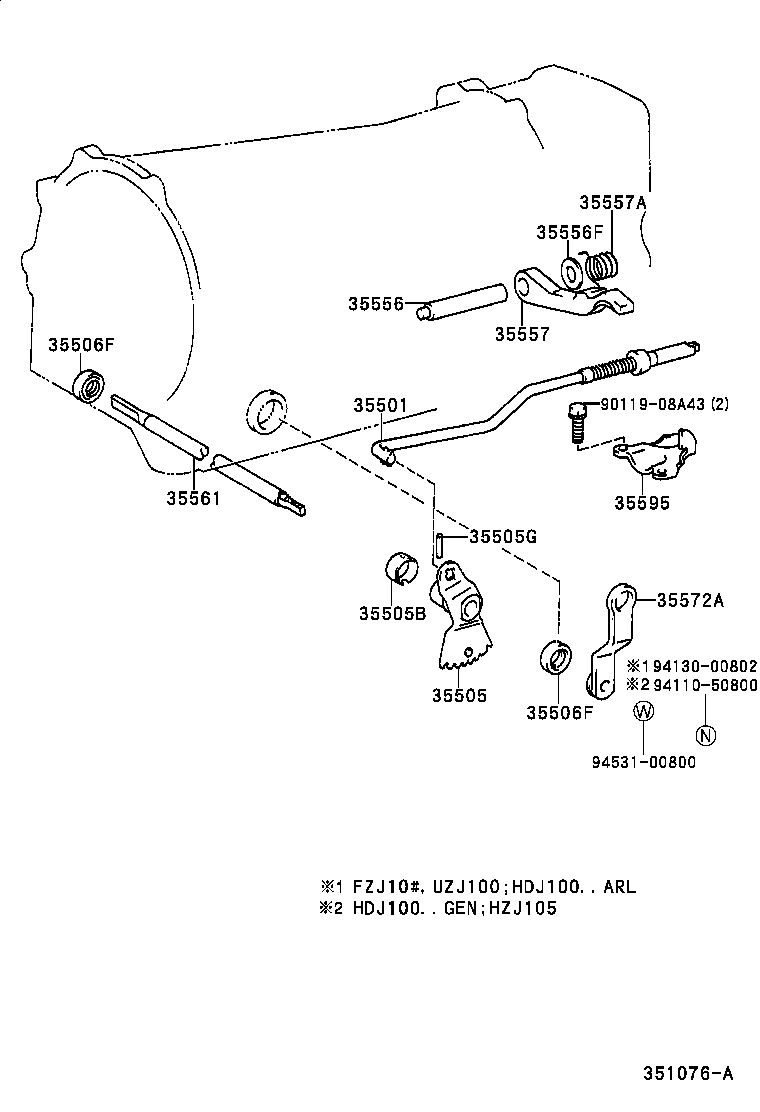

ILLUST NO. 1 OF 2(9801- )4FC

Click highlighted areas on diagram

A442F

diagram 35501 35505 35505B 35505G 35506F 35506F 35556 35556F 35557 35557A 35561 35572A 35595 9011908A43 9411050800 9413000802 9453100800
Part # Description Qty Price
35501 - ROD SUB-ASSY, PARKING LOCK
35501-36010

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35501-36010

FZJ100..4FC..GCC

 1
35501-36010

FZJ100..4FC..GCC

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-60020

FZJ100..4FC..GCC

 1
35505-60020

FZJ100..4FC..GCC

 1
35505-60020

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35505B - SPACER (FOR MANUAL VALVE LEVER)
90560-20008

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
90560-20008

FZJ100..4FC..GCC

 1
90560-20008

FZJ100..4FC..GCC

 1
35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
90254-04012

FZJ100..4FC..GCC

 1
90254-04012

FZJ100..4FC..GCC

 1
90254-04012

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 2
90311-12002

FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN)

 2
90311-12002

FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN)

 2
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 2
90311-12002

FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN)

 2
90311-12002

FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN)

 2
35556 - SHAFT, PARKING LOCK PAWL
35556-36010

FZJ100..4FC..GCC

 1
35556-36010

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35556-36010

FZJ100..4FC..GCC

 1
35556F - WASHER, PLATE (FOR PARKING LOCK PAWL SHAFT)
90201-16012

FZJ100..4FC..GCC

 1
90201-16012

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
90201-16012

FZJ100..4FC..GCC

 1
35557 - PAWL, PARKING LOCK
35557-60030

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35557-60030

FZJ100..4FC..GCC

 1
35557-60030

FZJ100..4FC..GCC

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-30010

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
90508-30010

FZJ100..4FC..GCC

 1
90508-30010

FZJ100..4FC..GCC

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-60020

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35561-60020

FZJ100..4FC..GCC

 1
35561-60020

FZJ100..4FC..GCC

 1
35572A - LEVER, TRANSMISSION CONTROL SHAFT
35572-60050

FZJ100..4FC..GCC

 1
35572-60050

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35572-60050

FZJ100..4FC..GCC

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-60020

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35595-60020

FZJ100..4FC..GCC

 1
35595-60020

FZJ100..4FC..GCC

 1
Common parts
90119-08A43
94110-50800
94130-00802
94531-00800

ILLUST NO. 2 OF 2(9801- )FZJ10#..4FC

Click highlighted areas on diagram

A442F

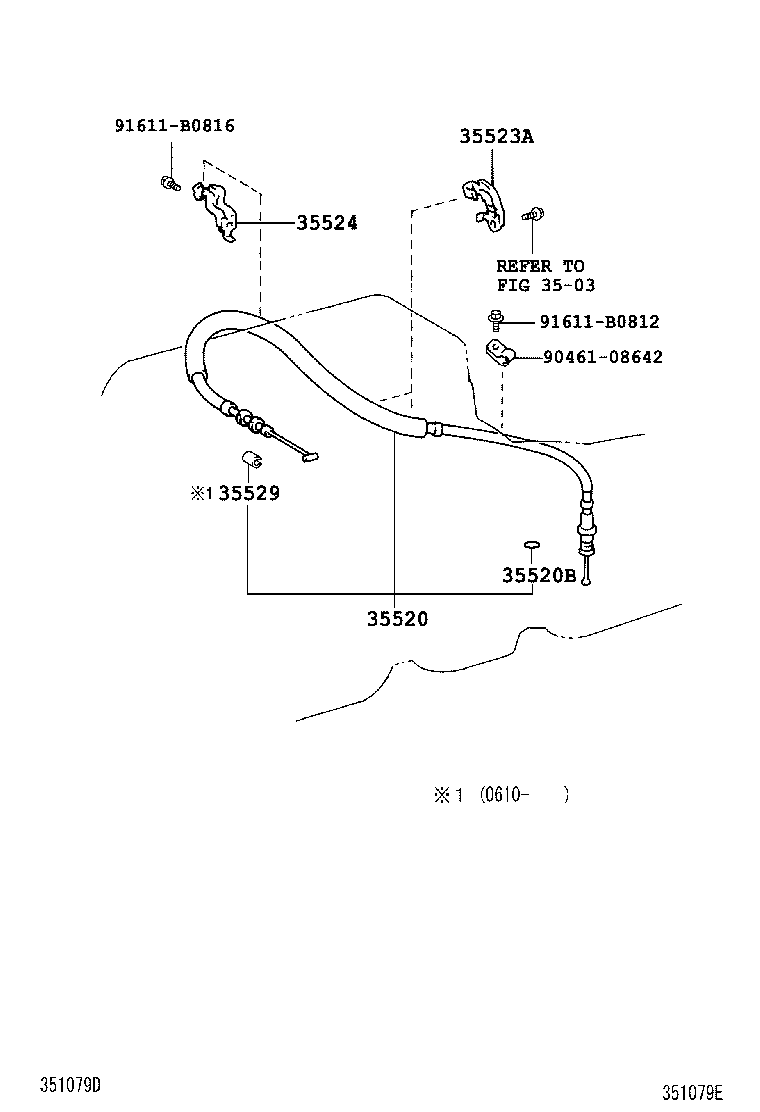

diagram 3503 35520 35520B 35523A 35524 35529 9046108642 91611B0812 91611B0816
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-60111

FZJ10#..4FC

 1
35520-60111

FZJ100..4FC..GCC

 1
35520-60111

FZJ100..4FC..GCC

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09012

FZJ100..4FC..GCC

 1
90301-09012

FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2)

 1
90301-09012

FZJ100..4FC..GCC

 1
35523A - CLAMP, THROTTLE CABLE, NO.1
35523-60070

FZJ10#..4FC

 1
35523-60070

FZJ100..4FC..GCC

 1
35523-60070

FZJ100..4FC..GCC

 1
35524 - CLAMP, THROTTLE CABLE, NO.2
35524-60012

FZJ10#..4FC

 1
35524-60012

FZJ100..4FC..GCC

 1
35524-60012

FZJ100..4FC..GCC

 1
35529 - PIN, THROTTLE CABLE
35529-60010

FZJ100..4FC

 1
Common parts
90461-08642
91611-B0812
91611-B0816
Linked diagrams
3503
