FZJ100L-GCPNKV (1998)
Toyota Land Cruiser 100

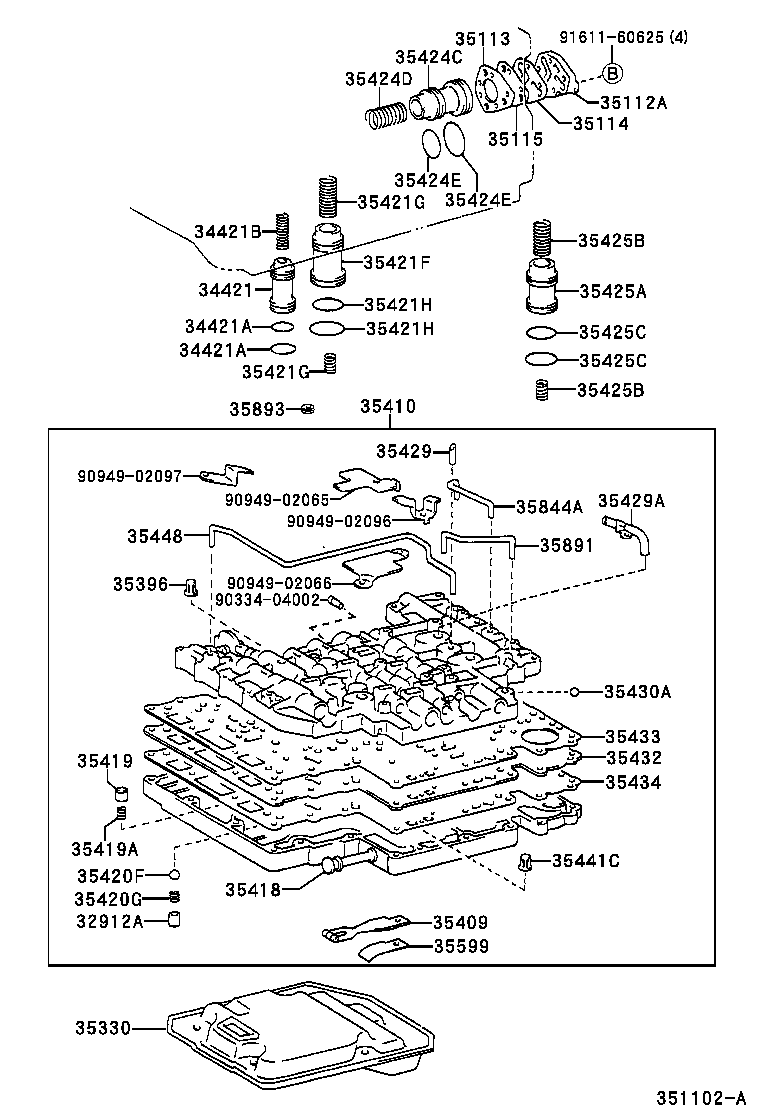

ILLUST NO. 1 OF 4(9801-0208)FZJ10#,HDJ100,HZJ105..4FC..DSL2,EFI,TD2
A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32912A - CAGE, CHECK VALVE(FOR VALVE BODY) | ||||
| 32912-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
2 | ||
| 34421 - PISTON, OVERDRIVE BRAKE ACCUMULATOR | ||||
| 34421-37010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 34421-37010 |
FZJ100..4FC..GCC |
1 | ||
| 34421-37010 |
FZJ100..4FC..GCC |
1 | ||
| 34421A - RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90301-29003 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-29003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC LOWER |
1 | ||
| 90301-26003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC UPPER |
1 | ||
| 90301-29003 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-26003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-26003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 34421A - RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90301-29003 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-29003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC LOWER |
1 | ||
| 90301-26003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC UPPER |
1 | ||
| 90301-29003 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-26003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-26003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 34421B - SPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90501-32013 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 90501-32013 |
FZJ100..4FC..GCC |
1 | ||
| 90501-32013 |
FZJ100..4FC..GCC |
1 | ||
| 35112A - COVER, FRONT CLUTCH ACCUMULATOR | ||||
| 35112-60010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC) |
1 | ||
| 35112-60010 |
FZJ100..4FC..GCC |
1 | ||
| 35112-60010 |
FZJ100..4FC..GCC |
1 | ||
| 35113 - GASKET, FRONT CLUTCH ACCUMLATOR, NO.2 | ||||
| 35113-60020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC) |
1 | ||
| 35113-60020 |
FZJ100..4FC..GCC |
1 | ||
| 35113-60020 |
FZJ100..4FC..GCC |
1 | ||
| 35114 - GASKET, FRONT CLUTCH ACCUMLATOR, NO.1 | ||||
| 35114-60020 |
FZJ100..4FC..GCC |
1 | ||
| 35114-60020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC) |
1 | ||
| 35114-60020 |
FZJ100..4FC..GCC |
1 | ||
| 35115 - PLATE, FRONT CLUTCH ACCUMULATOR | ||||
| 35115-60010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC) |
1 | ||
| 35115-60010 |
FZJ100..4FC..GCC |
1 | ||
| 35115-60010 |
FZJ100..4FC..GCC |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-60010 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35330-60010 |
FZJ100..4FC..GCC |
1 | ||
| 35330-60010 |
FZJ100..4FC..GCC |
1 | ||
| 35396 - STRAINER, THROTTLE OIL | ||||
| 35396-36020 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-60440 |
FZJ10#..4FC |
1 | ||
| 35410-60440 |
FZJ100..4FC..GCC |
1 | ||
| 35410-60441 |
FZJ100..4FC |
1 | ||
| 35410-60440 |
FZJ100..4FC..GCC |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-36010 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-12129 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35420F - BALL, CHECK, NO.1 | ||||
| 90360-10006 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
2 | ||
| 35420G - SPRING, BARREL SHAPED | ||||
| 90503-04004 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
2 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35402-60030 |
FZJ10#..4FC |
1 | ||
| 35402-60020 |
FZJ100..4FC..GCC |
1 | ||
| 35402-60030 |
FZJ100..4FC..GCC |
1 | ||
| 35402-60040 |
FZJ100..4FC |
1 | ||
| 35402-60030 |
FZJ100..4FC..GCC |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-38005 |
FZJ10#..4FC UPPER |
1 | ||
| 90501-38005 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90501-22044 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90501-22044 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90501-22044 |
FZJ10#,HDJ100..4FC LOWER |
1 | ||
| 90501-38005 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-38005 |
FZJ10#..4FC UPPER |
1 | ||
| 90501-38005 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90501-22044 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90501-22044 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90501-22044 |
FZJ10#,HDJ100..4FC LOWER |
1 | ||
| 90501-38005 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-29003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC UPPER |
1 | ||
| 90301-29003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-37004 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC LOWER |
1 | ||
| 90301-37004 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-29003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-37004 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-29003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC UPPER |
1 | ||
| 90301-29003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-37004 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC LOWER |
1 | ||
| 90301-37004 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-29003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-37004 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-60020 |
FZJ100..4FC..GCC |
1 | ||
| 35424-60020 |
FZJ100..4FC..GCC |
1 | ||
| 35424-60020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC) |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-26076 |
FZJ10#,HZJ105..4FC |
1 | ||
| 90501-26076 |
FZJ100..4FC..GCC |
1 | ||
| 90501-26076 |
FZJ100..4FC..GCC |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-22003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC LOWER |
1 | ||
| 90301-22003 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-28003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC) UPPER |
1 | ||
| 90301-28009 |
FZJ10#,UZJ100..4FC UPPER |
1 | ||
| 90301-28003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-28003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-22003 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-22003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC LOWER |
1 | ||
| 90301-22003 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-28003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC) UPPER |
1 | ||
| 90301-28009 |
FZJ10#,UZJ100..4FC UPPER |
1 | ||
| 90301-28003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-28003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-22003 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35405-60060 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 35405-60060 |
FZJ100..4FC..GCC |
1 | ||
| 35405-60060 |
FZJ100..4FC..GCC |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-18112 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90501-31018 |
FZJ10#..4FC UPPER |
1 | ||
| 90501-18112 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90501-18112 |
FZJ10#..4FC LOWER |
1 | ||
| 90501-31018 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90501-31018 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-18112 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90501-31018 |
FZJ10#..4FC UPPER |
1 | ||
| 90501-18112 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90501-18112 |
FZJ10#..4FC LOWER |
1 | ||
| 90501-31018 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90501-31018 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-33006 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC LOWER |
1 | ||
| 90301-28003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC UPPER |
1 | ||
| 90301-33006 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-33006 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-28003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-28003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-33006 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC LOWER |
1 | ||
| 90301-28003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC UPPER |
1 | ||
| 90301-33006 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-33006 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-28003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-28003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 35429 - TUBE, LINE PRESSURE | ||||
| 35429-36010 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35429A - TUBE, LINE PRESSURE | ||||
| 35429-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35430A - BALL (FOR REAR UPPER VALVE BODY) | ||||
| 90360-06004 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC OD=6.35 |
9 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-60150 |
FZJ10#,HDJ100..4FC..(EFI,TD2) |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-36023 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-36023 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-36010 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
3 | ||
| 35448 - TUBE, 2-3 SHIFT VALVE APPLY | ||||
| 35448-36010 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35844A - TUBE, ACCUMULATOR BACK PRESSURE, NO.1 | ||||
| 35844-36010 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35891 - TUBE, OVERDRIVE DIRECT CLUTCH | ||||
| 35891-36010 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35893 - GASKET, CENTER SUPPORT APPLY | ||||
| 35893-36010 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
4 | ||
| 35893-36010 |
FZJ100..4FC..GCC |
4 | ||
| 35893-36010 |
FZJ100..4FC..GCC |
4 | ||
| Common parts | ||||
| 90334-04002 | ||||
| 90949-02065 | ||||
| 90949-02066 | ||||
| 90949-02096 | ||||
| 90949-02097 | ||||
| 91611-60625 | ||||

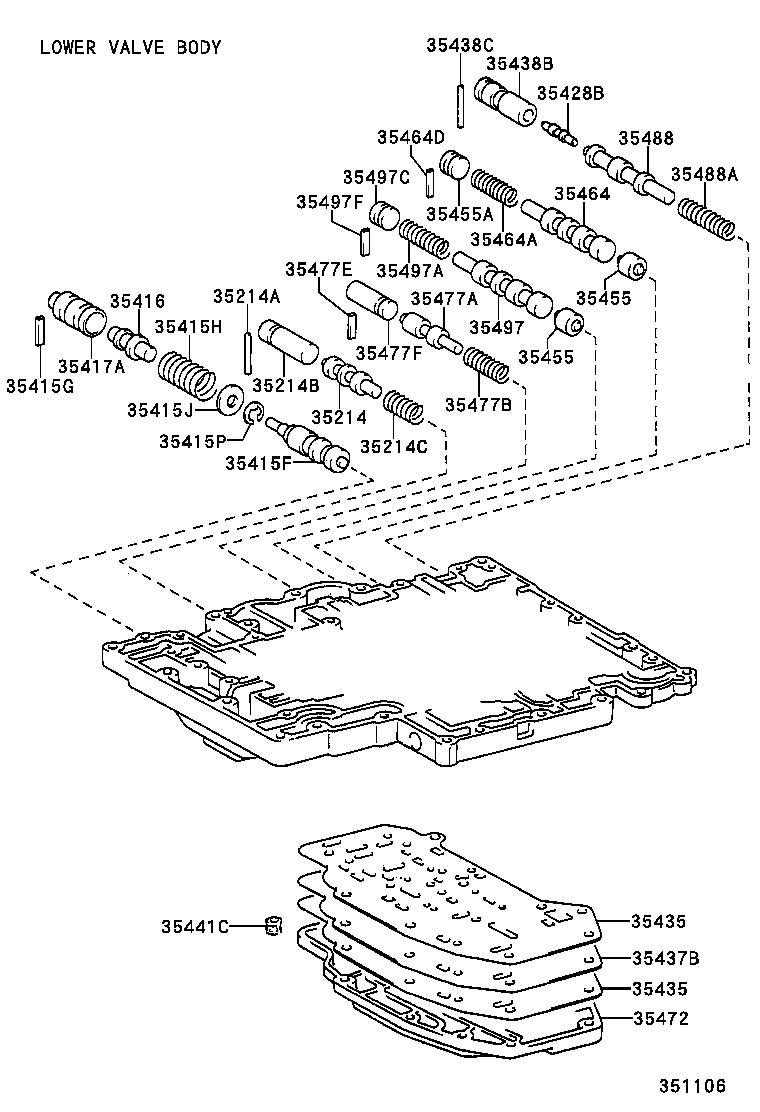

ILLUST NO. 3 OF 4(9801-0208)FZJ10#,HDJ100,HZJ105..4FC..DSL2,EFI,TD2
A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35214 - VALVE, LOCK UP CONTROL | ||||
| 35214-36010 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35214A - KEY, STRAIGHT (FOR LOCK UP CONTROL VALVE) | ||||
| 90250-03082 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35214B - PLUG (FOR LOCK UP CONTROL VALVE) | ||||
| 90339-04043 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35214C - SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE) | ||||
| 90501-11065 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-36020 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35415G - KEY, STRAIGHT (FOR PRIMARY REGULATOR VALVE) | ||||
| 90282-03024 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-20108 |
FZJ10#,HDJ100..4FC..(EFI,TD2) |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90201-06566 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35415P - RING, E (FOR PRIMARY REGULATOR VALVE) | ||||
| 90523-06004 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-60010 |
FZJ10#,HDJ100..4FC..(EFI,TD2) |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-36030 |
FZJ10#,HDJ100..4FC..(EFI,TD2) |
1 | ||
| 35428B - PLUG, 2-3 SHIFT TIMING VALVE | ||||
| 35428-60030 |
FZJ10#,HDJ100,UZJ100..4FC |
1 | ||
| 35435 - GASKET, VALVE BODY PLATE, NO.3 | ||||
| 35435-36020 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
2 | ||
| 35435 - GASKET, VALVE BODY PLATE, NO.3 | ||||
| 35435-36020 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
2 | ||
| 35437B - PLATE, VALVE BODY COVER | ||||
| 35437-60030 |
FZJ10#,HDJ100..4FC..(EFI,TD2) |
1 | ||
| 35438B - SLEEVE, 2-3 SHIFT TIMING VALVE PLUG | ||||
| 35438-60040 |
FZJ10#,HDJ100,UZJ100..4FC |
1 | ||
| 35438C - PIN, STRAIGHT (FOR 2-3 SHIFT TIMING VALVE PLUG SLEEVE) | ||||
| 90250-03081 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-36010 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
3 | ||
| 35455 - PLUG, 1-2 SHIFT VALVE LOW | ||||
| 35455-36020 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
2 | ||
| 35455 - PLUG, 1-2 SHIFT VALVE LOW | ||||
| 35455-36020 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
2 | ||
| 35455A - PLUG (FOR 1-2 SHIFT VALVE LOW PLUG) | ||||
| 90339-04046 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-36020 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-10187 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35464D - KEY, STRAIGHT (FOR 1-2 SHIFT VALVE) | ||||
| 90282-03022 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35472 - COVER, VALVE BODY, NO.2 | ||||
| 35472-36020 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35477A - VALVE, OVERDRIVE CLUTCH EXHAUST | ||||
| 35477-30030 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35477B - SPRING, COMPRESSION (FOR OVERDRIVE CLUTCH EXHAUST VALVE | ||||
| 90501-07042 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35477E - KEY, STRAIGHT (FOR OVERDRIVE CLUTCH EXHAUST VALVE) | ||||
| 90282-03022 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35477F - PLUG (FOR OVERDRIVE CLUTCH EXHAUST VALVE) | ||||
| 90339-04044 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35488 - VALVE, 2-3 SHIFT TIMING | ||||
| 35488-36020 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35488A - SPRING, COMPRESSION (FOR 2-3 SHIFT TIMING VALVE) | ||||
| 90501-09134 |
FZJ10#,HDJ100,UZJ100..4FC |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-36020 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-10187 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-04046 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35497F - KEY, STRAIGHT (FOR 3-4 SHIFT VALVE) | ||||
| 90282-03022 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||

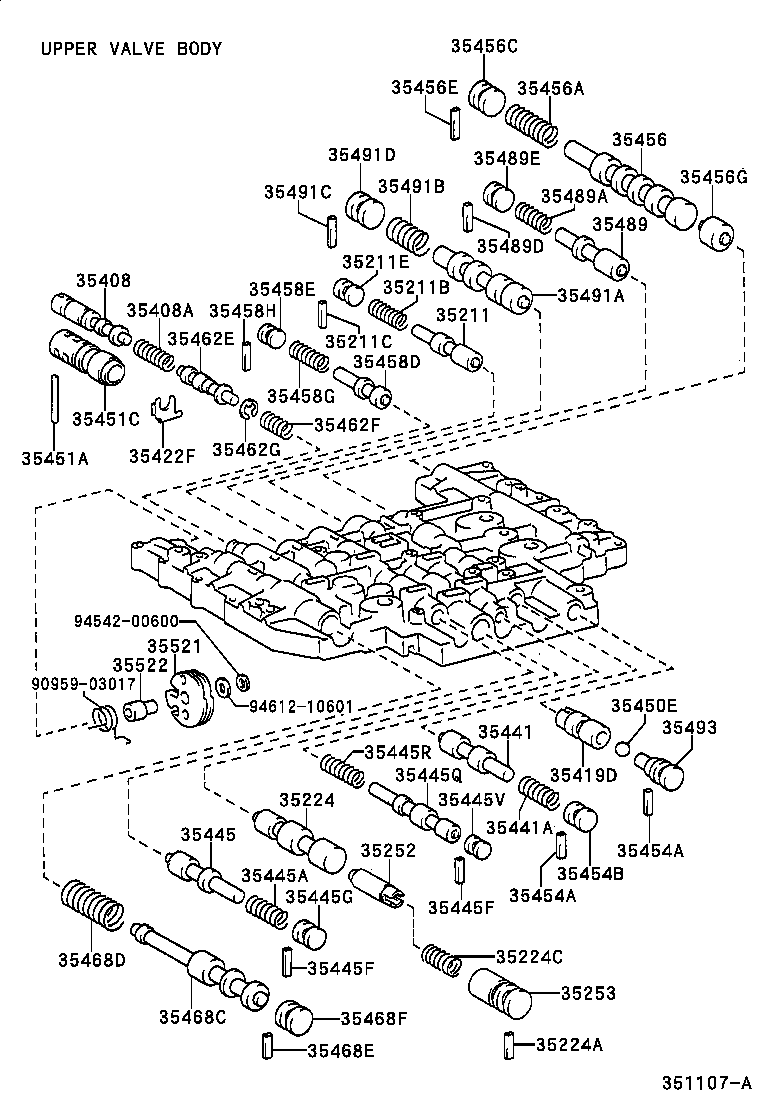

ILLUST NO. 2 OF 4(9801-0208)FZJ10#,HDJ100,HZJ105..4FC..DSL2,EFI,TD2
A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211 - VALVE, LOCK UP SIGNAL | ||||
| 35211-36020 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35211B - SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE) | ||||
| 90501-08146 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35211C - KEY, STRAIGHT (FOR LOCK UP SIGNAL VALVE) | ||||
| 90282-03010 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35211E - PLUG (FOR LOCK UP SIGNAL VALVE) | ||||
| 90339-04045 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35224 - VALVE, REVERSE CONTROL | ||||
| 35224-36010 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35224A - KEY, STRAIGHT (FOR REVERSE CONTROL VALVE) | ||||
| 90282-03006 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35224C - SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE) | ||||
| 90501-07102 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35252 - PLUNGER, REVERSE CONTROL VALVE | ||||
| 35252-36010 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35253 - SLEEVE, REVERSE CONTROL VALVE PLUNGER | ||||
| 35253-36010 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35408 - PLUG SUB-ASSY, PRIMARY DOWN SHIFT | ||||
| 35408-60020 |
FZJ10#,HDJ100..4FC..(EFI,TD2) |
1 | ||
| 35408A - SPRING, COMPRESSION (FOR PRIMARY DOWN SHIFT PLUG) | ||||
| 90501-11030 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35419D - VALVE, CHECK, NO.2 | ||||
| 35419-36020 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-36020 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35441 - VALVE, LOW COAST SHIFT CONTROL | ||||
| 35441-36020 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35441A - SPRING, COMPRESSION (FOR LOW COAST SHIFT CONTROL VALVE) | ||||
| 90501-08146 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35445 - VALVE, LOW MODULATOR | ||||
| 35445-36010 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-10189 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC..(DSL2,EFI,TDEFI) |
1 | ||
| 35445F - KEY, STRAIGHT (FOR LOW MODULATOR VALVE) | ||||
| 90282-03010 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
2 | ||
| 35445F - KEY, STRAIGHT (FOR LOW MODULATOR VALVE) | ||||
| 90282-03010 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
2 | ||
| 35445G - PLUG (FOR LOW MODULATOR VALVE) | ||||
| 90339-04009 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35445Q - VALVE, LOW COAST MODULATOR | ||||
| 35445-36020 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-08150 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35445V - PLUG (FOR LOW COAST MODULATOR VALVE) | ||||
| 90339-04009 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 90360-06004 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC OD=6.35 |
1 | ||
| 35451A - PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE) | ||||
| 90250-03036 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35451C - SLEEVE, THROTTLE VALVE, NO.1 | ||||
| 35451-60010 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35454A - KEY, STRAIGHT (FOR LOW COAST SHIFT VALVE) | ||||
| 90282-03006 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
2 | ||
| 35454A - KEY, STRAIGHT (FOR LOW COAST SHIFT VALVE) | ||||
| 90282-03006 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
2 | ||
| 35454B - PLUG (FOR LOW COAST SHIFT VALVE) | ||||
| 90339-04009 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-36020 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-10187 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-04046 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35456E - PIN, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90282-03006 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35456G - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 35455-36020 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-36020 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 90339-04045 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-08146 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35458H - KEY, STRAIGHT (FOR CUT BACK VALVE) | ||||
| 90282-03010 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35462E - VALVE, PRIMARY THROTTLE | ||||
| 35462-60010 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35462F - SPRING, COMPRESSION (FOR PRIMARY THROTTLE VALVE) | ||||
| 90501-07049 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35462G - RING, E (FOR PRIMARY THROTTLE VALVE) | ||||
| 90523-06005 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-60010 |
FZJ10#,HDJ100..4FC..(EFI,TD2) |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-16138 |
FZJ10#,HDJ100..4FC..(EFI,TD2) |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 90282-03024 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-04010 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35489 - VALVE, 3-2 KICK DOWN ORIFICE CONTROL | ||||
| 35489-36020 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35489A - SPRING (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE) | ||||
| 90501-09123 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35489D - KEY, STRAIGHT (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE) | ||||
| 90282-03010 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35489E - PLUG (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE) | ||||
| 90339-04045 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-60020 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-08183 |
FZJ10#..4FC |
1 | ||
| 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90282-03010 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35491D - PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90339-04045 |
FZJ10#..4FC |
1 | ||
| 35493 - SEAT, SHIFT VALVE SPRING | ||||
| 35493-36010 |
FZJ10#,HDJ100,HZJ105,UZJ100..4FC |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-36030 |
FZJ10#,HDJ100..4FC..(EFI,TD2) |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-36020 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| Common parts | ||||
| 90959-03017 | ||||
| 94542-00600 | ||||
| 94612-10601 | ||||

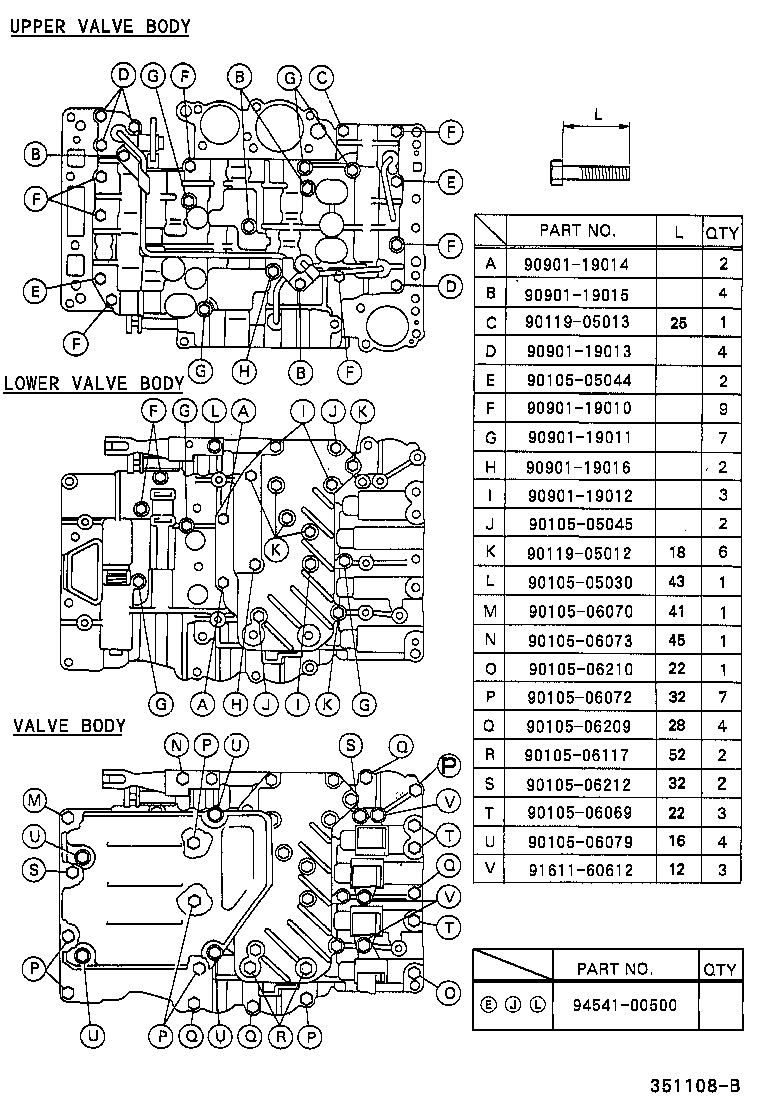

ILLUST NO. 4 OF 4(9801-0208)FZJ10#,HDJ100,HZJ105..4FC..DSL2,EFI,TD2
A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05030 | ||||
| 90105-05044 | ||||
| 90105-05045 | ||||
| 90105-06069 | ||||
| 90105-06070 | ||||
| 90105-06072 | ||||
| 90105-06073 | ||||
| 90105-06079 | ||||
| 90105-06117 | ||||
| 90105-06209 | ||||
| 90105-06210 | ||||
| 90105-06212 | ||||
| 90119-05012 | ||||
| 90119-05013 | ||||
| 90901-19010 | ||||
| 90901-19011 | ||||
| 90901-19012 | ||||
| 90901-19013 | ||||
| 90901-19014 | ||||
| 90901-19015 | ||||
| 90901-19016 | ||||
| 91611-60612 | ||||
| 94541-00500 | ||||

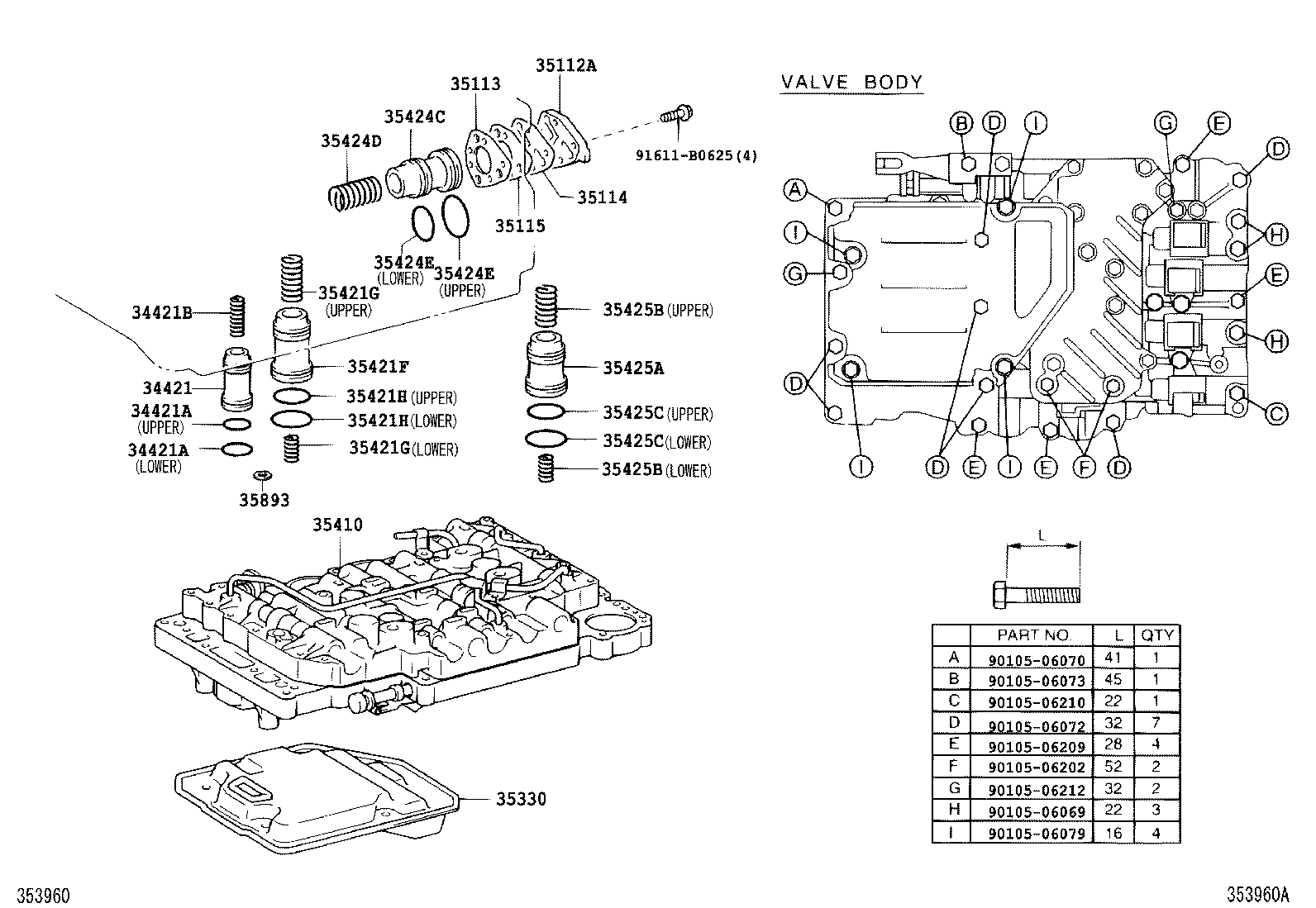

(0208- )4FC
A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34421 - PISTON, OVERDRIVE BRAKE ACCUMULATOR | ||||
| 34421-37010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 34421-37010 |
FZJ100..4FC..GCC |
1 | ||
| 34421-37010 |
FZJ100..4FC..GCC |
1 | ||
| 34421A - RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90301-29003 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-29003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC LOWER |
1 | ||
| 90301-26003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC UPPER |
1 | ||
| 90301-29003 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-26003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-26003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 34421A - RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90301-29003 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-29003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC LOWER |
1 | ||
| 90301-26003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC UPPER |
1 | ||
| 90301-29003 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-26003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-26003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 34421B - SPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90501-32013 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 90501-32013 |
FZJ100..4FC..GCC |
1 | ||
| 90501-32013 |
FZJ100..4FC..GCC |
1 | ||
| 35112A - COVER, FRONT CLUTCH ACCUMULATOR | ||||
| 35112-60010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC) |
1 | ||
| 35112-60010 |
FZJ100..4FC..GCC |
1 | ||
| 35112-60010 |
FZJ100..4FC..GCC |
1 | ||
| 35113 - GASKET, FRONT CLUTCH ACCUMLATOR, NO.2 | ||||
| 35113-60020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC) |
1 | ||
| 35113-60020 |
FZJ100..4FC..GCC |
1 | ||
| 35113-60020 |
FZJ100..4FC..GCC |
1 | ||
| 35114 - GASKET, FRONT CLUTCH ACCUMLATOR, NO.1 | ||||
| 35114-60020 |
FZJ100..4FC..GCC |
1 | ||
| 35114-60020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC) |
1 | ||
| 35114-60020 |
FZJ100..4FC..GCC |
1 | ||
| 35115 - PLATE, FRONT CLUTCH ACCUMULATOR | ||||
| 35115-60010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC) |
1 | ||
| 35115-60010 |
FZJ100..4FC..GCC |
1 | ||
| 35115-60010 |
FZJ100..4FC..GCC |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-60010 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 35330-60010 |
FZJ100..4FC..GCC |
1 | ||
| 35330-60010 |
FZJ100..4FC..GCC |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-60440 |
FZJ10#..4FC |
1 | ||
| 35410-60440 |
FZJ100..4FC..GCC |
1 | ||
| 35410-60441 |
FZJ100..4FC |
1 | ||
| 35410-60440 |
FZJ100..4FC..GCC |
1 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35402-60030 |
FZJ10#..4FC |
1 | ||
| 35402-60020 |
FZJ100..4FC..GCC |
1 | ||
| 35402-60030 |
FZJ100..4FC..GCC |
1 | ||
| 35402-60040 |
FZJ100..4FC |
1 | ||
| 35402-60030 |
FZJ100..4FC..GCC |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-38005 |
FZJ10#..4FC UPPER |
1 | ||
| 90501-38005 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90501-22044 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90501-22044 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90501-22044 |
FZJ10#,HDJ100..4FC LOWER |
1 | ||
| 90501-38005 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-38005 |
FZJ10#..4FC UPPER |
1 | ||
| 90501-38005 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90501-22044 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90501-22044 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90501-22044 |
FZJ10#,HDJ100..4FC LOWER |
1 | ||
| 90501-38005 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-29003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC UPPER |
1 | ||
| 90301-29003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-37004 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC LOWER |
1 | ||
| 90301-37004 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-29003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-37004 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-29003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC UPPER |
1 | ||
| 90301-29003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-37004 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC LOWER |
1 | ||
| 90301-37004 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-29003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-37004 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-60020 |
FZJ100..4FC..GCC |
1 | ||
| 35424-60020 |
FZJ100..4FC..GCC |
1 | ||
| 35424-60020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC) |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-26076 |
FZJ10#,HZJ105..4FC |
1 | ||
| 90501-26076 |
FZJ100..4FC..GCC |
1 | ||
| 90501-26076 |
FZJ100..4FC..GCC |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-22003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC LOWER |
1 | ||
| 90301-22003 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-28003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC) UPPER |
1 | ||
| 90301-28009 |
FZJ10#,UZJ100..4FC UPPER |
1 | ||
| 90301-28003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-28003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-22003 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-22003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC LOWER |
1 | ||
| 90301-22003 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-28003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC) UPPER |
1 | ||
| 90301-28009 |
FZJ10#,UZJ100..4FC UPPER |
1 | ||
| 90301-28003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-28003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-22003 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35405-60060 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 35405-60060 |
FZJ100..4FC..GCC |
1 | ||
| 35405-60060 |
FZJ100..4FC..GCC |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-18112 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90501-31018 |
FZJ10#..4FC UPPER |
1 | ||
| 90501-18112 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90501-18112 |
FZJ10#..4FC LOWER |
1 | ||
| 90501-31018 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90501-31018 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-18112 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90501-31018 |
FZJ10#..4FC UPPER |
1 | ||
| 90501-18112 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90501-18112 |
FZJ10#..4FC LOWER |
1 | ||
| 90501-31018 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90501-31018 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-33006 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC LOWER |
1 | ||
| 90301-28003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC UPPER |
1 | ||
| 90301-33006 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-33006 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-28003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-28003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-33006 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC LOWER |
1 | ||
| 90301-28003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC UPPER |
1 | ||
| 90301-33006 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-33006 |
FZJ100..4FC..GCC LOWER |
1 | ||
| 90301-28003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 90301-28003 |
FZJ100..4FC..GCC UPPER |
1 | ||
| 35893 - GASKET, CENTER SUPPORT APPLY | ||||
| 35893-36010 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
4 | ||
| 35893-36010 |
FZJ100..4FC..GCC |
4 | ||
| 35893-36010 |
FZJ100..4FC..GCC |
4 | ||
| Common parts | ||||
| 90105-06069 | ||||
| 90105-06070 | ||||
| 90105-06072 | ||||
| 90105-06073 | ||||
| 90105-06079 | ||||
| 90105-06202 | ||||
| 90105-06209 | ||||
| 90105-06210 | ||||
| 90105-06212 | ||||
| 91611-B0625 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
