FZJ100L-GCPNKV (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2007
Engine 1FZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )4FC

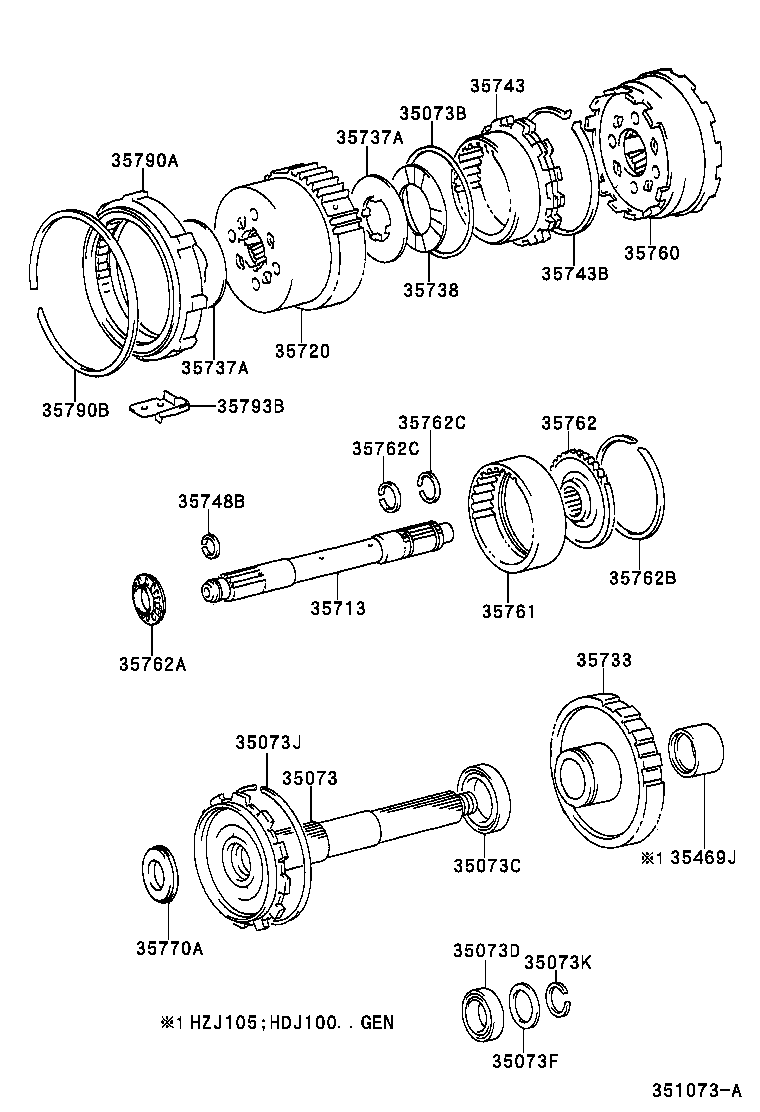

Click highlighted areas on diagram

A442F

diagram 35073 35073B 35073C 35073D 35073F 35073J 35073K 35469J 35713 35720 35733 35737A 35737A 35738 35743 35743B 35748B 35760 35761 35762 35762A 35762B 35762C 35762C 35770A 35790A 35790B 35793B
Part # Description Qty Price
35073 - SHAFT SUB-ASSY, OUTPUT
35073-60100

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC)

 1
35073-60100

FZJ100..4FC..GCC

 1
35073-60100

FZJ100..4FC..GCC

 1
35073B - RING, O (FOR OUTPUT SHAFT)
90301-99076

FZJ100..4FC..GCC

 1
90301-99076

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
90301-99076

FZJ100..4FC..GCC

 1
35073C - BEARING, RADIAL BALL (FOR OUTPUT SHAFT FRONT)
90363-45008

FZJ100..4FC..GCC

 1
90363-45008

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
90363-45008

FZJ100..4FC..GCC

 1
35073D - BEARING, RADIAL BALL (FOR OUTPUT SHAFT REAR)
90363-40059

FZJ100..4FC..GCC

 1
90363-40059

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
90363-40059

FZJ100..4FC..GCC

 1
35073F - SPACER, NO.1 (FOR OUTPUT SHAFT REAR BEARING)
90560-40003

FZJ100..4FC..GCC

T=1.6,MARK 1

 1
90560-40004

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=1.7,MARK 2

 1
90560-40004

FZJ100..4FC..GCC

T=1.7,MARK 2

 1
90560-40002

FZJ100..4FC..GCC

T=1.5,MARK 0

 1
90560-40002

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=1.5,MARK 0

 1
90560-40003

FZJ100..4FC..GCC

T=1.6,MARK 1

 1
90560-40005

FZJ100..4FC..GCC

T=1.8,MARK 3

 1
90560-40005

FZJ100..4FC..GCC

T=1.8,MARK 3

 1
90560-40005

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=1.8,MARK 3

 1
90560-40003

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=1.6,MARK 1

 1
90560-40004

FZJ100..4FC..GCC

T=1.7,MARK 2

 1
90560-40002

FZJ100..4FC..GCC

T=1.5,MARK 0

 1
35073J - RING, HOLE SNAP (FOR OUTPUT SHAFT)
90521-99042

FZJ100..4FC..GCC

 1
90521-99042

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
90521-99042

FZJ100..4FC..GCC

 1
35073K - RING, SHAFT SNAP (FOR OUTPUT SHAFT REAR BEARING)
90520-36024

FZJ100..4FC..GCC

 1
90520-36024

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
90520-36024

FZJ100..4FC..GCC

 1
35713 - SHAFT, INTERMEDIATE
35713-60030

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC)

 1
35713-60030

FZJ100..4FC..GCC

 1
35713-60030

FZJ100..4FC..GCC

 1
35720 - GEAR ASSY, FRONT PLANETARY
35720-60030

FZJ100..4FC..GCC

 1
35720-60030

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC)

 1
35720-60030

FZJ100..4FC..GCC

 1
35733 - GEAR, PARKING LOCK
35733-60030

FZJ100..4FC..GCC

 1
35733-60030

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC)

 1
35733-60030

FZJ100..4FC..GCC

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-60011

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 2
35737-60011

FZJ100..4FC..GCC

 2
35737-60011

FZJ100..4FC..GCC

 2
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-60011

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 2
35737-60011

FZJ100..4FC..GCC

 2
35737-60011

FZJ100..4FC..GCC

 2
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-36020

FZJ100..4FC..GCC

 1
35738-36020

FZJ100..4FC..GCC

 1
35738-36020

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35743 - GEAR, FRONT PLANETARY RING
35743-60030

FZJ100..4FC..GCC

 1
35743-60030

FZJ100..4FC..GCC

 1
35743-60030

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC)

 1
35743B - RING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR)
90521-99018

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
90521-99018

FZJ100..4FC..GCC

 1
90521-99018

FZJ100..4FC..GCC

 1
35748B - RING, INTERMEDIATE SHAFT OIL SEAL
35748-36010

FZJ100..4FC..GCC

 1
35748-36010

FZJ100..4FC..GCC

 1
35748-36010

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-60050

FZJ100..4FC..GCC

 1
35760-60050

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC)

 1
35760-60050

FZJ100..4FC..GCC

 1
35761 - GEAR, REAR PLANETARY RING
35761-60030

FZJ100..4FC..GCC

 1
35761-60030

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC)

 1
35761-60030

FZJ100..4FC..GCC

 1
35762 - FLANGE, REAR PLANETARY RING GEAR
35762-60030

FZJ100..4FC..GCC

 1
35762-60030

FZJ100..4FC..GCC

 1
35762-60030

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35762A - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANG
90374-32006

FZJ100..4FC..GCC

 1
90374-32006

FZJ100..4FC..GCC

 1
90374-32006

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35762B - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
90521-99041

FZJ100..4FC..GCC

 1
90521-99041

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
90521-99041

FZJ100..4FC..GCC

 1
35762C - RING, SHAFT SNAP (FOR REAR PLANETARY RING GEAR)
90520-23063

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 2
90520-23063

FZJ100..4FC..GCC

 2
90520-23063

FZJ100..4FC..GCC

 2
35762C - RING, SHAFT SNAP (FOR REAR PLANETARY RING GEAR)
90520-23063

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 2
90520-23063

FZJ100..4FC..GCC

 2
90520-23063

FZJ100..4FC..GCC

 2
35770A - BEARING, THRUST (FOR OUTPUT SHAFT)
90374-32006

FZJ100..4FC..GCC

 1
90374-32006

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
90374-32006

FZJ100..4FC..GCC

 1
35790A - CLUTCH ASSY, 1 WAY
35790-36020

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC)

 1
35790-36020

FZJ100..4FC..GCC

 1
35790-36020

FZJ100..4FC..GCC

 1
35790B - RING, HOLE SNAP (FOR 1 WAY CLUTCH)
90521-99109

FZJ100..4FC..GCC

 1
90521-99109

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
90521-99109

FZJ100..4FC..GCC

 1
35793B - RETAINER, 1 WAY CLUTCH
35793-60010

FZJ100..4FC..GCC

 1
35793-60010

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35793-60010

FZJ100..4FC..GCC

 1
