FZJ100L-GCPNKV (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2007
Engine 1FZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )4FC

Click highlighted areas on diagram

A442F

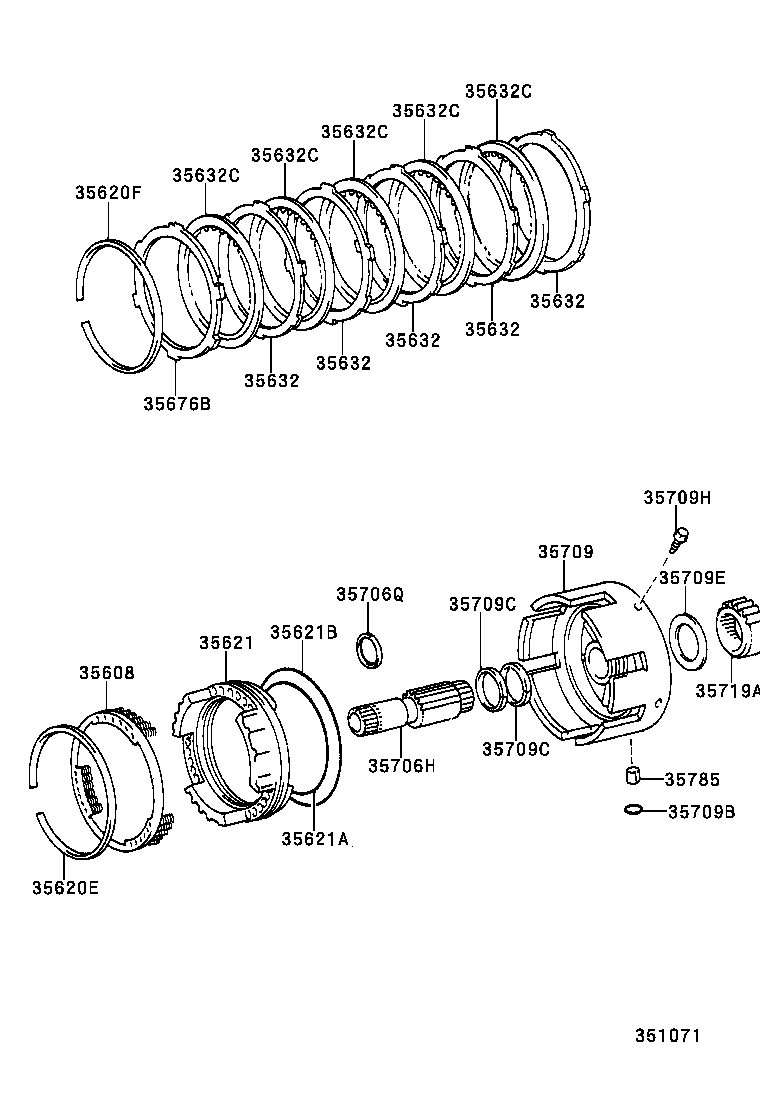

diagram 35608 35620E 35620F 35621 35621A 35621B 35632 35632 35632 35632 35632 35632C 35632C 35632C 35632C 35632C 35676B 35706H 35706Q 35709 35709B 35709C 35709C 35709E 35709H 35719A 35785
Part # Description Qty Price
35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608-60010

FZJ100..4FC..GCC

 1
35608-60010

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC

 1
35608-60010

FZJ100..4FC..GCC

 1
35620E - RING, HOLE SNAP (FOR BRAKE PISTON RETURN SPRING)
90521-99109

FZJ100..4FC..GCC

 1
90521-99109

FZJ100..4FC..GCC

 1
90521-99109

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35620F - RING, HOLE SNAP (FOR BRAKE NO.1 FLANGE)
90521-99109

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
90521-99109

FZJ100..4FC..GCC

 1
90521-99109

FZJ100..4FC..GCC

 1
35621 - PISTON, BRAKE, NO.1
35621-60010

FZJ100..4FC..GCC

 1
35621-60010

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC

 1
35621-60010

FZJ100..4FC..GCC

 1
35621A - RING, O (FOR BRAKE PISTON OUTER)
90301-99030

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
90301-99030

FZJ100..4FC..GCC

 1
90301-99030

FZJ100..4FC..GCC

 1
35621B - RING, O (FOR BRAKE PISTON INNER)
90301-99031

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
90301-99031

FZJ100..4FC..GCC

 1
90301-99031

FZJ100..4FC..GCC

 1
35632 - PLATE, BRAKE
35632-60060

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC

 5
35632-60060

FZJ100..4FC..GCC

 5
35632-60060

FZJ100..4FC..GCC

 5
35632 - PLATE, BRAKE
35632-60060

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC

 5
35632-60060

FZJ100..4FC..GCC

 5
35632-60060

FZJ100..4FC..GCC

 5
35632 - PLATE, BRAKE
35632-60060

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC

 5
35632-60060

FZJ100..4FC..GCC

 5
35632-60060

FZJ100..4FC..GCC

 5
35632 - PLATE, BRAKE
35632-60060

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC

 5
35632-60060

FZJ100..4FC..GCC

 5
35632-60060

FZJ100..4FC..GCC

 5
35632 - PLATE, BRAKE
35632-60060

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC

 5
35632-60060

FZJ100..4FC..GCC

 5
35632-60060

FZJ100..4FC..GCC

 5
35632C - DISC, CLUTCH (FOR BRAKE)
35633-36060

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC

 5
35633-36060

FZJ100..4FC..GCC

 5
35633-36060

FZJ100..4FC..GCC

 5
35632C - DISC, CLUTCH (FOR BRAKE)
35633-36060

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC

 5
35633-36060

FZJ100..4FC..GCC

 5
35633-36060

FZJ100..4FC..GCC

 5
35632C - DISC, CLUTCH (FOR BRAKE)
35633-36060

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC

 5
35633-36060

FZJ100..4FC..GCC

 5
35633-36060

FZJ100..4FC..GCC

 5
35632C - DISC, CLUTCH (FOR BRAKE)
35633-36060

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC

 5
35633-36060

FZJ100..4FC..GCC

 5
35633-36060

FZJ100..4FC..GCC

 5
35632C - DISC, CLUTCH (FOR BRAKE)
35633-36060

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC

 5
35633-36060

FZJ100..4FC..GCC

 5
35633-36060

FZJ100..4FC..GCC

 5
35676B - FLANGE, BRAKE, NO.1
35676-60040

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=5.6

 1
35676-60030

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=5.4

 1
35676-60010

FZJ100..4FC..GCC

T=5.0

 1
35676-60030

FZJ100..4FC..GCC

T=5.4

 1
35676-60020

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=5.2

 1
35676-60020

FZJ100..4FC..GCC

T=5.2

 1
35676-60040

FZJ100..4FC..GCC

T=5.6

 1
35676-60010

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=5.0

 1
35676-60040

FZJ100..4FC..GCC

T=5.6

 1
35676-60010

FZJ100..4FC..GCC

T=5.0

 1
35676-60020

FZJ100..4FC..GCC

T=5.2

 1
35676-60030

FZJ100..4FC..GCC

T=5.4

 1
35706H - GEAR SUB-ASSY, PLANETARY SUN
35706-60060

FZJ100..4FC..GCC

 1
35706-60060

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC)

 1
35706-60060

FZJ100..4FC..GCC

 1
35706Q - RING, SHAFT SNAP (FOR FRONT PLANETARY SUN GEAR)
90520-33009

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
90520-33009

FZJ100..4FC..GCC

 1
90520-33009

FZJ100..4FC..GCC

 1
35709 - SUPPORT SUB-ASSY, CENTER
35709-60050

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC

 1
35709-60050

FZJ100..4FC..GCC

 1
35709-60050

FZJ100..4FC..GCC

 1
35709B - RING, O (FOR CENTER SUPPORT)
90301-09008

FZJ100..4FC..GCC

 3
90301-09008

FZJ100..4FC..GCC

 3
90301-09008

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 3
35709C - RING, OIL SEAL (FOR CENTER SUPPORT)
35617-36020

FZJ100..4FC..GCC

 2
35617-36020

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 2
35617-36020

FZJ100..4FC..GCC

 2
35709C - RING, OIL SEAL (FOR CENTER SUPPORT)
35617-36020

FZJ100..4FC..GCC

 2
35617-36020

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 2
35617-36020

FZJ100..4FC..GCC

 2
35709E - WASHER (FOR CENTER SUPPORT)
90209-52005

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=1.5

 1
90209-52005

FZJ100..4FC..GCC

T=1.5

 1
90209-52007

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=2.1

 1
90209-52008

FZJ100..4FC..GCC

T=2.4

 1
90209-52009

FZJ100..4FC..GCC

T=2.7

 1
90209-52006

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=1.8

 1
90209-52008

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=2.4

 1
90209-52006

FZJ100..4FC..GCC

T=1.8

 1
90209-52006

FZJ100..4FC..GCC

T=1.8

 1
90209-52005

FZJ100..4FC..GCC

T=1.5

 1
90209-52007

FZJ100..4FC..GCC

T=2.1

 1
90209-52009

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=2.7

 1
90209-52009

FZJ100..4FC..GCC

T=2.7

 1
90209-52007

FZJ100..4FC..GCC

T=2.1

 1
90209-52008

FZJ100..4FC..GCC

T=2.4

 1
35709H - BOLT (FOR CENTER SUPPORT)
90105-06194

FZJ100..4FC..GCC

 1
90105-06194

FZJ100..4FC..GCC

 1
90105-06194

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35719A - GEAR, REAR PLANETARY SUN
35719-60040

FZJ100..4FC..GCC

 1
35719-60040

FZJ100..4FC..GCC

 1
35719-60040

UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC..(ARL,GCC)

 1
35785 - RETAINER, CENTER SUPPORT RING
35785-36010

FZJ100..4FC..GCC

 3
35785-36010

FZJ100..4FC..GCC

 3
35785-36010

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 3
