FZJ100L-GCPNKV (1998)
Toyota Land Cruiser 100
(9801- )4FC
A442F

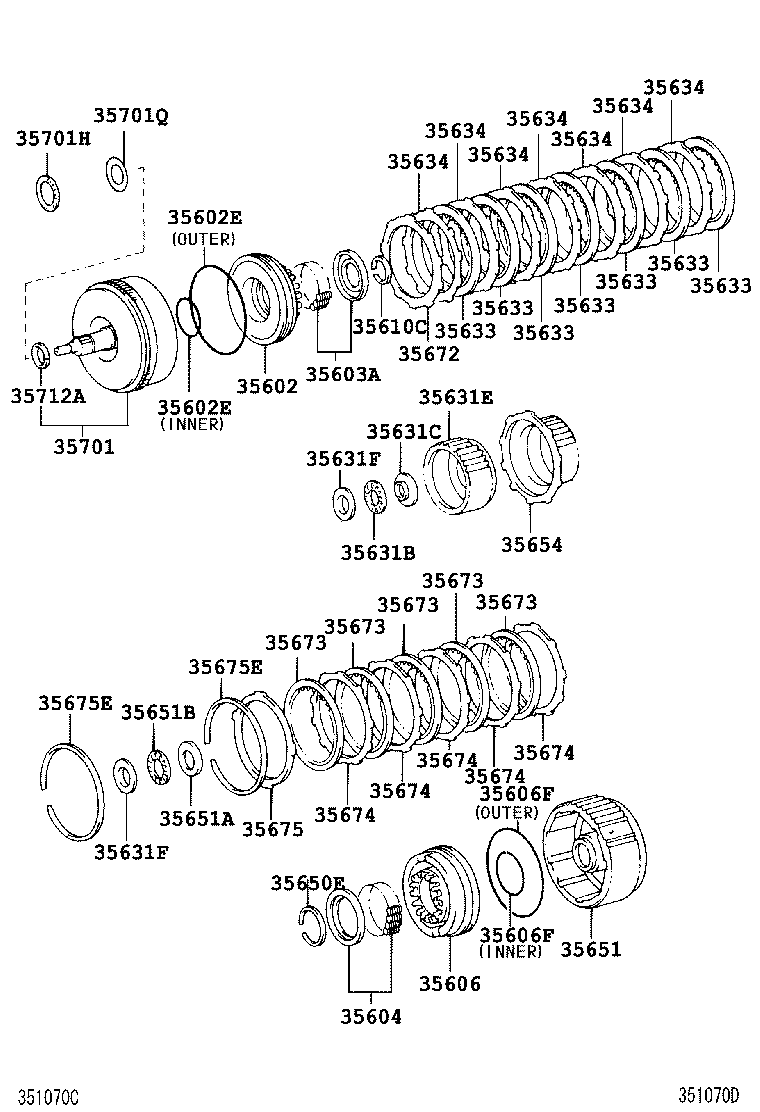

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35602 - PISTON SUB-ASSY, FRONT CLUTCH | ||||
| 35602-36020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC |
1 | ||
| 35602-36020 |
FZJ100..4FC..GCC |
1 | ||
| 35602-36020 |
FZJ100..4FC..GCC |
1 | ||
| 35602E - RING, O (FOR FRONT CLUTCH PISTON) | ||||
| 90301-99027 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC OUTER |
1 | ||
| 90301-62004 |
FZJ100..4FC..GCC INNER |
1 | ||
| 90301-62004 |
FZJ100..4FC..GCC INNER |
1 | ||
| 90301-62004 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC INNER |
1 | ||
| 90301-99027 |
FZJ100..4FC..GCC OUTER |
1 | ||
| 90301-99027 |
FZJ100..4FC..GCC OUTER |
1 | ||
| 35602E - RING, O (FOR FRONT CLUTCH PISTON) | ||||
| 90301-99027 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC OUTER |
1 | ||
| 90301-62004 |
FZJ100..4FC..GCC INNER |
1 | ||
| 90301-62004 |
FZJ100..4FC..GCC INNER |
1 | ||
| 90301-62004 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC INNER |
1 | ||
| 90301-99027 |
FZJ100..4FC..GCC OUTER |
1 | ||
| 90301-99027 |
FZJ100..4FC..GCC OUTER |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-60010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 35603-60010 |
FZJ100..4FC..GCC |
1 | ||
| 35603-60010 |
FZJ100..4FC..GCC |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-60010 |
FZJ100..4FC..GCC |
1 | ||
| 35604-60010 |
FZJ100..4FC..GCC |
1 | ||
| 35604-60010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 35606 - PISTON SUB-ASSY, REAR CLUTCH | ||||
| 35606-60010 |
FZJ100..4FC..GCC |
1 | ||
| 35606-60010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 35606-60010 |
FZJ100..4FC..GCC |
1 | ||
| 35606F - RING, O (FOR REAR CLUTCH PISTON) | ||||
| 90301-62004 |
FZJ100..4FC..GCC INNER |
1 | ||
| 90301-62004 |
FZJ100..4FC..GCC INNER |
1 | ||
| 90301-62004 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC INNER |
1 | ||
| 90301-99028 |
FZJ100..4FC..GCC OUTER |
1 | ||
| 90301-99028 |
FZJ100..4FC..GCC OUTER |
1 | ||
| 90301-99028 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC OUTER |
1 | ||
| 35606F - RING, O (FOR REAR CLUTCH PISTON) | ||||
| 90301-62004 |
FZJ100..4FC..GCC INNER |
1 | ||
| 90301-62004 |
FZJ100..4FC..GCC INNER |
1 | ||
| 90301-62004 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC INNER |
1 | ||
| 90301-99028 |
FZJ100..4FC..GCC OUTER |
1 | ||
| 90301-99028 |
FZJ100..4FC..GCC OUTER |
1 | ||
| 90301-99028 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC OUTER |
1 | ||
| 35610C - RING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING | ||||
| 90520-50001 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 90520-50001 |
FZJ100..4FC..GCC |
1 | ||
| 90520-50001 |
FZJ100..4FC..GCC |
1 | ||
| 35631B - BEARING, THRUST(FOR FRONT CLUTCH HUB) | ||||
| 90374-32005 |
FZJ100..4FC..GCC |
1 | ||
| 90374-32005 |
FZJ100..4FC..GCC |
1 | ||
| 90374-32005 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 35631C - RACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT) | ||||
| 35789-36090 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 35789-36090 |
FZJ100..4FC..GCC |
1 | ||
| 35789-36090 |
FZJ100..4FC..GCC |
1 | ||
| 35631E - HUB, FRONT CLUTCH | ||||
| 35631-60030 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 35631-60030 |
FZJ100..4FC..GCC |
1 | ||
| 35631-60030 |
FZJ100..4FC..GCC |
1 | ||
| 35631F - RACE, THRUST BEARING(FOR REAR CLUTCH DRUM) | ||||
| 35789-36020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC |
2 | ||
| 35789-36020 |
FZJ100..4FC..GCC |
2 | ||
| 35789-36020 |
FZJ100..4FC..GCC |
2 | ||
| 35631F - RACE, THRUST BEARING(FOR REAR CLUTCH DRUM) | ||||
| 35789-36020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC |
2 | ||
| 35789-36020 |
FZJ100..4FC..GCC |
2 | ||
| 35789-36020 |
FZJ100..4FC..GCC |
2 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35633-36040 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC |
7 | ||
| 35633-36040 |
FZJ100..4FC..GCC |
7 | ||
| 35633-36040 |
FZJ100..4FC..GCC |
7 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35633-36040 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC |
7 | ||
| 35633-36040 |
FZJ100..4FC..GCC |
7 | ||
| 35633-36040 |
FZJ100..4FC..GCC |
7 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35633-36040 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC |
7 | ||
| 35633-36040 |
FZJ100..4FC..GCC |
7 | ||
| 35633-36040 |
FZJ100..4FC..GCC |
7 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35633-36040 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC |
7 | ||
| 35633-36040 |
FZJ100..4FC..GCC |
7 | ||
| 35633-36040 |
FZJ100..4FC..GCC |
7 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35633-36040 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC |
7 | ||
| 35633-36040 |
FZJ100..4FC..GCC |
7 | ||
| 35633-36040 |
FZJ100..4FC..GCC |
7 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35633-36040 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC |
7 | ||
| 35633-36040 |
FZJ100..4FC..GCC |
7 | ||
| 35633-36040 |
FZJ100..4FC..GCC |
7 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35633-36040 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC |
7 | ||
| 35633-36040 |
FZJ100..4FC..GCC |
7 | ||
| 35633-36040 |
FZJ100..4FC..GCC |
7 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-36020 |
FZJ100..4FC..GCC T=2.35-2.45,REFER REPAIR MANUAL |
1 | ||
| 35634-36020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=2.35-2.45 |
1 | ||
| 35634-36040 |
FZJ100..4FC..GCC T=1.95-2.05,REFER REPAIR MANUAL |
1 | ||
| 35634-36010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC T=1.75-1.85 |
7 | ||
| 35634-36010 |
FZJ100..4FC..GCC T=1.75-1.85 |
6 | ||
| 35634-36010 |
FZJ100..4FC..GCC T=1.75-1.85 |
7 | ||
| 35634-36040 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=1.95-2.05 |
1 | ||
| 35634-36050 |
FZJ100..4FC..GCC T=2.15-2.25,REFER REPAIR MANUAL |
1 | ||
| 35634-36040 |
FZJ100..4FC..GCC T=1.95-2.05 |
1 | ||
| 35634-36020 |
FZJ100..4FC..GCC T=2.35-2.45 |
1 | ||
| 35634-36010 |
FZJ100..4FC..GCC T=1.75-1.85,REFER REPAIR MANUAL |
1 | ||
| 35634-36050 |
FZJ100..4FC..GCC T=2.15-2.25 |
1 | ||
| 35634-36050 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=2.15-2.25 |
1 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-36020 |
FZJ100..4FC..GCC T=2.35-2.45,REFER REPAIR MANUAL |
1 | ||
| 35634-36020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=2.35-2.45 |
1 | ||
| 35634-36040 |
FZJ100..4FC..GCC T=1.95-2.05,REFER REPAIR MANUAL |
1 | ||
| 35634-36010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC T=1.75-1.85 |
7 | ||
| 35634-36010 |
FZJ100..4FC..GCC T=1.75-1.85 |
6 | ||
| 35634-36010 |
FZJ100..4FC..GCC T=1.75-1.85 |
7 | ||
| 35634-36040 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=1.95-2.05 |
1 | ||
| 35634-36050 |
FZJ100..4FC..GCC T=2.15-2.25,REFER REPAIR MANUAL |
1 | ||
| 35634-36040 |
FZJ100..4FC..GCC T=1.95-2.05 |
1 | ||
| 35634-36020 |
FZJ100..4FC..GCC T=2.35-2.45 |
1 | ||
| 35634-36010 |
FZJ100..4FC..GCC T=1.75-1.85,REFER REPAIR MANUAL |
1 | ||
| 35634-36050 |
FZJ100..4FC..GCC T=2.15-2.25 |
1 | ||
| 35634-36050 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=2.15-2.25 |
1 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-36020 |
FZJ100..4FC..GCC T=2.35-2.45,REFER REPAIR MANUAL |
1 | ||
| 35634-36020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=2.35-2.45 |
1 | ||
| 35634-36040 |
FZJ100..4FC..GCC T=1.95-2.05,REFER REPAIR MANUAL |
1 | ||
| 35634-36010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC T=1.75-1.85 |
7 | ||
| 35634-36010 |
FZJ100..4FC..GCC T=1.75-1.85 |
6 | ||
| 35634-36010 |
FZJ100..4FC..GCC T=1.75-1.85 |
7 | ||
| 35634-36040 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=1.95-2.05 |
1 | ||
| 35634-36050 |
FZJ100..4FC..GCC T=2.15-2.25,REFER REPAIR MANUAL |
1 | ||
| 35634-36040 |
FZJ100..4FC..GCC T=1.95-2.05 |
1 | ||
| 35634-36020 |
FZJ100..4FC..GCC T=2.35-2.45 |
1 | ||
| 35634-36010 |
FZJ100..4FC..GCC T=1.75-1.85,REFER REPAIR MANUAL |
1 | ||
| 35634-36050 |
FZJ100..4FC..GCC T=2.15-2.25 |
1 | ||
| 35634-36050 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=2.15-2.25 |
1 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-36020 |
FZJ100..4FC..GCC T=2.35-2.45,REFER REPAIR MANUAL |
1 | ||
| 35634-36020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=2.35-2.45 |
1 | ||
| 35634-36040 |
FZJ100..4FC..GCC T=1.95-2.05,REFER REPAIR MANUAL |
1 | ||
| 35634-36010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC T=1.75-1.85 |
7 | ||
| 35634-36010 |
FZJ100..4FC..GCC T=1.75-1.85 |
6 | ||
| 35634-36010 |
FZJ100..4FC..GCC T=1.75-1.85 |
7 | ||
| 35634-36040 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=1.95-2.05 |
1 | ||
| 35634-36050 |
FZJ100..4FC..GCC T=2.15-2.25,REFER REPAIR MANUAL |
1 | ||
| 35634-36040 |
FZJ100..4FC..GCC T=1.95-2.05 |
1 | ||
| 35634-36020 |
FZJ100..4FC..GCC T=2.35-2.45 |
1 | ||
| 35634-36010 |
FZJ100..4FC..GCC T=1.75-1.85,REFER REPAIR MANUAL |
1 | ||
| 35634-36050 |
FZJ100..4FC..GCC T=2.15-2.25 |
1 | ||
| 35634-36050 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=2.15-2.25 |
1 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-36020 |
FZJ100..4FC..GCC T=2.35-2.45,REFER REPAIR MANUAL |
1 | ||
| 35634-36020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=2.35-2.45 |
1 | ||
| 35634-36040 |
FZJ100..4FC..GCC T=1.95-2.05,REFER REPAIR MANUAL |
1 | ||
| 35634-36010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC T=1.75-1.85 |
7 | ||
| 35634-36010 |
FZJ100..4FC..GCC T=1.75-1.85 |
6 | ||
| 35634-36010 |
FZJ100..4FC..GCC T=1.75-1.85 |
7 | ||
| 35634-36040 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=1.95-2.05 |
1 | ||
| 35634-36050 |
FZJ100..4FC..GCC T=2.15-2.25,REFER REPAIR MANUAL |
1 | ||
| 35634-36040 |
FZJ100..4FC..GCC T=1.95-2.05 |
1 | ||
| 35634-36020 |
FZJ100..4FC..GCC T=2.35-2.45 |
1 | ||
| 35634-36010 |
FZJ100..4FC..GCC T=1.75-1.85,REFER REPAIR MANUAL |
1 | ||
| 35634-36050 |
FZJ100..4FC..GCC T=2.15-2.25 |
1 | ||
| 35634-36050 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=2.15-2.25 |
1 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-36020 |
FZJ100..4FC..GCC T=2.35-2.45,REFER REPAIR MANUAL |
1 | ||
| 35634-36020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=2.35-2.45 |
1 | ||
| 35634-36040 |
FZJ100..4FC..GCC T=1.95-2.05,REFER REPAIR MANUAL |
1 | ||
| 35634-36010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC T=1.75-1.85 |
7 | ||
| 35634-36010 |
FZJ100..4FC..GCC T=1.75-1.85 |
6 | ||
| 35634-36010 |
FZJ100..4FC..GCC T=1.75-1.85 |
7 | ||
| 35634-36040 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=1.95-2.05 |
1 | ||
| 35634-36050 |
FZJ100..4FC..GCC T=2.15-2.25,REFER REPAIR MANUAL |
1 | ||
| 35634-36040 |
FZJ100..4FC..GCC T=1.95-2.05 |
1 | ||
| 35634-36020 |
FZJ100..4FC..GCC T=2.35-2.45 |
1 | ||
| 35634-36010 |
FZJ100..4FC..GCC T=1.75-1.85,REFER REPAIR MANUAL |
1 | ||
| 35634-36050 |
FZJ100..4FC..GCC T=2.15-2.25 |
1 | ||
| 35634-36050 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=2.15-2.25 |
1 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-36020 |
FZJ100..4FC..GCC T=2.35-2.45,REFER REPAIR MANUAL |
1 | ||
| 35634-36020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=2.35-2.45 |
1 | ||
| 35634-36040 |
FZJ100..4FC..GCC T=1.95-2.05,REFER REPAIR MANUAL |
1 | ||
| 35634-36010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100..4FC T=1.75-1.85 |
7 | ||
| 35634-36010 |
FZJ100..4FC..GCC T=1.75-1.85 |
6 | ||
| 35634-36010 |
FZJ100..4FC..GCC T=1.75-1.85 |
7 | ||
| 35634-36040 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=1.95-2.05 |
1 | ||
| 35634-36050 |
FZJ100..4FC..GCC T=2.15-2.25,REFER REPAIR MANUAL |
1 | ||
| 35634-36040 |
FZJ100..4FC..GCC T=1.95-2.05 |
1 | ||
| 35634-36020 |
FZJ100..4FC..GCC T=2.35-2.45 |
1 | ||
| 35634-36010 |
FZJ100..4FC..GCC T=1.75-1.85,REFER REPAIR MANUAL |
1 | ||
| 35634-36050 |
FZJ100..4FC..GCC T=2.15-2.25 |
1 | ||
| 35634-36050 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=2.15-2.25 |
1 | ||
| 35650E - RING, O (FOR REAR CLUTCH PISTON OUTER) | ||||
| 90520-50001 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 90520-50001 |
FZJ100..4FC..GCC |
1 | ||
| 90520-50001 |
FZJ100..4FC..GCC |
1 | ||
| 35651 - DRUM, REAR CLUTCH | ||||
| 35651-60010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 35651-60010 |
FZJ100..4FC..GCC |
1 | ||
| 35651-60010 |
FZJ100..4FC..GCC |
1 | ||
| 35651A - RACE, THRUST BEARING (FOR REAR CLUTCH DRUM) | ||||
| 35789-36020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 35789-36020 |
FZJ100..4FC..GCC |
1 | ||
| 35789-36020 |
FZJ100..4FC..GCC |
1 | ||
| 35651B - BEARING, THRUST NEEDLE ROLLER (FOR REAR CLUTCH DRUM) | ||||
| 90374-32005 |
FZJ100..4FC..GCC |
1 | ||
| 90374-32005 |
FZJ100..4FC..GCC |
1 | ||
| 90374-32005 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 35654 - HUB, REAR CLUTCH | ||||
| 35654-36011 |
FZJ100..4FC..GCC |
1 | ||
| 35654-36011 |
FZJ100..4FC..GCC |
1 | ||
| 35654-36011 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 35672 - PLATE, CLUTCH CUSHION | ||||
| 35672-36010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 35672-36010 |
FZJ100..4FC..GCC |
1 | ||
| 35672-36010 |
FZJ100..4FC..GCC |
1 | ||
| 35673 - DISC, REAR CLUTCH | ||||
| 35633-36040 |
FZJ100..4FC..GCC |
5 | ||
| 35633-36040 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
5 | ||
| 35633-36040 |
FZJ100..4FC..GCC |
5 | ||
| 35673 - DISC, REAR CLUTCH | ||||
| 35633-36040 |
FZJ100..4FC..GCC |
5 | ||
| 35633-36040 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
5 | ||
| 35633-36040 |
FZJ100..4FC..GCC |
5 | ||
| 35673 - DISC, REAR CLUTCH | ||||
| 35633-36040 |
FZJ100..4FC..GCC |
5 | ||
| 35633-36040 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
5 | ||
| 35633-36040 |
FZJ100..4FC..GCC |
5 | ||
| 35673 - DISC, REAR CLUTCH | ||||
| 35633-36040 |
FZJ100..4FC..GCC |
5 | ||
| 35633-36040 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
5 | ||
| 35633-36040 |
FZJ100..4FC..GCC |
5 | ||
| 35673 - DISC, REAR CLUTCH | ||||
| 35633-36040 |
FZJ100..4FC..GCC |
5 | ||
| 35633-36040 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
5 | ||
| 35633-36040 |
FZJ100..4FC..GCC |
5 | ||
| 35674 - PLATE, REAR CLUTCH | ||||
| 35634-36020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
5 | ||
| 35634-36020 |
FZJ100..4FC..GCC |
5 | ||
| 35634-36020 |
FZJ100..4FC..GCC |
5 | ||
| 35674 - PLATE, REAR CLUTCH | ||||
| 35634-36020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
5 | ||
| 35634-36020 |
FZJ100..4FC..GCC |
5 | ||
| 35634-36020 |
FZJ100..4FC..GCC |
5 | ||
| 35674 - PLATE, REAR CLUTCH | ||||
| 35634-36020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
5 | ||
| 35634-36020 |
FZJ100..4FC..GCC |
5 | ||
| 35634-36020 |
FZJ100..4FC..GCC |
5 | ||
| 35674 - PLATE, REAR CLUTCH | ||||
| 35634-36020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
5 | ||
| 35634-36020 |
FZJ100..4FC..GCC |
5 | ||
| 35634-36020 |
FZJ100..4FC..GCC |
5 | ||
| 35674 - PLATE, REAR CLUTCH | ||||
| 35634-36020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
5 | ||
| 35634-36020 |
FZJ100..4FC..GCC |
5 | ||
| 35634-36020 |
FZJ100..4FC..GCC |
5 | ||
| 35675 - FLANGE, REAR CLUTCH | ||||
| 35675-60020 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=5.2 |
1 | ||
| 35675-60060 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=4.8 |
1 | ||
| 35675-60010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=5.0 |
1 | ||
| 35675-60050 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=4.6 |
1 | ||
| 35675-60050 |
FZJ100..4FC..GCC T=4.6 |
1 | ||
| 35675-60010 |
FZJ100..4FC..GCC T=5.0 |
1 | ||
| 35675-60010 |
FZJ100..4FC..GCC T=5.0 |
1 | ||
| 35675-60020 |
FZJ100..4FC..GCC T=5.2 |
1 | ||
| 35675-60020 |
FZJ100..4FC..GCC T=5.2 |
1 | ||
| 35675-60060 |
FZJ100..4FC..GCC T=4.8 |
1 | ||
| 35675-60060 |
FZJ100..4FC..GCC T=4.8 |
1 | ||
| 35675-60050 |
FZJ100..4FC..GCC T=4.6 |
1 | ||
| 35675E - RING, HOLE SNAP (FOR REAR CLUTCH FLANGE) | ||||
| 90521-99017 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
2 | ||
| 90521-99017 |
FZJ100..4FC..GCC |
2 | ||
| 90521-99017 |
FZJ100..4FC..GCC |
2 | ||
| 35675E - RING, HOLE SNAP (FOR REAR CLUTCH FLANGE) | ||||
| 90521-99017 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
2 | ||
| 90521-99017 |
FZJ100..4FC..GCC |
2 | ||
| 90521-99017 |
FZJ100..4FC..GCC |
2 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-60050 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 35701-60050 |
FZJ100..4FC..GCC |
1 | ||
| 35701-60050 |
FZJ100..4FC..GCC |
1 | ||
| 35701H - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT) | ||||
| 90374-34001 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 90374-34001 |
FZJ100..4FC..GCC |
1 | ||
| 90374-34001 |
FZJ100..4FC..GCC |
1 | ||
| 35701Q - RACE, THRUST BEARING (FOR INPUT SHAFT FRONT) | ||||
| 35789-36100 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=0.9 |
1 | ||
| 35789-36100 |
FZJ100..4FC..GCC T=0.9 |
1 | ||
| 35789-36120 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=1.5 |
1 | ||
| 35789-36110 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=1.2 |
1 | ||
| 35789-36130 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=1.8 |
1 | ||
| 35789-36140 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC T=2.1 |
1 | ||
| 35789-36110 |
FZJ100..4FC..GCC T=1.2 |
1 | ||
| 35789-36100 |
FZJ100..4FC..GCC T=0.9 |
1 | ||
| 35789-36110 |
FZJ100..4FC..GCC T=1.2 |
1 | ||
| 35789-36130 |
FZJ100..4FC..GCC T=1.8 |
1 | ||
| 35789-36140 |
FZJ100..4FC..GCC T=2.1 |
1 | ||
| 35789-36140 |
FZJ100..4FC..GCC T=2.1 |
1 | ||
| 35789-36130 |
FZJ100..4FC..GCC T=1.8 |
1 | ||
| 35789-36120 |
FZJ100..4FC..GCC T=1.5 |
1 | ||
| 35789-36120 |
FZJ100..4FC..GCC T=1.5 |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-36010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 35712-36010 |
FZJ100..4FC..GCC |
1 | ||
| 35712-36010 |
FZJ100..4FC..GCC |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
