FZJ100L-GCPNKV (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2007
Engine 1FZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )ATM

Click highlighted areas on diagram

A442F,A750F

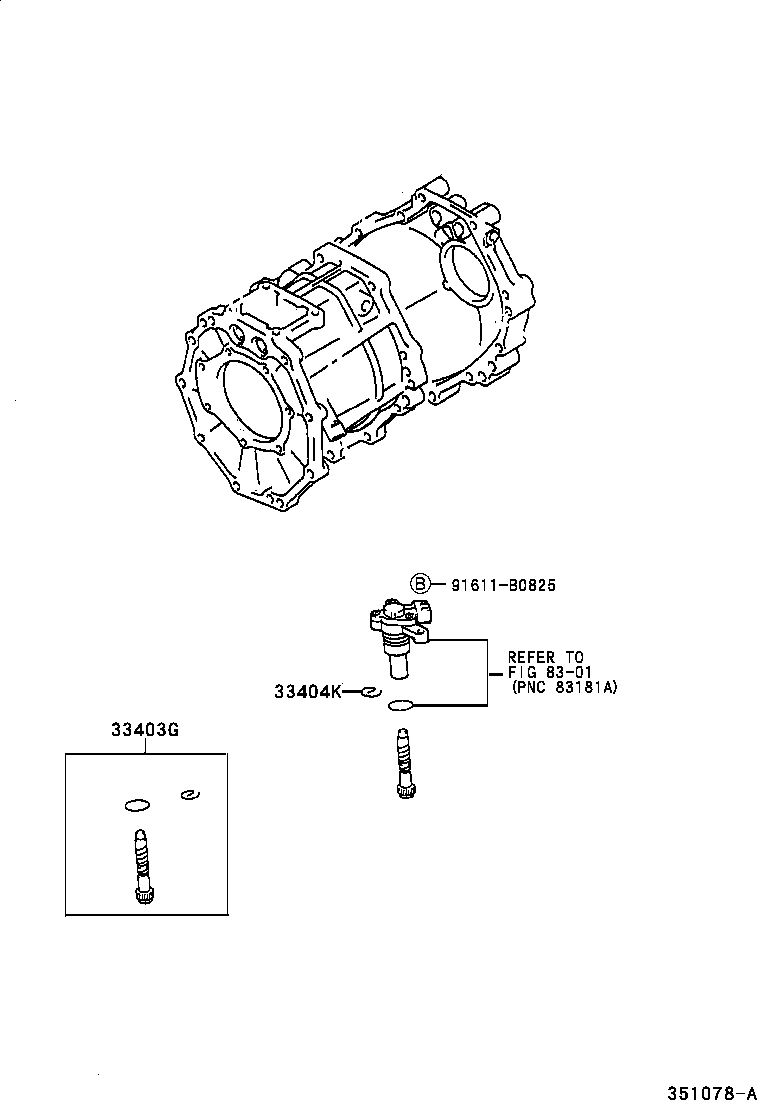

diagram 33403G 33404K 8301 91611B0825
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-69325

UZJ100..4FC..GEN;FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2)

N=33,MARK 12:33

 1
33403-69305

FZJ100..4FC..GCC

N=31,MARK 11:31

 1
33403-69305

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2)

N=31,MARK 11:31

 1
33403-69325

FZJ100..4FC..GCC

N=33,MARK 12:33

 1
33403-69325

FZJ100..4FC..GCC

N=33,MARK 12:33

 1
33403-69305

FZJ100..4FC..GCC

N=31,MARK 11:31

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN)

 1
90468-12005

FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN)

 1
90468-12005

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
Common parts
91611-B0825
Linked diagrams
8301
