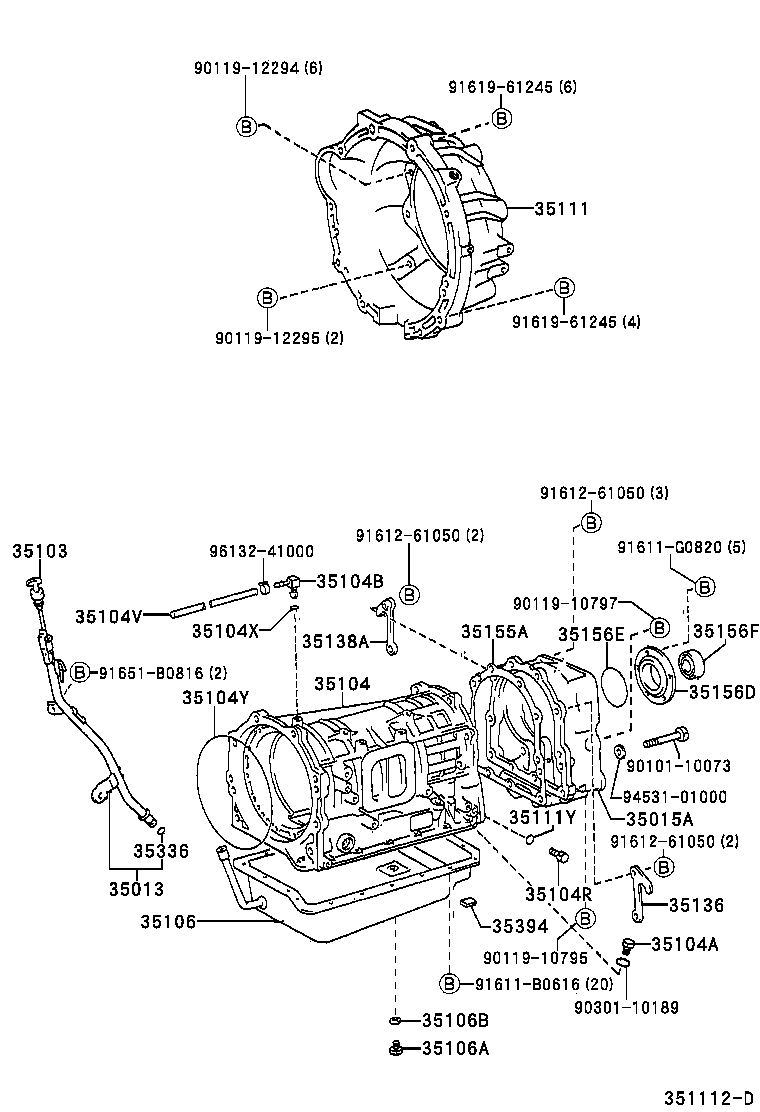

Toyota Land cruiser 100 FZJ100 TRANSMISSION CASE & OIL PAN (ATM)

Part #	Description	Period	Qty
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-60170	FZJ10#..4FC	01/1998 - 08/2002	1
35013-60170	FZJ100..4FC..GCC	05/2005 - 12/2999	1
35013-60170	FZJ100..4FC..GCC	08/2002 - 05/2005	1
35015A - ADAPTER SUB-ASSY, TRANSMISSION CASE, REAR
35015-60080	FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	1
35015-60080	FZJ100..4FC..GCC	08/2002 - 05/2005	1
35015-60080	FZJ100..4FC..GCC	05/2005 - 12/2999	1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-60130	FZJ10#..4FC	01/1998 - 08/2002	1
35103-60130	FZJ100..4FC..GCC	08/2002 - 05/2005	1
35103-60130	FZJ100..4FC..GCC	05/2005 - 12/2999	1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-60140	FZJ10#..4FC	01/1998 - 08/2002	1
35104-60140	FZJ100..4FC..GCC	08/2002 - 05/2005	1
35104-60140	FZJ100..4FC..GCC	05/2005 - 12/2999	1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-13001	FZJ10#,HDJ100..4FC..(ARL,GCC)	01/1998 - 08/2002	1
90341-13001	FZJ100..4FC..GCC	08/2002 - 05/2005	1
90341-13001	FZJ100..4FC..GCC	05/2005 - 12/2999	1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03094	FZJ100..4FC..GCC	05/2005 - 12/2999	1
90930-03094	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	1
90930-03094	FZJ100..4FC..GCC	08/2002 - 05/2005	1
35104R - PLUG, NO.2 (FOR TRANSAXLE CASE)
90341-08001	FZJ100..4FC..GCC	08/2002 - 05/2005	7
90341-08001	FZJ100..4FC..GCC	05/2005 - 12/2999	7
90341-08001	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	7
35104V - HOSE (FOR BREATHER PLUG)
90445-11114	FZJ10#..4FC	01/1998 - 08/2002	1
90445-11114	FZJ100..4FC..GCC	08/2002 - 05/2005	1
90445-11114	FZJ100..4FC..GCC	05/2005 - 12/2999	1
35104X - RING, O (FOR BREATHER PLUG)
90301-06005	FZJ100..4FC..GCC	08/2002 - 05/2005	1
90301-06005	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	1
90301-06005	FZJ100..4FC..GCC	05/2005 - 12/2999	1
35104Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-99067	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	1
90301-99067	FZJ100..4FC..GCC	05/2005 - 12/2999	1
90301-99067	FZJ100..4FC..GCC	08/2002 - 05/2005	1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-60050	FZJ100..4FC..GCC	08/2002 - 05/2005	1
35106-60050	FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	1
35106-60050	FZJ100..4FC..GCC	05/2005 - 12/2999	1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-18057	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	1
90341-18057	FZJ100..4FC..GCC	08/2002 - 05/2005	1
90341-18057	FZJ100..4FC..GCC	05/2005 - 12/2999	1
35106B - GASKET, DRAIN PLUG (ATM)
12157-10010	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	1
12157-10010	FZJ100..4FC..GCC	05/2005 - 12/2999	1
12157-10010	FZJ100..4FC..GCC	08/2002 - 05/2005	1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-60072	FZJ100..4FC..GCC	08/2002 - 05/2005	1
35111-60072	FZJ100..4FC..GCC	05/2005 - 12/2999	1
35111-60072	FZJ10#..4FC	01/1998 - 08/2002	1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196	FZJ100..4FC..GCC	08/2002 - 05/2005	7
90301-06196	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	7
90301-06196	FZJ100..4FC..GCC	05/2005 - 12/2999	7
35136 - HANGER, TRANSMISSION,NO.1
35136-60020	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	1
35136-60020	FZJ100..4FC..GCC	08/2002 - 05/2005	1
35136-60020	FZJ100..4FC..GCC	05/2005 - 12/2999	1
35138A - HANGER, TRANSMISSION, NO.2
35136-60020	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	1
35136-60020	FZJ100..4FC..GCC	05/2005 - 12/2999	1
35136-60020	FZJ100..4FC..GCC	08/2002 - 05/2005	1
35155A - GASKET, TRANSMISSION CASE ADAPTER
35182-60010	FZJ100..4FC..GCC	08/2002 - 05/2005	1
35182-60010	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	1
35182-60010	FZJ100..4FC..GCC	05/2005 - 12/2999	1
35156D - COVER, TRANSMISSION CASE REAR ADAPTER
35156-60010	FZJ100..4FC..GCC	08/2002 - 05/2005	1
35156-60010	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	1
35156-60010	FZJ100..4FC..GCC	05/2005 - 12/2999	1
35156E - RING, O(FOR TRANSMISSION CASE REAR ADAPTER COVER)
90301-81005	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	1
90301-81005	FZJ100..4FC..GCC	08/2002 - 05/2005	1
90301-81005	FZJ100..4FC..GCC	05/2005 - 12/2999	1
35156F - SEAL, OIL(FOR TRANSMISSION CASE REAR ADAPTER COVER)
90311-48016	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	1
90311-48016	FZJ100..4FC..GCC	05/2005 - 12/2999	1
90311-48016	FZJ100..4FC..GCC	08/2002 - 05/2005	1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09011	FZJ10#,HDJ100..4FC..(ARL,GCC)	01/1998 - 08/2002	1
90301-09011	FZJ100..4FC..GCC	08/2003 - 05/2005	1
90301-09011	FZJ100,UZJ100..ATM	08/2002 - 08/2003	1
90301-09011	FZJ100..4FC..GCC	05/2005 - 12/2999	1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011	FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN)	08/2002 - 05/2005	4
35394-30011	FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN)	05/2005 - 12/2999	4
35394-30011	UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC	01/1998 - 08/2002	4
Common parts
90101-10073
90119-10795
90119-10797
90119-12294
90119-12295
90301-10189
91611-B0616
91611-G0820
91612-61050
91619-61245
91651-B0816
94531-01000
96132-41000

FZJ100L-GCPNKV (1998)

(9801- )FZJ10#..4FC
