FZJ100L-GCPNKV (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2007
Engine 1FZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )4FC

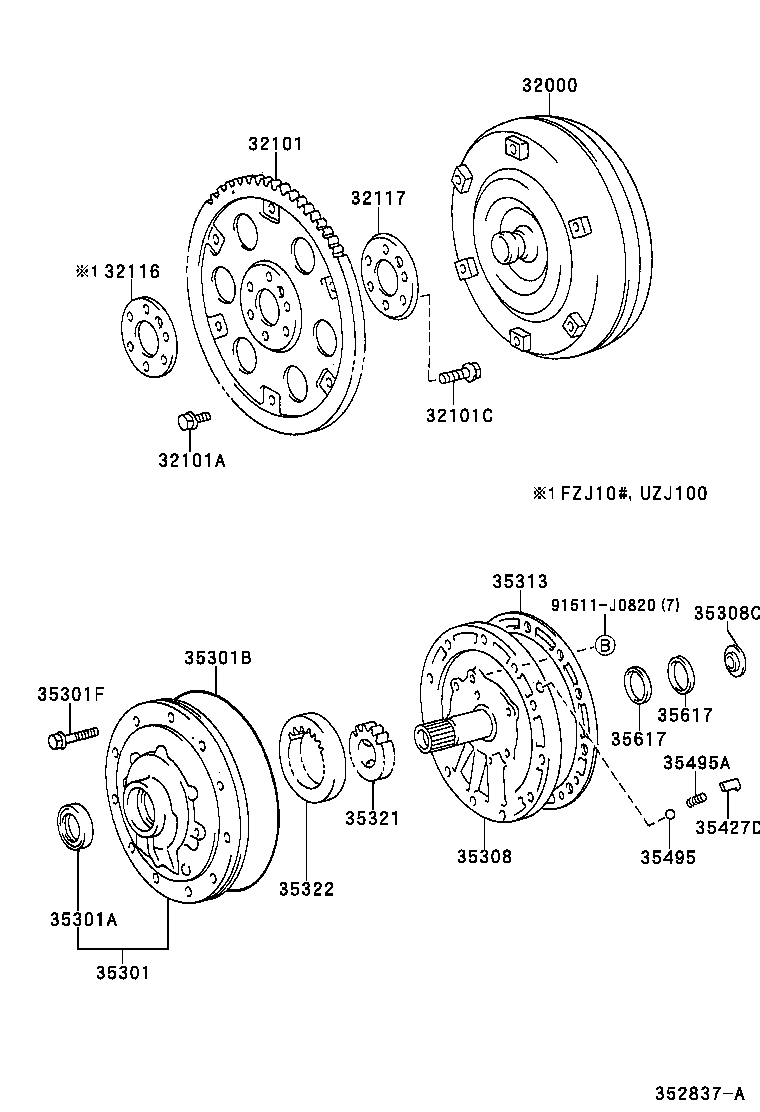

Click highlighted areas on diagram

A442F

diagram 32000 32101 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35308 35308C 35313 35321 35322 35427D 35495 35495A 35617 35617 91511J0820
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-60160

FZJ10#,HZJ105..4FC

 1
32000-60111

FZJ10#..4FC

 1
32000-60111

FZJ100..4FC..GCC

 1
32000-60111

FZJ100..4FC..GCC

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-60050

FZJ10#..4FC

 1
32101-60050

FZJ100..4FC..GCC

 1
32101-60050

FZJ100..4FC..GCC

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-10790

FZJ100,HDJ100..ATM..(ARL,GCC,GEN)

*10-1.25PX14-9,BLACK

 5
90119-10954

FZJ100,HDJ100..ATM..(ARL,GCC,GEN)

*10-1.25PX14-9,SILVER

 5
90119-10789

FZJ10#,HDJ100,HZJ105..4FC

*10-1.25PX14-9,GREEN

 1
90119-10790

FZJ10#,HDJ100,HZJ105..4FC

*10-1.25PX14-9,BLACK

 5
90119-10789

FZJ100,HDJ100..ATM..(ARL,GCC,GEN)

*10-1.25PX14-9,GREEN OR BLACK

 1
90119-10789

FZJ100,HDJ100..ATM..(ARL,GCC,GEN)

*10-1.25PX14-9,BLACK

 1
90119-10954

FZJ100,HDJ100..ATM..(ARL,GCC,GEN)

*10-1.25PX14-9,SILVER

 5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-12244

FZJ100..4FC..GCC

 10
90105-12244

FZJ100..4FC..GCC

 10
90105-12244

FZJ10#..4FC

 10
32116 - SPACER, DRIVE PLATE, FRONT
32116-60040

FZJ10#..4FC

 1
32116-60040

FZJ100..4FC..GCC

 1
32116-60040

FZJ100..4FC..GCC

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-60040

FZJ10#..4FC

 1
32117-60040

FZJ100..4FC..GCC

 1
32117-60040

FZJ100..4FC..GCC

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-60020

FZJ100..4FC..GCC

 1
35301-60020

FZJ100..4FC..GCC

 1
35301-60020

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-42010

FZJ100..4FC..GCC

 1
90311-42010

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
90311-42010

FZJ100..4FC..GCC

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99029

FZJ100..4FC..GCC

 1
90301-99029

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
90301-99029

FZJ100..4FC..GCC

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08213

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

*8-1.25PX60-20

 1
90105-08212

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

*8-1.25PX60-30

 10
90105-08213

FZJ100..4FC..GCC

*8-1.25PX60-20

 1
90105-08212

FZJ100..4FC..GCC

*8-1.25PX60-30

 10
90105-08213

FZJ100..4FC..GCC

*8-1.25PX60-20

 1
90105-08212

FZJ100..4FC..GCC

*8-1.25PX60-30

 10
35308 - COVER SUB-ASSY, FRONT OIL PUMP
35308-60070

FZJ100..4FC..GCC

 1
35308-60070

FZJ100..4FC..GCC

 1
35308-60070

UZJ100..LHD..4FC;FZJ10#,HZJ105..4FC

 1
35308C - RACE, THRUST BEARING (FOR FRONT OIL PUMP COVER)
35789-36060

FZJ100..4FC..GCC

T=1.4

 1
35789-36050

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=1.0

 1
35789-36040

FZJ100..4FC..GCC

T=0.8

 1
35789-36050

FZJ100..4FC..GCC

T=1.0

 1
35789-36060

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=1.4

 1
35789-36040

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=0.8

 1
35789-36040

FZJ100..4FC..GCC

T=0.8

 1
35789-36050

FZJ100..4FC..GCC

T=1.0

 1
35789-36060

FZJ100..4FC..GCC

T=1.4

 1
35313 - GASKET, FRONT OIL PUMP COVER
35313-60010

FZJ100..4FC..GCC

 1
35313-60010

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35313-60010

FZJ100..4FC..GCC

 1
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-60080

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=14.008-14.022

 1
35321-60050

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=13.963-13.977

 1
35321-60040

FZJ100..4FC..GCC

T=13.948-13.962

 1
35321-60070

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=13.993-14.007

 1
35321-60080

FZJ100..4FC..GCC

T=14.008-14.022

 1
35321-60040

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=13.948-13.962

 1
35321-60060

FZJ100..4FC..GCC

T=13.978-13.992

 1
35321-60070

FZJ100..4FC..GCC

T=13.993-14.007

 1
35321-60060

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=13.978-13.992

 1
35321-60050

FZJ100..4FC..GCC

T=13.963-13.977

 1
35321-60040

FZJ100..4FC..GCC

T=13.948-13.962

 1
35321-60060

FZJ100..4FC..GCC

T=13.978-13.992

 1
35321-60070

FZJ100..4FC..GCC

T=13.993-14.007

 1
35321-60080

FZJ100..4FC..GCC

T=14.008-14.022

 1
35321-60050

FZJ100..4FC..GCC

T=13.963-13.977

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-60040

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=13.948-13.962

 1
35322-60060

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=13.978-13.992

 1
35322-60080

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=14.008-14.022

 1
35322-60070

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=13.993-14.007

 1
35322-60050

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

T=13.963-13.977

 1
35322-60050

FZJ100..4FC..GCC

T=13.963-13.977

 1
35322-60040

FZJ100..4FC..GCC

T=13.948-13.962

 1
35322-60070

FZJ100..4FC..GCC

T=13.993-14.007

 1
35322-60060

FZJ100..4FC..GCC

T=13.978-13.992

 1
35322-60080

FZJ100..4FC..GCC

T=14.008-14.022

 1
35322-60040

FZJ100..4FC..GCC

T=13.948-13.962

 1
35322-60050

FZJ100..4FC..GCC

T=13.963-13.977

 1
35322-60070

FZJ100..4FC..GCC

T=13.993-14.007

 1
35322-60060

FZJ100..4FC..GCC

T=13.978-13.992

 1
35322-60080

FZJ100..4FC..GCC

T=14.008-14.022

 1
35427D - SEAT, CHECK VALVE SPRING
35427-60010

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35427-60010

FZJ100..4FC..GCC

 1
35427-60010

FZJ100..4FC..GCC

 1
35495 - BALL, CHECK
35495-60010

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35495-60010

FZJ100..4FC..GCC

 1
35495-60010

FZJ100..4FC..GCC

 1
35495A - SPRING, COMPRESSION (FOR CHECK BALL)
90501-18106

FZJ100..4FC..GCC

 1
90501-18106

FZJ100..4FC..GCC

 1
90501-18106

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-60010

FZJ100..4FC..GCC

 2
35617-60010

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 2
35617-60010

FZJ100..4FC..GCC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-60010

FZJ100..4FC..GCC

 2
35617-60010

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 2
35617-60010

FZJ100..4FC..GCC

 2
Common parts
91511-J0820
