FZJ100L-GCPNKV (1998)
Toyota Land Cruiser 100

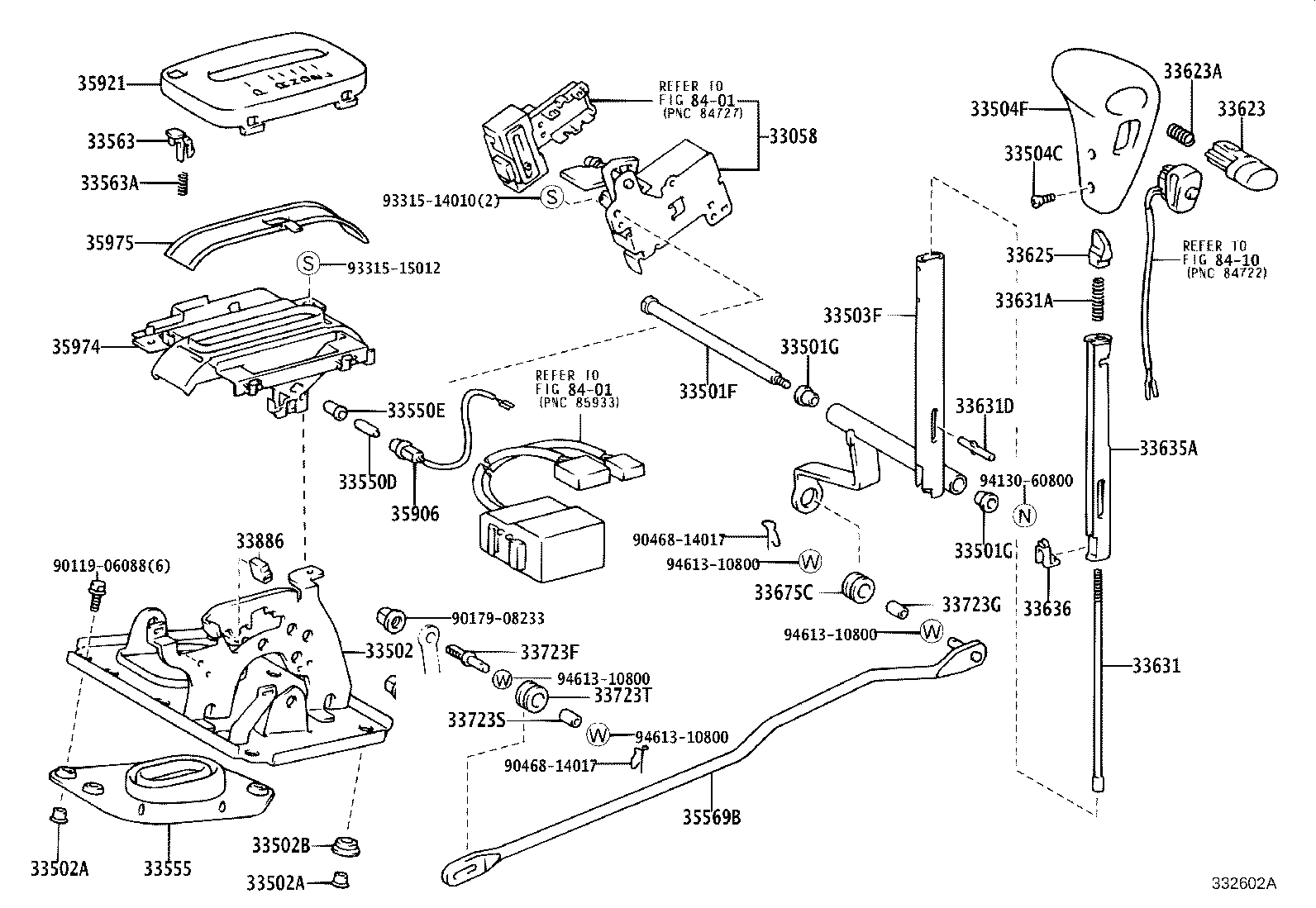

(9801-0407)FZJ100,UZJ100..LHD..4FC ; (0407-0501)4FC..CHI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-60140 |
FZJ100..4FC..GCC |
1 | ||
| 33511-60140 |
FZJ100,HDJ100,UZJ100..LHD..4FC |
1 | ||
| 33511-60140 |
FZJ100..4FC..GCC |
1 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-11019 |
FZJ100..4FC..GCC |
2 | ||
| 90386-11019 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
2 | ||
| 90386-11019 |
FZJ100..4FC..GCC |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-11019 |
FZJ100..4FC..GCC |
2 | ||
| 90386-11019 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
2 | ||
| 90386-11019 |
FZJ100..4FC..GCC |
2 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-60290 |
FZJ100,HDJ100..LHD..4FC |
1 | ||
| 33502-60290 |
FZJ100..4FC..GCC |
1 | ||
| 33502-60290 |
FZJ100..4FC..GCC |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
FZJ100..4FC..GCC OD=8.8 |
6 | ||
| 90387-06065 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC OD=8.8 |
6 | ||
| 90387-06065 |
FZJ100..4FC..GCC OD=8.8 |
6 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
FZJ100..4FC..GCC OD=8.8 |
6 | ||
| 90387-06065 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC OD=8.8 |
6 | ||
| 90387-06065 |
FZJ100..4FC..GCC OD=8.8 |
6 | ||
| 33502B - GROMMET (FOR SHIFT LEVER PLATE) | ||||
| 90480-13018 |
FZJ100..4FC..GCC |
3 | ||
| 90480-13018 |
FZJ100,HDJ100,UZJ100..LHD..4FC |
3 | ||
| 90480-13018 |
FZJ100..4FC..GCC |
3 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-60060 |
FZJ100..4FC..GCC |
1 | ||
| 33055-60060 |
FZJ100..4FC..GCC |
1 | ||
| 33055-60060 |
FZJ100,HDJ100,UZJ100..LHD..4FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
2 | ||
| 90159-40109 |
FZJ100..4FC..GCC |
2 | ||
| 90159-40109 |
FZJ100..4FC..GCC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-20150C0 |
FZJ100,HDJ100,UZJ100..LHD..4FC URETHANE,BLACK,TRIM1#,4# |
1 | ||
| 33542-20150C0 |
UZJ100..4FC..GEN;FZJ100,HDJ100..LHD..4FC URETHANE,BLACK,TRIM1#,4# |
1 | ||
| 33542-20150C0 |
FZJ100..4FC..GCC URETHANE,BLACK,TRIM0#,1# |
1 | ||
| 33542-20150C0 |
FZJ100..4FC..GCC BLACK,TRIM0#,1# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) 12V 1.2W W/O SOCKET |
1 | ||
| 90981-11018 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC 12V 1.2W W/O SOCKET |
1 | ||
| 90981-11018 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) 12V 1.2W W/O SOCKET |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04049 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 90339-04049 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 90339-04049 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-60100 |
FZJ100..4FC..GCC |
1 | ||
| 33554-60100 |
FZJ100,HDJ100,UZJ100..LHD..4FC |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-60140 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 33555-60140 |
FZJ100..4FC..GCC |
1 | ||
| 33555-60140 |
FZJ100..4FC..GCC |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-20070C0 |
FZJ100..4FC BLACK,TRIM1#,4# |
1 | ||
| 33623-20070C0 |
FZJ100..4FC..GCC BLACK,TRIM0#,1# |
1 | ||
| 33623-20070C0 |
FZJ100..4FC..GCC BLACK,TRIM0#,1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
FZJ100..4FC..GCC |
1 | ||
| 90501-07009 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 90501-07009 |
FZJ100..4FC..GCC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-24010 |
FZJ100..4FC..GCC |
1 | ||
| 33625-24010 |
FZJ100..4FC..GCC |
1 | ||
| 33625-24010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-14040 |
FZJ100..4FC..GCC |
1 | ||
| 33631-14040 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 33631-14040 |
FZJ100..4FC..GCC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07074 |
FZJ100..4FC..GCC |
1 | ||
| 90501-07074 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 90501-07074 |
FZJ100..4FC..GCC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 90256-04003 |
FZJ100..4FC..GCC |
1 | ||
| 90256-04003 |
FZJ100..4FC..GCC |
1 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-60060 |
FZJ100..4FC..GCC |
1 | ||
| 33635-60060 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 33635-60060 |
FZJ100..4FC..GCC |
1 | ||
| 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) | ||||
| 33636-35010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 33636-35010 |
FZJ100..4FC..GCC |
1 | ||
| 33636-35010 |
FZJ100..4FC..GCC |
1 | ||
| 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17177 |
FZJ100..4FC..GCC |
1 | ||
| 90480-17177 |
FZJ100..4FC..GCC |
1 | ||
| 90480-17177 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 33723-22010 |
FZJ100..4FC..GCC |
1 | ||
| 33723-22010 |
FZJ100..4FC..GCC |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
FZJ100..4FC..GCC |
1 | ||
| 90389-08005 |
FZJ100..4FC..GCC |
1 | ||
| 90389-08005 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 33723S - BUSH (FOR CONNECTING ROD SWIVEL) | ||||
| 90389-08005 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 90389-08005 |
FZJ100..4FC..GCC |
1 | ||
| 90389-08005 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 33723T - GROMMET (FOR CONNECTING ROD SWIVEL) | ||||
| 90480-17177 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 90480-17177 |
FZJ100..4FC..GCC |
1 | ||
| 90480-17177 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-22010 |
FZJ100..4FC..GCC |
1 | ||
| 33886-22010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 33886-22010 |
FZJ100..4FC..GCC |
1 | ||
| 35569B - ROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT) | ||||
| 35569-60090 |
FZJ100..4FC..GCC |
1 | ||
| 35569-60090 |
FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 35569-60090 |
FZJ100..4FC..GCC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-35100 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 35906-35100 |
FZJ100..4FC..GCC |
1 | ||
| 35906-35100 |
FZJ100..4FC..GCC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-60210 |
FZJ100,HDJ100,UZJ100..LHD..4FC |
1 | ||
| 35921-60210 |
FZJ100..4FC..GCC |
1 | ||
| 35921-60220 |
FZJ100..4FC..GCC |
1 | ||
| 35921-60220 |
FZJ100..4FC..GCC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-60110 |
FZJ100,HDJ100,UZJ100..LHD..4FC |
1 | ||
| 35974-60110 |
FZJ100..4FC..GCC |
1 | ||
| 35974-60110 |
FZJ100..4FC..GCC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-60100 |
FZJ100..4FC..GCC |
1 | ||
| 35975-60100 |
FZJ100..4FC..GCC |
1 | ||
| 35975-60100 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| Common parts | ||||
| 90119-06088 | ||||
| 90179-08233 | ||||
| 90468-14017 | ||||
| 93315-15012 | ||||
| 94130-60800 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 8410 | ||||

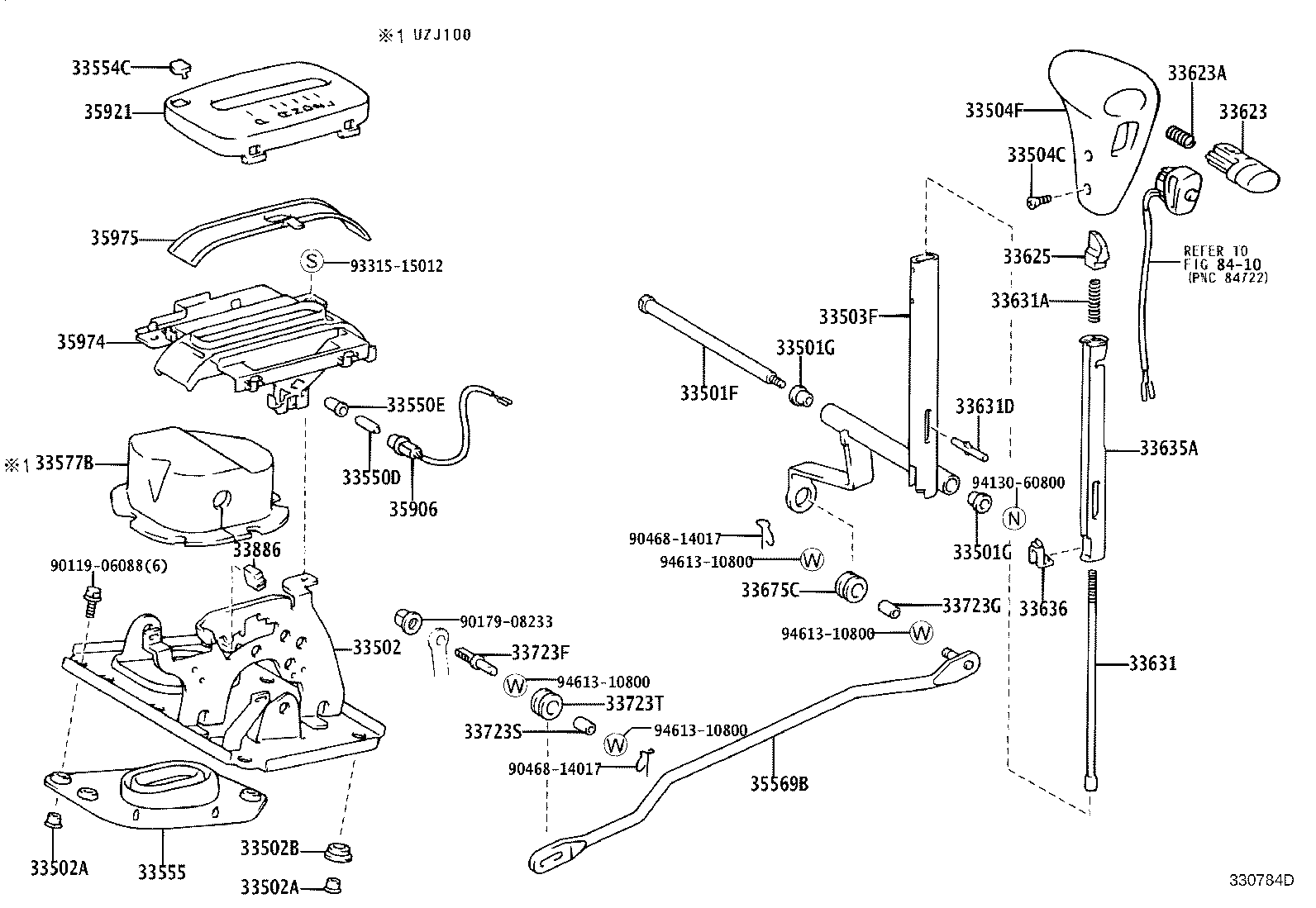

(0407-0501)4FC..GCC ; (0501- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-60090 |
FZJ100..4FC..GCC |
1 | ||
| 33058-60090 |
FZJ100..4FC..GCC |
1 | ||
| 33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-60140 |
FZJ100..4FC..GCC |
1 | ||
| 33511-60140 |
FZJ100,HDJ100,UZJ100..LHD..4FC |
1 | ||
| 33511-60140 |
FZJ100..4FC..GCC |
1 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-11019 |
FZJ100..4FC..GCC |
2 | ||
| 90386-11019 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
2 | ||
| 90386-11019 |
FZJ100..4FC..GCC |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-11019 |
FZJ100..4FC..GCC |
2 | ||
| 90386-11019 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
2 | ||
| 90386-11019 |
FZJ100..4FC..GCC |
2 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-60290 |
FZJ100,HDJ100..LHD..4FC |
1 | ||
| 33502-60290 |
FZJ100..4FC..GCC |
1 | ||
| 33502-60290 |
FZJ100..4FC..GCC |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
FZJ100..4FC..GCC OD=8.8 |
6 | ||
| 90387-06065 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC OD=8.8 |
6 | ||
| 90387-06065 |
FZJ100..4FC..GCC OD=8.8 |
6 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
FZJ100..4FC..GCC OD=8.8 |
6 | ||
| 90387-06065 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC OD=8.8 |
6 | ||
| 90387-06065 |
FZJ100..4FC..GCC OD=8.8 |
6 | ||
| 33502B - GROMMET (FOR SHIFT LEVER PLATE) | ||||
| 90480-13018 |
FZJ100..4FC..GCC |
3 | ||
| 90480-13018 |
FZJ100,HDJ100,UZJ100..LHD..4FC |
3 | ||
| 90480-13018 |
FZJ100..4FC..GCC |
3 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-60060 |
FZJ100..4FC..GCC |
1 | ||
| 33055-60060 |
FZJ100..4FC..GCC |
1 | ||
| 33055-60060 |
FZJ100,HDJ100,UZJ100..LHD..4FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
2 | ||
| 90159-40109 |
FZJ100..4FC..GCC |
2 | ||
| 90159-40109 |
FZJ100..4FC..GCC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-20150C0 |
FZJ100,HDJ100,UZJ100..LHD..4FC URETHANE,BLACK,TRIM1#,4# |
1 | ||
| 33542-20150C0 |
UZJ100..4FC..GEN;FZJ100,HDJ100..LHD..4FC URETHANE,BLACK,TRIM1#,4# |
1 | ||
| 33542-20150C0 |
FZJ100..4FC..GCC URETHANE,BLACK,TRIM0#,1# |
1 | ||
| 33542-20150C0 |
FZJ100..4FC..GCC BLACK,TRIM0#,1# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) 12V 1.2W W/O SOCKET |
1 | ||
| 90981-11018 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC 12V 1.2W W/O SOCKET |
1 | ||
| 90981-11018 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) 12V 1.2W W/O SOCKET |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04049 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 90339-04049 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 90339-04049 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-60140 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 33555-60140 |
FZJ100..4FC..GCC |
1 | ||
| 33555-60140 |
FZJ100..4FC..GCC |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-60100 |
FZJ100..4FC..GCC |
1 | ||
| 33563-60100 |
FZJ100..4FC..GCC |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-07105 |
FZJ100..4FC..GCC |
1 | ||
| 90501-07105 |
FZJ100..4FC..GCC |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-20070C0 |
FZJ100..4FC BLACK,TRIM1#,4# |
1 | ||
| 33623-20070C0 |
FZJ100..4FC..GCC BLACK,TRIM0#,1# |
1 | ||
| 33623-20070C0 |
FZJ100..4FC..GCC BLACK,TRIM0#,1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
FZJ100..4FC..GCC |
1 | ||
| 90501-07009 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 90501-07009 |
FZJ100..4FC..GCC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-24010 |
FZJ100..4FC..GCC |
1 | ||
| 33625-24010 |
FZJ100..4FC..GCC |
1 | ||
| 33625-24010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-14040 |
FZJ100..4FC..GCC |
1 | ||
| 33631-14040 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 33631-14040 |
FZJ100..4FC..GCC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07074 |
FZJ100..4FC..GCC |
1 | ||
| 90501-07074 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 90501-07074 |
FZJ100..4FC..GCC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04003 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 90256-04003 |
FZJ100..4FC..GCC |
1 | ||
| 90256-04003 |
FZJ100..4FC..GCC |
1 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-60060 |
FZJ100..4FC..GCC |
1 | ||
| 33635-60060 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 33635-60060 |
FZJ100..4FC..GCC |
1 | ||
| 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) | ||||
| 33636-35010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 33636-35010 |
FZJ100..4FC..GCC |
1 | ||
| 33636-35010 |
FZJ100..4FC..GCC |
1 | ||
| 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17177 |
FZJ100..4FC..GCC |
1 | ||
| 90480-17177 |
FZJ100..4FC..GCC |
1 | ||
| 90480-17177 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 33723-22010 |
FZJ100..4FC..GCC |
1 | ||
| 33723-22010 |
FZJ100..4FC..GCC |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
FZJ100..4FC..GCC |
1 | ||
| 90389-08005 |
FZJ100..4FC..GCC |
1 | ||
| 90389-08005 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 33723S - BUSH (FOR CONNECTING ROD SWIVEL) | ||||
| 90389-08005 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 90389-08005 |
FZJ100..4FC..GCC |
1 | ||
| 90389-08005 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 33723T - GROMMET (FOR CONNECTING ROD SWIVEL) | ||||
| 90480-17177 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 90480-17177 |
FZJ100..4FC..GCC |
1 | ||
| 90480-17177 |
FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-22010 |
FZJ100..4FC..GCC |
1 | ||
| 33886-22010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 33886-22010 |
FZJ100..4FC..GCC |
1 | ||
| 35569B - ROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT) | ||||
| 35569-60090 |
FZJ100..4FC..GCC |
1 | ||
| 35569-60090 |
FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 35569-60090 |
FZJ100..4FC..GCC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-35100 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 35906-35100 |
FZJ100..4FC..GCC |
1 | ||
| 35906-35100 |
FZJ100..4FC..GCC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-60210 |
FZJ100,HDJ100,UZJ100..LHD..4FC |
1 | ||
| 35921-60210 |
FZJ100..4FC..GCC |
1 | ||
| 35921-60220 |
FZJ100..4FC..GCC |
1 | ||
| 35921-60220 |
FZJ100..4FC..GCC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-60110 |
FZJ100,HDJ100,UZJ100..LHD..4FC |
1 | ||
| 35974-60110 |
FZJ100..4FC..GCC |
1 | ||
| 35974-60110 |
FZJ100..4FC..GCC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-60100 |
FZJ100..4FC..GCC |
1 | ||
| 35975-60100 |
FZJ100..4FC..GCC |
1 | ||
| 35975-60100 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| Common parts | ||||
| 90119-06088 | ||||
| 90179-08233 | ||||
| 90468-14017 | ||||
| 93315-14010 | ||||
| 93315-15012 | ||||
| 94130-60800 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
