Toyota Land cruiser 100 FZJ100 INTERIOR LAMP

FZJ100L-GCMRKV (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2007

Engine 1FZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9801-0208)

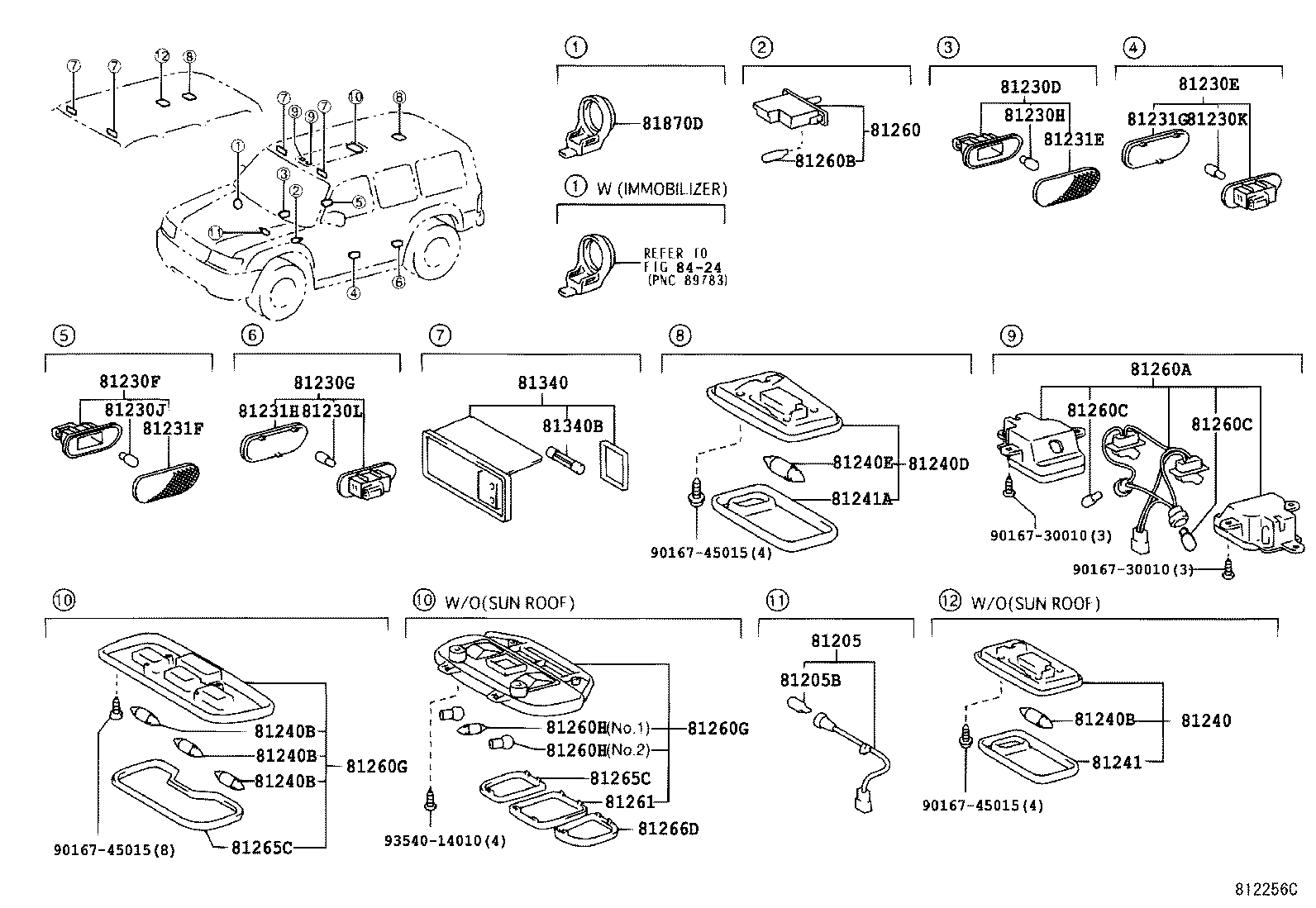

Click highlighted areas on diagram

Part #	Description	Period	Qty
81205 - LAMP SUB-ASSY, ASH RECEPTACLE
81850-60550	HZJ105..LHD..GX;FZJ10#..LHD..5F..(GCC,GEN);HDJ100,HZJ105..SOB..(STD,VX) W(BENCH SEAT)	08/2002 - 05/2005	1
81850-60530	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 03/2001	1
81850-60560	HDJ100..LUB;FZJ10#,HZJ105,UZJ100 W(SEPARATE SEAT)	03/2001 - 08/2002	1
81850-60550	HZJ105..LHD..GX;FZJ10#..LHD..5F..(GCC,GEN);HDJ100,HZJ105..SOB..(STD,VX) W(BENCH SEAT)	05/2005 - 12/2999	1
81850-60550	FZJ10#..LHD..5F;HZJ105..LHD..GX;HDJ100,HZJ105..SOB..(STD,VX) W(BENCH SEAT)	03/2001 - 08/2002	1
81850-60560	HDJ100..LUB;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN W(SEPARATE SEAT)	08/2002 - 05/2005	1
81850-60560	HDJ100..LUB;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN W(SEPARATE SEAT)	05/2005 - 12/2999	1
81205B - BULB, ASH RECEPTACLE LAMP
90981-11014	FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 14V 1.4W	01/1998 - 08/2002	1
90981-11014	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 14V 1.4W	05/2005 - 12/2999	1
90981-11014	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 14V 1.4W	08/2002 - 05/2005	1
81240 - LAMP ASSY, ROOM, NO.1
81240-60040B1	FZJ10#,HDJ100,HZJ105,UZJ100..GX,STD STONE,TRIM1#	08/2002 - 10/2002	1
81250-60020B0	FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) STONE,TRIM1#	10/2002 - 05/2005	1
81240-60040B0	FZJ10#,HDJ100,HZJ105..GX,STD MD.GRAY,TRIM1#	01/1998 - 08/2002	1
81250-60020B0	HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN STONE,TRIM1#	05/2005 - 12/2999	1
81240B - BULB, ROOM LAMP, NO.1
90981-14004	FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) 12V 8W,W/O(SUN ROOF)	08/2002 - 05/2005	1
90981-14004	FZJ10#,HDJ100,HZJ105..GX,STD 12V 8W,W/O(SUN ROOF)	01/1998 - 08/2002	1
90981-14004	HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN 12V 8W,W/O(SUN ROOF)	05/2005 - 12/2999	1
81240B - BULB, ROOM LAMP, NO.1
90981-14004	FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) 12V 8W,W/O(SUN ROOF)	08/2002 - 05/2005	1
90981-14004	FZJ10#,HDJ100,HZJ105..GX,STD 12V 8W,W/O(SUN ROOF)	01/1998 - 08/2002	1
90981-14004	HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN 12V 8W,W/O(SUN ROOF)	05/2005 - 12/2999	1
81240B - BULB, ROOM LAMP, NO.1
90981-14004	FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) 12V 8W,W/O(SUN ROOF)	08/2002 - 05/2005	1
90981-14004	FZJ10#,HDJ100,HZJ105..GX,STD 12V 8W,W/O(SUN ROOF)	01/1998 - 08/2002	1
90981-14004	HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN 12V 8W,W/O(SUN ROOF)	05/2005 - 12/2999	1
81240B - BULB, ROOM LAMP, NO.1
90981-14004	FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) 12V 8W,W/O(SUN ROOF)	08/2002 - 05/2005	1
90981-14004	FZJ10#,HDJ100,HZJ105..GX,STD 12V 8W,W/O(SUN ROOF)	01/1998 - 08/2002	1
90981-14004	HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN 12V 8W,W/O(SUN ROOF)	05/2005 - 12/2999	1
81240D - LAMP ASSY, ROOM, NO.2
81240-60040B0	FZJ10#,HDJ100,HZJ105,UZJ100 MD.GRAY,TRIM1#	01/1998 - 08/2002	1
81240-60040B1	FZJ10#,HDJ100,HZJ105,UZJ100 STONE,TRIM1#	08/2002 - 10/2002	1
81250-60020B0	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN STONE,TRIM1#	05/2005 - 12/2999	1
81250-60020B0	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN STONE,TRIM1#	10/2002 - 05/2005	1
81240E - BULB, ROOM LAMP, NO.2
90981-14004	UZJ100..5F..GCC;FZJ10#,HDJ100,HZJ105..(4FC,5F)..(GX,STD)..(ARL,GCC,GEN) 12V 8W,W(MOON ROOF)	08/2002 - 05/2005	1
90981-14004	FZJ10#,HDJ100,HZJ105,UZJ100 12V 8W,W(MOON ROOF)	01/1998 - 08/2002	1
90981-14004	HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN 12V 8W,W(MOON ROOF)	05/2005 - 12/2999	1
81241 - LENS, ROOM LAMP, NO.1
81241-32031	HDJ100..GX;FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2	01/1998 - 08/2002	1
81241-32031	FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN)	08/2002 - 05/2005	1
81241-32031	HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN	05/2005 - 12/2999	1
81241A - LENS, ROOM LAMP, NO.2
81241-32031	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
81241-32031	FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)	01/1998 - 08/2002	1
81241-32031	HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN W(MOON ROOF)	05/2005 - 12/2999	1
Common parts
90167-45012
93319-15012
93540-14010
93560-13010

(0208- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81205 - LAMP SUB-ASSY, ASH RECEPTACLE
81850-60550	HZJ105..LHD..GX;FZJ10#..LHD..5F..(GCC,GEN);HDJ100,HZJ105..SOB..(STD,VX) W(BENCH SEAT)	08/2002 - 05/2005	1
81850-60530	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 03/2001	1
81850-60560	HDJ100..LUB;FZJ10#,HZJ105,UZJ100 W(SEPARATE SEAT)	03/2001 - 08/2002	1
81850-60550	HZJ105..LHD..GX;FZJ10#..LHD..5F..(GCC,GEN);HDJ100,HZJ105..SOB..(STD,VX) W(BENCH SEAT)	05/2005 - 12/2999	1
81850-60550	FZJ10#..LHD..5F;HZJ105..LHD..GX;HDJ100,HZJ105..SOB..(STD,VX) W(BENCH SEAT)	03/2001 - 08/2002	1
81850-60560	HDJ100..LUB;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN W(SEPARATE SEAT)	08/2002 - 05/2005	1
81850-60560	HDJ100..LUB;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN W(SEPARATE SEAT)	05/2005 - 12/2999	1
81205B - BULB, ASH RECEPTACLE LAMP
90981-11014	FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 14V 1.4W	01/1998 - 08/2002	1
90981-11014	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 14V 1.4W	05/2005 - 12/2999	1
90981-11014	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 14V 1.4W	08/2002 - 05/2005	1
81240 - LAMP ASSY, ROOM, NO.1
81240-60040B1	FZJ10#,HDJ100,HZJ105,UZJ100..GX,STD STONE,TRIM1#	08/2002 - 10/2002	1
81250-60020B0	FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) STONE,TRIM1#	10/2002 - 05/2005	1
81240-60040B0	FZJ10#,HDJ100,HZJ105..GX,STD MD.GRAY,TRIM1#	01/1998 - 08/2002	1
81250-60020B0	HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN STONE,TRIM1#	05/2005 - 12/2999	1
81240B - BULB, ROOM LAMP, NO.1
90981-14004	FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) 12V 8W,W/O(SUN ROOF)	08/2002 - 05/2005	1
90981-14004	FZJ10#,HDJ100,HZJ105..GX,STD 12V 8W,W/O(SUN ROOF)	01/1998 - 08/2002	1
90981-14004	HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN 12V 8W,W/O(SUN ROOF)	05/2005 - 12/2999	1
81240B - BULB, ROOM LAMP, NO.1
90981-14004	FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) 12V 8W,W/O(SUN ROOF)	08/2002 - 05/2005	1
90981-14004	FZJ10#,HDJ100,HZJ105..GX,STD 12V 8W,W/O(SUN ROOF)	01/1998 - 08/2002	1
90981-14004	HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN 12V 8W,W/O(SUN ROOF)	05/2005 - 12/2999	1
81240B - BULB, ROOM LAMP, NO.1
90981-14004	FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) 12V 8W,W/O(SUN ROOF)	08/2002 - 05/2005	1
90981-14004	FZJ10#,HDJ100,HZJ105..GX,STD 12V 8W,W/O(SUN ROOF)	01/1998 - 08/2002	1
90981-14004	HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN 12V 8W,W/O(SUN ROOF)	05/2005 - 12/2999	1
81240B - BULB, ROOM LAMP, NO.1
90981-14004	FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) 12V 8W,W/O(SUN ROOF)	08/2002 - 05/2005	1
90981-14004	FZJ10#,HDJ100,HZJ105..GX,STD 12V 8W,W/O(SUN ROOF)	01/1998 - 08/2002	1
90981-14004	HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN 12V 8W,W/O(SUN ROOF)	05/2005 - 12/2999	1
81240D - LAMP ASSY, ROOM, NO.2
81240-60040B0	FZJ10#,HDJ100,HZJ105,UZJ100 MD.GRAY,TRIM1#	01/1998 - 08/2002	1
81240-60040B1	FZJ10#,HDJ100,HZJ105,UZJ100 STONE,TRIM1#	08/2002 - 10/2002	1
81250-60020B0	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN STONE,TRIM1#	05/2005 - 12/2999	1
81250-60020B0	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN STONE,TRIM1#	10/2002 - 05/2005	1
81240E - BULB, ROOM LAMP, NO.2
90981-14004	UZJ100..5F..GCC;FZJ10#,HDJ100,HZJ105..(4FC,5F)..(GX,STD)..(ARL,GCC,GEN) 12V 8W,W(MOON ROOF)	08/2002 - 05/2005	1
90981-14004	FZJ10#,HDJ100,HZJ105,UZJ100 12V 8W,W(MOON ROOF)	01/1998 - 08/2002	1
90981-14004	HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN 12V 8W,W(MOON ROOF)	05/2005 - 12/2999	1
81241 - LENS, ROOM LAMP, NO.1
81241-32031	HDJ100..GX;FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2	01/1998 - 08/2002	1
81241-32031	FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN)	08/2002 - 05/2005	1
81241-32031	HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN	05/2005 - 12/2999	1
81241A - LENS, ROOM LAMP, NO.2
81241-32031	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
81241-32031	FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)	01/1998 - 08/2002	1
81241-32031	HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN W(MOON ROOF)	05/2005 - 12/2999	1
Common parts
90167-30010
90167-45015
93540-14010
Linked diagrams
8424

FZJ100L-GCMRKV (1998)

(9801-0208)

(0208- )
