FZJ100L-GCMRKV (1998)
Toyota Land Cruiser 100

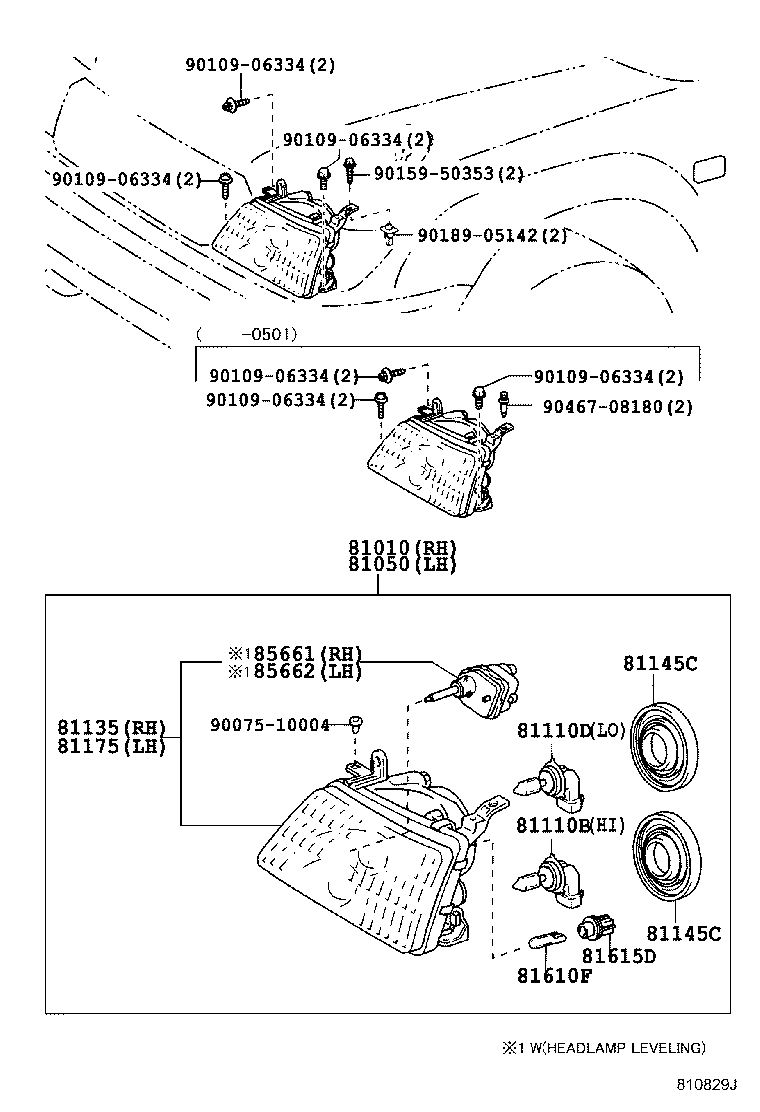

(9801-0505) ; (0505-0506)CHI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81010 - HEADLAMP ASSY, W/CLEARANCE, RH | ||||
| 81010-60020 |
FZJ10#,HZJ105..LHD |
1 | ||
| 81010-60040 |
FZJ100,HZJ105..GCC;HDJ100,UZJ100..LHD..(4FC,5F)..(EFI,TD2) |
1 | ||
| 81010-60041 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81010-60061 |
FZJ100..GCC;HZJ105..LHD..SOB W(HEADLAMP LEVELING) |
1 | ||
| 81010-60040 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD |
1 | ||
| 81010-60041 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81050 - HEADLAMP ASSY, W/CLEARANCE, LH | ||||
| 81050-60041 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81050-60020 |
FZJ10#,HZJ105..LHD |
1 | ||
| 81050-60040 |
FZJ100,HZJ105..GCC;HDJ100,UZJ100..LHD..(4FC,5F)..(EFI,TD2) |
1 | ||
| 81050-60041 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81050-60061 |
FZJ100..GCC;HZJ105..LHD..SOB W(HEADLAMP LEVELING) |
1 | ||
| 81050-60040 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 12V65W(SAE),60W(ECE) |
2 | ||
| 90981-13046 |
FZJ10#,HDJ100,HZJ105,UZJ100 12V65W(SAE),60W(ECE) |
2 | ||
| 90080-81041 |
UZJ100..5F..(ARL,GCC);UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105..LHD..(GCC,GEN) 12V 65W |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13047 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 12V 51W,HALOGEN |
2 | ||
| 90981-13047 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 12V 51W,HALOGEN |
2 | ||
| 90981-13047 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 12V 51W,HALOGEN |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81019-60040 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD |
1 | ||
| 81019-60040 |
FZJ100,HZJ105..GCC;HDJ100,UZJ100..LHD..(4FC,5F)..(EFI,TD2) |
1 | ||
| 81130-60B10 |
FZJ100..STD;HZJ105..LHD..SOB..GEN W(HEADLAMP LEVELING) |
1 | ||
| 81130-60A90 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81019-60061 |
FZJ100..GCC;HZJ105..LHD..SOB W(HEADLAMP LEVELING) |
1 | ||
| 81019-60041 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81130-60A92 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81130-60A91 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81130-60B11 |
FZJ100..STD;HZJ105..LHD..SOB..GEN W(HEADLAMP LEVELING) |
1 | ||
| 81019-60020 |
FZJ10#,HZJ105..LHD |
1 | ||
| 81145C - COVER, HEADLAMP SOCKET, NO.2 | ||||
| 90075-65006 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 W(HEADLAMP LEVELING) |
4 | ||
| 90075-65006 |
FZJ100,HZJ105,UZJ100..(4FC,5F)..GCC W(HEADLAMP LEVELING) |
4 | ||
| 90075-65006 |
FZJ100..GCC;HZJ105..LHD..SOB |
4 | ||
| 81145C - COVER, HEADLAMP SOCKET, NO.2 | ||||
| 90075-65006 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 W(HEADLAMP LEVELING) |
4 | ||
| 90075-65006 |
FZJ100,HZJ105,UZJ100..(4FC,5F)..GCC W(HEADLAMP LEVELING) |
4 | ||
| 90075-65006 |
FZJ100..GCC;HZJ105..LHD..SOB |
4 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81059-60020 |
FZJ10#,HZJ105..LHD |
1 | ||
| 81059-60040 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD |
1 | ||
| 81059-60061 |
FZJ100..GCC;HZJ105..LHD..SOB W(HEADLAMP LEVELING) |
1 | ||
| 81059-60041 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81059-60040 |
FZJ100,HZJ105..GCC;HDJ100,UZJ100..LHD..(4FC,5F)..(EFI,TD2) |
1 | ||
| 81170-60B00 |
FZJ100..STD;HZJ105..LHD..SOB..GEN W(HEADLAMP LEVELING) |
1 | ||
| 81170-60A81 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81170-60A80 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81170-60A82 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81170-60B01 |
FZJ100..STD;HZJ105..LHD..SOB..GEN W(HEADLAMP LEVELING) |
1 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 12V 5W |
2 | ||
| 99132-12050 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 12V 5W |
2 | ||
| 99132-12050 |
UZJ100..5F..(ARL,GCC);UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105..LHD..(GCC,GEN) 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60004 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN) |
2 | ||
| 90075-60004 |
UZJ100..(4FC,5F)..VX;HDJ100..(4FC,5F)..ARL;FZJ10#,HDJ100,HZJ105..(DSL2,EFI,TD2)..(ARL,GCC,GEN) |
2 | ||
| 90075-60077 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
HZJ105..LHD..SOB;FZJ100,UZJ100..GCC |
1 | ||
| 85661-22010 |
FZJ100,HZJ105,UZJ100..GCC |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
HZJ105..LHD..SOB;FZJ100,UZJ100..GCC |
1 | ||
| 85661-22010 |
FZJ100,HZJ105,UZJ100..GCC |
1 | ||
| Common parts | ||||
| 90075-10004 | ||||
| 90109-06334 | ||||
| 90159-50353 | ||||
| 90189-05142 | ||||
| 90467-08180 | ||||

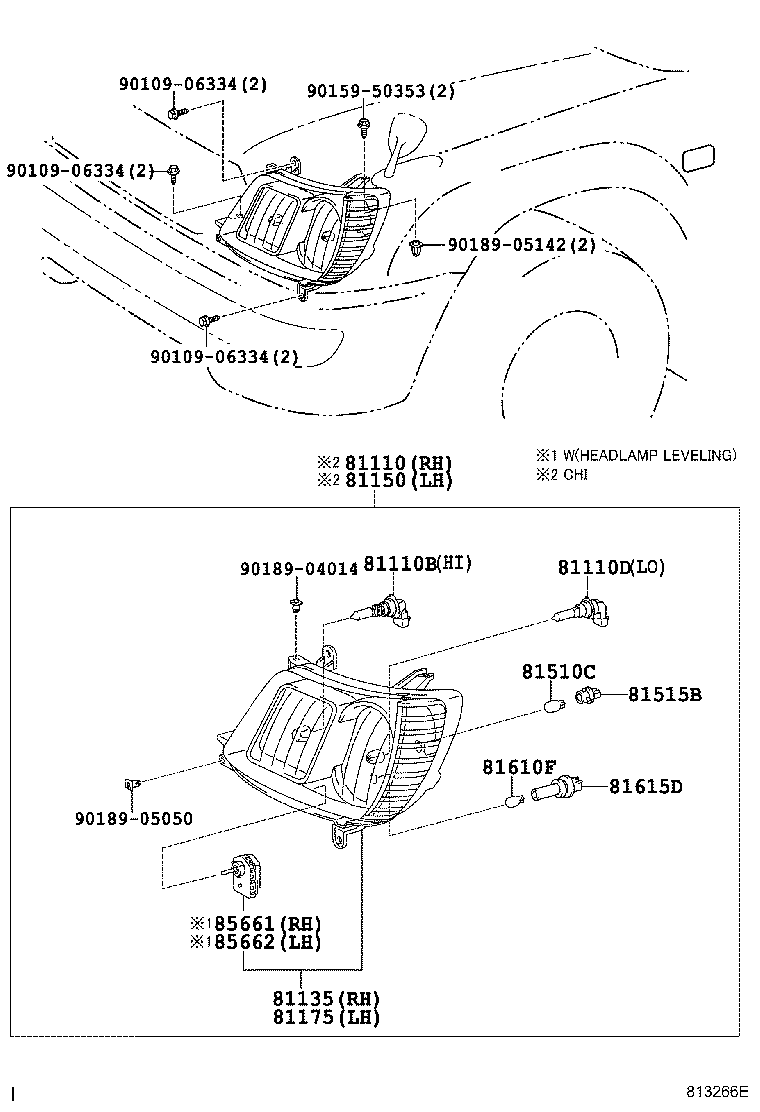

(0505-0506)ARL,GCC,GEN ; (0506- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 12V65W(SAE),60W(ECE) |
2 | ||
| 90981-13046 |
FZJ10#,HDJ100,HZJ105,UZJ100 12V65W(SAE),60W(ECE) |
2 | ||
| 90080-81041 |
UZJ100..5F..(ARL,GCC);UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105..LHD..(GCC,GEN) 12V 65W |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13047 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 12V 51W,HALOGEN |
2 | ||
| 90981-13047 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 12V 51W,HALOGEN |
2 | ||
| 90981-13047 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 12V 51W,HALOGEN |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81019-60040 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD |
1 | ||
| 81019-60040 |
FZJ100,HZJ105..GCC;HDJ100,UZJ100..LHD..(4FC,5F)..(EFI,TD2) |
1 | ||
| 81130-60B10 |
FZJ100..STD;HZJ105..LHD..SOB..GEN W(HEADLAMP LEVELING) |
1 | ||
| 81130-60A90 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81019-60061 |
FZJ100..GCC;HZJ105..LHD..SOB W(HEADLAMP LEVELING) |
1 | ||
| 81019-60041 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81130-60A92 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81130-60A91 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81130-60B11 |
FZJ100..STD;HZJ105..LHD..SOB..GEN W(HEADLAMP LEVELING) |
1 | ||
| 81019-60020 |
FZJ10#,HZJ105..LHD |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81059-60020 |
FZJ10#,HZJ105..LHD |
1 | ||
| 81059-60040 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD |
1 | ||
| 81059-60061 |
FZJ100..GCC;HZJ105..LHD..SOB W(HEADLAMP LEVELING) |
1 | ||
| 81059-60041 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81059-60040 |
FZJ100,HZJ105..GCC;HDJ100,UZJ100..LHD..(4FC,5F)..(EFI,TD2) |
1 | ||
| 81170-60B00 |
FZJ100..STD;HZJ105..LHD..SOB..GEN W(HEADLAMP LEVELING) |
1 | ||
| 81170-60A81 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81170-60A80 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81170-60A82 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81170-60B01 |
FZJ100..STD;HZJ105..LHD..SOB..GEN W(HEADLAMP LEVELING) |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
UZJ100..5F..(ARL,GCC);UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105..LHD..(GCC,GEN) 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 12V 5W |
2 | ||
| 99132-12050 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 12V 5W |
2 | ||
| 99132-12050 |
UZJ100..5F..(ARL,GCC);UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105..LHD..(GCC,GEN) 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60004 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN) |
2 | ||
| 90075-60004 |
UZJ100..(4FC,5F)..VX;HDJ100..(4FC,5F)..ARL;FZJ10#,HDJ100,HZJ105..(DSL2,EFI,TD2)..(ARL,GCC,GEN) |
2 | ||
| 90075-60077 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
HZJ105..LHD..SOB;FZJ100,UZJ100..GCC |
1 | ||
| 85661-22010 |
FZJ100,HZJ105,UZJ100..GCC |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
HZJ105..LHD..SOB;FZJ100,UZJ100..GCC |
1 | ||
| 85661-22010 |
FZJ100,HZJ105,UZJ100..GCC |
1 | ||
| Common parts | ||||
| 90109-06334 | ||||
| 90159-50353 | ||||
| 90189-04014 | ||||
| 90189-05050 | ||||
| 90189-05142 | ||||

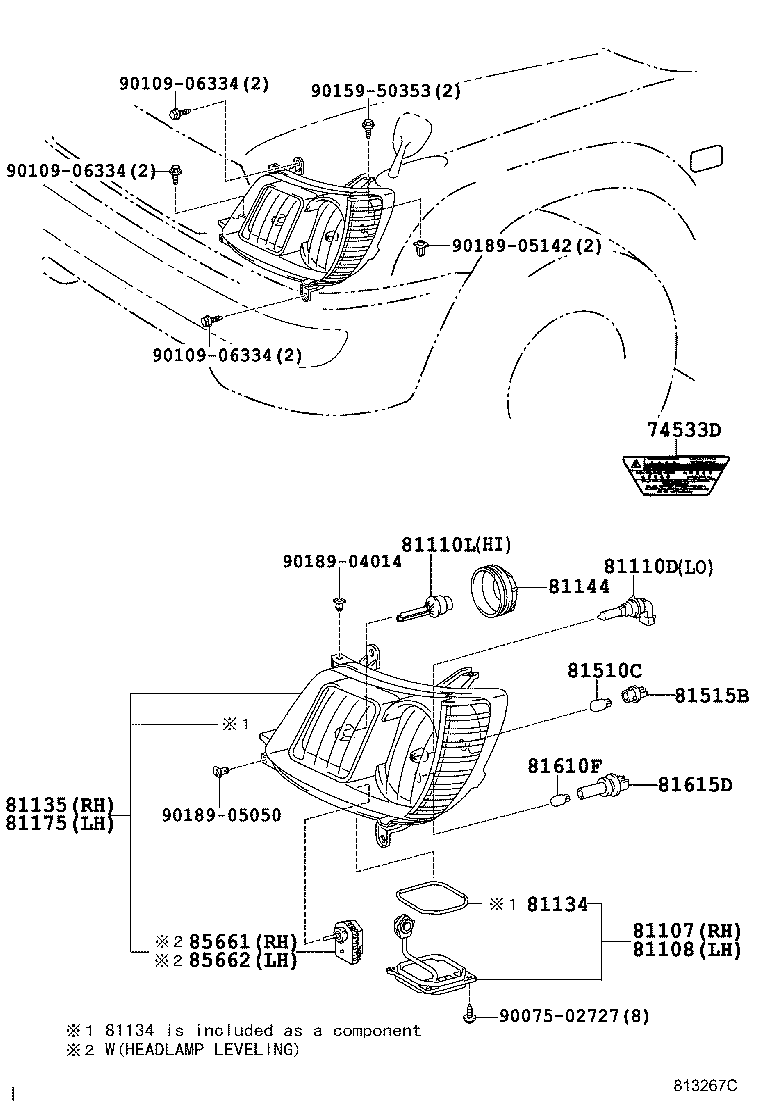

(0505- )GCC
W(DISCHARGE HEADLAMP)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13047 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 12V 51W,HALOGEN |
2 | ||
| 90981-13047 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 12V 51W,HALOGEN |
2 | ||
| 90981-13047 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 12V 51W,HALOGEN |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81019-60040 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD |
1 | ||
| 81019-60040 |
FZJ100,HZJ105..GCC;HDJ100,UZJ100..LHD..(4FC,5F)..(EFI,TD2) |
1 | ||
| 81130-60B10 |
FZJ100..STD;HZJ105..LHD..SOB..GEN W(HEADLAMP LEVELING) |
1 | ||
| 81130-60A90 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81019-60061 |
FZJ100..GCC;HZJ105..LHD..SOB W(HEADLAMP LEVELING) |
1 | ||
| 81019-60041 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81130-60A92 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81130-60A91 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81130-60B11 |
FZJ100..STD;HZJ105..LHD..SOB..GEN W(HEADLAMP LEVELING) |
1 | ||
| 81019-60020 |
FZJ10#,HZJ105..LHD |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81059-60020 |
FZJ10#,HZJ105..LHD |
1 | ||
| 81059-60040 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD |
1 | ||
| 81059-60061 |
FZJ100..GCC;HZJ105..LHD..SOB W(HEADLAMP LEVELING) |
1 | ||
| 81059-60041 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81059-60040 |
FZJ100,HZJ105..GCC;HDJ100,UZJ100..LHD..(4FC,5F)..(EFI,TD2) |
1 | ||
| 81170-60B00 |
FZJ100..STD;HZJ105..LHD..SOB..GEN W(HEADLAMP LEVELING) |
1 | ||
| 81170-60A81 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81170-60A80 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81170-60A82 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81170-60B01 |
FZJ100..STD;HZJ105..LHD..SOB..GEN W(HEADLAMP LEVELING) |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
UZJ100..5F..(ARL,GCC);UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105..LHD..(GCC,GEN) 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 12V 5W |
2 | ||
| 99132-12050 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 12V 5W |
2 | ||
| 99132-12050 |
UZJ100..5F..(ARL,GCC);UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105..LHD..(GCC,GEN) 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60004 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN) |
2 | ||
| 90075-60004 |
UZJ100..(4FC,5F)..VX;HDJ100..(4FC,5F)..ARL;FZJ10#,HDJ100,HZJ105..(DSL2,EFI,TD2)..(ARL,GCC,GEN) |
2 | ||
| 90075-60077 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
HZJ105..LHD..SOB;FZJ100,UZJ100..GCC |
1 | ||
| 85661-22010 |
FZJ100,HZJ105,UZJ100..GCC |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
HZJ105..LHD..SOB;FZJ100,UZJ100..GCC |
1 | ||
| 85661-22010 |
FZJ100,HZJ105,UZJ100..GCC |
1 | ||
| Common parts | ||||
| 90075-02727 | ||||
| 90109-06334 | ||||
| 90159-50353 | ||||
| 90189-04014 | ||||
| 90189-05050 | ||||
| 90189-05142 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
