FZJ100L-GCMRKV (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2007
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )FZJ10#..LHD

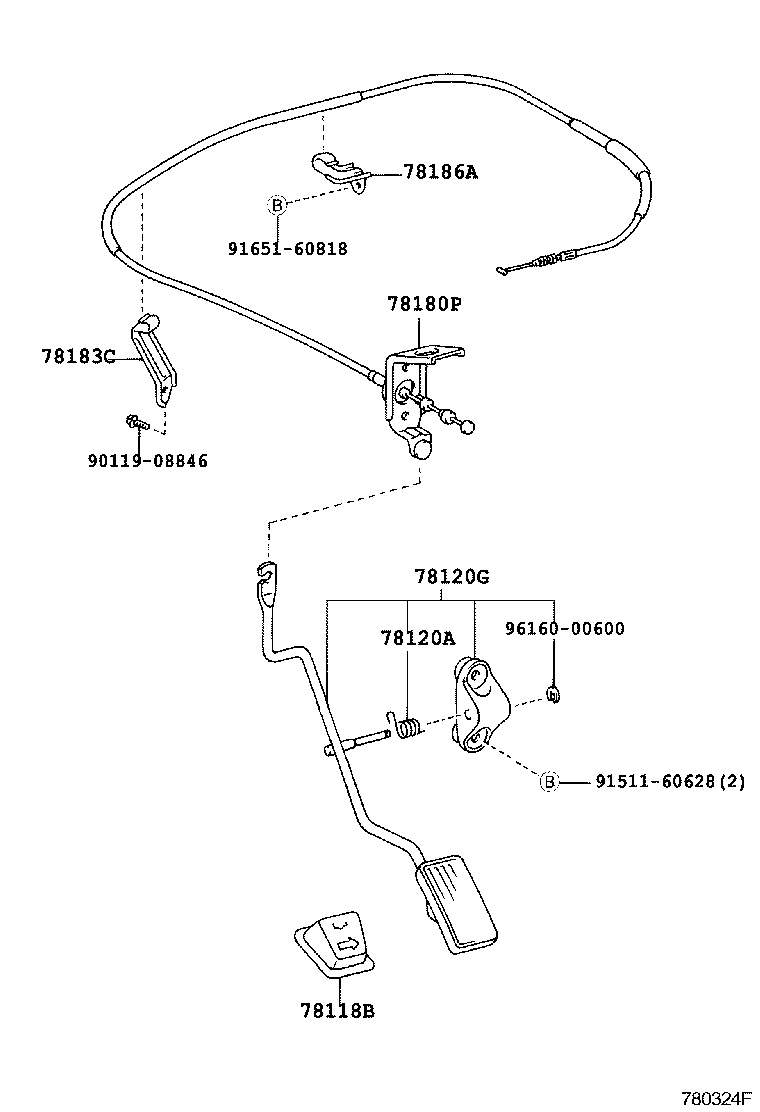

Click highlighted areas on diagram

diagram 78118B 78120A 78120G 78180P 78183C 78186A 9011908846 9151160628 9165160818 9616000600
Part # Description Qty Price
78118B - STOPPER, ACCELERATOR PEDAL
78118-60020

FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN)

 1
78118-60020

FZJ10#,HDJ100,HZJ105,UZJ100..LHD

 1
78118-60020

FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN)

 1
78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)
90959-03183

FZJ10#,HZJ105..ARL,GCC,GEN

 1
90959-03183

FZJ105,HZJ105..4FC;FZJ10#,HDJ100,HZJ105..LHD

 1
90959-03183

FZJ10#,HZJ105..ARL,GCC,GEN

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-60200

FZJ10#,HDJ100,HZJ105..LHD

 1
78120-60200

FZJ10#,HZJ105..LHD..(GCC,GEN)

 1
78120-60200

FZJ10#,HZJ105..LHD..(GCC,GEN)

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-60600

FZJ10#..LHD

 1
78180-60600

FZJ10#..LHD..(GCC,GEN)

 1
78180-60600

FZJ10#..LHD..(GCC,GEN)

 1
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-60180

FZJ10#..LHD

 1
78183-60180

FZJ10#..LHD..(GCC,GEN)

 1
78183-60180

FZJ10#..LHD..(GCC,GEN)

 1
78186A - CLAMP, ACCELERATOR CONTROL CABLE, NO.3
78186-60100

FZJ10#..LHD

 1
78186-60100

FZJ10#..LHD..(GCC,GEN)

 1
78186-60100

FZJ10#..LHD..(GCC,GEN)

 1
Common parts
90119-08846
91511-60628
91651-60818
96160-00600
