FZJ100L-GCMRKV (1998)
Toyota Land Cruiser 100
ILLUST NO. 1 OF 2(9801- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-60220 |
UZJ100..ARL;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TDEFI |
1 | ||
| 67003-60221 |
FZJ10#,HDJ100,HZJ105..DSL2,EFI,TDEFI |
1 | ||
| 67003-60330 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) W(REAR DOOR WEATHERSTRIP=TYPE A) |
1 | ||
| 67003-60330 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN W(REAR DOOR WEATHERSTRIP=TYPE A) |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-60220 |
UZJ100..ARL;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TDEFI |
1 | ||
| 67004-60221 |
FZJ10#,HDJ100,HZJ105..DSL2,EFI,TDEFI |
1 | ||
| 67004-60330 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN W(REAR DOOR WEATHERSTRIP=TYPE A) |
1 | ||
| 67004-60330 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) W(REAR DOOR WEATHERSTRIP=TYPE A) |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-60160 |
UZJ100..ARL;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TDEFI |
1 | ||
| 67113-60160 |
HDJ100,UZJ100..ARL;FZJ10#,HZJ105..ARL,GCC,GEN |
1 | ||
| 67113-60160 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-60160 |
UZJ100..ARL;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TDEFI |
1 | ||
| 67114-60160 |
HDJ100,UZJ100..ARL;FZJ10#,HZJ105..ARL,GCC,GEN |
1 | ||
| 67114-60160 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 67407-60040 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 67407-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 67408-60040 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 67408-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-60090 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 67841-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 67841-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-60040 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 67842-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 67842-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 67843B - COVER, REAR DOOR SERVICE HOLE, NO.2 RH | ||||
| 67833-60010 |
HZJ105..SOB;FZJ10#,HDJ100..GCC,GEN;HZJ105,UZJ100..LUB..GEN |
1 | ||
| 67833-60010 |
HDJ100,UZJ100..GEN;FZJ10#,HDJ100,HZJ105..GX,STD |
1 | ||
| 67833-60010 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105 |
1 | ||
| 67833-60010 |
HDJ100..5FC..GX;UZJ100..GX..ARL;HDJ100,UZJ100..5FC..GEN;FZJ10#,HDJ100,HZJ105..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 67844A - COVER, REAR DOOR SERVICE HOLE, NO.2 LH | ||||
| 67833-60010 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105 |
1 | ||
| 67833-60010 |
HDJ100,UZJ100..GEN;FZJ10#,HDJ100,HZJ105..GX,STD |
1 | ||
| 67833-60010 |
HZJ105..SOB;FZJ10#,HDJ100..GCC,GEN;HZJ105,UZJ100..LUB..GEN |
1 | ||
| 67833-60010 |
HDJ100..5FC..GX;UZJ100..GX..ARL;HDJ100,UZJ100..5FC..GEN;FZJ10#,HDJ100,HZJ105..(4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
17 | ||
| 67867-12150 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
17 | ||
| 67867-12150 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
17 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
17 | ||
| 67867-12150 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
17 | ||
| 67867-12150 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 67871-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 67871-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 67872-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 67872-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-60150 |
FZJ10#,HDJ100,HZJ105,UZJ100 *TT,T=4.0,GREEN |
1 | ||
| 68113-60150 |
FZJ10#,HDJ100,HZJ105,UZJ100 *TT,T=4.0,GREEN |
1 | ||
| 68113-60250 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN *TT,T=4.0,GREEN |
1 | ||
| 68113-60250 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN *TT,T=4.0,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-60250 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN *TT,T=4.0,GREEN |
1 | ||
| 68114-60150 |
FZJ10#,HDJ100,HZJ105,UZJ100 *TT,T=4.0,GREEN |
1 | ||
| 68114-60150 |
FZJ10#,HDJ100,HZJ105,UZJ100 *TT,T=4.0,GREEN |
1 | ||
| 68114-60250 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN *TT,T=4.0,GREEN |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-60160 |
FZJ10#,HDJ100,HZJ105,UZJ100 *TT,T=3.5,GREEN |
1 | ||
| 68123-60160 |
FZJ10#,HDJ100,HZJ105,UZJ100 *TT,T=3.5,GREEN |
1 | ||
| 68123-60161 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN *TT,T=3.5,GREEN |
1 | ||
| 68123-60161 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN *TT,T=3.5,GREEN |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-60160 |
FZJ10#,HDJ100,HZJ105,UZJ100 *TT,T=3.5,GREEN |
1 | ||
| 68124-60161 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN *TT,T=3.5,GREEN |
1 | ||
| 68124-60161 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN *TT,T=3.5,GREEN |
1 | ||
| 68124-60160 |
FZJ10#,HDJ100,HZJ105,UZJ100 *TT,T=3.5,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 68142-60043 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68142-60042 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 68142-60042 |
FZJ105..GX;HZJ105..RHD;HZJ105..GCC;FZJ100,HDJ100;HZJ105..LHD..LUB;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 68142-60042 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68142-60043 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-60032 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68152-60032 |
FZJ105..GX;HZJ105..RHD;HZJ105..GCC;FZJ100,HDJ100;HZJ105..LHD..LUB;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 68152-60033 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68152-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 68152-60032 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 68152-60033 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-60040 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 68188-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68188-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68189-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68189-60040 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 68621C - COVER, REAR DOOR CHECK, RH | ||||
| 68621-53010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68621-53010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68622A - COVER, REAR DOOR CHECK, LH | ||||
| 68622-53010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68622-53010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 68630-60091 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68630-60051 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 68630-60091 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68630-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 68640-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68640-60081 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68640-60081 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68640-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| Common parts | ||||
| 67834-60010 | ||||
| 90109-08295 | ||||
| 90151-50013 | ||||
| 90179-06159 | ||||
| 90333-25001 | ||||
| 90467-05162B0 | ||||
| 90950-01901 | ||||
| 91651-40612 | ||||

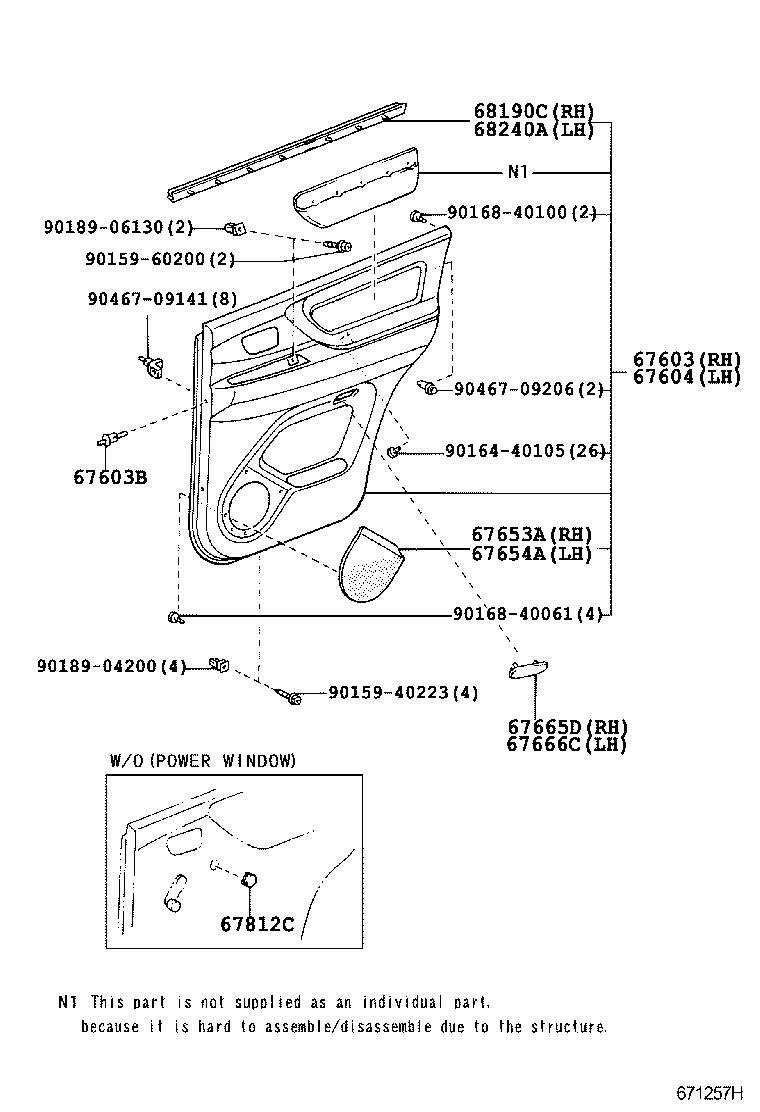

ILLUST NO. 2 OF 2(9801- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-60490B0 |
FZJ10#,HZJ105..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67630-60490B1 |
FZJ10#,HZJ105..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67630-60491B2 |
FZJ10#,HZJ105..STD STONE,TRIM1# |
1 | ||
| 67630-60522B0 |
FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..(GX,STD)..(ARL,GCC) W(POWER WINDOW & SPEAKER),STONE,TRIM1# |
1 | ||
| 67630-60491B2 |
FZJ10#,HZJ105..STD STONE,TRIM1# |
1 | ||
| 67630-60522B2 |
FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..(GX,STD)..(ARL,GCC) W(POWER WINDOW & SPEAKER),STONE,TRIM1# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-07066P2 |
FZJ10#,HDJ100,HZJ105,UZJ100 MD.GRAY,TRIM1# |
8 | ||
| 90467-07066P4 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN STONE,TRIM1# |
8 | ||
| 90467-07066P4 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN STONE,TRIM1# |
8 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-60490B0 |
FZJ10#,HZJ105..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67640-60490B1 |
FZJ10#,HZJ105..STD SHADOW GRAY,TRIM1# |
1 | ||
| 67640-60491B2 |
FZJ10#,HZJ105..STD STONE,TRIM1# |
1 | ||
| 67640-60522B0 |
FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..(GX,STD)..(ARL,GCC) W(POWER WINDOW & SPEAKER),STONE,TRIM1# |
1 | ||
| 67640-60491B2 |
FZJ10#,HZJ105..STD STONE,TRIM1# |
1 | ||
| 67640-60522B2 |
FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..(GX,STD)..(ARL,GCC) W(POWER WINDOW & SPEAKER),STONE,TRIM1# |
1 | ||
| 67653A - GRILLE, SPEAKER REAR DOOR, RH | ||||
| 67653-60020B2 |
FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..(GX,STD)..(ARL,GCC) STONE,TRIM1# |
1 | ||
| 67653-60020B2 |
FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..(GX,STD)..(ARL,GCC) STONE,TRIM1# |
1 | ||
| 67654A - GRILLE, SPEAKER REAR DOOR, LH | ||||
| 67654-60010B2 |
FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..(GX,STD)..(ARL,GCC) STONE,TRIM1# |
1 | ||
| 67654-60010B2 |
FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..(GX,STD)..(ARL,GCC) STONE,TRIM1# |
1 | ||
| 67812C - COVER, REAR DOOR HOLE | ||||
| 67811-60020B1 |
FZJ105;FZJ100..STD;HZJ105..SOB;HZJ105..LUB..GEN STONE,TRIM1# |
2 | ||
| 67811-60020B1 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) STONE,TRIM1# |
2 | ||
| 67811-60020B0 |
FZJ10#,HDJ100,HZJ105..GX,STD MD.GRAY,TRIM1# |
2 | ||
| 68190C - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER RH | ||||
| 68190-60080 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 68190-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68190-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68240A - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH | ||||
| 68240-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 68240-60060 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 68240-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90159-40223 | ||||
| 90159-60200 | ||||
| 90164-40105 | ||||
| 90168-40061 | ||||
| 90168-40100 | ||||
| 90189-04200 | ||||
| 90189-06130 | ||||
| 90467-09141 | ||||
| 90467-09206 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
