FZJ100L-GCMRKV (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2007
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )ARL,GCC,GEN ; (0309- )CHI

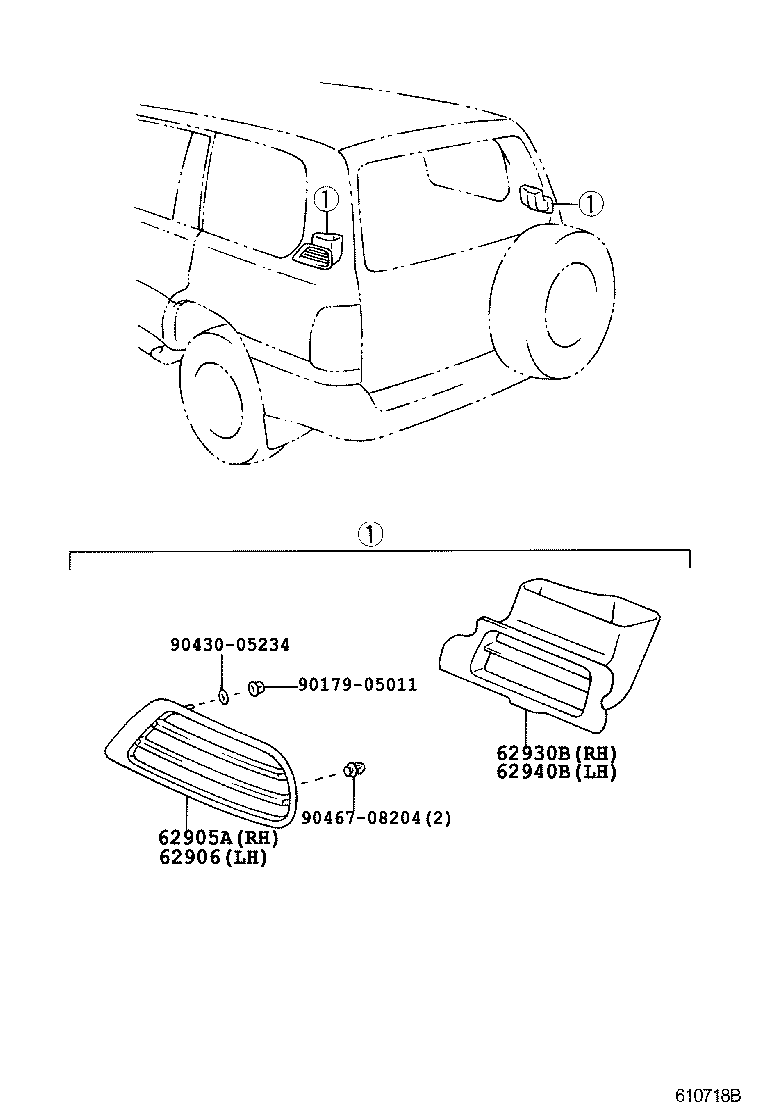

Click highlighted areas on diagram

diagram 62905A 62906 62930B 62940B 9017905011 9043005234 9046708204
Part # Description Qty Price
62905A - LOUVER, QUATER VENTILATION, RH
62905-60050

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

 1
62905-60050

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

 1
62905-60050

FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)

 1
62906 - LOUVER, QUATER VENTILATION, LH
62906-60050

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

 1
62906-60050

FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)

 1
62906-60050

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

 1
62930B - DUCT ASSY, QUARTER VENT, RH
62930-60040

FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)

 1
62930-60040

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

 1
62930-60040

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

 1
62940B - DUCT ASSY, QUARTER VENT, LH
62940-60020

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

 1
62940-60020

FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)

 1
62940-60020

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

 1
Common parts
90179-05011
90430-05234
90467-08204
