Toyota Land cruiser 100 FZJ100 POWER STEERING TUBE

FZJ100L-GCMRKV (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2007

Engine 1FZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

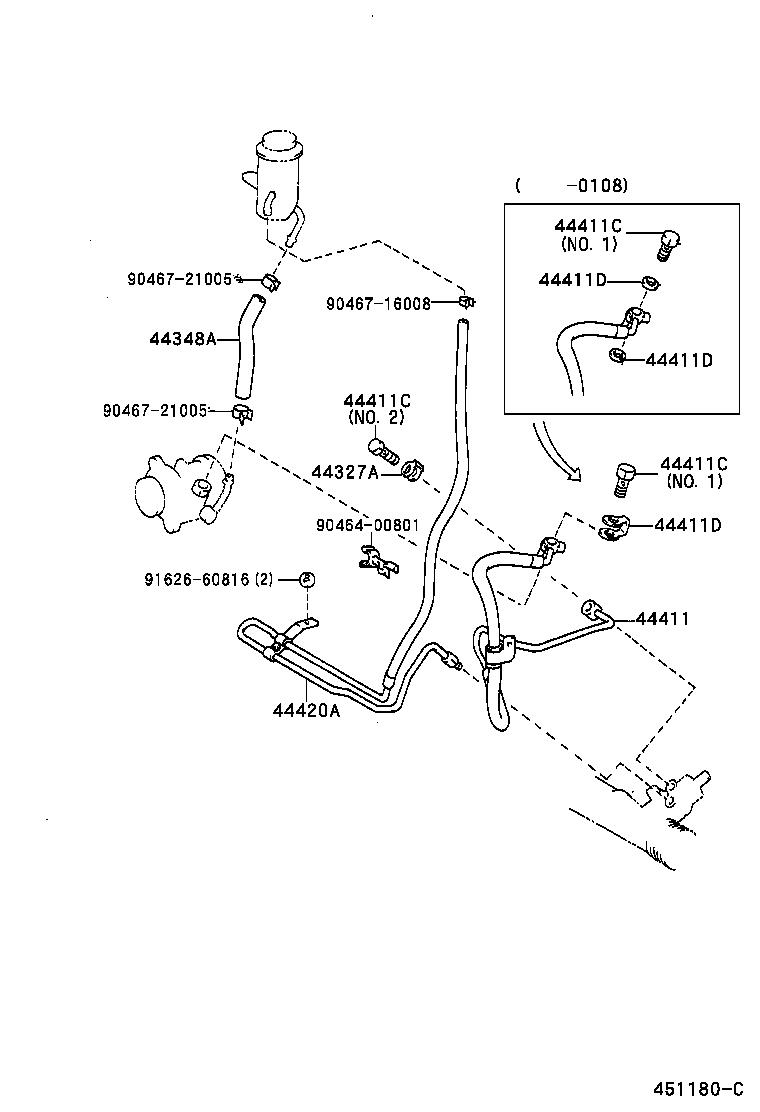

(9801-0208)FZJ100

Click highlighted areas on diagram

Part #	Description	Period	Qty
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030	UZJ100..LHD;FZJ100,HDJ100	01/1998 - 08/2002	1
44327-30030	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
44327-30030	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60230	FZJ100	01/1998 - 08/2002	1
44348-60330	FZJ100..GCC	08/2002 - 05/2005	1
44348-60330	FZJ100..GCC	05/2005 - 12/2999	1
44411 - HOSE, PRESSURE FEED
44411-60540	FZJ100	01/1998 - 08/2002	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027	FZJ100,HDJ100..GCC,GEN NO.1	01/1998 - 08/2001	1
90401-16040	FZJ100,HDJ100,UZJ100 NO.2	01/1998 - 08/2002	1
96341-41603	FZJ100,HDJ100..GCC,GEN NO.1	08/2001 - 08/2002	1
96341-41603	FZJ10#,HZJ105..ARL,GCC,GEN	05/2005 - 12/2999	1
96341-41603	FZJ10#,HZJ105..ARL,GCC,GEN	08/2002 - 05/2005	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027	FZJ100,HDJ100..GCC,GEN NO.1	01/1998 - 08/2001	1
90401-16040	FZJ100,HDJ100,UZJ100 NO.2	01/1998 - 08/2002	1
96341-41603	FZJ100,HDJ100..GCC,GEN NO.1	08/2001 - 08/2002	1
96341-41603	FZJ10#,HZJ105..ARL,GCC,GEN	05/2005 - 12/2999	1
96341-41603	FZJ10#,HZJ105..ARL,GCC,GEN	08/2002 - 05/2005	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027	FZJ100,HDJ100..GCC,GEN NO.1	01/1998 - 08/2001	1
90401-16040	FZJ100,HDJ100,UZJ100 NO.2	01/1998 - 08/2002	1
96341-41603	FZJ100,HDJ100..GCC,GEN NO.1	08/2001 - 08/2002	1
96341-41603	FZJ10#,HZJ105..ARL,GCC,GEN	05/2005 - 12/2999	1
96341-41603	FZJ10#,HZJ105..ARL,GCC,GEN	08/2002 - 05/2005	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
44327-30030	FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2	08/2001 - 08/2002	1
90430-16168	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2001	2
44327-30030	FZJ10#,HZJ105..ARL,GCC,GEN	08/2002 - 05/2005	1
44327-30030	FZJ10#,HZJ105..ARL,GCC,GEN	05/2005 - 12/2999	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
44327-30030	FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2	08/2001 - 08/2002	1
90430-16168	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2001	2
44327-30030	FZJ10#,HZJ105..ARL,GCC,GEN	08/2002 - 05/2005	1
44327-30030	FZJ10#,HZJ105..ARL,GCC,GEN	05/2005 - 12/2999	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
44327-30030	FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2	08/2001 - 08/2002	1
90430-16168	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2001	2
44327-30030	FZJ10#,HZJ105..ARL,GCC,GEN	08/2002 - 05/2005	1
44327-30030	FZJ10#,HZJ105..ARL,GCC,GEN	05/2005 - 12/2999	1
44420A - TUBE ASSY, RETURN
44420-60460	FZJ100..GCC	08/2002 - 08/2004	1
44420-60420	FZJ100	01/1998 - 08/2002	1
44420-60463	FZJ100..GCC	09/2004 - 05/2005	1
44420-60463	FZJ100..GCC	05/2005 - 12/2999	1
44420-60461	FZJ100..GCC	08/2004 - 09/2004	1
Common parts
90464-00801
90467-16008
90467-21005
91626-60816

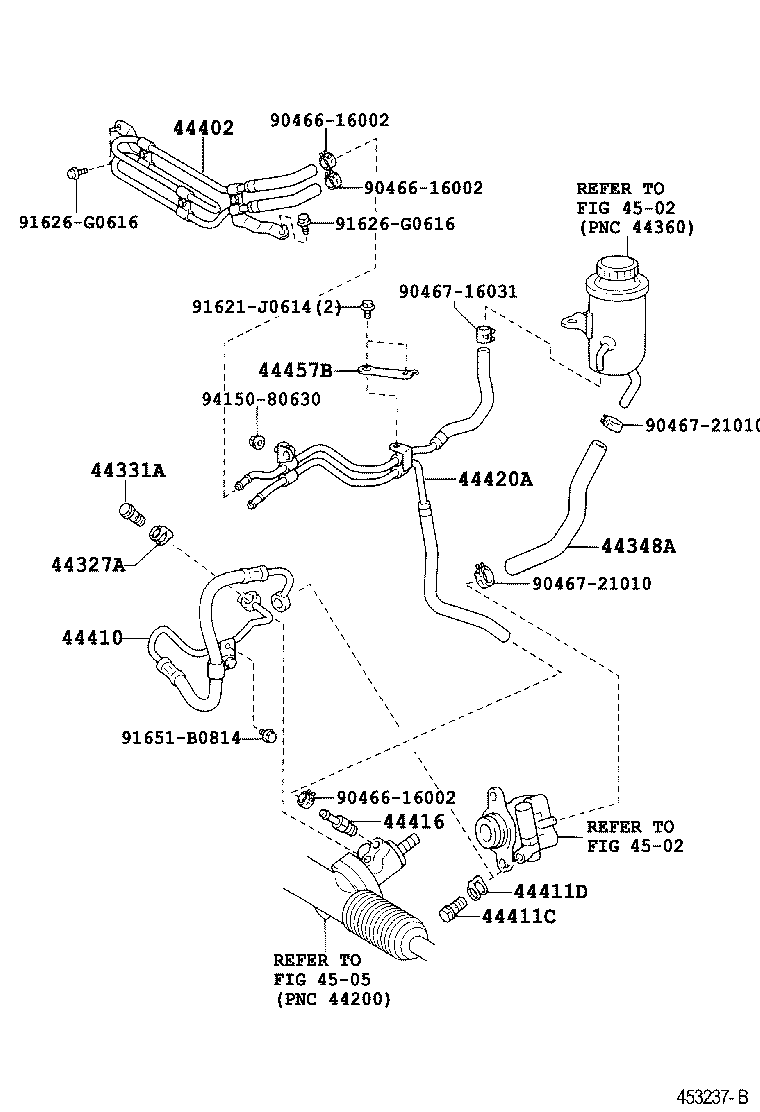

(0208- )FZJ100

Click highlighted areas on diagram

Part #	Description	Period	Qty
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030	UZJ100..LHD;FZJ100,HDJ100	01/1998 - 08/2002	1
44327-30030	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
44327-30030	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
44331A - VALVE, POWER STEERING & SUSPENSION CONTROL CHECK
44331-50070	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
44331-50070	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60230	FZJ100	01/1998 - 08/2002	1
44348-60330	FZJ100..GCC	08/2002 - 05/2005	1
44348-60330	FZJ100..GCC	05/2005 - 12/2999	1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-60023	FZJ100,HDJ100..ARL,GCC,GEN	09/2004 - 05/2005	1
44402-60020	FZJ100,HDJ100..ARL,GCC,GEN	08/2002 - 08/2004	1
44402-60021	FZJ100,HDJ100..ARL,GCC,GEN	08/2004 - 09/2004	1
44402-60023	FZJ100,HDJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
44410 - TUBE ASSY, PRESSURE FEED
44411-60630	FZJ100..GCC	08/2002 - 05/2005	1
44411-60630	FZJ100..GCC	05/2005 - 12/2999	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027	FZJ100,HDJ100..GCC,GEN NO.1	01/1998 - 08/2001	1
90401-16040	FZJ100,HDJ100,UZJ100 NO.2	01/1998 - 08/2002	1
96341-41603	FZJ100,HDJ100..GCC,GEN NO.1	08/2001 - 08/2002	1
96341-41603	FZJ10#,HZJ105..ARL,GCC,GEN	05/2005 - 12/2999	1
96341-41603	FZJ10#,HZJ105..ARL,GCC,GEN	08/2002 - 05/2005	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
44327-30030	FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2	08/2001 - 08/2002	1
90430-16168	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2001	2
44327-30030	FZJ10#,HZJ105..ARL,GCC,GEN	08/2002 - 05/2005	1
44327-30030	FZJ10#,HZJ105..ARL,GCC,GEN	05/2005 - 12/2999	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-44010	UZJ100..ARL;FZJ100,HDJ100..LHD..(GCC,GEN)	08/2004 - 09/2004	1
44416-26080	UZJ100..ARL;FZJ100,HDJ100..LHD..(GCC,GEN)	08/2002 - 08/2004	1
44416-60370	UZJ100..ARL;FZJ100,HDJ100..LHD..(GCC,GEN)	05/2005 - 12/2999	1
44416-60370	UZJ100..ARL;FZJ100,HDJ100..LHD..(GCC,GEN)	09/2004 - 05/2005	1
44420A - TUBE ASSY, RETURN
44420-60460	FZJ100..GCC	08/2002 - 08/2004	1
44420-60420	FZJ100	01/1998 - 08/2002	1
44420-60463	FZJ100..GCC	09/2004 - 05/2005	1
44420-60463	FZJ100..GCC	05/2005 - 12/2999	1
44420-60461	FZJ100..GCC	08/2004 - 09/2004	1
44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2
44457-60180	FZJ100,HDJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
44457-60180	FZJ100,HDJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
Common parts
90466-16002
90467-16031
90467-21010
91621-J0614
91626-G0616
91651-B0814
94150-80630
Linked diagrams
4502
4505

FZJ100L-GCMRKV (1998)

(9801-0208)FZJ100

(0208- )FZJ100
