FZJ100L-GCMRKV (1998)
Toyota Land Cruiser 100

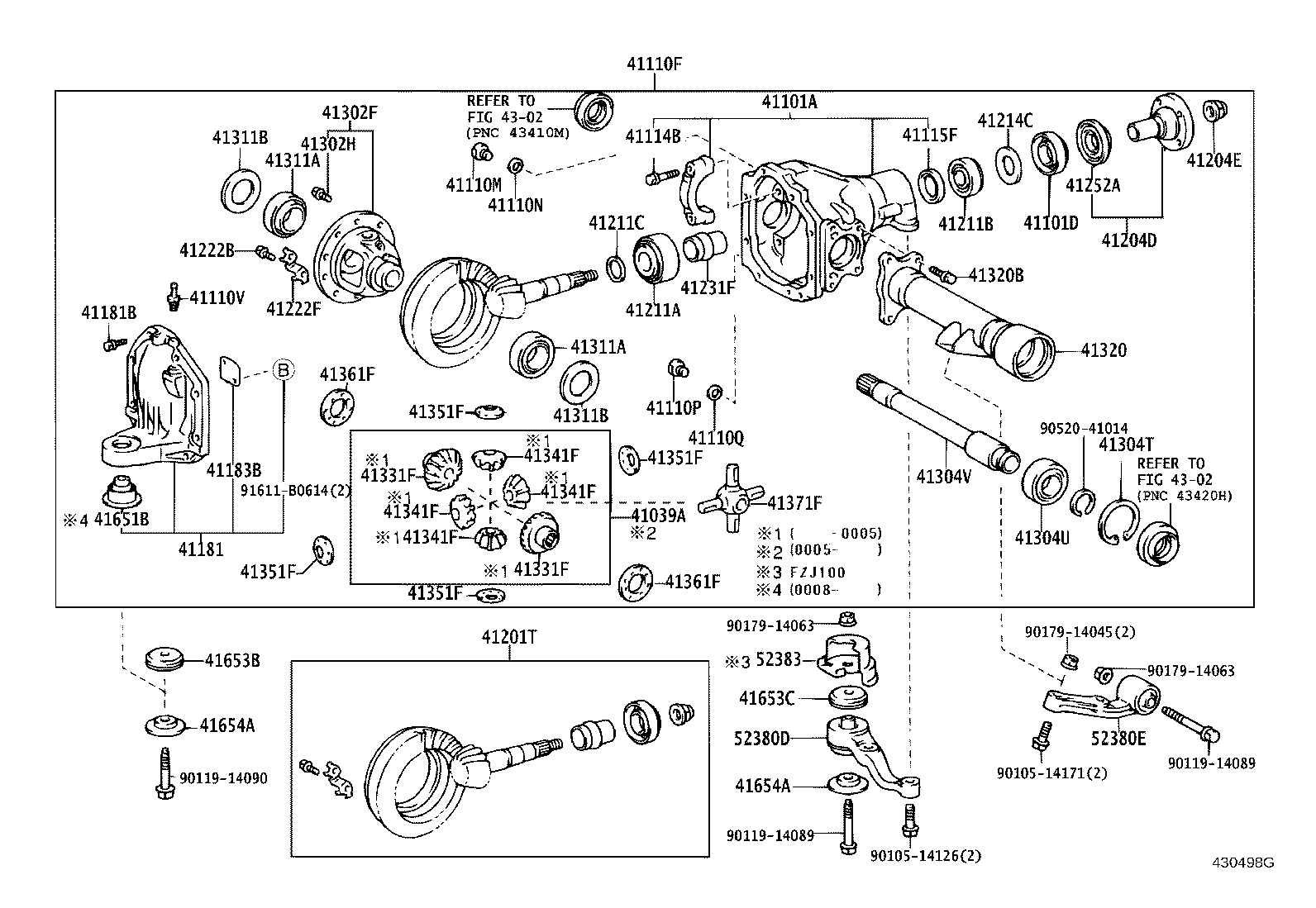

ILLUST NO. 2 OF 2(9801- )FZJ100,HDJ100,UZJ100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110R - PLUG, BREATHER (FOR FRONT DIFFERENTIAL) | ||||
| 90930-03097 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 90930-03097 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 90930-03097 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 41533-60020 | ||||
| 82715-60440 | ||||
| 90445-10083 | ||||
| 90447-06010 | ||||
| 90469-12008 | ||||
| 91626-60816 | ||||
| 91651-B0814 | ||||
| 96135-51100 | ||||

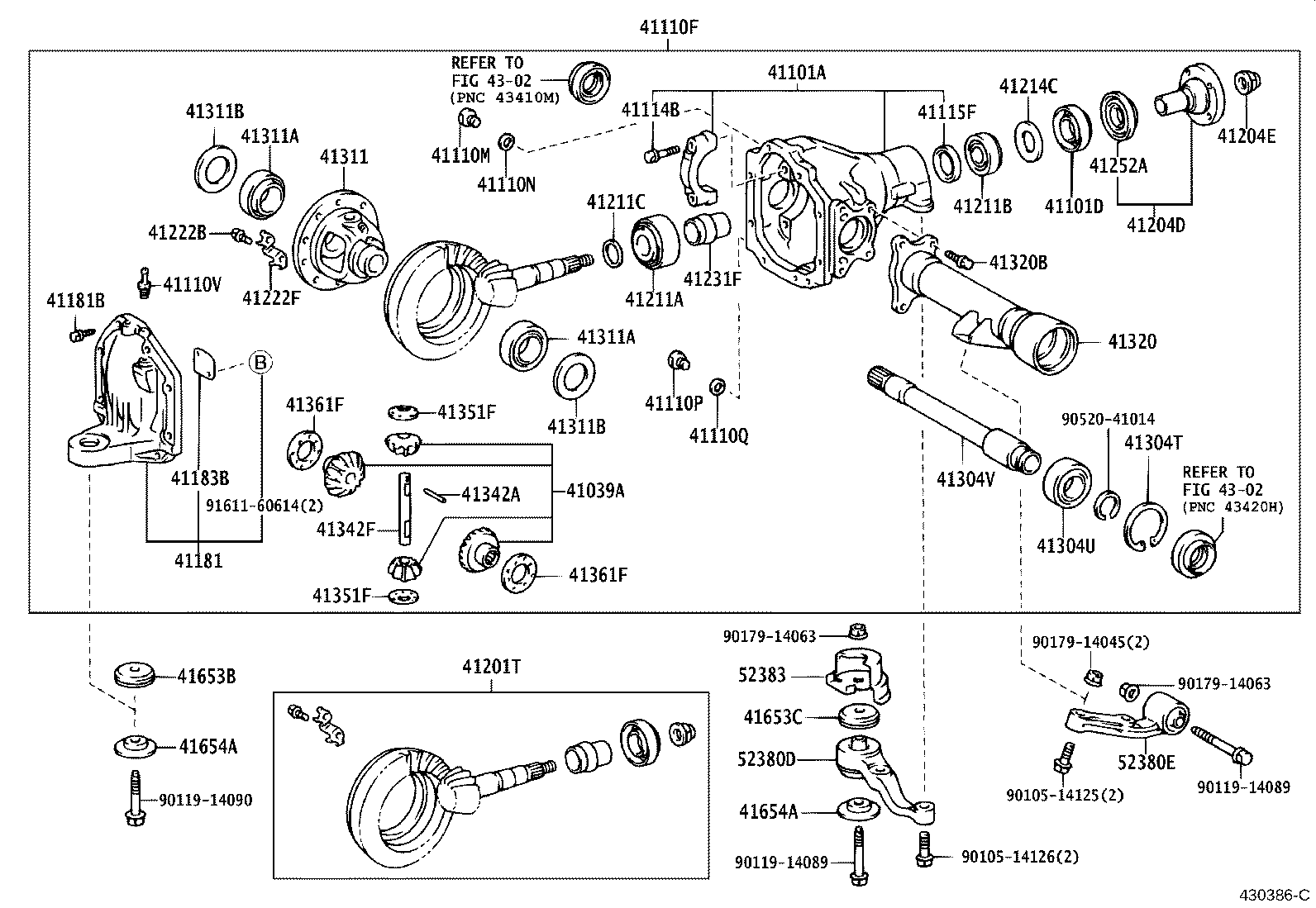

ILLUST NO. 1 OF 2(9801-9908)FZJ100,HDJ100,UZJ100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039A - GEAR KIT, DIFFERENTIAL | ||||
| 41039-22010 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 41039-34020 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41039-34020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41039-34020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT | ||||
| 41101-60170 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41101-60170 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41101-60170 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41101D - SEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90311-41009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90311-41009 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90311-41009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90311-38066 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-6A170 |
FZJ100,UZJ100..5F *FGR=43:10=4.300 |
1 | ||
| 41110-6A171 |
FZJ100,UZJ100..5F..(ARL,GCC) *FGR=43:10=4.300 |
1 | ||
| 41110-6A171 |
FZJ100,UZJ100..5F *FGR=43:10=4.300 |
1 | ||
| 41110-6A171 |
FZJ100,UZJ100..5F..(ARL,GCC) *FGR=43:10=4.300 |
1 | ||
| 41110M - PLUG, FRONT DIFFERENTIAL FILLER | ||||
| 90341-18032 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 90341-18032 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 90341-18032 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41110N - GASKET, FRONT DIFFERENTIAL FILLER PLUG | ||||
| 12157-10010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 12157-10010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 12157-10010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41110P - PLUG, FRONT DIFFERENTIAL DRAIN | ||||
| 90341-18035 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 90341-18035 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 90341-18035 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41110Q - GASKET, FRONT DIFFERENTIAL DRAIN PLUG | ||||
| 12157-10010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 12157-10010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 12157-10010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41110V - UNION (FOR FRONT DIFFERENTIAL) | ||||
| 90404-51077 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 90404-51077 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 90404-51077 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41114B - BOLT, FRONT DIFFERENTIAL BEARING CAP | ||||
| 90105-12164 |
UZJ100..LHD;FZJ100,HDJ100 |
4 | ||
| 90105-12164 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 90105-12164 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 41115F - RING, FRONT DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41115-35010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 41115-35010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 41181 - COVER, FRONT DIFFERENTIAL CARRIER | ||||
| 41108-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41108-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41108-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41108-60011 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41181B - BOLT (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING) | ||||
| 90105-10264 |
UZJ100..LHD;FZJ100,HDJ100 *10-1.25PX40-30 |
1 | ||
| 90105-10117 |
FZJ100,HDJ100,UZJ100 *10-1.25PX26-17 |
8 | ||
| 90105-10417 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN *10-1.25PX26-17 |
8 | ||
| 90105-10264 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN *10-1.25PX40-30 |
1 | ||
| 90105-10417 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN *10-1.25PX26-17 |
8 | ||
| 90105-10264 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN *10-1.25PX40-30 |
1 | ||
| 41183B - DEFLECTOR, FRONT DIFFERENTIAL SIDE BEARING RETAINER | ||||
| 41183-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41183-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41183-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41201T - FINAL GEAR KIT, DIFFERENTIAL, FRONT | ||||
| 41201-80140 |
FZJ100,UZJ100..5F *FGR=43:10=4.300 |
1 | ||
| 41201-80171 |
FZJ10#,UZJ100..5F..(ARL,GCC,GEN) *FGR=43:10=4.300 |
1 | ||
| 41201-80171 |
FZJ105;FZJ100,UZJ100..5F *FGR=43:10=4.300 |
1 | ||
| 41201-80171 |
FZJ10#,UZJ100..5F..(ARL,GCC,GEN) *FGR=43:10=4.300 |
1 | ||
| 41201-69825 |
FZJ10#,UZJ100..5F..(ARL,GCC,GEN) *FGR=43:10=4.300 |
1 | ||
| 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT | ||||
| 41204-60040 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 41204-60041 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 41204-60041 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41204-60041 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41204E - NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90177-22003 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90177-22003 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90179-20018 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90177-22003 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-35087 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90366-35087 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90366-35087 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-30067 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 90366-30067 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90366-30067 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 41211C - GEAR, DIFFERENTIAL RING | ||||
| 90201-35497 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=1.70 |
1 | ||
| 90201-35503 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=1.88 |
1 | ||
| 90201-35500 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=1.79 |
1 | ||
| 90201-35499 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=1.76 |
1 | ||
| 90201-35501 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=1.82 |
1 | ||
| 90201-35508 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.03 |
1 | ||
| 90201-35509 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.06 |
1 | ||
| 90201-35502 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=1.85 |
1 | ||
| 90201-35504 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=1.91 |
1 | ||
| 90201-35505 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=1.94 |
1 | ||
| 90201-35506 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=1.97 |
1 | ||
| 90201-35513 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.18 |
1 | ||
| 90201-35498 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=1.73 |
1 | ||
| 90201-35507 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.00 |
1 | ||
| 90201-35515 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35511 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.12 |
1 | ||
| 90201-35512 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.15 |
1 | ||
| 90201-35510 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.09 |
1 | ||
| 90201-35499 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.76 |
1 | ||
| 90201-35516 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35502 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.85 |
1 | ||
| 90201-35514 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.21 |
1 | ||
| 90201-35505 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.94 |
1 | ||
| 90201-35498 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.73 |
1 | ||
| 90201-35503 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.88 |
1 | ||
| 90201-35504 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.91 |
1 | ||
| 90201-35497 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.70 |
1 | ||
| 90201-35500 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.79 |
1 | ||
| 90201-35507 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.00 |
1 | ||
| 90201-35511 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.12 |
1 | ||
| 90201-35517 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35518 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35508 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.03 |
1 | ||
| 90201-35513 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.18 |
1 | ||
| 90201-35518 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35514 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.21 |
1 | ||
| 90201-35512 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.15 |
1 | ||
| 90201-35506 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.97 |
1 | ||
| 90201-35501 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.82 |
1 | ||
| 90201-35509 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.06 |
1 | ||
| 90201-35517 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35515 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35510 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.09 |
1 | ||
| 90201-35516 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35503 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.88 |
1 | ||
| 90201-35499 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.76 |
1 | ||
| 90201-35500 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.79 |
1 | ||
| 90201-35501 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.82 |
1 | ||
| 90201-35498 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.73 |
1 | ||
| 90201-35497 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.70 |
1 | ||
| 90201-35502 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.85 |
1 | ||
| 90201-35507 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.00 |
1 | ||
| 90201-35512 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.15 |
1 | ||
| 90201-35510 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.09 |
1 | ||
| 90201-35514 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.21 |
1 | ||
| 90201-35511 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.12 |
1 | ||
| 90201-35505 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.94 |
1 | ||
| 90201-35508 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.03 |
1 | ||
| 90201-35515 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35504 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.91 |
1 | ||
| 90201-35516 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35509 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.06 |
1 | ||
| 90201-35518 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35506 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.97 |
1 | ||
| 90201-35513 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.18 |
1 | ||
| 90201-35517 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.30,MARK 03 |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 41214-26010 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 41214-26011 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41214-26011 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
10 | ||
| 90101-11353 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
10 | ||
| 90101-11353 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
10 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-22010 |
FZJ100,HDJ100,UZJ100 |
5 | ||
| 41222-35020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
5 | ||
| 41222-35020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
5 | ||
| 41222-35020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
5 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 41231-24010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 41231-24010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) | ||||
| 41252-60011 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 41252-60010 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 41252-60011 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41252-60011 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41304T - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT LH) | ||||
| 90521-86002 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 90520-75002 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 90520-75002 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 90520-75002 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41304U - BEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT LH) | ||||
| 90363-43001 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 90363-43001 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 90363-43001 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41304V - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH | ||||
| 41337-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41337-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41337-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41311-22080 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-50001 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 90366-50001 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 90366-50001 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-50001 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 90366-50001 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 90366-50001 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90201-52003 |
UZJ100..LHD;FZJ100,HDJ100 T=2.64,MARK 03 |
1 | ||
| 90201-52007 |
UZJ100..LHD;FZJ100,HDJ100 T=2.76,MARK 07 |
1 | ||
| 90201-52001 |
UZJ100..LHD;FZJ100,HDJ100 T=2.58,MARK 01 |
1 | ||
| 90201-52005 |
UZJ100..LHD;FZJ100,HDJ100 T=2.70,MARK 05 |
1 | ||
| 90201-52013 |
UZJ100..LHD;FZJ100,HDJ100 T=2.94,MARK 13 |
1 | ||
| 90201-52021 |
UZJ100..LHD;FZJ100,HDJ100 T=3.18,MARK 21 |
1 | ||
| 90564-46014 |
UZJ100..LHD;FZJ100,HDJ100 T=2.60,MARK 32 |
1 | ||
| 90201-52029 |
UZJ100..LHD;FZJ100,HDJ100 T=3.42,MARK 29 |
1 | ||
| 90201-52025 |
UZJ100..LHD;FZJ100,HDJ100 T=3.30,MARK 25 |
1 | ||
| 90201-52031 |
UZJ100..LHD;FZJ100,HDJ100 T=3.48,MARK 31 |
1 | ||
| 90201-52015 |
UZJ100..LHD;FZJ100,HDJ100 T=3.00,MARK 15 |
1 | ||
| 90201-52023 |
UZJ100..LHD;FZJ100,HDJ100 T=3.24,MARK 23 |
1 | ||
| 90201-52011 |
UZJ100..LHD;FZJ100,HDJ100 T=2.88,MARK 11 |
1 | ||
| 90564-46015 |
UZJ100..LHD;FZJ100,HDJ100 T=2.62,MARK 33 |
1 | ||
| 90201-52027 |
UZJ100..LHD;FZJ100,HDJ100 T=3.36,MARK 27 |
1 | ||
| 90201-52009 |
UZJ100..LHD;FZJ100,HDJ100 T=2.82,MARK 09 |
1 | ||
| 90564-46023 |
UZJ100..LHD;FZJ100,HDJ100 T=2.86,MARK 41 |
1 | ||
| 90564-46019 |
UZJ100..LHD;FZJ100,HDJ100 T=2.74,MARK 37 |
1 | ||
| 90564-46022 |
UZJ100..LHD;FZJ100,HDJ100 T=2.84,MARK 40 |
1 | ||
| 90564-46024 |
UZJ100..LHD;FZJ100,HDJ100 T=2.90,MARK 42 |
1 | ||
| 90564-46016 |
UZJ100..LHD;FZJ100,HDJ100 T=2.66,MARK 34 |
1 | ||
| 90201-52017 |
UZJ100..LHD;FZJ100,HDJ100 T=3.06,MARK 17 |
1 | ||
| 90201-52019 |
UZJ100..LHD;FZJ100,HDJ100 T=3.12,MARK 19 |
1 | ||
| 90564-46020 |
UZJ100..LHD;FZJ100,HDJ100 T=2.78,MARK 38 |
1 | ||
| 90564-46025 |
UZJ100..LHD;FZJ100,HDJ100 T=2.92,MARK 43 |
1 | ||
| 90564-46021 |
UZJ100..LHD;FZJ100,HDJ100 T=2.80,MARK 39 |
1 | ||
| 90564-46027 |
UZJ100..LHD;FZJ100,HDJ100 T=2.98,MARK 45 |
1 | ||
| 90564-46031 |
UZJ100..LHD;FZJ100,HDJ100 T=3.10,MARK 49 |
1 | ||
| 90564-46033 |
UZJ100..LHD;FZJ100,HDJ100 T=3.16,MARK 51 |
1 | ||
| 90564-46029 |
UZJ100..LHD;FZJ100,HDJ100 T=3.04,MARK 47 |
1 | ||
| 90564-46017 |
UZJ100..LHD;FZJ100,HDJ100 T=2.68,MARK 35 |
1 | ||
| 90564-46026 |
UZJ100..LHD;FZJ100,HDJ100 T=2.96,MARK 44 |
1 | ||
| 90564-46028 |
UZJ100..LHD;FZJ100,HDJ100 T=3.02,MARK 46 |
1 | ||
| 90564-46036 |
UZJ100..LHD;FZJ100,HDJ100 T=3.26,MARK 54 |
1 | ||
| 90564-46018 |
UZJ100..LHD;FZJ100,HDJ100 T=2.72,MARK 36 |
1 | ||
| 90564-46037 |
UZJ100..LHD;FZJ100,HDJ100 T=3.28,MARK 55 |
1 | ||
| 90564-46030 |
UZJ100..LHD;FZJ100,HDJ100 T=3.08,MARK 48 |
1 | ||
| 90564-46043 |
UZJ100..LHD;FZJ100,HDJ100 T=3.46,MARK 61 |
1 | ||
| 90564-46041 |
UZJ100..LHD;FZJ100,HDJ100 T=3.40,MARK 59 |
1 | ||
| 90201-52029 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.42,MARK 29 |
1 | ||
| 90201-52031 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.48,MARK 31 |
1 | ||
| 90564-46034 |
UZJ100..LHD;FZJ100,HDJ100 T=3.20,MARK 52 |
1 | ||
| 90564-46035 |
UZJ100..LHD;FZJ100,HDJ100 T=3.22,MARK 53 |
1 | ||
| 90564-46042 |
UZJ100..LHD;FZJ100,HDJ100 T=3.44,MARK 60 |
1 | ||
| 90564-46038 |
UZJ100..LHD;FZJ100,HDJ100 T=3.32,MARK 56 |
1 | ||
| 90564-46043 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.46,MARK 61 |
1 | ||
| 90564-46039 |
UZJ100..LHD;FZJ100,HDJ100 T=3.34,MARK 57 |
1 | ||
| 90564-46032 |
UZJ100..LHD;FZJ100,HDJ100 T=3.14,MARK 50 |
1 | ||
| 90564-46042 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.44,MARK 60 |
1 | ||
| 90564-46040 |
UZJ100..LHD;FZJ100,HDJ100 T=3.38,MARK 58 |
1 | ||
| 90201-52027 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.36,MARK 27 |
1 | ||
| 90564-46039 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.34,MARK 57 |
1 | ||
| 90564-46041 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.40,MARK 59 |
1 | ||
| 90564-46040 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.38,MARK 58 |
1 | ||
| 90201-52005 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.70,MARK 05 |
1 | ||
| 90201-52011 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.88,MARK 11 |
1 | ||
| 90201-52003 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.64,MARK 03 |
1 | ||
| 90201-52017 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.06,MARK 17 |
1 | ||
| 90201-52007 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.76,MARK 07 |
1 | ||
| 90201-52021 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.18,MARK 21 |
1 | ||
| 90201-52001 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.58,MARK 01 |
1 | ||
| 90201-52019 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.12,MARK 19 |
1 | ||
| 90564-46014 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.60,MARK 32 |
1 | ||
| 90201-52013 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.94,MARK 13 |
1 | ||
| 90201-52009 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.82,MARK 09 |
1 | ||
| 90201-52023 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.24,MARK 23 |
1 | ||
| 90564-46022 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.84,MARK 40 |
1 | ||
| 90564-46017 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.68,MARK 35 |
1 | ||
| 90564-46021 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.80,MARK 39 |
1 | ||
| 90564-46019 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.74,MARK 37 |
1 | ||
| 90564-46025 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.92,MARK 43 |
1 | ||
| 90564-46015 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.62,MARK 33 |
1 | ||
| 90564-46026 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.96,MARK 44 |
1 | ||
| 90564-46020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.78,MARK 38 |
1 | ||
| 90201-52015 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.00,MARK 15 |
1 | ||
| 90201-52025 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.30,MARK 25 |
1 | ||
| 90564-46027 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.98,MARK 45 |
1 | ||
| 90564-46018 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.72,MARK 36 |
1 | ||
| 90564-46031 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.10,MARK 49 |
1 | ||
| 90564-46016 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.66,MARK 34 |
1 | ||
| 90564-46023 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.86,MARK 41 |
1 | ||
| 90564-46034 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.20,MARK 52 |
1 | ||
| 90564-46024 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.90,MARK 42 |
1 | ||
| 90564-46028 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.02,MARK 46 |
1 | ||
| 90564-46032 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.14,MARK 50 |
1 | ||
| 90564-46035 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.22,MARK 53 |
1 | ||
| 90564-46030 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.08,MARK 48 |
1 | ||
| 90564-46029 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.04,MARK 47 |
1 | ||
| 90564-46044 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.42,MARK 62 |
1 | ||
| 90564-46033 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.16,MARK 51 |
1 | ||
| 90564-46037 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.28,MARK 55 |
1 | ||
| 90564-46038 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.32,MARK 56 |
1 | ||
| 90564-46049 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.52,MARK 67 |
1 | ||
| 90564-46036 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.26,MARK 54 |
1 | ||
| 90564-46048 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.50,MARK 66 |
1 | ||
| 90564-46051 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.56,MARK 69 |
1 | ||
| 90564-46046 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.46,MARK 64 |
1 | ||
| 90564-46045 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.44,MARK 63 |
1 | ||
| 90564-46050 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.54,MARK 68 |
1 | ||
| 90564-46047 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.48,MARK 65 |
1 | ||
| 90201-52015 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.00,MARK 15 |
1 | ||
| 90201-52021 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.18,MARK 21 |
1 | ||
| 90201-52003 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.64,MARK 03 |
1 | ||
| 90201-52025 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.30,MARK 25 |
1 | ||
| 90201-52011 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.88,MARK 11 |
1 | ||
| 90201-52005 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.70,MARK 05 |
1 | ||
| 90564-46015 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.62,MARK 33 |
1 | ||
| 90201-52023 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.24,MARK 23 |
1 | ||
| 90201-52017 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.06,MARK 17 |
1 | ||
| 90201-52009 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.82,MARK 09 |
1 | ||
| 90201-52001 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.58,MARK 01 |
1 | ||
| 90201-52013 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.94,MARK 13 |
1 | ||
| 90564-46014 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.60,MARK 32 |
1 | ||
| 90564-46016 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.66,MARK 34 |
1 | ||
| 90564-46022 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.84,MARK 40 |
1 | ||
| 90564-46017 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.68,MARK 35 |
1 | ||
| 90564-46029 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.04,MARK 47 |
1 | ||
| 90564-46024 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.90,MARK 42 |
1 | ||
| 90564-46018 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.72,MARK 36 |
1 | ||
| 90564-46028 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.02,MARK 46 |
1 | ||
| 90564-46020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.78,MARK 38 |
1 | ||
| 90201-52007 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.76,MARK 07 |
1 | ||
| 90564-46019 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.74,MARK 37 |
1 | ||
| 90564-46026 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.96,MARK 44 |
1 | ||
| 90564-46023 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.86,MARK 41 |
1 | ||
| 90564-46027 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.98,MARK 45 |
1 | ||
| 90564-46021 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.80,MARK 39 |
1 | ||
| 90564-46025 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.92,MARK 43 |
1 | ||
| 90564-46034 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.20,MARK 52 |
1 | ||
| 90564-46031 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.10,MARK 49 |
1 | ||
| 90564-46047 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.48,MARK 65 |
1 | ||
| 90564-46035 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.22,MARK 53 |
1 | ||
| 90564-46032 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.14,MARK 50 |
1 | ||
| 90564-46046 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.46,MARK 64 |
1 | ||
| 90564-46038 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.32,MARK 56 |
1 | ||
| 90564-46036 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.26,MARK 54 |
1 | ||
| 90564-46049 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.52,MARK 67 |
1 | ||
| 90564-46045 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.44,MARK 63 |
1 | ||
| 90564-46030 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.08,MARK 48 |
1 | ||
| 90564-46048 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.50,MARK 66 |
1 | ||
| 90201-52019 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.12,MARK 19 |
1 | ||
| 90564-46051 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.56,MARK 69 |
1 | ||
| 90564-46033 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.16,MARK 51 |
1 | ||
| 90564-46050 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.54,MARK 68 |
1 | ||
| 90564-46044 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.42,MARK 62 |
1 | ||
| 90564-46037 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.28,MARK 55 |
1 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90201-52003 |
UZJ100..LHD;FZJ100,HDJ100 T=2.64,MARK 03 |
1 | ||
| 90201-52007 |
UZJ100..LHD;FZJ100,HDJ100 T=2.76,MARK 07 |
1 | ||
| 90201-52001 |
UZJ100..LHD;FZJ100,HDJ100 T=2.58,MARK 01 |
1 | ||
| 90201-52005 |
UZJ100..LHD;FZJ100,HDJ100 T=2.70,MARK 05 |
1 | ||
| 90201-52013 |
UZJ100..LHD;FZJ100,HDJ100 T=2.94,MARK 13 |
1 | ||
| 90201-52021 |
UZJ100..LHD;FZJ100,HDJ100 T=3.18,MARK 21 |
1 | ||
| 90564-46014 |
UZJ100..LHD;FZJ100,HDJ100 T=2.60,MARK 32 |
1 | ||
| 90201-52029 |
UZJ100..LHD;FZJ100,HDJ100 T=3.42,MARK 29 |
1 | ||
| 90201-52025 |
UZJ100..LHD;FZJ100,HDJ100 T=3.30,MARK 25 |
1 | ||
| 90201-52031 |
UZJ100..LHD;FZJ100,HDJ100 T=3.48,MARK 31 |
1 | ||
| 90201-52015 |
UZJ100..LHD;FZJ100,HDJ100 T=3.00,MARK 15 |
1 | ||
| 90201-52023 |
UZJ100..LHD;FZJ100,HDJ100 T=3.24,MARK 23 |
1 | ||
| 90201-52011 |
UZJ100..LHD;FZJ100,HDJ100 T=2.88,MARK 11 |
1 | ||
| 90564-46015 |
UZJ100..LHD;FZJ100,HDJ100 T=2.62,MARK 33 |
1 | ||
| 90201-52027 |
UZJ100..LHD;FZJ100,HDJ100 T=3.36,MARK 27 |
1 | ||
| 90201-52009 |
UZJ100..LHD;FZJ100,HDJ100 T=2.82,MARK 09 |
1 | ||
| 90564-46023 |
UZJ100..LHD;FZJ100,HDJ100 T=2.86,MARK 41 |
1 | ||
| 90564-46019 |
UZJ100..LHD;FZJ100,HDJ100 T=2.74,MARK 37 |
1 | ||
| 90564-46022 |
UZJ100..LHD;FZJ100,HDJ100 T=2.84,MARK 40 |
1 | ||
| 90564-46024 |
UZJ100..LHD;FZJ100,HDJ100 T=2.90,MARK 42 |
1 | ||
| 90564-46016 |
UZJ100..LHD;FZJ100,HDJ100 T=2.66,MARK 34 |
1 | ||
| 90201-52017 |
UZJ100..LHD;FZJ100,HDJ100 T=3.06,MARK 17 |
1 | ||
| 90201-52019 |
UZJ100..LHD;FZJ100,HDJ100 T=3.12,MARK 19 |
1 | ||
| 90564-46020 |
UZJ100..LHD;FZJ100,HDJ100 T=2.78,MARK 38 |
1 | ||
| 90564-46025 |
UZJ100..LHD;FZJ100,HDJ100 T=2.92,MARK 43 |
1 | ||
| 90564-46021 |
UZJ100..LHD;FZJ100,HDJ100 T=2.80,MARK 39 |
1 | ||
| 90564-46027 |
UZJ100..LHD;FZJ100,HDJ100 T=2.98,MARK 45 |
1 | ||
| 90564-46031 |
UZJ100..LHD;FZJ100,HDJ100 T=3.10,MARK 49 |
1 | ||
| 90564-46033 |
UZJ100..LHD;FZJ100,HDJ100 T=3.16,MARK 51 |
1 | ||
| 90564-46029 |
UZJ100..LHD;FZJ100,HDJ100 T=3.04,MARK 47 |
1 | ||
| 90564-46017 |
UZJ100..LHD;FZJ100,HDJ100 T=2.68,MARK 35 |
1 | ||
| 90564-46026 |
UZJ100..LHD;FZJ100,HDJ100 T=2.96,MARK 44 |
1 | ||
| 90564-46028 |
UZJ100..LHD;FZJ100,HDJ100 T=3.02,MARK 46 |
1 | ||
| 90564-46036 |
UZJ100..LHD;FZJ100,HDJ100 T=3.26,MARK 54 |
1 | ||
| 90564-46018 |
UZJ100..LHD;FZJ100,HDJ100 T=2.72,MARK 36 |
1 | ||
| 90564-46037 |
UZJ100..LHD;FZJ100,HDJ100 T=3.28,MARK 55 |
1 | ||
| 90564-46030 |
UZJ100..LHD;FZJ100,HDJ100 T=3.08,MARK 48 |
1 | ||
| 90564-46043 |
UZJ100..LHD;FZJ100,HDJ100 T=3.46,MARK 61 |
1 | ||
| 90564-46041 |
UZJ100..LHD;FZJ100,HDJ100 T=3.40,MARK 59 |
1 | ||
| 90201-52029 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.42,MARK 29 |
1 | ||
| 90201-52031 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.48,MARK 31 |
1 | ||
| 90564-46034 |
UZJ100..LHD;FZJ100,HDJ100 T=3.20,MARK 52 |
1 | ||
| 90564-46035 |
UZJ100..LHD;FZJ100,HDJ100 T=3.22,MARK 53 |
1 | ||
| 90564-46042 |
UZJ100..LHD;FZJ100,HDJ100 T=3.44,MARK 60 |
1 | ||
| 90564-46038 |
UZJ100..LHD;FZJ100,HDJ100 T=3.32,MARK 56 |
1 | ||
| 90564-46043 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.46,MARK 61 |
1 | ||
| 90564-46039 |
UZJ100..LHD;FZJ100,HDJ100 T=3.34,MARK 57 |
1 | ||
| 90564-46032 |
UZJ100..LHD;FZJ100,HDJ100 T=3.14,MARK 50 |
1 | ||
| 90564-46042 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.44,MARK 60 |
1 | ||
| 90564-46040 |
UZJ100..LHD;FZJ100,HDJ100 T=3.38,MARK 58 |
1 | ||
| 90201-52027 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.36,MARK 27 |
1 | ||
| 90564-46039 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.34,MARK 57 |
1 | ||
| 90564-46041 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.40,MARK 59 |
1 | ||
| 90564-46040 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.38,MARK 58 |
1 | ||
| 90201-52005 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.70,MARK 05 |
1 | ||
| 90201-52011 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.88,MARK 11 |
1 | ||
| 90201-52003 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.64,MARK 03 |
1 | ||
| 90201-52017 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.06,MARK 17 |
1 | ||
| 90201-52007 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.76,MARK 07 |
1 | ||
| 90201-52021 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.18,MARK 21 |
1 | ||
| 90201-52001 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.58,MARK 01 |
1 | ||
| 90201-52019 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.12,MARK 19 |
1 | ||
| 90564-46014 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.60,MARK 32 |
1 | ||
| 90201-52013 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.94,MARK 13 |
1 | ||
| 90201-52009 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.82,MARK 09 |
1 | ||
| 90201-52023 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.24,MARK 23 |
1 | ||
| 90564-46022 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.84,MARK 40 |
1 | ||
| 90564-46017 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.68,MARK 35 |
1 | ||
| 90564-46021 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.80,MARK 39 |
1 | ||
| 90564-46019 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.74,MARK 37 |
1 | ||
| 90564-46025 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.92,MARK 43 |
1 | ||
| 90564-46015 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.62,MARK 33 |
1 | ||
| 90564-46026 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.96,MARK 44 |
1 | ||
| 90564-46020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.78,MARK 38 |
1 | ||
| 90201-52015 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.00,MARK 15 |
1 | ||
| 90201-52025 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.30,MARK 25 |
1 | ||
| 90564-46027 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.98,MARK 45 |
1 | ||
| 90564-46018 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.72,MARK 36 |
1 | ||
| 90564-46031 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.10,MARK 49 |
1 | ||
| 90564-46016 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.66,MARK 34 |
1 | ||
| 90564-46023 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.86,MARK 41 |
1 | ||
| 90564-46034 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.20,MARK 52 |
1 | ||
| 90564-46024 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.90,MARK 42 |
1 | ||
| 90564-46028 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.02,MARK 46 |
1 | ||
| 90564-46032 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.14,MARK 50 |
1 | ||
| 90564-46035 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.22,MARK 53 |
1 | ||
| 90564-46030 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.08,MARK 48 |
1 | ||
| 90564-46029 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.04,MARK 47 |
1 | ||
| 90564-46044 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.42,MARK 62 |
1 | ||
| 90564-46033 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.16,MARK 51 |
1 | ||
| 90564-46037 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.28,MARK 55 |
1 | ||
| 90564-46038 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.32,MARK 56 |
1 | ||
| 90564-46049 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.52,MARK 67 |
1 | ||
| 90564-46036 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.26,MARK 54 |
1 | ||
| 90564-46048 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.50,MARK 66 |
1 | ||
| 90564-46051 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.56,MARK 69 |
1 | ||
| 90564-46046 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.46,MARK 64 |
1 | ||
| 90564-46045 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.44,MARK 63 |
1 | ||
| 90564-46050 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.54,MARK 68 |
1 | ||
| 90564-46047 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.48,MARK 65 |
1 | ||
| 90201-52015 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.00,MARK 15 |
1 | ||
| 90201-52021 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.18,MARK 21 |
1 | ||
| 90201-52003 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.64,MARK 03 |
1 | ||
| 90201-52025 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.30,MARK 25 |
1 | ||
| 90201-52011 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.88,MARK 11 |
1 | ||
| 90201-52005 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.70,MARK 05 |
1 | ||
| 90564-46015 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.62,MARK 33 |
1 | ||
| 90201-52023 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.24,MARK 23 |
1 | ||
| 90201-52017 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.06,MARK 17 |
1 | ||
| 90201-52009 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.82,MARK 09 |
1 | ||
| 90201-52001 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.58,MARK 01 |
1 | ||
| 90201-52013 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.94,MARK 13 |
1 | ||
| 90564-46014 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.60,MARK 32 |
1 | ||
| 90564-46016 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.66,MARK 34 |
1 | ||
| 90564-46022 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.84,MARK 40 |
1 | ||
| 90564-46017 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.68,MARK 35 |
1 | ||
| 90564-46029 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.04,MARK 47 |
1 | ||
| 90564-46024 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.90,MARK 42 |
1 | ||
| 90564-46018 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.72,MARK 36 |
1 | ||
| 90564-46028 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.02,MARK 46 |
1 | ||
| 90564-46020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.78,MARK 38 |
1 | ||
| 90201-52007 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.76,MARK 07 |
1 | ||
| 90564-46019 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.74,MARK 37 |
1 | ||
| 90564-46026 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.96,MARK 44 |
1 | ||
| 90564-46023 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.86,MARK 41 |
1 | ||
| 90564-46027 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.98,MARK 45 |
1 | ||
| 90564-46021 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.80,MARK 39 |
1 | ||
| 90564-46025 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.92,MARK 43 |
1 | ||
| 90564-46034 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.20,MARK 52 |
1 | ||
| 90564-46031 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.10,MARK 49 |
1 | ||
| 90564-46047 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.48,MARK 65 |
1 | ||
| 90564-46035 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.22,MARK 53 |
1 | ||
| 90564-46032 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.14,MARK 50 |
1 | ||
| 90564-46046 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.46,MARK 64 |
1 | ||
| 90564-46038 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.32,MARK 56 |
1 | ||
| 90564-46036 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.26,MARK 54 |
1 | ||
| 90564-46049 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.52,MARK 67 |
1 | ||
| 90564-46045 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.44,MARK 63 |
1 | ||
| 90564-46030 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.08,MARK 48 |
1 | ||
| 90564-46048 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.50,MARK 66 |
1 | ||
| 90201-52019 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.12,MARK 19 |
1 | ||
| 90564-46051 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.56,MARK 69 |
1 | ||
| 90564-46033 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.16,MARK 51 |
1 | ||
| 90564-46050 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.54,MARK 68 |
1 | ||
| 90564-46044 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.42,MARK 62 |
1 | ||
| 90564-46037 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.28,MARK 55 |
1 | ||
| 41320 - TUBE ASSY, FRONT DIFFERENTIAL | ||||
| 41320-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41320-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41320-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41320B - BOLT (FOR FRONT DIFFERENTIAL TUBE) | ||||
| 90105-12292 |
UZJ100..LHD;FZJ100,HDJ100 |
4 | ||
| 90105-12292 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 90105-12292 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-22030 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
UZJ100..LHD;FZJ100,HDJ100 |
4 | ||
| 41351-30060 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 41351-30052 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 41351-30060 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
UZJ100..LHD;FZJ100,HDJ100 |
4 | ||
| 41351-30060 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 41351-30052 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 41351-30060 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-40021 |
FZJ100,UZJ100 T=1.6 |
2 | ||
| 41361-40140 |
FZJ100,UZJ100 T=1.85 |
2 | ||
| 41361-40110 |
FZJ100,UZJ100 T=1.55 |
2 | ||
| 41361-40150 |
FZJ100,UZJ100 T=1.90 |
2 | ||
| 41361-40120 |
FZJ100,UZJ100 T=1.65 |
2 | ||
| 41361-40130 |
FZJ100,UZJ100 T=1.75 |
2 | ||
| 41362-40021 |
FZJ100,UZJ100 T=1.7 |
2 | ||
| 41363-40021 |
FZJ100,UZJ100 T=1.8 |
2 | ||
| 41361-40100 |
FZJ100,UZJ100 T=1.50 |
2 | ||
| 41361-60E20 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.925 |
2 | ||
| 41361-60E10 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.900 |
2 | ||
| 41361-60E30 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.950 |
2 | ||
| 41361-60E50 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.000 |
2 | ||
| 41361-60E70 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.050 |
2 | ||
| 41361-60F10 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.150 |
2 | ||
| 41361-60E60 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.025 |
2 | ||
| 41361-60F40 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.225 |
2 | ||
| 41361-60E80 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.075 |
2 | ||
| 41361-60F70 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.300 |
2 | ||
| 41361-60E90 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.100 |
2 | ||
| 41361-60E40 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.975 |
2 | ||
| 41361-60F50 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.250 |
2 | ||
| 41361-60E00 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.875 |
2 | ||
| 41361-60F20 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.175 |
2 | ||
| 41361-60F00 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.125 |
2 | ||
| 41361-60F80 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.325 |
2 | ||
| 41361-60F30 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.200 |
2 | ||
| 41361-60F60 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.275 |
2 | ||
| 41361-60E30 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.950 |
2 | ||
| 41361-60E40 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.975 |
2 | ||
| 41361-60E60 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.025 |
2 | ||
| 41361-60E80 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.075 |
2 | ||
| 41361-60E10 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.900 |
2 | ||
| 41361-60E20 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.925 |
2 | ||
| 41361-60F40 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.225 |
2 | ||
| 41361-60E90 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.100 |
2 | ||
| 41361-60E00 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.875 |
2 | ||
| 41361-60F70 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.300 |
2 | ||
| 41361-60F00 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.125 |
2 | ||
| 41361-60F20 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.175 |
2 | ||
| 41361-60F80 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.325 |
2 | ||
| 41361-60E50 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.000 |
2 | ||
| 41361-60F10 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.150 |
2 | ||
| 41361-60F60 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.275 |
2 | ||
| 41361-60F50 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.250 |
2 | ||
| 41361-60E70 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.050 |
2 | ||
| 41361-60F30 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.200 |
2 | ||
| 41361-60E10 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.900 |
2 | ||
| 41361-60E80 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.075 |
2 | ||
| 41361-60E00 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.875 |
2 | ||
| 41361-60F00 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.125 |
2 | ||
| 41361-60E60 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.025 |
2 | ||
| 41361-60E20 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.925 |
2 | ||
| 41361-60E70 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.050 |
2 | ||
| 41361-60E40 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.975 |
2 | ||
| 41361-60F50 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.250 |
2 | ||
| 41361-60E90 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.100 |
2 | ||
| 41361-60E30 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.950 |
2 | ||
| 41361-60F20 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.175 |
2 | ||
| 41361-60F60 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.275 |
2 | ||
| 41361-60F10 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.150 |
2 | ||
| 41361-60F30 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.200 |
2 | ||
| 41361-60F40 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.225 |
2 | ||
| 41361-60F80 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.325 |
2 | ||
| 41361-60E50 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.000 |
2 | ||
| 41361-60F70 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.300 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-40021 |
FZJ100,UZJ100 T=1.6 |
2 | ||
| 41361-40140 |
FZJ100,UZJ100 T=1.85 |
2 | ||
| 41361-40110 |
FZJ100,UZJ100 T=1.55 |
2 | ||
| 41361-40150 |
FZJ100,UZJ100 T=1.90 |
2 | ||
| 41361-40120 |
FZJ100,UZJ100 T=1.65 |
2 | ||
| 41361-40130 |
FZJ100,UZJ100 T=1.75 |
2 | ||
| 41362-40021 |
FZJ100,UZJ100 T=1.7 |
2 | ||
| 41363-40021 |
FZJ100,UZJ100 T=1.8 |
2 | ||
| 41361-40100 |
FZJ100,UZJ100 T=1.50 |
2 | ||
| 41361-60E20 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.925 |
2 | ||
| 41361-60E10 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.900 |
2 | ||
| 41361-60E30 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.950 |
2 | ||
| 41361-60E50 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.000 |
2 | ||
| 41361-60E70 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.050 |
2 | ||
| 41361-60F10 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.150 |
2 | ||
| 41361-60E60 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.025 |
2 | ||
| 41361-60F40 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.225 |
2 | ||
| 41361-60E80 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.075 |
2 | ||
| 41361-60F70 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.300 |
2 | ||
| 41361-60E90 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.100 |
2 | ||
| 41361-60E40 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.975 |
2 | ||
| 41361-60F50 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.250 |
2 | ||
| 41361-60E00 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.875 |
2 | ||
| 41361-60F20 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.175 |
2 | ||
| 41361-60F00 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.125 |
2 | ||
| 41361-60F80 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.325 |
2 | ||
| 41361-60F30 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.200 |
2 | ||
| 41361-60F60 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.275 |
2 | ||
| 41361-60E30 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.950 |
2 | ||
| 41361-60E40 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.975 |
2 | ||
| 41361-60E60 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.025 |
2 | ||
| 41361-60E80 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.075 |
2 | ||
| 41361-60E10 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.900 |
2 | ||
| 41361-60E20 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.925 |
2 | ||
| 41361-60F40 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.225 |
2 | ||
| 41361-60E90 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.100 |
2 | ||
| 41361-60E00 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.875 |
2 | ||
| 41361-60F70 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.300 |
2 | ||
| 41361-60F00 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.125 |
2 | ||
| 41361-60F20 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.175 |
2 | ||
| 41361-60F80 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.325 |
2 | ||
| 41361-60E50 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.000 |
2 | ||
| 41361-60F10 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.150 |
2 | ||
| 41361-60F60 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.275 |
2 | ||
| 41361-60F50 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.250 |
2 | ||
| 41361-60E70 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.050 |
2 | ||
| 41361-60F30 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.200 |
2 | ||
| 41361-60E10 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.900 |
2 | ||
| 41361-60E80 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.075 |
2 | ||
| 41361-60E00 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.875 |
2 | ||
| 41361-60F00 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.125 |
2 | ||
| 41361-60E60 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.025 |
2 | ||
| 41361-60E20 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.925 |
2 | ||
| 41361-60E70 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.050 |
2 | ||
| 41361-60E40 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.975 |
2 | ||
| 41361-60F50 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.250 |
2 | ||
| 41361-60E90 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.100 |
2 | ||
| 41361-60E30 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.950 |
2 | ||
| 41361-60F20 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.175 |
2 | ||
| 41361-60F60 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.275 |
2 | ||
| 41361-60F10 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.150 |
2 | ||
| 41361-60F30 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.200 |
2 | ||
| 41361-60F40 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.225 |
2 | ||
| 41361-60F80 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.325 |
2 | ||
| 41361-60E50 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.000 |
2 | ||
| 41361-60F70 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.300 |
2 | ||
| 41653B - STOPPER, DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41653-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41653-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41653C - STOPPER, FRONT DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-60020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41653-60020 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41653-60020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41654A - STOPPER, DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 41654-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 41654-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 41654A - STOPPER, DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 41654-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 41654-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 52380D - SUPPORT ASSY, FRONT DIFFERENTIAL | ||||
| 52380-60030 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 52380-60030 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 52380-60030 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 52380E - SUPPORT ASSY, DIFFERENTIAL | ||||
| 52380-60040 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 52380-60040 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 52380-60040 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 52383 - PROTECTOR, FRONT DIFFERENTIAL SUPPORT, NO.1 | ||||
| 52383-60010 |
FZJ100..GCC |
1 | ||
| 52383-60010 |
FZJ100..GCC |
1 | ||
| 52383-60010 |
FZJ100 |
1 | ||
| Common parts | ||||
| 90105-14125 | ||||
| 90105-14126 | ||||
| 90119-14089 | ||||
| 90119-14090 | ||||
| 90179-14045 | ||||
| 90179-14063 | ||||
| 90520-41014 | ||||
| 91611-60614 | ||||
| Linked diagrams | ||||
| 4302 | ||||
ILLUST NO. 1 OF 2(9908- )FZJ100,HDJ100,UZJ100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039A - GEAR KIT, DIFFERENTIAL | ||||
| 41039-22010 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 41039-34020 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41039-34020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41039-34020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT | ||||
| 41101-60170 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41101-60170 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41101-60170 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41101D - SEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90311-41009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90311-41009 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90311-41009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90311-38066 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-6A170 |
FZJ100,UZJ100..5F *FGR=43:10=4.300 |
1 | ||
| 41110-6A171 |
FZJ100,UZJ100..5F..(ARL,GCC) *FGR=43:10=4.300 |
1 | ||
| 41110-6A171 |
FZJ100,UZJ100..5F *FGR=43:10=4.300 |
1 | ||
| 41110-6A171 |
FZJ100,UZJ100..5F..(ARL,GCC) *FGR=43:10=4.300 |
1 | ||
| 41110M - PLUG, FRONT DIFFERENTIAL FILLER | ||||
| 90341-18032 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 90341-18032 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 90341-18032 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41110N - GASKET, FRONT DIFFERENTIAL FILLER PLUG | ||||
| 12157-10010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 12157-10010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 12157-10010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41110P - PLUG, FRONT DIFFERENTIAL DRAIN | ||||
| 90341-18035 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 90341-18035 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 90341-18035 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41110Q - GASKET, FRONT DIFFERENTIAL DRAIN PLUG | ||||
| 12157-10010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 12157-10010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 12157-10010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41110V - UNION (FOR FRONT DIFFERENTIAL) | ||||
| 90404-51077 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 90404-51077 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 90404-51077 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41114B - BOLT, FRONT DIFFERENTIAL BEARING CAP | ||||
| 90105-12164 |
UZJ100..LHD;FZJ100,HDJ100 |
4 | ||
| 90105-12164 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 90105-12164 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 41115F - RING, FRONT DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41115-35010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 41115-35010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 41181 - COVER, FRONT DIFFERENTIAL CARRIER | ||||
| 41108-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41108-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41108-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41108-60011 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41181B - BOLT (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING) | ||||
| 90105-10264 |
UZJ100..LHD;FZJ100,HDJ100 *10-1.25PX40-30 |
1 | ||
| 90105-10117 |
FZJ100,HDJ100,UZJ100 *10-1.25PX26-17 |
8 | ||
| 90105-10417 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN *10-1.25PX26-17 |
8 | ||
| 90105-10264 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN *10-1.25PX40-30 |
1 | ||
| 90105-10417 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN *10-1.25PX26-17 |
8 | ||
| 90105-10264 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN *10-1.25PX40-30 |
1 | ||
| 41183B - DEFLECTOR, FRONT DIFFERENTIAL SIDE BEARING RETAINER | ||||
| 41183-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41183-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41183-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41201T - FINAL GEAR KIT, DIFFERENTIAL, FRONT | ||||
| 41201-80140 |
FZJ100,UZJ100..5F *FGR=43:10=4.300 |
1 | ||
| 41201-80171 |
FZJ10#,UZJ100..5F..(ARL,GCC,GEN) *FGR=43:10=4.300 |
1 | ||
| 41201-80171 |
FZJ105;FZJ100,UZJ100..5F *FGR=43:10=4.300 |
1 | ||
| 41201-80171 |
FZJ10#,UZJ100..5F..(ARL,GCC,GEN) *FGR=43:10=4.300 |
1 | ||
| 41201-69825 |
FZJ10#,UZJ100..5F..(ARL,GCC,GEN) *FGR=43:10=4.300 |
1 | ||
| 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT | ||||
| 41204-60040 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 41204-60041 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 41204-60041 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41204-60041 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41204E - NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90177-22003 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90177-22003 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90179-20018 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90177-22003 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-35087 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90366-35087 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90366-35087 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-30067 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 90366-30067 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90366-30067 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 41211C - GEAR, DIFFERENTIAL RING | ||||
| 90201-35497 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=1.70 |
1 | ||
| 90201-35503 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=1.88 |
1 | ||
| 90201-35500 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=1.79 |
1 | ||
| 90201-35499 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=1.76 |
1 | ||
| 90201-35501 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=1.82 |
1 | ||
| 90201-35508 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.03 |
1 | ||
| 90201-35509 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.06 |
1 | ||
| 90201-35502 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=1.85 |
1 | ||
| 90201-35504 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=1.91 |
1 | ||
| 90201-35505 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=1.94 |
1 | ||
| 90201-35506 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=1.97 |
1 | ||
| 90201-35513 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.18 |
1 | ||
| 90201-35498 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=1.73 |
1 | ||
| 90201-35507 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.00 |
1 | ||
| 90201-35515 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35511 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.12 |
1 | ||
| 90201-35512 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.15 |
1 | ||
| 90201-35510 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.09 |
1 | ||
| 90201-35499 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.76 |
1 | ||
| 90201-35516 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35502 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.85 |
1 | ||
| 90201-35514 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.21 |
1 | ||
| 90201-35505 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.94 |
1 | ||
| 90201-35498 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.73 |
1 | ||
| 90201-35503 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.88 |
1 | ||
| 90201-35504 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.91 |
1 | ||
| 90201-35497 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.70 |
1 | ||
| 90201-35500 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.79 |
1 | ||
| 90201-35507 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.00 |
1 | ||
| 90201-35511 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.12 |
1 | ||
| 90201-35517 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35518 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35508 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.03 |
1 | ||
| 90201-35513 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.18 |
1 | ||
| 90201-35518 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35514 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.21 |
1 | ||
| 90201-35512 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.15 |
1 | ||
| 90201-35506 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.97 |
1 | ||
| 90201-35501 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.82 |
1 | ||
| 90201-35509 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.06 |
1 | ||
| 90201-35517 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35515 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35510 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.09 |
1 | ||
| 90201-35516 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35503 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.88 |
1 | ||
| 90201-35499 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.76 |
1 | ||
| 90201-35500 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.79 |
1 | ||
| 90201-35501 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.82 |
1 | ||
| 90201-35498 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.73 |
1 | ||
| 90201-35497 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.70 |
1 | ||
| 90201-35502 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.85 |
1 | ||
| 90201-35507 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.00 |
1 | ||
| 90201-35512 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.15 |
1 | ||
| 90201-35510 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.09 |
1 | ||
| 90201-35514 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.21 |
1 | ||
| 90201-35511 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.12 |
1 | ||
| 90201-35505 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.94 |
1 | ||
| 90201-35508 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.03 |
1 | ||
| 90201-35515 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35504 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.91 |
1 | ||
| 90201-35516 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35509 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.06 |
1 | ||
| 90201-35518 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35506 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=1.97 |
1 | ||
| 90201-35513 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.18 |
1 | ||
| 90201-35517 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OD=47,T=2.30,MARK 03 |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 41214-26010 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 41214-26011 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41214-26011 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
10 | ||
| 90101-11353 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
10 | ||
| 90101-11353 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
10 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-22010 |
FZJ100,HDJ100,UZJ100 |
5 | ||
| 41222-35020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
5 | ||
| 41222-35020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
5 | ||
| 41222-35020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
5 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 41231-24010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 41231-24010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) | ||||
| 41252-60011 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 41252-60010 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 41252-60011 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41252-60011 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41302F - CASE SUB-ASSY, FRONT DIFFERENTIAL | ||||
| 41302-24010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41302-24010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41302-24010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41302H - BOLT(FOR FRONT DIFFERENTIAL CASE) | ||||
| 90105-10084 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
8 | ||
| 90105-10084 |
UZJ100..LHD;FZJ100,HDJ100 |
8 | ||
| 90105-10084 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
8 | ||
| 41304T - RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT LH) | ||||
| 90521-86002 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 90520-75002 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 90520-75002 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 90520-75002 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41304U - BEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT LH) | ||||
| 90363-43001 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 90363-43001 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 90363-43001 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41304V - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH | ||||
| 41337-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41337-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41337-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-50001 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 90366-50001 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 90366-50001 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-50001 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 90366-50001 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 90366-50001 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90201-52003 |
UZJ100..LHD;FZJ100,HDJ100 T=2.64,MARK 03 |
1 | ||
| 90201-52007 |
UZJ100..LHD;FZJ100,HDJ100 T=2.76,MARK 07 |
1 | ||
| 90201-52001 |
UZJ100..LHD;FZJ100,HDJ100 T=2.58,MARK 01 |
1 | ||
| 90201-52005 |
UZJ100..LHD;FZJ100,HDJ100 T=2.70,MARK 05 |
1 | ||
| 90201-52013 |
UZJ100..LHD;FZJ100,HDJ100 T=2.94,MARK 13 |
1 | ||
| 90201-52021 |
UZJ100..LHD;FZJ100,HDJ100 T=3.18,MARK 21 |
1 | ||
| 90564-46014 |
UZJ100..LHD;FZJ100,HDJ100 T=2.60,MARK 32 |
1 | ||
| 90201-52029 |
UZJ100..LHD;FZJ100,HDJ100 T=3.42,MARK 29 |
1 | ||
| 90201-52025 |
UZJ100..LHD;FZJ100,HDJ100 T=3.30,MARK 25 |
1 | ||
| 90201-52031 |
UZJ100..LHD;FZJ100,HDJ100 T=3.48,MARK 31 |
1 | ||
| 90201-52015 |
UZJ100..LHD;FZJ100,HDJ100 T=3.00,MARK 15 |
1 | ||
| 90201-52023 |
UZJ100..LHD;FZJ100,HDJ100 T=3.24,MARK 23 |
1 | ||
| 90201-52011 |
UZJ100..LHD;FZJ100,HDJ100 T=2.88,MARK 11 |
1 | ||
| 90564-46015 |
UZJ100..LHD;FZJ100,HDJ100 T=2.62,MARK 33 |
1 | ||
| 90201-52027 |
UZJ100..LHD;FZJ100,HDJ100 T=3.36,MARK 27 |
1 | ||
| 90201-52009 |
UZJ100..LHD;FZJ100,HDJ100 T=2.82,MARK 09 |
1 | ||
| 90564-46023 |
UZJ100..LHD;FZJ100,HDJ100 T=2.86,MARK 41 |
1 | ||
| 90564-46019 |
UZJ100..LHD;FZJ100,HDJ100 T=2.74,MARK 37 |
1 | ||
| 90564-46022 |
UZJ100..LHD;FZJ100,HDJ100 T=2.84,MARK 40 |
1 | ||
| 90564-46024 |
UZJ100..LHD;FZJ100,HDJ100 T=2.90,MARK 42 |
1 | ||
| 90564-46016 |
UZJ100..LHD;FZJ100,HDJ100 T=2.66,MARK 34 |
1 | ||
| 90201-52017 |
UZJ100..LHD;FZJ100,HDJ100 T=3.06,MARK 17 |
1 | ||
| 90201-52019 |
UZJ100..LHD;FZJ100,HDJ100 T=3.12,MARK 19 |
1 | ||
| 90564-46020 |
UZJ100..LHD;FZJ100,HDJ100 T=2.78,MARK 38 |
1 | ||
| 90564-46025 |
UZJ100..LHD;FZJ100,HDJ100 T=2.92,MARK 43 |
1 | ||
| 90564-46021 |
UZJ100..LHD;FZJ100,HDJ100 T=2.80,MARK 39 |
1 | ||
| 90564-46027 |
UZJ100..LHD;FZJ100,HDJ100 T=2.98,MARK 45 |
1 | ||
| 90564-46031 |
UZJ100..LHD;FZJ100,HDJ100 T=3.10,MARK 49 |
1 | ||
| 90564-46033 |
UZJ100..LHD;FZJ100,HDJ100 T=3.16,MARK 51 |
1 | ||
| 90564-46029 |
UZJ100..LHD;FZJ100,HDJ100 T=3.04,MARK 47 |
1 | ||
| 90564-46017 |
UZJ100..LHD;FZJ100,HDJ100 T=2.68,MARK 35 |
1 | ||
| 90564-46026 |
UZJ100..LHD;FZJ100,HDJ100 T=2.96,MARK 44 |
1 | ||
| 90564-46028 |
UZJ100..LHD;FZJ100,HDJ100 T=3.02,MARK 46 |
1 | ||
| 90564-46036 |
UZJ100..LHD;FZJ100,HDJ100 T=3.26,MARK 54 |
1 | ||
| 90564-46018 |
UZJ100..LHD;FZJ100,HDJ100 T=2.72,MARK 36 |
1 | ||
| 90564-46037 |
UZJ100..LHD;FZJ100,HDJ100 T=3.28,MARK 55 |
1 | ||
| 90564-46030 |
UZJ100..LHD;FZJ100,HDJ100 T=3.08,MARK 48 |
1 | ||
| 90564-46043 |
UZJ100..LHD;FZJ100,HDJ100 T=3.46,MARK 61 |
1 | ||
| 90564-46041 |
UZJ100..LHD;FZJ100,HDJ100 T=3.40,MARK 59 |
1 | ||
| 90201-52029 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.42,MARK 29 |
1 | ||
| 90201-52031 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.48,MARK 31 |
1 | ||
| 90564-46034 |
UZJ100..LHD;FZJ100,HDJ100 T=3.20,MARK 52 |
1 | ||
| 90564-46035 |
UZJ100..LHD;FZJ100,HDJ100 T=3.22,MARK 53 |
1 | ||
| 90564-46042 |
UZJ100..LHD;FZJ100,HDJ100 T=3.44,MARK 60 |
1 | ||
| 90564-46038 |
UZJ100..LHD;FZJ100,HDJ100 T=3.32,MARK 56 |
1 | ||
| 90564-46043 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.46,MARK 61 |
1 | ||
| 90564-46039 |
UZJ100..LHD;FZJ100,HDJ100 T=3.34,MARK 57 |
1 | ||
| 90564-46032 |
UZJ100..LHD;FZJ100,HDJ100 T=3.14,MARK 50 |
1 | ||
| 90564-46042 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.44,MARK 60 |
1 | ||
| 90564-46040 |
UZJ100..LHD;FZJ100,HDJ100 T=3.38,MARK 58 |
1 | ||
| 90201-52027 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.36,MARK 27 |
1 | ||
| 90564-46039 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.34,MARK 57 |
1 | ||
| 90564-46041 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.40,MARK 59 |
1 | ||
| 90564-46040 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.38,MARK 58 |
1 | ||
| 90201-52005 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.70,MARK 05 |
1 | ||
| 90201-52011 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.88,MARK 11 |
1 | ||
| 90201-52003 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.64,MARK 03 |
1 | ||
| 90201-52017 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.06,MARK 17 |
1 | ||
| 90201-52007 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.76,MARK 07 |
1 | ||
| 90201-52021 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.18,MARK 21 |
1 | ||
| 90201-52001 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.58,MARK 01 |
1 | ||
| 90201-52019 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.12,MARK 19 |
1 | ||
| 90564-46014 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.60,MARK 32 |
1 | ||
| 90201-52013 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.94,MARK 13 |
1 | ||
| 90201-52009 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.82,MARK 09 |
1 | ||
| 90201-52023 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.24,MARK 23 |
1 | ||
| 90564-46022 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.84,MARK 40 |
1 | ||
| 90564-46017 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.68,MARK 35 |
1 | ||
| 90564-46021 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.80,MARK 39 |
1 | ||
| 90564-46019 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.74,MARK 37 |
1 | ||
| 90564-46025 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.92,MARK 43 |
1 | ||
| 90564-46015 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.62,MARK 33 |
1 | ||
| 90564-46026 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.96,MARK 44 |
1 | ||
| 90564-46020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.78,MARK 38 |
1 | ||
| 90201-52015 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.00,MARK 15 |
1 | ||
| 90201-52025 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.30,MARK 25 |
1 | ||
| 90564-46027 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.98,MARK 45 |
1 | ||
| 90564-46018 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.72,MARK 36 |
1 | ||
| 90564-46031 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.10,MARK 49 |
1 | ||
| 90564-46016 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.66,MARK 34 |
1 | ||
| 90564-46023 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.86,MARK 41 |
1 | ||
| 90564-46034 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.20,MARK 52 |
1 | ||
| 90564-46024 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.90,MARK 42 |
1 | ||
| 90564-46028 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.02,MARK 46 |
1 | ||
| 90564-46032 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.14,MARK 50 |
1 | ||
| 90564-46035 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.22,MARK 53 |
1 | ||
| 90564-46030 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.08,MARK 48 |
1 | ||
| 90564-46029 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.04,MARK 47 |
1 | ||
| 90564-46044 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.42,MARK 62 |
1 | ||
| 90564-46033 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.16,MARK 51 |
1 | ||
| 90564-46037 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.28,MARK 55 |
1 | ||
| 90564-46038 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.32,MARK 56 |
1 | ||
| 90564-46049 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.52,MARK 67 |
1 | ||
| 90564-46036 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.26,MARK 54 |
1 | ||
| 90564-46048 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.50,MARK 66 |
1 | ||
| 90564-46051 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.56,MARK 69 |
1 | ||
| 90564-46046 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.46,MARK 64 |
1 | ||
| 90564-46045 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.44,MARK 63 |
1 | ||
| 90564-46050 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.54,MARK 68 |
1 | ||
| 90564-46047 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.48,MARK 65 |
1 | ||
| 90201-52015 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.00,MARK 15 |
1 | ||
| 90201-52021 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.18,MARK 21 |
1 | ||
| 90201-52003 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.64,MARK 03 |
1 | ||
| 90201-52025 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.30,MARK 25 |
1 | ||
| 90201-52011 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.88,MARK 11 |
1 | ||
| 90201-52005 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.70,MARK 05 |
1 | ||
| 90564-46015 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.62,MARK 33 |
1 | ||
| 90201-52023 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.24,MARK 23 |
1 | ||
| 90201-52017 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.06,MARK 17 |
1 | ||
| 90201-52009 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.82,MARK 09 |
1 | ||
| 90201-52001 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.58,MARK 01 |
1 | ||
| 90201-52013 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.94,MARK 13 |
1 | ||
| 90564-46014 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.60,MARK 32 |
1 | ||
| 90564-46016 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.66,MARK 34 |
1 | ||
| 90564-46022 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.84,MARK 40 |
1 | ||
| 90564-46017 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.68,MARK 35 |
1 | ||
| 90564-46029 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.04,MARK 47 |
1 | ||
| 90564-46024 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.90,MARK 42 |
1 | ||
| 90564-46018 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.72,MARK 36 |
1 | ||
| 90564-46028 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.02,MARK 46 |
1 | ||
| 90564-46020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.78,MARK 38 |
1 | ||
| 90201-52007 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.76,MARK 07 |
1 | ||
| 90564-46019 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.74,MARK 37 |
1 | ||
| 90564-46026 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.96,MARK 44 |
1 | ||
| 90564-46023 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.86,MARK 41 |
1 | ||
| 90564-46027 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.98,MARK 45 |
1 | ||
| 90564-46021 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.80,MARK 39 |
1 | ||
| 90564-46025 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.92,MARK 43 |
1 | ||
| 90564-46034 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.20,MARK 52 |
1 | ||
| 90564-46031 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.10,MARK 49 |
1 | ||
| 90564-46047 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.48,MARK 65 |
1 | ||
| 90564-46035 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.22,MARK 53 |
1 | ||
| 90564-46032 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.14,MARK 50 |
1 | ||
| 90564-46046 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.46,MARK 64 |
1 | ||
| 90564-46038 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.32,MARK 56 |
1 | ||
| 90564-46036 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.26,MARK 54 |
1 | ||
| 90564-46049 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.52,MARK 67 |
1 | ||
| 90564-46045 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.44,MARK 63 |
1 | ||
| 90564-46030 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.08,MARK 48 |
1 | ||
| 90564-46048 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.50,MARK 66 |
1 | ||
| 90201-52019 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.12,MARK 19 |
1 | ||
| 90564-46051 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.56,MARK 69 |
1 | ||
| 90564-46033 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.16,MARK 51 |
1 | ||
| 90564-46050 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.54,MARK 68 |
1 | ||
| 90564-46044 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.42,MARK 62 |
1 | ||
| 90564-46037 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.28,MARK 55 |
1 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90201-52003 |
UZJ100..LHD;FZJ100,HDJ100 T=2.64,MARK 03 |
1 | ||
| 90201-52007 |
UZJ100..LHD;FZJ100,HDJ100 T=2.76,MARK 07 |
1 | ||
| 90201-52001 |
UZJ100..LHD;FZJ100,HDJ100 T=2.58,MARK 01 |
1 | ||
| 90201-52005 |
UZJ100..LHD;FZJ100,HDJ100 T=2.70,MARK 05 |
1 | ||
| 90201-52013 |
UZJ100..LHD;FZJ100,HDJ100 T=2.94,MARK 13 |
1 | ||
| 90201-52021 |
UZJ100..LHD;FZJ100,HDJ100 T=3.18,MARK 21 |
1 | ||
| 90564-46014 |
UZJ100..LHD;FZJ100,HDJ100 T=2.60,MARK 32 |
1 | ||
| 90201-52029 |
UZJ100..LHD;FZJ100,HDJ100 T=3.42,MARK 29 |
1 | ||
| 90201-52025 |
UZJ100..LHD;FZJ100,HDJ100 T=3.30,MARK 25 |
1 | ||
| 90201-52031 |
UZJ100..LHD;FZJ100,HDJ100 T=3.48,MARK 31 |
1 | ||
| 90201-52015 |
UZJ100..LHD;FZJ100,HDJ100 T=3.00,MARK 15 |
1 | ||
| 90201-52023 |
UZJ100..LHD;FZJ100,HDJ100 T=3.24,MARK 23 |
1 | ||
| 90201-52011 |
UZJ100..LHD;FZJ100,HDJ100 T=2.88,MARK 11 |
1 | ||
| 90564-46015 |
UZJ100..LHD;FZJ100,HDJ100 T=2.62,MARK 33 |
1 | ||
| 90201-52027 |
UZJ100..LHD;FZJ100,HDJ100 T=3.36,MARK 27 |
1 | ||
| 90201-52009 |
UZJ100..LHD;FZJ100,HDJ100 T=2.82,MARK 09 |
1 | ||
| 90564-46023 |
UZJ100..LHD;FZJ100,HDJ100 T=2.86,MARK 41 |
1 | ||
| 90564-46019 |
UZJ100..LHD;FZJ100,HDJ100 T=2.74,MARK 37 |
1 | ||
| 90564-46022 |
UZJ100..LHD;FZJ100,HDJ100 T=2.84,MARK 40 |
1 | ||
| 90564-46024 |
UZJ100..LHD;FZJ100,HDJ100 T=2.90,MARK 42 |
1 | ||
| 90564-46016 |
UZJ100..LHD;FZJ100,HDJ100 T=2.66,MARK 34 |
1 | ||
| 90201-52017 |
UZJ100..LHD;FZJ100,HDJ100 T=3.06,MARK 17 |
1 | ||
| 90201-52019 |
UZJ100..LHD;FZJ100,HDJ100 T=3.12,MARK 19 |
1 | ||
| 90564-46020 |
UZJ100..LHD;FZJ100,HDJ100 T=2.78,MARK 38 |
1 | ||
| 90564-46025 |
UZJ100..LHD;FZJ100,HDJ100 T=2.92,MARK 43 |
1 | ||
| 90564-46021 |
UZJ100..LHD;FZJ100,HDJ100 T=2.80,MARK 39 |
1 | ||
| 90564-46027 |
UZJ100..LHD;FZJ100,HDJ100 T=2.98,MARK 45 |
1 | ||
| 90564-46031 |
UZJ100..LHD;FZJ100,HDJ100 T=3.10,MARK 49 |
1 | ||
| 90564-46033 |
UZJ100..LHD;FZJ100,HDJ100 T=3.16,MARK 51 |
1 | ||
| 90564-46029 |
UZJ100..LHD;FZJ100,HDJ100 T=3.04,MARK 47 |
1 | ||
| 90564-46017 |
UZJ100..LHD;FZJ100,HDJ100 T=2.68,MARK 35 |
1 | ||
| 90564-46026 |
UZJ100..LHD;FZJ100,HDJ100 T=2.96,MARK 44 |
1 | ||
| 90564-46028 |
UZJ100..LHD;FZJ100,HDJ100 T=3.02,MARK 46 |
1 | ||
| 90564-46036 |
UZJ100..LHD;FZJ100,HDJ100 T=3.26,MARK 54 |
1 | ||
| 90564-46018 |
UZJ100..LHD;FZJ100,HDJ100 T=2.72,MARK 36 |
1 | ||
| 90564-46037 |
UZJ100..LHD;FZJ100,HDJ100 T=3.28,MARK 55 |
1 | ||
| 90564-46030 |
UZJ100..LHD;FZJ100,HDJ100 T=3.08,MARK 48 |
1 | ||
| 90564-46043 |
UZJ100..LHD;FZJ100,HDJ100 T=3.46,MARK 61 |
1 | ||
| 90564-46041 |
UZJ100..LHD;FZJ100,HDJ100 T=3.40,MARK 59 |
1 | ||
| 90201-52029 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.42,MARK 29 |
1 | ||
| 90201-52031 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.48,MARK 31 |
1 | ||
| 90564-46034 |
UZJ100..LHD;FZJ100,HDJ100 T=3.20,MARK 52 |
1 | ||
| 90564-46035 |
UZJ100..LHD;FZJ100,HDJ100 T=3.22,MARK 53 |
1 | ||
| 90564-46042 |
UZJ100..LHD;FZJ100,HDJ100 T=3.44,MARK 60 |
1 | ||
| 90564-46038 |
UZJ100..LHD;FZJ100,HDJ100 T=3.32,MARK 56 |
1 | ||
| 90564-46043 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.46,MARK 61 |
1 | ||
| 90564-46039 |
UZJ100..LHD;FZJ100,HDJ100 T=3.34,MARK 57 |
1 | ||
| 90564-46032 |
UZJ100..LHD;FZJ100,HDJ100 T=3.14,MARK 50 |
1 | ||
| 90564-46042 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.44,MARK 60 |
1 | ||
| 90564-46040 |
UZJ100..LHD;FZJ100,HDJ100 T=3.38,MARK 58 |
1 | ||
| 90201-52027 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.36,MARK 27 |
1 | ||
| 90564-46039 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.34,MARK 57 |
1 | ||
| 90564-46041 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.40,MARK 59 |
1 | ||
| 90564-46040 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.38,MARK 58 |
1 | ||
| 90201-52005 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.70,MARK 05 |
1 | ||
| 90201-52011 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.88,MARK 11 |
1 | ||
| 90201-52003 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.64,MARK 03 |
1 | ||
| 90201-52017 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.06,MARK 17 |
1 | ||
| 90201-52007 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.76,MARK 07 |
1 | ||
| 90201-52021 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.18,MARK 21 |
1 | ||
| 90201-52001 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.58,MARK 01 |
1 | ||
| 90201-52019 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.12,MARK 19 |
1 | ||
| 90564-46014 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.60,MARK 32 |
1 | ||
| 90201-52013 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.94,MARK 13 |
1 | ||
| 90201-52009 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.82,MARK 09 |
1 | ||
| 90201-52023 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.24,MARK 23 |
1 | ||
| 90564-46022 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.84,MARK 40 |
1 | ||
| 90564-46017 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.68,MARK 35 |
1 | ||
| 90564-46021 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.80,MARK 39 |
1 | ||
| 90564-46019 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.74,MARK 37 |
1 | ||
| 90564-46025 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.92,MARK 43 |
1 | ||
| 90564-46015 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.62,MARK 33 |
1 | ||
| 90564-46026 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.96,MARK 44 |
1 | ||
| 90564-46020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.78,MARK 38 |
1 | ||
| 90201-52015 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.00,MARK 15 |
1 | ||
| 90201-52025 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.30,MARK 25 |
1 | ||
| 90564-46027 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.98,MARK 45 |
1 | ||
| 90564-46018 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.72,MARK 36 |
1 | ||
| 90564-46031 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.10,MARK 49 |
1 | ||
| 90564-46016 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.66,MARK 34 |
1 | ||
| 90564-46023 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.86,MARK 41 |
1 | ||
| 90564-46034 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.20,MARK 52 |
1 | ||
| 90564-46024 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.90,MARK 42 |
1 | ||
| 90564-46028 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.02,MARK 46 |
1 | ||
| 90564-46032 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.14,MARK 50 |
1 | ||
| 90564-46035 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.22,MARK 53 |
1 | ||
| 90564-46030 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.08,MARK 48 |
1 | ||
| 90564-46029 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.04,MARK 47 |
1 | ||
| 90564-46044 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.42,MARK 62 |
1 | ||
| 90564-46033 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.16,MARK 51 |
1 | ||
| 90564-46037 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.28,MARK 55 |
1 | ||
| 90564-46038 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.32,MARK 56 |
1 | ||
| 90564-46049 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.52,MARK 67 |
1 | ||
| 90564-46036 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.26,MARK 54 |
1 | ||
| 90564-46048 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.50,MARK 66 |
1 | ||
| 90564-46051 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.56,MARK 69 |
1 | ||
| 90564-46046 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.46,MARK 64 |
1 | ||
| 90564-46045 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.44,MARK 63 |
1 | ||
| 90564-46050 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.54,MARK 68 |
1 | ||
| 90564-46047 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.48,MARK 65 |
1 | ||
| 90201-52015 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.00,MARK 15 |
1 | ||
| 90201-52021 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.18,MARK 21 |
1 | ||
| 90201-52003 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.64,MARK 03 |
1 | ||
| 90201-52025 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.30,MARK 25 |
1 | ||
| 90201-52011 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.88,MARK 11 |
1 | ||
| 90201-52005 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.70,MARK 05 |
1 | ||
| 90564-46015 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.62,MARK 33 |
1 | ||
| 90201-52023 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.24,MARK 23 |
1 | ||
| 90201-52017 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.06,MARK 17 |
1 | ||
| 90201-52009 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.82,MARK 09 |
1 | ||
| 90201-52001 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.58,MARK 01 |
1 | ||
| 90201-52013 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.94,MARK 13 |
1 | ||
| 90564-46014 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.60,MARK 32 |
1 | ||
| 90564-46016 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.66,MARK 34 |
1 | ||
| 90564-46022 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.84,MARK 40 |
1 | ||
| 90564-46017 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.68,MARK 35 |
1 | ||
| 90564-46029 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.04,MARK 47 |
1 | ||
| 90564-46024 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.90,MARK 42 |
1 | ||
| 90564-46018 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.72,MARK 36 |
1 | ||
| 90564-46028 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.02,MARK 46 |
1 | ||
| 90564-46020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.78,MARK 38 |
1 | ||
| 90201-52007 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.76,MARK 07 |
1 | ||
| 90564-46019 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.74,MARK 37 |
1 | ||
| 90564-46026 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.96,MARK 44 |
1 | ||
| 90564-46023 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.86,MARK 41 |
1 | ||
| 90564-46027 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.98,MARK 45 |
1 | ||
| 90564-46021 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.80,MARK 39 |
1 | ||
| 90564-46025 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.92,MARK 43 |
1 | ||
| 90564-46034 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.20,MARK 52 |
1 | ||
| 90564-46031 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.10,MARK 49 |
1 | ||
| 90564-46047 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.48,MARK 65 |
1 | ||
| 90564-46035 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.22,MARK 53 |
1 | ||
| 90564-46032 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.14,MARK 50 |
1 | ||
| 90564-46046 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.46,MARK 64 |
1 | ||
| 90564-46038 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.32,MARK 56 |
1 | ||
| 90564-46036 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.26,MARK 54 |
1 | ||
| 90564-46049 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.52,MARK 67 |
1 | ||
| 90564-46045 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.44,MARK 63 |
1 | ||
| 90564-46030 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.08,MARK 48 |
1 | ||
| 90564-46048 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.50,MARK 66 |
1 | ||
| 90201-52019 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.12,MARK 19 |
1 | ||
| 90564-46051 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.56,MARK 69 |
1 | ||
| 90564-46033 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.16,MARK 51 |
1 | ||
| 90564-46050 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.54,MARK 68 |
1 | ||
| 90564-46044 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=2.42,MARK 62 |
1 | ||
| 90564-46037 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=3.28,MARK 55 |
1 | ||
| 41320 - TUBE ASSY, FRONT DIFFERENTIAL | ||||
| 41320-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41320-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41320-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41320B - BOLT (FOR FRONT DIFFERENTIAL TUBE) | ||||
| 90105-12292 |
UZJ100..LHD;FZJ100,HDJ100 |
4 | ||
| 90105-12292 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 90105-12292 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-24020 |
FZJ100,HDJ100,UZJ100 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-24020 |
FZJ100,HDJ100,UZJ100 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-30020 |
FZJ100,HDJ100,UZJ100 |
4 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-30020 |
FZJ100,HDJ100,UZJ100 |
4 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-30020 |
FZJ100,HDJ100,UZJ100 |
4 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-30020 |
FZJ100,HDJ100,UZJ100 |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
UZJ100..LHD;FZJ100,HDJ100 |
4 | ||
| 41351-30060 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 41351-30052 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 41351-30060 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
UZJ100..LHD;FZJ100,HDJ100 |
4 | ||
| 41351-30060 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 41351-30052 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 41351-30060 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
UZJ100..LHD;FZJ100,HDJ100 |
4 | ||
| 41351-30060 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 41351-30052 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 41351-30060 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
UZJ100..LHD;FZJ100,HDJ100 |
4 | ||
| 41351-30060 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 41351-30052 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 41351-30060 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
4 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-40021 |
FZJ100,UZJ100 T=1.6 |
2 | ||
| 41361-40140 |
FZJ100,UZJ100 T=1.85 |
2 | ||
| 41361-40110 |
FZJ100,UZJ100 T=1.55 |
2 | ||
| 41361-40150 |
FZJ100,UZJ100 T=1.90 |
2 | ||
| 41361-40120 |
FZJ100,UZJ100 T=1.65 |
2 | ||
| 41361-40130 |
FZJ100,UZJ100 T=1.75 |
2 | ||
| 41362-40021 |
FZJ100,UZJ100 T=1.7 |
2 | ||
| 41363-40021 |
FZJ100,UZJ100 T=1.8 |
2 | ||
| 41361-40100 |
FZJ100,UZJ100 T=1.50 |
2 | ||
| 41361-60E20 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.925 |
2 | ||
| 41361-60E10 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.900 |
2 | ||
| 41361-60E30 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.950 |
2 | ||
| 41361-60E50 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.000 |
2 | ||
| 41361-60E70 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.050 |
2 | ||
| 41361-60F10 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.150 |
2 | ||
| 41361-60E60 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.025 |
2 | ||
| 41361-60F40 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.225 |
2 | ||
| 41361-60E80 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.075 |
2 | ||
| 41361-60F70 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.300 |
2 | ||
| 41361-60E90 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.100 |
2 | ||
| 41361-60E40 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.975 |
2 | ||
| 41361-60F50 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.250 |
2 | ||
| 41361-60E00 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.875 |
2 | ||
| 41361-60F20 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.175 |
2 | ||
| 41361-60F00 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.125 |
2 | ||
| 41361-60F80 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.325 |
2 | ||
| 41361-60F30 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.200 |
2 | ||
| 41361-60F60 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.275 |
2 | ||
| 41361-60E30 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.950 |
2 | ||
| 41361-60E40 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.975 |
2 | ||
| 41361-60E60 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.025 |
2 | ||
| 41361-60E80 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.075 |
2 | ||
| 41361-60E10 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.900 |
2 | ||
| 41361-60E20 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.925 |
2 | ||
| 41361-60F40 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.225 |
2 | ||
| 41361-60E90 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.100 |
2 | ||
| 41361-60E00 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.875 |
2 | ||
| 41361-60F70 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.300 |
2 | ||
| 41361-60F00 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.125 |
2 | ||
| 41361-60F20 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.175 |
2 | ||
| 41361-60F80 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.325 |
2 | ||
| 41361-60E50 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.000 |
2 | ||
| 41361-60F10 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.150 |
2 | ||
| 41361-60F60 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.275 |
2 | ||
| 41361-60F50 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.250 |
2 | ||
| 41361-60E70 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.050 |
2 | ||
| 41361-60F30 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.200 |
2 | ||
| 41361-60E10 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.900 |
2 | ||
| 41361-60E80 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.075 |
2 | ||
| 41361-60E00 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.875 |
2 | ||
| 41361-60F00 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.125 |
2 | ||
| 41361-60E60 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.025 |
2 | ||
| 41361-60E20 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.925 |
2 | ||
| 41361-60E70 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.050 |
2 | ||
| 41361-60E40 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.975 |
2 | ||
| 41361-60F50 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.250 |
2 | ||
| 41361-60E90 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.100 |
2 | ||
| 41361-60E30 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.950 |
2 | ||
| 41361-60F20 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.175 |
2 | ||
| 41361-60F60 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.275 |
2 | ||
| 41361-60F10 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.150 |
2 | ||
| 41361-60F30 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.200 |
2 | ||
| 41361-60F40 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.225 |
2 | ||
| 41361-60F80 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.325 |
2 | ||
| 41361-60E50 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.000 |
2 | ||
| 41361-60F70 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.300 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-40021 |
FZJ100,UZJ100 T=1.6 |
2 | ||
| 41361-40140 |
FZJ100,UZJ100 T=1.85 |
2 | ||
| 41361-40110 |
FZJ100,UZJ100 T=1.55 |
2 | ||
| 41361-40150 |
FZJ100,UZJ100 T=1.90 |
2 | ||
| 41361-40120 |
FZJ100,UZJ100 T=1.65 |
2 | ||
| 41361-40130 |
FZJ100,UZJ100 T=1.75 |
2 | ||
| 41362-40021 |
FZJ100,UZJ100 T=1.7 |
2 | ||
| 41363-40021 |
FZJ100,UZJ100 T=1.8 |
2 | ||
| 41361-40100 |
FZJ100,UZJ100 T=1.50 |
2 | ||
| 41361-60E20 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.925 |
2 | ||
| 41361-60E10 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.900 |
2 | ||
| 41361-60E30 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.950 |
2 | ||
| 41361-60E50 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.000 |
2 | ||
| 41361-60E70 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.050 |
2 | ||
| 41361-60F10 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.150 |
2 | ||
| 41361-60E60 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.025 |
2 | ||
| 41361-60F40 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.225 |
2 | ||
| 41361-60E80 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.075 |
2 | ||
| 41361-60F70 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.300 |
2 | ||
| 41361-60E90 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.100 |
2 | ||
| 41361-60E40 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.975 |
2 | ||
| 41361-60F50 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.250 |
2 | ||
| 41361-60E00 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.875 |
2 | ||
| 41361-60F20 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.175 |
2 | ||
| 41361-60F00 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.125 |
2 | ||
| 41361-60F80 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.325 |
2 | ||
| 41361-60F30 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.200 |
2 | ||
| 41361-60F60 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=1.275 |
2 | ||
| 41361-60E30 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.950 |
2 | ||
| 41361-60E40 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.975 |
2 | ||
| 41361-60E60 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.025 |
2 | ||
| 41361-60E80 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.075 |
2 | ||
| 41361-60E10 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.900 |
2 | ||
| 41361-60E20 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.925 |
2 | ||
| 41361-60F40 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.225 |
2 | ||
| 41361-60E90 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.100 |
2 | ||
| 41361-60E00 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.875 |
2 | ||
| 41361-60F70 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.300 |
2 | ||
| 41361-60F00 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.125 |
2 | ||
| 41361-60F20 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.175 |
2 | ||
| 41361-60F80 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.325 |
2 | ||
| 41361-60E50 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.000 |
2 | ||
| 41361-60F10 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.150 |
2 | ||
| 41361-60F60 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.275 |
2 | ||
| 41361-60F50 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.250 |
2 | ||
| 41361-60E70 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.050 |
2 | ||
| 41361-60F30 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.200 |
2 | ||
| 41361-60E10 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.900 |
2 | ||
| 41361-60E80 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.075 |
2 | ||
| 41361-60E00 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.875 |
2 | ||
| 41361-60F00 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.125 |
2 | ||
| 41361-60E60 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.025 |
2 | ||
| 41361-60E20 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.925 |
2 | ||
| 41361-60E70 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.050 |
2 | ||
| 41361-60E40 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.975 |
2 | ||
| 41361-60F50 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.250 |
2 | ||
| 41361-60E90 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.100 |
2 | ||
| 41361-60E30 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=0.950 |
2 | ||
| 41361-60F20 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.175 |
2 | ||
| 41361-60F60 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.275 |
2 | ||
| 41361-60F10 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.150 |
2 | ||
| 41361-60F30 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.200 |
2 | ||
| 41361-60F40 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.225 |
2 | ||
| 41361-60F80 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.325 |
2 | ||
| 41361-60E50 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.000 |
2 | ||
| 41361-60F70 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN T=1.300 |
2 | ||
| 41371F - SPIDER, FRONT DIFFERENTIAL | ||||
| 41371-60040 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41371-60040 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41371-60040 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41651B - CUSHION, FRONT DIFFERENTIAL MOUNT, NO.1 | ||||
| 41651-60010 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 41651-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41651-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41653B - STOPPER, DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41653-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41653-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41653C - STOPPER, FRONT DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-60020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41653-60020 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 41653-60020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 41654A - STOPPER, DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 41654-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 41654-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 41654A - STOPPER, DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 41654-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 41654-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 52380D - SUPPORT ASSY, FRONT DIFFERENTIAL | ||||
| 52380-60030 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 52380-60030 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 52380-60030 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 52380E - SUPPORT ASSY, DIFFERENTIAL | ||||
| 52380-60040 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 52380-60040 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 52380-60040 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 52383 - PROTECTOR, FRONT DIFFERENTIAL SUPPORT, NO.1 | ||||
| 52383-60010 |
FZJ100..GCC |
1 | ||
| 52383-60010 |
FZJ100..GCC |
1 | ||
| 52383-60010 |
FZJ100 |
1 | ||
| Common parts | ||||
| 90105-14126 | ||||
| 90105-14171 | ||||
| 90119-14089 | ||||
| 90119-14090 | ||||
| 90179-14045 | ||||
| 90179-14063 | ||||
| 90520-41014 | ||||
| 91611-B0614 | ||||
| Linked diagrams | ||||
| 4302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
