FZJ100L-GCMNKV (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2007
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )FZJ100,HDJ100,UZJ100

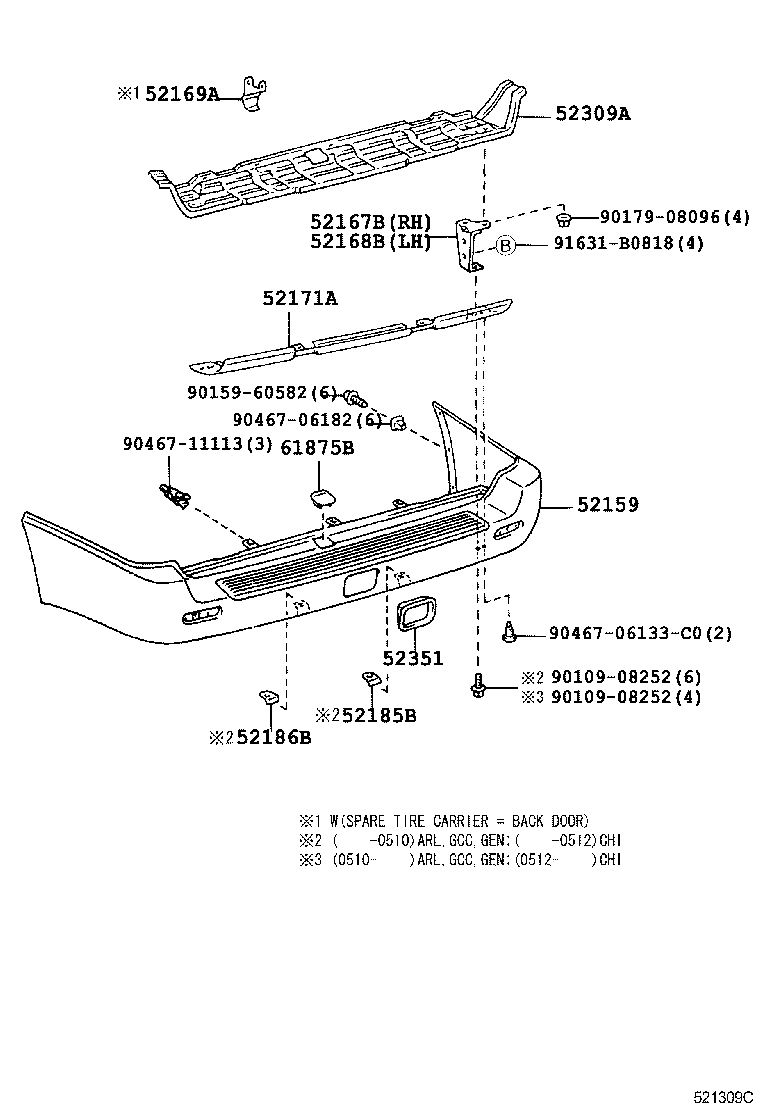

diagram 52159 52167B 52168B 52169A 52171A 52185B 52186B 52309A 52351 61875B 9010908252 9010908252 9015960582 9017908096 9046706133C0 9046706182 9046711113 91631B0818
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-60120

FZJ10#,HZJ105

W(JACK HOLE)

 1
52159-60907

FZJ100..GX

W(PAINTED BUMPER & JACK HOLE)

 1
52159-60906

FZJ100..GX

W(PAINTED BUMPER)

 1
52159-60121

FZJ10#,HZJ105

W(JACK HOLE)

 1
52159-60907

FZJ100,HDJ100,UZJ100..(GX,VX)..(EFI,TD2)

W(PAINTED BUMPER & JACK HOLE)

 1
52167B - BRACKET, REAR BUMPER EXTENSION MOUNTING, RH
52167-60030

UZJ100..LHD;FZJ100,HDJ100

 1
52168B - BRACKET, REAR BUMPER EXTENSION MOUNTING, LH
52168-60030

UZJ100..LHD;FZJ100,HDJ100

 1
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-60010

FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)

 1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-60080

FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)

 1
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52185-60080

FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)

 1
52309A - REINFORCEMENT SUB-ASSY, BACK STEP
52309-60010

FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)

 1
61875B - LID, SPARE WHEEL CARRIER, NO.1
61875-60020H2

HZJ105..GCC;FZJ100,HDJ100,UZJ100..GX,VX

MEDIUM GRAY ME.,1C3 ,202 ,4E9 ,6Q7 ,8L4

 1
61875-60020E0

HZJ105..GCC;FZJ100,HDJ100,UZJ100..GX,VX

LT. GRAYISH BEIGE ME,056 ,1B1

 1
61875-60020H1

HZJ105..GCC;FZJ100,HDJ100,UZJ100..GX,VX

DK. TAUPE ME.,3N2 ,4P3

 1
61875-60020H0

HZJ105..GCC;FZJ100,HDJ100,UZJ100..GX,VX

MEDIUM GRAY ME.,1C3 ,202 ,4E9 ,6Q7 ,8L4

 1
61875-60020E1

HZJ105..GCC;FZJ100,HDJ100,UZJ100..GX,VX

LT.GRAYISH BEIGE ME.,056 ,1B1

 1
61875-60030

FZJ10#,HZJ105

UNPAINTED

 1
61875-60020H3

HZJ105..GCC;FZJ100,HDJ100,UZJ100..GX,VX

DK.TAUPE ME.,3N2 ,4P3

 1
Common parts
90109-08252 None epc.PartDetail.None
90159-60582 None epc.PartDetail.None
90179-08096 None epc.PartDetail.None
90467-06133C0 None epc.PartDetail.None
90467-06182 None epc.PartDetail.None
90467-11113 None epc.PartDetail.None
91631-B0818 None epc.PartDetail.None
