Toyota Land cruiser 100 FZJ100 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
GR
LAND CRUISER 100
FZJ100L-GCMNKV (1998)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

FZJ100L-GCMNKV (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2007

Engine 1FZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

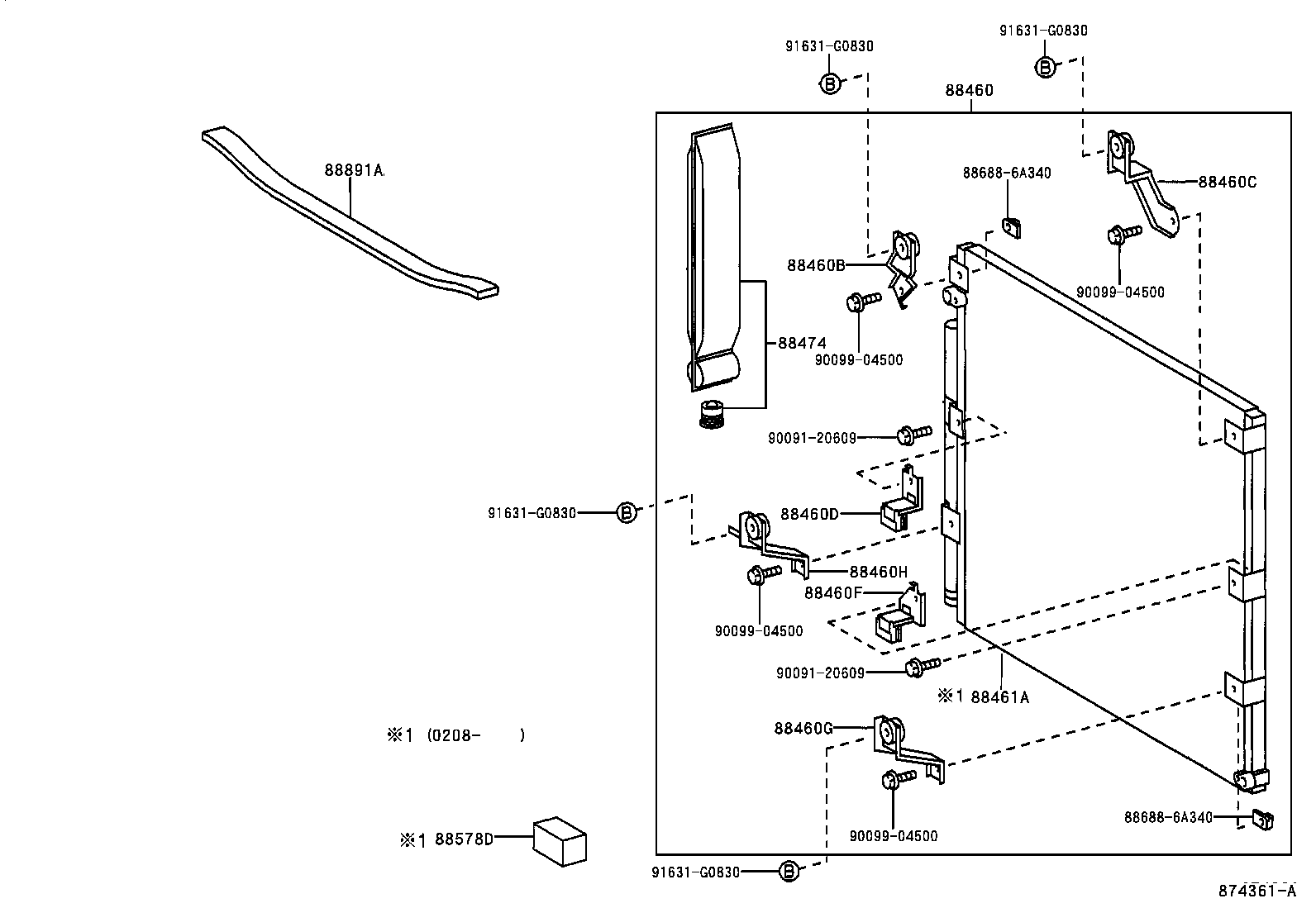

ILLUST NO. 1 OF 4(9801- )FZJ100,HDJ100,UZJ100

Click highlighted areas on diagram

CONDENSER(DUAL AIR CONDITIONER)

Part #	Description	Period	Qty
88453 - FAN, COOLING (FOR CONDENSER)
88453-60010	FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX	02/1998 - 07/1999	1
88453-60010	FZJ100,HDJ100,UZJ100..GX,VX	01/1998 - 02/1998	1
88453-60010	UZJ100..LHD;HZJ105..GX..(ARL,GEN);FZJ10#,HDJ100..(GX,VX)..(EFI,TD2)	07/1999 - 08/2002	1
88453-60010	UZJ100..GCC;HZJ105..GX..GEN;FZJ10#..GX..(GCC,GEN)	05/2005 - 12/2999	1
88453-60010	UZJ100..GCC;FZJ10#..GX..(GCC,GEN);HZJ105..GX..(ARL,GEN)	08/2002 - 05/2005	1
88454A - SHROUD, FAN
88454-60020	FZJ100,HDJ100,UZJ100..GX,VX	01/1998 - 02/1998	1
88454-60020	UZJ100..LHD;HZJ105..GX..(ARL,GEN);FZJ10#,HDJ100..(GX,VX)..(EFI,TD2)	07/1999 - 08/2002	1
88454-60020	UZJ100..GCC;FZJ10#..GX..(GCC,GEN);HZJ105..GX..(ARL,GEN)	08/2002 - 05/2005	1
88454-60020	FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX	02/1998 - 07/1999	1
88454-60020	UZJ100..GCC;HZJ105..GX..GEN;FZJ10#..GX..(GCC,GEN)	05/2005 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-60270	FZJ100,HDJ100,UZJ100	01/1998 - 10/1998	1
88460-60271	FZJ100,HDJ100,UZJ100	10/1998 - 08/2002	1
88460-60903	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88460-60903	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-60770	FZJ100,HDJ100,UZJ100	01/1998 - 10/1998	1
88688-6A420	FZJ100,HDJ100,UZJ100 TYPE A:REFER TO ILLUSTRATION	10/1998 - 08/2002	1
88688-6A420	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88688-6A420	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION	08/2002 - 05/2005	1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-60851	FZJ100,HDJ100,UZJ100..EFI,TD2 W(COOL BOX OR DUAL AIR CONDITIONER)	10/1998 - 08/2002	1
88688-60850	FZJ100,HDJ100,UZJ100 W(COOL BOX OR DUAL AIR CONDITIONER)	01/1998 - 10/1998	1
88688-60851	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88688-60851	FZJ100,UZJ100..(4FC,5F)..GCC W(COOL BOX OR DUAL AIR CONDITIONER)	08/2002 - 05/2005	1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-60790	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88688-60790	UZJ100..LHD;FZJ100,HDJ100	01/1998 - 08/2002	1
88688-60790	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88460F - BRACKET, COOLER CONDENSER, NO.4
88688-6A190	FZJ100,HDJ100,UZJ100 W(COOL BOX OR DUAL AIR CONDITIONER)	01/1998 - 08/2002	1
88688-6A190	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88688-6A190	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN W(COOL BOX OR DUAL AIR CONDITIONER)	08/2002 - 05/2005	1
88460G - BRACKET, COOLER CONDENSER, NO.5
88688-6A180	UZJ100..LHD;FZJ100,HDJ100	01/1998 - 08/2002	1
88688-6A180	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88688-6A180	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88460H - BRACKET, COOLER CONDENSER, NO.6
88688-60870	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88688-60870	UZJ100..LHD;FZJ100,HDJ100	01/1998 - 08/2002	1
88688-60870	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88461A - CORE, COOLER CONDENSER
88461-60052	FZJ100,UZJ100..ARL,GCC MAKER OPTION	08/2002 - 05/2005	1
88461-60052	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88474 - DRYER, COOLER
88474-47010	FZJ10#,HDJ100,HZJ105,UZJ100	09/1999 - 08/2002	1
88474-22010	FZJ100,HDJ100,UZJ100 W(COOL BOX OR DUAL AIR CONDITIONER)	01/1998 - 09/1999	1
88474-17010	HZJ105..ARL;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88474-17010	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-64080	FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX	02/1998 - 07/1999	1
16363-64080	UZJ100..GCC;HZJ105..GX..GEN;FZJ10#..GX..(GCC,GEN)	05/2005 - 12/2999	1
16363-64080	UZJ100..LHD;HZJ105..GX..(ARL,GEN);FZJ10#,HDJ100..(GX,VX)..(EFI,TD2)	07/1999 - 08/2002	1
16363-64080	UZJ100..GCC;FZJ10#..GX..(GCC,GEN);HZJ105..GX..(ARL,GEN)	08/2002 - 05/2005	1
16363-64080	FZJ100,HDJ100,UZJ100..GX,VX	01/1998 - 02/1998	1
88578D - PACKING, COOLER PIPE, NO.1
88578-60190	UZJ100..ARL,GEN;FZJ100,HDJ100..ARL,GCC,GEN	08/2002 - 05/2005	2
88578-60190	FZJ100..GX	06/2000 - 08/2002	2
88578-60190	UZJ100..ARL,GEN;FZJ100,HDJ100..ARL,GCC,GEN	05/2005 - 12/2999	2
88590 - BLOWER ASSY, W/SHROUD
88590-60030	FZJ105..RHD;FZJ105..LHD..GX;HZJ105..GX..(ARL,GEN);FZJ100,HDJ100,UZJ100..(GX,VX)..(EFI,TD2)	02/2000 - 08/2002	1
88590-60030	HZJ105..GX..(ARL,GEN);FZJ10#,HDJ100,UZJ100..GX,VX	07/1999 - 02/2000	1
88590-60030	FZJ100,HDJ100,UZJ100..GX,VX	01/1998 - 02/1998	1
88590-60030	FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX	02/1998 - 07/1999	1
88590-60030	UZJ100..GCC;FZJ10#..GX..(GCC,GEN);HZJ105..GX..(ARL,GEN)	08/2002 - 05/2005	1
88590-60030	UZJ100..GCC;HZJ105..GX..GEN;FZJ10#..GX..(GCC,GEN)	05/2005 - 12/2999	1
88891A - PACKING A (FOR COOLER)
88578-60100	UZJ100..LHD;FZJ100,HDJ100	01/1998 - 08/2002	1
88578-60100	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88578-60100	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
Common parts
82711-2B640
88688-6A340
90091-20609
90099-04117
90099-04119
90099-04500
91631-G0830

ILLUST NO. 3 OF 4(9801- )

Click highlighted areas on diagram

REAR(DUAL AIR CONDITIONER)

Part #	Description	Period	Qty
88704 - HOSE SUB-ASSY, SUCTION
88704-60230	FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX	01/1998 - 07/1999	1
88704-60230	HZJ105..GX..(ARL,GEN);FZJ10#,HDJ100,UZJ100..GX,VX	07/1999 - 08/2002	1
88704-60230	HZJ105..GX..(ARL,GEN);FZJ10#,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)	08/2002 - 05/2005	1
88704-60230	HZJ105..GX..GEN;FZJ10#,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)	05/2005 - 12/2999	1
88716L - PIPE, COOLER REFRIGERANT LIQUID, L
88726-60660	HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W(COOL BOX & SINGLE AIR CONDITIONER)	01/1998 - 07/1999	1
88726-60640	FZJ100..GX;UZJ100..VX;HDJ100..LUB W(COOL BOX & DUAL AIR CONDITIONER)	08/2002 - 11/2002	1
88726-60640	HDJ100..LUB..GEN;FZJ100,UZJ100..GX,VX W(COOL BOX & DUAL AIR CONDITIONER)	01/1998 - 08/2002	1
88726-60630	FZJ100,HDJ100,UZJ100..(GX,VX)..(EFI,TD2) W(DUAL AIR CONDITIONER)	01/1998 - 08/2002	1
88726-60630	FZJ100..GX..GCC;HDJ100,UZJ100..VX..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88726-60640	HDJ100..LUB;FZJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	11/2002 - 05/2005	1
88726-60640	FZJ100..GX..GCC;HDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88726-60630	FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	08/2002 - 05/2005	1
88716M - PIPE, COOLER REFRIGERANT LIQUID, M
88726-60650	FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)	05/2005 - 12/2999	1
88726-60650	FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)	08/2002 - 05/2005	1
88726-60650	FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN)	01/1998 - 08/2002	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-6A220	FZJ100,HDJ100,UZJ100..(GX,VX)..(EFI,TD2) W(DUAL AIR CONDITIONER)	01/1998 - 08/2002	1
88717-6A220	FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	08/2002 - 05/2005	1
88717-6A220	FZJ100..GX..GCC;HDJ100,UZJ100..VX..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-6A200	FZJ100,HDJ100,UZJ100..(GX,VX)..(EFI,TD2) W(DUAL AIR CONDITIONER)	01/1998 - 08/2002	1
88717-6A210	HDJ100..LUB..GEN;FZJ100,UZJ100..GX,VX W(COOL BOX & DUAL AIR CONDITIONER)	01/1998 - 08/2002	1
88717-6A210	FZJ100..GX;UZJ100..VX;HDJ100..LUB W(COOL BOX & DUAL AIR CONDITIONER)	08/2002 - 11/2002	1
88717-6A230	HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W(COOL BOX & SINGLE AIR CONDITIONER)	01/1998 - 07/1999	1
88717-6A210	FZJ100..GX..GCC;HDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88717-6A200	FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	08/2002 - 05/2005	1
88717-6A200	FZJ100..GX..GCC;HDJ100,UZJ100..VX..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88717-6A210	HDJ100..LUB;FZJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	11/2002 - 05/2005	1
88717T - PIPE, COOLER REFRIGERANT SUCTION, T
88717-6A270	HZJ105..GX..GEN;FZJ10#,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)	05/2005 - 12/2999	1
88717-6A270	HZJ105..GX..(ARL,GEN);FZJ10#,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)	08/2002 - 05/2005	1
88717-6A270	FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX	01/1998 - 07/1999	1
88717-6A270	UZJ100..LHD;FZJ10#,HDJ100..GX,VX;HZJ105..GX..(ARL,GEN)	07/1999 - 08/2002	1
Common parts
88688-6A130
88714-95D00
88718-6A150
88718-6A200
88718-6A220
88718-6A230
88718-6A240
88718-6A330
88718-6A340
88718-6A350
88718-6A360
90044-64009
90119-06003
90179-06161
93315-14010
93315-15010
93381-16012

ILLUST NO. 3 OF 4(9801- )

Click highlighted areas on diagram

REAR(DUAL AIR CON. & COOL BOX)

Part #	Description	Period	Qty
88699A - VALVE, AIR
88699-60010	FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX	01/1998 - 07/1999	1
88699-60010	UZJ100..LHD;FZJ10#,HDJ100..GX,VX;HZJ105..GX..(ARL,GEN)	07/1999 - 08/2002	1
88699-60010	HDJ100..LUB;HZJ105..GX..(ARL,GEN);FZJ10#,UZJ100..(GX,VX)..(ARL,GCC,GEN)	08/2002 - 05/2005	1
88699-60010	HDJ100..LUB..VX;HZJ105..GX..GEN;FZJ10#..GX..(GCC,GEN);UZJ100..VX..(ARL,GCC,GEN)	05/2005 - 12/2999	1
88704 - HOSE SUB-ASSY, SUCTION
88704-60230	FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX	01/1998 - 07/1999	1
88704-60230	HZJ105..GX..(ARL,GEN);FZJ10#,HDJ100,UZJ100..GX,VX	07/1999 - 08/2002	1
88704-60230	HZJ105..GX..(ARL,GEN);FZJ10#,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)	08/2002 - 05/2005	1
88704-60230	HZJ105..GX..GEN;FZJ10#,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)	05/2005 - 12/2999	1
88716L - PIPE, COOLER REFRIGERANT LIQUID, L
88726-60660	HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W(COOL BOX & SINGLE AIR CONDITIONER)	01/1998 - 07/1999	1
88726-60640	FZJ100..GX;UZJ100..VX;HDJ100..LUB W(COOL BOX & DUAL AIR CONDITIONER)	08/2002 - 11/2002	1
88726-60640	HDJ100..LUB..GEN;FZJ100,UZJ100..GX,VX W(COOL BOX & DUAL AIR CONDITIONER)	01/1998 - 08/2002	1
88726-60630	FZJ100,HDJ100,UZJ100..(GX,VX)..(EFI,TD2) W(DUAL AIR CONDITIONER)	01/1998 - 08/2002	1
88726-60630	FZJ100..GX..GCC;HDJ100,UZJ100..VX..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88726-60640	HDJ100..LUB;FZJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	11/2002 - 05/2005	1
88726-60640	FZJ100..GX..GCC;HDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88726-60630	FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	08/2002 - 05/2005	1
88716M - PIPE, COOLER REFRIGERANT LIQUID, M
88726-60650	FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)	05/2005 - 12/2999	1
88726-60650	FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)	08/2002 - 05/2005	1
88726-60650	FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN)	01/1998 - 08/2002	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-6A220	FZJ100,HDJ100,UZJ100..(GX,VX)..(EFI,TD2) W(DUAL AIR CONDITIONER)	01/1998 - 08/2002	1
88717-6A220	FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	08/2002 - 05/2005	1
88717-6A220	FZJ100..GX..GCC;HDJ100,UZJ100..VX..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-6A200	FZJ100,HDJ100,UZJ100..(GX,VX)..(EFI,TD2) W(DUAL AIR CONDITIONER)	01/1998 - 08/2002	1
88717-6A210	HDJ100..LUB..GEN;FZJ100,UZJ100..GX,VX W(COOL BOX & DUAL AIR CONDITIONER)	01/1998 - 08/2002	1
88717-6A210	FZJ100..GX;UZJ100..VX;HDJ100..LUB W(COOL BOX & DUAL AIR CONDITIONER)	08/2002 - 11/2002	1
88717-6A230	HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W(COOL BOX & SINGLE AIR CONDITIONER)	01/1998 - 07/1999	1
88717-6A210	FZJ100..GX..GCC;HDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88717-6A200	FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	08/2002 - 05/2005	1
88717-6A200	FZJ100..GX..GCC;HDJ100,UZJ100..VX..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88717-6A210	HDJ100..LUB;FZJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	11/2002 - 05/2005	1
88717J - PIPE, COOLER REFRIGERANT SUCTION, J
88717-6A240	HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX	01/1998 - 07/1999	1
88717-6A240	HDJ100..LUB;HZJ105..GX..(ARL,GEN);FZJ10#,UZJ100..(GX,VX)..(ARL,GCC,GEN)	08/2002 - 05/2005	1
88717-6A240	FZJ10#..GX;HDJ100..LUB;UZJ100..LHD;HZJ105..GX..(ARL,GEN)	07/1999 - 08/2002	1
88717-6A240	HDJ100..LUB..VX;HZJ105..GX..GEN;FZJ10#..GX..(GCC,GEN);UZJ100..VX..(ARL,GCC,GEN)	05/2005 - 12/2999	1
88717T - PIPE, COOLER REFRIGERANT SUCTION, T
88717-6A270	HZJ105..GX..GEN;FZJ10#,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)	05/2005 - 12/2999	1
88717-6A270	HZJ105..GX..(ARL,GEN);FZJ10#,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)	08/2002 - 05/2005	1
88717-6A270	FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX	01/1998 - 07/1999	1
88717-6A270	UZJ100..LHD;FZJ10#,HDJ100..GX,VX;HZJ105..GX..(ARL,GEN)	07/1999 - 08/2002	1
Common parts
88688-6A130
88714-95D00
88718-6A150
88718-6A200
88718-6A220
88718-6A230
88718-6A240
88718-6A330
88718-6A340
88718-6A350
88718-6A360
88718-6A430
90044-64009
90099-14119
90119-06003
90179-06161
91635-60635
93315-14010
93315-15010
93319-15010
93381-16012

ILLUST NO. 3 OF 4(9801- )

Click highlighted areas on diagram

REAR(SINGLE AIR CON. & COOL BOX)

Part #	Description	Period	Qty
88699A - VALVE, AIR
88699-60010	FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX	01/1998 - 07/1999	1
88699-60010	UZJ100..LHD;FZJ10#,HDJ100..GX,VX;HZJ105..GX..(ARL,GEN)	07/1999 - 08/2002	1
88699-60010	HDJ100..LUB;HZJ105..GX..(ARL,GEN);FZJ10#,UZJ100..(GX,VX)..(ARL,GCC,GEN)	08/2002 - 05/2005	1
88699-60010	HDJ100..LUB..VX;HZJ105..GX..GEN;FZJ10#..GX..(GCC,GEN);UZJ100..VX..(ARL,GCC,GEN)	05/2005 - 12/2999	1
88704 - HOSE SUB-ASSY, SUCTION
88704-60230	FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX	01/1998 - 07/1999	1
88704-60230	HZJ105..GX..(ARL,GEN);FZJ10#,HDJ100,UZJ100..GX,VX	07/1999 - 08/2002	1
88704-60230	HZJ105..GX..(ARL,GEN);FZJ10#,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)	08/2002 - 05/2005	1
88704-60230	HZJ105..GX..GEN;FZJ10#,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)	05/2005 - 12/2999	1
88716L - PIPE, COOLER REFRIGERANT LIQUID, L
88726-60660	HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W(COOL BOX & SINGLE AIR CONDITIONER)	01/1998 - 07/1999	1
88726-60640	FZJ100..GX;UZJ100..VX;HDJ100..LUB W(COOL BOX & DUAL AIR CONDITIONER)	08/2002 - 11/2002	1
88726-60640	HDJ100..LUB..GEN;FZJ100,UZJ100..GX,VX W(COOL BOX & DUAL AIR CONDITIONER)	01/1998 - 08/2002	1
88726-60630	FZJ100,HDJ100,UZJ100..(GX,VX)..(EFI,TD2) W(DUAL AIR CONDITIONER)	01/1998 - 08/2002	1
88726-60630	FZJ100..GX..GCC;HDJ100,UZJ100..VX..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88726-60640	HDJ100..LUB;FZJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	11/2002 - 05/2005	1
88726-60640	FZJ100..GX..GCC;HDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88726-60630	FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	08/2002 - 05/2005	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-6A200	FZJ100,HDJ100,UZJ100..(GX,VX)..(EFI,TD2) W(DUAL AIR CONDITIONER)	01/1998 - 08/2002	1
88717-6A210	HDJ100..LUB..GEN;FZJ100,UZJ100..GX,VX W(COOL BOX & DUAL AIR CONDITIONER)	01/1998 - 08/2002	1
88717-6A210	FZJ100..GX;UZJ100..VX;HDJ100..LUB W(COOL BOX & DUAL AIR CONDITIONER)	08/2002 - 11/2002	1
88717-6A230	HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W(COOL BOX & SINGLE AIR CONDITIONER)	01/1998 - 07/1999	1
88717-6A210	FZJ100..GX..GCC;HDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88717-6A200	FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	08/2002 - 05/2005	1
88717-6A200	FZJ100..GX..GCC;HDJ100,UZJ100..VX..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88717-6A210	HDJ100..LUB;FZJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	11/2002 - 05/2005	1
88717J - PIPE, COOLER REFRIGERANT SUCTION, J
88717-6A240	HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX	01/1998 - 07/1999	1
88717-6A240	HDJ100..LUB;HZJ105..GX..(ARL,GEN);FZJ10#,UZJ100..(GX,VX)..(ARL,GCC,GEN)	08/2002 - 05/2005	1
88717-6A240	FZJ10#..GX;HDJ100..LUB;UZJ100..LHD;HZJ105..GX..(ARL,GEN)	07/1999 - 08/2002	1
88717-6A240	HDJ100..LUB..VX;HZJ105..GX..GEN;FZJ10#..GX..(GCC,GEN);UZJ100..VX..(ARL,GCC,GEN)	05/2005 - 12/2999	1
88717T - PIPE, COOLER REFRIGERANT SUCTION, T
88717-6A270	HZJ105..GX..GEN;FZJ10#,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)	05/2005 - 12/2999	1
88717-6A270	HZJ105..GX..(ARL,GEN);FZJ10#,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)	08/2002 - 05/2005	1
88717-6A270	FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX	01/1998 - 07/1999	1
88717-6A270	UZJ100..LHD;FZJ10#,HDJ100..GX,VX;HZJ105..GX..(ARL,GEN)	07/1999 - 08/2002	1
Common parts
88688-6A130
88714-95D00
88718-6A150
88718-6A160
88718-6A240
88718-6A340
88718-6A350
88718-6A360
90179-06161
91635-60635
93315-14010
93319-15010
93381-16012

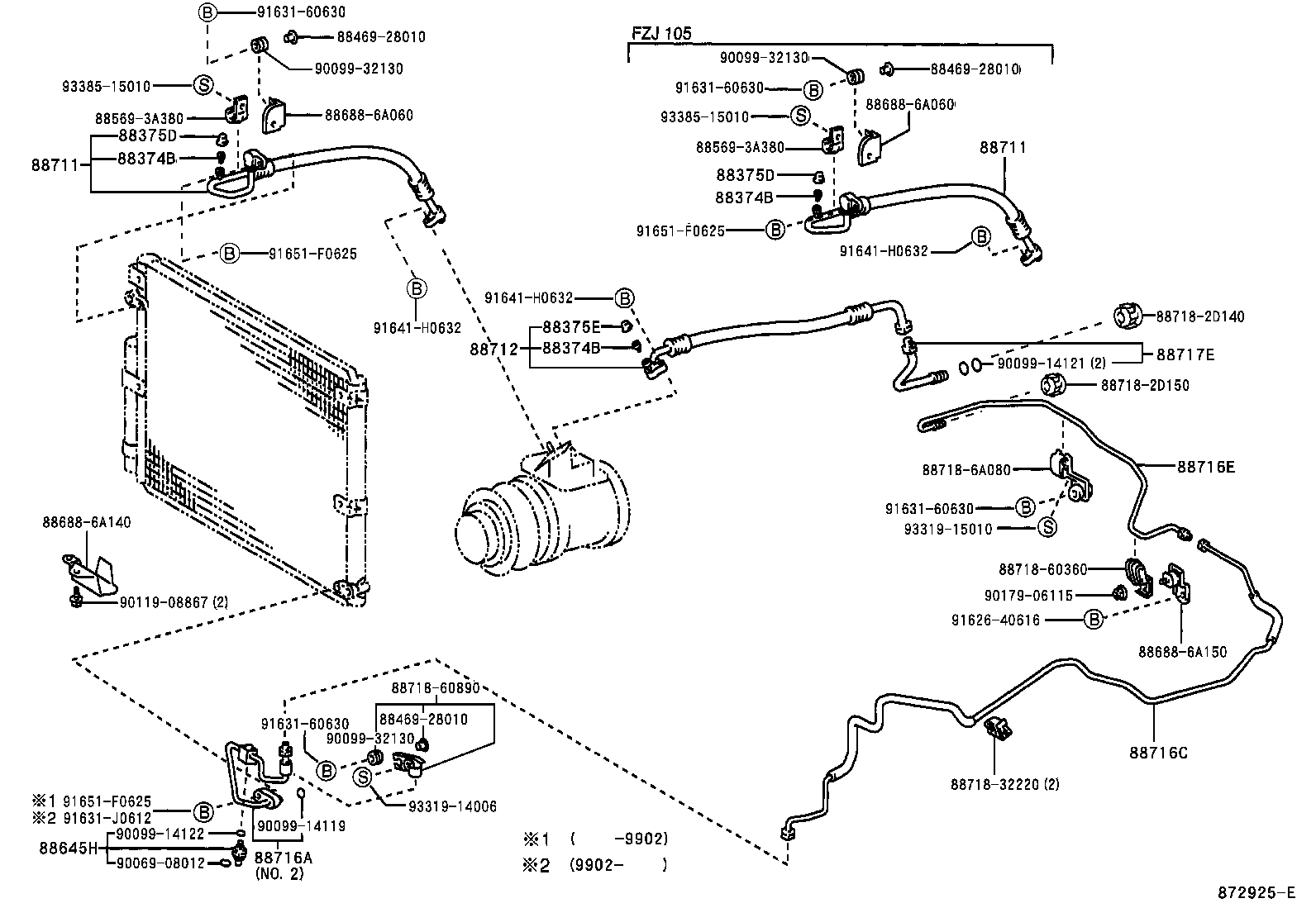

ILLUST NO. 2 OF 4(9801- )FZJ10#..LHD

Click highlighted areas on diagram

FRONT(SINGLE AIR CONDITIONER)

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2002	2
88374-30010	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	2
88374-30010	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..ARL,GCC,GEN;HZJ105,UZJ100..RHD..(GX,STD) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	2
88374B - VALVE, SERVICE, NO.1
88374-30010	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2002	2
88374-30010	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	2
88374-30010	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..ARL,GCC,GEN;HZJ105,UZJ100..RHD..(GX,STD) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	2
88374B - VALVE, SERVICE, NO.1
88374-30010	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2002	2
88374-30010	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	2
88374-30010	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..ARL,GCC,GEN;HZJ105,UZJ100..RHD..(GX,STD) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	2
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88375-30280	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2002	1
88375-30280	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88375-30280	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2002	1
88375-30280	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88375E - PLUG
88375-30290	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2002	1
88375-30290	HZJ105..RHD;HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88375-30290	HZJ105,UZJ100..RHD;HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88645H - SWITCH, PRESSURE NO.1
88645-34010	FZJ100,HDJ100,UZJ100;FZJ105,HZJ105..STD..GEN W(SINGLE AIR CONDITIONER)	02/1998 - 07/1999	1
88645-34010	HDJ100..LUB;FZJ100,UZJ100;FZJ105,HZJ105..STD..GEN W(SINGLE AIR CONDITIONER)	07/1999 - 02/2000	1
88645-34010	FZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ105..STD..GEN;FZJ100,HDJ100,UZJ100 W(SINGLE AIR CONDITIONER)	01/1998 - 02/1998	1
88645-60030	FZJ100,HDJ100,UZJ100..GX,VX W(DUAL AIR CONDITIONER)	01/1998 - 06/2000	1
88645-60040	FZJ100..GX	06/2000 - 08/2002	1
88645-34010	FZJ100,UZJ100;HDJ100..LUB..GEN W(SINGLE AIR CONDITIONER)	02/2000 - 08/2002	1
88645-34010	FZJ100,UZJ100..5F..GCC W(SINGLE AIR CONDITIONER)	08/2002 - 05/2005	1
88645-60040	FZJ100..GX..GCC	08/2002 - 05/2005	1
88645-60040	HZJ105..GX..GEN;FZJ10#..GX..(GCC,GEN) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88645-34010	HDJ100..LUB..5F;HDJ100,UZJ100..5FC..GX..ARL;FZJ100,UZJ100..5F..(ARL,GCC);HDJ100,UZJ100..5FC..(GCC,GEN) W(SINGLE AIR CONDITIONER)	05/2005 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60450	FZJ100	01/1998 - 10/1998	1
88711-60490	FZJ100	10/1998 - 08/2002	1
88711-60490	FZJ100..GCC	08/2002 - 05/2005	1
88711-60490	FZJ100..GCC	05/2005 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60450	FZJ100	01/1998 - 10/1998	1
88711-60490	FZJ100	10/1998 - 08/2002	1
88711-60490	FZJ100..GCC	08/2002 - 05/2005	1
88711-60490	FZJ100..GCC	05/2005 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60800	FZJ10#..LHD	01/1998 - 08/2002	1
88704-60090	FZJ10#..GX W(COOL BOX OR DUAL AIR CONDITIONER)	01/1998 - 08/2002	1
88712-60800	FZJ10#..LHD..(GCC,GEN)	05/2005 - 08/2007	1
88704-60090	FZJ10#..GX..(GCC,GEN) W(COOL BOX OR DUAL AIR CONDITIONER)	08/2002 - 05/2005	1
88712-60800	FZJ10#..LHD..(GCC,GEN)	08/2002 - 05/2005	1
88704-60090	FZJ10#..GX..(GCC,GEN) (J)	05/2005 - 08/2007	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-60710	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER & WINCH),NO.2	01/1998 - 09/1998	1
88726-60670	HDJ100..LUB;FZJ100,UZJ100..GX,VX W(COOL BOX & DUAL AIR CONDITIONER)	01/1998 - 10/1998	1
88726-60450	FZJ100,UZJ100..(GX,VX)..GCC W(COOL BOX & SINGLE AIR CONDITIONER),NO.2	01/1998 - 10/1998	1
88726-60490	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER),NO.2	01/1998 - 09/1998	1
88726-60491	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER),NO.2	09/1998 - 10/1998	1
88726-60691	FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH)	09/1998 - 10/1998	1
88726-60720	FZJ100,UZJ100..(GX,VX)..GCC W(COOL BOX & SINGLE AIR CONDITIONER & WINCH),NO.2	01/1998 - 10/1998	1
88726-60461	FZJ100,HDJ100,UZJ100..GX,VX W(DUAL AIR CONDITIONER)	09/1998 - 10/1998	1
88726-60492	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER),NO.2	10/1998 - 08/2002	1
88726-60692	FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH)	10/1998 - 08/2002	1
88726-60451	FZJ100,UZJ100..(GX,VX)..GCC W(COOL BOX & SINGLE AIR CONDITIONER),NO.2	10/1998 - 07/1999	1
88726-60721	FZJ100,UZJ100..(GX,VX)..GCC W(COOL BOX & SINGLE AIR CONDITIONER & WINCH),NO.2	10/1998 - 07/1999	1
88726-60462	FZJ100,HDJ100,UZJ100..(GX,VX)..(EFI,TD2) W(DUAL AIR CONDITIONER)	10/1998 - 08/2002	1
88726-60671	HDJ100..LUB..GEN;FZJ100,UZJ100..GX,VX W(COOL BOX & DUAL AIR CONDITIONER)	10/1998 - 08/2002	1
88726-60462	FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	08/2002 - 05/2005	1
88726-60701	HDJ100..LUB..GEN;FZJ100,UZJ100..LHD..(GX,VX) W(COOL BOX & DUAL AIR CONDITIONER & WINCH)	10/1998 - 08/2002	1
88726-60671	FZJ100..GX;UZJ100..VX;HDJ100..LUB W(COOL BOX & DUAL AIR CONDITIONER)	08/2002 - 11/2002	1
88726-60700	HDJ100..LUB;FZJ100,UZJ100..LHD..(GX,VX) W(COOL BOX & DUAL AIR CONDITIONER & WINCH)	01/1998 - 10/1998	1
88726-60460	FZJ100,HDJ100,UZJ100..GX,VX W(DUAL AIR CONDITIONER)	01/1998 - 09/1998	1
88726-60711	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER & WINCH),NO.2	09/1998 - 10/1998	1
88726-60690	FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH)	01/1998 - 09/1998	1
88726-60712	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER & WINCH),NO.2	10/1998 - 08/2002	1
88726-60701	HDJ100..LUB..5F..GEN;FZJ100,UZJ100..(GX,VX)..(GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER & WINCH)	08/2002 - 05/2005	1
88726-60492	HDJ100..5FC..ARL;FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER)	08/2002 - 05/2005	1
88726-60712	FZJ100,UZJ100..(4FC,5F)..GCC W(SINGLE AIR CONDITIONER & WINCH)	08/2002 - 05/2005	1
88726-60671	HDJ100..LUB;FZJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	11/2002 - 05/2005	1
88726-60462	FZJ100..GX..GCC;HDJ100,UZJ100..VX..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88726-60671	FZJ100..GX..GCC;HDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88726-60692	HDJ100..5F..GEN;FZJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH)	08/2002 - 05/2005	1
88726-60692	HDJ100..5F..GEN;FZJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH)	05/2005 - 12/2999	1
88726-60701	HDJ100..LUB..5F..GEN;FZJ100,UZJ100..(GX,VX)..(GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER & WINCH)	05/2005 - 12/2999	1
88726-60492	UZJ100..GCC;FZJ100,HDJ100..(GX,STD)..(ARL,GCC) W(SINGLE AIR CONDITIONER)	05/2005 - 12/2999	1
88726-60712	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER & WINCH)	05/2005 - 12/2999	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-60520	FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX) W(COOL BOX OR DUAL AIR CONDITIONER)	01/1998 - 07/1999	1
88726-60520	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX) W(COOL BOX OR DUAL AIR CONDITIONER)	07/1999 - 08/2002	1
88726-60520	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX) W(COOL BOX OR DUAL AIR CONDITIONER)	08/2002 - 08/2003	1
88726-60730	FZJ10#,HDJ100,HZJ105,UZJ100..LHD W(SINGLE AIR CONDITIONER)	01/1998 - 07/1999	1
88726-60730	HDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD W(SINGLE AIR CONDITIONER)	07/1999 - 08/2002	1
88726-60731	HDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD..(GCC,GEN) W(SINGLE AIR CONDITIONER)	08/2002 - 05/2005	1
88726-60521	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX)..(GCC,GEN)	08/2002 - 05/2005	1
88726-60731	HDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD..(GCC,GEN) W(SINGLE AIR CONDITIONER)	05/2005 - 12/2999	1
88726-60521	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX)..(GCC,GEN) W(COOL BOX OR DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-6A840	FZJ10#,HDJ100,HZJ105..LHD	01/1998 - 07/1999	1
88716-6A840	FZJ10#,HDJ100,HZJ105..LHD..(GCC,GEN)	05/2005 - 12/2999	1
88716-6A840	FZJ10#..LHD;HDJ100..LHD..LUB;HZJ105..LHD..GEN	07/1999 - 08/2002	1
88716-6A840	FZJ10#,HDJ100,HZJ105..LHD..(GCC,GEN)	08/2002 - 05/2005	1
88717E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-6A280	HDJ100..LHD..LUB;FZJ10#,HZJ105..LHD..(GCC,GEN)	08/2002 - 05/2005	1
88717-6A280	HDJ100..LHD..LUB;FZJ10#,HZJ105..LHD	07/1999 - 08/2002	1
88717-6A280	FZJ10#,HDJ100,HZJ105..LHD	01/1998 - 07/1999	1
88717-6A280	HDJ100..LHD..LUB;FZJ10#,HZJ105..LHD..(GCC,GEN)	05/2005 - 12/2999	1
Common parts
88469-28010
88569-3A380
88688-6A060
88688-6A140
88688-6A150
88718-2D140
88718-2D150
88718-32220
88718-60360
88718-60890
88718-6A080
90069-08012
90099-14119
90099-14121
90099-14122
90099-32130
90119-08867
90179-06115
91626-40616
91631-60630
91631-J0612
91641-H0632
91651-F0625
93319-14006
93319-15010
93385-15010

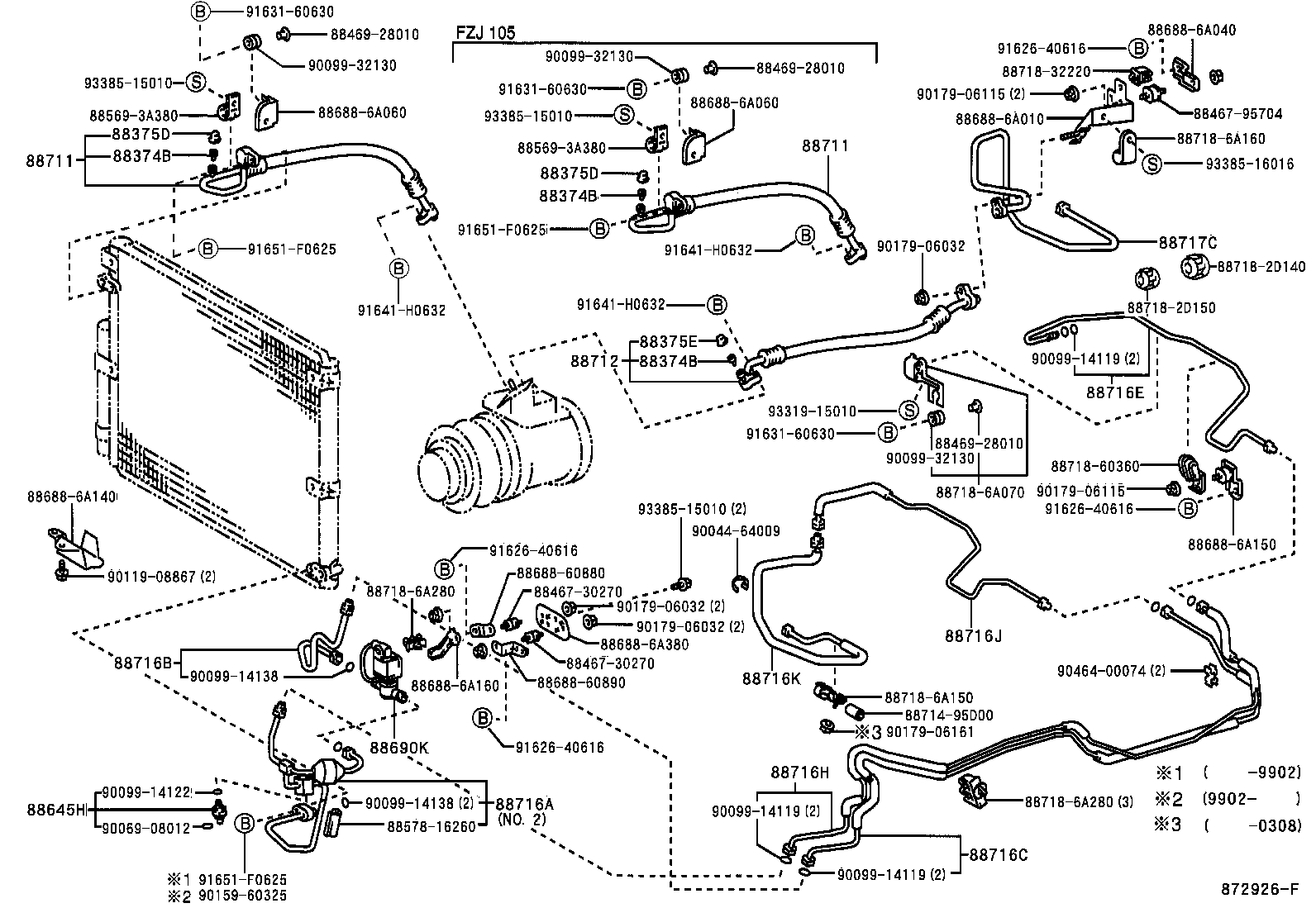

ILLUST NO. 2 OF 4(9801- )FZJ10#..LHD

Click highlighted areas on diagram

FRONT(SINGLE AIR CON. & COOL BOX)

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2002	2
88374-30010	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	2
88374-30010	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..ARL,GCC,GEN;HZJ105,UZJ100..RHD..(GX,STD) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	2
88374B - VALVE, SERVICE, NO.1
88374-30010	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2002	2
88374-30010	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	2
88374-30010	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..ARL,GCC,GEN;HZJ105,UZJ100..RHD..(GX,STD) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	2
88374B - VALVE, SERVICE, NO.1
88374-30010	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2002	2
88374-30010	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	2
88374-30010	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..ARL,GCC,GEN;HZJ105,UZJ100..RHD..(GX,STD) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	2
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88375-30280	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2002	1
88375-30280	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88375-30280	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2002	1
88375-30280	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88375E - PLUG
88375-30290	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2002	1
88375-30290	HZJ105..RHD;HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88375-30290	HZJ105,UZJ100..RHD;HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88645H - SWITCH, PRESSURE NO.1
88645-34010	FZJ100,HDJ100,UZJ100;FZJ105,HZJ105..STD..GEN W(SINGLE AIR CONDITIONER)	02/1998 - 07/1999	1
88645-34010	HDJ100..LUB;FZJ100,UZJ100;FZJ105,HZJ105..STD..GEN W(SINGLE AIR CONDITIONER)	07/1999 - 02/2000	1
88645-34010	FZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ105..STD..GEN;FZJ100,HDJ100,UZJ100 W(SINGLE AIR CONDITIONER)	01/1998 - 02/1998	1
88645-60030	FZJ100,HDJ100,UZJ100..GX,VX W(DUAL AIR CONDITIONER)	01/1998 - 06/2000	1
88645-60040	FZJ100..GX	06/2000 - 08/2002	1
88645-34010	FZJ100,UZJ100;HDJ100..LUB..GEN W(SINGLE AIR CONDITIONER)	02/2000 - 08/2002	1
88645-34010	FZJ100,UZJ100..5F..GCC W(SINGLE AIR CONDITIONER)	08/2002 - 05/2005	1
88645-60040	FZJ100..GX..GCC	08/2002 - 05/2005	1
88645-60040	HZJ105..GX..GEN;FZJ10#..GX..(GCC,GEN) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88645-34010	HDJ100..LUB..5F;HDJ100,UZJ100..5FC..GX..ARL;FZJ100,UZJ100..5F..(ARL,GCC);HDJ100,UZJ100..5FC..(GCC,GEN) W(SINGLE AIR CONDITIONER)	05/2005 - 12/2999	1
88690K - VALVE ASSY, MAGNET
88690-60230	FZJ105..5F..GX;HDJ100..LUB..GEN;FZJ100,UZJ100..GX,VX;HZJ105..GX..(ARL,GEN) W(COOL BOX)	08/2000 - 08/2002	1
88690-60230	HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W(COOL BOX)	06/1998 - 07/1999	1
88690-60230	HDJ100..LUB;FZJ10#,UZJ100..GX,VX;HZJ105..GX..(ARL,GEN) W(COOL BOX)	07/1999 - 08/2000	1
88690-60230	HDJ100..LUB..VX;HZJ105..GX..GEN;FZJ10#..GX..(GCC,GEN);UZJ100..VX..(ARL,GCC,GEN)	05/2005 - 12/2999	1
88690-60230	HZJ105..GX..(ARL,GEN);FZJ10#,UZJ100..(4FC,5F)..(GX,VX)..(GCC,GEN) W(COOL BOX)	08/2002 - 05/2005	1
88690-60210	HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W(COOL BOX)	01/1998 - 06/1998	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60450	FZJ100	01/1998 - 10/1998	1
88711-60490	FZJ100	10/1998 - 08/2002	1
88711-60490	FZJ100..GCC	08/2002 - 05/2005	1
88711-60490	FZJ100..GCC	05/2005 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60450	FZJ100	01/1998 - 10/1998	1
88711-60490	FZJ100	10/1998 - 08/2002	1
88711-60490	FZJ100..GCC	08/2002 - 05/2005	1
88711-60490	FZJ100..GCC	05/2005 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60800	FZJ10#..LHD	01/1998 - 08/2002	1
88704-60090	FZJ10#..GX W(COOL BOX OR DUAL AIR CONDITIONER)	01/1998 - 08/2002	1
88712-60800	FZJ10#..LHD..(GCC,GEN)	05/2005 - 08/2007	1
88704-60090	FZJ10#..GX..(GCC,GEN) W(COOL BOX OR DUAL AIR CONDITIONER)	08/2002 - 05/2005	1
88712-60800	FZJ10#..LHD..(GCC,GEN)	08/2002 - 05/2005	1
88704-60090	FZJ10#..GX..(GCC,GEN) (J)	05/2005 - 08/2007	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-60710	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER & WINCH),NO.2	01/1998 - 09/1998	1
88726-60450	FZJ100,UZJ100..(GX,VX)..GCC W(COOL BOX & SINGLE AIR CONDITIONER),NO.2	01/1998 - 10/1998	1
88726-60490	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER),NO.2	01/1998 - 09/1998	1
88726-60491	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER),NO.2	09/1998 - 10/1998	1
88726-60691	FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH)	09/1998 - 10/1998	1
88726-60720	FZJ100,UZJ100..(GX,VX)..GCC W(COOL BOX & SINGLE AIR CONDITIONER & WINCH),NO.2	01/1998 - 10/1998	1
88726-60461	FZJ100,HDJ100,UZJ100..GX,VX W(DUAL AIR CONDITIONER)	09/1998 - 10/1998	1
88726-60492	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER),NO.2	10/1998 - 08/2002	1
88726-60692	FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH)	10/1998 - 08/2002	1
88726-60451	FZJ100,UZJ100..(GX,VX)..GCC W(COOL BOX & SINGLE AIR CONDITIONER),NO.2	10/1998 - 07/1999	1
88726-60721	FZJ100,UZJ100..(GX,VX)..GCC W(COOL BOX & SINGLE AIR CONDITIONER & WINCH),NO.2	10/1998 - 07/1999	1
88726-60462	FZJ100,HDJ100,UZJ100..(GX,VX)..(EFI,TD2) W(DUAL AIR CONDITIONER)	10/1998 - 08/2002	1
88726-60671	HDJ100..LUB..GEN;FZJ100,UZJ100..GX,VX W(COOL BOX & DUAL AIR CONDITIONER)	10/1998 - 08/2002	1
88726-60462	FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	08/2002 - 05/2005	1
88726-60701	HDJ100..LUB..GEN;FZJ100,UZJ100..LHD..(GX,VX) W(COOL BOX & DUAL AIR CONDITIONER & WINCH)	10/1998 - 08/2002	1
88726-60671	FZJ100..GX;UZJ100..VX;HDJ100..LUB W(COOL BOX & DUAL AIR CONDITIONER)	08/2002 - 11/2002	1
88726-60670	HDJ100..LUB;FZJ100,UZJ100..GX,VX W(COOL BOX & DUAL AIR CONDITIONER)	01/1998 - 10/1998	1
88726-60700	HDJ100..LUB;FZJ100,UZJ100..LHD..(GX,VX) W(COOL BOX & DUAL AIR CONDITIONER & WINCH)	01/1998 - 10/1998	1
88726-60460	FZJ100,HDJ100,UZJ100..GX,VX W(DUAL AIR CONDITIONER)	01/1998 - 09/1998	1
88726-60711	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER & WINCH),NO.2	09/1998 - 10/1998	1
88726-60690	FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH)	01/1998 - 09/1998	1
88726-60712	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER & WINCH),NO.2	10/1998 - 08/2002	1
88726-60701	HDJ100..LUB..5F..GEN;FZJ100,UZJ100..(GX,VX)..(GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER & WINCH)	08/2002 - 05/2005	1
88726-60492	HDJ100..5FC..ARL;FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER)	08/2002 - 05/2005	1
88726-60712	FZJ100,UZJ100..(4FC,5F)..GCC W(SINGLE AIR CONDITIONER & WINCH)	08/2002 - 05/2005	1
88726-60671	HDJ100..LUB;FZJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	11/2002 - 05/2005	1
88726-60462	FZJ100..GX..GCC;HDJ100,UZJ100..VX..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88726-60671	FZJ100..GX..GCC;HDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88726-60692	HDJ100..5F..GEN;FZJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH)	08/2002 - 05/2005	1
88726-60692	HDJ100..5F..GEN;FZJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH)	05/2005 - 12/2999	1
88726-60701	HDJ100..LUB..5F..GEN;FZJ100,UZJ100..(GX,VX)..(GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER & WINCH)	05/2005 - 12/2999	1
88726-60492	UZJ100..GCC;FZJ100,HDJ100..(GX,STD)..(ARL,GCC) W(SINGLE AIR CONDITIONER)	05/2005 - 12/2999	1
88726-60712	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER & WINCH)	05/2005 - 12/2999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-60680	HDJ100..LUB..GEN;FZJ100,UZJ100..GX,VX W(COOL BOX & DUAL AIR CONDITIONER)	01/1998 - 08/2002	1
88726-60440	HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W(COOL BOX & SINGLE AIR CONDITIONER)	01/1998 - 07/1999	1
88726-60680	FZJ100..GX;UZJ100..VX;HDJ100..LUB W(COOL BOX & DUAL AIR CONDITIONER)	08/2002 - 11/2002	1
88726-60680	HDJ100..LUB;FZJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	11/2002 - 05/2005	1
88726-60440	FZJ100..GX;HDJ100,UZJ100..VX..(ARL,GCC)	12/2006 - 12/2999	1
88726-60680	FZJ100..GX..GCC;HDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	05/2005 - 11/2006	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-60520	FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX) W(COOL BOX OR DUAL AIR CONDITIONER)	01/1998 - 07/1999	1
88726-60520	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX) W(COOL BOX OR DUAL AIR CONDITIONER)	07/1999 - 08/2002	1
88726-60520	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX) W(COOL BOX OR DUAL AIR CONDITIONER)	08/2002 - 08/2003	1
88726-60730	FZJ10#,HDJ100,HZJ105,UZJ100..LHD W(SINGLE AIR CONDITIONER)	01/1998 - 07/1999	1
88726-60730	HDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD W(SINGLE AIR CONDITIONER)	07/1999 - 08/2002	1
88726-60731	HDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD..(GCC,GEN) W(SINGLE AIR CONDITIONER)	08/2002 - 05/2005	1
88726-60521	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX)..(GCC,GEN)	08/2002 - 05/2005	1
88726-60731	HDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD..(GCC,GEN) W(SINGLE AIR CONDITIONER)	05/2005 - 12/2999	1
88726-60521	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX)..(GCC,GEN) W(COOL BOX OR DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-6A840	FZJ10#,HDJ100,HZJ105..LHD	01/1998 - 07/1999	1
88716-6A840	FZJ10#,HDJ100,HZJ105..LHD..(GCC,GEN)	05/2005 - 12/2999	1
88716-6A840	FZJ10#..LHD;HDJ100..LHD..LUB;HZJ105..LHD..GEN	07/1999 - 08/2002	1
88716-6A840	FZJ10#,HDJ100,HZJ105..LHD..(GCC,GEN)	08/2002 - 05/2005	1
88716H - PIPE, COOLER REFRIGERANT LIQUID, H
88726-60531	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX)..(GCC,GEN)	08/2002 - 05/2005	1
88726-60530	FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX)	01/1998 - 07/1999	1
88726-60530	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX)	07/1999 - 08/2002	1
88726-60531	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX)..(GCC,GEN)	05/2005 - 12/2999	1
88716J - PIPE, COOLER REFRIGERANT LIQUID, J
88726-60550	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)..(GCC,GEN)	08/2002 - 05/2005	2
88726-60550	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)	07/1999 - 08/2002	1
88726-60550	FZJ10#,HDJ100,HZJ105..LHD..(GX,VX)	01/1998 - 07/1999	1
88726-60550	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)..(GCC,GEN)	05/2005 - 12/2999	2
88716K - PIPE, COOLER REFRIGERANT LIQUID, K
88726-60600	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)..(GCC,GEN)	08/2002 - 05/2005	1
88726-60600	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)	07/1999 - 08/2002	1
88726-60600	FZJ10#,HDJ100,HZJ105..LHD..(GX,VX)	01/1998 - 07/1999	1
88726-60600	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)..(GCC,GEN)	05/2005 - 12/2999	1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-6A170	FZJ10#,HDJ100,HZJ105..LHD..(GX,VX)	01/1998 - 07/1999	1
88717-6A170	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)..(GCC,GEN)	08/2002 - 05/2005	1
88717-6A170	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)	07/1999 - 08/2002	1
88717-6A170	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)..(GCC,GEN)	05/2005 - 12/2999	1
Common parts
88467-30270
88467-95704
88469-28010
88569-3A380
88578-16260
88688-60880
88688-60890
88688-6A010
88688-6A040
88688-6A060
88688-6A140
88688-6A150
88688-6A160
88688-6A380
88714-95D00
88718-2D140
88718-2D150
88718-32220
88718-60360
88718-6A070
88718-6A150
88718-6A160
88718-6A280
90044-64009
90069-08012
90099-14119
90099-14122
90099-14138
90099-32130
90119-08867
90159-60325
90179-06032
90179-06115
90179-06161
90464-00074
91626-40616
91631-60630
91641-H0632
91651-F0625
93319-15010
93385-15010
93385-16016

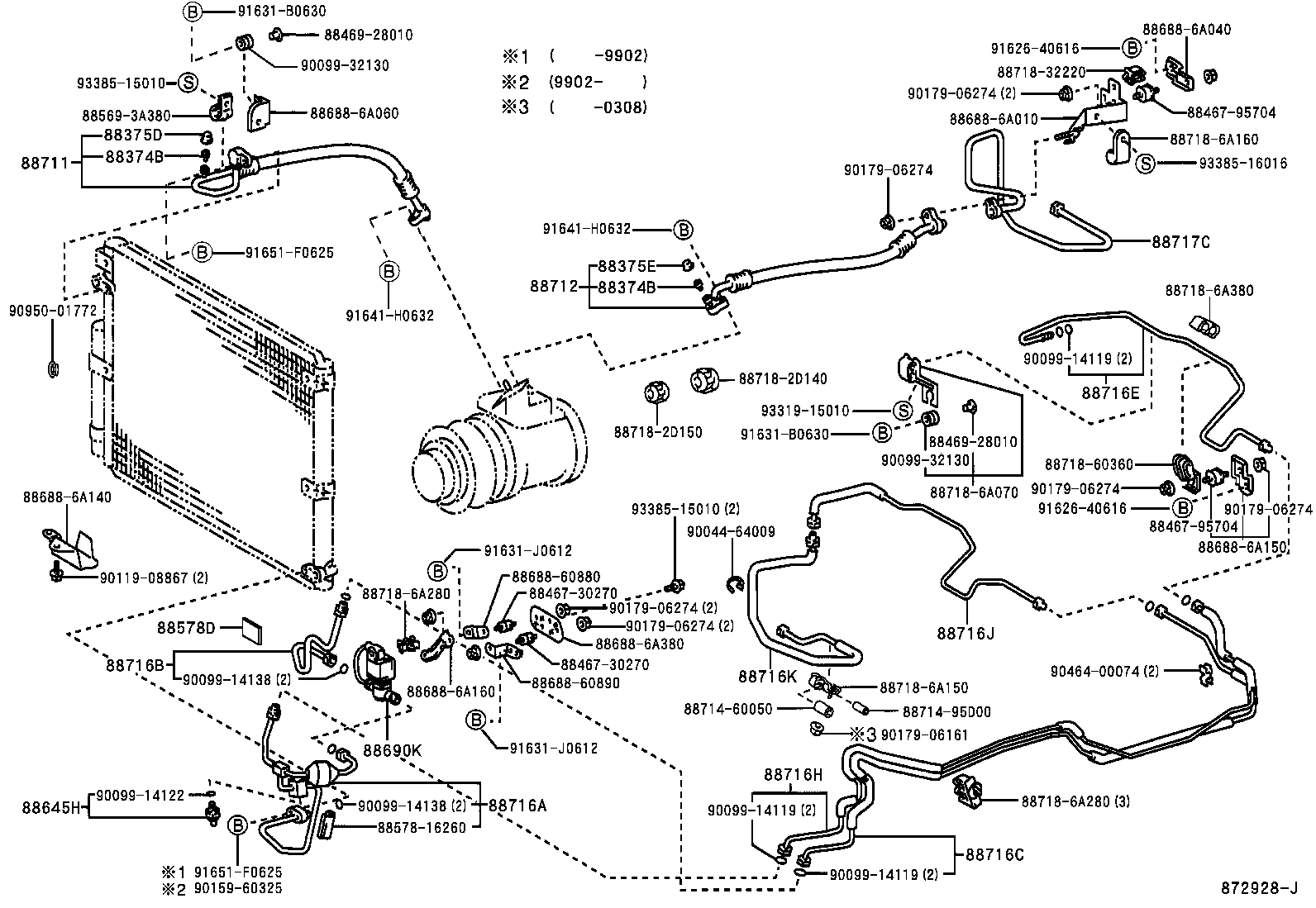

ILLUST NO. 2 OF 4(9801- )FZJ100

Click highlighted areas on diagram

FRONT(DUAL AIR CONDITIONER)

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2002	2
88374-30010	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	2
88374-30010	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..ARL,GCC,GEN;HZJ105,UZJ100..RHD..(GX,STD) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	2
88374B - VALVE, SERVICE, NO.1
88374-30010	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2002	2
88374-30010	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	2
88374-30010	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..ARL,GCC,GEN;HZJ105,UZJ100..RHD..(GX,STD) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	2
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88375-30280	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2002	1
88375-30280	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88375E - PLUG
88375-30290	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2002	1
88375-30290	HZJ105..RHD;HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88375-30290	HZJ105,UZJ100..RHD;HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88578D - PACKING, COOLER PIPE, NO.1
88578-60190	UZJ100..ARL,GEN;FZJ100,HDJ100..ARL,GCC,GEN	08/2002 - 05/2005	2
88578-60190	FZJ100..GX	06/2000 - 08/2002	2
88578-60190	UZJ100..ARL,GEN;FZJ100,HDJ100..ARL,GCC,GEN	05/2005 - 12/2999	2
88645H - SWITCH, PRESSURE NO.1
88645-34010	FZJ100,HDJ100,UZJ100;FZJ105,HZJ105..STD..GEN W(SINGLE AIR CONDITIONER)	02/1998 - 07/1999	1
88645-34010	HDJ100..LUB;FZJ100,UZJ100;FZJ105,HZJ105..STD..GEN W(SINGLE AIR CONDITIONER)	07/1999 - 02/2000	1
88645-34010	FZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ105..STD..GEN;FZJ100,HDJ100,UZJ100 W(SINGLE AIR CONDITIONER)	01/1998 - 02/1998	1
88645-60030	FZJ100,HDJ100,UZJ100..GX,VX W(DUAL AIR CONDITIONER)	01/1998 - 06/2000	1
88645-60040	FZJ100..GX	06/2000 - 08/2002	1
88645-34010	FZJ100,UZJ100;HDJ100..LUB..GEN W(SINGLE AIR CONDITIONER)	02/2000 - 08/2002	1
88645-34010	FZJ100,UZJ100..5F..GCC W(SINGLE AIR CONDITIONER)	08/2002 - 05/2005	1
88645-60040	FZJ100..GX..GCC	08/2002 - 05/2005	1
88645-60040	HZJ105..GX..GEN;FZJ10#..GX..(GCC,GEN) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88645-34010	HDJ100..LUB..5F;HDJ100,UZJ100..5FC..GX..ARL;FZJ100,UZJ100..5F..(ARL,GCC);HDJ100,UZJ100..5FC..(GCC,GEN) W(SINGLE AIR CONDITIONER)	05/2005 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60450	FZJ100	01/1998 - 10/1998	1
88711-60490	FZJ100	10/1998 - 08/2002	1
88711-60490	FZJ100..GCC	08/2002 - 05/2005	1
88711-60490	FZJ100..GCC	05/2005 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60800	FZJ10#..LHD	01/1998 - 08/2002	1
88704-60090	FZJ10#..GX W(COOL BOX OR DUAL AIR CONDITIONER)	01/1998 - 08/2002	1
88712-60800	FZJ10#..LHD..(GCC,GEN)	05/2005 - 08/2007	1
88704-60090	FZJ10#..GX..(GCC,GEN) W(COOL BOX OR DUAL AIR CONDITIONER)	08/2002 - 05/2005	1
88712-60800	FZJ10#..LHD..(GCC,GEN)	08/2002 - 05/2005	1
88704-60090	FZJ10#..GX..(GCC,GEN) (J)	05/2005 - 08/2007	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-60710	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER & WINCH),NO.2	01/1998 - 09/1998	1
88726-60450	FZJ100,UZJ100..(GX,VX)..GCC W(COOL BOX & SINGLE AIR CONDITIONER),NO.2	01/1998 - 10/1998	1
88726-60490	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER),NO.2	01/1998 - 09/1998	1
88726-60491	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER),NO.2	09/1998 - 10/1998	1
88726-60691	FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH)	09/1998 - 10/1998	1
88726-60720	FZJ100,UZJ100..(GX,VX)..GCC W(COOL BOX & SINGLE AIR CONDITIONER & WINCH),NO.2	01/1998 - 10/1998	1
88726-60461	FZJ100,HDJ100,UZJ100..GX,VX W(DUAL AIR CONDITIONER)	09/1998 - 10/1998	1
88726-60492	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER),NO.2	10/1998 - 08/2002	1
88726-60692	FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH)	10/1998 - 08/2002	1
88726-60451	FZJ100,UZJ100..(GX,VX)..GCC W(COOL BOX & SINGLE AIR CONDITIONER),NO.2	10/1998 - 07/1999	1
88726-60721	FZJ100,UZJ100..(GX,VX)..GCC W(COOL BOX & SINGLE AIR CONDITIONER & WINCH),NO.2	10/1998 - 07/1999	1
88726-60462	FZJ100,HDJ100,UZJ100..(GX,VX)..(EFI,TD2) W(DUAL AIR CONDITIONER)	10/1998 - 08/2002	1
88726-60671	HDJ100..LUB..GEN;FZJ100,UZJ100..GX,VX W(COOL BOX & DUAL AIR CONDITIONER)	10/1998 - 08/2002	1
88726-60462	FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	08/2002 - 05/2005	1
88726-60701	HDJ100..LUB..GEN;FZJ100,UZJ100..LHD..(GX,VX) W(COOL BOX & DUAL AIR CONDITIONER & WINCH)	10/1998 - 08/2002	1
88726-60671	FZJ100..GX;UZJ100..VX;HDJ100..LUB W(COOL BOX & DUAL AIR CONDITIONER)	08/2002 - 11/2002	1
88726-60670	HDJ100..LUB;FZJ100,UZJ100..GX,VX W(COOL BOX & DUAL AIR CONDITIONER)	01/1998 - 10/1998	1
88726-60700	HDJ100..LUB;FZJ100,UZJ100..LHD..(GX,VX) W(COOL BOX & DUAL AIR CONDITIONER & WINCH)	01/1998 - 10/1998	1
88726-60460	FZJ100,HDJ100,UZJ100..GX,VX W(DUAL AIR CONDITIONER)	01/1998 - 09/1998	1
88726-60711	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER & WINCH),NO.2	09/1998 - 10/1998	1
88726-60690	FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH)	01/1998 - 09/1998	1
88726-60712	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER & WINCH),NO.2	10/1998 - 08/2002	1
88726-60701	HDJ100..LUB..5F..GEN;FZJ100,UZJ100..(GX,VX)..(GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER & WINCH)	08/2002 - 05/2005	1
88726-60492	HDJ100..5FC..ARL;FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER)	08/2002 - 05/2005	1
88726-60712	FZJ100,UZJ100..(4FC,5F)..GCC W(SINGLE AIR CONDITIONER & WINCH)	08/2002 - 05/2005	1
88726-60671	HDJ100..LUB;FZJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	11/2002 - 05/2005	1
88726-60462	FZJ100..GX..GCC;HDJ100,UZJ100..VX..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88726-60671	FZJ100..GX..GCC;HDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88726-60692	HDJ100..5F..GEN;FZJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH)	08/2002 - 05/2005	1
88726-60692	HDJ100..5F..GEN;FZJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH)	05/2005 - 12/2999	1
88726-60701	HDJ100..LUB..5F..GEN;FZJ100,UZJ100..(GX,VX)..(GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER & WINCH)	05/2005 - 12/2999	1
88726-60492	UZJ100..GCC;FZJ100,HDJ100..(GX,STD)..(ARL,GCC) W(SINGLE AIR CONDITIONER)	05/2005 - 12/2999	1
88726-60712	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER & WINCH)	05/2005 - 12/2999	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-60520	FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX) W(COOL BOX OR DUAL AIR CONDITIONER)	01/1998 - 07/1999	1
88726-60520	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX) W(COOL BOX OR DUAL AIR CONDITIONER)	07/1999 - 08/2002	1
88726-60520	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX) W(COOL BOX OR DUAL AIR CONDITIONER)	08/2002 - 08/2003	1
88726-60730	FZJ10#,HDJ100,HZJ105,UZJ100..LHD W(SINGLE AIR CONDITIONER)	01/1998 - 07/1999	1
88726-60730	HDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD W(SINGLE AIR CONDITIONER)	07/1999 - 08/2002	1
88726-60731	HDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD..(GCC,GEN) W(SINGLE AIR CONDITIONER)	08/2002 - 05/2005	1
88726-60521	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX)..(GCC,GEN)	08/2002 - 05/2005	1
88726-60731	HDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD..(GCC,GEN) W(SINGLE AIR CONDITIONER)	05/2005 - 12/2999	1
88726-60521	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX)..(GCC,GEN) W(COOL BOX OR DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-6A840	FZJ10#,HDJ100,HZJ105..LHD	01/1998 - 07/1999	1
88716-6A840	FZJ10#,HDJ100,HZJ105..LHD..(GCC,GEN)	05/2005 - 12/2999	1
88716-6A840	FZJ10#..LHD;HDJ100..LHD..LUB;HZJ105..LHD..GEN	07/1999 - 08/2002	1
88716-6A840	FZJ10#,HDJ100,HZJ105..LHD..(GCC,GEN)	08/2002 - 05/2005	1
88716H - PIPE, COOLER REFRIGERANT LIQUID, H
88726-60531	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX)..(GCC,GEN)	08/2002 - 05/2005	1
88726-60530	FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX)	01/1998 - 07/1999	1
88726-60530	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX)	07/1999 - 08/2002	1
88726-60531	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX)..(GCC,GEN)	05/2005 - 12/2999	1
88716J - PIPE, COOLER REFRIGERANT LIQUID, J
88726-60550	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)..(GCC,GEN)	08/2002 - 05/2005	2
88726-60550	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)	07/1999 - 08/2002	1
88726-60550	FZJ10#,HDJ100,HZJ105..LHD..(GX,VX)	01/1998 - 07/1999	1
88726-60550	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)..(GCC,GEN)	05/2005 - 12/2999	2
88716K - PIPE, COOLER REFRIGERANT LIQUID, K
88726-60600	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)..(GCC,GEN)	08/2002 - 05/2005	1
88726-60600	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)	07/1999 - 08/2002	1
88726-60600	FZJ10#,HDJ100,HZJ105..LHD..(GX,VX)	01/1998 - 07/1999	1
88726-60600	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)..(GCC,GEN)	05/2005 - 12/2999	1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-6A170	FZJ10#,HDJ100,HZJ105..LHD..(GX,VX)	01/1998 - 07/1999	1
88717-6A170	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)..(GCC,GEN)	08/2002 - 05/2005	1
88717-6A170	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)	07/1999 - 08/2002	1
88717-6A170	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)..(GCC,GEN)	05/2005 - 12/2999	1
Common parts
88467-95704
88469-28010
88569-3A380
88578-16260
88688-6A010
88688-6A040
88688-6A060
88688-6A140
88688-6A150
88714-95D00
88718-2D140
88718-2D150
88718-32220
88718-60360
88718-6A020
88718-6A070
88718-6A150
88718-6A160
88718-6A270
88718-6A280
90044-64009
90099-14119
90099-14122
90099-32130
90119-08867
90159-60325
90179-06032
90179-06115
90179-06161
90464-00074
90950-01772
91626-40616
91631-60630
91641-H0632
91651-F0625
93319-15010
93385-15010
93385-16010
93385-16016

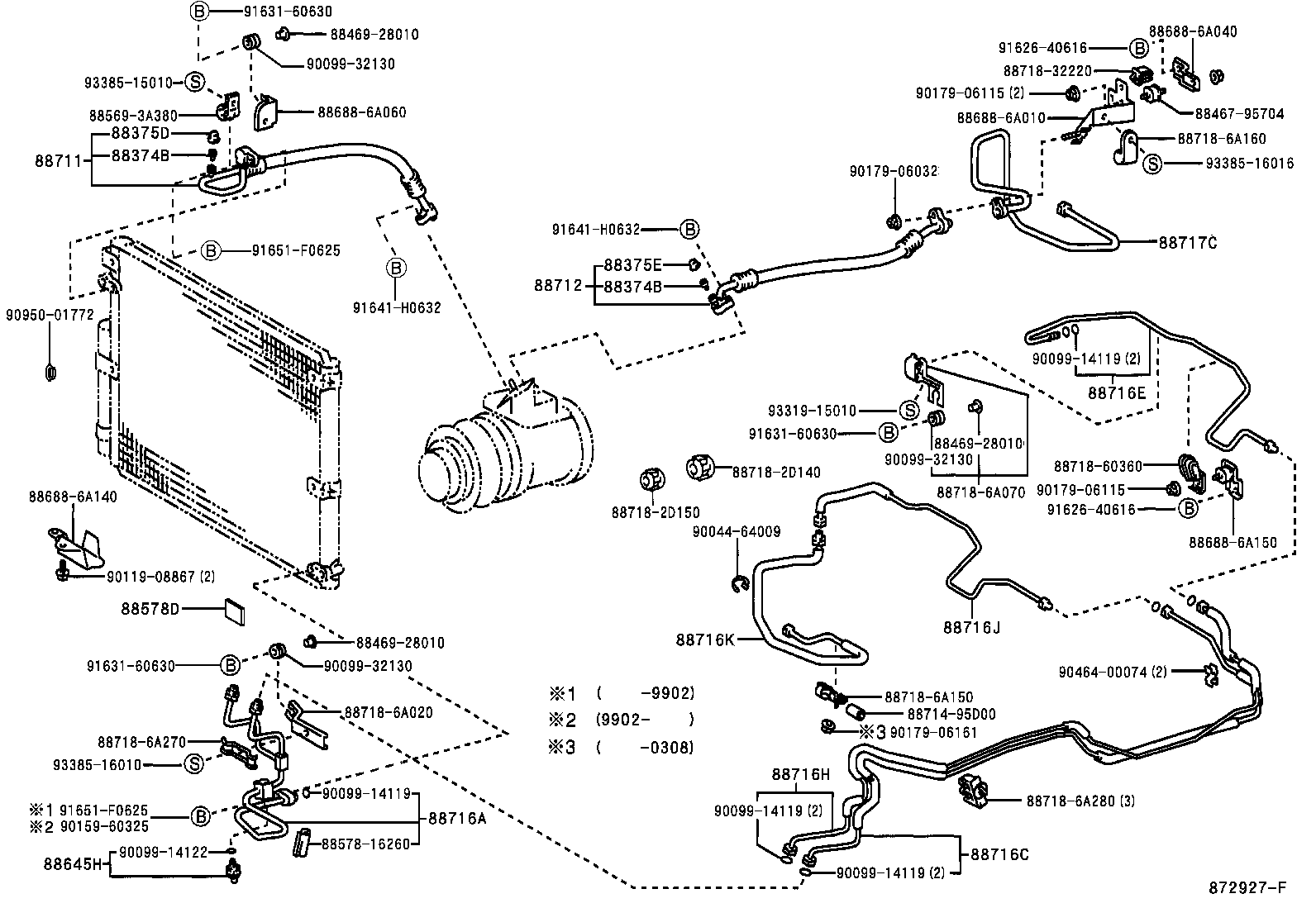

ILLUST NO. 2 OF 4(9801- )FZJ100

Click highlighted areas on diagram

FRONT(DUAL AIR CON. & COOL BOX)

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2002	2
88374-30010	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	2
88374-30010	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..ARL,GCC,GEN;HZJ105,UZJ100..RHD..(GX,STD) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	2
88374B - VALVE, SERVICE, NO.1
88374-30010	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2002	2
88374-30010	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	2
88374-30010	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..ARL,GCC,GEN;HZJ105,UZJ100..RHD..(GX,STD) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	2
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88375-30280	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2002	1
88375-30280	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88375E - PLUG
88375-30290	FZJ10#,HDJ100,HZJ105,UZJ100	01/1998 - 08/2002	1
88375-30290	HZJ105..RHD;HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88375-30290	HZJ105,UZJ100..RHD;HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88578D - PACKING, COOLER PIPE, NO.1
88578-60190	UZJ100..ARL,GEN;FZJ100,HDJ100..ARL,GCC,GEN	08/2002 - 05/2005	2
88578-60190	FZJ100..GX	06/2000 - 08/2002	2
88578-60190	UZJ100..ARL,GEN;FZJ100,HDJ100..ARL,GCC,GEN	05/2005 - 12/2999	2
88645H - SWITCH, PRESSURE NO.1
88645-34010	FZJ100,HDJ100,UZJ100;FZJ105,HZJ105..STD..GEN W(SINGLE AIR CONDITIONER)	02/1998 - 07/1999	1
88645-34010	HDJ100..LUB;FZJ100,UZJ100;FZJ105,HZJ105..STD..GEN W(SINGLE AIR CONDITIONER)	07/1999 - 02/2000	1
88645-34010	FZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ105..STD..GEN;FZJ100,HDJ100,UZJ100 W(SINGLE AIR CONDITIONER)	01/1998 - 02/1998	1
88645-60030	FZJ100,HDJ100,UZJ100..GX,VX W(DUAL AIR CONDITIONER)	01/1998 - 06/2000	1
88645-60040	FZJ100..GX	06/2000 - 08/2002	1
88645-34010	FZJ100,UZJ100;HDJ100..LUB..GEN W(SINGLE AIR CONDITIONER)	02/2000 - 08/2002	1
88645-34010	FZJ100,UZJ100..5F..GCC W(SINGLE AIR CONDITIONER)	08/2002 - 05/2005	1
88645-60040	FZJ100..GX..GCC	08/2002 - 05/2005	1
88645-60040	HZJ105..GX..GEN;FZJ10#..GX..(GCC,GEN) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88645-34010	HDJ100..LUB..5F;HDJ100,UZJ100..5FC..GX..ARL;FZJ100,UZJ100..5F..(ARL,GCC);HDJ100,UZJ100..5FC..(GCC,GEN) W(SINGLE AIR CONDITIONER)	05/2005 - 12/2999	1
88690K - VALVE ASSY, MAGNET
88690-60230	FZJ105..5F..GX;HDJ100..LUB..GEN;FZJ100,UZJ100..GX,VX;HZJ105..GX..(ARL,GEN) W(COOL BOX)	08/2000 - 08/2002	1
88690-60230	HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W(COOL BOX)	06/1998 - 07/1999	1
88690-60230	HDJ100..LUB;FZJ10#,UZJ100..GX,VX;HZJ105..GX..(ARL,GEN) W(COOL BOX)	07/1999 - 08/2000	1
88690-60230	HDJ100..LUB..VX;HZJ105..GX..GEN;FZJ10#..GX..(GCC,GEN);UZJ100..VX..(ARL,GCC,GEN)	05/2005 - 12/2999	1
88690-60230	HZJ105..GX..(ARL,GEN);FZJ10#,UZJ100..(4FC,5F)..(GX,VX)..(GCC,GEN) W(COOL BOX)	08/2002 - 05/2005	1
88690-60210	HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W(COOL BOX)	01/1998 - 06/1998	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60450	FZJ100	01/1998 - 10/1998	1
88711-60490	FZJ100	10/1998 - 08/2002	1
88711-60490	FZJ100..GCC	08/2002 - 05/2005	1
88711-60490	FZJ100..GCC	05/2005 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60800	FZJ10#..LHD	01/1998 - 08/2002	1
88704-60090	FZJ10#..GX W(COOL BOX OR DUAL AIR CONDITIONER)	01/1998 - 08/2002	1
88712-60800	FZJ10#..LHD..(GCC,GEN)	05/2005 - 08/2007	1
88704-60090	FZJ10#..GX..(GCC,GEN) W(COOL BOX OR DUAL AIR CONDITIONER)	08/2002 - 05/2005	1
88712-60800	FZJ10#..LHD..(GCC,GEN)	08/2002 - 05/2005	1
88704-60090	FZJ10#..GX..(GCC,GEN) (J)	05/2005 - 08/2007	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-60710	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER & WINCH),NO.2	01/1998 - 09/1998	1
88726-60450	FZJ100,UZJ100..(GX,VX)..GCC W(COOL BOX & SINGLE AIR CONDITIONER),NO.2	01/1998 - 10/1998	1
88726-60490	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER),NO.2	01/1998 - 09/1998	1
88726-60491	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER),NO.2	09/1998 - 10/1998	1
88726-60691	FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH)	09/1998 - 10/1998	1
88726-60720	FZJ100,UZJ100..(GX,VX)..GCC W(COOL BOX & SINGLE AIR CONDITIONER & WINCH),NO.2	01/1998 - 10/1998	1
88726-60461	FZJ100,HDJ100,UZJ100..GX,VX W(DUAL AIR CONDITIONER)	09/1998 - 10/1998	1
88726-60492	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER),NO.2	10/1998 - 08/2002	1
88726-60692	FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH)	10/1998 - 08/2002	1
88726-60451	FZJ100,UZJ100..(GX,VX)..GCC W(COOL BOX & SINGLE AIR CONDITIONER),NO.2	10/1998 - 07/1999	1
88726-60721	FZJ100,UZJ100..(GX,VX)..GCC W(COOL BOX & SINGLE AIR CONDITIONER & WINCH),NO.2	10/1998 - 07/1999	1
88726-60462	FZJ100,HDJ100,UZJ100..(GX,VX)..(EFI,TD2) W(DUAL AIR CONDITIONER)	10/1998 - 08/2002	1
88726-60671	HDJ100..LUB..GEN;FZJ100,UZJ100..GX,VX W(COOL BOX & DUAL AIR CONDITIONER)	10/1998 - 08/2002	1
88726-60462	FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	08/2002 - 05/2005	1
88726-60701	HDJ100..LUB..GEN;FZJ100,UZJ100..LHD..(GX,VX) W(COOL BOX & DUAL AIR CONDITIONER & WINCH)	10/1998 - 08/2002	1
88726-60671	FZJ100..GX;UZJ100..VX;HDJ100..LUB W(COOL BOX & DUAL AIR CONDITIONER)	08/2002 - 11/2002	1
88726-60670	HDJ100..LUB;FZJ100,UZJ100..GX,VX W(COOL BOX & DUAL AIR CONDITIONER)	01/1998 - 10/1998	1
88726-60700	HDJ100..LUB;FZJ100,UZJ100..LHD..(GX,VX) W(COOL BOX & DUAL AIR CONDITIONER & WINCH)	01/1998 - 10/1998	1
88726-60460	FZJ100,HDJ100,UZJ100..GX,VX W(DUAL AIR CONDITIONER)	01/1998 - 09/1998	1
88726-60711	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER & WINCH),NO.2	09/1998 - 10/1998	1
88726-60690	FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH)	01/1998 - 09/1998	1
88726-60712	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER & WINCH),NO.2	10/1998 - 08/2002	1
88726-60701	HDJ100..LUB..5F..GEN;FZJ100,UZJ100..(GX,VX)..(GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER & WINCH)	08/2002 - 05/2005	1
88726-60492	HDJ100..5FC..ARL;FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER)	08/2002 - 05/2005	1
88726-60712	FZJ100,UZJ100..(4FC,5F)..GCC W(SINGLE AIR CONDITIONER & WINCH)	08/2002 - 05/2005	1
88726-60671	HDJ100..LUB;FZJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	11/2002 - 05/2005	1
88726-60462	FZJ100..GX..GCC;HDJ100,UZJ100..VX..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88726-60671	FZJ100..GX..GCC;HDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88726-60692	HDJ100..5F..GEN;FZJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH)	08/2002 - 05/2005	1
88726-60692	HDJ100..5F..GEN;FZJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH)	05/2005 - 12/2999	1
88726-60701	HDJ100..LUB..5F..GEN;FZJ100,UZJ100..(GX,VX)..(GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER & WINCH)	05/2005 - 12/2999	1
88726-60492	UZJ100..GCC;FZJ100,HDJ100..(GX,STD)..(ARL,GCC) W(SINGLE AIR CONDITIONER)	05/2005 - 12/2999	1
88726-60712	FZJ100,UZJ100..GCC W(SINGLE AIR CONDITIONER & WINCH)	05/2005 - 12/2999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-60680	HDJ100..LUB..GEN;FZJ100,UZJ100..GX,VX W(COOL BOX & DUAL AIR CONDITIONER)	01/1998 - 08/2002	1
88726-60440	HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W(COOL BOX & SINGLE AIR CONDITIONER)	01/1998 - 07/1999	1
88726-60680	FZJ100..GX;UZJ100..VX;HDJ100..LUB W(COOL BOX & DUAL AIR CONDITIONER)	08/2002 - 11/2002	1
88726-60680	HDJ100..LUB;FZJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	11/2002 - 05/2005	1
88726-60440	FZJ100..GX;HDJ100,UZJ100..VX..(ARL,GCC)	12/2006 - 12/2999	1
88726-60680	FZJ100..GX..GCC;HDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN) W(COOL BOX & DUAL AIR CONDITIONER)	05/2005 - 11/2006	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-60520	FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX) W(COOL BOX OR DUAL AIR CONDITIONER)	01/1998 - 07/1999	1
88726-60520	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX) W(COOL BOX OR DUAL AIR CONDITIONER)	07/1999 - 08/2002	1
88726-60520	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX) W(COOL BOX OR DUAL AIR CONDITIONER)	08/2002 - 08/2003	1
88726-60730	FZJ10#,HDJ100,HZJ105,UZJ100..LHD W(SINGLE AIR CONDITIONER)	01/1998 - 07/1999	1
88726-60730	HDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD W(SINGLE AIR CONDITIONER)	07/1999 - 08/2002	1
88726-60731	HDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD..(GCC,GEN) W(SINGLE AIR CONDITIONER)	08/2002 - 05/2005	1
88726-60521	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX)..(GCC,GEN)	08/2002 - 05/2005	1
88726-60731	HDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD..(GCC,GEN) W(SINGLE AIR CONDITIONER)	05/2005 - 12/2999	1
88726-60521	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX)..(GCC,GEN) W(COOL BOX OR DUAL AIR CONDITIONER)	05/2005 - 12/2999	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-6A840	FZJ10#,HDJ100,HZJ105..LHD	01/1998 - 07/1999	1
88716-6A840	FZJ10#,HDJ100,HZJ105..LHD..(GCC,GEN)	05/2005 - 12/2999	1
88716-6A840	FZJ10#..LHD;HDJ100..LHD..LUB;HZJ105..LHD..GEN	07/1999 - 08/2002	1
88716-6A840	FZJ10#,HDJ100,HZJ105..LHD..(GCC,GEN)	08/2002 - 05/2005	1
88716H - PIPE, COOLER REFRIGERANT LIQUID, H
88726-60531	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX)..(GCC,GEN)	08/2002 - 05/2005	1
88726-60530	FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX)	01/1998 - 07/1999	1
88726-60530	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX)	07/1999 - 08/2002	1
88726-60531	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX)..(GCC,GEN)	05/2005 - 12/2999	1
88716J - PIPE, COOLER REFRIGERANT LIQUID, J
88726-60550	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)..(GCC,GEN)	08/2002 - 05/2005	2
88726-60550	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)	07/1999 - 08/2002	1
88726-60550	FZJ10#,HDJ100,HZJ105..LHD..(GX,VX)	01/1998 - 07/1999	1
88726-60550	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)..(GCC,GEN)	05/2005 - 12/2999	2
88716K - PIPE, COOLER REFRIGERANT LIQUID, K
88726-60600	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)..(GCC,GEN)	08/2002 - 05/2005	1
88726-60600	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)	07/1999 - 08/2002	1
88726-60600	FZJ10#,HDJ100,HZJ105..LHD..(GX,VX)	01/1998 - 07/1999	1
88726-60600	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)..(GCC,GEN)	05/2005 - 12/2999	1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-6A170	FZJ10#,HDJ100,HZJ105..LHD..(GX,VX)	01/1998 - 07/1999	1
88717-6A170	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)..(GCC,GEN)	08/2002 - 05/2005	1
88717-6A170	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)	07/1999 - 08/2002	1
88717-6A170	HZJ105..LHD..GX..GEN;FZJ10#,HDJ100..LHD..(GX,VX)..(GCC,GEN)	05/2005 - 12/2999	1
Common parts
88467-30270
88467-95704
88469-28010
88569-3A380
88578-16260
88688-60880
88688-60890
88688-6A010
88688-6A040
88688-6A060
88688-6A140
88688-6A150
88688-6A160
88688-6A380
88714-60050
88714-95D00
88718-2D140
88718-2D150
88718-32220
88718-60360
88718-6A070
88718-6A150
88718-6A160
88718-6A280
88718-6A380
90044-64009
90099-14119
90099-14122
90099-14138
90099-32130
90119-08867
90159-60325
90179-06161
90179-06274
90464-00074
90950-01772
91626-40616
91631-B0630
91631-J0612
91641-H0632
91651-F0625
93319-15010
93385-15010
93385-16016

ILLUST NO. 4 OF 4(9801- )

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122
90099-14126
90099-14139
90099-14140

ILLUST NO. 1 OF 4(9801- )FZJ100,UZJ100..GCC ; (0008- )HDJ100..ARL

Click highlighted areas on diagram

CONDENSER(SINGLE AIR CONDITIONER)

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-60270	FZJ100,HDJ100,UZJ100	01/1998 - 10/1998	1
88460-60271	FZJ100,HDJ100,UZJ100	10/1998 - 08/2002	1
88460-60903	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88460-60903	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-60770	FZJ100,HDJ100,UZJ100	01/1998 - 10/1998	1
88688-6A420	FZJ100,HDJ100,UZJ100 TYPE A:REFER TO ILLUSTRATION	10/1998 - 08/2002	1
88688-6A420	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88688-6A420	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION	08/2002 - 05/2005	1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-60851	FZJ100,HDJ100,UZJ100..EFI,TD2 W(COOL BOX OR DUAL AIR CONDITIONER)	10/1998 - 08/2002	1
88688-60850	FZJ100,HDJ100,UZJ100 W(COOL BOX OR DUAL AIR CONDITIONER)	01/1998 - 10/1998	1
88688-60851	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88688-60851	FZJ100,UZJ100..(4FC,5F)..GCC W(COOL BOX OR DUAL AIR CONDITIONER)	08/2002 - 05/2005	1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-60790	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88688-60790	UZJ100..LHD;FZJ100,HDJ100	01/1998 - 08/2002	1
88688-60790	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88460F - BRACKET, COOLER CONDENSER, NO.4
88688-6A190	FZJ100,HDJ100,UZJ100 W(COOL BOX OR DUAL AIR CONDITIONER)	01/1998 - 08/2002	1
88688-6A190	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88688-6A190	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN W(COOL BOX OR DUAL AIR CONDITIONER)	08/2002 - 05/2005	1
88460G - BRACKET, COOLER CONDENSER, NO.5
88688-6A180	UZJ100..LHD;FZJ100,HDJ100	01/1998 - 08/2002	1
88688-6A180	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88688-6A180	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88460H - BRACKET, COOLER CONDENSER, NO.6
88688-60870	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88688-60870	UZJ100..LHD;FZJ100,HDJ100	01/1998 - 08/2002	1
88688-60870	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88461A - CORE, COOLER CONDENSER
88461-60052	FZJ100,UZJ100..ARL,GCC MAKER OPTION	08/2002 - 05/2005	1
88461-60052	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88474 - DRYER, COOLER
88474-47010	FZJ10#,HDJ100,HZJ105,UZJ100	09/1999 - 08/2002	1
88474-22010	FZJ100,HDJ100,UZJ100 W(COOL BOX OR DUAL AIR CONDITIONER)	01/1998 - 09/1999	1
88474-17010	HZJ105..ARL;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88474-17010	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88578D - PACKING, COOLER PIPE, NO.1
88578-60190	UZJ100..ARL,GEN;FZJ100,HDJ100..ARL,GCC,GEN	08/2002 - 05/2005	2
88578-60190	FZJ100..GX	06/2000 - 08/2002	2
88578-60190	UZJ100..ARL,GEN;FZJ100,HDJ100..ARL,GCC,GEN	05/2005 - 12/2999	2
88891A - PACKING A (FOR COOLER)
88578-60100	UZJ100..LHD;FZJ100,HDJ100	01/1998 - 08/2002	1
88578-60100	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88578-60100	FZJ100,HDJ100,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
Common parts
88688-6A340
90091-20609
90099-04500
91631-G0830

FZJ100L-GCMNKV (1998)

ILLUST NO. 1 OF 4(9801- )FZJ100,HDJ100,UZJ100

ILLUST NO. 3 OF 4(9801- )

ILLUST NO. 3 OF 4(9801- )

ILLUST NO. 3 OF 4(9801- )

ILLUST NO. 2 OF 4(9801- )FZJ10#..LHD

ILLUST NO. 2 OF 4(9801- )FZJ10#..LHD

ILLUST NO. 2 OF 4(9801- )FZJ100

ILLUST NO. 2 OF 4(9801- )FZJ100

ILLUST NO. 4 OF 4(9801- )

ILLUST NO. 1 OF 4(9801- )FZJ100,UZJ100..GCC ; (0008- )HDJ100..ARL

Part Price Details
