FZJ100L-GCMNKV (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2007
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )

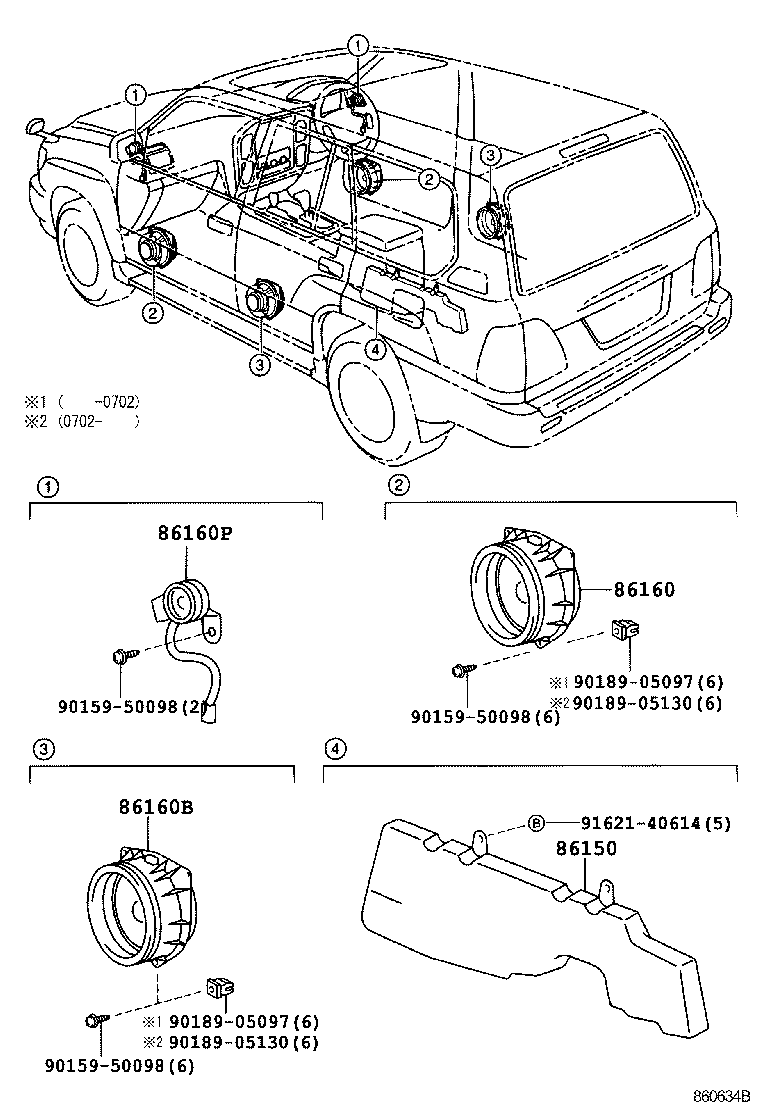

Click highlighted areas on diagram

diagram 86150 86160 86160B 86160P 9015950098 9015950098 9015950098 9018905097 9018905097 9018905130 9018905130 9162140614
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-22770

UZJ100..LHD;FZJ10#,HDJ100,HZJ105

15W

 2
86160-22790

UZJ100..LHD;FZJ10#,HDJ100,HZJ105..GX,VX

20W,(J),MATSUSHITA

 2
86160-22790

FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)

20W,MATSUSHITA

 2
86160-22790

FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)

20W,MATSUSHITA

 2
86160-22770

HDJ100,UZJ100..GEN;FZJ10#,HDJ100,HZJ105..GX,STD

15W,MATSUSHITA

 2
86160-22770

HZJ105..SOB;FZJ10#,HDJ100..GCC,GEN;HZJ105,UZJ100..LUB..GEN

 2
86160-22770

HDJ100..5FC..GX;UZJ100..GX..ARL;HDJ100,UZJ100..5FC..GEN;FZJ10#,HDJ100,HZJ105..(4FC,5F)..(ARL,GCC,GEN)

15W,MATSUSHITA

 2
86160B - SPEAKER ASSY, REAR
86160-22790

FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)

(J),MATSUSHITA

 2
86160-22790

UZJ100..LHD;FZJ10#,HDJ100,HZJ105..GX,VX

(J),MATSUSHITA

 2
86160-22790

FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)

MATSUSHITA

 2
Common parts
90159-50098
90189-05097
90189-05130
91621-40614
