FZJ100L-GCMNKV (1998)
Toyota Land Cruiser 100

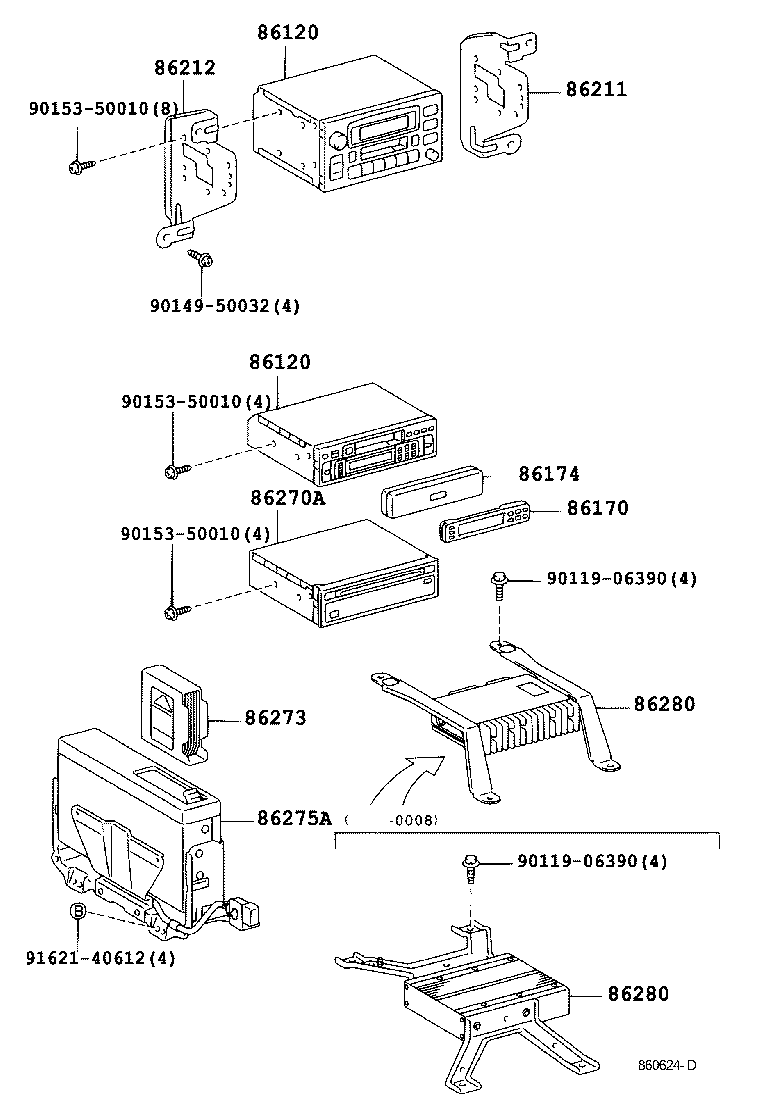

ILLUST NO. 1 OF 4(9801-0208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-16660 |
FZJ105,HZJ105;FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) FUJITSU TEN,ID=17409,AM/FM ETR CASSETTE (AM=9KHZ STEP) 2 SPEAKER |
1 | ||
| 86120-2B610 |
UZJ100..ARL,GCC;FZJ100,HZJ105..GX..GCC FUJITSU TEN,ID=17411,AM/FM ETR CASSETTE (AM=9KHZ STEP) 4 SPEAKER |
1 | ||
| 86120-16660 |
UZJ100..GEN;FZJ100,HDJ100..GX;FZJ105,HDJ100,HZJ105..DSL2,EFI,TD2 FUJITSU TEN,ID=17409,AM/FM ETR CASSETTE (AM=9KHZ STEP) 2 SPEAKER |
1 | ||
| 86120-10470 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105..GCC,GEN MATSUSHITA, ID=57207,AM/SW1/SW2 ETR CASSETTE |
1 | ||
| 86120-35190 |
FZJ10#,HZJ105..GCC,GEN MATSUSHITA, ID=57101,AM ETR CASSETTE 2 SPEAKER |
1 | ||
| 86120-42070 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57414,TYPE B:REFER TO ILLUSTRATION & AM/FM/SW |
1 | ||
| 86120-60360 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(GCC,GEN) MATSUSHITA, ID=57409,AM/FM/SW1/SW2 CASSETTE 4 SPEAKERS |
1 | ||
| 86120-33460 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) MATSUSHITA,ID=57412,TYPE B:REFER TO ILLUSTRATION & AM/FM |
1 | ||
| 86120-33460 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57412,TYPE B:REFER ILLUST. |
1 | ||
| 86120-42070 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57414,TYPE B:REFER ILLUST. |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-16660 |
FZJ105,HZJ105;FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) FUJITSU TEN,ID=17409,AM/FM ETR CASSETTE (AM=9KHZ STEP) 2 SPEAKER |
1 | ||
| 86120-2B610 |
UZJ100..ARL,GCC;FZJ100,HZJ105..GX..GCC FUJITSU TEN,ID=17411,AM/FM ETR CASSETTE (AM=9KHZ STEP) 4 SPEAKER |
1 | ||
| 86120-16660 |
UZJ100..GEN;FZJ100,HDJ100..GX;FZJ105,HDJ100,HZJ105..DSL2,EFI,TD2 FUJITSU TEN,ID=17409,AM/FM ETR CASSETTE (AM=9KHZ STEP) 2 SPEAKER |
1 | ||
| 86120-10470 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105..GCC,GEN MATSUSHITA, ID=57207,AM/SW1/SW2 ETR CASSETTE |
1 | ||
| 86120-35190 |
FZJ10#,HZJ105..GCC,GEN MATSUSHITA, ID=57101,AM ETR CASSETTE 2 SPEAKER |
1 | ||
| 86120-42070 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57414,TYPE B:REFER TO ILLUSTRATION & AM/FM/SW |
1 | ||
| 86120-60360 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(GCC,GEN) MATSUSHITA, ID=57409,AM/FM/SW1/SW2 CASSETTE 4 SPEAKERS |
1 | ||
| 86120-33460 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) MATSUSHITA,ID=57412,TYPE B:REFER TO ILLUSTRATION & AM/FM |
1 | ||
| 86120-33460 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57412,TYPE B:REFER ILLUST. |
1 | ||
| 86120-42070 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57414,TYPE B:REFER ILLUST. |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-60071 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 86211-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 86212-60071 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 86273 - MAGAZINE, DISC PLAYER | ||||
| 86273-60030 |
UZJ100..GCC,GEN;HDJ100..LUB..GEN;FZJ100,HZJ105..GX..GCC |
1 | ||
| 86273-60030 |
UZJ100..GCC,GEN;HDJ100..LUB..GEN;FZJ100,HZJ105..GX..GCC |
1 | ||
| 86275A - CHANGER, DISC PLAYER | ||||
| 86270-60040 |
UZJ100..GCC,GEN;HDJ100..LHD..LUB;FZJ100,HZJ105..GX..GCC |
1 | ||
| 86270-60040 |
UZJ100..GCC,GEN;HDJ100..LHD..LUB;FZJ100,HZJ105..GX..GCC |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90149-50032 | ||||
| 90153-50010 | ||||
| 91621-40612 | ||||

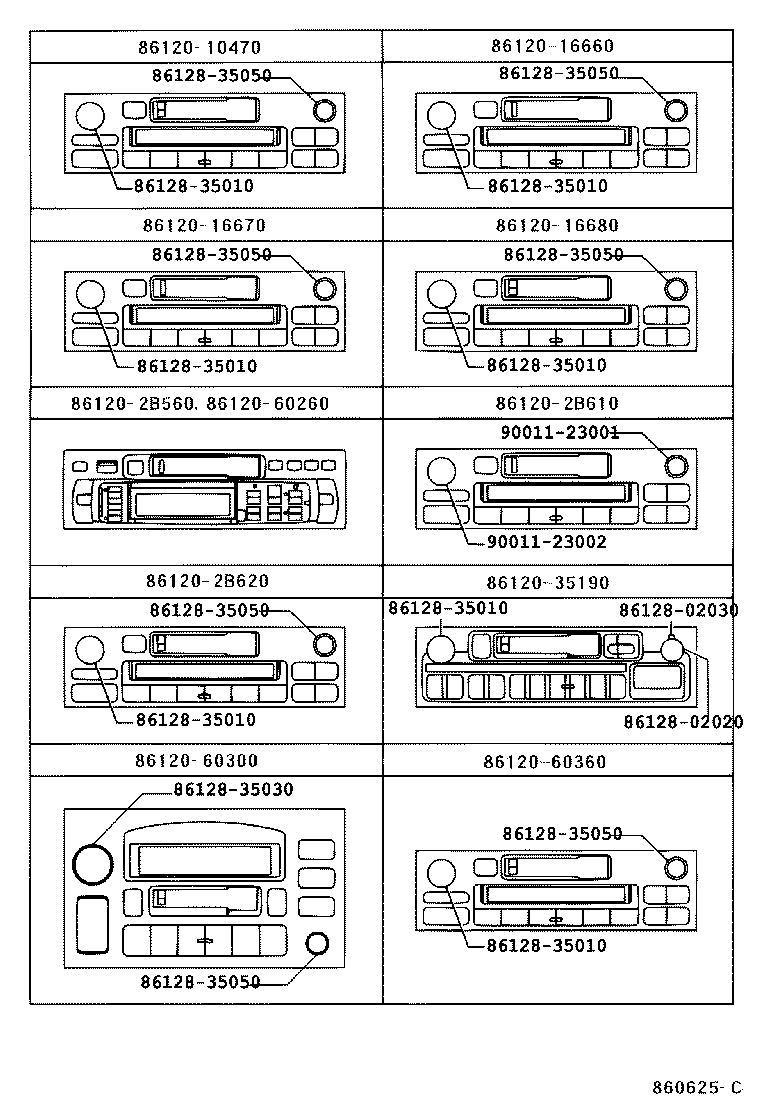

ILLUST NO. 2 OF 4(9801-0208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 86128-02020 | ||||
| 86128-02030 | ||||
| 86128-35010 | ||||
| 86128-35030 | ||||
| 86128-35050 | ||||
| 90011-23001 | ||||
| 90011-23002 | ||||

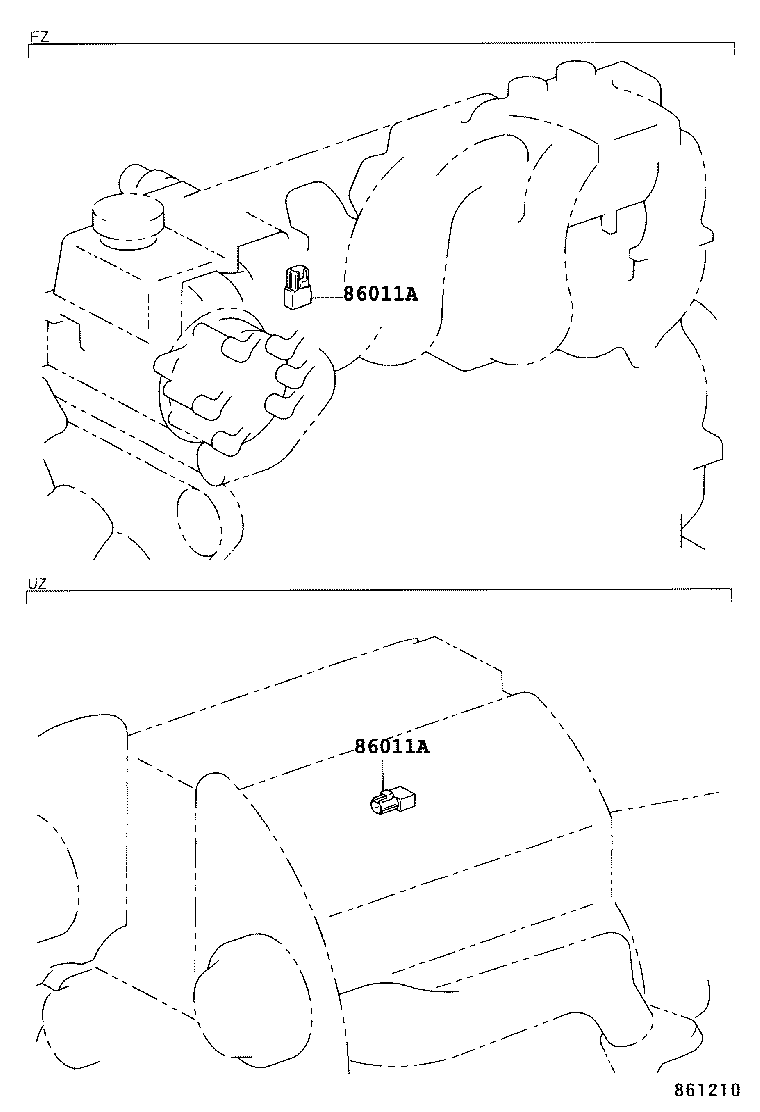

ILLUST NO. 4 OF 4(9801- )FZJ10#,UZJ100
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
FZJ105..GX;FZJ105..STD..GEN;FZJ100,UZJ100..LHD |
1 | ||
| 90980-04083 |
FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 90980-04083 |
FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
FZJ105..GX;FZJ105..STD..GEN;FZJ100,UZJ100..LHD |
1 | ||
| 90980-04083 |
FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 90980-04083 |
FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
ILLUST NO. 1 OF 4(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-16660 |
FZJ105,HZJ105;FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) FUJITSU TEN,ID=17409,AM/FM ETR CASSETTE (AM=9KHZ STEP) 2 SPEAKER |
1 | ||
| 86120-2B610 |
UZJ100..ARL,GCC;FZJ100,HZJ105..GX..GCC FUJITSU TEN,ID=17411,AM/FM ETR CASSETTE (AM=9KHZ STEP) 4 SPEAKER |
1 | ||
| 86120-16660 |
UZJ100..GEN;FZJ100,HDJ100..GX;FZJ105,HDJ100,HZJ105..DSL2,EFI,TD2 FUJITSU TEN,ID=17409,AM/FM ETR CASSETTE (AM=9KHZ STEP) 2 SPEAKER |
1 | ||
| 86120-10470 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105..GCC,GEN MATSUSHITA, ID=57207,AM/SW1/SW2 ETR CASSETTE |
1 | ||
| 86120-35190 |
FZJ10#,HZJ105..GCC,GEN MATSUSHITA, ID=57101,AM ETR CASSETTE 2 SPEAKER |
1 | ||
| 86120-42070 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57414,TYPE B:REFER TO ILLUSTRATION & AM/FM/SW |
1 | ||
| 86120-60360 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(GCC,GEN) MATSUSHITA, ID=57409,AM/FM/SW1/SW2 CASSETTE 4 SPEAKERS |
1 | ||
| 86120-33460 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) MATSUSHITA,ID=57412,TYPE B:REFER TO ILLUSTRATION & AM/FM |
1 | ||
| 86120-33460 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57412,TYPE B:REFER ILLUST. |
1 | ||
| 86120-42070 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57414,TYPE B:REFER ILLUST. |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-16660 |
FZJ105,HZJ105;FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) FUJITSU TEN,ID=17409,AM/FM ETR CASSETTE (AM=9KHZ STEP) 2 SPEAKER |
1 | ||
| 86120-2B610 |
UZJ100..ARL,GCC;FZJ100,HZJ105..GX..GCC FUJITSU TEN,ID=17411,AM/FM ETR CASSETTE (AM=9KHZ STEP) 4 SPEAKER |
1 | ||
| 86120-16660 |
UZJ100..GEN;FZJ100,HDJ100..GX;FZJ105,HDJ100,HZJ105..DSL2,EFI,TD2 FUJITSU TEN,ID=17409,AM/FM ETR CASSETTE (AM=9KHZ STEP) 2 SPEAKER |
1 | ||
| 86120-10470 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105..GCC,GEN MATSUSHITA, ID=57207,AM/SW1/SW2 ETR CASSETTE |
1 | ||
| 86120-35190 |
FZJ10#,HZJ105..GCC,GEN MATSUSHITA, ID=57101,AM ETR CASSETTE 2 SPEAKER |
1 | ||
| 86120-42070 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57414,TYPE B:REFER TO ILLUSTRATION & AM/FM/SW |
1 | ||
| 86120-60360 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(GCC,GEN) MATSUSHITA, ID=57409,AM/FM/SW1/SW2 CASSETTE 4 SPEAKERS |
1 | ||
| 86120-33460 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) MATSUSHITA,ID=57412,TYPE B:REFER TO ILLUSTRATION & AM/FM |
1 | ||
| 86120-33460 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57412,TYPE B:REFER ILLUST. |
1 | ||
| 86120-42070 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57414,TYPE B:REFER ILLUST. |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-16660 |
FZJ105,HZJ105;FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) FUJITSU TEN,ID=17409,AM/FM ETR CASSETTE (AM=9KHZ STEP) 2 SPEAKER |
1 | ||
| 86120-2B610 |
UZJ100..ARL,GCC;FZJ100,HZJ105..GX..GCC FUJITSU TEN,ID=17411,AM/FM ETR CASSETTE (AM=9KHZ STEP) 4 SPEAKER |
1 | ||
| 86120-16660 |
UZJ100..GEN;FZJ100,HDJ100..GX;FZJ105,HDJ100,HZJ105..DSL2,EFI,TD2 FUJITSU TEN,ID=17409,AM/FM ETR CASSETTE (AM=9KHZ STEP) 2 SPEAKER |
1 | ||
| 86120-10470 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105..GCC,GEN MATSUSHITA, ID=57207,AM/SW1/SW2 ETR CASSETTE |
1 | ||
| 86120-35190 |
FZJ10#,HZJ105..GCC,GEN MATSUSHITA, ID=57101,AM ETR CASSETTE 2 SPEAKER |
1 | ||
| 86120-42070 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57414,TYPE B:REFER TO ILLUSTRATION & AM/FM/SW |
1 | ||
| 86120-60360 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(GCC,GEN) MATSUSHITA, ID=57409,AM/FM/SW1/SW2 CASSETTE 4 SPEAKERS |
1 | ||
| 86120-33460 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) MATSUSHITA,ID=57412,TYPE B:REFER TO ILLUSTRATION & AM/FM |
1 | ||
| 86120-33460 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57412,TYPE B:REFER ILLUST. |
1 | ||
| 86120-42070 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57414,TYPE B:REFER ILLUST. |
1 | ||
| 86207 - BRACKET SUB-ASSY, RADIO RECEIVER, RH | ||||
| 86207-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 86207-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 86207 - BRACKET SUB-ASSY, RADIO RECEIVER, RH | ||||
| 86207-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 86207-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 86207 - BRACKET SUB-ASSY, RADIO RECEIVER, RH | ||||
| 86207-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 86207-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 86208 - BRACKET SUB-ASSY, RADIO RECEIVER, LH | ||||
| 86208-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 86208-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 86208 - BRACKET SUB-ASSY, RADIO RECEIVER, LH | ||||
| 86208-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 86208-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 86208 - BRACKET SUB-ASSY, RADIO RECEIVER, LH | ||||
| 86208-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 86208-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 86273 - MAGAZINE, DISC PLAYER | ||||
| 86273-60030 |
UZJ100..GCC,GEN;HDJ100..LUB..GEN;FZJ100,HZJ105..GX..GCC |
1 | ||
| 86273-60030 |
UZJ100..GCC,GEN;HDJ100..LUB..GEN;FZJ100,HZJ105..GX..GCC |
1 | ||
| 86275A - CHANGER, DISC PLAYER | ||||
| 86270-60040 |
UZJ100..GCC,GEN;HDJ100..LHD..LUB;FZJ100,HZJ105..GX..GCC |
1 | ||
| 86270-60040 |
UZJ100..GCC,GEN;HDJ100..LHD..LUB;FZJ100,HZJ105..GX..GCC |
1 | ||
| Common parts | ||||
| 55394-60010 | ||||
| 90119-06390 | ||||
| 90119-06915 | ||||
| 90153-50012 | ||||
| 90159-50098 | ||||
| 91621-40612 | ||||
ILLUST NO. 2 OF 4(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90010-22028 | ||||
| 90010-22031 | ||||
| 90010-24103 | ||||
| 90010-24104 | ||||
