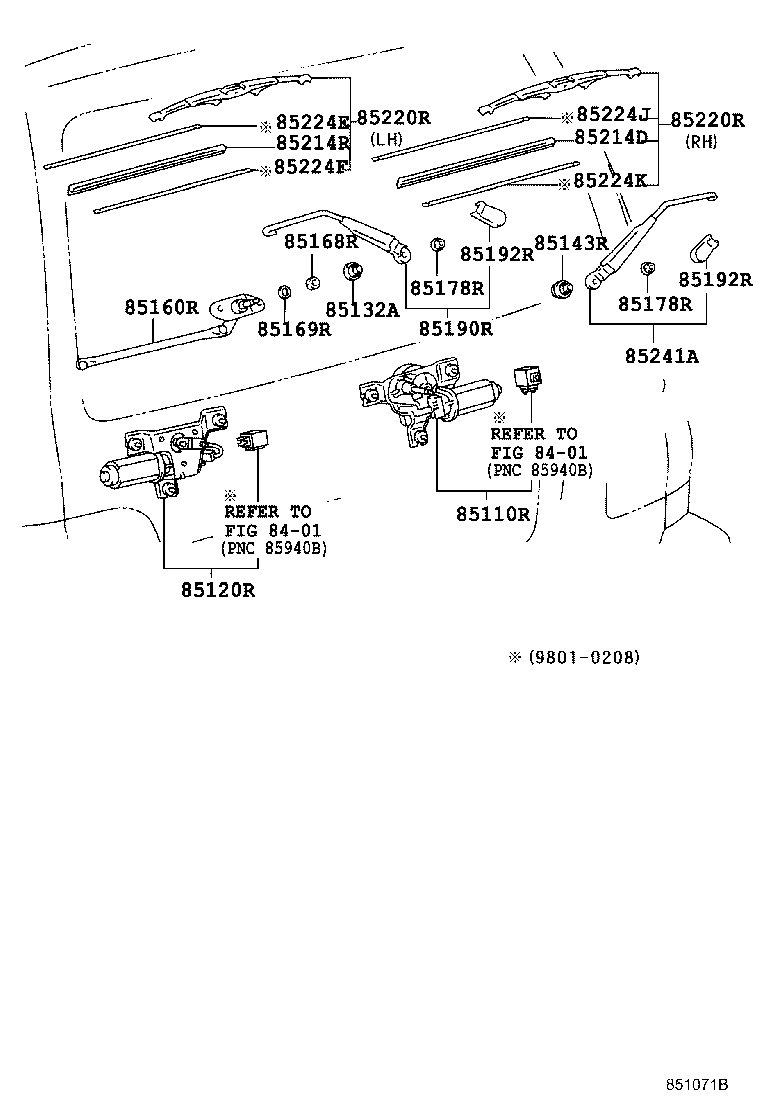

FZJ100L-GCMNKV (1998)
Toyota Land Cruiser 100
(9801- )SOB
DOUBLE-LEAF DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85130-60180 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85130-60210 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85130-60210 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85120R - MOTOR AND BRACKET ASSY, REAR WIPER | ||||
| 85080-60190 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85080-60180 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85080-60190 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85132A - COVER, REAR WIPER SHAFT | ||||
| 85132-28040 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85132-28040 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85132-28040 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85143R - GROMMET, REAR WIPER MOTOR | ||||
| 85143-60110 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85143-60110 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 85143-60110 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85160R - LINK ASSY, REAR WIPER | ||||
| 85170-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85170-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85170-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85168R - NUT, REAR WIPER LINK PIVOT, NO.1 | ||||
| 85168-95700 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85168-95700 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85168-95700 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85169R - WASHER, REAR WIPER LINK PIVOT, NO.1 | ||||
| 85134-60120 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85134-60120 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85134-60120 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85178R - NUT (FOR REAR WIPER ARM SETTING) | ||||
| 90179-06070 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| 90179-06158 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| 90179-06158 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| 90179-06158 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| 85178R - NUT (FOR REAR WIPER ARM SETTING) | ||||
| 90179-06070 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| 90179-06158 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| 90179-06158 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| 90179-06158 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85241-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85241-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85241-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85192R - COVER, REAR WIPER ARM | ||||
| 85192-13060 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| 85192-13060 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| 85192-13060 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| 85192R - COVER, REAR WIPER ARM | ||||
| 85192-13060 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| 85192-13060 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| 85192-13060 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| 85214D - RUBBER, WIPER BLADE, RH | ||||
| 85214-10100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85214-10100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85214-10100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85214R - RUBBER, REAR WIPER | ||||
| 85214-30280 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85214-30280 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85214-30280 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85220R - BLADE ASSY, REAR WIPER | ||||
| 85242-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB RH |
1 | ||
| 85242-30040 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB LH |
1 | ||
| 85242-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB RH |
1 | ||
| 85242-30040 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB LH |
1 | ||
| 85242-30040 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB LH |
1 | ||
| 85242-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB RH |
1 | ||
| 85220R - BLADE ASSY, REAR WIPER | ||||
| 85242-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB RH |
1 | ||
| 85242-30040 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB LH |
1 | ||
| 85242-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB RH |
1 | ||
| 85242-30040 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB LH |
1 | ||
| 85242-30040 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB LH |
1 | ||
| 85242-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB RH |
1 | ||
| 85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1 | ||||
| 85224-30460 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85224F - PLATE, REAR WIPER RUBBER BACKING, NO.2 | ||||
| 85224-30460 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85224J - PLATE, WIPER BLADE RUBBER BACKING, NO.3 | ||||
| 85224-10200 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85224K - PLATE, WIPER BLADE RUBBER BACKING, NO.4 | ||||
| 85224-10200 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85241A - ARM, REAR WIPER | ||||
| 85241-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85241-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85241-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
