Toyota Land cruiser 100 FZJ100 WIRELESS DOOR LOCK

FZJ100L-GCMNKV (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2007

Engine 1FZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9801-0208)LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-60120	FZJ100,HZJ105,UZJ100..GCC	01/1998 - 08/2002	1
89070-60790	FZJ100..SOB..GX;HDJ100..5FC..GEN;HZJ105,UZJ100..GCC W(ANTI-THEFT DEVICE)	02/2004 - 07/2004	1
89070-60480	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC SAUDI ARABIA SPEC	08/2000 - 08/2002	1
89070-60760	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(KEY LESS ENTRY)	07/2004 - 05/2005	1
89070-60760	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(KEY LESS ENTRY)	08/2002 - 02/2004	1
89070-60791	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	02/2007 - 12/2999	1
89070-60760	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	05/2005 - 04/2006	1
89070-60761	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	05/2006 - 02/2007	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-60040	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(SPARE WHEEL CARRIER W/KEY LOCK = BACK DOOR)	01/1998 - 08/2000	2
89071-60030	HDJ100..ARL;FZJ100..SOB..GX	08/2000 - 08/2002	2
89071-60190	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	08/2002 - 05/2003	1
89071-42050	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(SPARE TIRE CARRIER = BACK DOOR)	02/2004 - 07/2004	1
89071-60190	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	02/2004 - 05/2005	1
89071-60170	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(SPARE TIRE CARRIER = BACK DOOR)	08/2002 - 05/2003	1
89071-60190	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	05/2005 - 02/2007	1
89071-42050	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	02/2007 - 12/2999	1
89071-60190	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	05/2003 - 02/2004	1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-60110	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(SPARE TIRE CARRIER = BACK DOOR)	01/1998 - 08/2000	1
89073-60120	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	01/1998 - 08/2000	1
89073-60660	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(ENGINE IMMOBILIZER SYSTEM)	08/2000 - 08/2002	1
89073-60650	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(SPARE WHEEL CARRIER W/KEY LOCK = UNDER & ENGINE IMMOBILIZER SYSTEM)	08/2000 - 08/2002	1
69005-6C510	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(KEY LESS ENTRY)	08/2002 - 05/2005	1
69005-6C530	HZJ105..LHD..STD;HZJ105,UZJ100..GCC;FZJ100,HDJ100..(GX,VX)..(GCC,GEN)	08/2002 - 05/2005	1
69005-6C580	HZJ105,UZJ100..GCC;FZJ100,HDJ100..(GX,VX)..(GCC,GEN) W(SPARE WHEEL CARRIER W/KEY LOCK = BACK DOOR)	08/2002 - 05/2005	1
69005-6C560	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(KEY LESS ENTRY & SPARE WHEEL CARRIER W/KEY LOCK)	08/2002 - 05/2005	1
69005-6C510	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(KEY LESS ENTRY)	05/2005 - 04/2006	1
69005-6C560	HDJ100..5FC..GEN;FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(KEY LESS ENTRY & SPARE WHEEL CARRIER W/KEY LOCK)	05/2005 - 04/2006	1
69005-6C561	HDJ100..5FC..GEN;FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(KEY LESS ENTRY & SPARE WHEEL CARRIER W/KEY LOCK)	05/2006 - 12/2999	1
69005-6C511	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(KEY LESS ENTRY)	05/2006 - 12/2999	1
89073A - IGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)
89073-60640	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC SAUDI ARABIA SPEC	08/2000 - 08/2002	1
69057-60560	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(KEY LESS ENTRY)	08/2002 - 05/2005	1
69057-60570	HZJ105,UZJ100..GCC;FZJ100,HDJ100..GCC,GEN;FZJ105,HZJ105..STD..GEN	08/2002 - 05/2005	1
69057-60561	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(KEY LESS ENTRY)	05/2006 - 12/2999	1
69057-60570	HZJ105,UZJ100..GCC;FZJ100,HDJ100..GCC,GEN;FZJ105,HZJ105..STD..GEN	05/2005 - 12/2999	1
69057-60560	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(KEY LESS ENTRY)	05/2005 - 04/2006	1
89741 - RECEIVER, DOOR CONTROL
89741-60390	UZJ100..GCC;FZJ100..SOB..GX;HDJ100..5FC..GEN	02/2004 - 07/2004	1
89741-60100	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	01/1998 - 08/2002	1
89741-60380	FZJ100,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC) MARK = 89741-60380	08/2002 - 05/2005	1
89741-60390	HZJ105..GCC;HDJ100..5F..GEN;HZJ105..LHD..LUB;HZJ105..RHD..SOB..GX;FZJ10#,UZJ100..LHD..(GX,VX)..(GCC,GEN)	02/2007 - 12/2999	1
89741-60380	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	05/2005 - 02/2007	1
89745 - BATTERY, TRANSMITTER
89745-40010	FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)	08/2002 - 05/2005	2
89745-40010	FZJ100,HDJ100,UZJ100..GX,VX;FZJ105,HZJ105..GX..(GCC,GEN)	01/1998 - 08/2000	2
89745-40010	FZJ100,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC)	05/2005 - 12/2999	2
89745-40010	FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX	08/2000 - 08/2002	2
Common parts
89758-40010
89759-40010
89759-40020
90159-60303
Linked diagrams
8121
8424

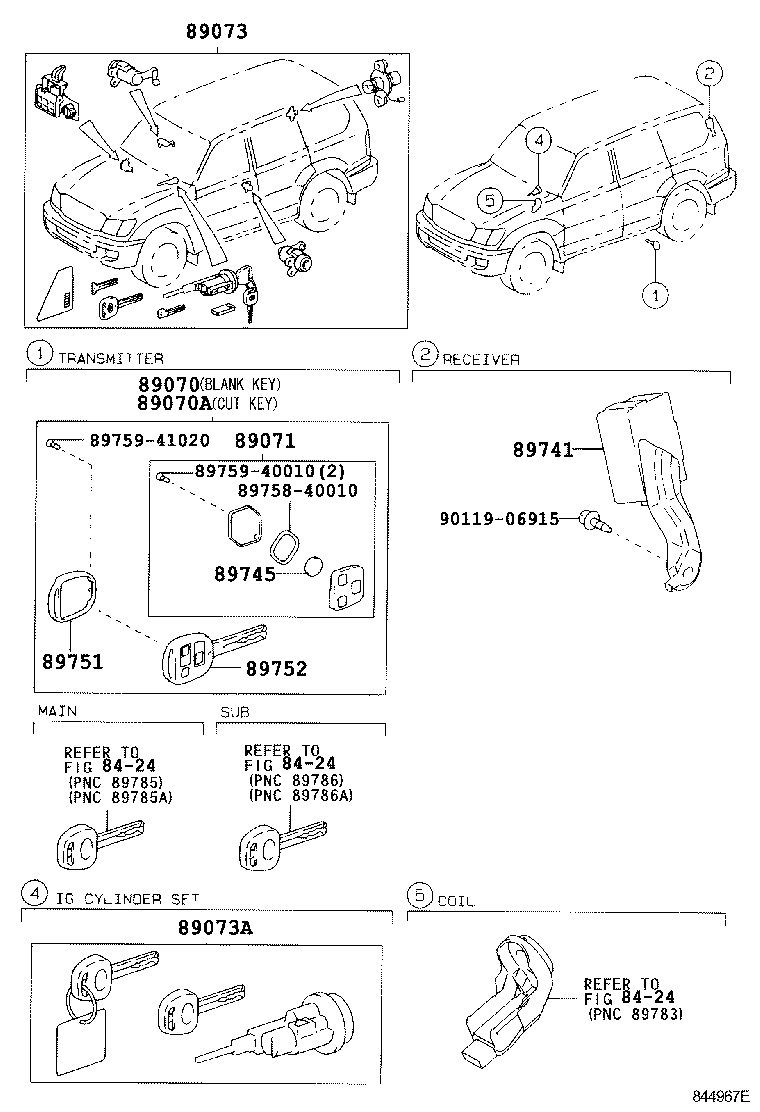

(0208- )LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-60120	FZJ100,HZJ105,UZJ100..GCC	01/1998 - 08/2002	1
89070-60790	FZJ100..SOB..GX;HDJ100..5FC..GEN;HZJ105,UZJ100..GCC W(ANTI-THEFT DEVICE)	02/2004 - 07/2004	1
89070-60480	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC SAUDI ARABIA SPEC	08/2000 - 08/2002	1
89070-60760	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(KEY LESS ENTRY)	07/2004 - 05/2005	1
89070-60760	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(KEY LESS ENTRY)	08/2002 - 02/2004	1
89070-60791	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	02/2007 - 12/2999	1
89070-60760	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	05/2005 - 04/2006	1
89070-60761	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	05/2006 - 02/2007	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-60040	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(SPARE WHEEL CARRIER W/KEY LOCK = BACK DOOR)	01/1998 - 08/2000	2
89071-60030	HDJ100..ARL;FZJ100..SOB..GX	08/2000 - 08/2002	2
89071-60190	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	08/2002 - 05/2003	1
89071-42050	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(SPARE TIRE CARRIER = BACK DOOR)	02/2004 - 07/2004	1
89071-60190	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	02/2004 - 05/2005	1
89071-60170	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(SPARE TIRE CARRIER = BACK DOOR)	08/2002 - 05/2003	1
89071-60190	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	05/2005 - 02/2007	1
89071-42050	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	02/2007 - 12/2999	1
89071-60190	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	05/2003 - 02/2004	1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-60110	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(SPARE TIRE CARRIER = BACK DOOR)	01/1998 - 08/2000	1
89073-60120	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	01/1998 - 08/2000	1
89073-60660	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(ENGINE IMMOBILIZER SYSTEM)	08/2000 - 08/2002	1
89073-60650	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(SPARE WHEEL CARRIER W/KEY LOCK = UNDER & ENGINE IMMOBILIZER SYSTEM)	08/2000 - 08/2002	1
69005-6C510	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(KEY LESS ENTRY)	08/2002 - 05/2005	1
69005-6C530	HZJ105..LHD..STD;HZJ105,UZJ100..GCC;FZJ100,HDJ100..(GX,VX)..(GCC,GEN)	08/2002 - 05/2005	1
69005-6C580	HZJ105,UZJ100..GCC;FZJ100,HDJ100..(GX,VX)..(GCC,GEN) W(SPARE WHEEL CARRIER W/KEY LOCK = BACK DOOR)	08/2002 - 05/2005	1
69005-6C560	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(KEY LESS ENTRY & SPARE WHEEL CARRIER W/KEY LOCK)	08/2002 - 05/2005	1
69005-6C510	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(KEY LESS ENTRY)	05/2005 - 04/2006	1
69005-6C560	HDJ100..5FC..GEN;FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(KEY LESS ENTRY & SPARE WHEEL CARRIER W/KEY LOCK)	05/2005 - 04/2006	1
69005-6C561	HDJ100..5FC..GEN;FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(KEY LESS ENTRY & SPARE WHEEL CARRIER W/KEY LOCK)	05/2006 - 12/2999	1
69005-6C511	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(KEY LESS ENTRY)	05/2006 - 12/2999	1
89073A - IGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)
89073-60640	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC SAUDI ARABIA SPEC	08/2000 - 08/2002	1
69057-60560	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(KEY LESS ENTRY)	08/2002 - 05/2005	1
69057-60570	HZJ105,UZJ100..GCC;FZJ100,HDJ100..GCC,GEN;FZJ105,HZJ105..STD..GEN	08/2002 - 05/2005	1
69057-60561	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(KEY LESS ENTRY)	05/2006 - 12/2999	1
69057-60570	HZJ105,UZJ100..GCC;FZJ100,HDJ100..GCC,GEN;FZJ105,HZJ105..STD..GEN	05/2005 - 12/2999	1
69057-60560	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC W(KEY LESS ENTRY)	05/2005 - 04/2006	1
89741 - RECEIVER, DOOR CONTROL
89741-60390	UZJ100..GCC;FZJ100..SOB..GX;HDJ100..5FC..GEN	02/2004 - 07/2004	1
89741-60100	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	01/1998 - 08/2002	1
89741-60380	FZJ100,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC) MARK = 89741-60380	08/2002 - 05/2005	1
89741-60390	HZJ105..GCC;HDJ100..5F..GEN;HZJ105..LHD..LUB;HZJ105..RHD..SOB..GX;FZJ10#,UZJ100..LHD..(GX,VX)..(GCC,GEN)	02/2007 - 12/2999	1
89741-60380	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	05/2005 - 02/2007	1
89745 - BATTERY, TRANSMITTER
89745-40010	FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)	08/2002 - 05/2005	2
89745-40010	FZJ100,HDJ100,UZJ100..GX,VX;FZJ105,HZJ105..GX..(GCC,GEN)	01/1998 - 08/2000	2
89745-40010	FZJ100,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC)	05/2005 - 12/2999	2
89745-40010	FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX	08/2000 - 08/2002	2
89751 - COVER, TRANSMITTER HOUSING
89751-13010	UZJ100..GCC;FZJ100..SOB..GX;HDJ100..5FC..GEN W(WIRELESS DOOR LOCK)	02/2004 - 07/2004	2
89751-44020	FZJ100,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC)	08/2002 - 05/2005	2
89751-44020	FZJ100,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC)	05/2005 - 12/2005	2
89751-44021	FZJ100,HZJ105,UZJ100..(GX,VX)..GCC	01/2006 - 02/2007	2
89751-13011	HZJ105..GCC;HDJ100..5F..GEN;HZJ105..LHD..LUB;HZJ105..RHD..SOB..GX;FZJ10#,UZJ100..LHD..(GX,VX)..(GCC,GEN)	02/2007 - 12/2999	2
89752 - CASE, TRANSMITTER HOUSING
89752-60050	HDJ100..5FC..GEN;HZJ105..LHD..SOB..GX;FZJ100,UZJ100..(GX,VX)..GCC;FZJ105,HZJ105..RHD..LUB..GEN BLANK KEY	05/2005 - 08/2007	1
Common parts
89758-40010
89759-40010
89759-41020
90119-06915
Linked diagrams
8424

FZJ100L-GCMNKV (1998)

(9801-0208)LHD

(0208- )LHD
