FZJ100L-GCMNKV (1998)
Toyota Land Cruiser 100

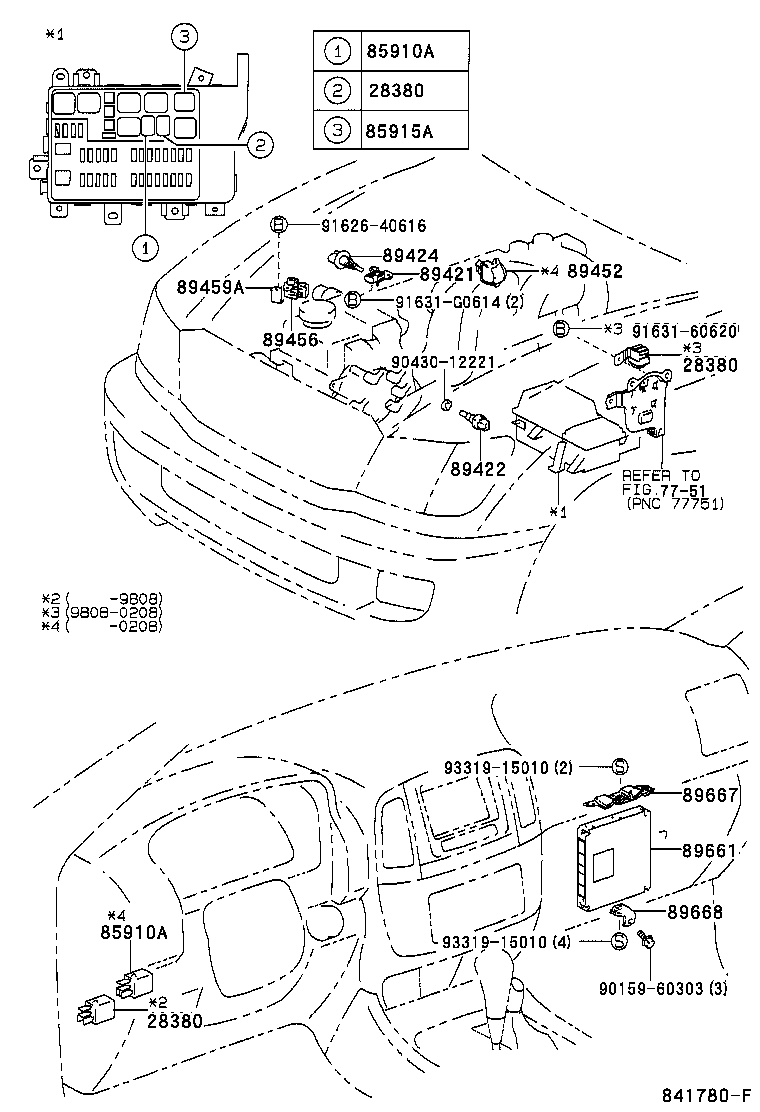

ILLUST NO. 1 OF 2(9801- )FZJ10#..LHD
ENGINE & ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380 - RELAY ASSY, FUEL PUMP | ||||
| 90987-04004 |
1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 28380-50030 |
1FZFE,2UZFE..FZJ10#,UZJ100 |
1 | ||
| 28380-50050 |
1FZFE,2UZFE..FZJ10#,UZJ100 |
1 | ||
| 90987-04004 |
1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 28380 - RELAY ASSY, FUEL PUMP | ||||
| 90987-04004 |
1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 28380-50030 |
1FZFE,2UZFE..FZJ10#,UZJ100 |
1 | ||
| 28380-50050 |
1FZFE,2UZFE..FZJ10#,UZJ100 |
1 | ||
| 90987-04004 |
1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 28380 - RELAY ASSY, FUEL PUMP | ||||
| 90987-04004 |
1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 28380-50030 |
1FZFE,2UZFE..FZJ10#,UZJ100 |
1 | ||
| 28380-50050 |
1FZFE,2UZFE..FZJ10#,UZJ100 |
1 | ||
| 90987-04004 |
1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 90987-02012 |
FZJ10#,UZJ100 |
1 | ||
| 90987-02022 |
FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-02022 |
FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 90987-02012 |
FZJ10#,UZJ100 |
1 | ||
| 90987-02022 |
FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-02022 |
FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 85915-30050 |
FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 85915-30050 |
FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 85915-30050 |
FZJ105..GX;FZJ105..STD..GEN;FZJ100,UZJ100..LHD |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89421-20190 |
FZJ100;FZJ105..GX;FZJ105..STD..GEN |
1 | ||
| 89421-20190 |
FZJ10#..GCC,GEN |
1 | ||
| 89421-20190 |
FZJ10#..GCC,GEN |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-35010 |
FZJ100;FZJ105..GX;FZJ105..STD..GEN |
1 | ||
| 89422-35010 |
FZJ10#..GCC,GEN |
1 | ||
| 89422-35010 |
FZJ10#..GCC,GEN |
1 | ||
| 89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) | ||||
| 89424-12010 |
FZJ10#..GCC,GEN |
1 | ||
| 89424-12010 |
FZJ100;FZJ105..GX;FZJ105..STD..GEN |
1 | ||
| 89424-12010 |
FZJ10#..GCC,GEN |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-20130 |
FZJ10# |
1 | ||
| 89456 - RESISTOR, VARIABLE | ||||
| 89456-30010 |
FZJ10#,UZJ100..GCC,GEN |
1 | ||
| 89456-30010 |
FZJ10#,UZJ100 |
1 | ||
| 89456-30010 |
FZJ10#,UZJ100..GCC,GEN |
1 | ||
| 89459A - BRACKET, VARIABLE RESISTOR | ||||
| 89459-60050 |
FZJ10#,UZJ100 |
1 | ||
| 89459-60050 |
FZJ10#,UZJ100..GCC,GEN |
1 | ||
| 89459-60050 |
FZJ10#,UZJ100..GCC,GEN |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-60680 |
FZJ10#..5F..(GCC,GEN) MARK = 89661-60680 |
1 | ||
| 89661-60700 |
FZJ100..5F;FZJ105..5F..GX MARK = 89661-60700 |
1 | ||
| 89661-60700 |
FZJ10#..5F..(GCC,GEN) MARK = 89661-60700 |
1 | ||
| 89666-60121 |
FZJ100..5F MARK = 89666-60121 |
1 | ||
| 89666-60121 |
FZJ100..5F..GCC MARK = 89666-60121 |
1 | ||
| 89661-60700 |
FZJ10#..5F..(GCC,GEN) MARK = 89661-60700 |
1 | ||
| 89666-60121 |
FZJ100..5F..GCC MARK = 89666-60121 |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-60210 |
FZJ100..SOB..5F SAUDI ARABIA SPEC |
1 | ||
| 89667-60140 |
FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 89667-60140 |
FZJ105..GX;FZJ105..STD..GEN;FZJ100,UZJ100..LHD |
1 | ||
| 89667-60210 |
FZJ100..SOB..5F SAUDI ARABIA SPEC |
1 | ||
| 89667-60140 |
FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 89667-60210 |
FZJ100..GCC GCC(EXCEPT SAUDI ARABIA) SPEC;SAUDI ARABIA SPEC |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-60150 |
FZJ10# |
1 | ||
| 89668-60210 |
FZJ100..GCC GCC(EXCEPT SAUDI ARABIA) SPEC;SAUDI ARABIA SPEC |
1 | ||
| 89668-60150 |
FZJ10#..GCC,GEN |
1 | ||
| 89668-60210 |
FZJ100..SOB..5F SAUDI ARABIA SPEC |
1 | ||
| 89668-60210 |
FZJ100..SOB..5F SAUDI ARABIA SPEC |
1 | ||
| 89668-60150 |
FZJ10#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90430-12221 | ||||
| 91626-40616 | ||||
| 91631-60620 | ||||
| 91631-G0614 | ||||
| 93319-15010 | ||||
| Linked diagrams | ||||
| 7751 | ||||
ILLUST NO. 2 OF 2(9801- )
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380F - RELAY ASSY, FUEL PUMP SELECT | ||||
| 28380-50020 |
1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN;1FZFE,2UZFE..FZJ100,UZJ100..LHD |
1 | ||
| 28380-50020 |
1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 28380-50020 |
1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 28380G - RELAY, SUB FUEL PUMP DRIVE | ||||
| 90987-02004 |
1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN;1FZFE,2UZFE..FZJ100,UZJ100..LHD |
1 | ||
| 90987-02004 |
1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-02004 |
1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 85999F - BRACKET, RELAY | ||||
| 85999-12050 |
FZJ105..GX;FZJ105..STD..GEN;FZJ100,UZJ100..LHD |
1 | ||
| 85999-12050 |
FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 85999-12050 |
FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 91621-40614 | ||||
