FZJ100L-GCMNKV (1998)
Toyota Land Cruiser 100

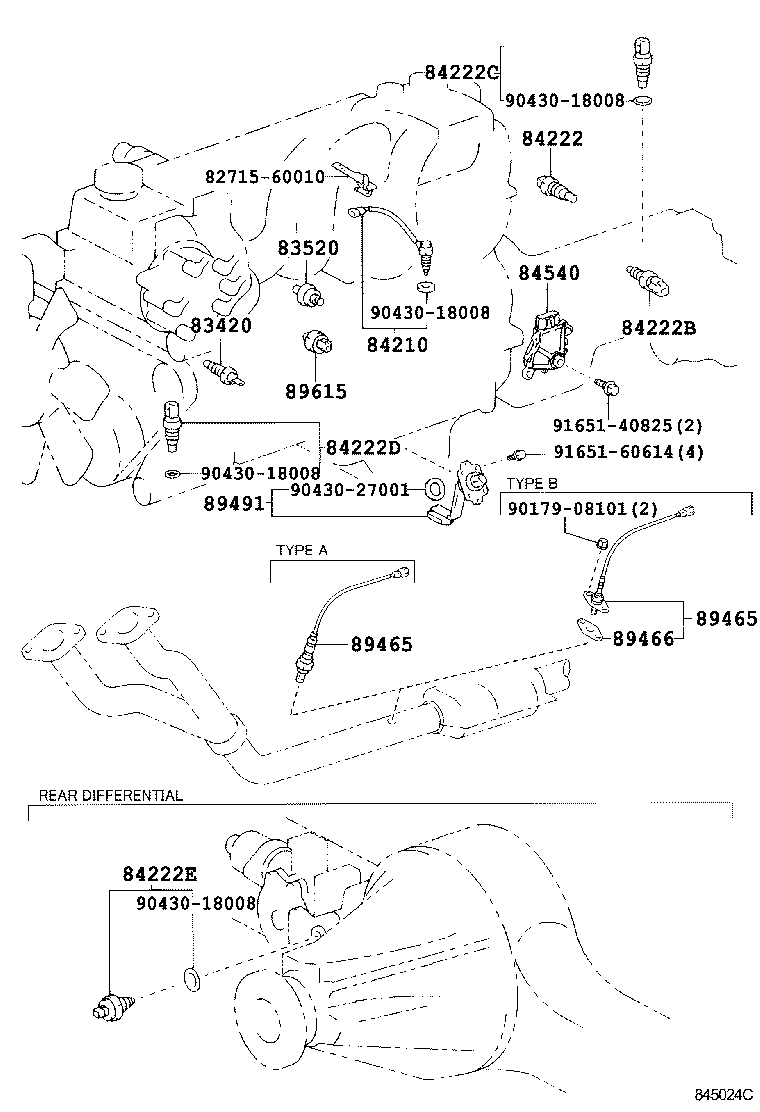

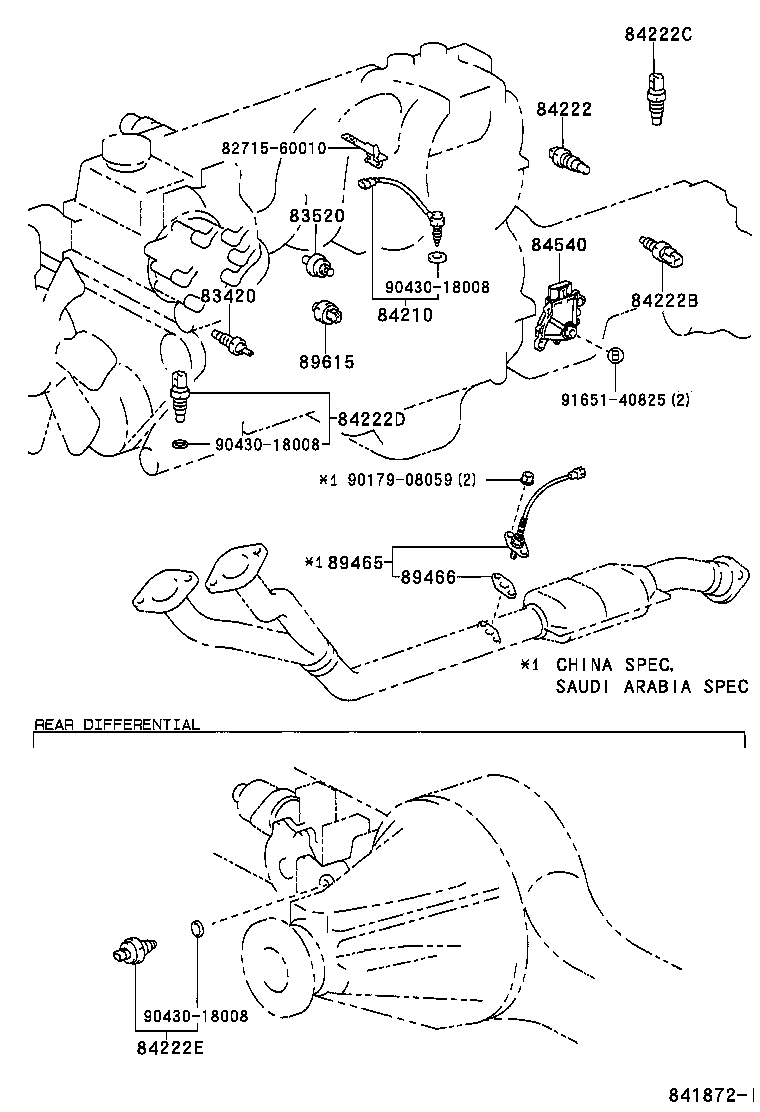

ILLUST NO. 1 OF 9(9801-0208)FZJ10#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
FZJ105..GX;FZJ105..STD..GEN;FZJ100,HDJ100,HZJ105 |
1 | ||
| 83420-16040 |
FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN |
1 | ||
| 83420-16040 |
FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-35020 |
FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 83520-60050 |
FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 83520-35020 |
FZJ105..GX;FZJ105..STD..GEN;FZJ100,UZJ100..LHD |
1 | ||
| 83520-60050 |
FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60030 |
FZJ10#,HDJ100,UZJ100..5F..(ARL,GCC,GEN) |
1 | ||
| 84210-60030 |
FZJ105..5F..GX;FZJ105..STD..GEN;FZJ100,HDJ100,UZJ100..5F |
1 | ||
| 84210-60030 |
FZJ10#,HDJ100,UZJ100..5F..(ARL,GCC,GEN) |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84222-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84222-12010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 84222C - SWITCH, TRANSFER INDICATOR, NO.3 | ||||
| 84222-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84222-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84222-12010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 84222E - SWITCH, DIFFERENTIAL LOCK INDICATOR | ||||
| 84222-60090 |
FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) |
1 | ||
| 84222-60090 |
FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 84222-60090 |
FZJ100,HDJ100,UZJ100..GX,VX |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-69155 |
FZJ100..SOB..5F SAUDI ARABIA SPEC |
1 | ||
| 89465-69155 |
FZJ100..5F..GCC TYPE B:REFER ILLUST. |
1 | ||
| 89465-69155 |
FZJ100..SOB..5F TYPE B:REFER ILLUST. |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
FZJ100..SOB..5F |
1 | ||
| 89466-20020 |
FZJ100..5F..GCC |
1 | ||
| 89466-20020 |
FZJ100..SOB..5F |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-30050 |
FZJ10# |
2 | ||
| 89615-60010 |
FZJ10#..GCC,GEN |
1 | ||
| 89615-60010 |
FZJ10# |
2 | ||
| 89615-60010 |
FZJ10#..GCC,GEN |
2 | ||
| Common parts | ||||
| 82715-60010 | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 91651-40825 | ||||

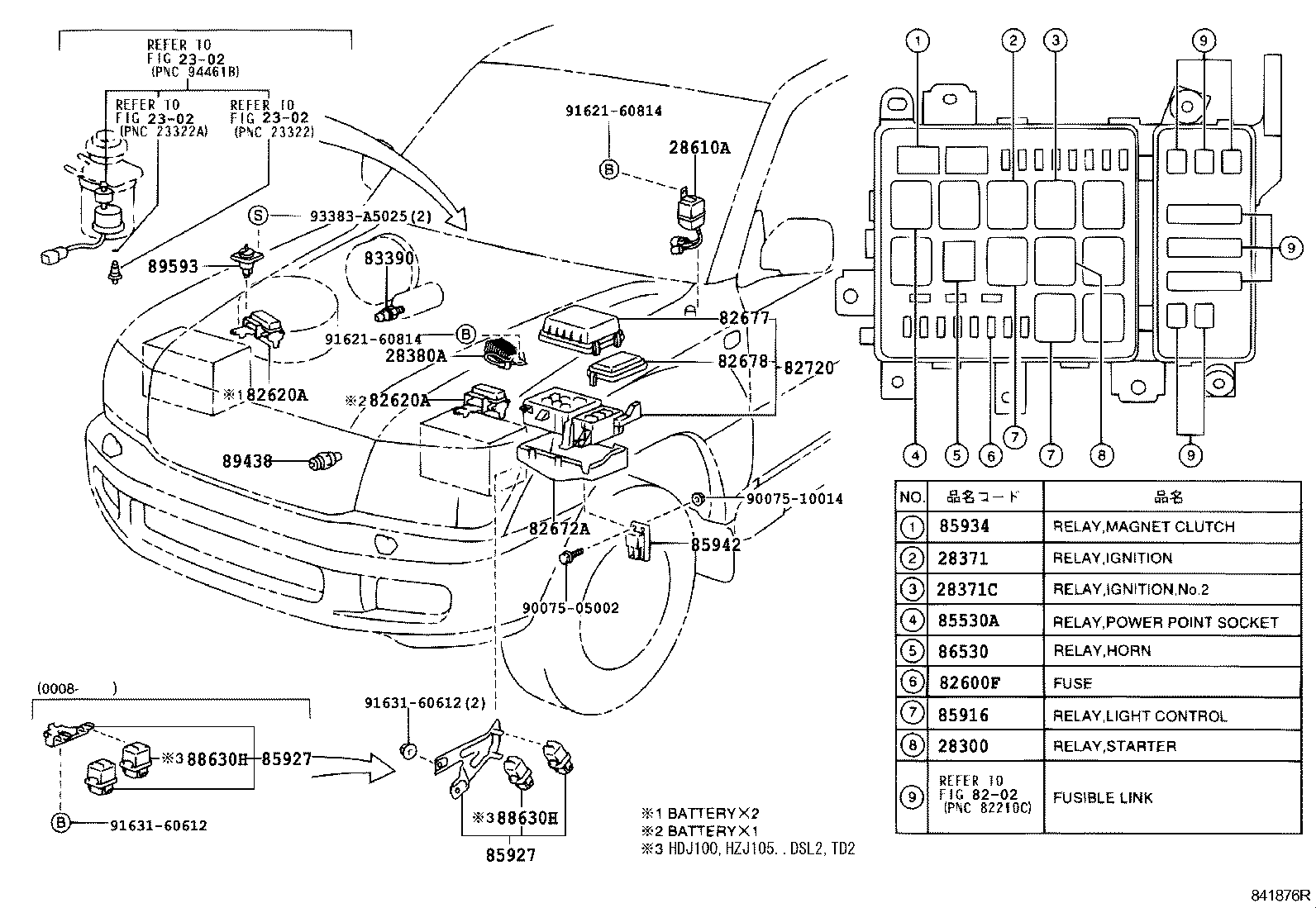

ILLUST NO. 2 OF 9(9801-0208)
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 28300-46010 |
1FZFE,1HD#,1HZ,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02006 |
1HDT..HDJ100..LUB;1FZFE..FZJ105..GX;1FZFE,1HDFTE,1HZ..FZJ100,HDJ100,HZJ105;1FZFE,2UZFE..FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90987-02006 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-02006 |
1HDT..HDJ100..LUB;1FZFE,1HZ,2UZFE..FZJ10#,HZJ105,UZJ100 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02006 |
1HDT..HDJ100..LUB;1FZFE..FZJ105..GX;1FZFE,1HDFTE,1HZ..FZJ100,HDJ100,HZJ105;1FZFE,2UZFE..FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-02006 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-02006 |
1HDT..HDJ100..LUB;1FZFE,1HZ,2UZFE..FZJ10#,HZJ105,UZJ100 |
1 | ||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-50061 |
1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 23080-50060 |
1FZFE,2UZFE..FZJ10#,UZJ100 |
1 | ||
| 23080-50061 |
1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 10A,MINI FUSE,RED |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
HDJ100,HZJ105;FZJ10#,UZJ100..LHD 25A,MINI FUSE |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60010 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82620-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82620-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82620-60010 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 82620-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60010 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82620-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82620-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82620-60010 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 82620-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82674-60010 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82674-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82674-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82674-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82674-60010 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 82677 - COVER, JUNCTION BLOCK, UPPER NO.2 | ||||
| 82677-60011 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 82677-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82677-60011 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82677-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82677-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82677-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82678 - COVER, JUNCTION BLOCK, UPPER NO.3 | ||||
| 82678-60010 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 82678-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82678-60010 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-60050 |
FZJ100 |
1 | ||
| 82720-60051 |
FZJ100 |
1 | ||
| 82720-60011 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 W(DUAL AIR CONDITIONER OR WINCH) |
1 | ||
| 82720-60010 |
FZJ100 W(DUAL AIR CONDITIONER OR WINCH) |
1 | ||
| 82720-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(DUAL AIR CONDITIONER OR WINCH) |
1 | ||
| 82720-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82720-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82720-60011 |
FZJ105..GX;FZJ105,UZJ100..LHD..(STD,VX);FZJ100,HDJ100,HZJ105..DSL2,EFI,TD2 W(DUAL AIR CONDITIONER OR WINCH) |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02006 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90987-02006 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-02006 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85916-30060 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
2 | ||
| 85916-30060 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 85916-30060 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 88630-60090 |
FZJ105..RHD;FZJ105..LHD..GX;FZJ100,UZJ100..GX,VX |
1 | ||
| 88630-60090 |
FZJ100,UZJ100..GX,VX |
1 | ||
| 88630-60090 |
FZJ10#,UZJ100..GX,VX |
1 | ||
| 88630-60091 |
FZJ10#,UZJ100..GX,VX |
1 | ||
| 88630-60090 |
FZJ10#,UZJ100..GX,VX |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 88630-60090 |
FZJ105..RHD;FZJ105..LHD..GX;FZJ100,UZJ100..GX,VX |
1 | ||
| 88630-60090 |
FZJ100,UZJ100..GX,VX |
1 | ||
| 88630-60090 |
FZJ10#,UZJ100..GX,VX |
1 | ||
| 88630-60091 |
FZJ10#,UZJ100..GX,VX |
1 | ||
| 88630-60090 |
FZJ10#,UZJ100..GX,VX |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02012 |
HDJ100..VX;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-33010 |
HZJ105..LHD..SOB;FZJ100,UZJ100..(GX,VX)..GCC |
1 | ||
| 85942-33010 |
HZJ105..LHD..SOB;FZJ100,UZJ100..(GX,VX)..GCC |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 86530-20070 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 86530-20070 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 89593 - SENSOR, AIR CLEANER WARNING | ||||
| 89593-60040 |
FZJ10#,UZJ100 |
1 | ||
| Common parts | ||||
| 90075-05002 | ||||
| 90075-10014 | ||||
| 91621-60814 | ||||
| 91631-60612 | ||||
| 93383-A5025 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8202 | ||||

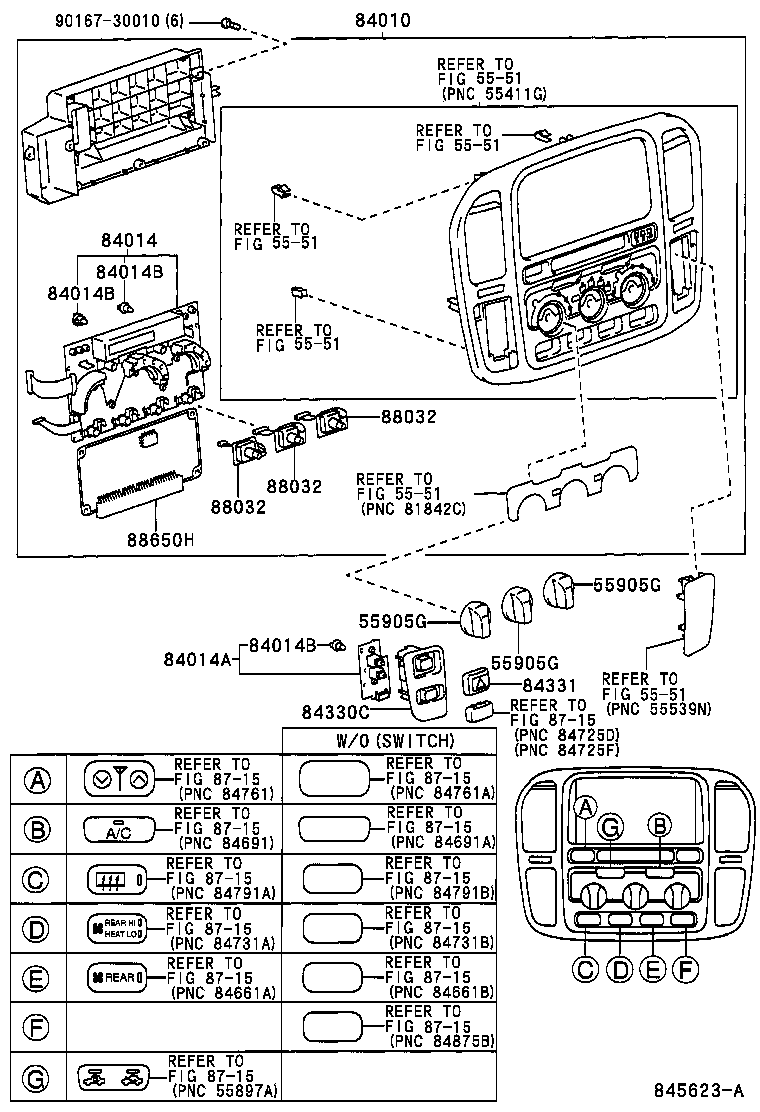

ILLUST NO. 4 OF 9(9801- )LHD
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-44020 |
HZJ105..LHD..SOB;FZJ100,UZJ100..GCC |
1 | ||
| 84152-60040 |
FZJ100..5F;HZJ105..LHD..SOB;UZJ100..4FC..GCC |
1 | ||
| 84152-60040 |
HZJ105..LHD..SOB;FZJ100,UZJ100..GCC |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08100 |
FZJ100..5F;HZJ105..LHD..SOB;UZJ100..4FC..GCC 14V 40MA, GREEN |
1 | ||
| 90010-08107 |
FZJ100,HZJ105,UZJ100..GCC 14V 40MA, GREEN |
1 | ||
| 90010-08107 |
HZJ105..LHD..SOB;FZJ100,UZJ100..GCC 14V 40MA, GREEN |
1 | ||
| 84560A - SWITCH ASSY, FUEL CONTROL | ||||
| 84560-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84560-60050 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 84560-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84560B - BULB, FUEL CONTROL SWITCH | ||||
| 90010-01039 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90010-01039 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90010-01039 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84725A - SWITCH, DIFFERENTIAL LOCK | ||||
| 84725-60030 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..GX,VX |
1 | ||
| 84725-60030 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) |
1 | ||
| 84725-60030 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-60030 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..GX,VX |
1 | ||
| 84870-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 84870-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-60030 |
FZJ10#,HDJ100,HZJ105..GX |
1 | ||
| 84930-60040 |
FZJ10#,HZJ105..LHD..GX |
1 | ||
| 84930-60040 |
HZJ105..LHD;FZJ10#..LHD..GX..(GCC,GEN) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-60030 |
FZJ10#,HDJ100,HZJ105..GX |
1 | ||
| 84930-60040 |
FZJ10#,HZJ105..LHD..GX |
1 | ||
| 84930-60040 |
HZJ105..LHD;FZJ10#..LHD..GX..(GCC,GEN) |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 90010-01039 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..GX..(ARL,GCC,GEN) 14V0.91W,W(GREEN CAP |
1 | ||
| 90010-01039 |
FZJ10#,HDJ100,HZJ105..GX 14V0.91W,W(GREEN CAP |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 90010-01039 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..GX..(ARL,GCC,GEN) 14V0.91W,W(GREEN CAP |
1 | ||
| 90010-01039 |
FZJ10#,HDJ100,HZJ105..GX 14V0.91W,W(GREEN CAP |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-89106 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85500-89106 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 85500-89106 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01022 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 14V1.4W,W(GREEN CAP) |
1 | ||
| 90010-01022 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 14V1.4W,W(GREEN CAP) |
1 | ||
| 90010-01022 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 14V1.4W,W(GREEN CAP) |
1 | ||
| 85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER | ||||
| 85510-16040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85510-16040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 85513-12020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85513-12020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 85515-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85515-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 85520-89101 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85520-89101 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85530-33020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85530-33020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-60040C0 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) BLACK,TRIM00,10 |
1 | ||
| 85535-60040C0 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN BLACK,TRIM0#,1# |
1 | ||
| 85535-60040C0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..GX BLACK,TRIM1#,4# |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||

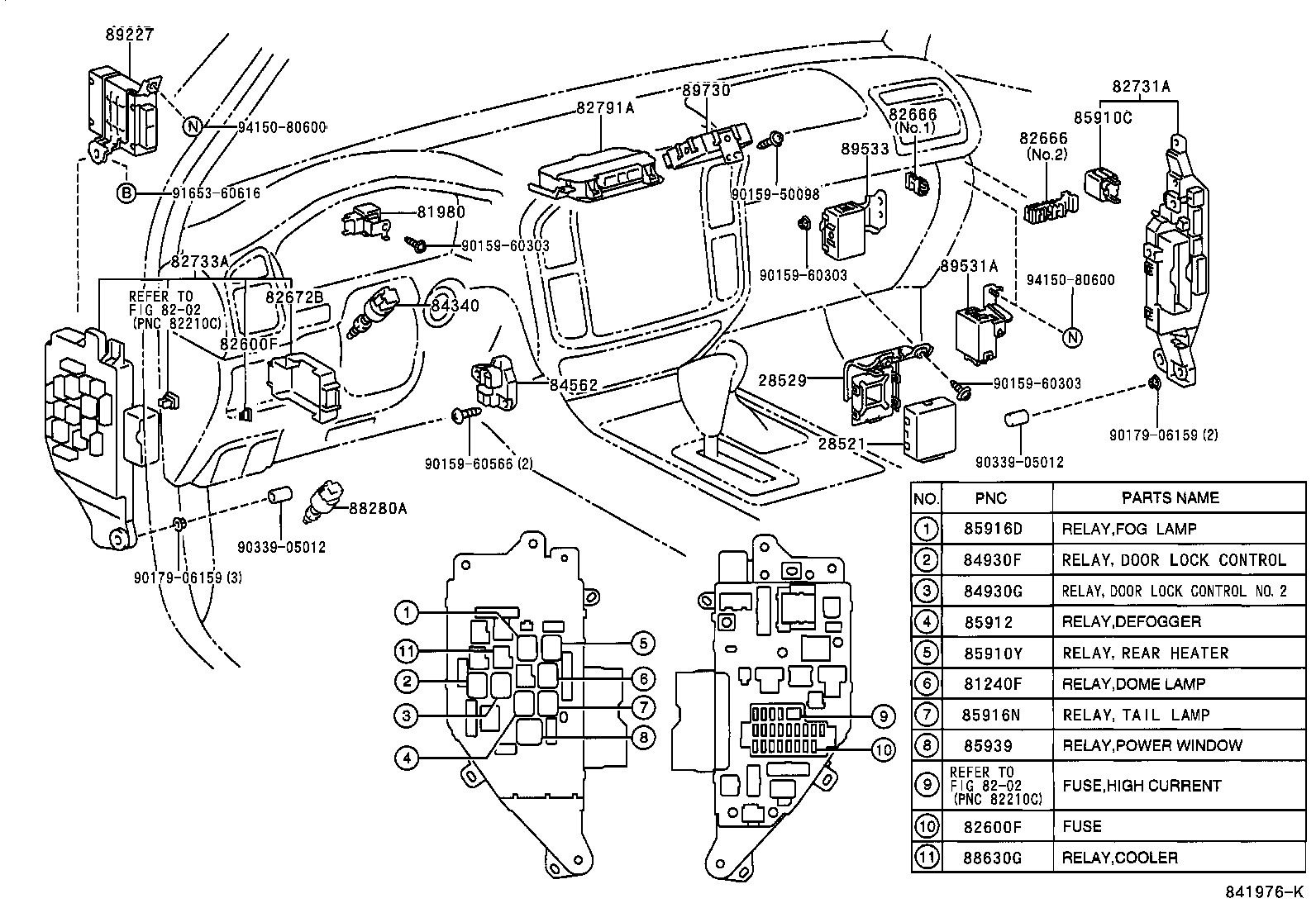

ILLUST NO. 3 OF 9(9801-0208)LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81240F - RELAY, DOME LAMP | ||||
| 90987-02012 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-02022 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 90987-02022 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-02022 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 81980-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 81980-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81980-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) (J) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
HDJ100,HZJ105;FZJ10#,UZJ100..LHD 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
HDJ100,HZJ105;FZJ10#,UZJ100..LHD 25A,MINI FUSE |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 NO.3 |
1 | ||
| 82666-35040 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD NO.2 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 NO.3 |
1 | ||
| 82666-35040 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD NO.2 |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-60051 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) RH |
1 | ||
| 82672-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82672-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) LH |
1 | ||
| 82672-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) RH |
1 | ||
| 82672-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82672-60052 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) RH |
1 | ||
| 82672-60042 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) LH |
1 | ||
| 82672-60041 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) LH |
1 | ||
| 82731A - BLOCK, COWL SIDE JUNCTION, RH | ||||
| 82731-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82731-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 82731-60061 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 82731-60062 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 82733A - BLOCK, COWL SIDE JUNCTION, LH | ||||
| 82733-60070 |
FZJ100 |
1 | ||
| 82733-60072 |
FZJ100..5F |
1 | ||
| 82733-60072 |
FZJ10#..LHD..5F |
1 | ||
| 82733-60031 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(DUAL AIR CONDITIONER) |
1 | ||
| 82733-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(DUAL AIR CONDITIONER) |
1 | ||
| 82733-60073 |
FZJ10#..LHD..5F |
1 | ||
| 82733-60310 |
FZJ100..SOB..5F;FZJ100..4FC..GCC;FZJ105,HZJ105..LHD |
1 | ||
| 82733-60280 |
UZJ100..GCC;FZJ100..SOB..5F;FZJ100..4FC..GCC;FZJ105,HDJ100,HZJ105..LHD..(GX,VX) W(POWER WINDOW) |
1 | ||
| 82733-60032 |
FZJ100..5F W(SEPARATE SEAT) |
1 | ||
| 82733-60281 |
UZJ100..GCC;FZJ105,HZJ105..LHD..GX;FZJ100,HDJ100..LHD..(GCC,GEN) W(POWER WINDOW) |
1 | ||
| 82733-60270 |
FZJ100..4FC..GCC;FZJ100..SOB..5F..GX;FZJ105,HDJ100,HZJ105,UZJ100..LHD..(GX,VX)..(GCC,GEN) W(KEY LESS ENTRY & POWER WINDOW) |
1 | ||
| 82733-60271 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX)..(GCC,GEN) W(KEY LESS ENTRY & POWER WINDOW) |
1 | ||
| 82733-60271 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX)..(GCC,GEN) W(KEY LESS ENTRY & POWER WINDOW) |
1 | ||
| 82733-60281 |
UZJ100..GCC;FZJ105,HZJ105..LHD..GX;FZJ100,HDJ100..LHD..(GCC,GEN) W(POWER WINDOW) |
1 | ||
| 82733-60311 |
FZJ10#,HZJ105..LHD..(GCC,GEN) |
1 | ||
| 82733-60282 |
UZJ100..GCC;FZJ100,HDJ100..LHD;FZJ105,HZJ105..LHD..GX W(POWER WINDOW) |
1 | ||
| 82733-60272 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX)..(GCC,GEN) W(KEY LESS ENTRY & POWER WINDOW) |
1 | ||
| 82791A - CONTROLLER & JUNCTION, INSTRUMENT PANEL | ||||
| 82791-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82791-60021 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
FZJ10#,HZJ105;HDJ100,UZJ100..LHD |
1 | ||
| 84340-42010 |
HDJ100..LHD;FZJ10#,HDJ100,HZJ105..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 84340-42010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105..GX,STD;FZJ105,HDJ100,UZJ100..LHD..(STD,VX) |
1 | ||
| 84340-47010 |
HDJ100..LHD;FZJ10#,HZJ105..ARL,GCC,GEN |
1 | ||
| 84930F - RELAY, DOOR LOCK CONTOROL | ||||
| 90987-04004 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 84930G - RELAY, DOOR LOCK CONTROL, NO.2 | ||||
| 90987-04004 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-04010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-04010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-04004 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-04004 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 90987-04004 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02009 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 89531A - RELAY, TRANSMISSION CONTROL | ||||
| 89531-60050 |
HZJ105..LHD;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX) |
1 | ||
| 89531-60050 |
FZJ10#..LHD..GX..(GCC,GEN);HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 89531-60050 |
FZJ105..LHD..GX;FZJ100,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-60090 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..GX,VX |
1 | ||
| 89533-60210 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GX,VX)..(GCC,GEN) |
1 | ||
| 89533-60210 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GX,VX)..(GCC,GEN) |
1 | ||
| 89730 - COMPUTER ASSY, SECURITY WARNING | ||||
| 89730-60050 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN);FZJ100,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 89730-60030 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN);FZJ100,HDJ100,UZJ100..GCC,GEN |
1 | ||
| Common parts | ||||
| 90159-50098 | ||||
| 90159-60303 | ||||
| 90159-60566 | ||||
| 90179-06159 | ||||
| 90339-05012 | ||||
| 91653-60616 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 6 OF 9(9801-0208)LHD
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-33040 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 84052-33040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84052-33040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20560 |
FZJ100..4FC..GCC;HDJ100,UZJ100..LHD..(GCC,GEN);FZJ100,HZJ105..SOB..5F..GX..GCC W(FOG LAMP) |
1 | ||
| 84140-26140 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD |
1 | ||
| 84140-26140 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 84140-20560 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GX,VX)..(GCC,GEN) W(FOG LAMP) |
1 | ||
| 84140-26140 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12070 |
FZJ10#;HZJ105..GCC;HZJ105..LHD..LUB;HDJ100,HZJ105,UZJ100..RHD..(DSL2,EFI,TD2) |
1 | ||
| 84306-12070 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 84306-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84306-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84306-60071 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-6A380 |
FZJ10#,HZJ105..LHD W(*80) |
1 | ||
| 84310-6A370 |
FZJ10#,HZJ105..LHD |
1 | ||
| 84310-26740 |
FZJ10#,HZJ105..LHD..(GCC,GEN) PART NUMBER LABEL=84310-26740 |
1 | ||
| 84310-6B040 |
FZJ100..4FC..GCC;FZJ100,HZJ105..SOB..5F..GX..GCC PART NUMBER LABEL=84310-6B040 |
1 | ||
| 84310-6B030 |
FZJ100..4FC..GCC;FZJ100,HZJ105..SOB..5F..GX..GCC PART NUMBER LABEL=84310-6B030 |
1 | ||
| 84310-6B271 |
FZJ10#,HZJ105..LHD..(GCC,GEN) PART NUMBER LABEL=84310-6B271 |
1 | ||
| 84310-6B441 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6B441 |
1 | ||
| 84310-6A370 |
FZJ10#,HZJ105..LHD..(GCC,GEN) PART NUMBER LABEL=84310-6A370 |
1 | ||
| 84310-6B711 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6B711 |
1 | ||
| 84310-6C110 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6C110 |
1 | ||
| 84310-6C120 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6C120 |
1 | ||
| 84310-6B741 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6B741 |
1 | ||
| 84310-26740 |
FZJ10#,HZJ105..LHD..(GCC,GEN) PART NUMBER LABEL=84310-26740 |
1 | ||
| 84310-6A370 |
FZJ10#,HZJ105..LHD..(GCC,GEN) PART NUMBER LABEL=84310-6A370 |
1 | ||
| 84310-6B271 |
FZJ10#,HZJ105..LHD..(GCC,GEN) PART NUMBER LABEL=84310-6B271 |
1 | ||
| 84310-6B040 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6B040 |
1 | ||
| 84310-6B030 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6B030 |
1 | ||
| 84310-6B441 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6B441 |
1 | ||
| 84310-6B711 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6B711 |
1 | ||
| 84310-6B741 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6B741 |
1 | ||
| 84310-6C110 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6C110 |
1 | ||
| 84310-6C120 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6C120 |
1 | ||
| 84310-26740 |
FZJ10#,HZJ105..LHD W(REAR WINDOW DEFOGGER) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-26010 |
FZJ10#,HZJ105..GCC,GEN |
1 | ||
| 84312-26010 |
FZJ10#,HZJ105..GCC,GEN |
1 | ||
| 84312-26010 |
FZJ10#,HZJ105 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84450-12200 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 84450-12200 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-26490 |
FZJ10#,HZJ105..LHD W(REAR DEFOGGER) |
1 | ||
| 84652-60830 |
FZJ10#,HZJ105..LHD |
1 | ||
| 84652-26490 |
FZJ10#,HZJ105..LHD..(GCC,GEN) W(REAR WIPER) |
1 | ||
| 84652-6A010 |
FZJ100,HZJ105..GX..GCC W(SRS AIR BAG & REAR WIPER & HEADLAMP CLEANER) |
1 | ||
| 84652-60830 |
FZJ10#,HZJ105..LHD..(GCC,GEN) |
1 | ||
| 84652-26490 |
FZJ10#,HZJ105..LHD..(GCC,GEN) W(REAR WIPER) |
1 | ||
| 84652-6A010 |
FZJ100,HZJ105..GX..GCC W(SRS AIR BAG & REAR WIPER & HEADLAMP CLEANER) |
1 | ||
| 84652-60830 |
FZJ10#,HZJ105..LHD..(GCC,GEN) |
1 | ||
| 84652-60890 |
FZJ100,HZJ105..GX..GCC W(REAR WIPER & HEADLAMP CLEANER) |
1 | ||
| 84652-60890 |
FZJ100,HZJ105..GX..GCC W(REAR WIPER & HEADLAMP CLEANER) |
1 | ||
| Common parts | ||||
| 90464-00551 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
ILLUST NO. 9 OF 9(9801- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60070A0 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GX,VX)..(GCC,GEN) IVORY,TRIM0# |
1 | ||
| 84920-60070B0 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GX,VX)..(GCC,GEN) STONE,TRIM1# |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 91511-B0614 | ||||
| 93560-54010 | ||||
ILLUST NO. 8 OF 9(9801-0505)LHD..GCC,GEN ; (0309-0506)CHI
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-60350 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN SUB TANK |
1 | ||
| 83320-60340 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 83320-60350 |
UZJ100..LHD;FZJ100,HDJ100 SUB TANK |
1 | ||
| 83320-60340 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN MAIN TANK |
1 | ||
| 83320-60340 |
UZJ100..LHD;FZJ100,HDJ100 MAIN TANK |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-60350 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN SUB TANK |
1 | ||
| 83320-60340 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 83320-60350 |
UZJ100..LHD;FZJ100,HDJ100 SUB TANK |
1 | ||
| 83320-60340 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN MAIN TANK |
1 | ||
| 83320-60340 |
UZJ100..LHD;FZJ100,HDJ100 MAIN TANK |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 84550-33010 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD |
1 | ||
| 84550-33010 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 84903A - SWITCH SUB-ASSY, DOOR UNLOCK | ||||
| 84903-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX) BACK DOOR |
1 | ||
| 84903-60020 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN);FZJ100,HDJ100,UZJ100..GCC,GEN LH |
1 | ||
| 84903-60010 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN);FZJ100,HDJ100,UZJ100..GCC,GEN RH |
1 | ||
| 84903-60030 |
FZJ105..SOB..GX;HZJ105..RHD..SOB..GX;FZJ100,HDJ100,HZJ105,UZJ100..LHD..SOB BACK DOOR |
1 | ||
| 84903-60010 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN);FZJ100,HDJ100,UZJ100..GCC,GEN RH |
1 | ||
| 84903-60030 |
FZJ105..SOB..GX;HZJ105..RHD..SOB..GX;FZJ100,HDJ100,HZJ105,UZJ100..LHD..SOB BACK DOOR |
1 | ||
| 84903-60020 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN);FZJ100,HDJ100,UZJ100..GCC,GEN LH |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 85530-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85530-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-60040B1 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN STONE,TRIM10 |
1 | ||
| 85535-60040A1 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) IVORY,TRIM00 |
1 | ||
| 85535-60040B0 |
FZJ10#,HDJ100,HZJ105,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 85535-60040B1 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN STONE,TRIM1# |
1 | ||
| 85535-60040A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) IVORY,TRIM4# |
1 | ||
| 85535-60040A1 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85539-60020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 85539-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85940-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85940-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| Common parts | ||||
| 90109-06296 | ||||
| 90189-06125 | ||||
| 93313-14012 | ||||
| 93319-14008 | ||||
| 93319-A4010 | ||||
ILLUST NO. 7 OF 9(9801- )LHD
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 84231-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 84231-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 84231-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 84231-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 84231-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 84231-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 84231-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 84231-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84030-60060 |
FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
3 | ||
| 84030-60060 |
FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
3 | ||
| 84810-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84030-60060 |
FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
3 | ||
| 84030-60060 |
FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
3 | ||
| 84810-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84030-60060 |
FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
3 | ||
| 84030-60060 |
FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
3 | ||
| 84810-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-60090 |
FZJ105,HZJ105..LHD..GX;FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 84040-60091 |
FZJ105,HZJ105..LHD..GX;FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 84820-60130 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX) |
1 | ||
| 84040-60091 |
FZJ105,HZJ105..LHD..GX;FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 84862 - SWITCH, SLIDE ROOF MOTOR | ||||
| 84862-60020A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) IVORY,TRIM4# |
1 | ||
| 84862-60020A1 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 84862-60021A1 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 84862-60020B1 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) STONE,TRIM1# |
1 | ||
| 84862-60021B1 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) STONE,TRIM1# |
1 | ||
| 84862-60020B0 |
FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX MD.GRAY,TRIM1# |
1 | ||
| 84862-60020A1 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 84862-60020B1 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) STONE,TRIM1# |
1 | ||
| 84903A - SWITCH SUB-ASSY, DOOR UNLOCK | ||||
| 84903-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX) BACK DOOR |
1 | ||
| 84903-60020 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN);FZJ100,HDJ100,UZJ100..GCC,GEN LH |
1 | ||
| 84903-60010 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN);FZJ100,HDJ100,UZJ100..GCC,GEN RH |
1 | ||
| 84903-60030 |
FZJ105..SOB..GX;HZJ105..RHD..SOB..GX;FZJ100,HDJ100,HZJ105,UZJ100..LHD..SOB BACK DOOR |
1 | ||
| 84903-60010 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN);FZJ100,HDJ100,UZJ100..GCC,GEN RH |
1 | ||
| 84903-60030 |
FZJ105..SOB..GX;HZJ105..RHD..SOB..GX;FZJ100,HDJ100,HZJ105,UZJ100..LHD..SOB BACK DOOR |
1 | ||
| 84903-60020 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN);FZJ100,HDJ100,UZJ100..GCC,GEN LH |
1 | ||
| 84903A - SWITCH SUB-ASSY, DOOR UNLOCK | ||||
| 84903-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX) BACK DOOR |
1 | ||
| 84903-60020 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN);FZJ100,HDJ100,UZJ100..GCC,GEN LH |
1 | ||
| 84903-60010 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN);FZJ100,HDJ100,UZJ100..GCC,GEN RH |
1 | ||
| 84903-60030 |
FZJ105..SOB..GX;HZJ105..RHD..SOB..GX;FZJ100,HDJ100,HZJ105,UZJ100..LHD..SOB BACK DOOR |
1 | ||
| 84903-60010 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN);FZJ100,HDJ100,UZJ100..GCC,GEN RH |
1 | ||
| 84903-60030 |
FZJ105..SOB..GX;HZJ105..RHD..SOB..GX;FZJ100,HDJ100,HZJ105,UZJ100..LHD..SOB BACK DOOR |
1 | ||
| 84903-60020 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN);FZJ100,HDJ100,UZJ100..GCC,GEN LH |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84930-33050 |
FZJ100,UZJ100..(GX,VX)..GCC 50TH ANNIVERSARY LIMITED EDITION(G.C.C.) |
1 | ||
| Common parts | ||||
| 90109-06296 | ||||
| 90159-60081 | ||||
| 90164-40103 | ||||
| 90189-06125 | ||||
| 93540-14010 | ||||
ILLUST NO. 1 OF 9(0208- )FZJ10#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
FZJ105..GX;FZJ105..STD..GEN;FZJ100,HDJ100,HZJ105 |
1 | ||
| 83420-16040 |
FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN |
1 | ||
| 83420-16040 |
FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-35020 |
FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 83520-60050 |
FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 83520-35020 |
FZJ105..GX;FZJ105..STD..GEN;FZJ100,UZJ100..LHD |
1 | ||
| 83520-60050 |
FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60030 |
FZJ10#,HDJ100,UZJ100..5F..(ARL,GCC,GEN) |
1 | ||
| 84210-60030 |
FZJ105..5F..GX;FZJ105..STD..GEN;FZJ100,HDJ100,UZJ100..5F |
1 | ||
| 84210-60030 |
FZJ10#,HDJ100,UZJ100..5F..(ARL,GCC,GEN) |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84222-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84222-12010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 84222C - SWITCH, TRANSFER INDICATOR, NO.3 | ||||
| 84222-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84222-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84222-12010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 84222E - SWITCH, DIFFERENTIAL LOCK INDICATOR | ||||
| 84222-60090 |
FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) |
1 | ||
| 84222-60090 |
FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 84222-60090 |
FZJ100,HDJ100,UZJ100..GX,VX |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-69155 |
FZJ100..SOB..5F SAUDI ARABIA SPEC |
1 | ||
| 89465-69155 |
FZJ100..5F..GCC TYPE B:REFER ILLUST. |
1 | ||
| 89465-69155 |
FZJ100..SOB..5F TYPE B:REFER ILLUST. |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-69155 |
FZJ100..SOB..5F SAUDI ARABIA SPEC |
1 | ||
| 89465-69155 |
FZJ100..5F..GCC TYPE B:REFER ILLUST. |
1 | ||
| 89465-69155 |
FZJ100..SOB..5F TYPE B:REFER ILLUST. |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
FZJ100..SOB..5F |
1 | ||
| 89466-20020 |
FZJ100..5F..GCC |
1 | ||
| 89466-20020 |
FZJ100..SOB..5F |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-60010 |
FZJ100..GCC |
1 | ||
| 89491-60010 |
FZJ100..GCC |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-30050 |
FZJ10# |
2 | ||
| 89615-60010 |
FZJ10#..GCC,GEN |
1 | ||
| 89615-60010 |
FZJ10# |
2 | ||
| 89615-60010 |
FZJ10#..GCC,GEN |
2 | ||
| Common parts | ||||
| 82715-60010 | ||||
| 90179-08101 | ||||
| 90430-18008 | ||||
| 90430-27001 | ||||
| 91651-40825 | ||||
| 91651-60614 | ||||
ILLUST NO. 2 OF 9(0208- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 28300-46010 |
1FZFE,1HD#,1HZ,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-50061 |
1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 23080-50060 |
1FZFE,2UZFE..FZJ10#,UZJ100 |
1 | ||
| 23080-50061 |
1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 10A,MINI FUSE,RED |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
HDJ100,HZJ105;FZJ10#,UZJ100..LHD 25A,MINI FUSE |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60010 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82620-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82620-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82620-60010 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 82620-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82674-60010 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82674-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82674-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82674-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82674-60010 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 82677 - COVER, JUNCTION BLOCK, UPPER NO.2 | ||||
| 82677-60011 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 82677-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82677-60011 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82677-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82677-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82677-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-60050 |
FZJ100 |
1 | ||
| 82720-60051 |
FZJ100 |
1 | ||
| 82720-60011 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 W(DUAL AIR CONDITIONER OR WINCH) |
1 | ||
| 82720-60010 |
FZJ100 W(DUAL AIR CONDITIONER OR WINCH) |
1 | ||
| 82720-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(DUAL AIR CONDITIONER OR WINCH) |
1 | ||
| 82720-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82720-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82720-60011 |
FZJ105..GX;FZJ105,UZJ100..LHD..(STD,VX);FZJ100,HDJ100,HZJ105..DSL2,EFI,TD2 W(DUAL AIR CONDITIONER OR WINCH) |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82740-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-04010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-04010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-33010 |
HZJ105..LHD..SOB;FZJ100,UZJ100..(GX,VX)..GCC |
1 | ||
| 85942-33010 |
HZJ105..LHD..SOB;FZJ100,UZJ100..(GX,VX)..GCC |
1 | ||
| 89593 - SENSOR, AIR CLEANER WARNING | ||||
| 89593-60040 |
FZJ10#,UZJ100 |
1 | ||
| Common parts | ||||
| 90075-05002 | ||||
| 90075-10014 | ||||
| 90119-06171 | ||||
| 90179-08053 | ||||
| 91621-J0814 | ||||
| 93383-A5025 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||
| 8419 | ||||
ILLUST NO. 3 OF 9(0208- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02006 |
1HDT..HDJ100..LUB;1FZFE..FZJ105..GX;1FZFE,1HDFTE,1HZ..FZJ100,HDJ100,HZJ105;1FZFE,2UZFE..FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-02006 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-02006 |
1HDT..HDJ100..LUB;1FZFE,1HZ,2UZFE..FZJ10#,HZJ105,UZJ100 |
1 | ||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 28371D - RELAY, IGNITION, NO.3 | ||||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81240F - RELAY, DOME LAMP | ||||
| 90987-02012 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-02022 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 90987-02022 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-02022 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 81980-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 81980-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 81980-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) (J) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09013 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
HDJ100,HZJ105;FZJ10#,UZJ100..LHD 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
HDJ100,HZJ105;FZJ10#,UZJ100..LHD 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09013 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
HDJ100,HZJ105;FZJ10#,UZJ100..LHD 25A,MINI FUSE |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-60051 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) RH |
1 | ||
| 82672-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82672-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) LH |
1 | ||
| 82672-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) RH |
1 | ||
| 82672-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82672-60052 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) RH |
1 | ||
| 82672-60042 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) LH |
1 | ||
| 82672-60041 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) LH |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-60041 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) LH |
1 | ||
| 82672-60051 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) RH |
1 | ||
| 82672-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82672-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) LH |
1 | ||
| 82672-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) RH |
1 | ||
| 82672-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82672-60052 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) RH |
1 | ||
| 82672-60042 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) LH |
1 | ||
| 82731A - BLOCK, COWL SIDE JUNCTION, RH | ||||
| 82731-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82731-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 82731-60061 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 82731-60062 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 82733A - BLOCK, COWL SIDE JUNCTION, LH | ||||
| 82733-60070 |
FZJ100 |
1 | ||
| 82733-60072 |
FZJ100..5F |
1 | ||
| 82733-60072 |
FZJ10#..LHD..5F |
1 | ||
| 82733-60031 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(DUAL AIR CONDITIONER) |
1 | ||
| 82733-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(DUAL AIR CONDITIONER) |
1 | ||
| 82733-60073 |
FZJ10#..LHD..5F |
1 | ||
| 82733-60310 |
FZJ100..SOB..5F;FZJ100..4FC..GCC;FZJ105,HZJ105..LHD |
1 | ||
| 82733-60280 |
UZJ100..GCC;FZJ100..SOB..5F;FZJ100..4FC..GCC;FZJ105,HDJ100,HZJ105..LHD..(GX,VX) W(POWER WINDOW) |
1 | ||
| 82733-60032 |
FZJ100..5F W(SEPARATE SEAT) |
1 | ||
| 82733-60281 |
UZJ100..GCC;FZJ105,HZJ105..LHD..GX;FZJ100,HDJ100..LHD..(GCC,GEN) W(POWER WINDOW) |
1 | ||
| 82733-60270 |
FZJ100..4FC..GCC;FZJ100..SOB..5F..GX;FZJ105,HDJ100,HZJ105,UZJ100..LHD..(GX,VX)..(GCC,GEN) W(KEY LESS ENTRY & POWER WINDOW) |
1 | ||
| 82733-60271 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX)..(GCC,GEN) W(KEY LESS ENTRY & POWER WINDOW) |
1 | ||
| 82733-60271 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX)..(GCC,GEN) W(KEY LESS ENTRY & POWER WINDOW) |
1 | ||
| 82733-60281 |
UZJ100..GCC;FZJ105,HZJ105..LHD..GX;FZJ100,HDJ100..LHD..(GCC,GEN) W(POWER WINDOW) |
1 | ||
| 82733-60311 |
FZJ10#,HZJ105..LHD..(GCC,GEN) |
1 | ||
| 82733-60282 |
UZJ100..GCC;FZJ100,HDJ100..LHD;FZJ105,HZJ105..LHD..GX W(POWER WINDOW) |
1 | ||
| 82733-60272 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX)..(GCC,GEN) W(KEY LESS ENTRY & POWER WINDOW) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
FZJ10#,HZJ105;HDJ100,UZJ100..LHD |
1 | ||
| 84340-42010 |
HDJ100..LHD;FZJ10#,HDJ100,HZJ105..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 84340-42010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105..GX,STD;FZJ105,HDJ100,UZJ100..LHD..(STD,VX) |
1 | ||
| 84340-47010 |
HDJ100..LHD;FZJ10#,HZJ105..ARL,GCC,GEN |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-04004 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-04004 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 90987-04004 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02025 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-02025 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 90987-02025 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 89531A - RELAY, TRANSMISSION CONTROL | ||||
| 89531-60050 |
HZJ105..LHD;FZJ10#,HDJ100,UZJ100..LHD..(GX,VX) |
1 | ||
| 89531-60050 |
FZJ10#..LHD..GX..(GCC,GEN);HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 89531-60050 |
FZJ105..LHD..GX;FZJ100,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-60090 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..GX,VX |
1 | ||
| 89533-60210 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GX,VX)..(GCC,GEN) |
1 | ||
| 89533-60210 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GX,VX)..(GCC,GEN) |
1 | ||
| 89730 - COMPUTER ASSY, SECURITY WARNING | ||||
| 89730-60050 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN);FZJ100,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 89730-60030 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN);FZJ100,HDJ100,UZJ100..GCC,GEN |
1 | ||
| Common parts | ||||
| 90159-50098 | ||||
| 90159-60303 | ||||
| 90179-06159 | ||||
| 93319-15012 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 5 OF 9(0208- )LHD
CENTER CLUSTER INTEGRATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84010 - SWITCH ASSY, CENTER CLUSTER INTEGRATION | ||||
| 84012-60030 |
FZJ10#,HZJ105..LHD..5F |
1 | ||
| 84012-60030 |
FZJ10#,HZJ105..LHD |
1 | ||
| 84012-60040 |
FZJ10#,HZJ105..LHD W(MANUAL AIR CONDITIONER) OR W(REAR WINDOW DEFOGGER) |
1 | ||
| 84012-60032 |
FZJ10#,HZJ105..LHD..5F |
1 | ||
| 84012-60031 |
FZJ10#,HZJ105..LHD..5F |
1 | ||
| 84010-60500 |
FZJ10#,HZJ105..LHD..5F..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION,NO.1 |
1 | ||
| 84010-60480 |
FZJ10#..LHD..GX..(GCC,GEN);HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION,NO.1 |
1 | ||
| 84012-60040 |
FZJ100..GX;FZJ105,HZJ105..LHD..GEN W(MANUAL AIR CONDITIONER) OR W(REAR WINDOW DEFOGGER) |
1 | ||
| 84010-60500 |
FZJ10#,HZJ105..LHD..5F..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION,NO.1 |
1 | ||
| 84010-60480 |
FZJ105..LHD..GX;FZJ100,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION,NO.1 |
1 | ||
| 84010 - SWITCH ASSY, CENTER CLUSTER INTEGRATION | ||||
| 84012-60030 |
FZJ10#,HZJ105..LHD..5F |
1 | ||
| 84012-60030 |
FZJ10#,HZJ105..LHD |
1 | ||
| 84012-60040 |
FZJ10#,HZJ105..LHD W(MANUAL AIR CONDITIONER) OR W(REAR WINDOW DEFOGGER) |
1 | ||
| 84012-60032 |
FZJ10#,HZJ105..LHD..5F |
1 | ||
| 84012-60031 |
FZJ10#,HZJ105..LHD..5F |
1 | ||
| 84010-60500 |
FZJ10#,HZJ105..LHD..5F..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION,NO.1 |
1 | ||
| 84010-60480 |
FZJ10#..LHD..GX..(GCC,GEN);HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION,NO.1 |
1 | ||
| 84012-60040 |
FZJ100..GX;FZJ105,HZJ105..LHD..GEN W(MANUAL AIR CONDITIONER) OR W(REAR WINDOW DEFOGGER) |
1 | ||
| 84010-60500 |
FZJ10#,HZJ105..LHD..5F..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION,NO.1 |
1 | ||
| 84010-60480 |
FZJ105..LHD..GX;FZJ100,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION,NO.1 |
1 | ||
| 84014A - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION, NO.2 | ||||
| 84014-60130 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105..LHD W(SECURITY SYSTEM) |
1 | ||
| 84014-60130 |
FZJ10#,HZJ105..LHD..5F;HDJ100,UZJ100..LHD..GEN W(SECURITY SYSTEM) |
1 | ||
| 84014-60110 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD |
1 | ||
| 84331 - KNOB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84331-60040 |
FZJ100..5F;FZJ105,HDJ100,HZJ105,UZJ100 |
1 | ||
| 84331-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 84331-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 84331-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-60080 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN) NO.1 |
1 | ||
| 84656-60080 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN) NO.1 |
1 | ||
| 84656-60090 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN) NO.2 |
1 | ||
| 84656-60090 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN) NO.2 |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-60080 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN) NO.1 |
1 | ||
| 84656-60080 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN) NO.1 |
1 | ||
| 84656-60090 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN) NO.2 |
1 | ||
| 84656-60090 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN) NO.2 |
1 | ||
| 88650H - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-60391 |
UZJ100..GEN;FZJ100,HDJ100..GX,VX;FZJ105,HZJ105..ARL,GEN W(REAR HEATER OR REAR WINDOW DEFOGGER) |
1 | ||
| 88650-60380 |
FZJ10#,HZJ105..LHD..5F |
1 | ||
| 88650-60390 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105 W(REAR HEATER OR REAR WINDOW DEFOGGER) |
1 | ||
| 88650-60381 |
FZJ10#,HZJ105..LHD..5F |
1 | ||
| 88650-60380 |
FZJ10#,HZJ105..LHD |
1 | ||
| 88650-60391 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 W(REAR HEATER OR REAR WINDOW DEFOGGER) |
1 | ||
| Common parts | ||||
| 90167-30010 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 6 OF 9(0208- )LHD
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-33040 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 84052-33040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84052-33040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20560 |
FZJ100..4FC..GCC;HDJ100,UZJ100..LHD..(GCC,GEN);FZJ100,HZJ105..SOB..5F..GX..GCC W(FOG LAMP) |
1 | ||
| 84140-26140 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD |
1 | ||
| 84140-26140 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 84140-20560 |
HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GX,VX)..(GCC,GEN) W(FOG LAMP) |
1 | ||
| 84140-26140 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12070 |
FZJ10#;HZJ105..GCC;HZJ105..LHD..LUB;HDJ100,HZJ105,UZJ100..RHD..(DSL2,EFI,TD2) |
1 | ||
| 84306-12070 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 84306-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84306-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84306-60071 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-6A380 |
FZJ10#,HZJ105..LHD W(*80) |
1 | ||
| 84310-6A370 |
FZJ10#,HZJ105..LHD |
1 | ||
| 84310-26740 |
FZJ10#,HZJ105..LHD..(GCC,GEN) PART NUMBER LABEL=84310-26740 |
1 | ||
| 84310-6B040 |
FZJ100..4FC..GCC;FZJ100,HZJ105..SOB..5F..GX..GCC PART NUMBER LABEL=84310-6B040 |
1 | ||
| 84310-6B030 |
FZJ100..4FC..GCC;FZJ100,HZJ105..SOB..5F..GX..GCC PART NUMBER LABEL=84310-6B030 |
1 | ||
| 84310-6B271 |
FZJ10#,HZJ105..LHD..(GCC,GEN) PART NUMBER LABEL=84310-6B271 |
1 | ||
| 84310-6B441 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6B441 |
1 | ||
| 84310-6A370 |
FZJ10#,HZJ105..LHD..(GCC,GEN) PART NUMBER LABEL=84310-6A370 |
1 | ||
| 84310-6B711 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6B711 |
1 | ||
| 84310-6C110 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6C110 |
1 | ||
| 84310-6C120 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6C120 |
1 | ||
| 84310-6B741 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6B741 |
1 | ||
| 84310-26740 |
FZJ10#,HZJ105..LHD..(GCC,GEN) PART NUMBER LABEL=84310-26740 |
1 | ||
| 84310-6A370 |
FZJ10#,HZJ105..LHD..(GCC,GEN) PART NUMBER LABEL=84310-6A370 |
1 | ||
| 84310-6B271 |
FZJ10#,HZJ105..LHD..(GCC,GEN) PART NUMBER LABEL=84310-6B271 |
1 | ||
| 84310-6B040 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6B040 |
1 | ||
| 84310-6B030 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6B030 |
1 | ||
| 84310-6B441 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6B441 |
1 | ||
| 84310-6B711 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6B711 |
1 | ||
| 84310-6B741 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6B741 |
1 | ||
| 84310-6C110 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6C110 |
1 | ||
| 84310-6C120 |
FZJ100,HZJ105..GX..GCC PART NUMBER LABEL=84310-6C120 |
1 | ||
| 84310-26740 |
FZJ10#,HZJ105..LHD W(REAR WINDOW DEFOGGER) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-26010 |
FZJ10#,HZJ105..GCC,GEN |
1 | ||
| 84312-26010 |
FZJ10#,HZJ105..GCC,GEN |
1 | ||
| 84312-26010 |
FZJ10#,HZJ105 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84450-12200 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 84450-12200 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-26490 |
FZJ10#,HZJ105..LHD W(REAR DEFOGGER) |
1 | ||
| 84652-60830 |
FZJ10#,HZJ105..LHD |
1 | ||
| 84652-26490 |
FZJ10#,HZJ105..LHD..(GCC,GEN) W(REAR WIPER) |
1 | ||
| 84652-6A010 |
FZJ100,HZJ105..GX..GCC W(SRS AIR BAG & REAR WIPER & HEADLAMP CLEANER) |
1 | ||
| 84652-60830 |
FZJ10#,HZJ105..LHD..(GCC,GEN) |
1 | ||
| 84652-26490 |
FZJ10#,HZJ105..LHD..(GCC,GEN) W(REAR WIPER) |
1 | ||
| 84652-6A010 |
FZJ100,HZJ105..GX..GCC W(SRS AIR BAG & REAR WIPER & HEADLAMP CLEANER) |
1 | ||
| 84652-60830 |
FZJ10#,HZJ105..LHD..(GCC,GEN) |
1 | ||
| 84652-60890 |
FZJ100,HZJ105..GX..GCC W(REAR WIPER & HEADLAMP CLEANER) |
1 | ||
| 84652-60890 |
FZJ100,HZJ105..GX..GCC W(REAR WIPER & HEADLAMP CLEANER) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| 90464-00551 | ||||
| 93319-15012 | ||||
ILLUST NO. 5 OF 9(9801-0208)LHD
CENTER CLUSTER INTEGRATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905G - KNOB SUB-ASSY, CONTROL | ||||
| 55905-60270 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
3 | ||
| 55905-60270 |
FZJ100..5F;FZJ105,HDJ100,HZJ105,UZJ100 |
3 | ||
| 55905G - KNOB SUB-ASSY, CONTROL | ||||
| 55905-60270 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
3 | ||
| 55905-60270 |
FZJ100..5F;FZJ105,HDJ100,HZJ105,UZJ100 |
3 | ||
| 55905G - KNOB SUB-ASSY, CONTROL | ||||
| 55905-60270 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
3 | ||
| 55905-60270 |
FZJ100..5F;FZJ105,HDJ100,HZJ105,UZJ100 |
3 | ||
| 84010 - SWITCH ASSY, CENTER CLUSTER INTEGRATION | ||||
| 84012-60030 |
FZJ10#,HZJ105..LHD..5F |
1 | ||
| 84012-60030 |
FZJ10#,HZJ105..LHD |
1 | ||
| 84012-60040 |
FZJ10#,HZJ105..LHD W(MANUAL AIR CONDITIONER) OR W(REAR WINDOW DEFOGGER) |
1 | ||
| 84012-60032 |
FZJ10#,HZJ105..LHD..5F |
1 | ||
| 84012-60031 |
FZJ10#,HZJ105..LHD..5F |
1 | ||
| 84010-60500 |
FZJ10#,HZJ105..LHD..5F..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION,NO.1 |
1 | ||
| 84010-60480 |
FZJ10#..LHD..GX..(GCC,GEN);HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION,NO.1 |
1 | ||
| 84012-60040 |
FZJ100..GX;FZJ105,HZJ105..LHD..GEN W(MANUAL AIR CONDITIONER) OR W(REAR WINDOW DEFOGGER) |
1 | ||
| 84010-60500 |
FZJ10#,HZJ105..LHD..5F..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION,NO.1 |
1 | ||
| 84010-60480 |
FZJ105..LHD..GX;FZJ100,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION,NO.1 |
1 | ||
| 84014 - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION | ||||
| 84014-60020 |
FZJ100..GX;FZJ105,HZJ105..LHD..GEN W(MANUAL AIR CONDITIONER) OR W(REAR WINDOW DEFOGGER) |
1 | ||
| 84014-60011 |
FZJ10#,HZJ105..LHD..5F |
1 | ||
| 84014-60020 |
FZJ10#,HZJ105..LHD W(MANUAL AIR CONDITIONER) OR W(REAR WINDOW DEFOGGER) |
1 | ||
| 84014-60010 |
FZJ10#,HZJ105..LHD..5F |
1 | ||
| 84014-60012 |
FZJ10#,HZJ105..LHD..5F |
1 | ||
| 84014-60010 |
FZJ10#,HZJ105..LHD |
1 | ||
| 84014A - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION, NO.2 | ||||
| 84014-60130 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105..LHD W(SECURITY SYSTEM) |
1 | ||
| 84014-60130 |
FZJ10#,HZJ105..LHD..5F;HDJ100,UZJ100..LHD..GEN W(SECURITY SYSTEM) |
1 | ||
| 84014-60110 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD |
1 | ||
| 84014B - BULB, PRINTED WIRE INTEGRATION BOARD | ||||
| 84999-70007 |
FZJ10#,HDJ100,HZJ105,UZJ100 14V 1.4W |
8 | ||
| 90010-05104 |
FZJ10#,HDJ100,HZJ105,UZJ100 14V 1.12W |
2 | ||
| 90010-05104 |
FZJ100..5F;FZJ105,HDJ100,HZJ105,UZJ100 14V 1.12W |
2 | ||
| 84014B - BULB, PRINTED WIRE INTEGRATION BOARD | ||||
| 84999-70007 |
FZJ10#,HDJ100,HZJ105,UZJ100 14V 1.4W |
8 | ||
| 90010-05104 |
FZJ10#,HDJ100,HZJ105,UZJ100 14V 1.12W |
2 | ||
| 90010-05104 |
FZJ100..5F;FZJ105,HDJ100,HZJ105,UZJ100 14V 1.12W |
2 | ||
| 84014B - BULB, PRINTED WIRE INTEGRATION BOARD | ||||
| 84999-70007 |
FZJ10#,HDJ100,HZJ105,UZJ100 14V 1.4W |
8 | ||
| 90010-05104 |
FZJ10#,HDJ100,HZJ105,UZJ100 14V 1.12W |
2 | ||
| 90010-05104 |
FZJ100..5F;FZJ105,HDJ100,HZJ105,UZJ100 14V 1.12W |
2 | ||
| 84330C - COVER, HAZARD WARNING SIGNAL SWITCH | ||||
| 84332-60200 |
HDJ100,UZJ100..LHD;FZJ10#,HZJ105..LHD..5F |
1 | ||
| 84332-60200 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD |
1 | ||
| 84331 - KNOB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84331-60040 |
FZJ100..5F;FZJ105,HDJ100,HZJ105,UZJ100 |
1 | ||
| 84331-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 84331-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 84331-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 88032 - SWITCH, HEATER CONTROL VOLUME | ||||
| 88032-60050 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105 BLOWER,MODE |
2 | ||
| 88032-60050 |
FZJ100..5F;HDJ100,UZJ100..GEN;FZJ105,HDJ100,HZJ105..GX,STD BLOWER,MODE |
2 | ||
| 88032-60070 |
FZJ100..5F;FZJ105,HDJ100,HZJ105,UZJ100 TEMP |
1 | ||
| 88032-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100 TEMP |
1 | ||
| 88032 - SWITCH, HEATER CONTROL VOLUME | ||||
| 88032-60050 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105 BLOWER,MODE |
2 | ||
| 88032-60050 |
FZJ100..5F;HDJ100,UZJ100..GEN;FZJ105,HDJ100,HZJ105..GX,STD BLOWER,MODE |
2 | ||
| 88032-60070 |
FZJ100..5F;FZJ105,HDJ100,HZJ105,UZJ100 TEMP |
1 | ||
| 88032-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100 TEMP |
1 | ||
| 88032 - SWITCH, HEATER CONTROL VOLUME | ||||
| 88032-60050 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105 BLOWER,MODE |
2 | ||
| 88032-60050 |
FZJ100..5F;HDJ100,UZJ100..GEN;FZJ105,HDJ100,HZJ105..GX,STD BLOWER,MODE |
2 | ||
| 88032-60070 |
FZJ100..5F;FZJ105,HDJ100,HZJ105,UZJ100 TEMP |
1 | ||
| 88032-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100 TEMP |
1 | ||
| 88650H - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-60391 |
UZJ100..GEN;FZJ100,HDJ100..GX,VX;FZJ105,HZJ105..ARL,GEN W(REAR HEATER OR REAR WINDOW DEFOGGER) |
1 | ||
| 88650-60380 |
FZJ10#,HZJ105..LHD..5F |
1 | ||
| 88650-60390 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105 W(REAR HEATER OR REAR WINDOW DEFOGGER) |
1 | ||
| 88650-60381 |
FZJ10#,HZJ105..LHD..5F |
1 | ||
| 88650-60380 |
FZJ10#,HZJ105..LHD |
1 | ||
| 88650-60391 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 W(REAR HEATER OR REAR WINDOW DEFOGGER) |
1 | ||
| Common parts | ||||
| 90167-30010 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
