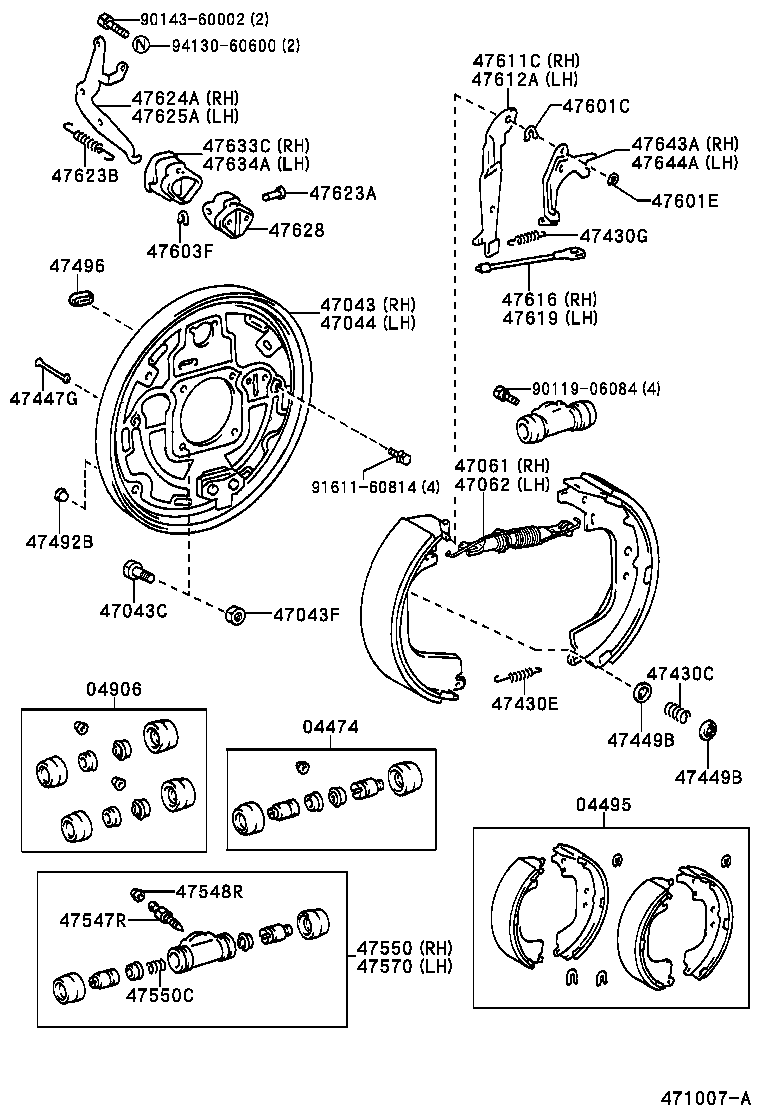

FZJ100L-GCMNKV (1998)
Toyota Land Cruiser 100
(0505- )FZJ100..SOB..5F ; (0505- )FZJ105,HZJ105..GCC,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-35100 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 04474-35100 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 04474-35100 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 04474-35100 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 04474-35100 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 04474-35100 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-60070 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN MARK NBK LN508 |
1 | ||
| 04495-60070 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN MARK NBK LN508 |
1 | ||
| 04495-60070 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN MARK NBK LN508 |
1 | ||
| 04495-60070 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN MARK NBK LN508 |
1 | ||
| 04495-60060 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN MARK NBK LN508 |
1 | ||
| 04495-60060 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN MARK NBK LN508 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-35130 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 04906-35130 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 04906-35130 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 04906-35130 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 04906-35130 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 04906-35130 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-60130 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47043-60130 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47043-60130 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47043-60130 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47043-60130 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47043-60130 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-60080 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47044-60080 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47044-60080 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47044-60080 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47044-60080 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47044-60080 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47061-60030 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47061-60030 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47061-60030 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47061-60030 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47061-60030 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47061-60030 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47062-60020 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47062-60020 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47062-60020 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47062-60020 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47062-60020 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47062-60020 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
4 | ||
| 90501-20012 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
4 | ||
| 90501-20012 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
4 | ||
| 90501-20012 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
4 | ||
| 90501-20012 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
4 | ||
| 90501-20012 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
4 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-18031 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90506-18031 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90506-18031 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 90506-18031 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 90506-18031 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90506-18031 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90506-12031 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90506-12031 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90506-12031 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 90506-12031 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 90506-12031 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90506-12031 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-60010 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
4 | ||
| 47447-60010 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
4 | ||
| 47447-60010 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
4 | ||
| 47447-60010 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
4 | ||
| 47447-60010 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
4 | ||
| 47447-60010 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
8 | ||
| 47449-30020 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
8 | ||
| 47449-30020 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
8 | ||
| 47449-30020 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
8 | ||
| 47449-30020 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
8 | ||
| 47449-30020 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
8 | ||
| 47449-30020 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
8 | ||
| 47449-30020 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
8 | ||
| 47449-30020 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
8 | ||
| 47449-30020 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
8 | ||
| 47449-30020 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
8 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47492-28010 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47492-28010 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 47492-28010 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 47492-28010 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47492-28010 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47491-20011 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47491-20011 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47491-20011 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47491-20011 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 47491-20011 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-60020 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47547-60020 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47547-60020 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 47547-60020 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 47547-60020 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47547-60020 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 31478-30010 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 31478-30010 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 31478-30010 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 31478-30010 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 31478-30010 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-60120 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47550-60120 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47550-60120 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47550-60120 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47550-60120 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47550-60120 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90029-60009 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90029-60009 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90029-60009 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 90029-60009 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 90029-60009 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90029-60009 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-60120 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47550-60120 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47550-60120 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47550-60120 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47550-60120 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47550-60120 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-07010 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN T=1.6 |
2 | ||
| 90213-07010 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN T=1.6 |
2 | ||
| 90213-07010 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN T=1.6 |
2 | ||
| 90213-07010 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN T=1.6 |
2 | ||
| 90213-07010 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN T=1.6 |
2 | ||
| 90213-07010 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN T=1.6 |
2 | ||
| 47601E - RING, E(FOR REAR BRAKE) | ||||
| 96160-00500 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 96160-00500 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 96160-00500 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 96160-00500 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 96160-00500 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 96160-00500 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47603F - WASHER, TYPE C(FOR PARKING BRAKE BELL CRANK) | ||||
| 90213-06013 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90213-06013 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90213-06013 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90213-06013 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90213-06013 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 90213-06013 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 47611C - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-35040 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47611-35040 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47611-35040 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47611-35040 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47611-35040 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47611-35040 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47612A - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-35040 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47612-35040 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47612-35040 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47612-35040 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47612-35040 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47612-35040 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47616 - WIRE, PARKING BRAKE, RH | ||||
| 47616-35030 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47616-35030 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47616-35030 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47616-35030 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47616-35030 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47616-35030 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47619 - WIRE, PARKING BRAKE, LH | ||||
| 47616-35030 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47616-35030 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47616-35030 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47616-35030 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47616-35030 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47616-35030 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47623A - PIN(FOR PARKING BRAKE BELL CRANK) | ||||
| 90249-08068 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90249-08068 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90249-08068 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 90249-08068 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 90249-08068 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90249-08068 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47623B - SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN) | ||||
| 90506-20033 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
4 | ||
| 90506-20033 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
4 | ||
| 90506-20033 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
4 | ||
| 90506-20033 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
4 | ||
| 90506-20033 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
4 | ||
| 90506-20033 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
4 | ||
| 47624A - CRANK, PARKING BRAKE BELL, RH | ||||
| 47624-60010 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47624-60010 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47624-60010 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47624-60010 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47624-60010 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47624-60010 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47625A - CRANK, PARKING BRAKE BELL, LH | ||||
| 47625-60010 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47625-60010 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47625-60010 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47625-60010 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47625-60010 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47625-60010 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47628 - BRACKET, REAR BRAKE BELLCRANK | ||||
| 47628-35020 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47628-35020 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47628-35020 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 47628-35020 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
2 | ||
| 47628-35020 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47628-35020 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47633C - BOOT, REAR BRAKE BELLCRANK, RH | ||||
| 47633-35020 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47633-35020 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47633-35020 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47633-35020 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47633-35020 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47633-35020 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47634A - BOOT, REAR BRAKE BELLCRANK, LH | ||||
| 47633-35020 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47633-35020 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47633-35020 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47633-35020 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47633-35020 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47633-35020 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-60010 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47643-60010 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47643-60010 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47643-60010 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47643-60010 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47643-60010 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-60010 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47644-60010 |
FZJ100..SOB..5F;FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47644-60010 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47644-60010 |
HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47644-60010 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47644-60010 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
| 90143-60002 | ||||
| 91611-60814 | ||||
| 94130-60600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
