FZJ100L-GCMNKV (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2007
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )FZJ10#..LHD..GCC,GEN

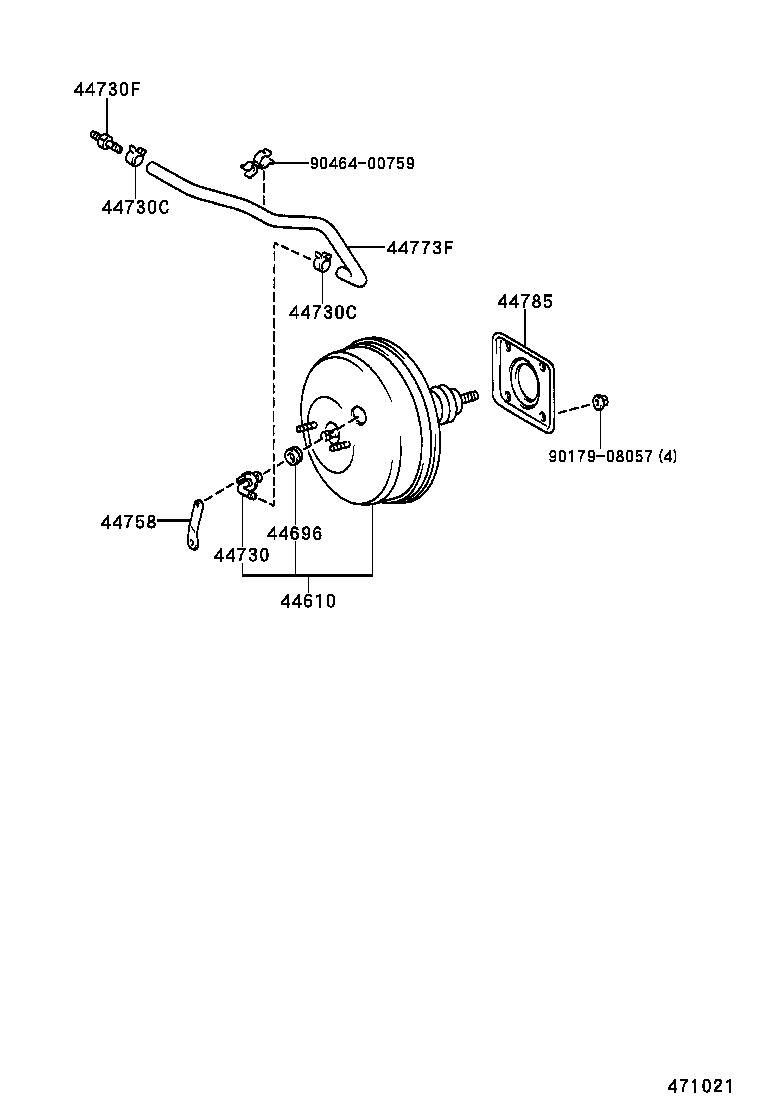

Click highlighted areas on diagram

diagram 44610 44696 44730 44730C 44730C 44730F 44758 44773F 44785 9017908057 9046400759
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-6A060

FZJ10#,UZJ100

 1
44610-6A060

FZJ10#,UZJ100..GCC,GEN

 1
44610-6A060

FZJ10#;UZJ100..LHD

 1
44610-6A060

FZJ10#,UZJ100..GCC,GEN

 1
44696 - GROMMET, CHECK VALVE
90480-24439

FZJ10#;UZJ100..LHD

 1
90480-24439

FZJ10#,UZJ100..GCC,GEN

 1
90480-24439

FZJ10#,UZJ100..GCC,GEN

 1
90480-24439

FZJ10#,UZJ100

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-14050

FZJ10#,UZJ100..GCC,GEN

 1
44730-14050

FZJ10#,UZJ100

 1
44730-14050

FZJ10#;UZJ100..LHD

 1
44730-14050

FZJ10#,UZJ100..GCC,GEN

 1
44730C - CLIP(FOR VACUUM HOSE)
96134-51500

FZJ10#..LHD;UZJ100..ARL

 2
96133-41500

FZJ10#..LHD..(GCC,GEN)

 2
96133-41500

FZJ10#..LHD..(GCC,GEN)

 2
96134-51500

FZJ10#..LHD

 2
44730C - CLIP(FOR VACUUM HOSE)
96134-51500

FZJ10#..LHD;UZJ100..ARL

 2
96133-41500

FZJ10#..LHD..(GCC,GEN)

 2
96133-41500

FZJ10#..LHD..(GCC,GEN)

 2
96134-51500

FZJ10#..LHD

 2
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

FZJ10#..GCC,GEN

 1
90404-51237

FZJ10#..GCC,GEN

 1
90404-51237

FZJ100;FZJ105..GX;FZJ105..STD..GEN

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-42010

FZJ10#,UZJ100

 1
44758-42010

FZJ10#;UZJ100..LHD

 1
44758-42010

FZJ10#,UZJ100..GCC,GEN

 1
44758-42010

FZJ10#,UZJ100..GCC,GEN

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-60170

FZJ10#..LHD

 1
44773-60170

FZJ10#..LHD..(GCC,GEN)

 1
44773-60170

FZJ10#..LHD..(GCC,GEN)

 1
44785 - GASKET, BRAKE BOOSTER
44785-60010

HZJ105;FZJ10#,HDJ100,UZJ100..GCC,GEN

 1
44785-60010

HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN

 1
44785-60010

FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2

 1
Common parts
90179-08057
90464-00759

(9801- )FZJ100,HDJ100 ; (9801- )HZJ105..LHD..STD ; (9801- )FZJ105,HZJ105..

Click highlighted areas on diagram

W(ABS)

diagram 1701 1701 1905 44730D 44730D 44730D 44730F 44730F 44730U 44730U 44730U 44743
Part # Description Qty Price
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-14003

HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100..ARL,GCC,GEN

 1
90467-14003

HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100..ARL,GCC,GEN

 1
90467-14003

FZJ100,HDJ100;HZJ105..LHD..STD;FZJ105,HZJ105..GX

 1
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-14003

HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100..ARL,GCC,GEN

 1
90467-14003

HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100..ARL,GCC,GEN

 1
90467-14003

FZJ100,HDJ100;HZJ105..LHD..STD;FZJ105,HZJ105..GX

 1
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-14003

HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100..ARL,GCC,GEN

 1
90467-14003

HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100..ARL,GCC,GEN

 1
90467-14003

FZJ100,HDJ100;HZJ105..LHD..STD;FZJ105,HZJ105..GX

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

FZJ10#..GCC,GEN

 1
90404-51237

FZJ10#..GCC,GEN

 1
90404-51237

FZJ100;FZJ105..GX;FZJ105..STD..GEN

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

FZJ10#..GCC,GEN

 1
90404-51237

FZJ10#..GCC,GEN

 1
90404-51237

FZJ100;FZJ105..GX;FZJ105..STD..GEN

 1
44730U - PLUG(FOR VACUUM HOSE UNION)
44793-60010

FZJ100;FZJ105..GX

 1
44793-60010

FZJ105..GX;FZJ100..GCC

 1
44793-60010

FZJ105..GX;FZJ100..GCC

 1
44730U - PLUG(FOR VACUUM HOSE UNION)
44793-60010

FZJ100;FZJ105..GX

 1
44793-60010

FZJ105..GX;FZJ100..GCC

 1
44793-60010

FZJ105..GX;FZJ100..GCC

 1
44730U - PLUG(FOR VACUUM HOSE UNION)
44793-60010

FZJ100;FZJ105..GX

 1
44793-60010

FZJ105..GX;FZJ100..GCC

 1
44793-60010

FZJ105..GX;FZJ100..GCC

 1
Linked diagrams
1701
1905
