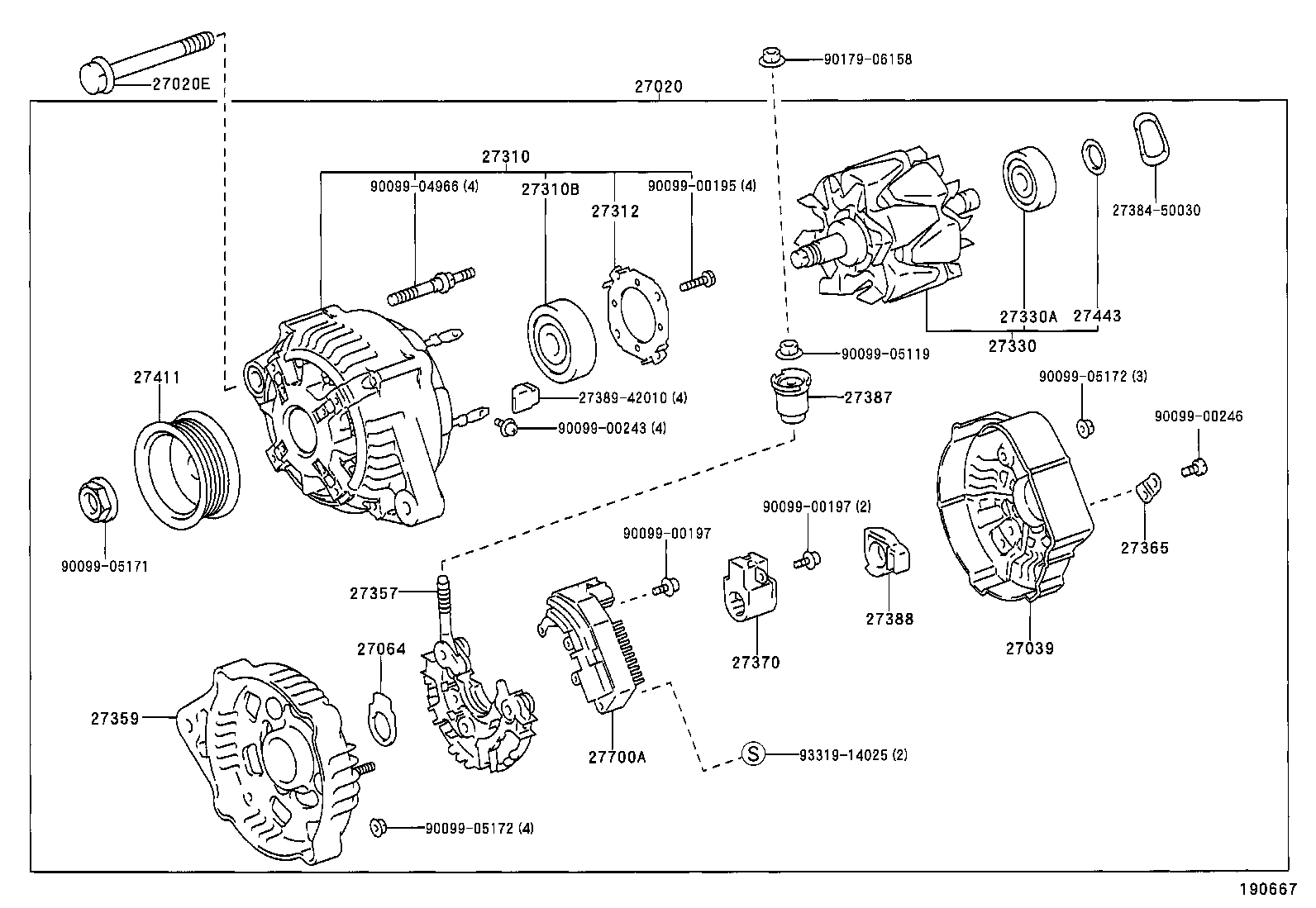

FZJ100L-GCMNKV (1998)
Toyota Land Cruiser 100
(9801-0208)1FZFE
12V 80A,100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-66080 |
1FZFE..FZJ100..SOB..5F..GX 24V 25A,ARMED SOURCE 24V(QATAR) |
1 | ||
| 27060-66080 |
1FZFE..FZJ100..SOB..5F..GX 24V 25A,ARMED SOURCE 24V(QATAR) |
1 | ||
| 27060-66090 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27060-66100 |
1FZFE..FZJ10#..GX..(ARL,GCC) 12V 100A |
1 | ||
| 27060-66090 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27060-66100 |
1FZFE..FZJ100..GX..GCC 12V 100A |
1 | ||
| 27060-66090 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27060-66100 |
1FZFE..FZJ100..GX..GCC 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10397 |
1FZFE..FZJ10#..GCC,GEN |
1 | ||
| 90105-10397 |
1FZFE..FZJ100;1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN |
1 | ||
| 90105-10397 |
1FZFE..FZJ10#..GCC,GEN |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT..FZJ10#,HDJ100..GCC,GEN 12V 80A |
1 | ||
| 27039-50090 |
1FZFE..FZJ100..GX;1FZFE,1HZ..FZJ105,HZJ105..ARL 12V 100A,120A |
1 | ||
| 27039-11190 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27039-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT..FZJ10#,HDJ100..GCC,GEN 12V 80A |
1 | ||
| 27039-50090 |
1FZFE..FZJ10#..GX..(ARL,GCC) 12V 100A,120A |
1 | ||
| 27039-70470 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT..FZJ10#,HDJ100..GCC,GEN 12V 80A |
1 | ||
| 27039-17230 |
1HZ..HZJ105..ARL;1FZFE,1HDFTE..FZJ10#,HDJ100..(GX,VX)..(ARL,GCC) |
1 | ||
| 27039-11190 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 |
1 | ||
| 27064-42010 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HD#,2UZFE..FZJ10#,HDJ100,UZJ100 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-66090 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27310-66090 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27310-74480 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27310-42080 |
1FZFE..FZJ100..GX;1FZFE..FZJ105..ARL 12V 100A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10198 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 90099-10192 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 90099-10192 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 90099-10198 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27312-42010 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27312-72120 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27312-72120 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-42020 |
1FZFE..FZJ100..GX;1FZFE..FZJ105..ARL 12V 100A |
1 | ||
| 27330-76030 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27330-28050 |
1FZFE..FZJ100..GX;1FZFE..FZJ105..ARL 12V 100A |
1 | ||
| 27330-16390 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27330-16390 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27330-28050 |
1FZFE..FZJ100..GX..GCC 12V 100A |
1 | ||
| 27330-16390 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27330-28050 |
1FZFE..FZJ100..GX..GCC 12V 100A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10154 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 90099-10154 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 90099-10140 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT..FZJ10#,HDJ100 12V 80A,100A,120A |
1 | ||
| 90099-10140 |
1HZ..HZJ105..ARL,GCC;1FZFE,1HDT..FZJ10#,HDJ100;1HZ..HZJ105..LHD..SOB..GEN 12V 80A,100A,120A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-72150 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27357-20060 |
1FZFE..FZJ100..GX;1FZFE,2UZFE..FZJ105,UZJ100..ARL 12V 100A |
1 | ||
| 27357-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100..GCC,GEN 12V 80A |
1 | ||
| 27357-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100..GCC,GEN 12V 80A |
1 | ||
| 27357-72150 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27357-20060 |
1FZFE..FZJ100..GX..GCC 12V 100A |
1 | ||
| 27357-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDFTE..FZJ10#,HDJ100..GCC,GEN 12V 80A |
1 | ||
| 27357-55080 |
1HZ..HZJ105..LHD..SOB;1FZFE,1HDFTE..FZJ10#,HDJ100..GCC,GEN 12V 80A |
1 | ||
| 27357-20060 |
1FZFE..FZJ100..GX..GCC 12V 100A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-66090 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27359-66090 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27359-42020 |
1FZFE..FZJ100..GX;1FZFE..FZJ105..ARL 12V 100A |
1 | ||
| 27359-74550 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 |
1 | ||
| 27365-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HD#,2UZFE..FZJ10#,HDJ100,UZJ100 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54450 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27370-75060 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27370-75060 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HD#,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27370-75060 |
1HZ..HZJ105..ARL,GCC;2UZFE..UZJ100..GCC,GEN;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDFTE..FZJ10#,HDJ100..ARL,GCC,GEN 12V 80A,100A,120A |
1 | ||
| 27370-54450 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27370-75060 |
1HZ..HZJ105..ARL,GCC;2UZFE..UZJ100..GCC,GEN;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDFTE..FZJ10#,HDJ100..ARL,GCC,GEN 12V 80A,100A,120A |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-10081 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27387-42021 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27387-42021 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27387-10081 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT..FZJ10#,HDJ100 |
1 | ||
| 27388-42010 |
1HZ..HZJ105..ARL,GCC;1FZFE,1HD#..FZJ10#,HDJ100;1HZ..HZJ105..LHD..SOB..GEN |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-66090 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27411-66040 |
1FZFE..FZJ10#..GCC,GEN |
1 | ||
| 27411-66040 |
1FZFE..FZJ100;1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN |
1 | ||
| 27411-66090 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27411-66040 |
1FZFE..FZJ10#..GCC,GEN |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27443-63020 |
1FZFE,1HD#,1HZ,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 27443-63020 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-66050 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27700-66050 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27700-75020 |
1FZFE..FZJ100;1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN |
1 | ||
| 27700-75020 |
1FZFE..FZJ10#..GCC,GEN |
1 | ||
| 27700-75020 |
1FZFE..FZJ10#..GCC,GEN |
1 | ||
| Common parts | ||||
| 27384-50030 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
(0106-0107)1FZFE..FZJ100..SOB..5F..GX
24V 25A (ARMED SOURCE 24V)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-66080 |
1FZFE..FZJ100..SOB..5F..GX 24V 25A,ARMED SOURCE 24V(QATAR) |
1 | ||
| 27060-66080 |
1FZFE..FZJ100..SOB..5F..GX 24V 25A,ARMED SOURCE 24V(QATAR) |
1 | ||
| 27060-66090 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27060-66100 |
1FZFE..FZJ10#..GX..(ARL,GCC) 12V 100A |
1 | ||
| 27060-66090 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27060-66100 |
1FZFE..FZJ100..GX..GCC 12V 100A |
1 | ||
| 27060-66090 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27060-66100 |
1FZFE..FZJ100..GX..GCC 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10397 |
1FZFE..FZJ10#..GCC,GEN |
1 | ||
| 90105-10397 |
1FZFE..FZJ100;1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN |
1 | ||
| 90105-10397 |
1FZFE..FZJ10#..GCC,GEN |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT..FZJ10#,HDJ100..GCC,GEN 12V 80A |
1 | ||
| 27039-50090 |
1FZFE..FZJ100..GX;1FZFE,1HZ..FZJ105,HZJ105..ARL 12V 100A,120A |
1 | ||
| 27039-11190 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27039-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT..FZJ10#,HDJ100..GCC,GEN 12V 80A |
1 | ||
| 27039-50090 |
1FZFE..FZJ10#..GX..(ARL,GCC) 12V 100A,120A |
1 | ||
| 27039-70470 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT..FZJ10#,HDJ100..GCC,GEN 12V 80A |
1 | ||
| 27039-17230 |
1HZ..HZJ105..ARL;1FZFE,1HDFTE..FZJ10#,HDJ100..(GX,VX)..(ARL,GCC) |
1 | ||
| 27039-11190 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-66090 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27310-66090 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27310-74480 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27310-42080 |
1FZFE..FZJ100..GX;1FZFE..FZJ105..ARL 12V 100A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10198 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 90099-10192 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 90099-10192 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 90099-10198 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27312-42010 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27312-72120 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27312-72120 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-42020 |
1FZFE..FZJ100..GX;1FZFE..FZJ105..ARL 12V 100A |
1 | ||
| 27330-76030 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27330-28050 |
1FZFE..FZJ100..GX;1FZFE..FZJ105..ARL 12V 100A |
1 | ||
| 27330-16390 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27330-16390 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27330-28050 |
1FZFE..FZJ100..GX..GCC 12V 100A |
1 | ||
| 27330-16390 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27330-28050 |
1FZFE..FZJ100..GX..GCC 12V 100A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10154 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 90099-10154 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 90099-10140 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT..FZJ10#,HDJ100 12V 80A,100A,120A |
1 | ||
| 90099-10140 |
1HZ..HZJ105..ARL,GCC;1FZFE,1HDT..FZJ10#,HDJ100;1HZ..HZJ105..LHD..SOB..GEN 12V 80A,100A,120A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-72150 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27357-20060 |
1FZFE..FZJ100..GX;1FZFE,2UZFE..FZJ105,UZJ100..ARL 12V 100A |
1 | ||
| 27357-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100..GCC,GEN 12V 80A |
1 | ||
| 27357-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100..GCC,GEN 12V 80A |
1 | ||
| 27357-72150 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27357-20060 |
1FZFE..FZJ100..GX..GCC 12V 100A |
1 | ||
| 27357-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDFTE..FZJ10#,HDJ100..GCC,GEN 12V 80A |
1 | ||
| 27357-55080 |
1HZ..HZJ105..LHD..SOB;1FZFE,1HDFTE..FZJ10#,HDJ100..GCC,GEN 12V 80A |
1 | ||
| 27357-20060 |
1FZFE..FZJ100..GX..GCC 12V 100A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-66090 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27359-66090 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27359-42020 |
1FZFE..FZJ100..GX;1FZFE..FZJ105..ARL 12V 100A |
1 | ||
| 27359-74550 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54450 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27370-75060 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27370-75060 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HD#,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27370-75060 |
1HZ..HZJ105..ARL,GCC;2UZFE..UZJ100..GCC,GEN;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDFTE..FZJ10#,HDJ100..ARL,GCC,GEN 12V 80A,100A,120A |
1 | ||
| 27370-54450 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27370-75060 |
1HZ..HZJ105..ARL,GCC;2UZFE..UZJ100..GCC,GEN;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDFTE..FZJ10#,HDJ100..ARL,GCC,GEN 12V 80A,100A,120A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-87501 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-10081 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27387-42021 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27387-42021 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27387-10081 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-66090 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27411-66040 |
1FZFE..FZJ10#..GCC,GEN |
1 | ||
| 27411-66040 |
1FZFE..FZJ100;1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN |
1 | ||
| 27411-66090 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27411-66040 |
1FZFE..FZJ10#..GCC,GEN |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27443-63020 |
1FZFE,1HD#,1HZ,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 27443-63020 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-66050 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27700-66050 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27700-75020 |
1FZFE..FZJ100;1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN |
1 | ||
| 27700-75020 |
1FZFE..FZJ10#..GCC,GEN |
1 | ||
| 27700-75020 |
1FZFE..FZJ10#..GCC,GEN |
1 | ||
| Common parts | ||||
| 27795-87501 | ||||
| 90099-00159 | ||||
| 90099-00161 | ||||
| 90099-00197 | ||||
| 90099-04329 | ||||
| 90099-04330 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
(0208- )1FZFE
12V 80A,100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-66080 |
1FZFE..FZJ100..SOB..5F..GX 24V 25A,ARMED SOURCE 24V(QATAR) |
1 | ||
| 27060-66080 |
1FZFE..FZJ100..SOB..5F..GX 24V 25A,ARMED SOURCE 24V(QATAR) |
1 | ||
| 27060-66090 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27060-66100 |
1FZFE..FZJ10#..GX..(ARL,GCC) 12V 100A |
1 | ||
| 27060-66090 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27060-66100 |
1FZFE..FZJ100..GX..GCC 12V 100A |
1 | ||
| 27060-66090 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27060-66100 |
1FZFE..FZJ100..GX..GCC 12V 100A |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| 27060-66080 |
1FZFE..FZJ100..SOB..5F..GX 24V 25A,ARMED SOURCE 24V(QATAR) |
1 | ||
| 27060-66080 |
1FZFE..FZJ100..SOB..5F..GX 24V 25A,ARMED SOURCE 24V(QATAR) |
1 | ||
| 27060-66090 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27060-66100 |
1FZFE..FZJ10#..GX..(ARL,GCC) 12V 100A |
1 | ||
| 27060-66090 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27060-66100 |
1FZFE..FZJ100..GX..GCC 12V 100A |
1 | ||
| 27060-66090 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27060-66100 |
1FZFE..FZJ100..GX..GCC 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10397 |
1FZFE..FZJ10#..GCC,GEN |
1 | ||
| 90105-10397 |
1FZFE..FZJ100;1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN |
1 | ||
| 90105-10397 |
1FZFE..FZJ10#..GCC,GEN |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-42020 |
1FZFE..FZJ100..GX;1FZFE..FZJ105..ARL 12V 100A |
1 | ||
| 27330-76030 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27330-28050 |
1FZFE..FZJ100..GX;1FZFE..FZJ105..ARL 12V 100A |
1 | ||
| 27330-16390 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27330-16390 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27330-28050 |
1FZFE..FZJ100..GX..GCC 12V 100A |
1 | ||
| 27330-16390 |
1FZFE..FZJ10#..GCC,GEN 12V 80A |
1 | ||
| 27330-28050 |
1FZFE..FZJ100..GX..GCC 12V 100A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-72150 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27357-20060 |
1FZFE..FZJ100..GX;1FZFE,2UZFE..FZJ105,UZJ100..ARL 12V 100A |
1 | ||
| 27357-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100..GCC,GEN 12V 80A |
1 | ||
| 27357-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100..GCC,GEN 12V 80A |
1 | ||
| 27357-72150 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27357-20060 |
1FZFE..FZJ100..GX..GCC 12V 100A |
1 | ||
| 27357-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDFTE..FZJ10#,HDJ100..GCC,GEN 12V 80A |
1 | ||
| 27357-55080 |
1HZ..HZJ105..LHD..SOB;1FZFE,1HDFTE..FZJ10#,HDJ100..GCC,GEN 12V 80A |
1 | ||
| 27357-20060 |
1FZFE..FZJ100..GX..GCC 12V 100A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54450 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27370-75060 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27370-75060 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HD#,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27370-75060 |
1HZ..HZJ105..ARL,GCC;2UZFE..UZJ100..GCC,GEN;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDFTE..FZJ10#,HDJ100..ARL,GCC,GEN 12V 80A,100A,120A |
1 | ||
| 27370-54450 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27370-75060 |
1HZ..HZJ105..ARL,GCC;2UZFE..UZJ100..GCC,GEN;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDFTE..FZJ10#,HDJ100..ARL,GCC,GEN 12V 80A,100A,120A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-66090 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27411-66040 |
1FZFE..FZJ10#..GCC,GEN |
1 | ||
| 27411-66040 |
1FZFE..FZJ100;1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN |
1 | ||
| 27411-66090 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27411-66040 |
1FZFE..FZJ10#..GCC,GEN |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-66050 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27700-66050 |
1FZFE..FZJ100..SOB..5F..GX ARMED SOURCE 24V(QATAR) |
1 | ||
| 27700-75020 |
1FZFE..FZJ100;1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN |
1 | ||
| 27700-75020 |
1FZFE..FZJ10#..GCC,GEN |
1 | ||
| 27700-75020 |
1FZFE..FZJ10#..GCC,GEN |
1 | ||
| Common parts | ||||
| 94150-80600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
