FZJ100L-GCMNKV (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2007
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9801- )1FZFE..FZJ100..GCC

Click highlighted areas on diagram

TYPE A, TYPE B

diagram 17410 17410 17410A 17410A 17410A 17410A 17410B 17410B 17410B 17410B 17420 17420X 17430 17451 17452 17562 17563A 17563A 17565A 17565A 17571 18436 18436 9017906007 9046132031 9046132031 91511B0614 9151561035 9162160840 9164180840 9164180840 9165141020 9418561000 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-66131

1FZFE..FZJ100

 1
17401-66171

1FZFE..FZJ100..5F

CHINA OR SAUDI ARABIA SPEC

 1
17401-66130

1FZFE..FZJ100

 1
17401-66171

1FZFE..FZJ100..5F..GCC

TYPE B:REFER TO ILLUSTRATION

 1
17401-66131

1FZFE..FZJ100..GCC

TYPE A:REFER TO ILLUSTRATION

 1
17401-66171

1FZFE..FZJ100..5F..GCC

TYPE B:REFER TO ILLUSTRATION

 1
17401-66131

1FZFE..FZJ100..GCC

TYPE A:REFER TO ILLUSTRATION

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-66131

1FZFE..FZJ100

 1
17401-66171

1FZFE..FZJ100..5F

CHINA OR SAUDI ARABIA SPEC

 1
17401-66130

1FZFE..FZJ100

 1
17401-66171

1FZFE..FZJ100..5F..GCC

TYPE B:REFER TO ILLUSTRATION

 1
17401-66131

1FZFE..FZJ100..GCC

TYPE A:REFER TO ILLUSTRATION

 1
17401-66171

1FZFE..FZJ100..5F..GCC

TYPE B:REFER TO ILLUSTRATION

 1
17401-66131

1FZFE..FZJ100..GCC

TYPE A:REFER TO ILLUSTRATION

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1FZFE..FZJ100;1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN

 4
90179-10070

1FZFE..FZJ10#..GCC,GEN

 4
90179-10070

1FZFE..FZJ10#..GCC,GEN

 4
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1FZFE..FZJ100;1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN

 4
90179-10070

1FZFE..FZJ10#..GCC,GEN

 4
90179-10070

1FZFE..FZJ10#..GCC,GEN

 4
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1FZFE..FZJ100;1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN

 4
90179-10070

1FZFE..FZJ10#..GCC,GEN

 4
90179-10070

1FZFE..FZJ10#..GCC,GEN

 4
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1FZFE..FZJ100;1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN

 4
90179-10070

1FZFE..FZJ10#..GCC,GEN

 4
90179-10070

1FZFE..FZJ10#..GCC,GEN

 4
17410B - GASKET, EXHAUST PIPE
90917-06065

1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN

 2
90917-06065

1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN;1FZFE,2UZFE..FZJ100,UZJ100..LHD

 2
90917-06065

1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN

 2
17410B - GASKET, EXHAUST PIPE
90917-06065

1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN

 2
90917-06065

1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN;1FZFE,2UZFE..FZJ100,UZJ100..LHD

 2
90917-06065

1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN

 2
17410B - GASKET, EXHAUST PIPE
90917-06065

1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN

 2
90917-06065

1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN;1FZFE,2UZFE..FZJ100,UZJ100..LHD

 2
90917-06065

1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN

 2
17410B - GASKET, EXHAUST PIPE
90917-06065

1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN

 2
90917-06065

1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN;1FZFE,2UZFE..FZJ100,UZJ100..LHD

 2
90917-06065

1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17403-66070

1FZFE..FZJ100

 1
17403-66071

1FZFE..FZJ100..GCC

 1
17403-66071

1FZFE..FZJ100

 1
17403-66071

1FZFE..FZJ100..GCC

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-50050

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 1
17451-50050

2UZFE..UZJ100..LHD;1FZFE,1HD#..FZJ100,HDJ100

 1
17451-50050

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-50030

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 1
17405-50030

1FZFE,1HD#,2UZFE..FZJ100,HDJ100,UZJ100

 1
17405-50030

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 1
17405-50030

1FZFE,2UZFE..FZJ100,UZJ100

 1
17451 - GASKET, EXHAUST PIPE
90917-06076

1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN;1FZFE,1HD#,1HZ..FZJ100,HDJ100,HZJ105

 1
90917-06076

1FZFE,1H#..FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN

 1
90917-06076

1FZFE,1HDFTE..FZJ100,HDJ100..ARL,GCC,GEN

 1
17452 - CLAMP, EXHAUST PIPE
17452-50050

2UZFE..UZJ100..LHD;1FZFE,1HD#..FZJ100,HDJ100

 1
17452-50050

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 1
17452-50050

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-74280

1FZFE,1HD#..FZJ100,HDJ100

 1
17565-74280

1FZFE,1HDFTE..FZJ100,HDJ100..ARL,GCC,GEN

 1
17565-74280

1FZFE,1HDFTE..FZJ100,HDJ100..ARL,GCC,GEN

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-74280

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17565-74280

2UZFE..UZJ100..LHD;1FZFE,1HD#..FZJ100,HDJ100

 2
17565-74280

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-74280

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17565-74280

2UZFE..UZJ100..LHD;1FZFE,1HD#..FZJ100,HDJ100

 2
17565-74280

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-13030

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17565-13030

2UZFE..UZJ100..LHD;1FZFE,1HD#..FZJ100,HDJ100

 2
17565-13030

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-13030

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17565-13030

2UZFE..UZJ100..LHD;1FZFE,1HD#..FZJ100,HDJ100

 2
17565-13030

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-66030

1FZFE..FZJ100..GCC

 1
17571-66030

1FZFE..FZJ100..GCC

 1
17571-66030

1FZFE..FZJ100

 1
18436 - PROTECTOR, MONOLITHIC CONVERTER, NO.1
18436-50040

1FZFE..FZJ100..5F..GCC

 2
18436-50040

1FZFE..FZJ100..5F

 2
18436-50040

1FZFE..FZJ100..5F..GCC

 2
18436 - PROTECTOR, MONOLITHIC CONVERTER, NO.1
18436-50040

1FZFE..FZJ100..5F..GCC

 2
18436-50040

1FZFE..FZJ100..5F

 2
18436-50040

1FZFE..FZJ100..5F..GCC

 2
Common parts
90179-06007
90461-32031
91511-B0614
91515-61035
91621-60840
91641-80840
91651-41020
94185-61000

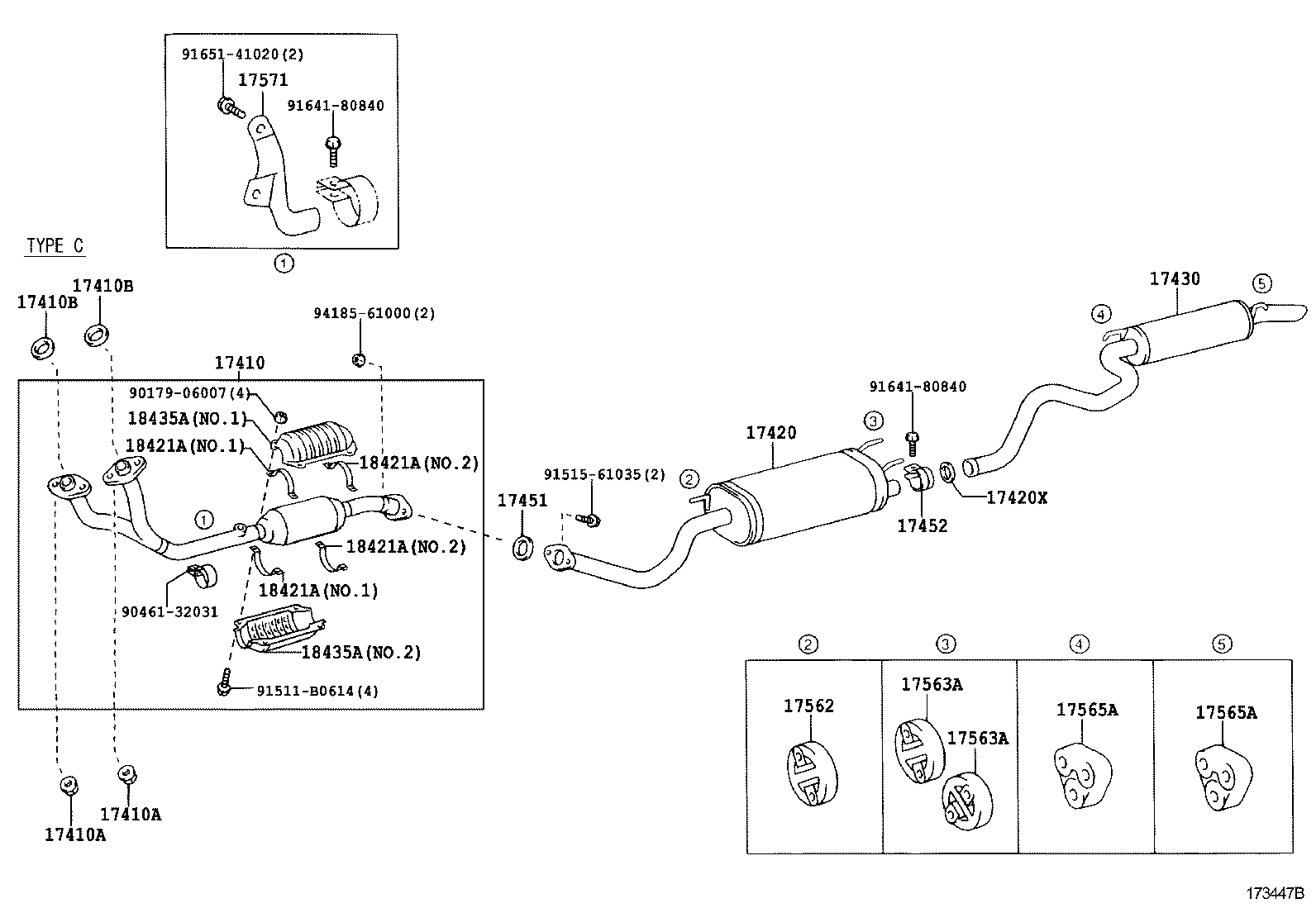

ILLUST NO. 2 OF 2(0208- )1FZFE..FZJ100..GCC

Click highlighted areas on diagram

TYPE C

diagram 17410 17410A 17410A 17410B 17410B 17420 17420X 17430 17451 17452 17562 17563A 17563A 17565A 17565A 17571 18421A 18421A 18421A 18421A 18435A 18435A 9017906007 9046132031 91511B0614 9151561035 9164180840 9164180840 9165141020 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-66131

1FZFE..FZJ100

 1
17401-66171

1FZFE..FZJ100..5F

CHINA OR SAUDI ARABIA SPEC

 1
17401-66130

1FZFE..FZJ100

 1
17401-66171

1FZFE..FZJ100..5F..GCC

TYPE B:REFER TO ILLUSTRATION

 1
17401-66131

1FZFE..FZJ100..GCC

TYPE A:REFER TO ILLUSTRATION

 1
17401-66171

1FZFE..FZJ100..5F..GCC

TYPE B:REFER TO ILLUSTRATION

 1
17401-66131

1FZFE..FZJ100..GCC

TYPE A:REFER TO ILLUSTRATION

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1FZFE..FZJ100;1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN

 4
90179-10070

1FZFE..FZJ10#..GCC,GEN

 4
90179-10070

1FZFE..FZJ10#..GCC,GEN

 4
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1FZFE..FZJ100;1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN

 4
90179-10070

1FZFE..FZJ10#..GCC,GEN

 4
90179-10070

1FZFE..FZJ10#..GCC,GEN

 4
17410B - GASKET, EXHAUST PIPE
90917-06065

1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN

 2
90917-06065

1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN;1FZFE,2UZFE..FZJ100,UZJ100..LHD

 2
90917-06065

1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN

 2
17410B - GASKET, EXHAUST PIPE
90917-06065

1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN

 2
90917-06065

1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN;1FZFE,2UZFE..FZJ100,UZJ100..LHD

 2
90917-06065

1FZFE,2UZFE..FZJ10#,UZJ100..ARL,GCC,GEN

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17403-66070

1FZFE..FZJ100

 1
17403-66071

1FZFE..FZJ100..GCC

 1
17403-66071

1FZFE..FZJ100

 1
17403-66071

1FZFE..FZJ100..GCC

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-50050

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 1
17451-50050

2UZFE..UZJ100..LHD;1FZFE,1HD#..FZJ100,HDJ100

 1
17451-50050

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-50030

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 1
17405-50030

1FZFE,1HD#,2UZFE..FZJ100,HDJ100,UZJ100

 1
17405-50030

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 1
17405-50030

1FZFE,2UZFE..FZJ100,UZJ100

 1
17451 - GASKET, EXHAUST PIPE
90917-06076

1FZFE..FZJ105..GX;1FZFE..FZJ105..STD..GEN;1FZFE,1HD#,1HZ..FZJ100,HDJ100,HZJ105

 1
90917-06076

1FZFE,1H#..FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN

 1
90917-06076

1FZFE,1HDFTE..FZJ100,HDJ100..ARL,GCC,GEN

 1
17452 - CLAMP, EXHAUST PIPE
17452-50050

2UZFE..UZJ100..LHD;1FZFE,1HD#..FZJ100,HDJ100

 1
17452-50050

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 1
17452-50050

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-74280

1FZFE,1HD#..FZJ100,HDJ100

 1
17565-74280

1FZFE,1HDFTE..FZJ100,HDJ100..ARL,GCC,GEN

 1
17565-74280

1FZFE,1HDFTE..FZJ100,HDJ100..ARL,GCC,GEN

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-74280

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17565-74280

2UZFE..UZJ100..LHD;1FZFE,1HD#..FZJ100,HDJ100

 2
17565-74280

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-74280

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17565-74280

2UZFE..UZJ100..LHD;1FZFE,1HD#..FZJ100,HDJ100

 2
17565-74280

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-13030

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17565-13030

2UZFE..UZJ100..LHD;1FZFE,1HD#..FZJ100,HDJ100

 2
17565-13030

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-13030

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17565-13030

2UZFE..UZJ100..LHD;1FZFE,1HD#..FZJ100,HDJ100

 2
17565-13030

1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN

 2
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-66030

1FZFE..FZJ100..GCC

 1
17571-66030

1FZFE..FZJ100..GCC

 1
17571-66030

1FZFE..FZJ100

 1
Common parts
90179-06007
90461-32031
91511-B0614
91515-61035
91641-80840
91651-41020
94185-61000
