VJA300R-GNUZZ (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999
Engine V35AFTS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )VJA300

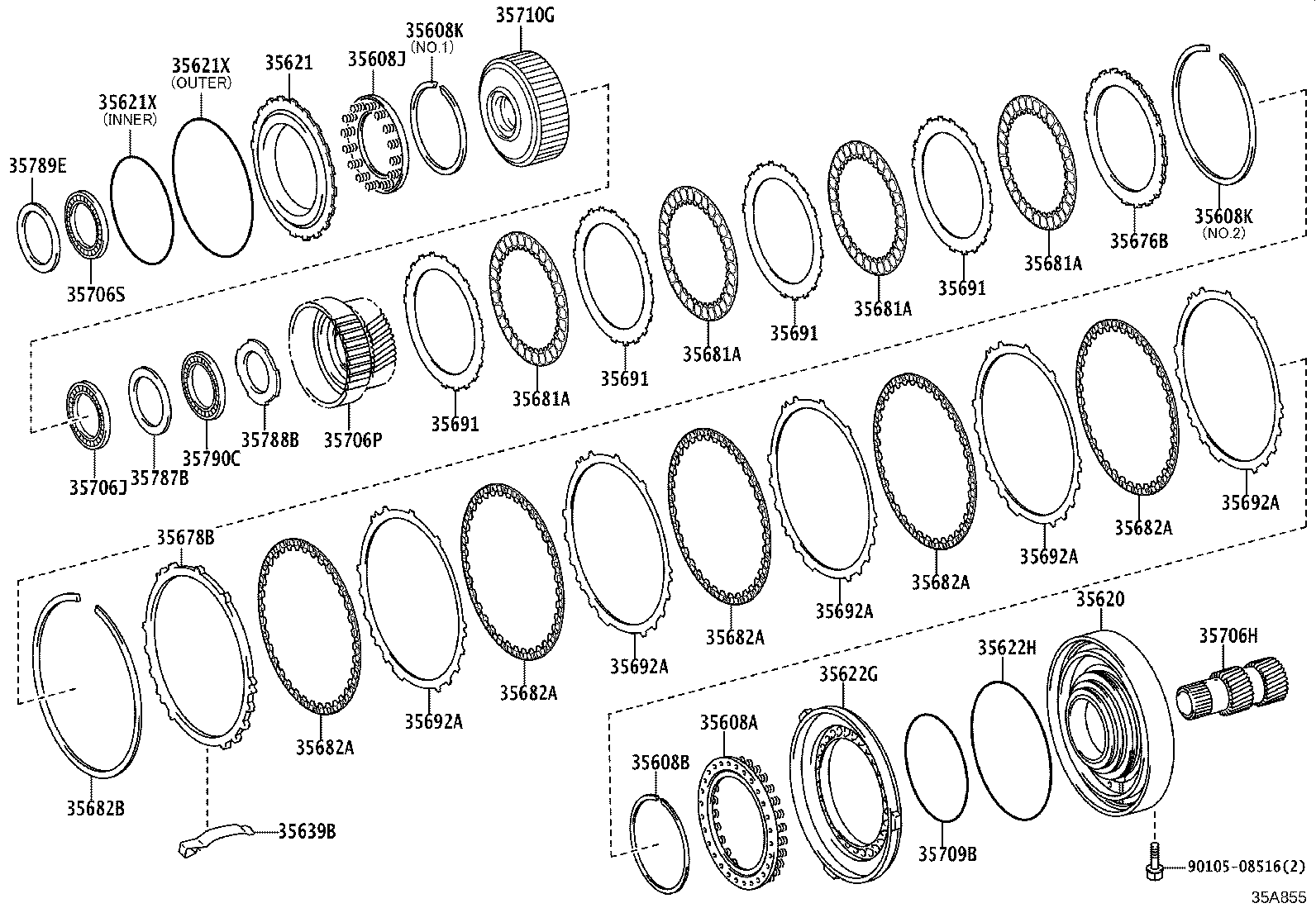

Click highlighted areas on diagram

AJA0F

diagram 35608A 35608B 35608J 35608K 35608K 35620 35621 35621X 35621X 35622G 35622H 35639B 35676B 35678B 35681A 35681A 35681A 35681A 35682A 35682A 35682A 35682A 35682A 35682B 35691 35691 35691 35691 35692A 35692A 35692A 35692A 35692A 35706H 35706J 35706P 35706S 35709B 35710G 35787B 35788B 35789E 35790C 9010508516
Part # Description Qty Price
35608A - SPRING SUB-ASSY, BRAKE PISTON RETURN
35608-60060

VJA300

 1
35608B - RING, HOLE SNAP (FOR BRAKE PISTON RETURN SPRING)
90520-93002

VJA300

 1
35608J - SPRING SUB-ASSY, BRAKE PISTON RETURN
35608-60050

VJA300

 1
35608K - RING, SNAP (FOR BRAKE PISTON RETURN SPRING)
90520-99203

VJA300

NO.1:REFER ILLUST.

 1
90520-99204

VJA300

NO.2:REFER ILLUST.

 1
35608K - RING, SNAP (FOR BRAKE PISTON RETURN SPRING)
90520-99203

VJA300

NO.1:REFER ILLUST.

 1
90520-99204

VJA300

NO.2:REFER ILLUST.

 1
35620 - SUPPORT ASSY, CENTER
35620-60070

VJA300

 1
35621 - PISTON, BRAKE, NO.1
35621-60080

VJA300

 1
35621X - RING, O (FOR BRAKE PISTON NO.1)
90301-99258

VJA300

INNER

 1
90301-99259

VJA300

OUTER

 1
35621X - RING, O (FOR BRAKE PISTON NO.1)
90301-99258

VJA300

INNER

 1
90301-99259

VJA300

OUTER

 1
35622G - PISTON, BRAKE, NO.2
35622-60050

VJA300

 1
35622H - RING, O (FOR BRAKE PISTON NO.2)
90301-99260

VJA300

 1
35639B - SPRING, BRAKE PLATE STOPPER
35639-71020

VJA300

 1
35676B - FLANGE, BRAKE, NO.1
35676-60310

VJA300

T=6.0

 1
35676-60280

VJA300

T=5.7

 1
35676-60270

VJA300

T=5.6

 1
35676-60300

VJA300

T=5.9

 1
35676-60290

VJA300

T=5.8

 1
35676-60320

VJA300

T=6.1

 1
35676-60260

VJA300

T=5.5

 1
35678B - FLANGE, BRAKE, NO.2
35678-60310

VJA300

T=6.9,MARK 1

 1
35678-60330

VJA300

T=7.1,MARK 3

 1
35678-60360

VJA300

T=7.4,MARK 6

 1
35678-60370

VJA300

T=7.5,MARK 7

 1
35678-60320

VJA300

T=7.0,MARK 2

 1
35678-60380

VJA300

T=7.6,MARK 8

 1
35678-60340

VJA300

T=7.2,MARK 4

 1
35678-60350

VJA300

T=7.3,MARK 5

 1
35678-60300

VJA300

T=6.8,MARK 0

 1
35681A - DISC, BRAKE, NO.1
35681-60050

VJA300

 4
35681A - DISC, BRAKE, NO.1
35681-60050

VJA300

 4
35681A - DISC, BRAKE, NO.1
35681-60050

VJA300

 4
35681A - DISC, BRAKE, NO.1
35681-60050

VJA300

 4
35682A - DISC, BRAKE, NO.2
35682-60040

VJA300

 5
35682A - DISC, BRAKE, NO.2
35682-60040

VJA300

 5
35682A - DISC, BRAKE, NO.2
35682-60040

VJA300

 5
35682A - DISC, BRAKE, NO.2
35682-60040

VJA300

 5
35682A - DISC, BRAKE, NO.2
35682-60040

VJA300

 5
35682B - RING, HOLE SNAP(FOR DISC BRAKE NO.2)
90520-99202

VJA300

 1
35691 - PLATE, BRAKE, NO.1
35691-60070

VJA300

 4
35691 - PLATE, BRAKE, NO.1
35691-60070

VJA300

 4
35691 - PLATE, BRAKE, NO.1
35691-60070

VJA300

 4
35691 - PLATE, BRAKE, NO.1
35691-60070

VJA300

 4
35692A - PLATE, BRAKE, NO.2
35692-60050

VJA300

 5
35692A - PLATE, BRAKE, NO.2
35692-60050

VJA300

 5
35692A - PLATE, BRAKE, NO.2
35692-60050

VJA300

 5
35692A - PLATE, BRAKE, NO.2
35692-60050

VJA300

 5
35692A - PLATE, BRAKE, NO.2
35692-60050

VJA300

 5
35706H - GEAR SUB-ASSY, PLANETARY SUN
35706-60110

VJA300

 1
35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
90374-38007

VJA300

 1
35706P - GEAR SUB-ASSY, FRONT PLANETARY SUN
35706-60100

VJA300

 1
35706S - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)
90374-63003

VJA300

 1
35709B - RING, O (FOR CENTER SUPPORT)
90301-99226

VJA300

 1
35710G - GEAR ASSY, PLANETARY SUN
35710-60020

VJA300

 1
35787B - RACE, THRUST BEARING, NO.2
35787-60020

VJA300

 1
35788B - RACE, THRUST BEARING, NO.3
35788-60020

VJA300

 1
35789E - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR)
35786-60030

VJA300

T=2.9

 1
35786-60020

VJA300

T=2.5

 1
35790C - BEARING, THRUST NEEDLE ROLLER
90374-37012

VJA300

 1
Common parts
90105-08516
