VJA300R-GNUVZ (2021)
Toyota Land Cruiser

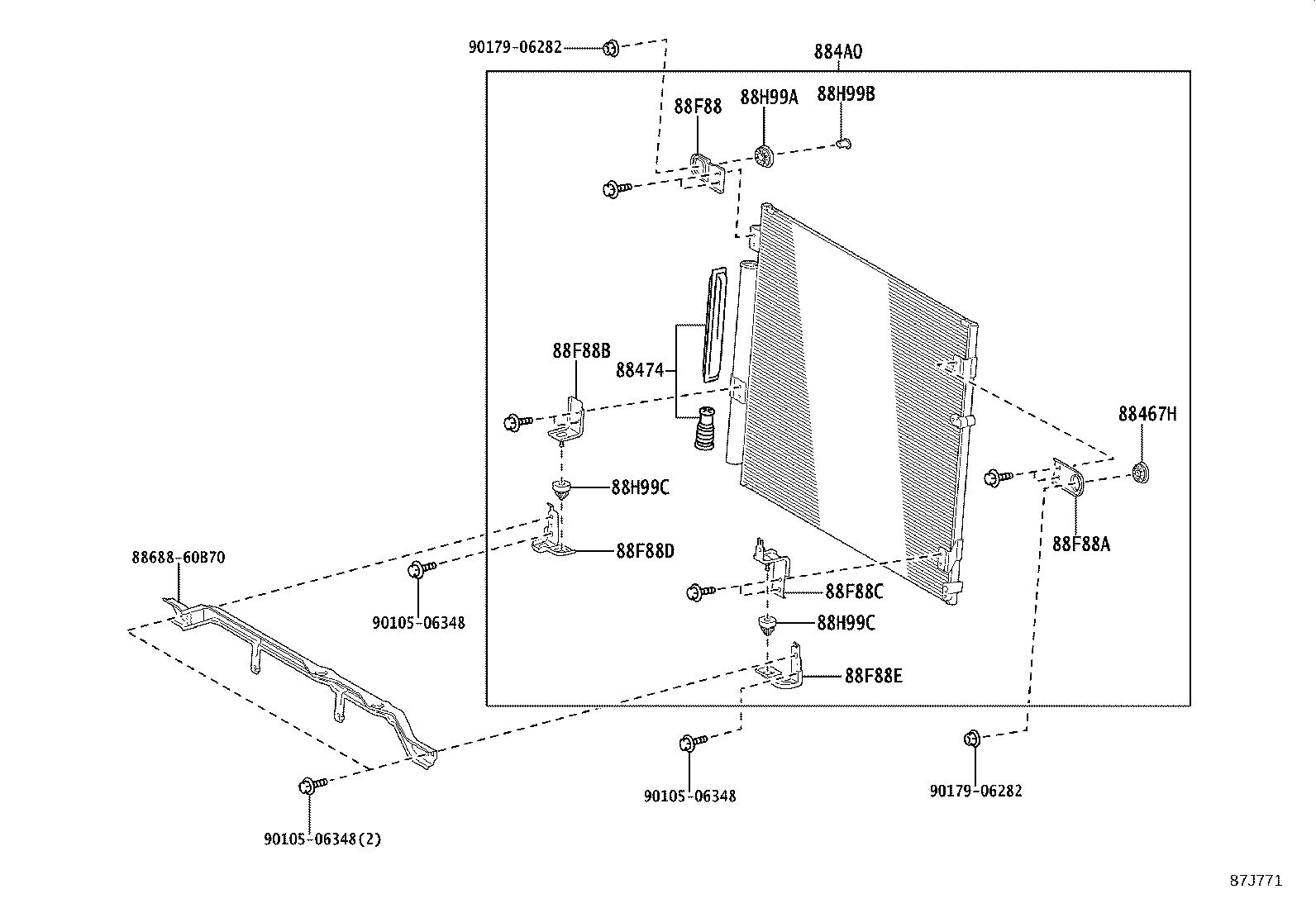

ILLUST NO. 1 OF 3(2104- )EUR,GEN
CONDENSER & FUN SHROUD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88467H - CUSHION, CONDENSER BRACKET, NO.1 | ||||
| 88467-35040 |
GRJ300,VJA300 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12010 |
GRJ300,VJA300 |
1 | ||
| 884A0 - CONDENSER ASSY, COOLER | ||||
| 884A0-60030 |
VJA300..EUR,GEN |
1 | ||
| 88F88 - BRACKET, CONDENSER, NO.1 | ||||
| 88688-60C40 |
VJA300..EUR,GEN |
1 | ||
| 88F88A - BRACKET, CONDENSER, NO.2 | ||||
| 88688-60C50 |
VJA300..EUR,GEN |
1 | ||
| 88F88B - BRACKET, CONDENSER, NO.3 | ||||
| 88688-60C60 |
VJA300..EUR,GEN |
1 | ||
| 88F88C - BRACKET, CONDENSER, NO.4 | ||||
| 88688-60C70 |
VJA300..EUR,GEN |
1 | ||
| 88F88D - BRACKET, CONDENSER, NO.5 | ||||
| 88688-60C80 |
GRJ300,VJA300 |
1 | ||
| 88F88E - BRACKET, CONDENSER, NO.6 | ||||
| 88688-60C90 |
GRJ300,VJA300 |
1 | ||
| 88H99A - BUSH, CONDENSER BRACKET, NO.1 | ||||
| 88899-60530 |
GRJ300,VJA300 |
1 | ||
| 88H99B - BUSH, CONDENSER BRACKET, NO.2 | ||||
| 88899-60540 |
GRJ300,VJA300 |
1 | ||
| 88H99C - BUSH, CONDENSER BRACKET, NO.3 | ||||
| 88899-60550 |
GRJ300,VJA300 |
2 | ||
| 88H99C - BUSH, CONDENSER BRACKET, NO.3 | ||||
| 88899-60550 |
GRJ300,VJA300 |
2 | ||
| Common parts | ||||
| 88688-60B70 | ||||
| 90105-06348 | ||||
| 90179-06282 | ||||

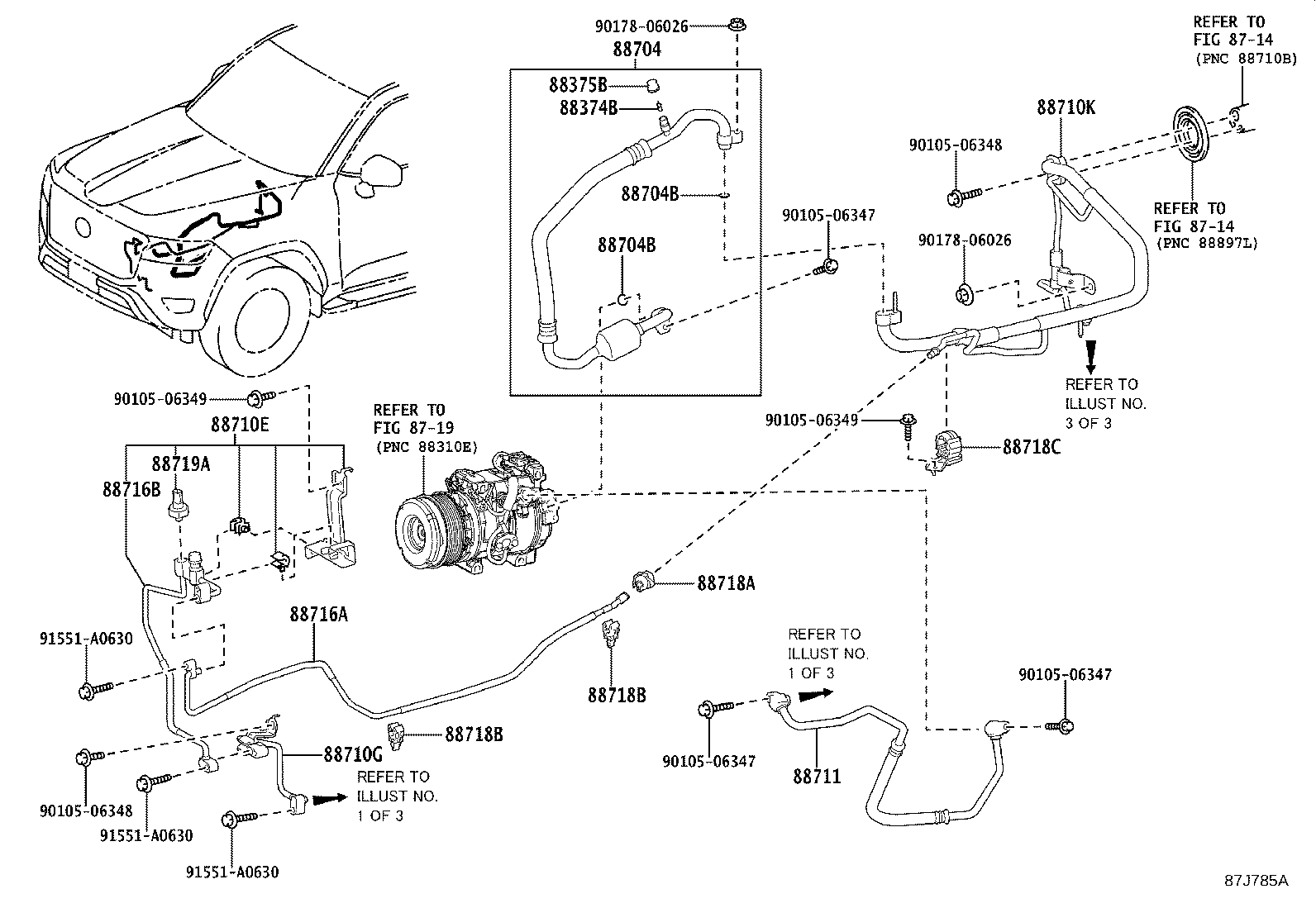

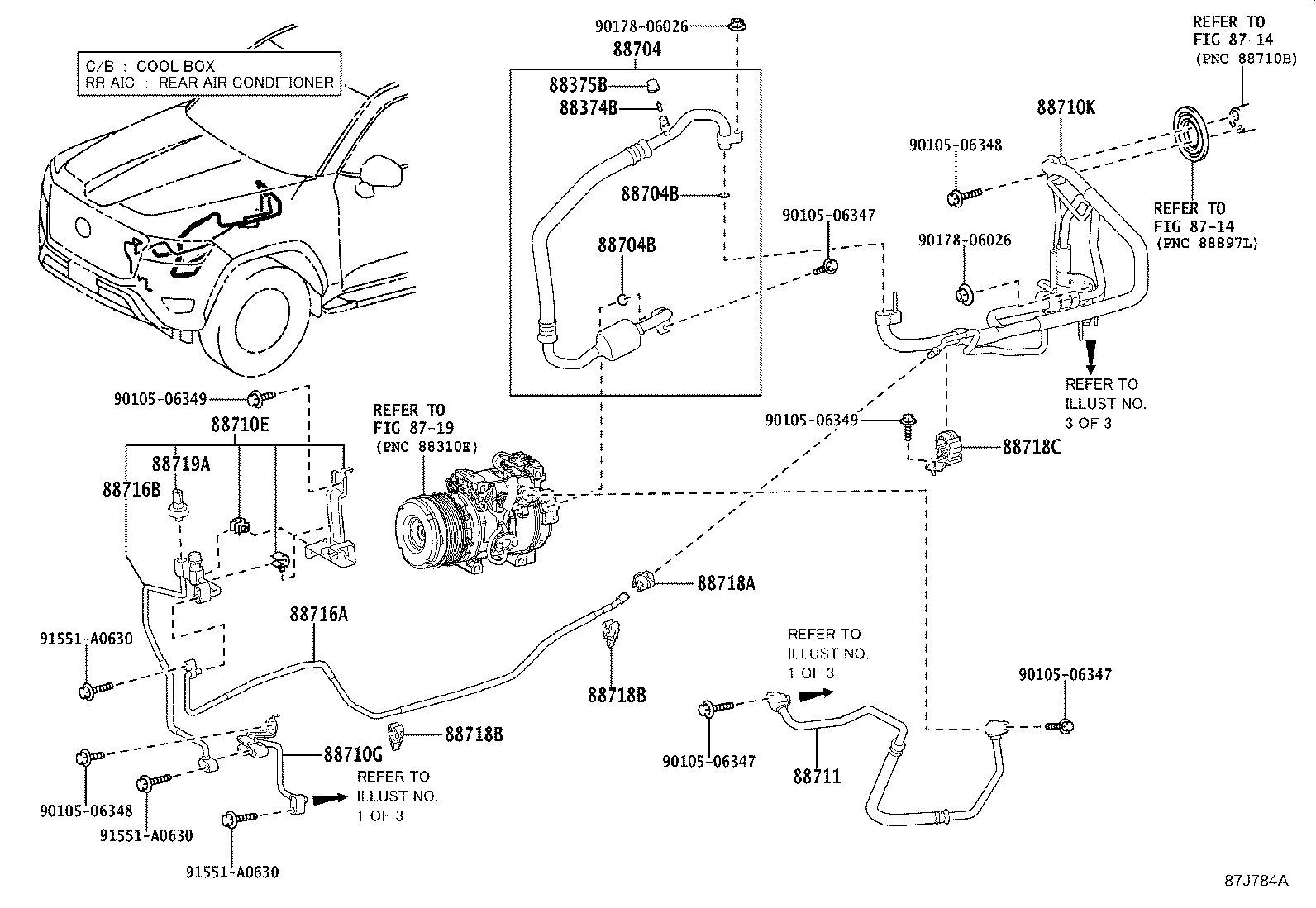

ILLUST NO. 2 OF 3(2104- )RHD
FRONT,W(RR AIC) OR W(C/B & RR AIC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GRJ300,VJA300 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
GRJ300,VJA300 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-60590 |
VJA300 |
1 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14121 |
GRJ300,VJA300 ID=13.4,OD=18.2 |
2 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14121 |
GRJ300,VJA300 ID=13.4,OD=18.2 |
2 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-60L00 |
GRJ300,VJA300 |
1 | ||
| 88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88710-60N30 |
VJA300..EUR,GEN |
1 | ||
| 88710K - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.3 | ||||
| 88710-60K80 |
VJA300..A..GEN COOL BOX-WITH |
1 | ||
| 88710-60K70 |
VJA300..A..GEN AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88710-60K90 |
VJA300..A..GEN |
1 | ||
| 88710-60K70 |
VJA300..RHD..(V,Z) |
1 | ||
| 88710-60K70 |
VJA300..A..GEN AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60A80 |
VJA300 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-60C10 |
GRJ300,VJA300 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-60C80 |
GRJ300,VJA300 |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-2D150 |
GRJ300,VJA300 |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-47110 |
GRJ300,VJA300 |
2 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-47110 |
GRJ300,VJA300 |
2 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60A80 |
VJA300 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-11010 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90105-06347 | ||||
| 90105-06348 | ||||
| 90105-06349 | ||||
| 90178-06026 | ||||
| 91551-A0630 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

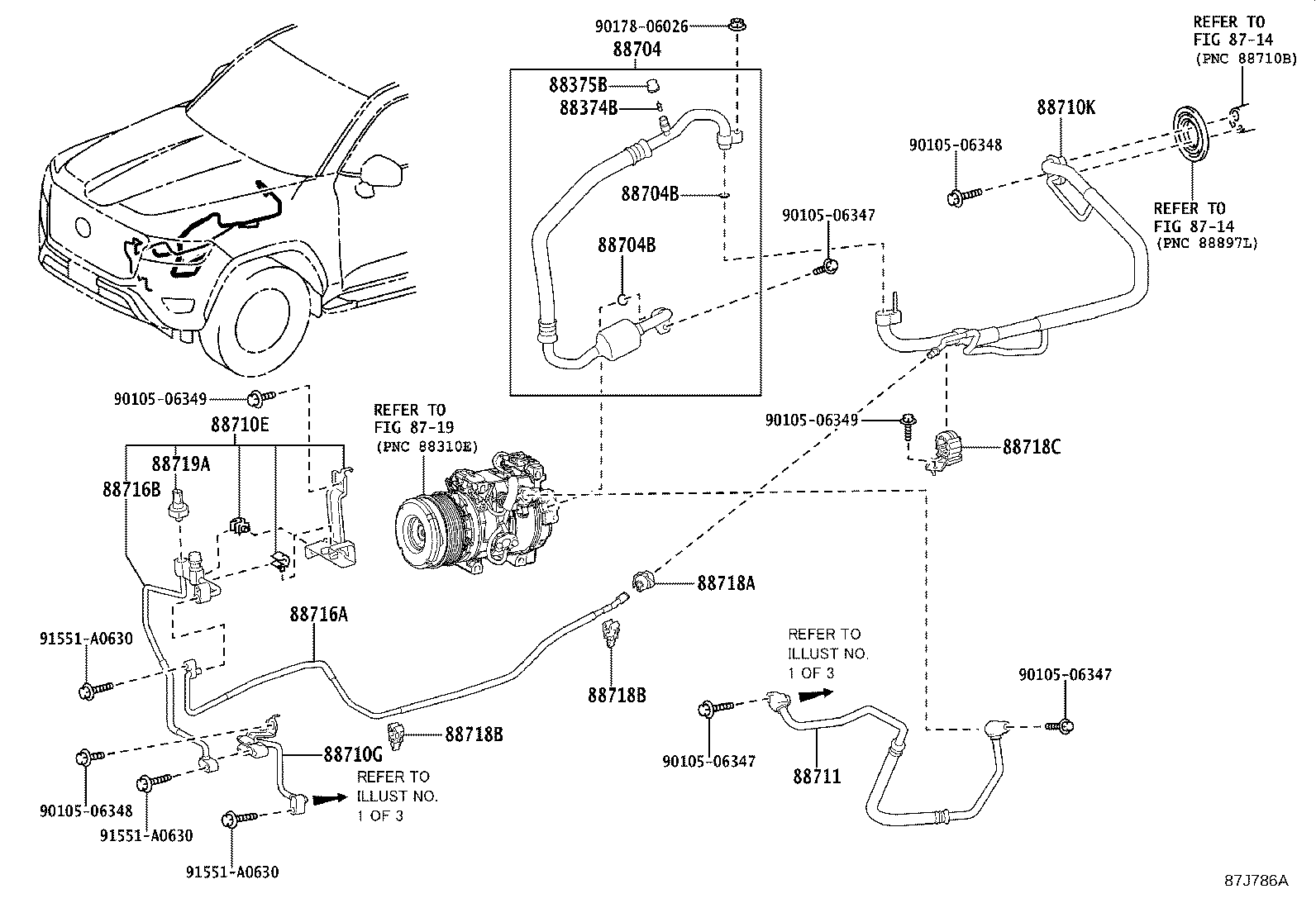

ILLUST NO. 2 OF 3(2104- )RHD
FRONT,W(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GRJ300,VJA300 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
GRJ300,VJA300 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-60590 |
VJA300 |
1 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14121 |
GRJ300,VJA300 ID=13.4,OD=18.2 |
2 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14121 |
GRJ300,VJA300 ID=13.4,OD=18.2 |
2 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-60L00 |
GRJ300,VJA300 |
1 | ||
| 88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88710-60N30 |
VJA300..EUR,GEN |
1 | ||
| 88710K - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.3 | ||||
| 88710-60K80 |
VJA300..A..GEN COOL BOX-WITH |
1 | ||
| 88710-60K70 |
VJA300..A..GEN AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88710-60K90 |
VJA300..A..GEN |
1 | ||
| 88710-60K70 |
VJA300..RHD..(V,Z) |
1 | ||
| 88710-60K70 |
VJA300..A..GEN AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60A80 |
VJA300 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-60C10 |
GRJ300,VJA300 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-60C80 |
GRJ300,VJA300 |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-2D150 |
GRJ300,VJA300 |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-47110 |
GRJ300,VJA300 |
2 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-47110 |
GRJ300,VJA300 |
2 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60A80 |
VJA300 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-11010 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90105-06347 | ||||
| 90105-06348 | ||||
| 90105-06349 | ||||
| 90178-06026 | ||||
| 91551-A0630 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 3(2104- )RHD
FRONT,W/O(REAR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GRJ300,VJA300 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
GRJ300,VJA300 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-60590 |
VJA300 |
1 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14121 |
GRJ300,VJA300 ID=13.4,OD=18.2 |
2 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14121 |
GRJ300,VJA300 ID=13.4,OD=18.2 |
2 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-60L00 |
GRJ300,VJA300 |
1 | ||
| 88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88710-60N30 |
VJA300..EUR,GEN |
1 | ||
| 88710K - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.3 | ||||
| 88710-60K80 |
VJA300..A..GEN COOL BOX-WITH |
1 | ||
| 88710-60K70 |
VJA300..A..GEN AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88710-60K90 |
VJA300..A..GEN |
1 | ||
| 88710-60K70 |
VJA300..RHD..(V,Z) |
1 | ||
| 88710-60K70 |
VJA300..A..GEN AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60A80 |
VJA300 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-60C10 |
GRJ300,VJA300 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-60C80 |
GRJ300,VJA300 |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-2D150 |
GRJ300,VJA300 |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-47110 |
GRJ300,VJA300 |
2 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-47110 |
GRJ300,VJA300 |
2 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60A80 |
VJA300 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-11010 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90105-06347 | ||||
| 90105-06348 | ||||
| 90105-06349 | ||||
| 90178-06026 | ||||
| 91551-A0630 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

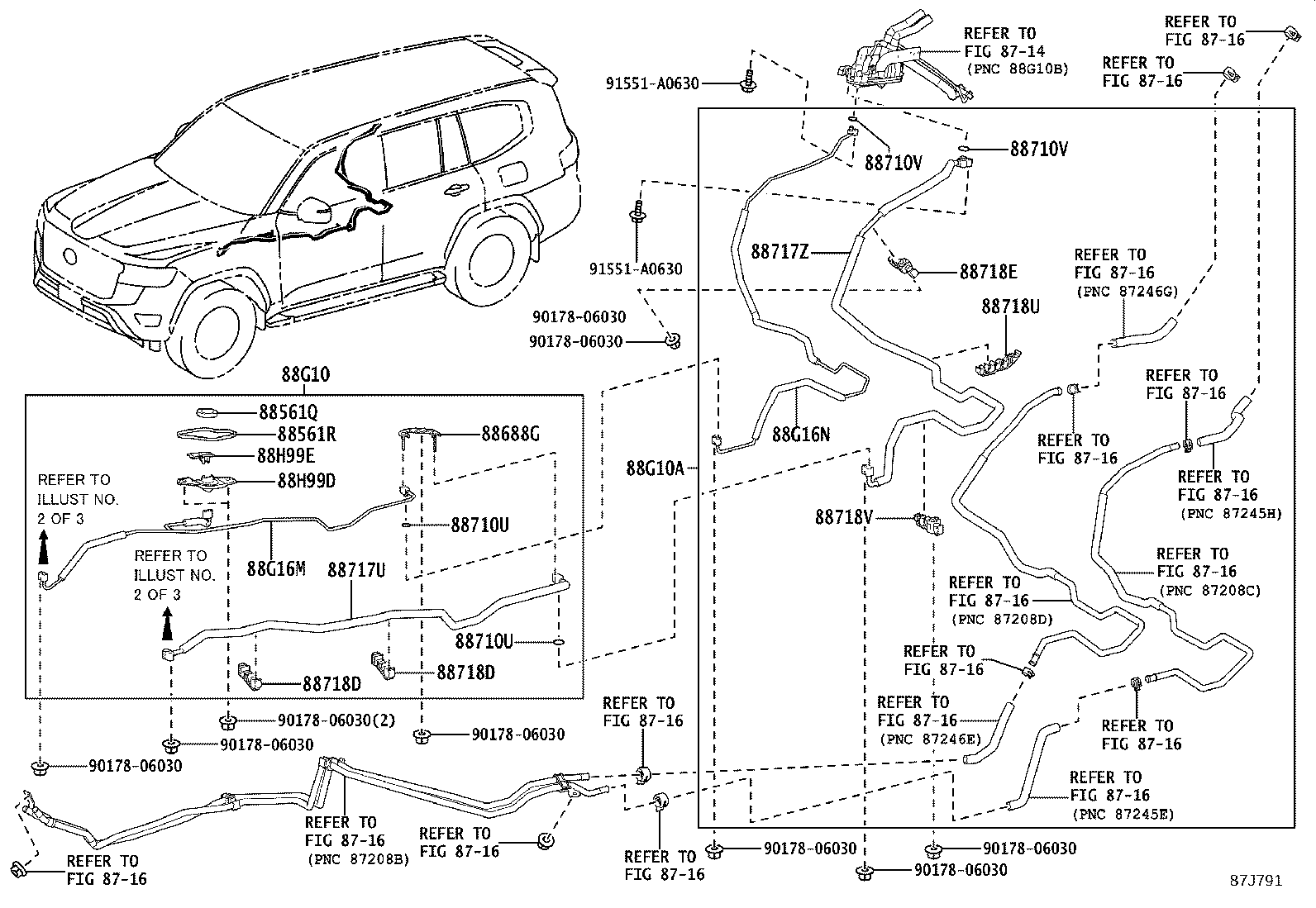

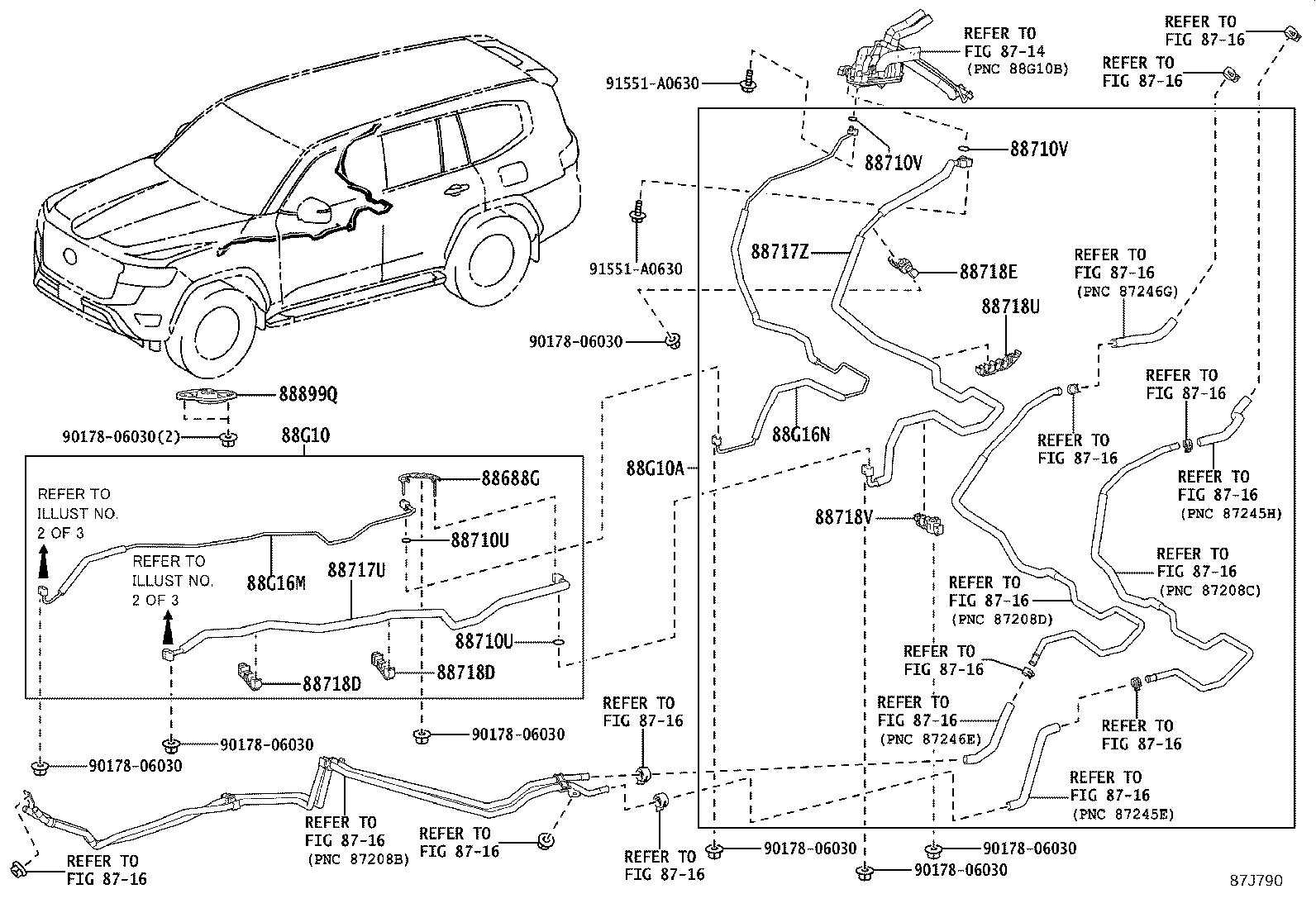

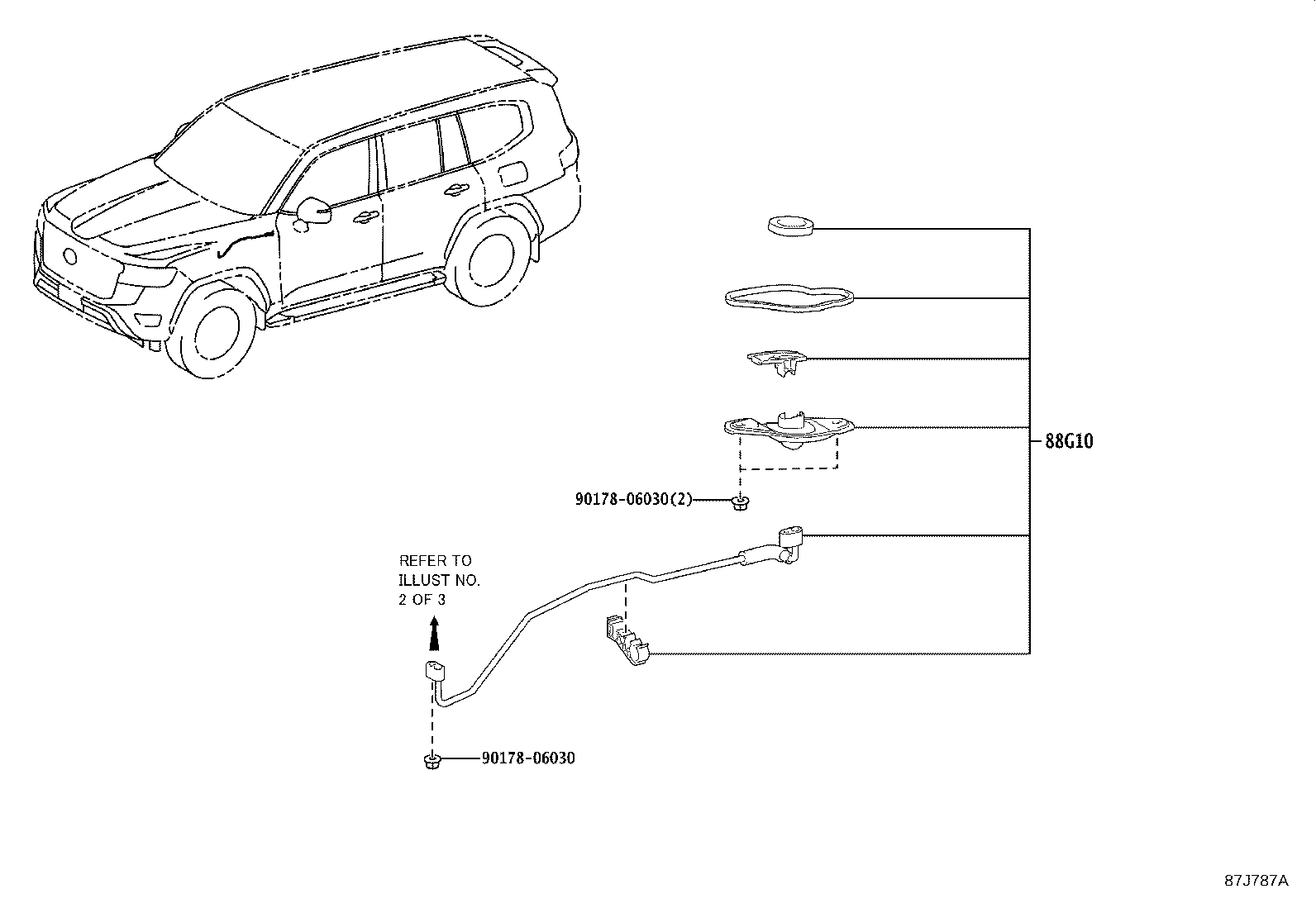

ILLUST NO. 3 OF 3(2104- )
REAR,W/O(REAR AIC) & W(COOL BOX))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88G10 - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.4 | ||||
| 88710-60J70 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88710-60J60 |
VJA300..A..(EUR,GEN) COOL BOX-WITH |
1 | ||
| 88710-60J80 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88710-60J70 |
GRJ300,VJA300..V,Z COOL BOX-WITH |
1 | ||
| 88710-60J80 |
GRJ300,VJA300..V,Z |
1 | ||
| Common parts | ||||
| 90178-06030 | ||||

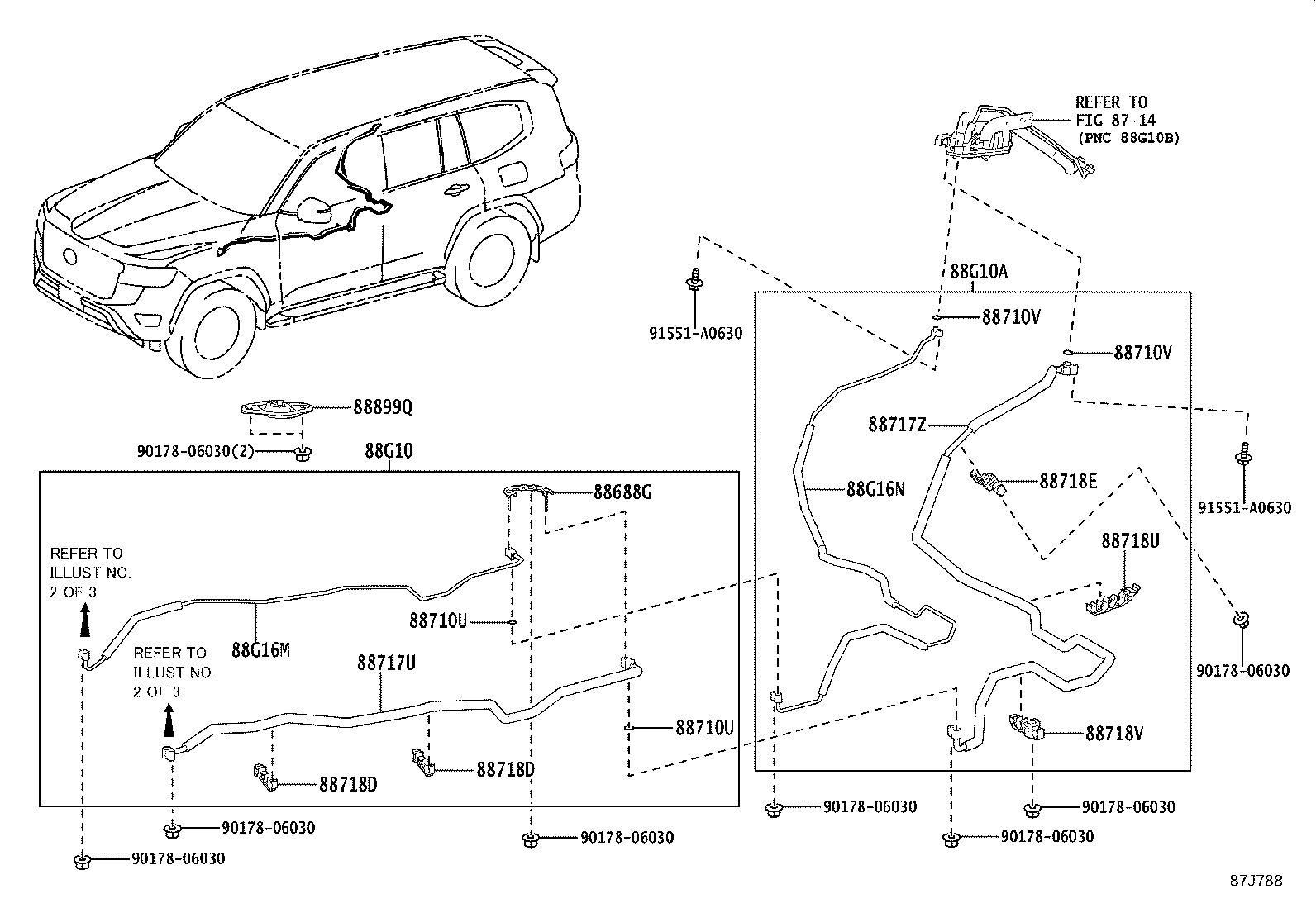

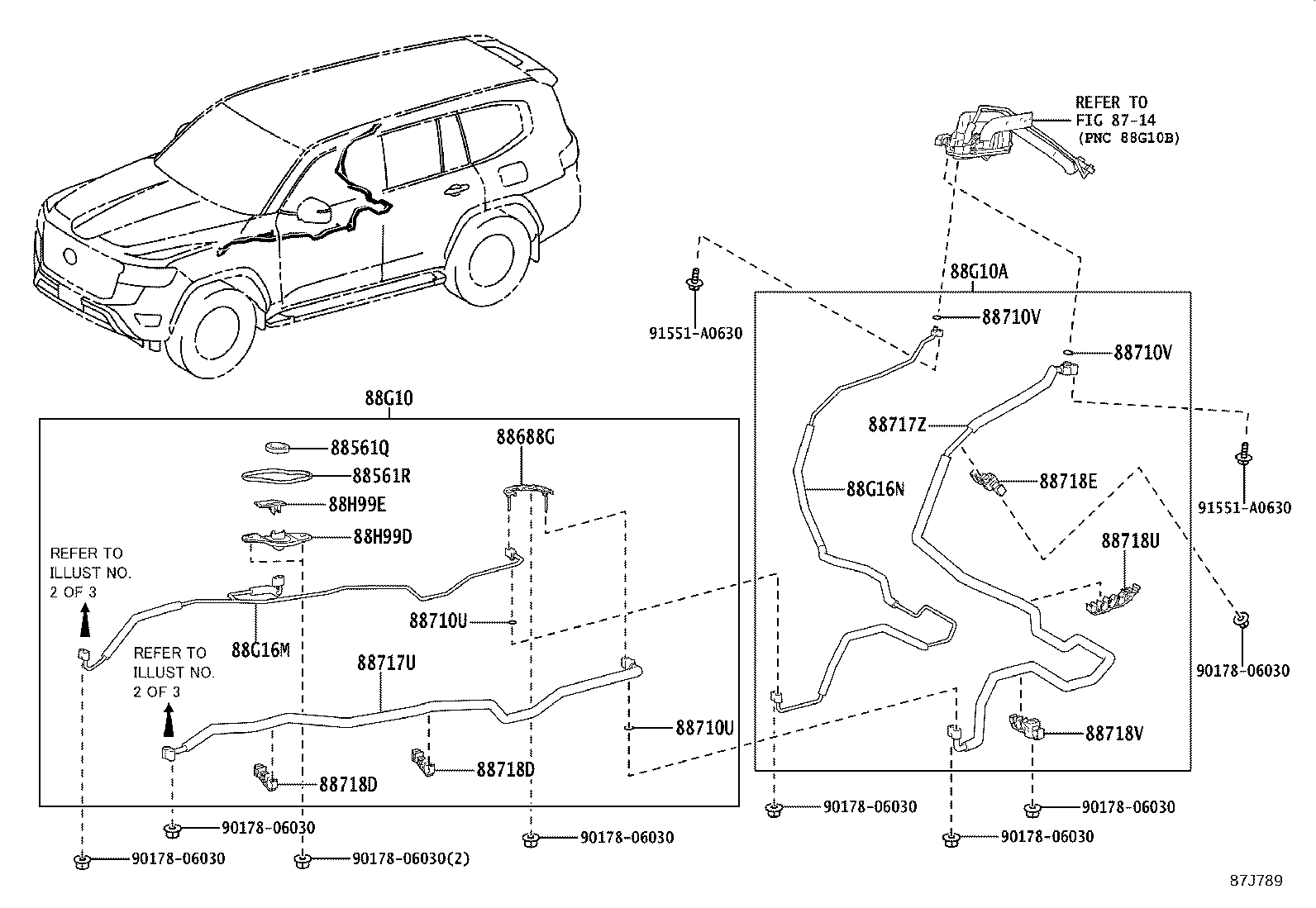

ILLUST NO. 3 OF 3(2104- )
REAR,W(REAR COOLER) & W/O(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88688G - BRACKET, COOLER REFRIGERANT PIPE | ||||
| 88688-60D50 |
GRJ300,VJA300..V,Z |
1 | ||
| 88710U - RING, O, NO.4(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14120 |
VJA300..A..(EUR,GEN) ID=10.8,OD=15.6,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 90099-14120 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=10.8,OD=15.6 |
1 | ||
| 90099-14119 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=6.7,OD=10.3 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14120 |
VJA300..A..(EUR,GEN) ID=10.8,OD=15.6,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88710U - RING, O, NO.4(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14120 |
VJA300..A..(EUR,GEN) ID=10.8,OD=15.6,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 90099-14120 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=10.8,OD=15.6 |
1 | ||
| 90099-14119 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=6.7,OD=10.3 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14120 |
VJA300..A..(EUR,GEN) ID=10.8,OD=15.6,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88710V - RING, O, NO.5(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14119 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=6.7,OD=10.3 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 90099-14121 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=13.4,OD=18.2 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14121 |
VJA300..A..(EUR,GEN) ID=13.4,OD=18.2,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14121 |
VJA300..A..(EUR,GEN) ID=13.4,OD=18.2,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88710V - RING, O, NO.5(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14119 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=6.7,OD=10.3 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 90099-14121 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=13.4,OD=18.2 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14121 |
VJA300..A..(EUR,GEN) ID=13.4,OD=18.2,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14121 |
VJA300..A..(EUR,GEN) ID=13.4,OD=18.2,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88717U - TUBE, SUCTION, NO.1 | ||||
| 88717-60B50 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88717Z - TUBE, SUCTION, NO.2 | ||||
| 88717-60B60 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88717-60B60 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88717-60B60 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60B40 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
2 | ||
| 88718-60B40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
2 | ||
| 88718-60B40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
2 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60B40 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
2 | ||
| 88718-60B40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
2 | ||
| 88718-60B40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
2 | ||
| 88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60B50 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88718-60B50 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88718-60B50 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88718U - CLAMP, NO.6(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60B60 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88718-60B60 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88718-60B60 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88718V - CLAMP, NO.7(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60B70 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88718-60B70 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88718-60B70 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-60470 |
GRJ300,VJA300..V,Z |
1 | ||
| 88899-60470 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88G10 - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.4 | ||||
| 88710-60J70 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88710-60J60 |
VJA300..A..(EUR,GEN) COOL BOX-WITH |
1 | ||
| 88710-60J80 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88710-60J70 |
GRJ300,VJA300..V,Z COOL BOX-WITH |
1 | ||
| 88710-60J80 |
GRJ300,VJA300..V,Z |
1 | ||
| 88G10A - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.5 | ||||
| 88710-60J90 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88710-60K00 |
GRJ300,VJA300..V,Z |
1 | ||
| 88710-60J90 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88G16M - TUBE, LIQUID, NO.1 | ||||
| 88716-60D30 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88716-60D20 |
GRJ300,VJA300..V,Z COOL BOX-WITH |
1 | ||
| 88716-60D30 |
GRJ300,VJA300..V,Z |
1 | ||
| 88716-60D20 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88G16N - TUBE, LIQUID, NO.2 | ||||
| 88716-60D40 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88716-60D40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88716-60D40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| Common parts | ||||
| 90178-06030 | ||||
| 91551-A0630 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 3 OF 3(2104- )
REAR,W(REAR COOLER) & W(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88561Q - PACKING, COOLING BOX COVER, NO.1 | ||||
| 88561-60060 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88561-60060 |
GRJ300,VJA300..V,Z COOL BOX-WITH |
1 | ||
| 88561R - PACKING, COOLING BOX COVER, NO.2 | ||||
| 88561-60070 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88561-60070 |
GRJ300,VJA300..V,Z COOL BOX-WITH |
1 | ||
| 88688G - BRACKET, COOLER REFRIGERANT PIPE | ||||
| 88688-60D50 |
GRJ300,VJA300..V,Z |
1 | ||
| 88710U - RING, O, NO.4(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14120 |
VJA300..A..(EUR,GEN) ID=10.8,OD=15.6,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 90099-14120 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=10.8,OD=15.6 |
1 | ||
| 90099-14119 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=6.7,OD=10.3 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14120 |
VJA300..A..(EUR,GEN) ID=10.8,OD=15.6,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88710U - RING, O, NO.4(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14120 |
VJA300..A..(EUR,GEN) ID=10.8,OD=15.6,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 90099-14120 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=10.8,OD=15.6 |
1 | ||
| 90099-14119 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=6.7,OD=10.3 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14120 |
VJA300..A..(EUR,GEN) ID=10.8,OD=15.6,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88710V - RING, O, NO.5(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14119 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=6.7,OD=10.3 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 90099-14121 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=13.4,OD=18.2 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14121 |
VJA300..A..(EUR,GEN) ID=13.4,OD=18.2,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14121 |
VJA300..A..(EUR,GEN) ID=13.4,OD=18.2,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88710V - RING, O, NO.5(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14119 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=6.7,OD=10.3 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 90099-14121 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=13.4,OD=18.2 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14121 |
VJA300..A..(EUR,GEN) ID=13.4,OD=18.2,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14121 |
VJA300..A..(EUR,GEN) ID=13.4,OD=18.2,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88717U - TUBE, SUCTION, NO.1 | ||||
| 88717-60B50 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88717Z - TUBE, SUCTION, NO.2 | ||||
| 88717-60B60 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88717-60B60 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88717-60B60 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60B40 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
2 | ||
| 88718-60B40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
2 | ||
| 88718-60B40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
2 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60B40 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
2 | ||
| 88718-60B40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
2 | ||
| 88718-60B40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
2 | ||
| 88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60B50 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88718-60B50 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88718-60B50 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88718U - CLAMP, NO.6(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60B60 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88718-60B60 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88718-60B60 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88718V - CLAMP, NO.7(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60B70 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88718-60B70 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88718-60B70 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88G10 - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.4 | ||||
| 88710-60J70 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88710-60J60 |
VJA300..A..(EUR,GEN) COOL BOX-WITH |
1 | ||
| 88710-60J80 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88710-60J70 |
GRJ300,VJA300..V,Z COOL BOX-WITH |
1 | ||
| 88710-60J80 |
GRJ300,VJA300..V,Z |
1 | ||
| 88G10A - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.5 | ||||
| 88710-60J90 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88710-60K00 |
GRJ300,VJA300..V,Z |
1 | ||
| 88710-60J90 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88G16M - TUBE, LIQUID, NO.1 | ||||
| 88716-60D30 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88716-60D20 |
GRJ300,VJA300..V,Z COOL BOX-WITH |
1 | ||
| 88716-60D30 |
GRJ300,VJA300..V,Z |
1 | ||
| 88716-60D20 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88G16N - TUBE, LIQUID, NO.2 | ||||
| 88716-60D40 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88716-60D40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88716-60D40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88H99D - COVER, COOLING BOX, NO.1 | ||||
| 88899-60560 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88899-60560 |
GRJ300,VJA300..V,Z COOL BOX-WITH |
1 | ||
| 88H99E - COVER, COOLING BOX, NO.2 | ||||
| 88899-60570 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88899-60570 |
GRJ300,VJA300..V,Z COOL BOX-WITH |
1 | ||
| Common parts | ||||
| 90178-06030 | ||||
| 91551-A0630 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 3 OF 3(2104- )
REAR,W(REAR AIC) & W/O(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88688G - BRACKET, COOLER REFRIGERANT PIPE | ||||
| 88688-60D50 |
GRJ300,VJA300..V,Z |
1 | ||
| 88710U - RING, O, NO.4(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14120 |
VJA300..A..(EUR,GEN) ID=10.8,OD=15.6,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 90099-14120 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=10.8,OD=15.6 |
1 | ||
| 90099-14119 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=6.7,OD=10.3 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14120 |
VJA300..A..(EUR,GEN) ID=10.8,OD=15.6,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88710U - RING, O, NO.4(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14120 |
VJA300..A..(EUR,GEN) ID=10.8,OD=15.6,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 90099-14120 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=10.8,OD=15.6 |
1 | ||
| 90099-14119 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=6.7,OD=10.3 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14120 |
VJA300..A..(EUR,GEN) ID=10.8,OD=15.6,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88710V - RING, O, NO.5(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14119 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=6.7,OD=10.3 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 90099-14121 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=13.4,OD=18.2 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14121 |
VJA300..A..(EUR,GEN) ID=13.4,OD=18.2,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14121 |
VJA300..A..(EUR,GEN) ID=13.4,OD=18.2,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88710V - RING, O, NO.5(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14119 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=6.7,OD=10.3 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 90099-14121 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=13.4,OD=18.2 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14121 |
VJA300..A..(EUR,GEN) ID=13.4,OD=18.2,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14121 |
VJA300..A..(EUR,GEN) ID=13.4,OD=18.2,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88717U - TUBE, SUCTION, NO.1 | ||||
| 88717-60B50 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88717Z - TUBE, SUCTION, NO.2 | ||||
| 88717-60B60 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88717-60B60 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88717-60B60 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60B40 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
2 | ||
| 88718-60B40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
2 | ||
| 88718-60B40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
2 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60B40 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
2 | ||
| 88718-60B40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
2 | ||
| 88718-60B40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
2 | ||
| 88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60B50 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88718-60B50 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88718-60B50 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88718U - CLAMP, NO.6(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60B60 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88718-60B60 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88718-60B60 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88718V - CLAMP, NO.7(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60B70 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88718-60B70 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88718-60B70 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-60470 |
GRJ300,VJA300..V,Z |
1 | ||
| 88899-60470 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88G10 - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.4 | ||||
| 88710-60J70 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88710-60J60 |
VJA300..A..(EUR,GEN) COOL BOX-WITH |
1 | ||
| 88710-60J80 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88710-60J70 |
GRJ300,VJA300..V,Z COOL BOX-WITH |
1 | ||
| 88710-60J80 |
GRJ300,VJA300..V,Z |
1 | ||
| 88G10A - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.5 | ||||
| 88710-60J90 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88710-60K00 |
GRJ300,VJA300..V,Z |
1 | ||
| 88710-60J90 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88G16M - TUBE, LIQUID, NO.1 | ||||
| 88716-60D30 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88716-60D20 |
GRJ300,VJA300..V,Z COOL BOX-WITH |
1 | ||
| 88716-60D30 |
GRJ300,VJA300..V,Z |
1 | ||
| 88716-60D20 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88G16N - TUBE, LIQUID, NO.2 | ||||
| 88716-60D40 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88716-60D40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88716-60D40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| Common parts | ||||
| 90178-06030 | ||||
| 91551-A0630 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8716 | ||||
ILLUST NO. 3 OF 3(2104- )
REAR,W(REAR AIC & COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88561Q - PACKING, COOLING BOX COVER, NO.1 | ||||
| 88561-60060 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88561-60060 |
GRJ300,VJA300..V,Z COOL BOX-WITH |
1 | ||
| 88561R - PACKING, COOLING BOX COVER, NO.2 | ||||
| 88561-60070 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88561-60070 |
GRJ300,VJA300..V,Z COOL BOX-WITH |
1 | ||
| 88688G - BRACKET, COOLER REFRIGERANT PIPE | ||||
| 88688-60D50 |
GRJ300,VJA300..V,Z |
1 | ||
| 88710U - RING, O, NO.4(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14120 |
VJA300..A..(EUR,GEN) ID=10.8,OD=15.6,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 90099-14120 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=10.8,OD=15.6 |
1 | ||
| 90099-14119 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=6.7,OD=10.3 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14120 |
VJA300..A..(EUR,GEN) ID=10.8,OD=15.6,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88710U - RING, O, NO.4(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14120 |
VJA300..A..(EUR,GEN) ID=10.8,OD=15.6,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 90099-14120 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=10.8,OD=15.6 |
1 | ||
| 90099-14119 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=6.7,OD=10.3 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14120 |
VJA300..A..(EUR,GEN) ID=10.8,OD=15.6,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88710V - RING, O, NO.5(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14119 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=6.7,OD=10.3 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 90099-14121 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=13.4,OD=18.2 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14121 |
VJA300..A..(EUR,GEN) ID=13.4,OD=18.2,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14121 |
VJA300..A..(EUR,GEN) ID=13.4,OD=18.2,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88710V - RING, O, NO.5(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14119 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=6.7,OD=10.3 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 90099-14121 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC ID=13.4,OD=18.2 |
1 | ||
| 90099-14119 |
VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14121 |
VJA300..A..(EUR,GEN) ID=13.4,OD=18.2,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 90099-14121 |
VJA300..A..(EUR,GEN) ID=13.4,OD=18.2,AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88717U - TUBE, SUCTION, NO.1 | ||||
| 88717-60B50 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88717Z - TUBE, SUCTION, NO.2 | ||||
| 88717-60B60 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88717-60B60 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88717-60B60 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60B40 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
2 | ||
| 88718-60B40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
2 | ||
| 88718-60B40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
2 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60B40 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
2 | ||
| 88718-60B40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
2 | ||
| 88718-60B40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
2 | ||
| 88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60B50 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88718-60B50 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88718-60B50 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88718U - CLAMP, NO.6(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60B60 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88718-60B60 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88718-60B60 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88718V - CLAMP, NO.7(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-60B70 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88718-60B70 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88718-60B70 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88G10 - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.4 | ||||
| 88710-60J70 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88710-60J60 |
VJA300..A..(EUR,GEN) COOL BOX-WITH |
1 | ||
| 88710-60J80 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88710-60J70 |
GRJ300,VJA300..V,Z COOL BOX-WITH |
1 | ||
| 88710-60J80 |
GRJ300,VJA300..V,Z |
1 | ||
| 88G10A - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.5 | ||||
| 88710-60J90 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88710-60K00 |
GRJ300,VJA300..V,Z |
1 | ||
| 88710-60J90 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88G16M - TUBE, LIQUID, NO.1 | ||||
| 88716-60D30 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88716-60D20 |
GRJ300,VJA300..V,Z COOL BOX-WITH |
1 | ||
| 88716-60D30 |
GRJ300,VJA300..V,Z |
1 | ||
| 88716-60D20 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88G16N - TUBE, LIQUID, NO.2 | ||||
| 88716-60D40 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88716-60D40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 88716-60D40 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88H99D - COVER, COOLING BOX, NO.1 | ||||
| 88899-60560 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88899-60560 |
GRJ300,VJA300..V,Z COOL BOX-WITH |
1 | ||
| 88H99E - COVER, COOLING BOX, NO.2 | ||||
| 88899-60570 |
VJA300..A..(EUR,GEN) AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH |
1 | ||
| 88899-60570 |
GRJ300,VJA300..V,Z COOL BOX-WITH |
1 | ||
| Common parts | ||||
| 90178-06030 | ||||
| 91551-A0630 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
