VJA300R-GNUVZ (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999
Engine V35AFTS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )

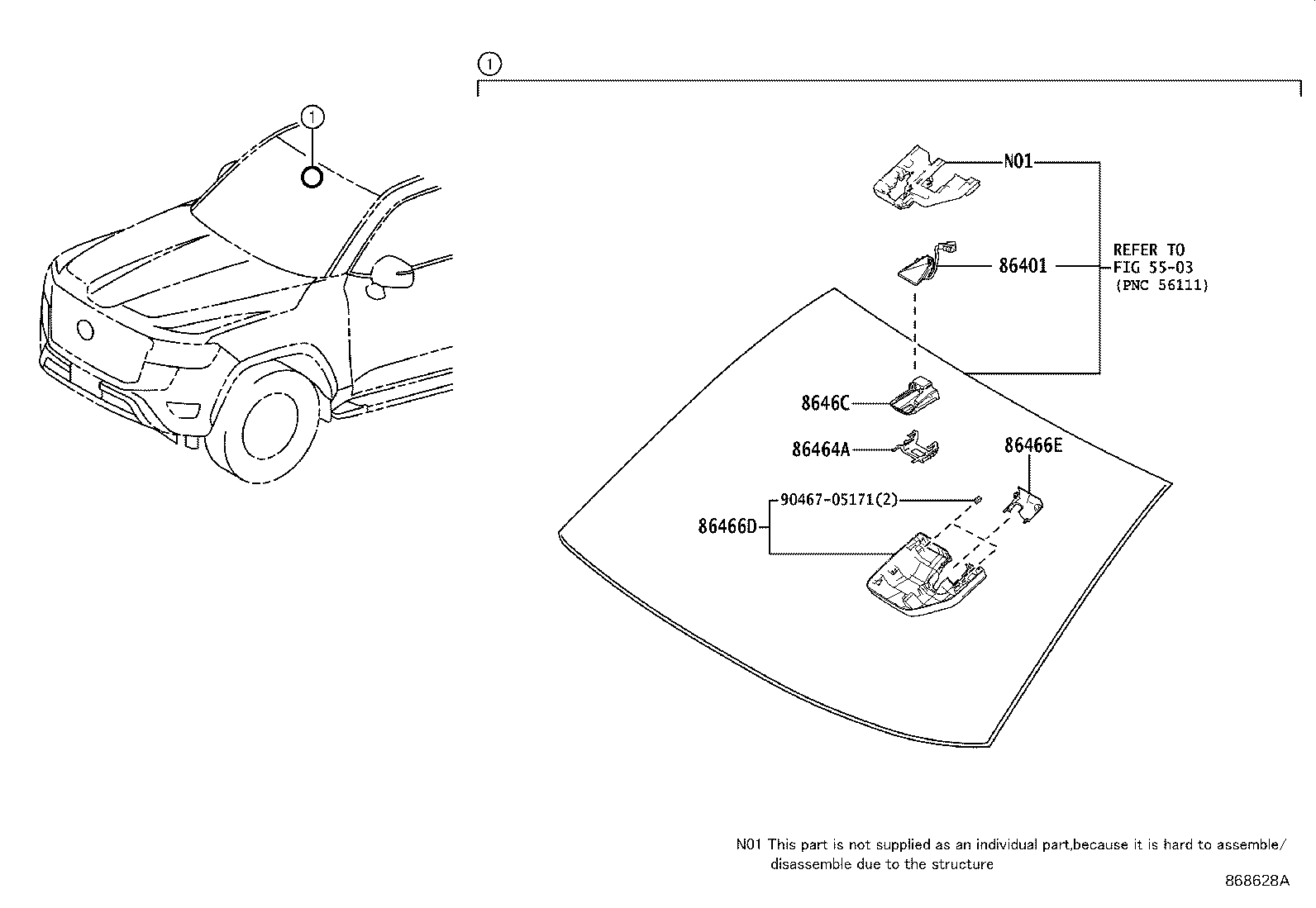

Click highlighted areas on diagram

diagram 5503 86401 86464A 86466D 86466E 8646C 9046705171
Part # Description Qty Price
86401 - HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER
86401-60030

GRJ300..A,G;VJA300..A..GCC;VJA300..EUR,GEN

ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)

 1
86464A - LATCH, FORWARD RECOGNITION
86464-26010

GRJ300..A,G;VJA300..A..GCC;VJA300..EUR,GEN

ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)

 1
86466D - COVER, FORWARD RECOGNITION, NO.1
86466-60080

VJA300..RHD

ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)

 1
86466E - COVER, FORWARD RECOGNITION, NO.2
86466-60100

VJA300..RHD

ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)

 1
8646C - CAMERA, FORWARD RECOGNITION
8646C-60060

VJA300..(V,Z)..(EUR,GEN)

ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE),*614

 1
8646C-60100

VJA300..A;GRJ300..A,G

ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE),*614

 1
Common parts
90467-05171
Linked diagrams
5503
