VJA300R-GNUVZ (2021)
Toyota Land Cruiser

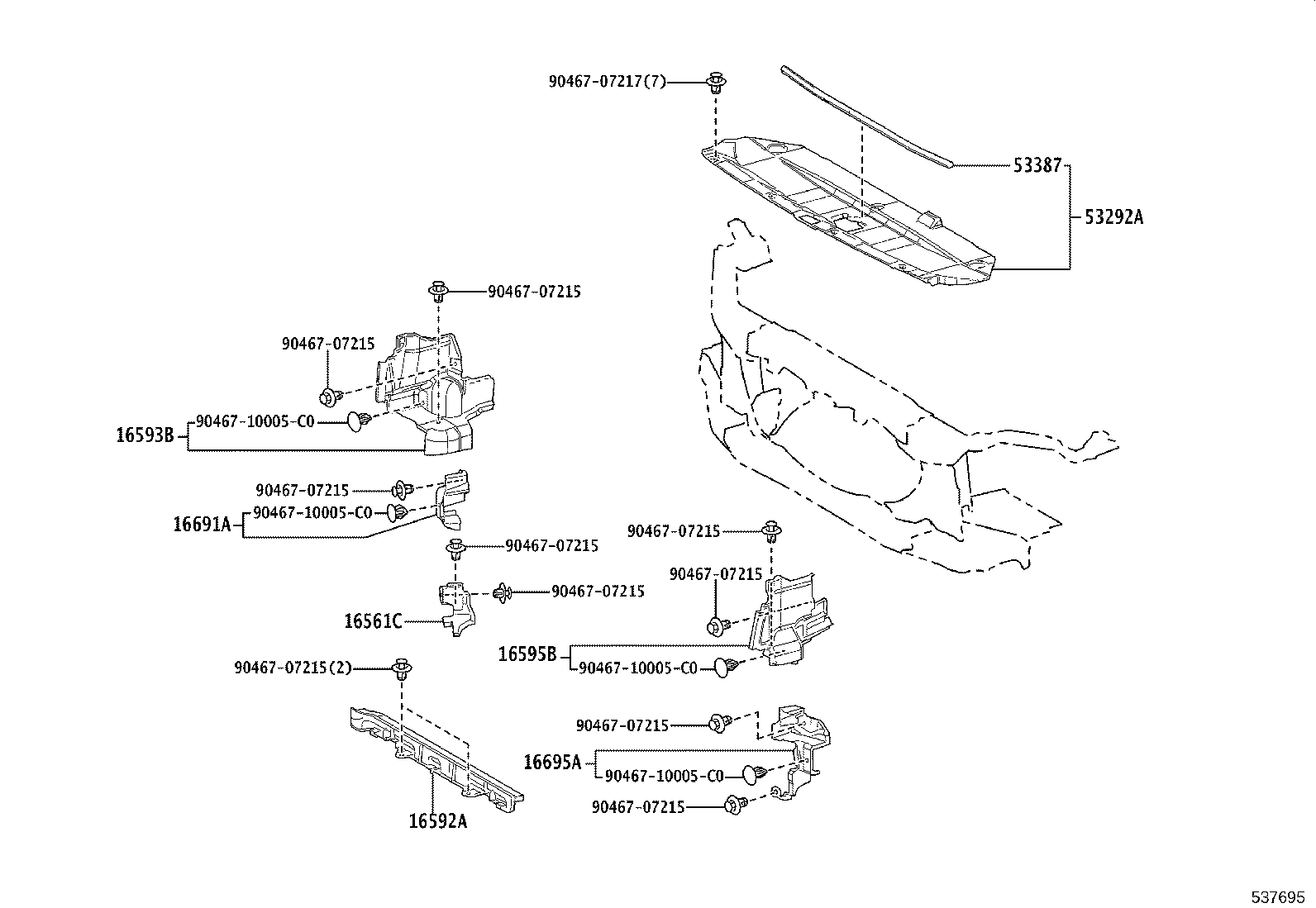

ILLUST NO. 1 OF 3(2104- )VJA300
AIRGUIDE & RADIATOR SUPPORT COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16561C - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-70020 |
V35AFTS..VJA300 |
1 | ||
| 16592A - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-70011 |
V35AFTS,1GRFE..GRJ300,VJA300 |
1 | ||
| 16593B - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-70020 |
V35AFTS..VJA300 |
1 | ||
| 16595B - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-70030 |
V35AFTS..VJA300 |
1 | ||
| 16691A - PLATE, RADIATOR SIDE AIR GUIDE, FRONT RH | ||||
| 16691-70010 |
V35AFTS..VJA300 |
1 | ||
| 16695A - PLATE, RADIATOR SIDE AIR GUIDE, FRONT LH | ||||
| 16695-70010 |
V35AFTS..VJA300 |
1 | ||
| 53292A - SEAL, RADIATOR SUPPORT, UPPER | ||||
| 53292-60210 |
GRJ300,VJA300 |
1 | ||
| 53387 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-60170 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90467-07215 | ||||
| 90467-07217 | ||||
| 90467-10005C0 | ||||

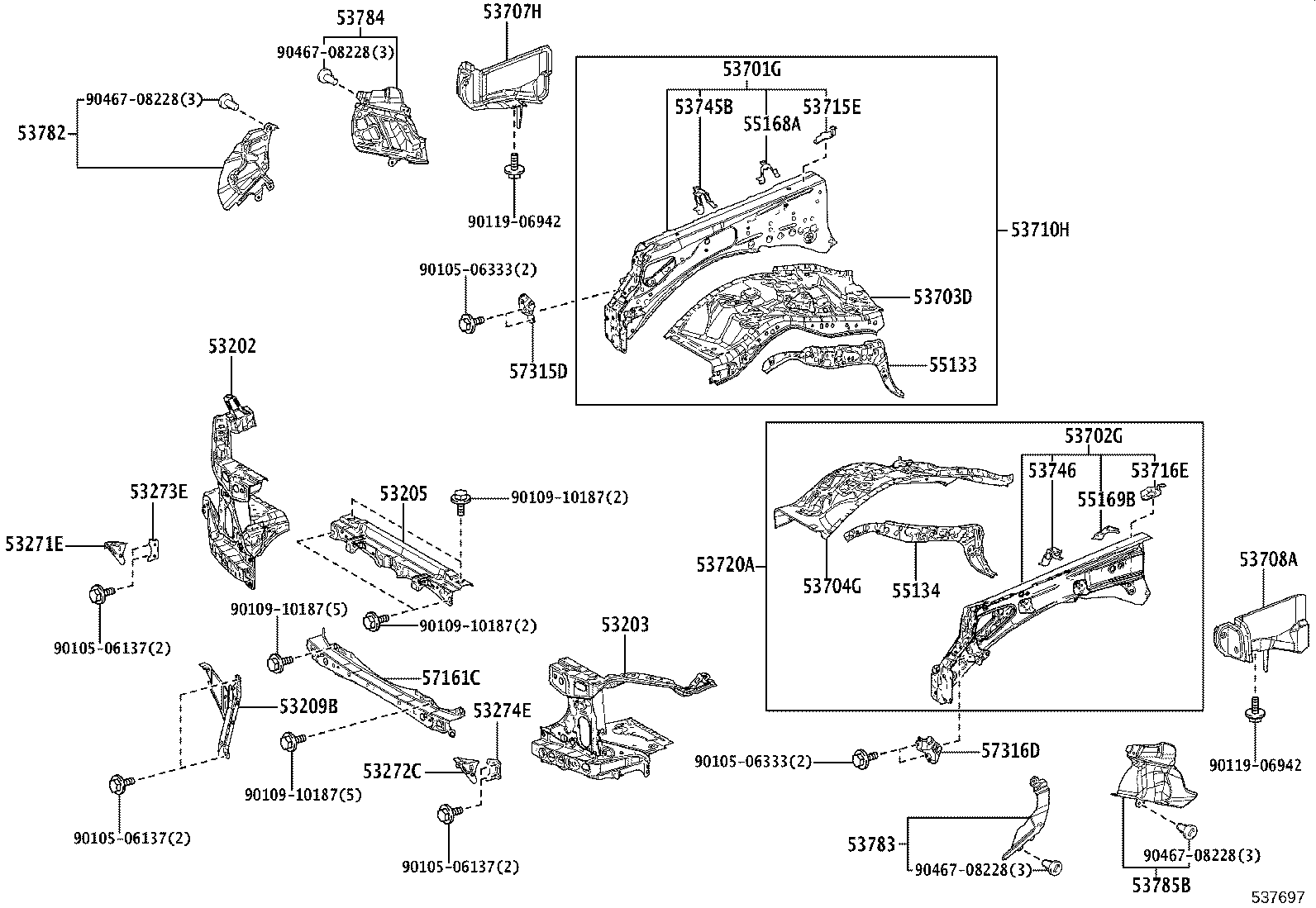

ILLUST NO. 2 OF 3(2104- )VJA300
RADIATOR SUPPORT & FENDER APRON
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53206-60030 |
GRJ300,VJA300 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53207-60190 |
GRJ300,VJA300 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-60100 |
GRJ300,VJA300 |
1 | ||
| 53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT | ||||
| 53209-60210 |
GRJ300,VJA300 |
1 | ||
| 53271E - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53271-60100 |
GRJ300,VJA300 |
1 | ||
| 53272C - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-60100 |
GRJ300,VJA300 |
1 | ||
| 53273E - BRACKET, FRONT BUMPER ARM MOUNTING, RH | ||||
| 53273-60090 |
GRJ300,VJA300 |
1 | ||
| 53274E - BRACKET, FRONT BUMPER ARM MOUNTING, LH | ||||
| 53274-60090 |
GRJ300,VJA300 |
1 | ||
| 53701G - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53710-60620 |
GRJ300,VJA300 |
1 | ||
| 53702G - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53720-60390 |
GRJ300,VJA300 |
1 | ||
| 53703D - APRON SUB-ASSY, FRONT FENDER, NO.2 RH | ||||
| 53703-60100 |
GRJ300,VJA300 |
1 | ||
| 53704G - APRON SUB-ASSY, FRONT FENDER, NO.2 LH | ||||
| 53704-60070 |
GRJ300,VJA300 |
1 | ||
| 53707H - EXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH | ||||
| 53707-60080 |
VJA300 |
1 | ||
| 53708A - EXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT LH | ||||
| 53708-60020 |
VJA300 |
1 | ||
| 53710H - APRON ASSY, FRONT FENDER, RH | ||||
| 53701-60G40 |
GRJ300,VJA300 |
1 | ||
| 53715E - EXTENSION, FRONT FENDER APRON, REAR RH | ||||
| 53715-60050 |
GRJ300,VJA300 |
1 | ||
| 53716E - EXTENSION, FRONT FENDER APRON, REAR LH | ||||
| 53716-60050 |
GRJ300,VJA300 |
1 | ||
| 53720A - APRON ASSY, FRONT FENDER, LH | ||||
| 53702-60C20 |
GRJ300,VJA300 |
1 | ||
| 53745B - REINFORCEMENT, FRONT FENDER APRON, REAR RH | ||||
| 53745-60120 |
GRJ300,VJA300 |
1 | ||
| 53746 - REINFORCEMENT, FRONT FENDER APRON, REAR LH | ||||
| 53746-60080 |
GRJ300,VJA300 |
1 | ||
| 53782 - PACKING, FRONT FENDER APRON TRIM, A | ||||
| 53781-60050 |
VJA300 |
1 | ||
| 53783 - PACKING, FRONT FENDER APRON TRIM, B | ||||
| 53782-60070 |
VJA300 |
1 | ||
| 53784 - PACKING, FRONT FENDER APRON TRIM, C | ||||
| 53783-60120 |
VJA300 |
1 | ||
| 53785B - PACKING, FRONT FENDER APRON TRIM, D | ||||
| 53784-60110 |
VJA300 |
1 | ||
| 55133 - PLATE, FRONT FENDER APRON SET, LOWER RH | ||||
| 55133-60070 |
GRJ300,VJA300 |
1 | ||
| 55134 - PLATE, FRONT FENDER APRON SET, LOWER LH | ||||
| 55134-60060 |
GRJ300,VJA300 |
1 | ||
| 55168A - BRACKET, FRONT FENDER MOUNTING, RH | ||||
| 55731-60100 |
GRJ300,VJA300 |
1 | ||
| 55169B - BRACKET, FRONT FENDER MOUNTING, LH | ||||
| 55732-60030 |
GRJ300,VJA300 |
1 | ||
| 57161C - MEMBER, FRONT CROSS | ||||
| 57162-60010 |
GRJ300,VJA300 |
1 | ||
| 57315D - OUTRIGGER, NO.3 RH | ||||
| 57315-60010 |
GRJ300,VJA300 |
1 | ||
| 57316D - OUTRIGGER, NO.3 LH | ||||
| 57316-60010 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90105-06137 | ||||
| 90105-06333 | ||||
| 90109-10187 | ||||
| 90119-06942 | ||||
| 90467-08228 | ||||

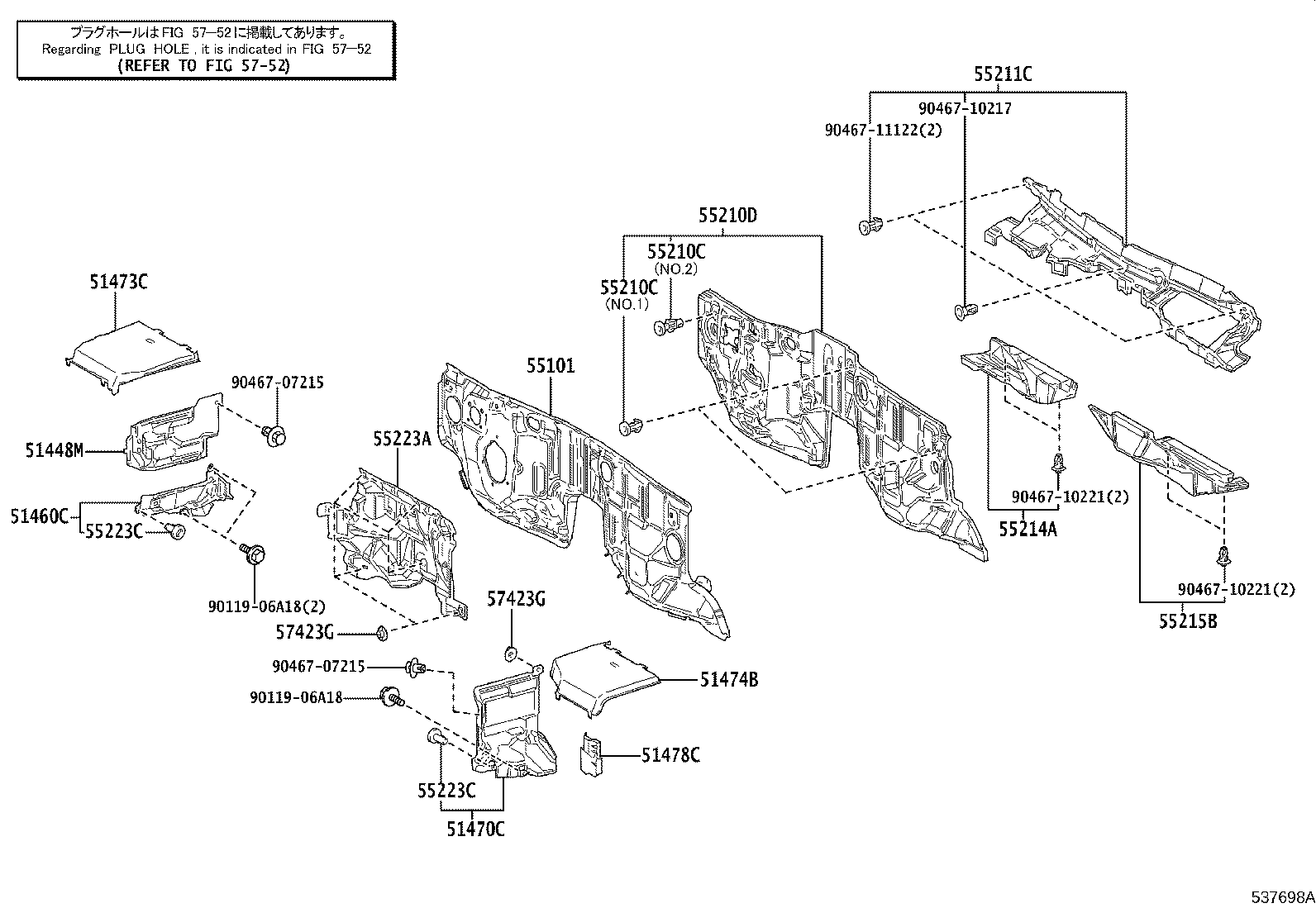

ILLUST NO. 3 OF 3(2104- )RHD
DASH PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51448M - COVER, ENGINE SIDE UNDER, RH | ||||
| 51448-60050 |
VJA300..RHD |
1 | ||
| 51460C - COVER ASSY, ENGINE SIDE UNDER, REAR RH | ||||
| 51460-60040 |
VJA300..RHD |
1 | ||
| 51470C - COVER ASSY, ENGINE SIDE UNDER, REAR LH | ||||
| 51470-60040 |
VJA300..RHD |
1 | ||
| 51473C - COVER, ENGINE SIDE, RH | ||||
| 51473-60070 |
VJA300 |
1 | ||
| 51474B - COVER, ENGINE SIDE, LH | ||||
| 51474-60080 |
VJA300 |
1 | ||
| 51478C - PLATE, ENGINE SIDE UNDER COVER, UPPER LH | ||||
| 51478-60100 |
VJA300 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-60J80 |
VJA300..RHD |
1 | ||
| 55210C - CLIP | ||||
| 90467-11123 |
VJA300..RHD NO.2:REFER ILLUST. |
1 | ||
| 90467-11122 |
VJA300..RHD NO.1:REFER ILLUST. |
2 | ||
| 55210C - CLIP | ||||
| 90467-11123 |
VJA300..RHD NO.2:REFER ILLUST. |
1 | ||
| 90467-11122 |
VJA300..RHD NO.1:REFER ILLUST. |
2 | ||
| 55210D - SILENCER ASSY, DASH PANEL | ||||
| 55210-60350 |
VJA300..RHD |
1 | ||
| 55211C - COVER, DASH PANEL INSULATOR | ||||
| 55211-60250 |
VJA300..RHD |
1 | ||
| 55214A - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-60050 |
VJA300..RHD |
1 | ||
| 55215B - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-60070 |
VJA300..RHD |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-60500 |
VJA300..RHD |
1 | ||
| 55223C - CLIP | ||||
| 90467-08228 |
VJA300 |
2 | ||
| 55223C - CLIP | ||||
| 90467-08228 |
VJA300 |
2 | ||
| 57423G - CLAMP, FRONT FLOOR | ||||
| 57423-26010 |
VJA300 |
6 | ||
| 57423G - CLAMP, FRONT FLOOR | ||||
| 57423-26010 |
VJA300 |
6 | ||
| Common parts | ||||
| 90119-06A18 | ||||
| 90467-07215 | ||||
| 90467-10217 | ||||
| 90467-10221 | ||||
| 90467-11122 | ||||
| Linked diagrams | ||||
| 5752 | ||||
