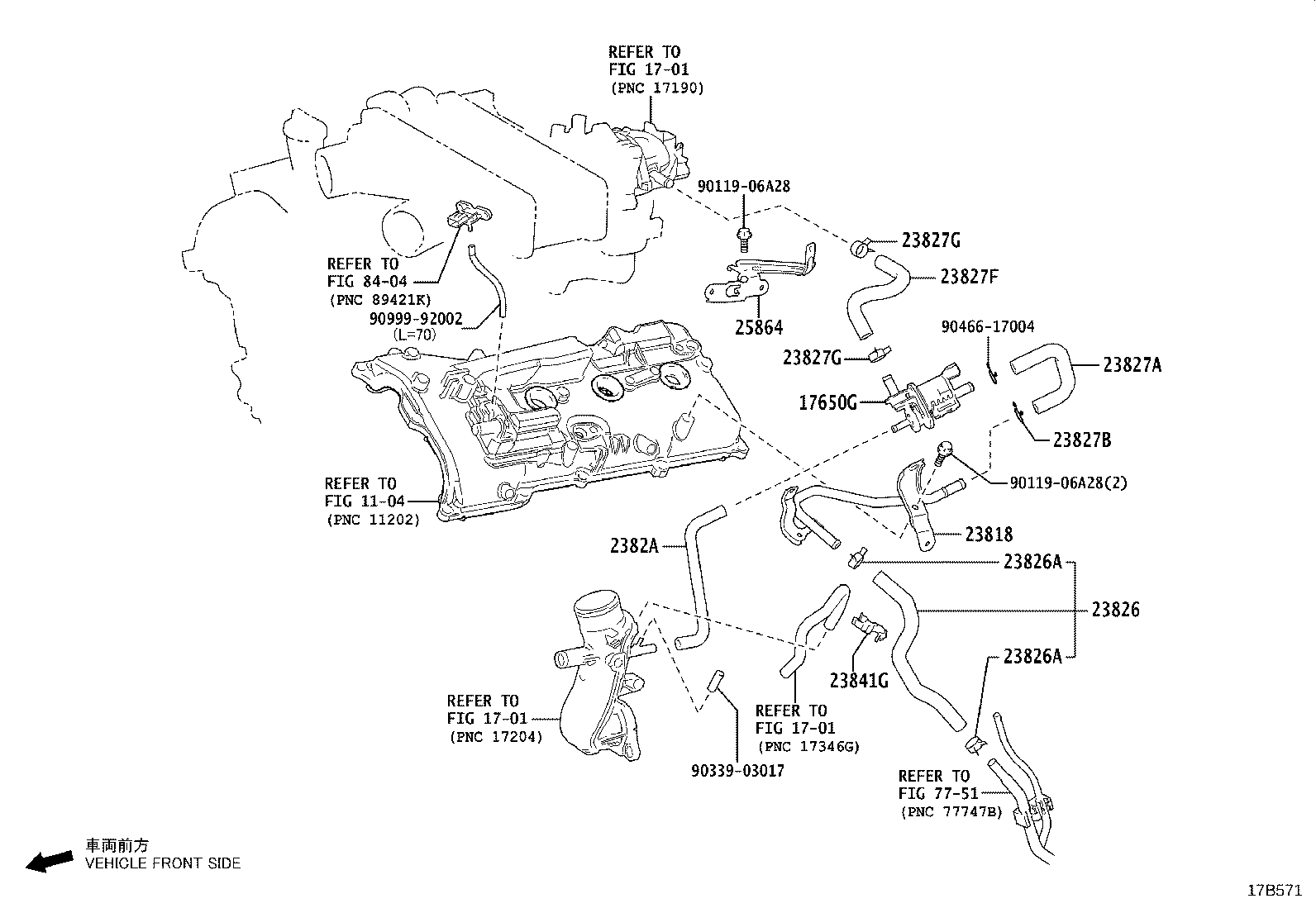

Toyota Land cruiser VJA300 VACUUM PIPING

Part #	Description	Period	Qty
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12284	V35AFTS..VJA300	04/2021 - 12/2999	1
23818 - PIPE, FUEL VAPOR FEED
23818-70070	V35AFTS..VJA300	04/2021 - 12/2999	1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-70110	V35AFTS..VJA300	04/2021 - 12/2999	1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96137-41901	V35AFTS..VJA300	04/2021 - 12/2999	2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96137-41901	V35AFTS..VJA300	04/2021 - 12/2999	2
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-70080	V35AFTS..VJA300	04/2021 - 12/2999	1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
90466-17004	V35AFTS..VJA300	04/2021 - 12/2999	1
23827F - HOSE, FUEL VAPOR FEED, NO.3
23826-70120	V35AFTS..VJA300	04/2021 - 12/2999	1
23827G - CLIP(FOR FUEL VAPOR FEED HOSE, NO.3)
96137-41901	V35AFTS..VJA300	04/2021 - 12/2999	2
23827G - CLIP(FOR FUEL VAPOR FEED HOSE, NO.3)
96137-41901	V35AFTS..VJA300	04/2021 - 12/2999	2
2382A - HOSE, FUEL VAPOR FEED, NO.4
23828-70020	V35AFTS..VJA300	04/2021 - 12/2999	1
23841G - CLAMP, FUEL HOSE
23841-70040	V35AFTS..VJA300	04/2021 - 12/2999	1
25864 - BRACKET, PURGE PRESSURE SENSOR
25864-70010	V35AFTS..VJA300	04/2021 - 12/2999	1
Common parts
90119-06A28
90339-03017
90466-17004
90999-92002
Linked diagrams
1104
1701
7751
8404

VJA300R-GNUVZ (2021)
