VJA300R-GNUVZ (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999
Engine V35AFTS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )V35AFTS

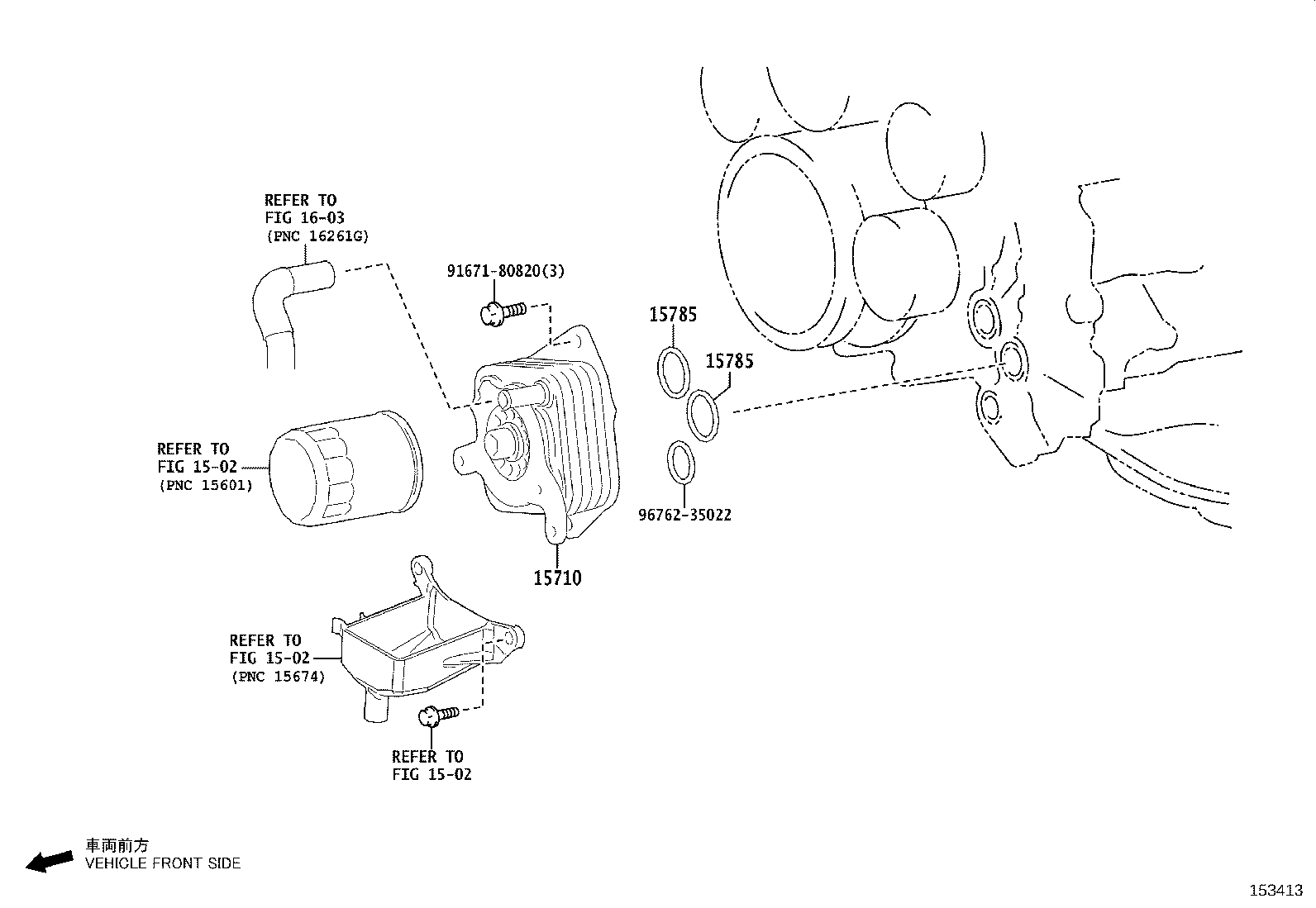

Click highlighted areas on diagram

diagram 1502 1502 1502 15710 15785 15785 1603 9167180820 9676235022
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15710-70060

V35AFTS..VJA300

 1
15785 - GASKET, OIL COOLER
15785-70010

V35AFTS..VJA300

 2
15785 - GASKET, OIL COOLER
15785-70010

V35AFTS..VJA300

 2
Common parts
91671-80820
96762-35022
Linked diagrams
1502
1603
