VJA300R-GNUAZ (2021)
Toyota Land Cruiser
(2104- )

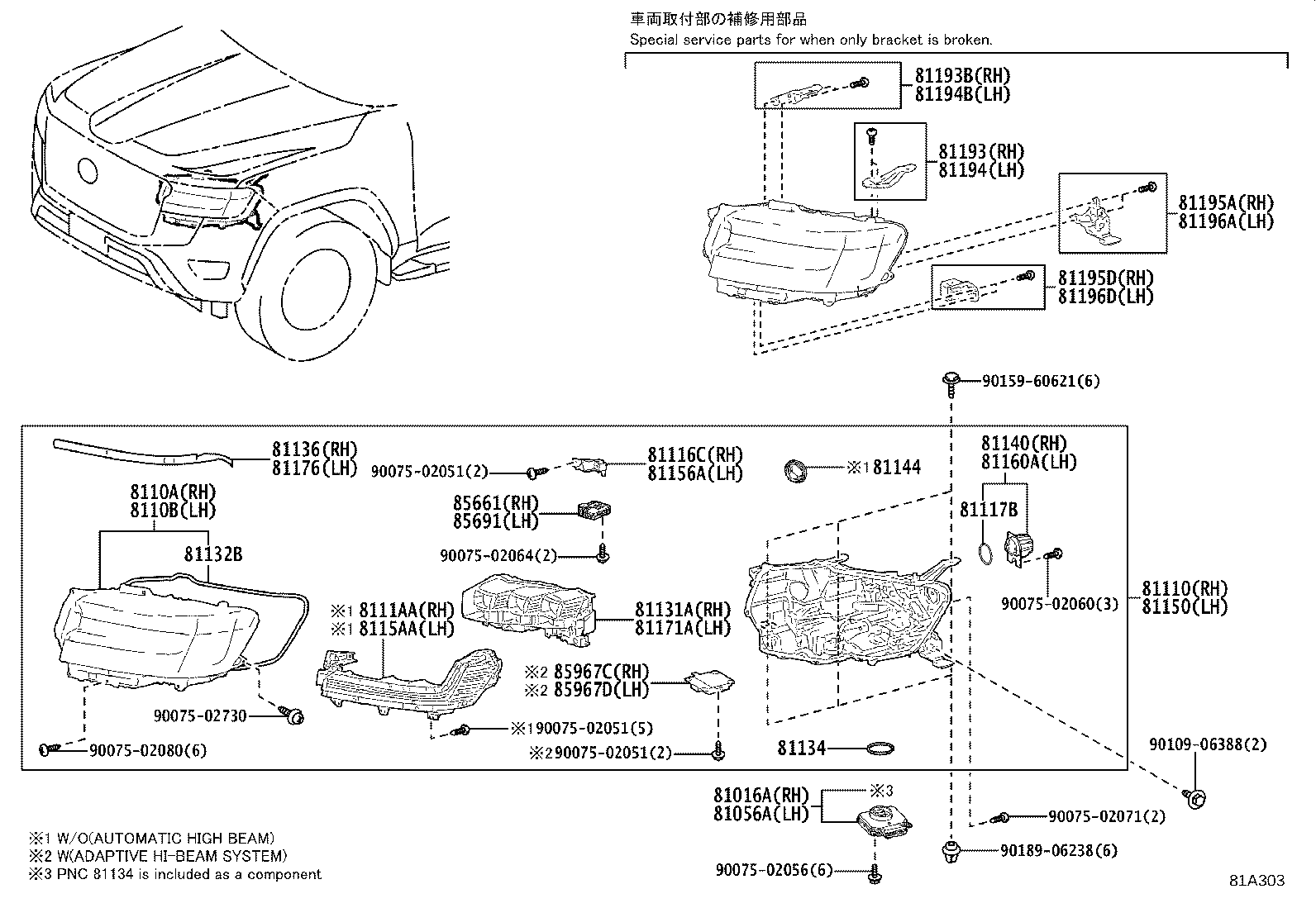

PROJECTOR TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81016A - COMPUTER SUB-ASSY, HEADLAMP, RH | ||||
| 81016-60Q70 |
GRJ300,VJA300..V..GCC;VJA300..(V,Z)..(EUR,GEN) |
1 | ||
| 81016-60Q50 |
VJA300..Z..(EUR,GEN) ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP) |
1 | ||
| 81056A - COMPUTER SUB-ASSY, HEADLAMP, LH | ||||
| 81056-60Q70 |
GRJ300,VJA300..V..GCC;VJA300..(V,Z)..(EUR,GEN) |
1 | ||
| 81056-60Q50 |
VJA300..Z..(EUR,GEN) ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP) |
1 | ||
| 8110A - LENS SUB-ASSY, HEADLAMP, RH | ||||
| 8110A-60Q50 |
GRJ300,VJA300..V,Z |
1 | ||
| 8110A-60R10 |
GRJ300,VJA300..A,G |
1 | ||
| 8110B - LENS SUB-ASSY, HEADLAMP, LH | ||||
| 8110B-60R10 |
GRJ300,VJA300..A,G |
1 | ||
| 8110B-60Q50 |
GRJ300,VJA300..V,Z |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81145-60Q60 |
VJA300..RHD..(V,Z) |
1 | ||
| 81145-60Q30 |
VJA300..RHD..Z ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP) |
1 | ||
| 81116C - BRACKET, HEADLAMP, RH | ||||
| 81116-48F80 |
GRJ300,VJA300..V,Z |
1 | ||
| 81117B - GASKET | ||||
| 90075-23006 |
GRJ300,VJA300..V,Z |
2 | ||
| 8111AA - UNIT, HEADLAMP TURN SIGNAL LED, RH | ||||
| 8112A-60Q50 |
GRJ300,VJA300..V,Z |
1 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-60Q60 |
VJA300..RHD..(V,Z) |
1 | ||
| 81130-60Q30 |
VJA300..RHD..Z ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP) |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-30E40 |
GRJ300,VJA300 |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23003 |
GRJ300,VJA300..V,Z |
4 | ||
| 81136 - PROTECTOR, HEADLAMP, NO.1 RH | ||||
| 81117-60Q50 |
GRJ300,VJA300 |
1 | ||
| 81140 - UNIT ASSY, HEADLAMP LED, RH | ||||
| 81140-60R00 |
VJA300..A..GEN |
1 | ||
| 81140-60Q50 |
GRJ300,VJA300..V,Z |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-66016 |
GRJ300,VJA300 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81185-60Q60 |
VJA300..RHD..(V,Z) |
1 | ||
| 81185-60Q30 |
VJA300..RHD..Z ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP) |
1 | ||
| 81156A - BRACKET, HEADLAMP, LH | ||||
| 81156-48F80 |
GRJ300,VJA300..V,Z |
1 | ||
| 8115AA - UNIT, HEADLAMP TURN SIGNAL LED, LH | ||||
| 8116A-60Q50 |
GRJ300,VJA300..V,Z |
1 | ||
| 81160A - UNIT ASSY, HEADLAMP LED, LH | ||||
| 81160-60R00 |
VJA300..A..GEN |
1 | ||
| 81160-60Q50 |
GRJ300,VJA300..V,Z |
1 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-60Q60 |
VJA300..RHD..(V,Z) |
1 | ||
| 81170-60Q30 |
VJA300..RHD..Z ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP) |
1 | ||
| 81176 - PROTECTOR, HEADLAMP, NO.1 LH | ||||
| 81157-60Q50 |
GRJ300,VJA300 |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-60200 |
GRJ300,VJA300 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-60210 |
GRJ300,VJA300 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-60200 |
GRJ300,VJA300 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-60210 |
GRJ300,VJA300 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-60240 |
GRJ300,VJA300..A,G |
1 | ||
| 81195-60200 |
GRJ300,VJA300..V,Z |
1 | ||
| 81195D - RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2 | ||||
| 81195-60250 |
GRJ300,VJA300..A,G |
1 | ||
| 81195-60210 |
GRJ300,VJA300..V,Z |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-60240 |
GRJ300,VJA300..A,G |
1 | ||
| 81196-60200 |
GRJ300,VJA300..V,Z |
1 | ||
| 81196D - RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2 | ||||
| 81196-60210 |
GRJ300,VJA300..V,Z |
1 | ||
| 81196-60250 |
GRJ300,VJA300..A,G |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-45010 |
GRJ300,VJA300..V,Z |
1 | ||
| 85691 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85691-45010 |
GRJ300,VJA300..V,Z |
1 | ||
| 85967C - COMPUTER, LIGHT CONTROL LED, RH | ||||
| 85967-48100 |
VJA300..Z..(EUR,GEN) ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP) |
1 | ||
| 85967D - COMPUTER, LIGHT CONTROL LED, LH | ||||
| 85967-48090 |
VJA300..Z..(EUR,GEN) ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&HEADLAMP-PROJECTOR(*AHS & SEQUENTIAL TURN LAMP) |
1 | ||
| Common parts | ||||
| 90075-02051 | ||||
| 90075-02056 | ||||
| 90075-02060 | ||||
| 90075-02064 | ||||
| 90075-02071 | ||||
| 90075-02080 | ||||
| 90075-02730 | ||||
| 90109-06388 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
(2104- )

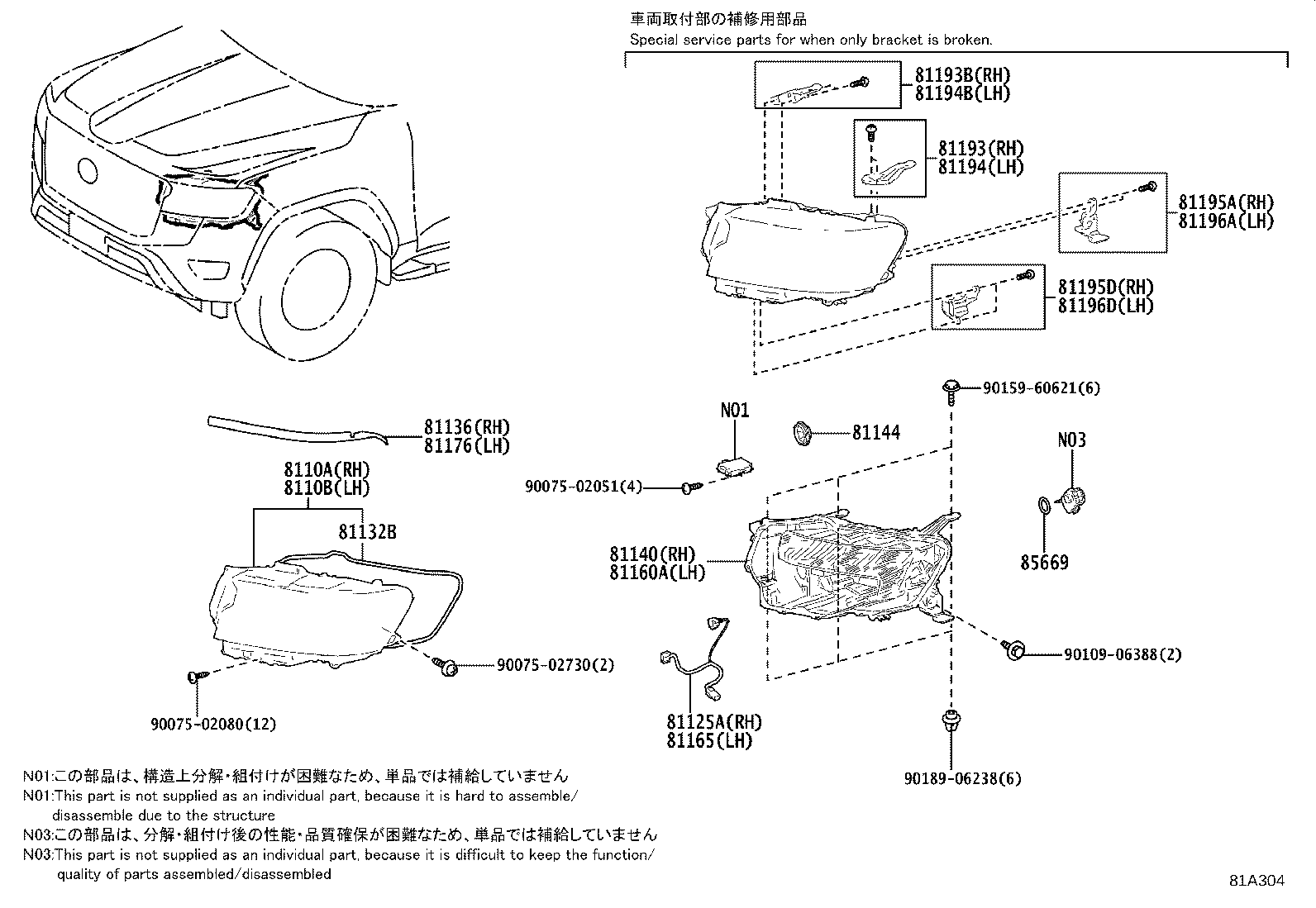

MULTI REFLECTOR TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 8110A - LENS SUB-ASSY, HEADLAMP, RH | ||||
| 8110A-60Q50 |
GRJ300,VJA300..V,Z |
1 | ||
| 8110A-60R10 |
GRJ300,VJA300..A,G |
1 | ||
| 8110B - LENS SUB-ASSY, HEADLAMP, LH | ||||
| 8110B-60R10 |
GRJ300,VJA300..A,G |
1 | ||
| 8110B-60Q50 |
GRJ300,VJA300..V,Z |
1 | ||
| 81125A - CORD, HEADLAMP, RH | ||||
| 81125-60R10 |
GRJ300,VJA300..A,G |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-30E40 |
GRJ300,VJA300 |
2 | ||
| 81136 - PROTECTOR, HEADLAMP, NO.1 RH | ||||
| 81117-60Q50 |
GRJ300,VJA300 |
1 | ||
| 81140 - UNIT ASSY, HEADLAMP LED, RH | ||||
| 81140-60R00 |
VJA300..A..GEN |
1 | ||
| 81140-60Q50 |
GRJ300,VJA300..V,Z |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-66016 |
GRJ300,VJA300 |
2 | ||
| 81160A - UNIT ASSY, HEADLAMP LED, LH | ||||
| 81160-60R00 |
VJA300..A..GEN |
1 | ||
| 81160-60Q50 |
GRJ300,VJA300..V,Z |
1 | ||
| 81165 - CORD, HEADLAMP, LH | ||||
| 81125-60R10 |
GRJ300,VJA300..A,G |
1 | ||
| 81176 - PROTECTOR, HEADLAMP, NO.1 LH | ||||
| 81157-60Q50 |
GRJ300,VJA300 |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-60200 |
GRJ300,VJA300 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-60210 |
GRJ300,VJA300 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-60200 |
GRJ300,VJA300 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-60210 |
GRJ300,VJA300 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-60240 |
GRJ300,VJA300..A,G |
1 | ||
| 81195-60200 |
GRJ300,VJA300..V,Z |
1 | ||
| 81195D - RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2 | ||||
| 81195-60250 |
GRJ300,VJA300..A,G |
1 | ||
| 81195-60210 |
GRJ300,VJA300..V,Z |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-60240 |
GRJ300,VJA300..A,G |
1 | ||
| 81196-60200 |
GRJ300,VJA300..V,Z |
1 | ||
| 81196D - RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2 | ||||
| 81196-60210 |
GRJ300,VJA300..V,Z |
1 | ||
| 81196-60250 |
GRJ300,VJA300..A,G |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
GRJ300,VJA300..A,G |
2 | ||
| Common parts | ||||
| 90075-02051 | ||||
| 90075-02080 | ||||
| 90075-02730 | ||||
| 90109-06388 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
