VJA300R-GNUAZ (2021)
Toyota Land Cruiser
(2104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43201-60080 |
GRJ300,VJA300 |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43202-60080 |
GRJ300,VJA300 |
1 | ||
| 43310B - RING, SET (FOR DUST COVER) | ||||
| 90522-48025 |
GRJ300,VJA300 NO.2:REFER ILLUST. |
2 | ||
| 90580-10001 |
GRJ300,VJA300 NO.1:REFER ILLUST. |
2 | ||
| 43310B - RING, SET (FOR DUST COVER) | ||||
| 90522-48025 |
GRJ300,VJA300 NO.2:REFER ILLUST. |
2 | ||
| 90580-10001 |
GRJ300,VJA300 NO.1:REFER ILLUST. |
2 | ||
| 43324B - COVER, FRONT UPPER BALL JOINT DUST, RH | ||||
| 43324-69105 |
GRJ300,VJA300 |
1 | ||
| 43324C - COVER, FRONT UPPER BALL JOINT DUST, LH | ||||
| 43324-69105 |
GRJ300,VJA300 |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-18004 |
GRJ300,VJA300 |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-18004 |
GRJ300,VJA300 |
1 | ||
| 43345D - COVER, LOWER BALL JOINT DUST, RH | ||||
| 43345-09015 |
GRJ300,VJA300 |
1 | ||
| 43345E - COVER, LOWER BALL JOINT DUST, LH | ||||
| 43345-09015 |
GRJ300,VJA300 |
1 | ||
| 43350A - NUT (FOR FRONT UPPER BALL JOINT RH) | ||||
| 90171-14014 |
GRJ300,VJA300 |
1 | ||
| 43360A - NUT (FOR FRONT UPPER BALL JOINT LH) | ||||
| 90171-14014 |
GRJ300,VJA300 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-60060 |
GRJ300,VJA300 |
1 | ||
| 48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90105-18013 |
GRJ300,VJA300 |
2 | ||
| 48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90105-18013 |
GRJ300,VJA300 |
2 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-60060 |
GRJ300,VJA300 |
1 | ||
| 48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90105-18013 |
GRJ300,VJA300 |
2 | ||
| 48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90105-18013 |
GRJ300,VJA300 |
2 | ||
| 48194C - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH | ||||
| 48190-60030 |
GRJ300,VJA300 |
1 | ||
| 48194D - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH | ||||
| 48190-60050 |
GRJ300,VJA300 |
1 | ||
| 48194E - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH | ||||
| 48198-60030 |
GRJ300,VJA300 |
2 | ||
| 48194E - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH | ||||
| 48198-60030 |
GRJ300,VJA300 |
2 | ||
| 48198C - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH | ||||
| 48190-60030 |
GRJ300,VJA300 |
1 | ||
| 48198D - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH | ||||
| 48190-60050 |
GRJ300,VJA300 |
1 | ||
| 48198E - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH | ||||
| 48198-60030 |
GRJ300,VJA300 |
2 | ||
| 48198E - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH | ||||
| 48198-60030 |
GRJ300,VJA300 |
2 | ||
| 48331D - BUMPER, FRONT SPRING, NO.1 RH | ||||
| 48304-60170 |
GRJ300,VJA300 |
2 | ||
| 48331D - BUMPER, FRONT SPRING, NO.1 RH | ||||
| 48304-60170 |
GRJ300,VJA300 |
2 | ||
| 48331E - BUMPER, FRONT SPRING, NO.1 LH | ||||
| 48304-60170 |
GRJ300,VJA300 |
2 | ||
| 48331E - BUMPER, FRONT SPRING, NO.1 LH | ||||
| 48304-60170 |
GRJ300,VJA300 |
2 | ||
| 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH | ||||
| 48610-60090 |
GRJ300,VJA300 |
1 | ||
| 48610F - BOLT(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90105-16099 |
GRJ300,VJA300 |
1 | ||
| 48610G - NUT(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 94151-21601 |
GRJ300,VJA300 |
1 | ||
| 48625 - ATTACHMENT, FRONT LOWER BALL JOINT, RH | ||||
| 48625-60030 |
GRJ300,VJA300 |
1 | ||
| 48626 - ATTACHMENT, FRONT LOWER BALL JOINT, LH | ||||
| 48626-60030 |
GRJ300,VJA300 |
1 | ||
| 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48630-60060 |
GRJ300,VJA300 |
1 | ||
| 48630B - BOLT(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90105-16099 |
GRJ300,VJA300 |
1 | ||
| 48630C - NUT(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 94151-21601 |
GRJ300,VJA300 |
1 | ||
| 48631A - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90948-02194 |
GRJ300,VJA300 |
2 | ||
| 48631A - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90948-02194 |
GRJ300,VJA300 |
2 | ||
| 48631C - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90948-02194 |
GRJ300,VJA300 |
2 | ||
| 48631C - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90948-02194 |
GRJ300,VJA300 |
2 | ||
| 48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH | ||||
| 48632-60050 |
GRJ300,VJA300 |
2 | ||
| 48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH | ||||
| 48632-60050 |
GRJ300,VJA300 |
2 | ||
| 48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH | ||||
| 48632-60050 |
GRJ300,VJA300 |
2 | ||
| 48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH | ||||
| 48632-60050 |
GRJ300,VJA300 |
2 | ||
| 48654E - BUSH, FRONT LOWER ARM, NO.1 RH | ||||
| 48654-60060 |
GRJ300,VJA300 |
1 | ||
| 48654F - BUSH, FRONT LOWER ARM, NO.1 LH | ||||
| 48654-60060 |
GRJ300,VJA300 |
1 | ||
| 48655D - BUSH, FRONT LOWER ARM, NO.2 RH | ||||
| 48655-60060 |
GRJ300,VJA300 |
1 | ||
| 48655E - BUSH, FRONT LOWER ARM, NO.2 LH | ||||
| 48655-60060 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90178-18003 | ||||
| 90252-04009 | ||||
| 90468-16029 | ||||
| 91674-A0825 | ||||

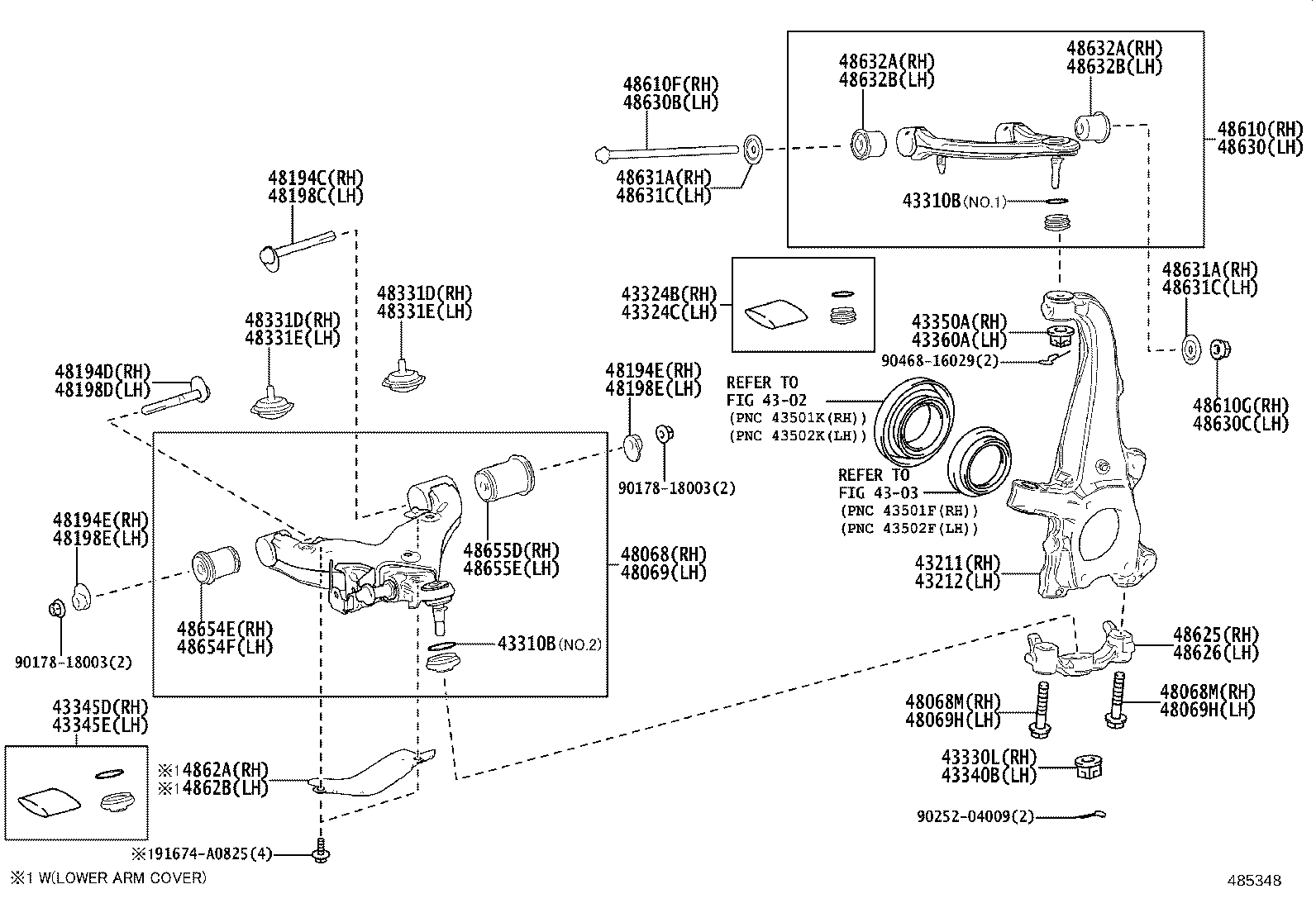

| Linked diagrams | ||||
| 4302 | ||||
| 4303 | ||||
