VJA300L-GNUZZV (2021)
Toyota Land Cruiser

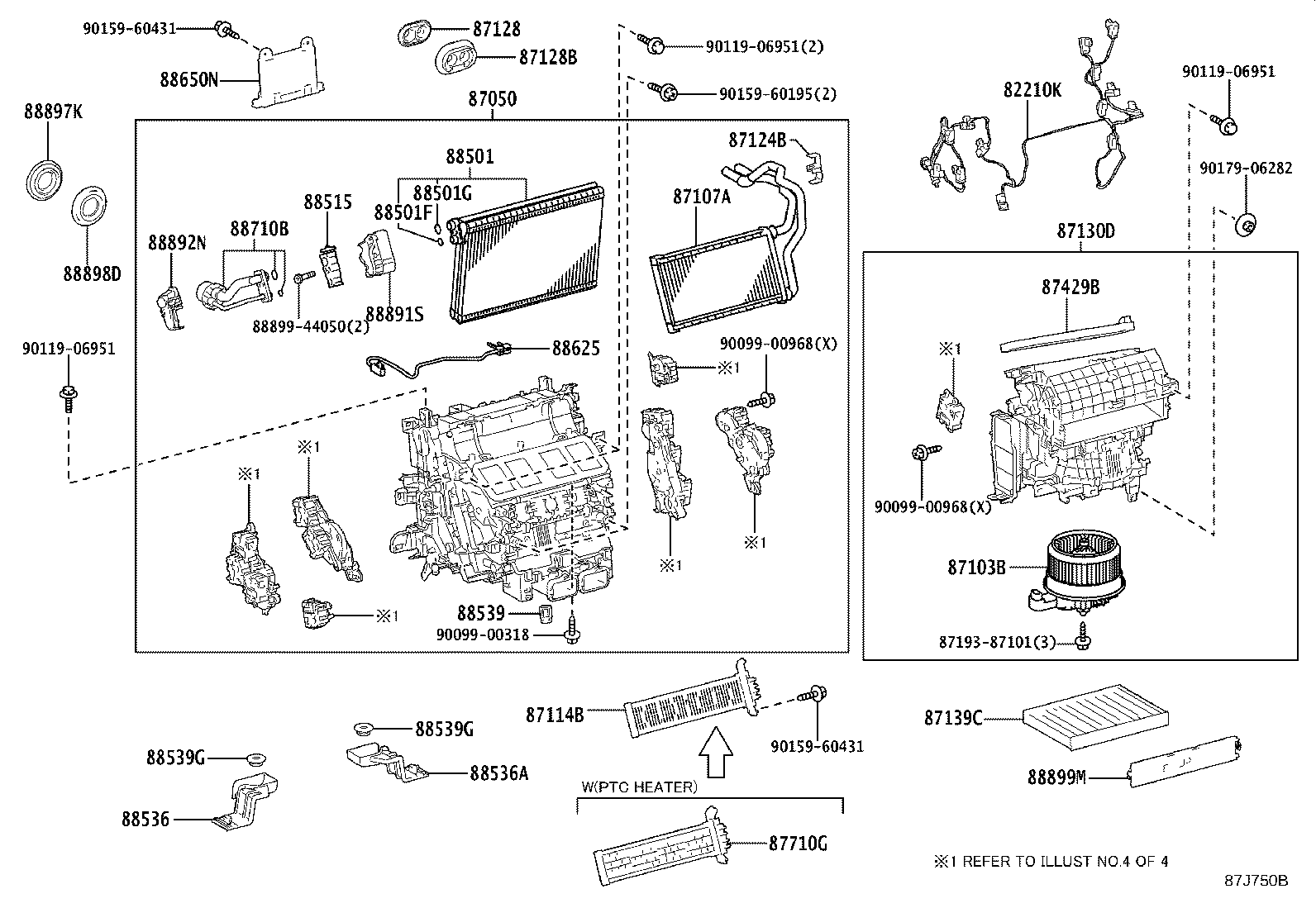

ILLUST NO. 1 OF 4(2104- )LHD
FRONT(1LAY),W/O (COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-60550 |
GRJ300,VJA300..(A,G)..GCC |
1 | ||
| 82212-60530 |
GRJ300,VJA300..(V,Z)..GCC |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-60N50 |
GRJ300,VJA300..(A,G)..GCC |
1 | ||
| 87050-60D80 |
GRJ300,VJA300..(V,Z)..GCC COOL BOX-WITH |
1 | ||
| 87050-60D90 |
GRJ300,VJA300..(V,Z)..GCC |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-33170 |
GRJ300,VJA300..GCC |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60450 |
GRJ300,VJA300..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-30010 |
VJA300..A..EUR;GRJ300,VJA300..GCC,GEN |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-33070 |
GRJ300,VJA300 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-60120 |
GRJ300;VJA300..G,V,Z;VJA300..LHD..A |
1 | ||
| 87128B - GROMMET, HEATER, NO.2 | ||||
| 87128-28020 |
GRJ300,VJA300 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-60630 |
GRJ300,VJA300..GCC |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-60030 |
GRJ300,VJA300 POLLEN FILTER |
1 | ||
| 87139-30110 |
GRJ300,VJA300 DEODORANT FILTER |
1 | ||
| 87429B - PACKING, COOLER UNIT, NO.1 | ||||
| 87429-60020 |
GRJ300,VJA300 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60670 |
GRJ300,VJA300 |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
GRJ300,VJA300 ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
GRJ300,VJA300 ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-60350 |
GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN) |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-60B80 |
GRJ300,VJA300 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88688-60B90 |
GRJ300,VJA300 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88899-10110 |
GRJ300,VJA300 |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
GRJ300,VJA300 |
2 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
GRJ300,VJA300 |
2 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-30290 |
GRJ300,VJA300..LHD |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-60Y40 |
GRJ300,VJA300 |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-60N50 |
GRJ300,VJA300..(A,G)..GCC |
1 | ||
| 88710-60N90 |
GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN) |
1 | ||
| 88710-60N50 |
VJA300..A..EUR;GRJ300,VJA300..LHD..(V,Z) COOL BOX-WITH |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-11010 |
GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN) |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88892-11010 |
GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN) |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-11020 |
GRJ300;VJA300..G,V,Z;VJA300..LHD..A |
1 | ||
| 88898D - GROMMET | ||||
| 88899-11020 |
GRJ300,VJA300 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-50150 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-44050 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90119-06951 | ||||
| 90159-60195 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||

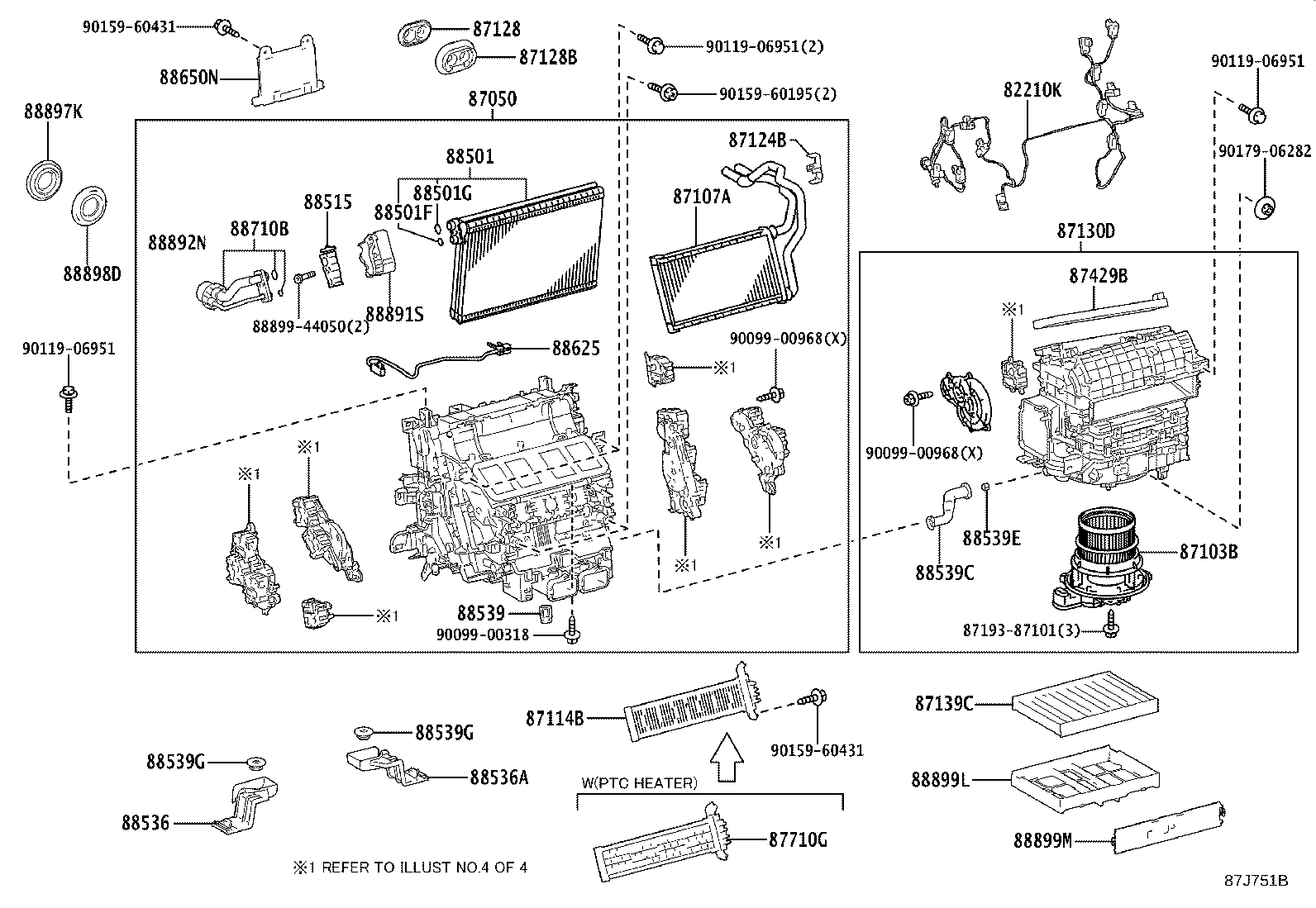

ILLUST NO. 1 OF 4(2104- )LHD
FRONT(2LAY),W/O (COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-60550 |
GRJ300,VJA300..(A,G)..GCC |
1 | ||
| 82212-60530 |
GRJ300,VJA300..(V,Z)..GCC |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-60N50 |
GRJ300,VJA300..(A,G)..GCC |
1 | ||
| 87050-60D80 |
GRJ300,VJA300..(V,Z)..GCC COOL BOX-WITH |
1 | ||
| 87050-60D90 |
GRJ300,VJA300..(V,Z)..GCC |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-33170 |
GRJ300,VJA300..GCC |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60450 |
GRJ300,VJA300..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-30010 |
VJA300..A..EUR;GRJ300,VJA300..GCC,GEN |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-33070 |
GRJ300,VJA300 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-60120 |
GRJ300;VJA300..G,V,Z;VJA300..LHD..A |
1 | ||
| 87128B - GROMMET, HEATER, NO.2 | ||||
| 87128-28020 |
GRJ300,VJA300 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-60630 |
GRJ300,VJA300..GCC |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-60030 |
GRJ300,VJA300 POLLEN FILTER |
1 | ||
| 87139-30110 |
GRJ300,VJA300 DEODORANT FILTER |
1 | ||
| 87429B - PACKING, COOLER UNIT, NO.1 | ||||
| 87429-60020 |
GRJ300,VJA300 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60670 |
GRJ300,VJA300 |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
GRJ300,VJA300 ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
GRJ300,VJA300 ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-60350 |
GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN) |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-60B80 |
GRJ300,VJA300 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88688-60B90 |
GRJ300,VJA300 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88899-10110 |
GRJ300,VJA300 |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
GRJ300,VJA300 |
2 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
GRJ300,VJA300 |
2 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-30290 |
GRJ300,VJA300..LHD |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-60Y40 |
GRJ300,VJA300 |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-60N50 |
GRJ300,VJA300..(A,G)..GCC |
1 | ||
| 88710-60N90 |
GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN) |
1 | ||
| 88710-60N50 |
VJA300..A..EUR;GRJ300,VJA300..LHD..(V,Z) COOL BOX-WITH |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-11010 |
GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN) |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88892-11010 |
GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN) |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-11020 |
GRJ300;VJA300..G,V,Z;VJA300..LHD..A |
1 | ||
| 88898D - GROMMET | ||||
| 88899-11020 |
GRJ300,VJA300 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-50150 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-44050 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90119-06951 | ||||
| 90159-60195 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||
ILLUST NO. 1 OF 4(2104- )LHD
FRONT(1LAY),W (COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-60550 |
GRJ300,VJA300..(A,G)..GCC |
1 | ||
| 82212-60530 |
GRJ300,VJA300..(V,Z)..GCC |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-60N50 |
GRJ300,VJA300..(A,G)..GCC |
1 | ||
| 87050-60D80 |
GRJ300,VJA300..(V,Z)..GCC COOL BOX-WITH |
1 | ||
| 87050-60D90 |
GRJ300,VJA300..(V,Z)..GCC |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-33170 |
GRJ300,VJA300..GCC |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60450 |
GRJ300,VJA300..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-30010 |
VJA300..A..EUR;GRJ300,VJA300..GCC,GEN |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-33070 |
GRJ300,VJA300 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-60120 |
GRJ300;VJA300..G,V,Z;VJA300..LHD..A |
1 | ||
| 87128B - GROMMET, HEATER, NO.2 | ||||
| 87128-28020 |
GRJ300,VJA300 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-60630 |
GRJ300,VJA300..GCC |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-60030 |
GRJ300,VJA300 POLLEN FILTER |
1 | ||
| 87139-30110 |
GRJ300,VJA300 DEODORANT FILTER |
1 | ||
| 87429B - PACKING, COOLER UNIT, NO.1 | ||||
| 87429-60020 |
GRJ300,VJA300 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60670 |
GRJ300,VJA300 |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
GRJ300,VJA300 ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
GRJ300,VJA300 ID=13.4,OD=18.2 |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-60B80 |
GRJ300,VJA300 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88688-60B90 |
GRJ300,VJA300 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88899-10110 |
GRJ300,VJA300 |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
GRJ300,VJA300 |
2 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
GRJ300,VJA300 |
2 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-30290 |
GRJ300,VJA300..LHD |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-60Y40 |
GRJ300,VJA300 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-60N40 |
VJA300..A..EUR;GRJ300,VJA300..V,Z COOL BOX-WITH |
1 | ||
| 88710-60N40 |
GRJ300,VJA300..(A,G)..GCC |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-60N50 |
GRJ300,VJA300..(A,G)..GCC |
1 | ||
| 88710-60N90 |
GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN) |
1 | ||
| 88710-60N50 |
VJA300..A..EUR;GRJ300,VJA300..LHD..(V,Z) COOL BOX-WITH |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-11020 |
GRJ300;VJA300..G,V,Z;VJA300..LHD..A |
1 | ||
| 88898D - GROMMET | ||||
| 88899-11020 |
GRJ300,VJA300 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-50150 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88718-2D150 | ||||
| 88899-60380 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04611 | ||||
| 90119-06951 | ||||
| 90159-60195 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||

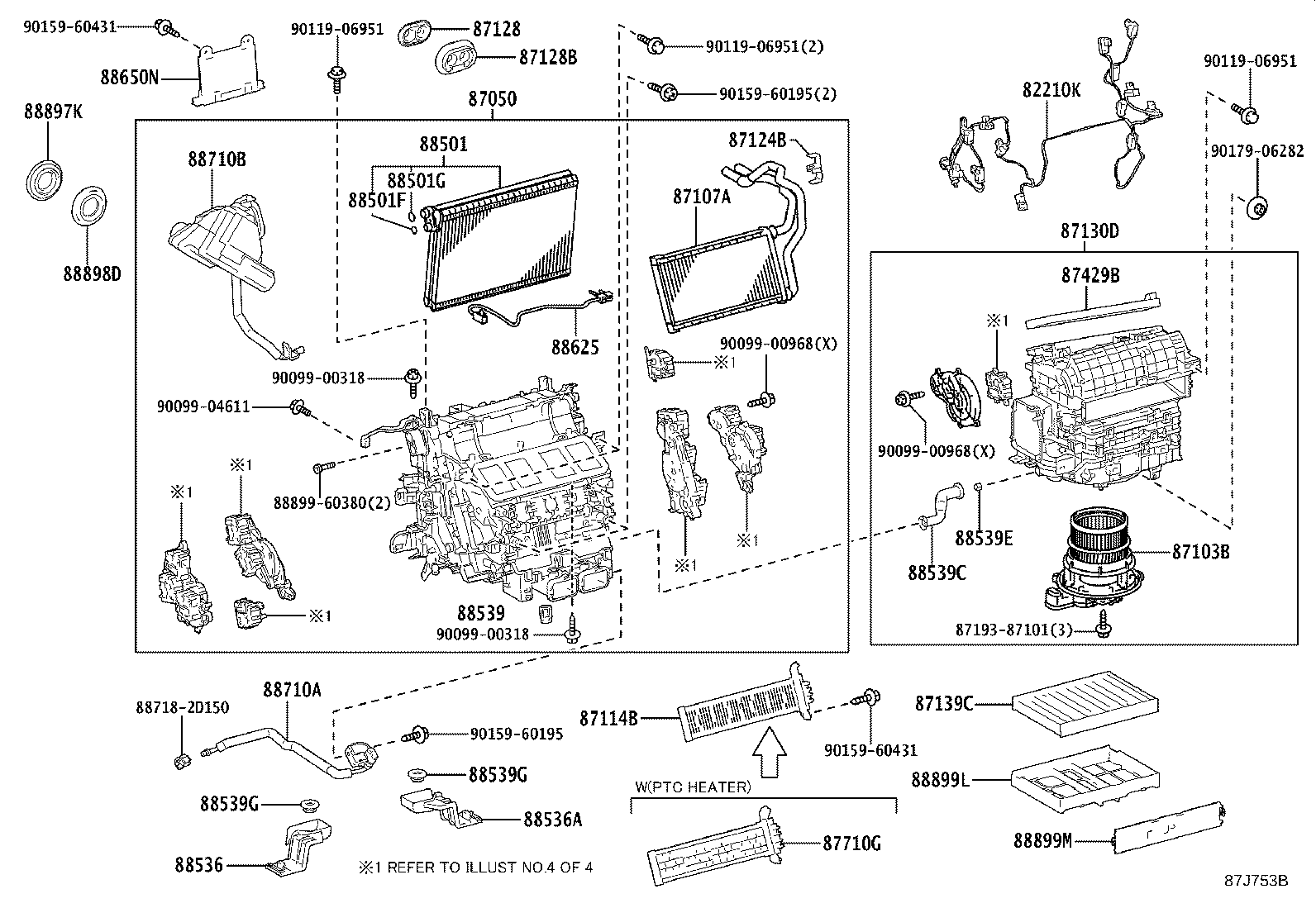

ILLUST NO. 1 OF 4(2104- )LHD
FRONT(2LAY),W (COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-60550 |
GRJ300,VJA300..(A,G)..GCC |
1 | ||
| 82212-60530 |
GRJ300,VJA300..(V,Z)..GCC |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-60N50 |
GRJ300,VJA300..(A,G)..GCC |
1 | ||
| 87050-60D80 |
GRJ300,VJA300..(V,Z)..GCC COOL BOX-WITH |
1 | ||
| 87050-60D90 |
GRJ300,VJA300..(V,Z)..GCC |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-33170 |
GRJ300,VJA300..GCC |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60450 |
GRJ300,VJA300..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-30010 |
VJA300..A..EUR;GRJ300,VJA300..GCC,GEN |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-33070 |
GRJ300,VJA300 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-60120 |
GRJ300;VJA300..G,V,Z;VJA300..LHD..A |
1 | ||
| 87128B - GROMMET, HEATER, NO.2 | ||||
| 87128-28020 |
GRJ300,VJA300 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-60630 |
GRJ300,VJA300..GCC |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-60030 |
GRJ300,VJA300 POLLEN FILTER |
1 | ||
| 87139-30110 |
GRJ300,VJA300 DEODORANT FILTER |
1 | ||
| 87429B - PACKING, COOLER UNIT, NO.1 | ||||
| 87429-60020 |
GRJ300,VJA300 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60670 |
GRJ300,VJA300 |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
GRJ300,VJA300 ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
GRJ300,VJA300 ID=13.4,OD=18.2 |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-60B80 |
GRJ300,VJA300 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88688-60B90 |
GRJ300,VJA300 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88899-10110 |
GRJ300,VJA300 |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
GRJ300,VJA300 |
2 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
GRJ300,VJA300 |
2 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-30290 |
GRJ300,VJA300..LHD |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-60Y40 |
GRJ300,VJA300 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-60N40 |
VJA300..A..EUR;GRJ300,VJA300..V,Z COOL BOX-WITH |
1 | ||
| 88710-60N40 |
GRJ300,VJA300..(A,G)..GCC |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-60N50 |
GRJ300,VJA300..(A,G)..GCC |
1 | ||
| 88710-60N90 |
GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN) |
1 | ||
| 88710-60N50 |
VJA300..A..EUR;GRJ300,VJA300..LHD..(V,Z) COOL BOX-WITH |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-11020 |
GRJ300;VJA300..G,V,Z;VJA300..LHD..A |
1 | ||
| 88898D - GROMMET | ||||
| 88899-11020 |
GRJ300,VJA300 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-50150 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88718-2D150 | ||||
| 88899-60380 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04611 | ||||
| 90119-06951 | ||||
| 90159-60195 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||

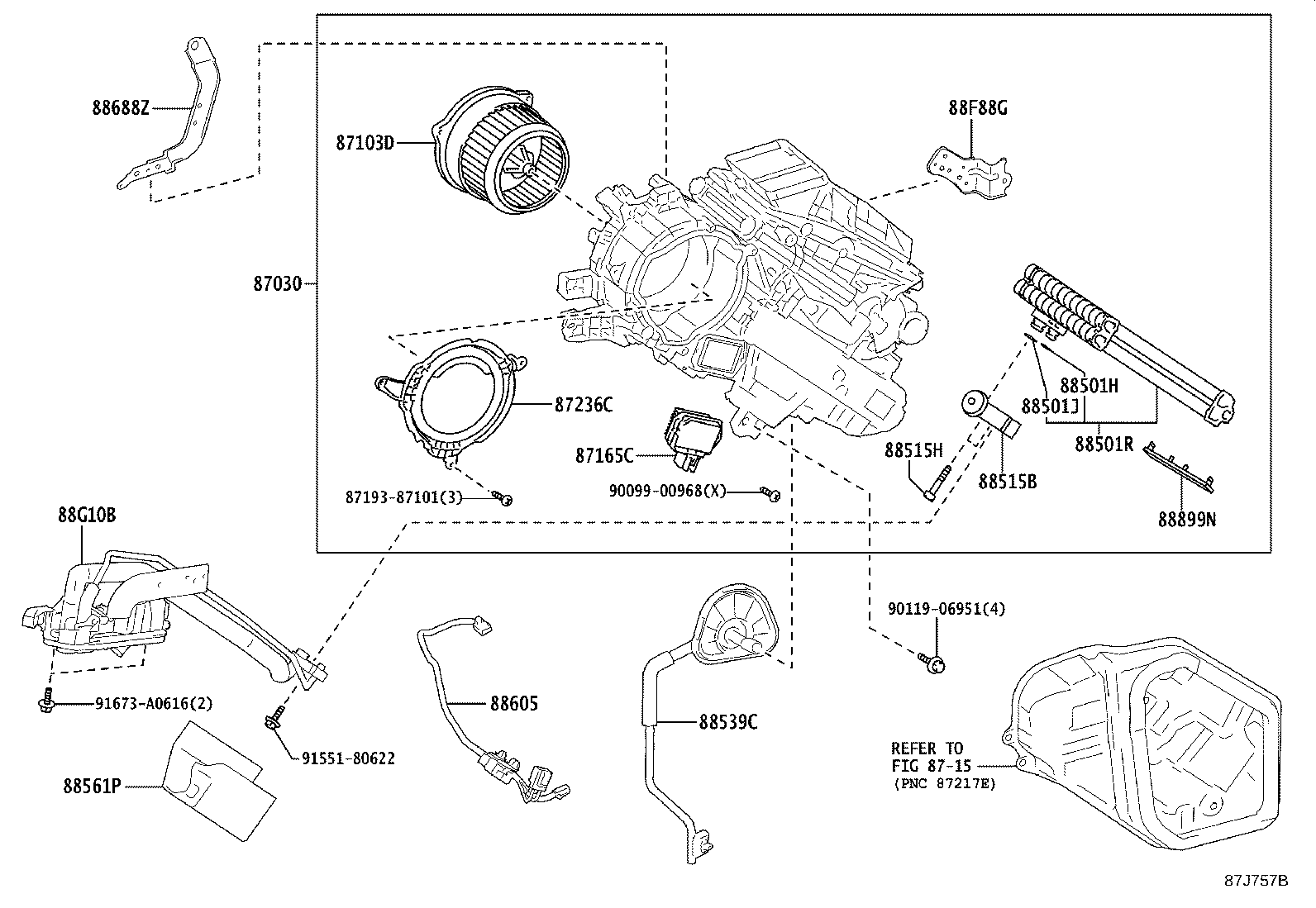

ILLUST NO. 2 OF 4(2104- )
REAR AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-60240 |
GRJ300,VJA300..(V,Z)..(GCC,GEN) |
1 | ||
| 87030-60260 |
GRJ300..A;VJA300..(A,G)..GCC |
1 | ||
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-26210 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 87106V - SERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2) | ||||
| 87106-60280 |
GRJ300,VJA300..V,Z |
1 | ||
| 87106W - SERVO SUB-ASSY, DAMPER(FOR AIRMIX REAR) | ||||
| 87106-26140 |
GRJ300,VJA300..V,Z |
1 | ||
| 87106X - SERVO SUB-ASSY, DAMPER(FOR MODE REAR) | ||||
| 87106-26150 |
GRJ300,VJA300..V,Z |
1 | ||
| 87107B - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60440 |
GRJ300,VJA300..V,Z |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-26030 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 87236C - COVER, HEATER BLOWER | ||||
| 87236-26020 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88501H - O-RING, COOLER EVAPORATOR NO.2(DISCHARGE) | ||||
| 90099-14120 |
GRJ300..A,V;VJA300..A..GCC;VJA300..(G,V,Z)..(GCC,GEN) ID=10.8,OD=15.6 |
1 | ||
| 88501J - O-RING, COOLER EVAPORATOR NO.2(SUCTION) | ||||
| 90099-14121 |
GRJ300..A,V;VJA300..A..GCC;VJA300..(G,V,Z)..(GCC,GEN) ID=13.4,OD=18.2 |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-60650 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-60310 |
GRJ300..A,V;VJA300..A..GCC;VJA300..(G,V,Z)..(GCC,GEN) |
1 | ||
| 88515H - BOLT(FOR REAR COOLER EXPANSION VALVE) | ||||
| 88899-60510 |
GRJ300..A,V;VJA300..A..GCC;VJA300..(G,V,Z)..(GCC,GEN) |
2 | ||
| 88539N - HOSE, COOLER UNIT DRAIN, NO.4 | ||||
| 88539-60380 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88561P - PACKING, RR AIR CONDITIONER UNIT, NO.1 | ||||
| 88561-60030 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 82212-60450 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 82212-60510 |
GRJ300,VJA300..V,Z |
1 | ||
| 88899N - PLATE, COVER | ||||
| 88899-60520 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88F88G - BRACKET, RR AIR CONDITIONER UNIT, NO.1 | ||||
| 88688-60C20 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88G10B - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.6 | ||||
| 88710-60L20 |
GRJ300,VJA300..(V,Z)..(GCC,GEN) |
1 | ||
| 88710-60L30 |
GRJ300..A;VJA300..(A,G)..GCC |
1 | ||
| 88H91 - COVER, REAR COOLER, NO.1 | ||||
| 88891-20240 |
GRJ300,VJA300..V,Z |
1 | ||
| Common parts | ||||
| 87124-60300 | ||||
| 87193-87101 | ||||
| 90099-00968 | ||||
| 90119-06951 | ||||
| 91551-80622 | ||||
| 91673-A0616 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 8715 | ||||

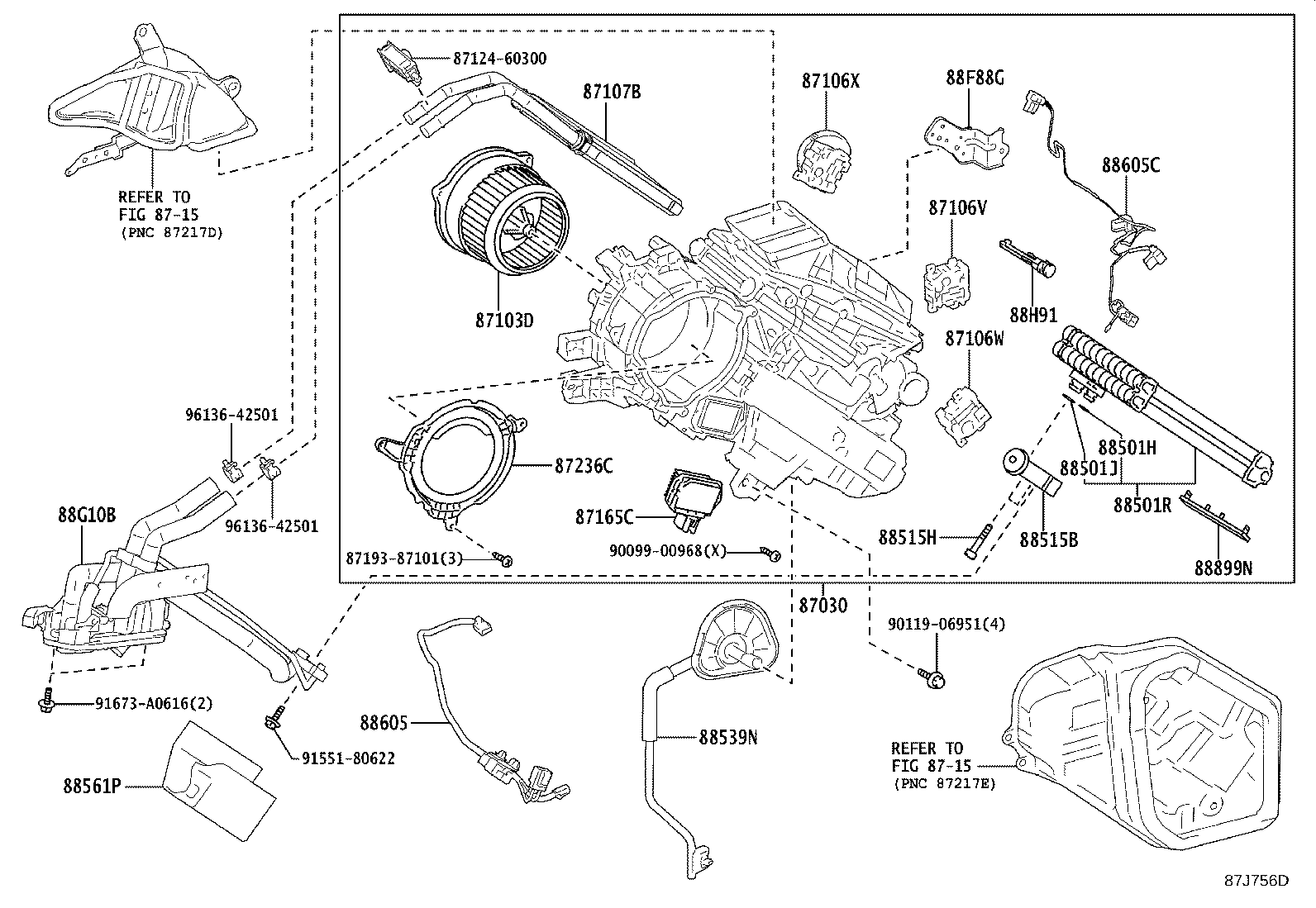

ILLUST NO. 2 OF 4(2104- )
REAR COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-60240 |
GRJ300,VJA300..(V,Z)..(GCC,GEN) |
1 | ||
| 87030-60260 |
GRJ300..A;VJA300..(A,G)..GCC |
1 | ||
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-26210 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-26030 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 87236C - COVER, HEATER BLOWER | ||||
| 87236-26020 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88501H - O-RING, COOLER EVAPORATOR NO.2(DISCHARGE) | ||||
| 90099-14120 |
GRJ300..A,V;VJA300..A..GCC;VJA300..(G,V,Z)..(GCC,GEN) ID=10.8,OD=15.6 |
1 | ||
| 88501J - O-RING, COOLER EVAPORATOR NO.2(SUCTION) | ||||
| 90099-14121 |
GRJ300..A,V;VJA300..A..GCC;VJA300..(G,V,Z)..(GCC,GEN) ID=13.4,OD=18.2 |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-60650 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-60310 |
GRJ300..A,V;VJA300..A..GCC;VJA300..(G,V,Z)..(GCC,GEN) |
1 | ||
| 88515H - BOLT(FOR REAR COOLER EXPANSION VALVE) | ||||
| 88899-60510 |
GRJ300..A,V;VJA300..A..GCC;VJA300..(G,V,Z)..(GCC,GEN) |
2 | ||
| 88561P - PACKING, RR AIR CONDITIONER UNIT, NO.1 | ||||
| 88561-60030 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 82212-60450 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88688Z - BRACKET | ||||
| 88688-60C00 |
GRJ300..A;VJA300..(A,G)..GCC |
1 | ||
| 88899N - PLATE, COVER | ||||
| 88899-60520 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88F88G - BRACKET, RR AIR CONDITIONER UNIT, NO.1 | ||||
| 88688-60C20 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..A..GCC |
1 | ||
| 88G10B - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.6 | ||||
| 88710-60L20 |
GRJ300,VJA300..(V,Z)..(GCC,GEN) |
1 | ||
| 88710-60L30 |
GRJ300..A;VJA300..(A,G)..GCC |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-00968 | ||||
| 90119-06951 | ||||
| 91551-80622 | ||||
| 91673-A0616 | ||||
| Linked diagrams | ||||
| 8715 | ||||

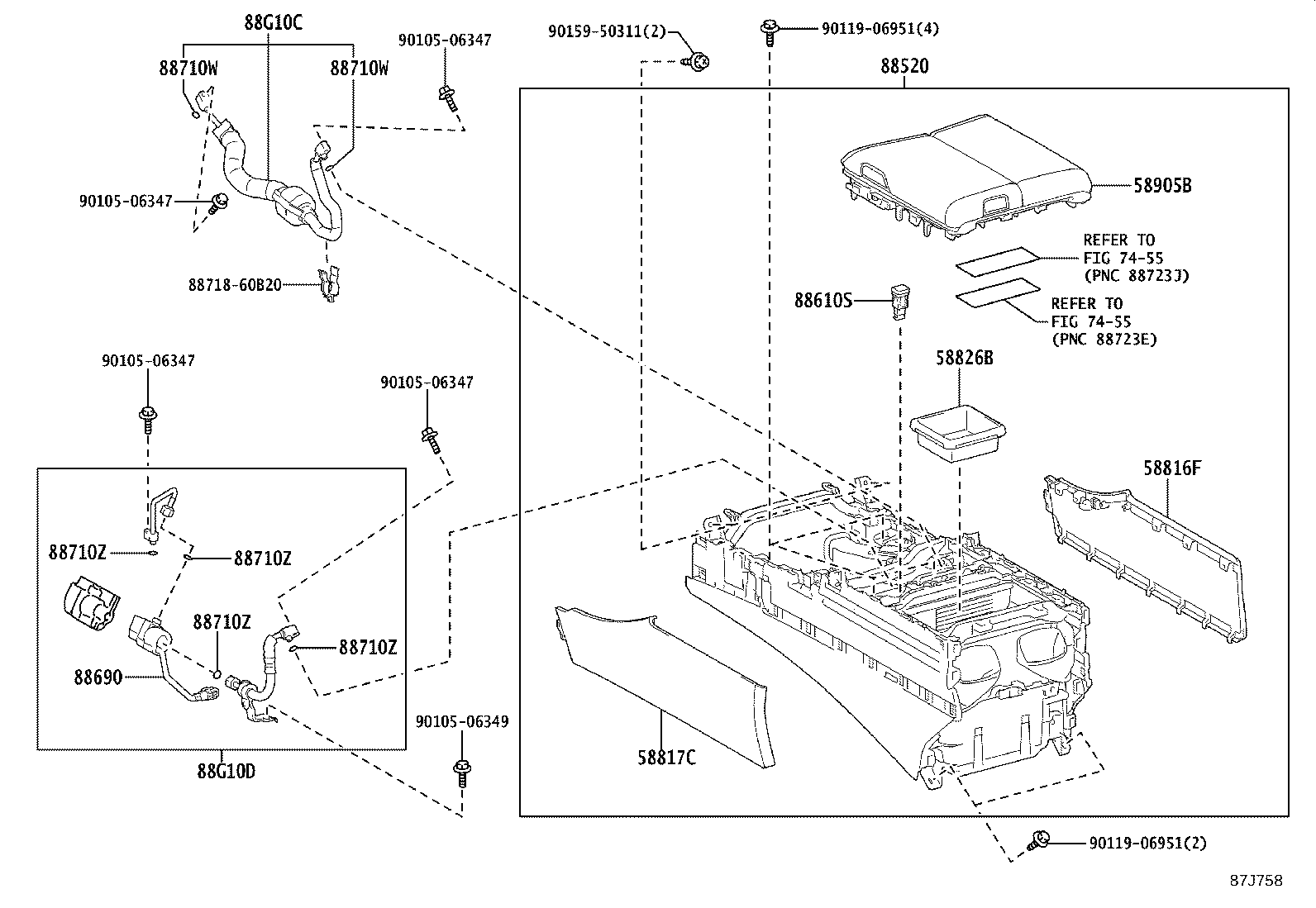

ILLUST NO. 3 OF 4(2104- )
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58816F - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-60090C0 |
GRJ300..A,G;VJA300..A..GCC BLACK,TRIM2#,40 |
1 | ||
| 58816-60090E0 |
GRJ300..A,G;VJA300..A..GCC NEUTRAL BEIGE,TRIM40 |
1 | ||
| 58816-60100C1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO),BLACK,TRIM2# |
1 | ||
| 58816-60100E1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 58816-60100C1 |
VJA300..Z COOL BOX-WITH,BLACK,TRIM2#,3# |
1 | ||
| 58816-60090C0 |
VJA300..G BLACK,TRIM2# |
1 | ||
| 58816-60100C1 |
GRJ300,VJA300..V COOL BOX-WITH,BLACK,TRIM2# |
1 | ||
| 58816-60090E0 |
VJA300..G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 58816-60100C1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE,BLACK,TRIM2# |
1 | ||
| 58816-60100E1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 58816-60100E1 |
GRJ300,VJA300..V,Z COOL BOX-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 58817C - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-60090C1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE,BLACK,TRIM2# |
1 | ||
| 58817-60080E0 |
GRJ300..A,G;VJA300..A..GCC NEUTRAL BEIGE,TRIM40 |
1 | ||
| 58817-60080C0 |
VJA300..G BLACK,TRIM2# |
1 | ||
| 58817-60080E0 |
VJA300..G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 58817-60090C1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO),BLACK,TRIM2# |
1 | ||
| 58817-60090E1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 58817-60080C0 |
GRJ300..A,G;VJA300..A..GCC BLACK,TRIM2#,40 |
1 | ||
| 58817-60090C1 |
GRJ300,VJA300..V COOL BOX-WITH,BLACK,TRIM2# |
1 | ||
| 58817-60090E1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 58817-60090C1 |
VJA300..Z COOL BOX-WITH,BLACK,TRIM2#,3# |
1 | ||
| 58817-60090E1 |
GRJ300,VJA300..V,Z COOL BOX-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 58826B - POCKET, CONSOLE BOX, LOWER | ||||
| 58826-60070 |
GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN) COOL BOX-WITH |
1 | ||
| 58826-60070 |
GRJ300,VJA300..(A,G)..GCC |
1 | ||
| 58905B - DOOR SUB-ASSY, CONSOLE COMPARTMENT(FOR COOL BOX) | ||||
| 58905-60560C2 |
VJA300..LHD..Z COOL BOX-WITH,BLACK,TRIM2#,3# |
1 | ||
| 58905-60560C2 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO),BLACK,TRIM2# |
1 | ||
| 58905-60560C2 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE,BLACK,TRIM2# |
1 | ||
| 58905-60600E1 |
GRJ300,VJA300..(A,G)..GCC NEUTRAL BEIGE,TRIM4# |
1 | ||
| 58905-60560E2 |
GRJ300,VJA300..LHD..(V,Z) COOL BOX-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 58905-60560E2 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 58905-60560E2 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 58905-60600C1 |
GRJ300,VJA300..(A,G)..GCC BLACK,TRIM2# |
1 | ||
| 58905-60560C2 |
GRJ300,VJA300..LHD..V COOL BOX-WITH,BLACK,TRIM2# |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-60A30C1 |
GRJ300,VJA300..(A,G)..GCC BLACK,TRIM2# |
1 | ||
| 88520-60A60C1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE,BLACK,TRIM2# |
1 | ||
| 88520-60A60C1 |
VJA300..LHD..Z COOL BOX-WITH,BLACK,TRIM2#,3# |
1 | ||
| 88520-60A30E1 |
GRJ300,VJA300..(A,G)..GCC NEUYRAL BEIGE,TRIM4# |
1 | ||
| 88520-60A60E1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 88520-60A60C1 |
GRJ300,VJA300..LHD..V COOL BOX-WITH,BLACK,TRIM2# |
1 | ||
| 88520-60A60E1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 88520-60A60E1 |
GRJ300,VJA300..LHD..(V,Z) COOL BOX-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 88520-60A60C1 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO),BLACK,TRIM2# |
1 | ||
| 88610S - SWITCH ASSY, CONTROL | ||||
| 88470-60070 |
GRJ300,VJA300..(A,G)..GCC |
1 | ||
| 88470-60070 |
GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN) COOL BOX-WITH |
1 | ||
| 88690 - VALVE ASSY, COOLER MAGNET | ||||
| 88690-60310 |
GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN) COOL BOX-WITH |
1 | ||
| 88690-60310 |
GRJ300,VJA300..(A,G)..GCC |
1 | ||
| 88710W - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14119 |
GRJ300,VJA300..(A,G)..GCC ID=6.7,OD=10.3 |
2 | ||
| 90099-14119 |
GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,COOL BOX-WITH |
2 | ||
| 88710W - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14119 |
GRJ300,VJA300..(A,G)..GCC ID=6.7,OD=10.3 |
2 | ||
| 90099-14119 |
GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,COOL BOX-WITH |
2 | ||
| 88710Z - RING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14119 |
GRJ300,VJA300..(A,G)..GCC ID=6.7,OD=10.3 |
4 | ||
| 90099-14119 |
GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,COOL BOX-WITH |
4 | ||
| 88710Z - RING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14119 |
GRJ300,VJA300..(A,G)..GCC ID=6.7,OD=10.3 |
4 | ||
| 90099-14119 |
GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,COOL BOX-WITH |
4 | ||
| 88710Z - RING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14119 |
GRJ300,VJA300..(A,G)..GCC ID=6.7,OD=10.3 |
4 | ||
| 90099-14119 |
GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,COOL BOX-WITH |
4 | ||
| 88710Z - RING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14119 |
GRJ300,VJA300..(A,G)..GCC ID=6.7,OD=10.3 |
4 | ||
| 90099-14119 |
GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN) ID=6.7,OD=10.3,COOL BOX-WITH |
4 | ||
| 88G10C - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.7 | ||||
| 88710-60L50 |
GRJ300,VJA300..(A,G)..GCC |
1 | ||
| 88710-60L50 |
GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN) COOL BOX-WITH |
1 | ||
| 88G10D - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.8 | ||||
| 88710-60L60 |
GRJ300,VJA300..(A,G)..GCC |
1 | ||
| 88710-60L60 |
GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN) COOL BOX-WITH |
1 | ||
| Common parts | ||||
| 88718-60B20 | ||||
| 90105-06347 | ||||
| 90105-06349 | ||||
| 90119-06951 | ||||
| 90159-50311 | ||||
| Linked diagrams | ||||
| 7455 | ||||

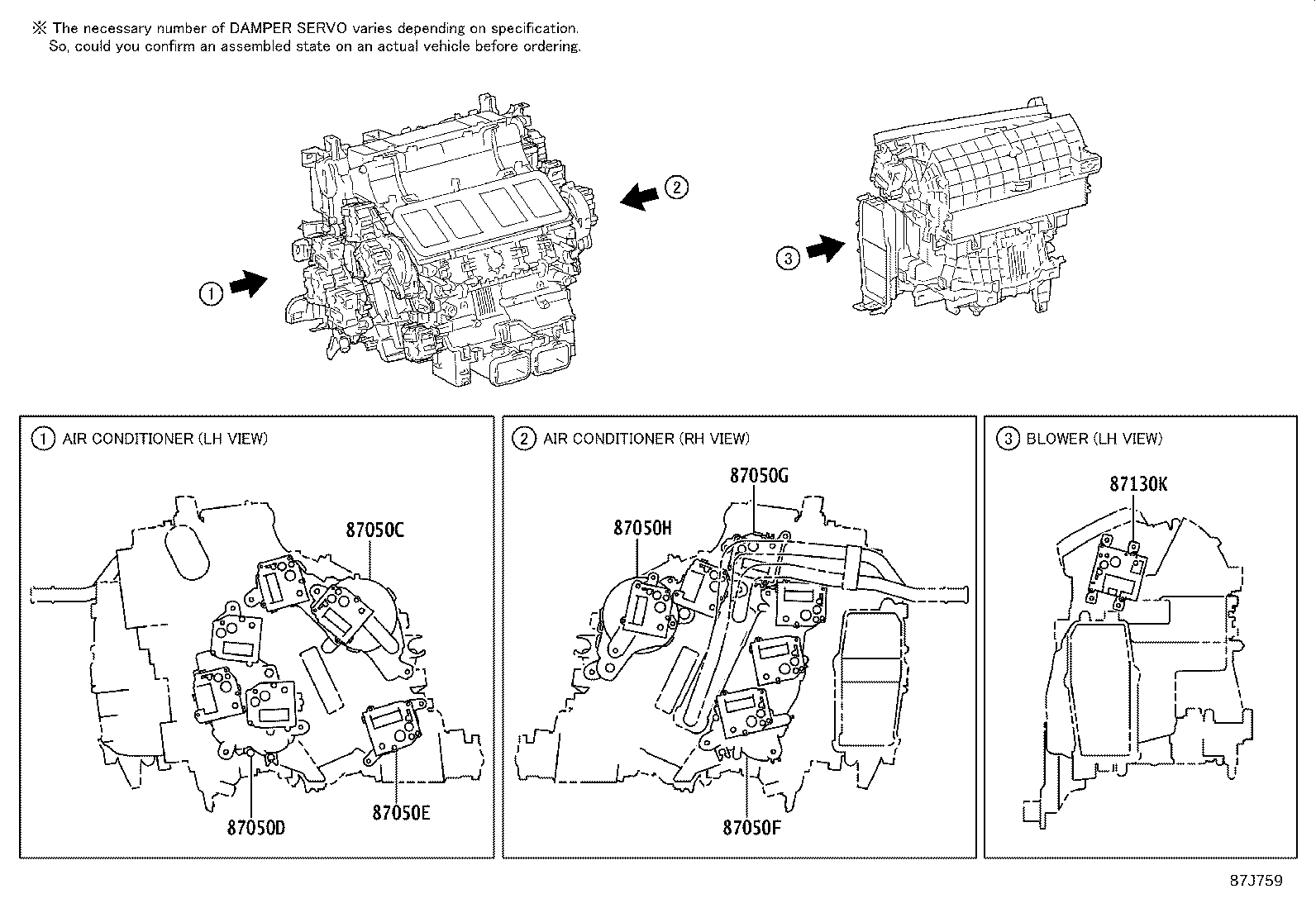

ILLUST NO. 4 OF 4(2104- )LHD
DAMPER SERVO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-11060 |
GRJ300,VJA300 |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-11010 |
GRJ300,VJA300..A,G |
1 | ||
| 87106-50710 |
GRJ300,VJA300..V,Z |
1 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-50610 |
GRJ300,VJA300 |
1 | ||
| 87050F - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.4 | ||||
| 87106-11020 |
GRJ300,VJA300..A,G |
1 | ||
| 87106-50720 |
GRJ300,VJA300..V,Z |
1 | ||
| 87050G - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.5 | ||||
| 87106-60370 |
GRJ300,VJA300 |
1 | ||
| 87050H - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.6 | ||||
| 87106-50730 |
GRJ300,VJA300..V,Z |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-33330 |
GRJ300,VJA300..GCC |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
