VJA300L-GNUZZV (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999
Engine V35AFTS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

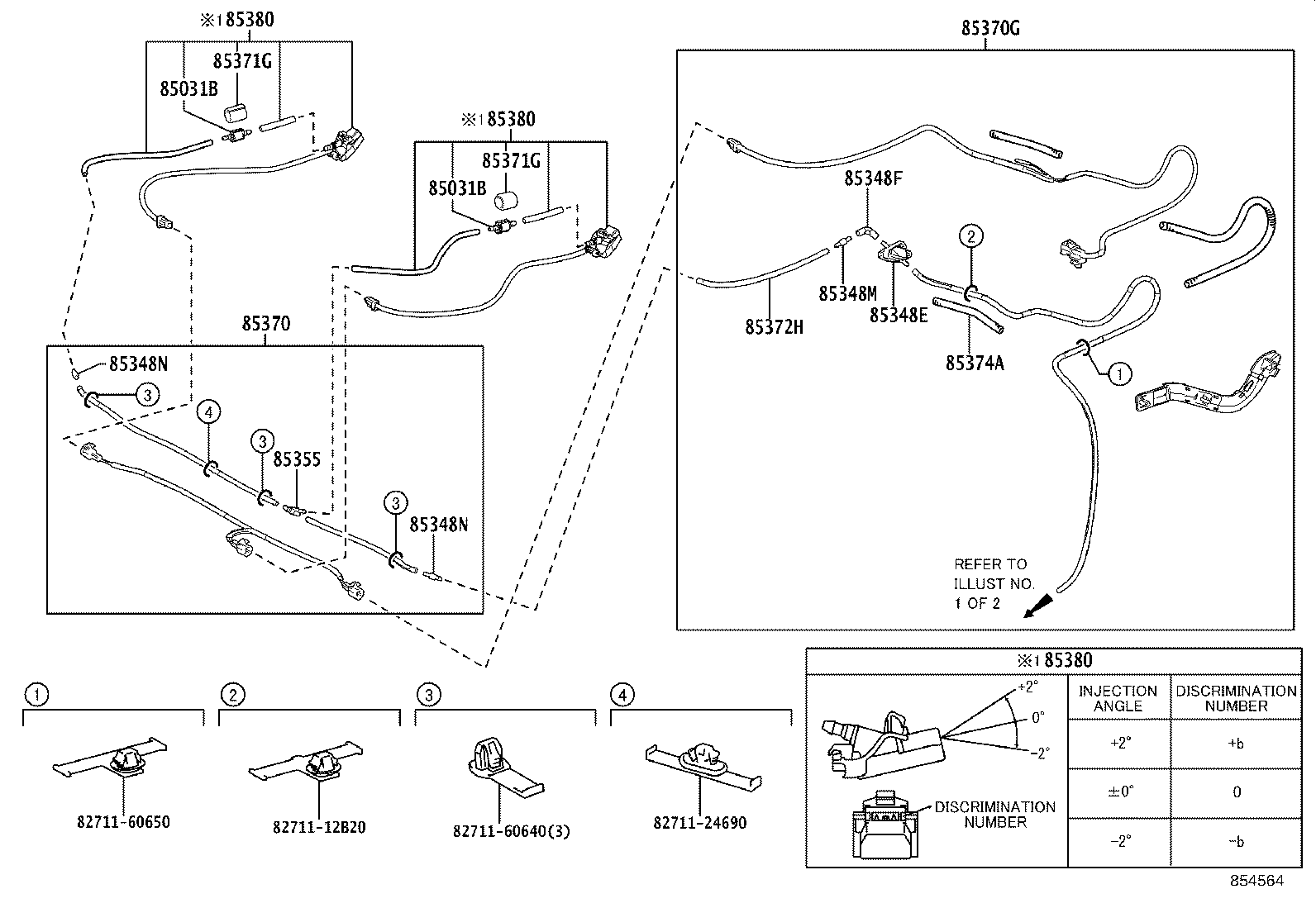

ILLUST NO. 2 OF 2(2104- )

Click highlighted areas on diagram

W(NOZZLE HEATER)

diagram 8271112B20 8271124690 8271160640 8271160650 85031B 85031B 85348E 85348F 85348M 85348N 85348N 85355 85370 85370G 85371G 85371G 85372H 85374A 85380 85380 85380
Part # Description Qty Price
85031B - VALVE SUB-ASSY, WASHER
85321-26020

GRJ300,VJA300

 2
85031B - VALVE SUB-ASSY, WASHER
85321-26020

GRJ300,VJA300

 2
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85373-12050

GRJ300,VJA300..GCC,GEN

 1
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85355-14481

GRJ300,VJA300

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-10260

GRJ300,VJA300

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85375-10260

GRJ300,VJA300

 2
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85375-10260

GRJ300,VJA300

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85378-33410

GRJ300,VJA300

 1
85371G - PROTECTOR, FRONT WASHER
85389-26080

GRJ300,VJA300

 2
85371G - PROTECTOR, FRONT WASHER
85389-26080

GRJ300,VJA300

 2
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

GRJ300,VJA300

*H,L=210

 1
Common parts
82711-12B20
82711-24690
82711-60640
82711-60650

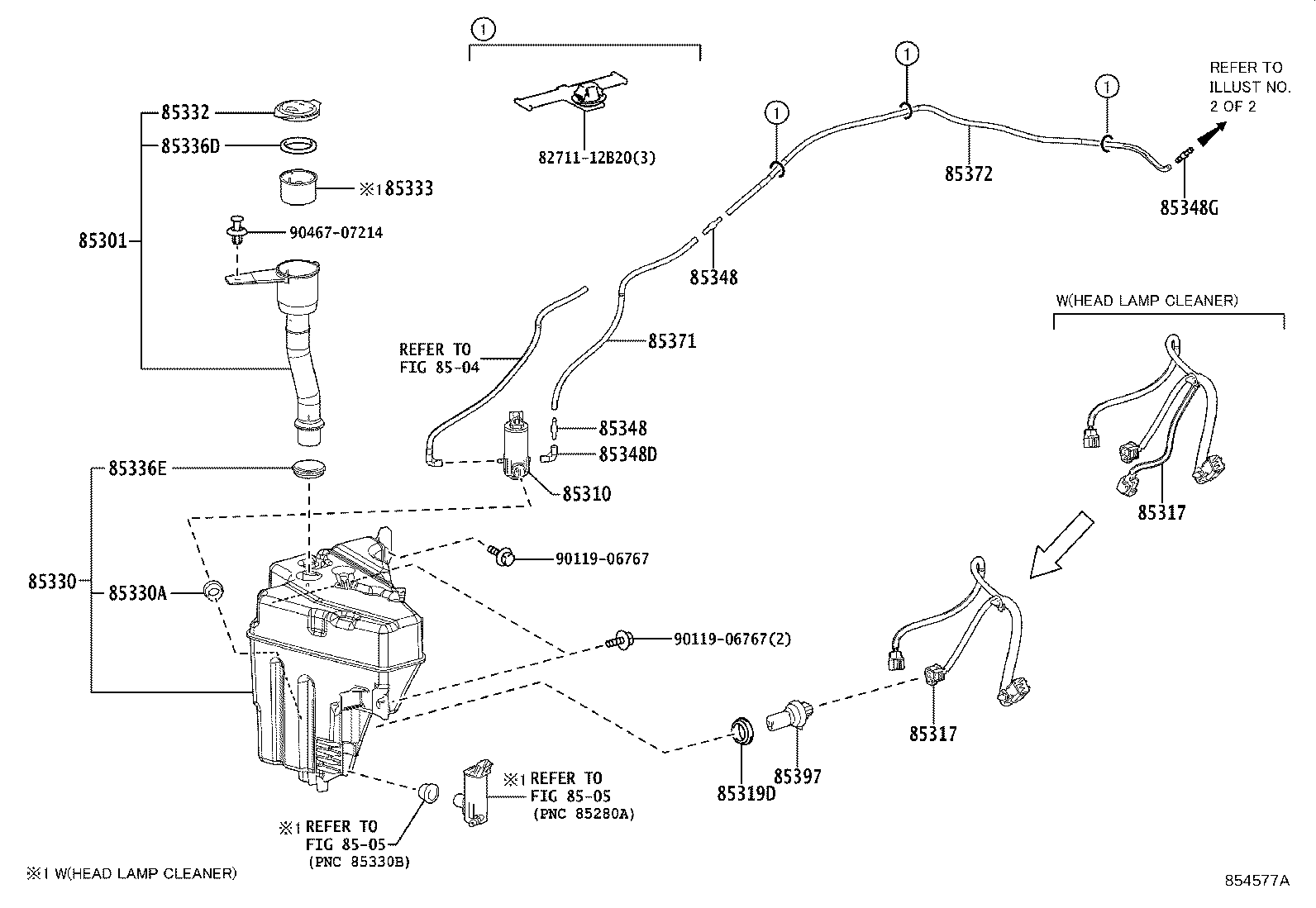

ILLUST NO. 1 OF 2(2104- )

Click highlighted areas on diagram

diagram 8271112B20 8504 8505 8505 85301 85310 85317 85317 85319D 85330 85330A 85332 85333 85336D 85336E 85348 85348 85348D 85348G 85371 85372 85397 9011906767 9011906767 9046707214
Part # Description Qty Price
85301 - INLET SUB-ASSY, WASHER
85301-60100

GRJ300,VJA300

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-47100

GRJ300,VJA300

 1
85317 - WIRING ASSY, WASHER
82374-60050

GRJ300,VJA300..A

HEADLAMP CLEANER-WITH

 1
82374-60050

GRJ300,VJA300..V,Z

 1
82374-60040

GRJ300,VJA300..A,G

 1
85317 - WIRING ASSY, WASHER
82374-60050

GRJ300,VJA300..A

HEADLAMP CLEANER-WITH

 1
82374-60050

GRJ300,VJA300..V,Z

 1
82374-60040

GRJ300,VJA300..A,G

 1
85319D - PACKING, FRONT WASHER
85319-33230

GRJ300,VJA300

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-60470

GRJ300,VJA300..A,G

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

GRJ300,VJA300

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-60470

GRJ300,VJA300

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85312-60050

GRJ300,VJA300..V,Z

 1
85312-60050

GRJ300,VJA300..A

HEADLAMP CLEANER-WITH

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-42320

GRJ300,VJA300

 1
85336E - PACKING, WINDSHIELD WASHER INLET HOSE
85336-30160

GRJ300,VJA300

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

GRJ300,VJA300

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

GRJ300,VJA300

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

GRJ300,VJA300

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122

GRJ300,VJA300

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33075

GRJ300,VJA300

*H,L=340

 1
90099-33075

GRJ300,VJA300..A

*H,L=340,HEADLAMP CLEANER-WITH

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

GRJ300,VJA300

*H,L=850

 1
85397 - SWITCH ASSY,LEVEL WARNING
85397-30400

GRJ300,VJA300

 1
Common parts
82711-12B20
90119-06767
90467-07214
Linked diagrams
8504
8505

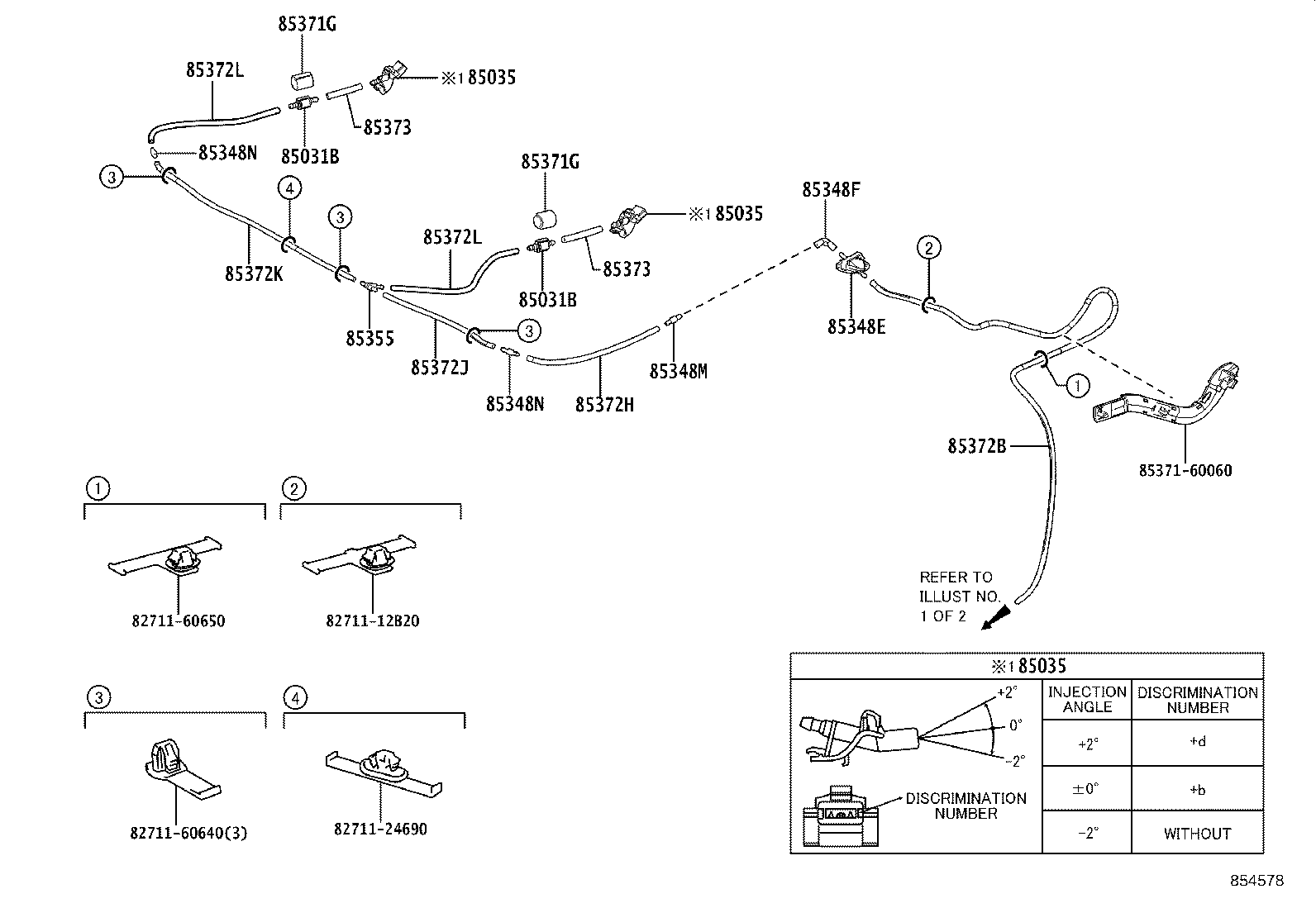

ILLUST NO. 2 OF 2(2104- )

Click highlighted areas on diagram

diagram 8271112B20 8271124690 8271160640 8271160650 85031B 85031B 85035 85035 85035 85348E 85348F 85348M 85348N 85348N 85355 8537160060 85371G 85371G 85372B 85372H 85372J 85372K 85372L 85372L 85373 85373
Part # Description Qty Price
85031B - VALVE SUB-ASSY, WASHER
85321-26020

GRJ300,VJA300

 2
85031B - VALVE SUB-ASSY, WASHER
85321-26020

GRJ300,VJA300

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30220

GRJ300,VJA300..GCC,GEN

ANGLE 0

 2
85381-30230

GRJ300,VJA300..GCC,GEN

ANGLE -2

 2
85381-30240

GRJ300,VJA300..GCC,GEN

ANGLE +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30220

GRJ300,VJA300..GCC,GEN

ANGLE 0

 2
85381-30230

GRJ300,VJA300..GCC,GEN

ANGLE -2

 2
85381-30240

GRJ300,VJA300..GCC,GEN

ANGLE +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30220

GRJ300,VJA300..GCC,GEN

ANGLE 0

 2
85381-30230

GRJ300,VJA300..GCC,GEN

ANGLE -2

 2
85381-30240

GRJ300,VJA300..GCC,GEN

ANGLE +2

 2
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85373-12050

GRJ300,VJA300..GCC,GEN

 1
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85355-14481

GRJ300,VJA300

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-10260

GRJ300,VJA300

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85375-10260

GRJ300,VJA300

 2
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85375-10260

GRJ300,VJA300

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85378-33410

GRJ300,VJA300

 1
85371G - PROTECTOR, FRONT WASHER
85389-26080

GRJ300,VJA300

 2
85371G - PROTECTOR, FRONT WASHER
85389-26080

GRJ300,VJA300

 2
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-62176

GRJ300,VJA300..GCC,GEN

L=1090

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

GRJ300,VJA300

*H,L=210

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90099-33080

GRJ300,VJA300..GCC,GEN

*H,L=270

 1
85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
90099-33080

GRJ300,VJA300..GCC,GEN

*H,L=500

 1
85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
90099-33080

GRJ300,VJA300..GCC,GEN

*H,L=210

 2
85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
90099-33080

GRJ300,VJA300..GCC,GEN

*H,L=210

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GRJ300,VJA300..GCC,GEN

*H,L=60

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GRJ300,VJA300..GCC,GEN

*H,L=60

 2
Common parts
82711-12B20
82711-24690
82711-60640
82711-60650
85371-60060
